◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#18799) — 1067 parça
çizim 10690
115 116 139 478 480
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
115 16.720 CUSHION ASM; PASSENGER SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-760-0 01 1 0112- ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> BLUE 		8-97198-368-0 01 1 9907-9908 ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> BLUE 		8-97293-579-2 01 1 9909-0012 ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97868-477-1 01 1 9811-9906 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97868-477-5 01 1 9907- ● ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97868-480-2 01 1 9811-9906 ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97868-480-4 01 1 9907-0112 ● ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97868-480-5 01 1 0201- ● ● ● ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> BLUE 		8-97293-579-2 01 1 0101-0105 ● ● ● ●
115 16.720 CUSHION ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> BLUE 		8-97293-579-2 01 1 0106- ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97869-363-0 01 1 9811-9902 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97867-472-0 01 1 9903-9906 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-472-3 01 1 9907- ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-467-1 01 1 9811-9906 ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-467-2 01 1 9907-0112 ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-467-3 01 1 0201- ● ● ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-770-0 01 1 0112- ● ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
CUSTOM PACKAGE<YM8> BLUE 		8-97198-374-0 01 1 9907-9908 ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
CUSTOM PACKAGE<YM8> BLUE 		8-97197-973-1 01 1 9909-0105 ● ● ● ●
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
CUSTOM PACKAGE<YM8> BLUE 		8-97197-973-1 01 1 0106- ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9811- ● ● ● ● ● ● ●
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-184-0 01 1 9811- ● ● ● ● ● ● ●
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 9811- ● ● ● ● ● ● ●
çizim 47698
117 238 28 113 28 18 19 228 2 232 24 16 498 497 17 99 12 13 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9811-9906 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-1 01 1 9907-0112 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-3 01 1 9811-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-4 01 1 0106- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-4 01 1 0106- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-2 01 1 9811-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0204- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9811-9906 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-214-0 01 1 9811-9906 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9907-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-214-0 01 1 9907-9909 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-214-3 01 1 9910- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97293-662-3 01 1 9910- ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-3 01 1 9811-0104 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-3 01 1 0105-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-4 01 1 0106- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-322-3 01 1 9811-0104 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-322-3 01 1 0105-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-322-4 01 1 0106-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-322-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-322-4 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-322-4 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-222-3 01 1 9811- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-304-1 01 1 9811-0112 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97299-283-2 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-283-2 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97299-283-2 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-778-0 01 1 0112- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-778-0 01 1 0112- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-773-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9811-9906 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-2 01 1 9907-0112 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-4 01 1 9811-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-5 01 1 0106- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-3 01 1 9811-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-5 01 1 0106- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-0 01 1 9811-9906 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-215-0 01 1 9811-9906 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-4 01 1 9907- ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-215-4 01 1 9907- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-2 01 1 9811-0104 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-2 01 1 0105-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-323-1 01 1 9811-9902 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-014-2 01 1 9903-0104 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-014-2 01 1 0105-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-014-3 01 1 0106-0203 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97867-014-3 01 1 0106-0203 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-014-3 01 1 0106-0203 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-223-4 01 1 9811- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-305-2 01 1 9811-0112 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97293-586-3 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-586-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97293-586-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-779-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-779-0 01 1 0112- ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-774-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 9907-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 0106- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9811-9906 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-2 01 1 9907-0112 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-4 01 1 9811-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-5 01 1 0106- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-3 01 1 9811-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-5 01 1 0106- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-0 01 1 9811-9906 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-216-0 01 1 9811-9906 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-4 01 1 9907- ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-216-4 01 1 9907- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-2 01 1 9811-0104 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-2 01 1 0105-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-324-1 01 1 9811-9902 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-088-2 01 1 9903-0104 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-088-2 01 1 0105-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-088-3 01 1 0106-0203 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97867-088-3 01 1 0106-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-088-3 01 1 0106-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-224-3 01 1 9811-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97196-224-3 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-224-3 01 1 0204- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-306-1 01 1 9811-0112 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-780-0 01 1 0112- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-780-0 01 1 0112- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-775-0 01 1 0112- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 9907-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 0106- ● ● ●

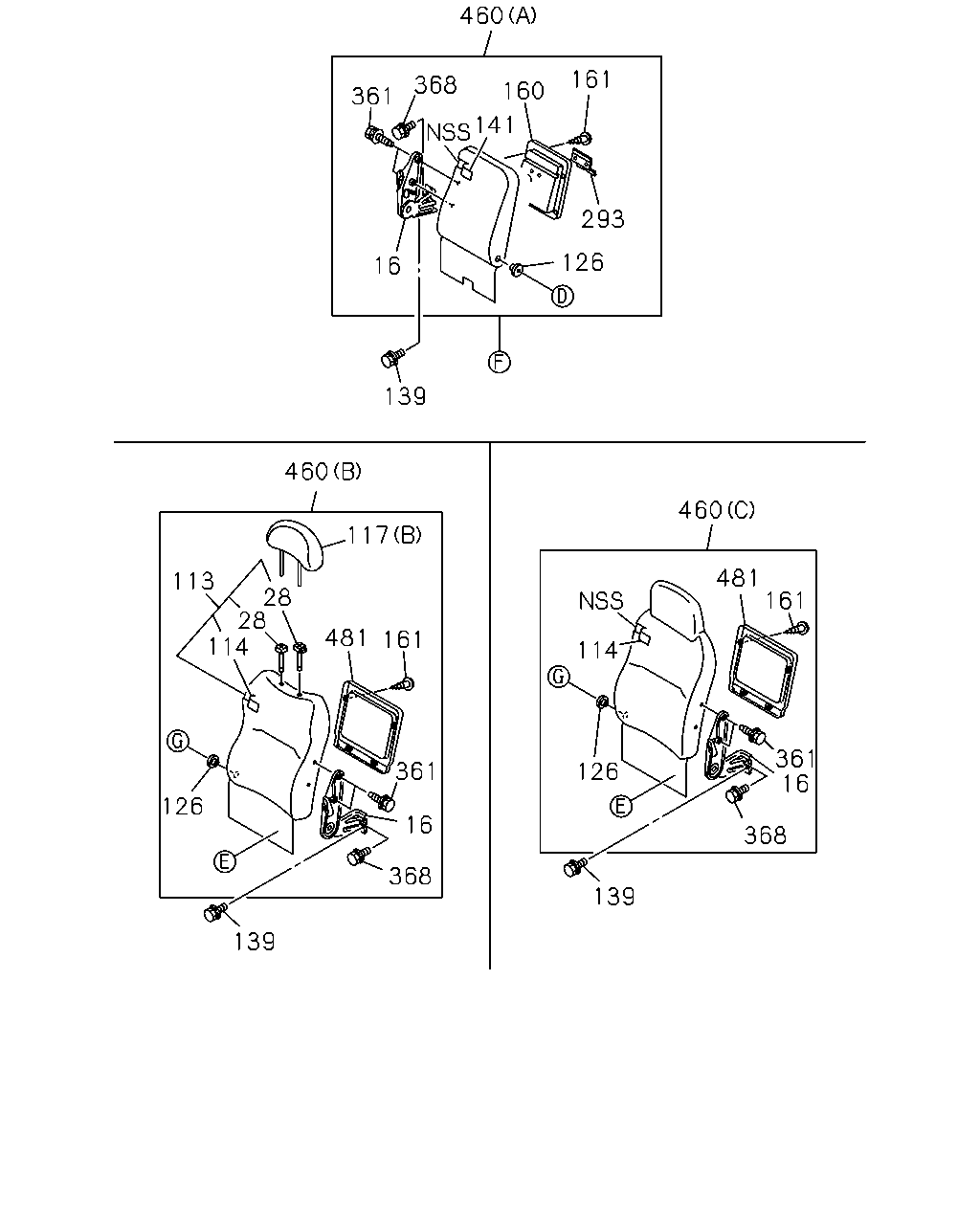

16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9811-0104 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0105-0105 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) DRIVER 		8-97854-057-2 01 1 0105-0105 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0106-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0106-0111 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0112-0112 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0201-0203 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0201- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0201-0202 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 02 1 0203-0203 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ●
16 16.682 ADJUSTER ASM; RECLINING
CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0007-0104 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0105-0105 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0105-0105 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0106-0111 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0106-0111 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0112-0112 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0201-0203 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0204- ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9811-0104 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0105-0105 ● ● ● ● ● ●
18 16.682 COVER; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97867-020-0 01 1 0105-0105 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0106-0111 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0106-0111 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0112-0112 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-020-0 01 1 0112-0112 ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0112-0112 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0201-0203 ● ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0204- ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0104 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105 ● ● ● ● ● ●
19 16.686 SCREW; COVER
EXC. HONG KONG EQUIPMENT(PQ1) 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-0111 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-0111 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
CLOTH SEAT MOQUETTE<8EP> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ● ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0204- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 9811-0104 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0105-0105 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. HONG KONG EQUIPMENT(PQ1) (A) DARK GRAY 		8-97867-021-0 01 1 0105-0105 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0106-0111 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0106-0111 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
CLOTH SEAT MOQUETTE<8EP> (A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0204- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 0106- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 9811-0104 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0105-0105 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97854-059-3 01 1 0105-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0106-0111 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0106-0111 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0106-0111 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0106-0111 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0106-0111 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0112-0112 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0112-0112 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0201-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0201-0203 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-059-3 01 1 0201-0203 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0204- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0204- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0204- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97869-043-0 01 1 9811- ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9811- ● ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9811- ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0007-0104 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0105-0105 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0105-0105 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0106-0111 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0106-0111 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0112-0112 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0201-0203 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0204- ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-0104 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0105-0105 ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97854-087-0 01 1 0105-0105 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0106-0111 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0106-0111 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0112-0112 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
CLOTH SEAT MOQUETTE<8EP> 		8-97854-087-0 01 1 0112-0112 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0112-0112 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0201-0203 ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0204- ● ● ● ● ● ● ●
113 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97197-367-2 01 1 9907-0105 ● ● ● ●
113 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97197-367-2 01 1 0106- ● ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> PASSENGER BLUE 		8-97197-400-2 01 1 9907-0105 ● ● ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> PASSENGER BLUE 		8-97197-400-2 01 1 0106- ● ● ●
117 16.720 REST; HD
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 9907-0105 ● ● ● ●
117 16.720 REST; HD
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 0106- ● ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 9907-0105 ● ● ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 0106- ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9811-0104 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0105-0105 ● ● ● ● ● ●
228 16.714 SCREW; KNOB
EXC. HONG KONG EQUIPMENT(PQ1) 11.377 M4X6 		8-97042-273-0 01 1 0105-0105 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0106-0111 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0106-0111 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
CLOTH SEAT MOQUETTE<8EP> 11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ● ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0204- ● ● ● ● ● ● ●
232 16.682 KNOB; HINGE CONT,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-908-0 01 1 9907-0105 ● ● ● ●
232 16.682 KNOB; HINGE CONT,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-908-0 01 1 0106- ● ● ●
238 16.720 SUPPORT ASM; LUMBAR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-909-2 01 1 9907-0105 ● ● ● ●
238 16.720 SUPPORT ASM; LUMBAR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-909-2 01 1 0106- ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9811- ● ● ● ● ● ● ●
497 16.682 INSERT; KNOB
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-376-0 01 1 9907-0105 ● ● ● ●
497 16.682 INSERT; KNOB
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-376-0 01 1 0106- ● ● ●
498 16.682 WASHER; INSERT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-372-0 01 1 9907-0105 ● ● ● ●
498 16.682 WASHER; INSERT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-372-0 01 1 0106- ● ● ●
çizim 49342
1 24 18 228 2 16 99 17 19 12 13 510 15 69 382 67 168 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-0 01 1 9811-9906 ● ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-229-2 01 1 9907-0112 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-4 01 1 9811-0105 ● ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-6 01 1 0106- ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97866-980-6 01 1 0106- ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97866-983-3 01 1 9811-0105 ● ● ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97866-983-6 01 1 0106-0203 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97866-983-6 01 1 0106-0203 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97866-983-6 01 1 0106-0203 ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97866-983-6 01 1 0204- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97866-983-6 01 1 0204- ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-307-0 01 1 9811-9906 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-307-0 01 1 9811-9906 ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-307-0 01 1 9907-9909 ● ● ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-307-0 01 1 9907-9909 ● ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-307-4 01 1 9910- ● ● ● ●
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97293-661-4 01 1 9910- ● ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-338-3 01 1 9811-0104 ● ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-338-3 01 1 0105-0105 ● ● ● ● ● ●
1 16.720 BACK ASM; SEAT
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-338-5 01 1 0106- ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-321-3 01 1 9811-0104 ● ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-321-3 01 1 0105-0105 ● ● ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-321-5 01 1 0106-0203 ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-321-5 01 1 0106-0203 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-321-5 01 1 0204- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-321-5 01 1 0204- ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-221-4 01 1 9811- ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-303-2 01 1 9811-0112 ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97299-282-3 01 1 0204- ● ● ● ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-282-3 01 1 0204- ●
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97299-282-3 01 1 0204- ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-776-0 01 1 0112- ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-776-0 01 1 0112- ● ● ●
1 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-771-0 01 1 0112- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9811-9906 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-1 01 1 9907-0112 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-3 01 1 9811-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-4 01 1 0106- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-4 01 1 0106- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-2 01 1 9811-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0204- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9811-9906 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-214-0 01 1 9811-9906 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9907-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-214-0 01 1 9907-9909 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-214-3 01 1 9910- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97293-662-3 01 1 9910- ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-3 01 1 9811-0104 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-3 01 1 0105-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-4 01 1 0106- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-322-3 01 1 9811-0104 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-322-3 01 1 0105-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-322-4 01 1 0106-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-322-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-322-4 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-322-4 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-222-3 01 1 9811- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-304-1 01 1 9811-0112 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97299-283-2 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-283-2 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97299-283-2 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-778-0 01 1 0112- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-778-0 01 1 0112- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-773-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9811-9906 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-2 01 1 9907-0112 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-4 01 1 9811-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-5 01 1 0106- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-3 01 1 9811-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-5 01 1 0106- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-0 01 1 9811-9906 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-215-0 01 1 9811-9906 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-4 01 1 9907- ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-215-4 01 1 9907- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-2 01 1 9811-0104 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-2 01 1 0105-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-323-1 01 1 9811-9902 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-014-2 01 1 9903-0104 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-014-2 01 1 0105-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-014-3 01 1 0106-0203 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97867-014-3 01 1 0106-0203 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-014-3 01 1 0106-0203 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-223-4 01 1 9811- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-305-2 01 1 9811-0112 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97293-586-3 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-586-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97293-586-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-779-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-779-0 01 1 0112- ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-774-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 9907-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 0106- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9811-9906 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-2 01 1 9907-0112 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-4 01 1 9811-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-5 01 1 0106- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-3 01 1 9811-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-5 01 1 0106- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-0 01 1 9811-9906 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-216-0 01 1 9811-9906 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-4 01 1 9907- ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-216-4 01 1 9907- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-2 01 1 9811-0104 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-2 01 1 0105-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-324-1 01 1 9811-9902 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-088-2 01 1 9903-0104 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-088-2 01 1 0105-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-088-3 01 1 0106-0203 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97867-088-3 01 1 0106-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-088-3 01 1 0106-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-224-3 01 1 9811-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97196-224-3 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-224-3 01 1 0204- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-306-1 01 1 9811-0112 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-780-0 01 1 0112- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-780-0 01 1 0112- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-775-0 01 1 0112- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 9907-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 0106- ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-055-1 01 1 9811-0104 ● ● ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-055-1 01 1 0105-0105 ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97854-055-1 01 1 0105-0105 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3) 		8-97854-055-1 01 1 0105-0105 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-055-1 01 1 0106-0203 ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT 8-97854-055-1 01 1 0106-0203 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97854-055-1 01 1 0106-0203 ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> 		8-97854-055-1 01 1 0204- ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> 		8-97854-055-1 01 1 0204- ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-055-1 01 1 0204- ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. SEAT CLOTH<7FL> 		8-97854-055-1 01 1 0204- ●
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-055-1 01 1 0204- ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-055-1 01 1 0204- ●
15 16.716 FRAME; CUSHION,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) 		8-97854-986-1 01 1 9811-0111 ●
15 16.716 FRAME; CUSHION,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> 		8-97854-986-1 01 1 0112-0112 ●
15 16.716 FRAME; CUSHION,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) 		8-97854-986-1 01 1 0112-0112 ●
15 16.716 FRAME; CUSHION,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-986-1 01 1 0201-0203 ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-986-1 01 1 0204- ● ● ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-986-1 01 1 0204- ●
15 16.716 FRAME; CUSHION,FRT SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97854-986-1 01 1 0204- ●
15 16.716 FRAME; CUSHION,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-986-1 01 1 0204- ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9811-0104 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0105-0105 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) DRIVER 		8-97854-057-2 01 1 0105-0105 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0106-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0106-0111 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0112-0112 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0201-0203 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0201- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0201-0202 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 02 1 0203-0203 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ●
16 16.682 ADJUSTER ASM; RECLINING
CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0007-0104 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0105-0105 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0105-0105 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0106-0111 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0106-0111 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0112-0112 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0201-0203 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0204- ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9811-0104 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0105-0105 ● ● ● ● ● ●
18 16.682 COVER; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97867-020-0 01 1 0105-0105 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0106-0111 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0106-0111 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0112-0112 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-020-0 01 1 0112-0112 ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0112-0112 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0201-0203 ● ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0204- ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0104 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105 ● ● ● ● ● ●
19 16.686 SCREW; COVER
EXC. HONG KONG EQUIPMENT(PQ1) 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-0111 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-0111 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
CLOTH SEAT MOQUETTE<8EP> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ● ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0204- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 9811-0104 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0105-0105 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. HONG KONG EQUIPMENT(PQ1) (A) DARK GRAY 		8-97867-021-0 01 1 0105-0105 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0106-0111 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0106-0111 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
CLOTH SEAT MOQUETTE<8EP> (A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0204- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 0106- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 9811-0104 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0105-0105 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97854-059-3 01 1 0105-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0106-0111 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0106-0111 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0106-0111 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0106-0111 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0106-0111 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0112-0112 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0112-0112 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0201-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0201-0203 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-059-3 01 1 0201-0203 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0204- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0204- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0204- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97869-043-0 01 1 9811- ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9811- ● ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9811- ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0007-0104 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0105-0105 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0105-0105 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0106-0111 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0106-0111 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0112-0112 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0201-0203 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0204- ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-0104 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0105-0105 ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97854-087-0 01 1 0105-0105 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0106-0111 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0106-0111 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0112-0112 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
CLOTH SEAT MOQUETTE<8EP> 		8-97854-087-0 01 1 0112-0112 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0112-0112 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0201-0203 ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0204- ● ● ● ● ● ● ●
168 16.682 SCREW; LOCK SPRING
AUSTRALIA EQUIPMENT(RR3) 16.686 		8-94279-317-0 02 1 0104-0111 ●
168 16.682 SCREW; LOCK SPRING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> 16.686 		8-94279-317-0 02 1 0112-0112 ●
168 16.682 SCREW; LOCK SPRING
AUSTRALIA EQUIPMENT(RR3) 16.686 		8-94279-317-0 02 1 0112-0112 ●
168 16.682 SCREW; LOCK SPRING
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.686 		8-94279-317-0 02 1 0201- ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9811-0104 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0105-0105 ● ● ● ● ● ●
228 16.714 SCREW; KNOB
EXC. HONG KONG EQUIPMENT(PQ1) 11.377 M4X6 		8-97042-273-0 01 1 0105-0105 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0106-0111 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0106-0111 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
CLOTH SEAT MOQUETTE<8EP> 11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ● ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0204- ● ● ● ● ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9811- ● ● ● ● ● ● ●
510 16.682 SPRING; LOCK
AUSTRALIA EQUIPMENT(RR3) 		8-97311-844-0 01 1 0104-0111 ●
510 16.682 SPRING; LOCK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> 		8-97311-844-0 01 1 0112-0112 ●
510 16.682 SPRING; LOCK
AUSTRALIA EQUIPMENT(RR3) 		8-97311-844-0 01 1 0112-0112 ●
510 16.682 SPRING; LOCK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97311-844-0 01 1 0201- ●
çizim 49602
460 161 368 160 361 141 293 126 16 139 460 460 117 481 113 28 28 114 161 481 161 114 361 16 361 126 126 16 368 368 139 139
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9811-0104 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0105-0105 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) DRIVER 		8-97854-057-2 01 1 0105-0105 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0106-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0106-0111 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0112-0112 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0201-0203 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0201- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0201-0202 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 02 1 0203-0203 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ●
16 16.682 ADJUSTER ASM; RECLINING
CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 0106- ● ● ●
113 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97197-367-2 01 1 9907-0105 ● ● ● ●
113 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97197-367-2 01 1 0106- ● ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> PASSENGER BLUE 		8-97197-400-2 01 1 9907-0105 ● ● ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> PASSENGER BLUE 		8-97197-400-2 01 1 0106- ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-380-1 01 1 9811-9902 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97867-096-1 01 1 9903-9906 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-096-5 01 1 9907- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-093-2 01 1 9811-9906 ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-093-4 01 1 9907-0112 ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-093-5 01 1 0201- ● ● ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-768-0 01 1 0112- ● ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97197-410-2 01 1 9907-0105 ● ● ● ●
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97197-410-2 01 1 0106- ● ● ●
117 16.720 REST; HD
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 9907-0105 ● ● ● ●
117 16.720 REST; HD
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 0106- ● ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 9907-0105 ● ● ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 0106- ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9907-0105 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 9907-0105 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9907-0105 ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0106-0112 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 0106-0112 ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. CUSTOM PACKAGE<YM8> 		8-97854-900-0 01 1 0106-0112 ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-900-0 01 1 0201- ● ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-900-0 01 1 0201- ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 9811-9906 ● ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> 		8-97854-900-0 02 1 9907-0105 ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> 		8-97854-900-0 02 1 0106-0111 ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> 		8-97854-900-0 02 1 0112- ● ● ● ● ●
126 16.686 BUSHING; HINGE,RECLINING
CUSTOM PACKAGE<YM8> 		8-97854-900-0 02 1 0112- ● ● ●
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 9811- ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-767-0 01 1 0112- ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97197-413-0 01 1 9907-9908 ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97197-970-2 01 1 9909-0105 ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
CUSTOM PACKAGE<YM8> BLUE 		8-97197-970-2 01 1 0106- ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97869-359-1 01 1 9811-9902 ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97867-466-1 01 1 9903-9906 ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97867-466-5 01 1 9907- ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-464-1 01 1 9811-9906 ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-464-3 01 1 9907-0112 ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-464-4 01 1 0201-0202 ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-464-4 02 1 0203-0203 ● ● ● ● ● ● ●
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-464-4 01 1 0204- ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97393-932-0 01 1 0203- ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
CUSTOM PACKAGE<YM8> 16.120 DARK GRAY 		8-97867-019-1 01 1 9907-9908 ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9811-9906 ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97859-028-1 01 1 9907-9908 ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9907-9908 ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 9909-0111 ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 0112-0112 ● ● ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97859-028-1 01 1 0112-0112 ● ● ● ● ●
160 16.650 CONSOLE; UPR,BACK CENTER
DARK GRAY 		8-97859-028-1 01 1 0201-0202 ● ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
EXC. CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 04 1 9907-0105 ● ● ● ●
161 16.650 SCREW; CONSOLE
EXC. CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 04 1 9907-0105 ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9907-0105 ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0106-0112 ● ● ● ●
161 16.650 SCREW; CONSOLE
EXC. CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 04 1 0106-0112 ● ● ●
161 16.650 SCREW; CONSOLE
EXC. CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 04 1 0106-0112 ● ● ●
161 16.650 SCREW; CONSOLE
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> M4X12 		8-94279-351-0 04 1 0201- ● ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> M4X12 		8-94279-351-0 04 1 0201- ● ● ● ● ●
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 9811-9906 ● ● ● ● ● ●
161 16.650 SCREW; CONSOLE
CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 07 1 9907-9908 ● ● ● ●
161 16.650 SCREW; CONSOLE
CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 08 1 9909-0105 ● ● ● ●
161 16.650 SCREW; CONSOLE
CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 08 1 0106-0111 ● ● ●
161 16.650 SCREW; CONSOLE
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 08 1 0112- ● ● ● ● ●
161 16.650 SCREW; CONSOLE
CUSTOM PACKAGE<YM8> M4X12 		8-94279-351-0 08 1 0112- ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9811-9906 ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE
EXC. CUSTOM PACKAGE<YM8> 		8-97854-344-1 01 1 9907-9908 ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9907-9908 ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 9909-0111 ● ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 0112-0112 ● ● ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE
CLOTH SEAT MOQUETTE<8EP> 		8-97854-344-1 01 1 0112-0112 ● ● ● ● ●
293 16.650 BINDER; CENTER CONSOLE 8-97854-344-1 01 1 0201-0202 ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9907-0105 ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 9907-0105 ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9907-0105 ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0106-0112 ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 0106-0112 ● ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 02 1 0106-0112 ● ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> M8X18 		8-94279-109-1 02 1 0201- ● ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> M8X18 		8-94279-109-1 02 1 0201- ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 9811-9906 ● ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 9907-0105 ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 0106-0111 ● ● ●
361 16.682 BOLT; ADJ,RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 0112- ● ● ● ● ●
361 16.682 BOLT; ADJ,RECLINING
CUSTOM PACKAGE<YM8> M8X18 		8-94279-109-1 04 1 0112- ● ● ●
368 16.682 BOLT; SEAT
EXC. CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9907-0105 ● ● ● ●
368 16.682 BOLT; SEAT
EXC. CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9907-0105 ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9907-0105 ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0106-0112 ● ● ● ●
368 16.682 BOLT; SEAT
EXC. CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0106-0112 ● ● ●
368 16.682 BOLT; SEAT
EXC. CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0106-0112 ● ● ●
368 16.682 BOLT; SEAT
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0201- ● ● ● ● ● ● ●
368 16.682 BOLT; SEAT
EXC. CUSTOM PACKAGE<YM8>,CLOTH SEAT MOQUETTE<8EP> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0201- ● ● ● ● ●
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9811-9906 ● ● ● ● ● ●
368 16.682 BOLT; SEAT
CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 9907-0105 ● ● ● ●
368 16.682 BOLT; SEAT
CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0106-0111 ● ● ●
368 16.682 BOLT; SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0112- ● ● ● ● ●
368 16.682 BOLT; SEAT
CUSTOM PACKAGE<YM8> 16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 02 1 0112- ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> (C) DARK GRAY 		8-97393-758-0 01 1 0112- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> (A) DARK GRAY 		8-97393-759-1 01 1 0112- ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97196-587-0 01 1 9907-9908 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97293-577-2 01 1 9909-0105 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97293-577-2 01 1 0106- ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97196-591-0 01 1 9907-9908 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97293-578-2 01 1 9909-0105 ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
CUSTOM PACKAGE<YM8> (A) BLUE 		8-97293-578-3 01 1 0106- ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-472-1 01 1 9811-9906 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> (A) DARK GRAY 		8-97868-472-6 01 1 9907- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (C) DARK GRAY 		8-97868-512-1 01 1 9811-9906 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> (C) DARK GRAY 		8-97868-512-5 01 1 9907- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-474-1 01 1 9811-9906 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> (A) DARK GRAY 		8-97868-474-3 01 1 9907-0112 ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (A) DARK GRAY 		8-97868-474-5 01 1 0201- ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (C) DARK GRAY 		8-97868-514-2 01 1 9811-9906 ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> (C) DARK GRAY 		8-97868-514-4 01 1 9907-0112 ● ● ● ● ● ● ●
460 16.670 BACK ASM; PASSENGER SEAT
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (C) DARK GRAY 		8-97868-514-5 01 1 0201- ● ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 9811-0111 ● ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 0112-0112 ● ● ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97859-024-0 01 1 0112-0112 ● ● ● ● ●
481 16.120 TRAY; SEAT BACK
DARK GRAY 		8-97859-024-0 01 1 0201- ● ● ● ● ● ● ●
çizim 50251
117 28 28 113 238 2 24 18 19 228 213 24 611 16 498 497 232 17 99 12 13 69 382 67 71 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-0 01 1 9811-9906 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-300-1 01 1 9907-0112 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-3 01 1 9811-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-4 01 1 0106- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-065-4 01 1 0106- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-2 01 1 9811-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-066-4 01 1 0204- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9811-9906 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-214-0 01 1 9811-9906 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-214-0 01 1 9907-9909 ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-214-0 01 1 9907-9909 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-214-3 01 1 9910- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97293-662-3 01 1 9910- ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-3 01 1 9811-0104 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-3 01 1 0105-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97869-339-4 01 1 0106- ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-322-3 01 1 9811-0104 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97869-322-3 01 1 0105-0105 ● ● ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-322-4 01 1 0106-0203 ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97869-322-4 01 1 0106-0203 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-322-4 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97869-322-4 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-222-3 01 1 9811- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-304-1 01 1 9811-0112 ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97299-283-2 01 1 0204- ● ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97299-283-2 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97299-283-2 01 1 0204- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-778-0 01 1 0112- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-778-0 01 1 0112- ● ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-773-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-0 01 1 9811-9906 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-301-2 01 1 9907-0112 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-4 01 1 9811-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97866-998-5 01 1 0106- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-3 01 1 9811-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-002-5 01 1 0106- ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-0 01 1 9811-9906 ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-215-0 01 1 9811-9906 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-215-4 01 1 9907- ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-215-4 01 1 9907- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-2 01 1 9811-0104 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-2 01 1 0105-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ●
12 16.670 CUSHION; SEAT,FRT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-011-3 01 1 0106- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-323-1 01 1 9811-9902 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-014-2 01 1 9903-0104 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-014-2 01 1 0105-0105 ● ● ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-014-3 01 1 0106-0203 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> DARK GRAY 		8-97867-014-3 01 1 0106-0203 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-014-3 01 1 0106-0203 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-014-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-223-4 01 1 9811- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-305-2 01 1 9811-0112 ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97293-586-3 01 1 0204- ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97293-586-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97293-586-3 01 1 0204- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-779-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-779-0 01 1 0112- ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-774-0 01 1 0112- ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 9907-0105 ● ● ● ●
12 16.670 CUSHION; SEAT,FRT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-898-2 01 1 0106- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-0 01 1 9811-9906 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL> DARK GRAY 		8-97196-302-2 01 1 9907-0112 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-4 01 1 9811-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-078-5 01 1 0106- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-3 01 1 9811-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-080-5 01 1 0106- ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-0 01 1 9811-9906 ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-216-0 01 1 9811-9906 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97196-216-4 01 1 9907- ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97196-216-4 01 1 9907- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-2 01 1 9811-0104 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-2 01 1 0105-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-086-3 01 1 0106- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97869-324-1 01 1 9811-9902 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-088-2 01 1 9903-0104 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),MANUAL TILT CAB<RWZ> DARK GRAY 		8-97867-088-2 01 1 0105-0105 ● ● ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97867-088-3 01 1 0106-0203 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> DARK GRAY 		8-97867-088-3 01 1 0106-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97867-088-3 01 1 0106-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-088-3 01 1 0204- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) SEAT CLOTH<7FL> DARK GRAY 		8-97196-224-3 01 1 9811-0203 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> DARK GRAY 		8-97196-224-3 01 1 0204- ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97196-224-3 01 1 0204- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97196-306-1 01 1 9811-0112 ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-780-0 01 1 0112- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> DARK GRAY 		8-97393-780-0 01 1 0112- ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97393-775-0 01 1 0112- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 9907-0105 ● ● ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> BLUE 		8-97292-899-2 01 1 0106- ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 9811-0104 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0105-0105 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) DRIVER 		8-97854-057-2 01 1 0105-0105 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0106-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0106-0111 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0112-0112 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0201-0203 ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DRIVER 		8-97854-057-2 01 1 0201-0203 ●
16 16.682 ADJUSTER ASM; RECLINING
DRIVER 		8-97854-057-2 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER BLACK 		8-97859-273-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER BLACK 		8-97859-273-3 01 1 0201- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 9811-0111 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0112-0112 ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0201-0202 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
EXC. CUSTOM PACKAGE<YM8>,SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 02 1 0203-0203 ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0204- ● ● ● ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ●
16 16.682 ADJUSTER ASM; RECLINING
CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
SEAT CLOTH<7FL> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
16 16.682 ADJUSTER ASM; RECLINING
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> PASSENGER CENTER BLACK 		8-97859-274-3 01 1 0203-0203 ● ● ●
17 16.682 BOLT; RECLINING
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0007-0104 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0105-0105 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0105-0105 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0106-0111 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0106-0111 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0112-0112 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0201-0203 ● ● ● ● ● ●
17 16.682 BOLT; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0201-0203 ●
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0204- ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 9811-0104 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0105-0105 ● ● ● ● ● ●
18 16.682 COVER; RECLINING
EXC. HONG KONG EQUIPMENT(PQ1) DARK GRAY 		8-97867-020-0 01 1 0105-0105 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0106-0111 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0106-0111 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0112-0112 ● ● ● ● ● ● ●
18 16.682 COVER; RECLINING
CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-020-0 01 1 0112-0112 ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0112-0112 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0201-0203 ● ● ● ● ● ●
18 16.682 COVER; RECLINING
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> DARK GRAY 		8-97867-020-0 01 1 0201-0203 ●
18 16.682 COVER; RECLINING
DARK GRAY 		8-97867-020-0 01 1 0204- ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 9811-0104 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105 ● ● ● ● ● ●
19 16.686 SCREW; COVER
EXC. HONG KONG EQUIPMENT(PQ1) 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0105-0105 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-0111 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0106-0111 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ● ● ● ● ● ● ●
19 16.686 SCREW; COVER
CLOTH SEAT MOQUETTE<8EP> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0112-0112 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ● ● ● ● ● ●
19 16.686 SCREW; COVER
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0201-0203 ●
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0204- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 9811-0104 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0105-0105 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. HONG KONG EQUIPMENT(PQ1) (A) DARK GRAY 		8-97867-021-0 01 1 0105-0105 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0106-0111 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0106-0111 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
CLOTH SEAT MOQUETTE<8EP> (A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0112-0112 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> (A) DARK GRAY 		8-97867-021-0 01 1 0201-0203 ●
24 16.682 KNOB; RECLINING,FRT,SEAT
(A) DARK GRAY 		8-97867-021-0 01 1 0204- ● ● ● ● ● ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (B) 		8-97096-377-0 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> LOCK, DARK GRAY 		8-97150-984-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 9907-0105 ● ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 0106- ● ● ●
28 16.718 HOLDER; GUIDE,HD REST
CUSTOM PACKAGE<YM8> FREE, DARK GRAY 		8-97150-985-1 01 1 0106- ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 9811-0104 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 9811-0104 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0105-0105 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0105-0105 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97854-059-3 01 1 0105-0105 ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0106-0111 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0106-0111 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0106-0111 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0106-0111 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0106-0111 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) CLOTH SEAT MOQUETTE<8EP> EXC. CUSTOM PACKAGE<YM8> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0112-0112 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0112-0112 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0112-0112 ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0201-0203 ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0201-0203 ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0201-0203 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-059-3 01 1 0201-0203 ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. AUSTRALIA EQUIPMENT(RR3),SEAT FRT,LONG SIZE<7UG> 		8-97854-059-3 01 1 0204- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-059-3 01 1 0204- ● ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3), MANUALTILT CAB<RWZ> 		8-97854-059-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE
AUSTRALIA EQUIPMENT(RR3) 		8-97854-059-3 01 1 0204- ● ● ● ●
63 16.682 ADJUSTER; SEAT SLIDE 8-97854-059-3 01 1 0204- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97869-043-0 01 1 9811- ● ● ● ● ● ●
67 16.682 BOLT; FRT SEAT TO BODY
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 9811- ● ● ● ● ● ● ●
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 01 1 9811- ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X18 		8-94279-109-1 02 1 9811-0006 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0007-0104 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0105-0105 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. HONG KONG EQUIPMENT(PQ1) M8X20 		8-97255-906-0 02 1 0105-0105 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0106-0111 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0106-0111 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0112-0112 ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0112-0112 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0201-0203 ● ● ● ● ● ●
71 16.682 BOLT; ADJ TO SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> M8X20 		8-97255-906-0 02 1 0201-0203 ●
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0204- ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 9811-0104 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0105-0105 ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
EXC. HONG KONG EQUIPMENT(PQ1) 		8-97854-087-0 01 1 0105-0105 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0106-0111 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0106-0111 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0112-0112 ● ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
CLOTH SEAT MOQUETTE<8EP> 		8-97854-087-0 01 1 0112-0112 ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0112-0112 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0201-0203 ● ● ● ● ● ●
99 16.716 BUSHING; SEAT BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 		8-97854-087-0 01 1 0201-0203 ●
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0204- ● ● ● ● ● ● ●
113 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97197-367-2 01 1 9907-0105 ● ● ● ●
113 16.720 BACK ASM; SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> DRIVER BLUE 		8-97197-367-2 01 1 0106- ● ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> PASSENGER BLUE 		8-97197-400-2 01 1 9907-0105 ● ● ● ●
113 16.720 BACK ASM; SEAT
CUSTOM PACKAGE<YM8> PASSENGER BLUE 		8-97197-400-2 01 1 0106- ● ● ●
117 16.720 REST; HD
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 9907-0105 ● ● ● ●
117 16.720 REST; HD
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> (A) BLUE 		8-97197-355-1 01 1 0106- ● ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 9907-0105 ● ● ● ●
117 16.720 REST; HD
CUSTOM PACKAGE<YM8> (B) BLUE 		8-97197-399-1 01 1 0106- ● ● ●
213 16.682 COVER; HOLE
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-373-1 01 1 0106- ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 9811-0104 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0105-0105 ● ● ● ● ● ●
228 16.714 SCREW; KNOB
EXC. HONG KONG EQUIPMENT(PQ1) 11.377 M4X6 		8-97042-273-0 01 1 0105-0105 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0106-0111 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0106-0111 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ● ● ● ● ● ● ●
228 16.714 SCREW; KNOB
CLOTH SEAT MOQUETTE<8EP> 11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0112-0112 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ● ● ● ● ● ●
228 16.714 SCREW; KNOB
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
EXC. AUSTRALIA EQUIPMENT(RR3),SEAT CLOTH<7FL> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
SEAT CLOTH<7FL>,CLOTH SEAT MOQUETTE<8EP> 11.377 M4X6 		8-97042-273-0 01 1 0201-0203 ●
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0204- ● ● ● ● ● ● ●
232 16.682 KNOB; HINGE CONT,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-908-0 01 1 9907-0105 ● ● ● ●
232 16.682 KNOB; HINGE CONT,FRT SEAT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-908-0 01 1 0106- ● ● ●
238 16.720 SUPPORT ASM; LUMBAR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-909-2 01 1 9907-0105 ● ● ● ●
238 16.720 SUPPORT ASM; LUMBAR
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97109-909-2 01 1 0106- ● ● ●
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 01 1 9811- ● ● ● ● ● ● ●
497 16.682 INSERT; KNOB
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-376-0 01 1 9907-0105 ● ● ● ●
497 16.682 INSERT; KNOB
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-376-0 01 1 0106- ● ● ●
498 16.682 WASHER; INSERT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-372-0 01 1 9907-0105 ● ● ● ●
498 16.682 WASHER; INSERT
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 		8-97096-372-0 01 1 0106- ● ● ●
611 16.720 PLATE; ANTI-FRICTION
AUSTRALIA EQUIPMENT(RR3) CUSTOM PACKAGE<YM8> 16.682 		8-97096-375-0 01 1 0106- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
