◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#18790) — 65 parça

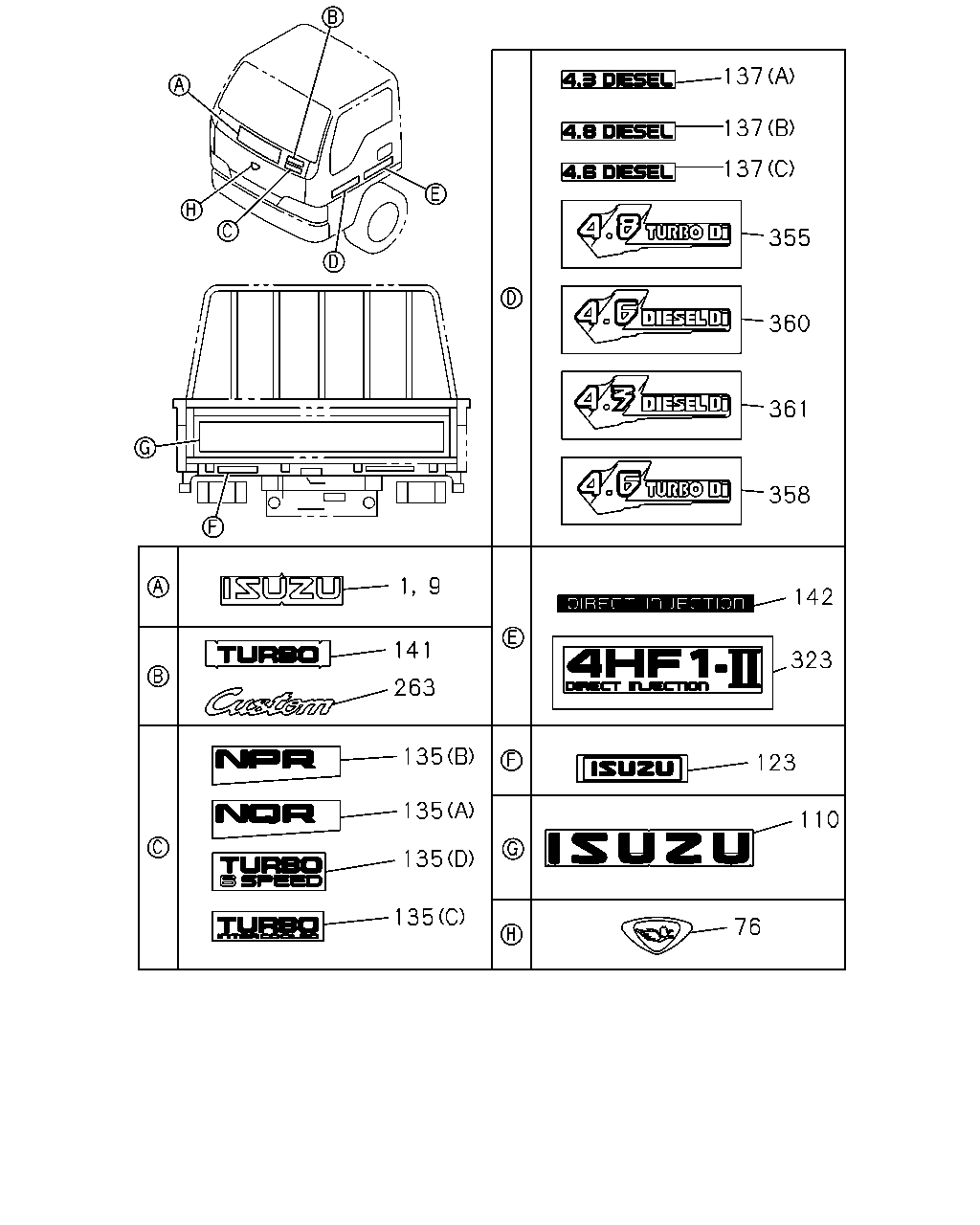

çizim 46949
137 137 137 355 360 361 358 9 1 142 141 323 263 135 123 135 110 135 135 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 01.303 MARK; ISUZU
EMBLEM ISUZU<YP4> 		8-97859-556-0 01 1 9811-9906 ● ● ● ● ● ●
1 01.303 MARK; ISUZU
EMBLEM ISUZU<YP4> EXC. CUSTOM PACKAGE<YM8> 		8-97859-556-0 01 1 9907- ● ● ● ● ● ● ●
1 01.303 MARK; ISUZU
CUSTOM PACKAGE<YM8> 		8-97890-888-0 01 1 9907-0105 ● ● ● ●
1 01.303 MARK; ISUZU
CUSTOM PACKAGE<YM8> 		8-97890-888-0 01 1 0106- ● ● ●
9 08.808 DECAL
EXC. EMBLEM ISUZU<YP4> 		8-97868-200-1 01 1 9811- ● ● ● ● ● ● ●
76 01.303 EMBLEM; "CUSTOM"
CUSTOM PACKAGE<YM8> 		8-97859-557-3 01 1 9907-0105 ● ● ● ●
76 01.303 EMBLEM; "CUSTOM"
CUSTOM PACKAGE<YM8> 		8-97859-557-3 01 1 0106- ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR FT ORANGE(609),BODY COLORARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR POLAR SILVER MET(845),BODY COLOR MARINE BLUE(890) DECAL-ISUZU TAIL GATE<EX9> 01.303 BLACK 		8-94350-624-1 01 1 9811- ● ● ● ● ● ● ●
110 17.215 EMBLEM; "ISUZU",RR BODY
BODY COLOR CARDINAL RED(736) DECAL-ISUZU TAIL GATE<EX9> 01.303 WHITE 		8-94350-623-1 01 1 9811- ● ● ● ● ● ● ●
123 17.215 PLATE; NAME,ISUZU
DUMP CHASSIS(V4D) 		8-97089-829-0 01 1 9811- ●
123 17.215 PLATE; NAME,ISUZU
RR BODY FLAT BED<RS6> 		8-97089-829-0 01 1 9811- ● ●
135 01.303 DECAL; CAB FRT
VEHICLE CATEGORY NQR<7NQ> (A) 		8-97868-263-0 01 1 9811-0105 ● ● ● ●
135 01.303 DECAL; CAB FRT
(A) 		8-97868-263-0 01 1 9811-0105 ●
135 01.303 DECAL; CAB FRT
VEHICLE CATEGORY NQR<7NQ> (A) 		8-97868-263-0 01 1 0106- ● ●
135 01.303 DECAL; CAB FRT
(A) 		8-97868-263-0 01 1 0106- ● ●
135 01.303 DECAL; CAB FRT
EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97868-261-0 01 1 9811-0012 ● ● ● ●
135 01.303 DECAL; CAB FRT
(B) 		8-97868-261-0 01 1 9811-0012 ●
135 01.303 DECAL; CAB FRT
EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97868-261-0 01 1 0101-0105 ● ● ● ●
135 01.303 DECAL; CAB FRT
(B) 		8-97868-261-0 01 1 0101-0105 ● ●
135 01.303 DECAL; CAB FRT
(B) 		8-97868-261-0 01 1 0106- ● ● ●
135 01.303 DECAL; CAB FRT
EXC. VEHICLE CATEGORY NQR<7NQ> (B) 		8-97868-261-0 01 1 0106- ● ●
135 01.303 DECAL; CAB FRT
4HE1 ENG(RLY) TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 9811-9812 ● ● ● ● ●
135 01.303 DECAL; CAB FRT
CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 9811-9812 ●
135 01.303 DECAL; CAB FRT
TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 9901-0105 ● ● ● ● ●
135 01.303 DECAL; CAB FRT
CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 9901-0105 ●
135 01.303 DECAL; CAB FRT
TURBOCHARGER(K51) CHARGE AIR COOLER<6PL> (C) 		8-97857-435-1 01 1 0106- ● ● ● ● ●
135 01.303 DECAL; CAB FRT
4HE1 ENG(RLY) M/T MBP6P(RNC) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97857-434-1 01 1 9811-9812 ● ● ●
135 01.303 DECAL; CAB FRT
EXC. CHARGE AIR COOLER<6PL> (D) 		8-97857-434-1 01 1 9811-9812 ●
135 01.303 DECAL; CAB FRT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MBP6P(RNC) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97857-434-1 01 1 9901-0105 ● ● ●
135 01.303 DECAL; CAB FRT
EXC. CHARGE AIR COOLER<6PL> (D) 		8-97857-434-1 01 1 9901-0105 ●
135 01.303 DECAL; CAB FRT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MBP6P(RNC) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97857-434-1 01 1 0106-0207 ● ● ● ● ●
135 01.303 DECAL; CAB FRT
4HG1 ENG(RJH),4HE1 ENG(RLY) M/T MBP6P(RNC),M/T MZZ6U(RSF) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97857-434-1 01 1 0208- ● ● ● ● ●
137 08.147 DECAL; DOOR
4HE1 ENG(RLY) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97890-841-0 02 1 9811-0105 ● ● ● ● ●
137 08.147 DECAL; DOOR
(B) 		8-97890-841-0 02 1 9811-0105 ●
137 08.147 DECAL; DOOR
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-94262-884-1 02 1 9811-0105 ● ● ● ● ●
137 08.147 DECAL; DOOR
4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97868-199-0 02 1 9811-9903 ● ● ● ●
137 08.147 DECAL; DOOR
4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97868-199-0 02 1 9904-0012 ● ● ● ● ●
137 08.147 DECAL; DOOR
4HG1 ENG(RJH) EXC. AUSTRALIA EQUIPMENT(RR3) (C) 		8-97868-199-0 02 1 0101-0105 ● ● ● ● ●
137 08.147 DECAL; DOOR
(C) 		8-97868-199-0 02 1 0101-0105 ●
141 01.303 EMBLEM; "TURBO"
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 9901-9903 ● ● ● ●
141 01.303 EMBLEM; "TURBO"
4HG1 ENG(RJH) M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 9904-0004 ● ● ● ● ●
141 01.303 EMBLEM; "TURBO"
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 0005-0012 ● ● ● ● ●
141 01.303 EMBLEM; "TURBO"
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT),M/T MXA5S(RNA) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 0101-0105 ● ● ● ● ● ●
141 01.303 EMBLEM; "TURBO"
4HG1 ENG(RJH) A/T 4 SPEED-JATCO(RMK),M/T MXA5R(RMT) TURBOCHARGER(K51) EXC. CHARGE AIR COOLER<6PL> 		8-97856-319-3 01 1 0106- ● ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. AUSTRALIA EQUIPMENT(RR3) 17.507 		8-94272-302-1 02 1 9811-9812 ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
17.507 		8-94272-302-1 02 1 9811-9812 ●
142 01.303 DECAL; "DIRECT INJECTION"
4HF1 ENG(RLS),4HE1 ENG(RLY) EXC. AUSTRALIA EQUIPMENT(RR3) 17.507 		8-94272-302-1 02 1 9901-9903 ●
142 01.303 DECAL; "DIRECT INJECTION"
EXC. AUSTRALIA EQUIPMENT(RR3) 17.507 		8-94272-302-1 02 1 9901-9903 ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
17.507 		8-94272-302-1 02 1 9901-9903 ●
142 01.303 DECAL; "DIRECT INJECTION"
EXC. AUSTRALIA EQUIPMENT(RR3) 17.507 		8-94272-302-1 02 1 9904-9904 ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
17.507 		8-94272-302-1 02 1 9904-9904 ●
142 01.303 DECAL; "DIRECT INJECTION"
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. AUSTRALIA EQUIPMENT(RR3) 17.507 		8-94272-302-1 02 1 9905-0012 ● ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), ENGINEPOWER N-SPEC(7QV) 17.507 		8-94272-302-1 02 1 9905-0012 ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4HG1 ENG(RJH),4HE1 ENG(RLY) EXC. AUSTRALIA EQUIPMENT(RR3) 17.507 		8-94272-302-1 02 1 0101-0105 ● ● ● ● ● ● ●
142 01.303 DECAL; "DIRECT INJECTION"
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3), ENGINEPOWER N-SPEC(7QV) 17.507 		8-94272-302-1 02 1 0101-0105 ● ● ● ● ●
263 01.303 MARK; CUSTOM
CUSTOM PACKAGE<YM8> 		1-76210-640-2 01 1 9907-0105 ● ● ● ●
263 01.303 MARK; CUSTOM
CUSTOM PACKAGE<YM8> 		1-76210-640-2 01 1 0106- ● ● ●
323 01.303 DECAL; "4HF1-2"
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97892-867-0 02 1 9905-0105 ● ● ● ● ●
323 01.303 DECAL; "4HF1-2"
4HF1 ENG(RLS) ENGINE POWER N-SPEC(7QV) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97996-001-0 02 1 0106- ● ● ●
355 01.303 DECAL; "4.8 TURBO DI"
4HE1 ENG(RLY) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97899-158-0 02 1 0106- ● ● ● ● ●
355 01.303 DECAL; "4.8 TURBO DI" 8-97899-158-0 02 1 0106- ●
358 01.303 DECAL; "4.6 TURBO DI"
4HG1 ENG(RJH) TURBOCHARGER(K51) EXC. AUSTRALIA EQUIPMENT(RR3) 08.147 		8-97995-799-1 02 1 0106- ● ● ● ● ●
358 01.303 DECAL; "4.6 TURBO DI"
08.147 		8-97995-799-1 02 1 0106- ●
360 01.303 DECAL; "4.3 DIESEL DI"
4HF1 ENG(RLS) EXC. AUSTRALIA EQUIPMENT(RR3) 08.147 		8-97995-797-1 02 1 0106- ● ● ● ●
361 01.303 DECAL; "4.6 DIESEL DI"
4HG1 ENG(RJH) EXC. TURBOCHARGER(K51),AUSTRALIA EQUIPMENT(RR3) 08.147 		8-97995-798-1 02 1 0106- ● ● ● ● ●
