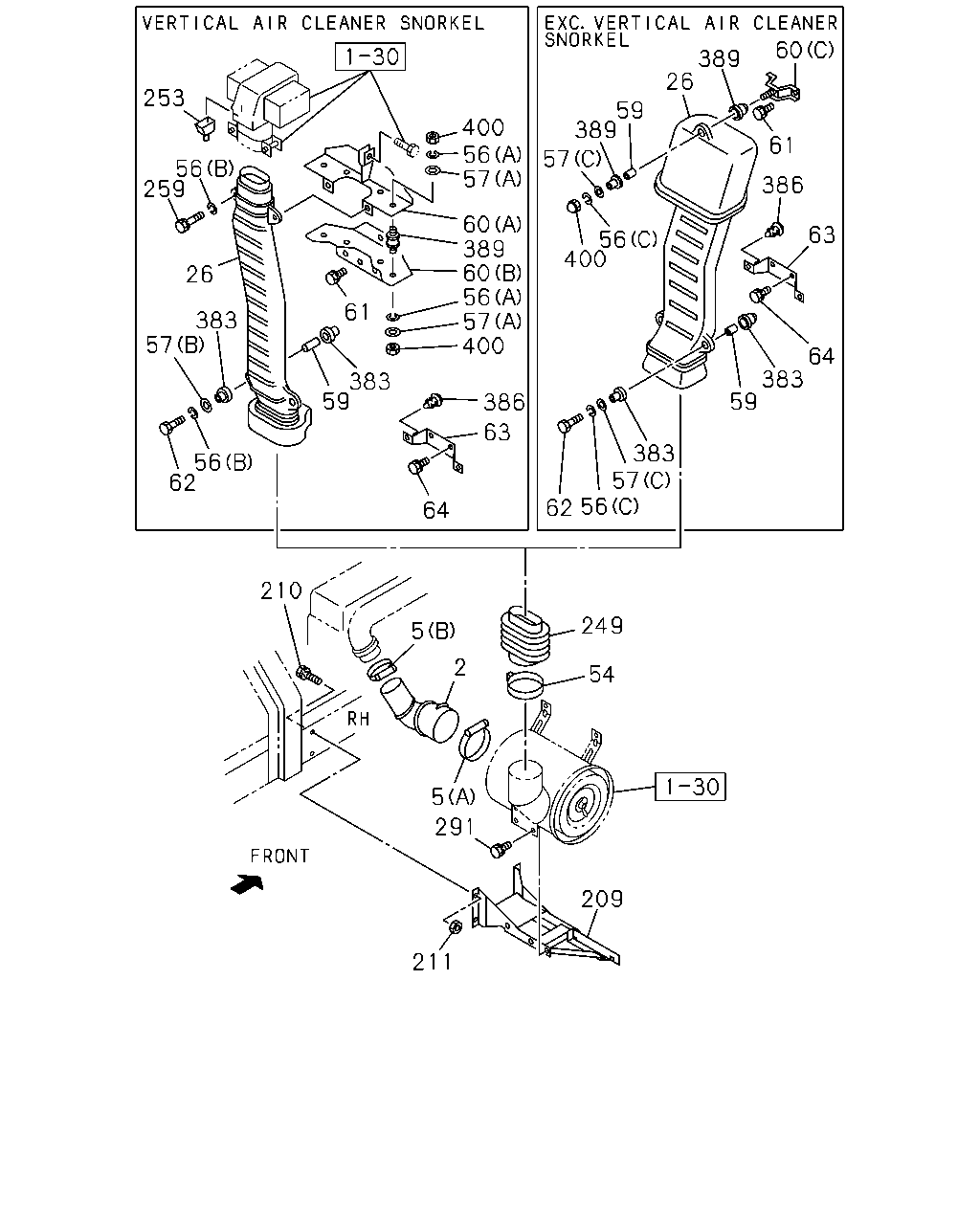

1-31 — AIR DUCT (#1879) — 43 parça

60 389 26 253 59 389 400 56 57 61 57 56 259 386 60 389 60 56 57 400 63 56 400 26 61 383 57 64 383 59 383 59 386 63 383 57 56 62 64 210 5 249 2 54 5 291 209 211 62 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FSS ALL(FSS***)	1-14231-647-0	01	1	9207-
2	HOSE; ACL FTS ALL(FTS***)	1-14231-565-0	01	1	9207-
5	CLIP; AIR DUCT (B) ID=77-95	1-09707-114-0	01	1	9207-
5	CLIP; AIR DUCT (A) ID=104-142	1-09707-155-0	01	1	9207-
26	DUCT; AIR INT VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-102-0	01	1	9207-
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-077-5	01	1	9207-9406
26	DUCT; AIR INT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-14230-130-0	01	1	9407-
54	CLIP; GASKET,AIR DUCT ID=137	1-09707-113-0	01	1	9207-
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A) ID=10	1-09985-180-0	08	1	9207-
56	WASHER; LK,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (B) ID=10	1-09985-185-0	02	1	9207-
56	WASHER; LK,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C) ID=10	1-09985-185-0	03	1	9207-
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (A) ID=10.5 OD=18	1-09985-173-0	08	1	9207-
57	WASHER; PL,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3> (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9207-
57	WASHER; PL,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C) ID=10.5 OD=26 T=2.6	1-09985-184-0	03	1	9207-
59	TUBE; DIST,AIR INT DUCT VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	02	1	9207-
59	TUBE; DIST,AIR INT DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3>	1-79998-228-0	03	1	9207-
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (A)	1-79998-600-0	01	1	9207-
60	BRACKET; AIR DUCT,UPR VERTICAL AIR CLEANER SNORKEL<PP3> (B)	1-79998-601-0	01	1	9207-
60	BRACKET; AIR DUCT,UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> (C)	1-79998-554-1	01	1	9207-
61	BOLT; BRKT,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	04	1	9207-
61	BOLT; BRKT,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9207-
62	BOLT; AIR INT DUCT M10X60	1-09980-521-0	02	1	9207-
63	BRACKET; AIR DUCT,LWR	1-79998-306-0	01	1	9207-
64	BOLT; BRKT,AIR DUCT M8X20 W/LK&PL WASHER	1-09980-512-0	02	1	9207-
209	BRACKET; ACL FSS ALL(FSS***) PARTIAL OIL FILTER<KC1>	1-53497-214-5	01	1	9207-
209	BRACKET; ACL FSS ALL(FSS***) EXC. PARTIAL OIL FILTER<KC1>	1-53497-213-4	01	1	9207-
209	BRACKET; ACL FTS ALL(FTS***) PARTIAL OIL FILTER<KC1>	1-53497-284-0	01	1	9207-
209	BRACKET; ACL FTS ALL(FTS***) EXC. PARTIAL OIL FILTER<KC1>	1-53497-245-1	01	1	9207-
210	BOLT; ACL BRKT M12X40 W/LK WASHER	0-50041-240-0	04	1	9207-9307
210	BOLT; ACL BRKT M12X40 FLANGE	0-28081-240-0	04	1	9308-9503
210	BOLT; ACL BRKT M12X35 FLANGE	0-28081-235-0	04	1	9504-
211	NUT; BRKT FSS ALL(FSS***) M12	9-99110-512-0	03	1	9207-
211	NUT; BRKT FTS ALL(FTS***) M12	9-99110-512-0	04	1	9207-
249	GASKET; RUBBER,BELLOWS	1-14230-073-4	01	1	9207-
253	VALVE; VACUATER VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17>	1-14219-192-0	02	1	9207-
259	BOLT; AIR DUCT TO BRKT VERTICAL AIR CLEANER SNORKEL<PP3> M6X14	8-94279-143-0	02	1	9207-
291	BOLT; ACL M8X22 FLANGE	0-28080-822-0	04	1	9207-
383	RUBBER; SUPPORT,AIR INT,LWR OD=40 T=18.5	1-14119-267-0	04	1	9207-
386	PLUG; DUCT BRKT,AIR INT OD=15 L=14.5	1-76378-157-0	02	1	9207-
389	RUBBER; SUPPORT,AIR INT UPR VERTICAL AIR CLEANER SNORKEL<PP3>	1-14119-189-0	04	1	9207-
389	RUBBER; SUPPORT,AIR INT UPR EXC. VERTICAL AIR CLEANER SNORKEL<PP3> OD=40 T=18.5	1-14119-267-0	02	1	9207-
400	NUT; CAP,AIR DUCT VERTICAL AIR CLEANER SNORKEL<PP3> M10 BLACK	1-09984-121-0	08	1	9207-
400	NUT; CAP,AIR DUCT EXC. VERTICAL AIR CLEANER SNORKEL<PP3> M10	1-09984-145-0	01	1	9207-
