6-90 — REAR BUMPER (#18789) — 213 parça

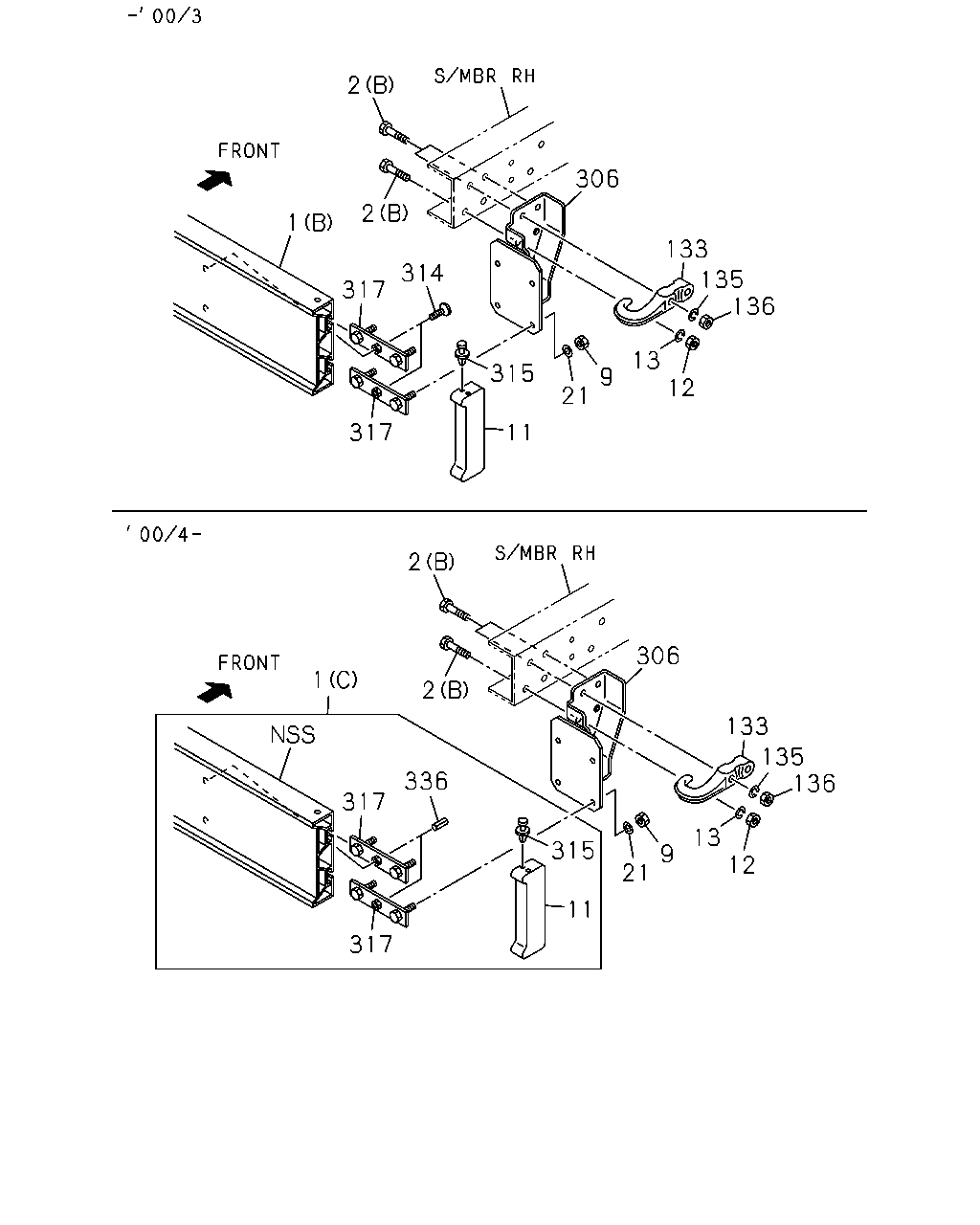

çizim 48033
2 306 2 1 133 314 135 136 317 13 12 315 9 21 317 11 2 306 1 2 133 135 136 336 317 13 12 315 9 21 11 317
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97170-777-0 01 1 9811-0003 ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0004-0105 ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0106- ● ● ●
1 07.070 BUMPER; RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97174-006-1 01 1 9811-0012 ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97174-006-1 01 1 0101- ● ● ● ●
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> (A) 		8-97174-006-1 01 1 0101- ●
1 07.070 BUMPER; RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-670-0 01 1 9811- ● ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.347 (B) M14X30 		0-20801-430-0 06 1 9811-0009 ● ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30 		0-20801-430-0 06 1 0010- ● ● ● ●
2 07.874 BOLT; BACK BAR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 9811-0012 ● ● ● ●
2 07.874 BOLT; BACK BAR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 0101- ● ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 0101- ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.347 (B) M14X30 		0-20801-430-0 08 1 0101- ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 9811-0105 ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 0106- ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9811-0012 ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0101- ● ● ● ●
9 07.070 NUT; BUMPER
BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0101- ●
11 07.829 CAP; RR BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		1-71290-055-0 02 1 0004- ● ● ●
11 07.829 CAP; RR BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		1-71290-049-0 02 1 9811-0003 ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 06 1 9811-0009 ● ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.529 M14 		9-99110-514-0 06 1 0010- ● ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 08 1 0101- ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 06 1 9811-0009 ● ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2 		9-09150-814-0 06 1 0010- ● ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 08 1 0101- ●
21 07.070 WASHER; LK,BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 ID=12.2 		9-09150-512-0 08 1 9811-0105 ● ● ●
21 07.070 WASHER; LK,BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 ID=12.2 		9-09150-512-0 08 1 0106- ● ● ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 9811-0105 ● ● ● ● ●
133 07.112 HOOK 8-97122-535-0 01 1 9811-0105 ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0106-0201 ● ● ● ●
133 07.112 HOOK 8-97122-535-0 01 1 0106-0201 ● ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 		8-97122-535-0 01 1 0202- ● ● ● ●
133 07.112 HOOK
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0202- ● ●
133 07.112 HOOK
BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0202- ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 9811-0105 ● ● ● ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0106-0201 ● ● ● ●
133 07.112 HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0202- ● ● ● ●
133 07.112 HOOK
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),BUMPER REAR<7HZ>,FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0202- ● ● ● ●
133 07.112 HOOK
DUMP CHASSIS(V4D) 07.068 		8-94249-270-2 01 1 0202- ●
133 07.112 HOOK
RR BODY FLAT BED<RS6> 07.068 		8-94249-270-2 01 1 0202- ● ●
133 07.112 HOOK
07.330 		8-94183-262-0 01 1 0101- ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811-0105 ● ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811-0201 ● ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
DUMP CHASSIS(V4D) 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
EXC. DUMP CHASSIS(V4D),BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
RR BODY FLAT BED<RS6> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811-0201 ● ● ● ● ● ●
136 07.068 NUT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
DUMP CHASSIS(V4D) 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D),BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
RR BODY FLAT BED<RS6> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
EXC. BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 01 1 0101-0105 ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 02 1 0106- ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BL 		8-97128-333-0 01 1 0106- ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BR 		8-97128-334-0 01 1 0106- ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 9811-0105 ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 0106- ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 9811-0105 ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 0106- ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BL 		8-97128-333-0 01 1 9811-0105 ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BR 		8-97128-334-0 01 1 9811-0105 ● ● ● ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP AL 		8-97128-331-0 01 1 0101- ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP AR 		8-97128-332-0 01 1 0101- ●
314 07.831 SCREW; PLATE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 07.832 		9-03090-620-0 04 1 9811-0003 ● ● ●
315 07.829 RIVET; CAP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> PUSH RIVET BLACK 		1-71290-041-0 04 1 0004- ● ● ●
315 07.829 RIVET; CAP
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> PUSH RIVET BLACK 		1-71290-041-0 04 1 9811-0003 ● ● ●
317 07.800 PLATE; BUMPER SIDE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		1-71290-043-1 04 1 9811-0003 ● ● ●
317 07.800 PLATE; BUMPER SIDE
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		1-71290-053-0 04 1 0004- ● ● ●
336 07.070 PIN; SPRING
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		1-71290-054-0 04 1 0004- ● ● ●

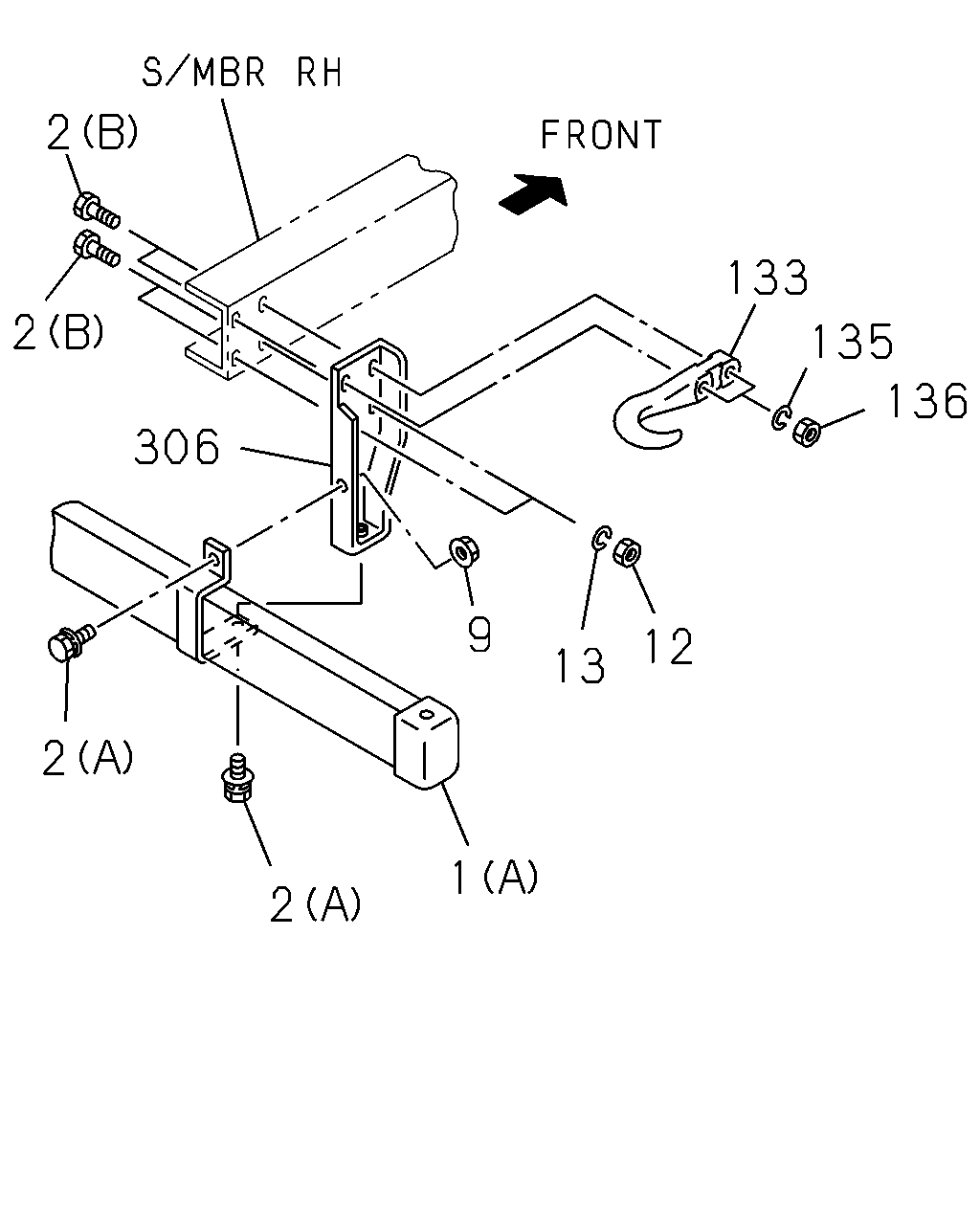

çizim 49381
2 133 2 135 136 306 9 12 13 2 1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97170-777-0 01 1 9811-0003 ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0004-0105 ● ● ●
1 07.070 BUMPER; RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (C) 		8-97247-191-0 01 1 0106- ● ● ●
1 07.070 BUMPER; RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97174-006-1 01 1 9811-0012 ● ● ● ●
1 07.070 BUMPER; RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97174-006-1 01 1 0101- ● ● ● ●
1 07.070 BUMPER; RR
BUMPER REAR<7HZ> (A) 		8-97174-006-1 01 1 0101- ●
1 07.070 BUMPER; RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> (A) 		8-97205-670-0 01 1 9811- ● ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.347 (B) M14X30 		0-20801-430-0 06 1 9811-0009 ● ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.347 (B) M14X30 		0-20801-430-0 06 1 0010- ● ● ● ●
2 07.874 BOLT; BACK BAR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 9811-0012 ● ● ● ●
2 07.874 BOLT; BACK BAR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 0101- ● ● ● ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 01.271 (A) M10X30 		8-94324-205-0 04 1 0101- ●
2 07.874 BOLT; BACK BAR
BUMPER REAR<7HZ> 07.347 (B) M14X30 		0-20801-430-0 08 1 0101- ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 9811-0105 ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 04.634 M12 		9-99110-512-0 08 1 0106- ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 9811-0012 ● ● ● ●
9 07.070 NUT; BUMPER
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0101- ● ● ● ●
9 07.070 NUT; BUMPER
BUMPER REAR<7HZ> 08.917 M10 FLANGE 		0-91150-210-0 02 1 0101- ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 06 1 9811-0009 ● ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.529 M14 		9-99110-514-0 06 1 0010- ● ● ● ●
12 07.833 NUT; BRKT
BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 08 1 0101- ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 06 1 9811-0009 ● ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 05.422 ID=14.2 		9-09150-814-0 06 1 0010- ● ● ● ●
13 07.833 WASHER; LK,BACK BAR TO FRAME
BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 08 1 0101- ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 9811-0105 ● ● ● ● ●
133 07.112 HOOK 8-97122-535-0 01 1 9811-0105 ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0106-0201 ● ● ● ●
133 07.112 HOOK 8-97122-535-0 01 1 0106-0201 ● ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 		8-97122-535-0 01 1 0202- ● ● ● ●
133 07.112 HOOK
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0202- ● ●
133 07.112 HOOK
BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0202- ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 9811-0105 ● ● ● ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0106-0201 ● ● ● ●
133 07.112 HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0202- ● ● ● ●
133 07.112 HOOK
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),BUMPER REAR<7HZ>,FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0202- ● ● ● ●
133 07.112 HOOK
DUMP CHASSIS(V4D) 07.068 		8-94249-270-2 01 1 0202- ●
133 07.112 HOOK
RR BODY FLAT BED<RS6> 07.068 		8-94249-270-2 01 1 0202- ● ●
133 07.112 HOOK
07.330 		8-94183-262-0 01 1 0101- ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811-0105 ● ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811-0201 ● ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
DUMP CHASSIS(V4D) 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
EXC. DUMP CHASSIS(V4D),BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
RR BODY FLAT BED<RS6> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811-0201 ● ● ● ● ● ●
136 07.068 NUT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
DUMP CHASSIS(V4D) 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D),BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
RR BODY FLAT BED<RS6> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
EXC. BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 01 1 0101-0105 ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 02 1 0106- ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BL 		8-97128-333-0 01 1 0106- ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BR 		8-97128-334-0 01 1 0106- ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 9811-0105 ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-361-1 01 1 0106- ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 9811-0105 ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> STAMP IA 		8-97138-362-1 01 1 0106- ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BL 		8-97128-333-0 01 1 9811-0105 ● ● ● ●
306 07.836 BAR; BACK,RR
G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) BUMPER REAR<7HZ> STAMP BR 		8-97128-334-0 01 1 9811-0105 ● ● ● ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP AL 		8-97128-331-0 01 1 0101- ●
306 07.836 BAR; BACK,RR
BUMPER REAR<7HZ> STAMP AR 		8-97128-332-0 01 1 0101- ●
çizim 50157
113 127 127 129 129 134 135 133 158 136 128 128 114 113
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
113 07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> 02.662 (A) 		8-97122-800-0 01 1 9811-0105 ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
02.662 (A) 		8-97122-800-0 01 1 9811-0105 ●
113 07.800 BRACKET; LICENSE PLATE
FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6> 02.662 (A) 		8-97122-800-0 01 1 0106- ● ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6>,FRAME STRAIGHT TYPE<7KJ> 02.662 (A) 		8-97096-644-0 01 1 9811-0012 ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
EXC. RR BODY FLAT BED<RS6>,FRAME STRAIGHT TYPE<7KJ> 02.662 (A) 		8-97096-644-1 01 1 0101- ● ● ● ● ●
113 07.800 BRACKET; LICENSE PLATE
RR BODY FLAT BED<RS6> (B) 		8-97077-573-2 01 1 9811- ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED<RS6> 01.540 M6X25 W/LK&PL WASHER 		0-50140-625-0 02 1 9811-0004 ● ●
114 07.800 BOLT; BRKT,LICENSE PLATE
RR BODY FLAT BED<RS6> 02.334 M6X25 FLANGE 		0-28680-625-0 02 1 0005- ● ●
127 02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 9811-0012 ● ● ● ●
127 02.662 BOLT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6> 03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 9811-0012 ● ●
127 02.662 BOLT; CROSS PLATE
03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0101- ● ● ● ● ●
127 02.662 BOLT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6> 03.483 M8X40 W/LK&PL WASHER 		0-50140-840-0 02 1 0101- ● ●
128 02.662 NUT; CROSS PLATE
02.559 M8 		9-09110-408-0 02 1 9811-0012 ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6> 02.559 M8 		9-09110-408-0 02 1 9811-0012 ● ●
128 02.662 NUT; CROSS PLATE
02.559 M8 		9-09110-408-0 02 1 0101- ● ● ● ● ●
128 02.662 NUT; CROSS PLATE
EXC. RR BODY FLAT BED<RS6> 02.559 M8 		9-09110-408-0 02 1 0101- ● ●
129 03.162 WASHER; PL,CROSS PLATE
EXC. RR BODY FLAT BED<RS6> 02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9811- ●
129 03.162 WASHER; PL,CROSS PLATE
02.334 ID=8.4 OD=26 		9-09164-808-0 02 1 9811- ● ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 9811-0105 ● ● ● ● ●
133 07.112 HOOK 8-97122-535-0 01 1 9811-0105 ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0106-0201 ● ● ● ●
133 07.112 HOOK 8-97122-535-0 01 1 0106-0201 ● ●
133 07.112 HOOK
FRAME STRAIGHT TYPE<7KJ> EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 		8-97122-535-0 01 1 0202- ● ● ● ●
133 07.112 HOOK
RR BODY FLAT BED<RS6> FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0202- ● ●
133 07.112 HOOK
BUMPER REAR<7HZ> FRAME STRAIGHT TYPE<7KJ> 		8-97122-535-0 01 1 0202- ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 9811-0105 ● ● ● ● ●
133 07.112 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0106-0201 ● ● ● ●
133 07.112 HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0202- ● ● ● ●
133 07.112 HOOK
EXC. RR BODY FLAT BED<RS6>,DUMP CHASSIS(V4D),BUMPER REAR<7HZ>,FRAME STRAIGHT TYPE<7KJ> 07.068 		8-94249-270-2 01 1 0202- ● ● ● ●
133 07.112 HOOK
DUMP CHASSIS(V4D) 07.068 		8-94249-270-2 01 1 0202- ●
133 07.112 HOOK
RR BODY FLAT BED<RS6> 07.068 		8-94249-270-2 01 1 0202- ● ●
133 07.112 HOOK
07.330 		8-94183-262-0 01 1 0101- ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10806-450-0 02 1 9811-0201 ● ● ● ● ● ●
134 07.068 BOLT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> 07.039 M14X50 		0-10806-450-0 02 1 0202- ● ●
134 07.068 BOLT; HOOK
DUMP CHASSIS(V4D) 07.039 M14X50 		0-10806-450-0 02 1 0202- ●
134 07.068 BOLT; HOOK
EXC. DUMP CHASSIS(V4D),BUMPER REAR<7HZ> 07.039 M14X50 		0-10806-450-0 02 1 0202- ●
134 07.068 BOLT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 07.039 M14X50 		0-10806-450-0 02 1 0202- ● ●
134 07.068 BOLT; HOOK
RR BODY FLAT BED<RS6> 07.039 M14X50 		0-10806-450-0 02 1 0202- ● ●
134 07.068 BOLT; HOOK
EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.039 M14X50 		0-10806-450-0 02 1 0202- ● ●
134 07.068 BOLT; HOOK
07.039 M14X50 		0-10806-450-0 02 1 0202- ● ●
134 07.068 BOLT; HOOK
EXC. BUMPER REAR<7HZ> 07.039 M14X50 		0-10806-450-0 02 1 0202- ●
134 07.068 BOLT; HOOK
00.004 M10X45 W/LK WASHER 		0-50041-045-0 01 1 0101-0105 ●
134 07.068 BOLT; HOOK
00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0106- ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811-0105 ● ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811-0201 ● ● ● ● ● ●
135 07.068 WASHER; LK,HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
DUMP CHASSIS(V4D) 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
EXC. DUMP CHASSIS(V4D),BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
135 07.068 WASHER; LK,HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
RR BODY FLAT BED<RS6> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
05.422 ID=14.2 		9-09150-814-0 02 1 9811- ● ●
135 07.068 WASHER; LK,HOOK
EXC. BUMPER REAR<7HZ> 05.422 ID=14.2 		9-09150-814-0 02 1 9811- ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 9811-0201 ● ● ● ● ● ●
136 07.068 NUT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
DUMP CHASSIS(V4D) 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
EXC. DUMP CHASSIS(V4D),BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
SINGAPORE EQUIPMENT(S9Y) BUMPER REAR<7HZ> EXC. RR BODY FLAT BED<RS6> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
RR BODY FLAT BED<RS6> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
EXC. RR BODY FLAT BED<RS6>,BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
07.529 M14 		9-99110-514-0 02 1 0202- ● ●
136 07.068 NUT; HOOK
EXC. BUMPER REAR<7HZ> 07.529 M14 		9-99110-514-0 02 1 0202- ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 01 1 0101-0105 ●
136 07.068 NUT; HOOK
00.002 M10 		9-09110-510-0 02 1 0106- ●
158 07.629 WASHER; PL,HOOK SPACER
DUMP CHASSIS(V4D) 06.164 ID=15 OD=30 		9-09164-614-0 02 1 9811- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
