◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50817 - NPR/NQR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#18788) — 15 parça

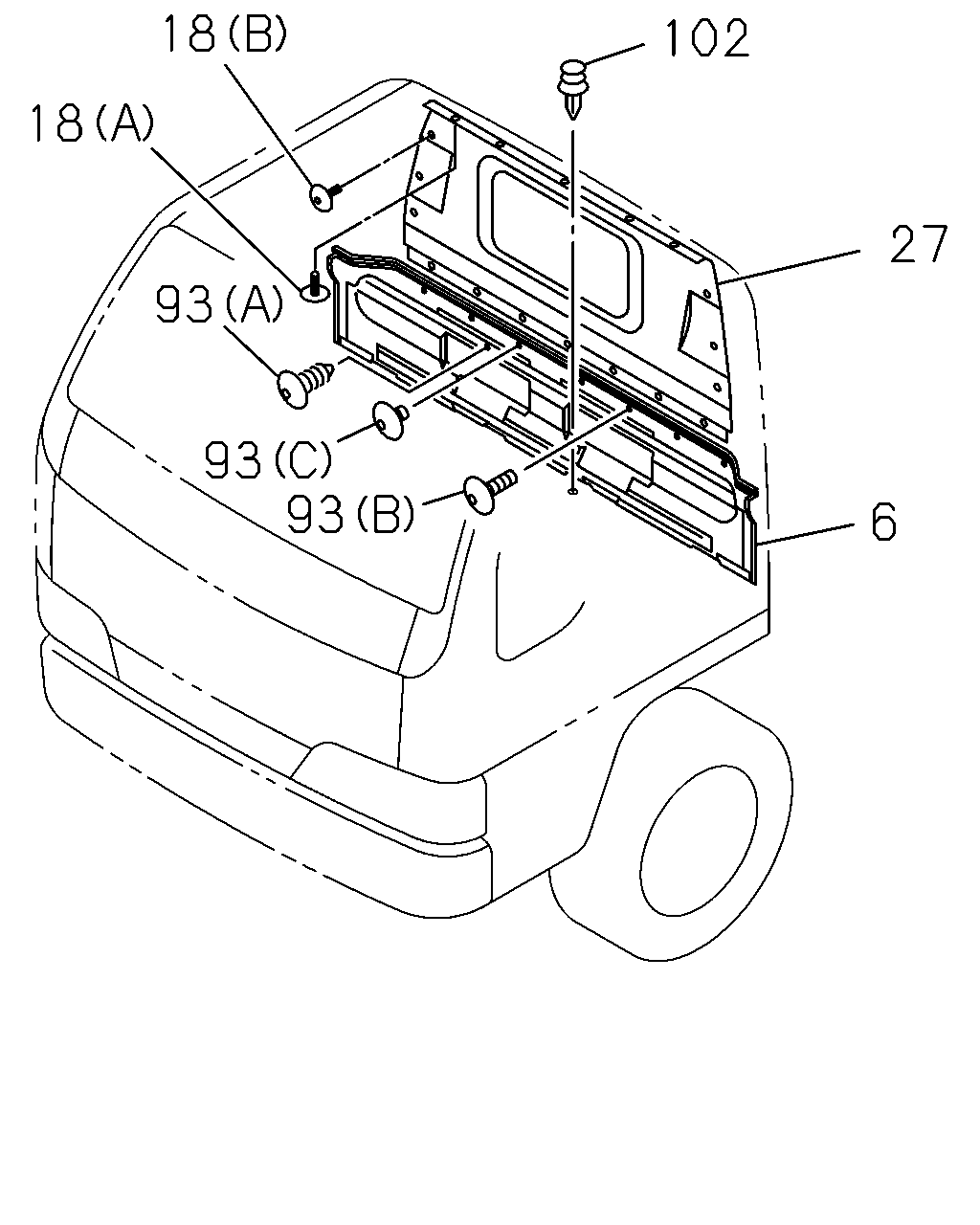

çizim 48370
18 102 18 27 93 93 93 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB> DARK GRAY 		8-97857-037-3 01 1 9811-9906 ● ● ● ●
6 16.592 MAT; SILENCER,CAB BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> DARK GRAY 		8-97857-037-3 01 1 9907- ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) 16.742 (A) LIGHT GRAY 		8-97153-166-0 07 1 9811-9906 ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) 16.742 (A) LIGHT GRAY 		8-97153-166-0 07 1 9907- ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) (B) LIGHT GRAY 		8-97867-200-0 06 1 9811-9906 ● ● ● ●
18 16.587 CLIP; TRIM COVER,CAB BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) (B) LIGHT GRAY 		8-97867-200-0 06 1 9907- ● ● ● ●
27 16.587 COVER; TRIM,BACK
INTERIOR DELUXE<RBB> AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY 		8-97867-617-5 01 1 9811-9906 ● ● ● ●
27 16.587 COVER; TRIM,BACK
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> AUSTRALIA EQUIPMENT(RR3) LIGHT GRAY 		8-97867-617-5 01 1 9907- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (B) DARK GRAY 		8-97857-054-0 07 1 9811-9906 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (B) DARK GRAY 		8-97857-054-0 07 1 9907- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (C) ID=7X14 		8-97857-564-0 02 1 9811-9906 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (C) ID=7X14 		8-97857-564-0 02 1 9907- ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB> (A) DARK GRAY 		8-97866-675-0 02 1 9811-9906 ● ● ● ●
93 16.584 CLIP; SILENCER MATTERESS
INTERIOR DELUXE<RBB>,CUSTOM PACKAGE<YM8> (A) DARK GRAY 		8-97866-675-0 02 1 9907- ● ● ● ●
102 16.584 CLIP; TRAY,BACK PANEL
16.165 OD=7.9 BLACK 		8-94279-974-1 02 1 9811- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
