◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#18784) — 20 parça

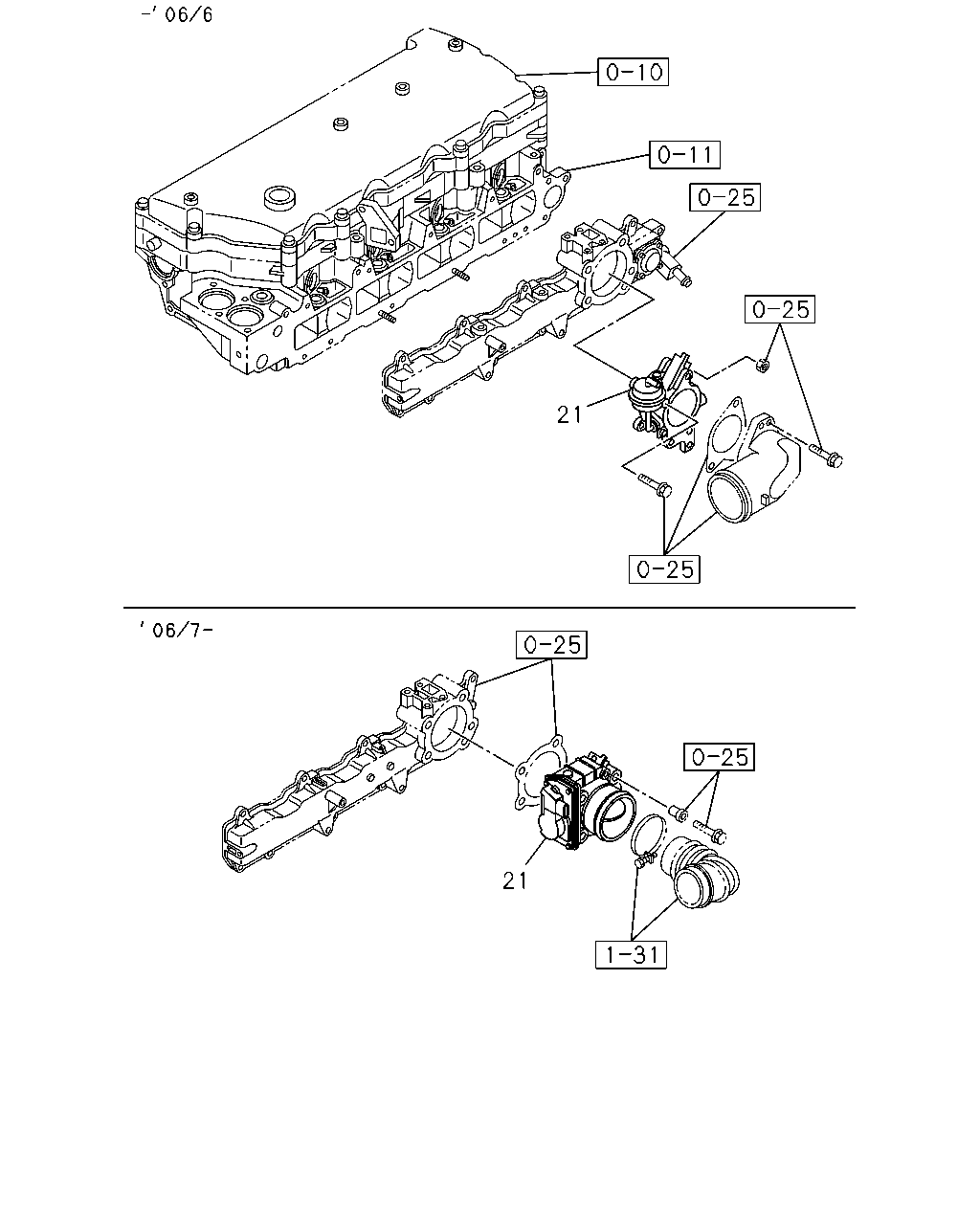

çizim 12785
21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E
21 03.440 VALVE ASM; THROTTLE 8-97309-925-3 01 1 0302-0506 ●
21 03.440 VALVE ASM; THROTTLE 8-97309-925-3 01 1 0507-0606 ●
21 03.440 VALVE ASM; THROTTLE 8-97369-668-0 01 1 0507-0606 ● ●
21 03.440 VALVE ASM; THROTTLE 8-98000-027-0 01 1 0607-0609 ●
21 03.440 VALVE ASM; THROTTLE 8-98061-061-3 01 1 0610- ●

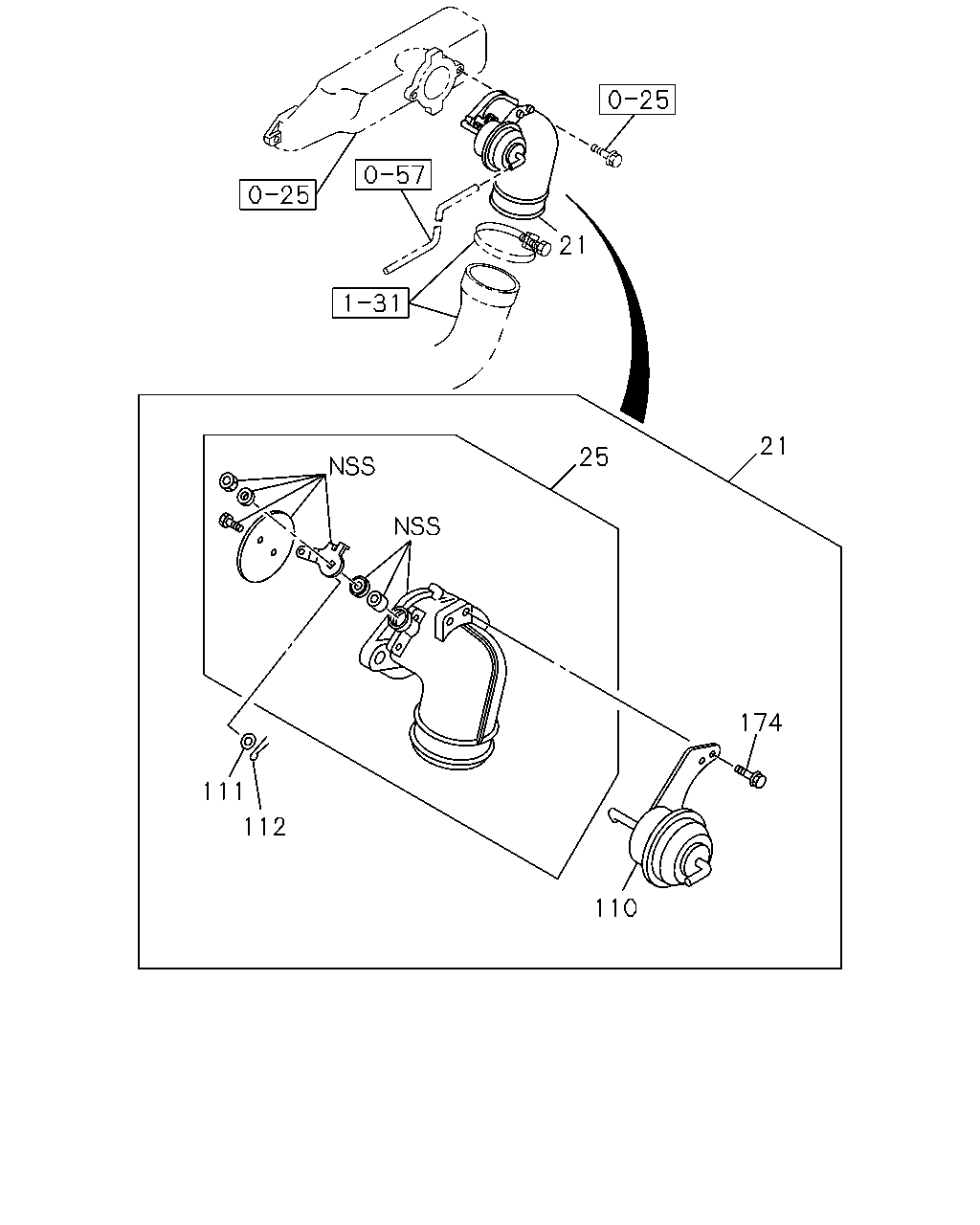

çizim 52549
21 21 25 174 111 112 110
BalonParca AdiParca NoAdetTipApplied Date A B C D E
21 03.440 VALVE ASM; THROTTLE 8-97309-925-3 01 1 0302-0506 ●
21 03.440 VALVE ASM; THROTTLE 8-97309-925-3 01 1 0507-0606 ●
21 03.440 VALVE ASM; THROTTLE 8-97369-668-0 01 1 0507-0606 ● ●
21 03.440 VALVE ASM; THROTTLE 8-98000-027-0 01 1 0607-0609 ●
21 03.440 VALVE ASM; THROTTLE 8-98061-061-3 01 1 0610- ●
25 03.440 BODY ASM; THROTTLE 8-97317-384-2 01 1 0302-0506 ●
25 03.440 BODY ASM; THROTTLE 8-97317-384-2 01 1 0507-0606 ●
110 03.440 CHAMBER ASM; DIAPH 8-97317-385-0 01 1 0302-0506 ●
110 03.440 CHAMBER ASM; DIAPH 8-97317-385-0 01 1 0507-0606 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 0302-0506 ●
111 03.440 WASHER; SPLIT PIN 8-94467-828-0 01 1 0507-0606 ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 0302-0506 ●
112 03.440 PIN; SPLIT,LEVER 9-08112-010-0 01 1 0507-0606 ●
174 03.440 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0302-0506 ●
174 03.440 BOLT; CHAMBER
01.428 M6X12 FLANGE 		0-28080-612-0 02 1 0507-0606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
