◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 10635 - FSS/FTS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

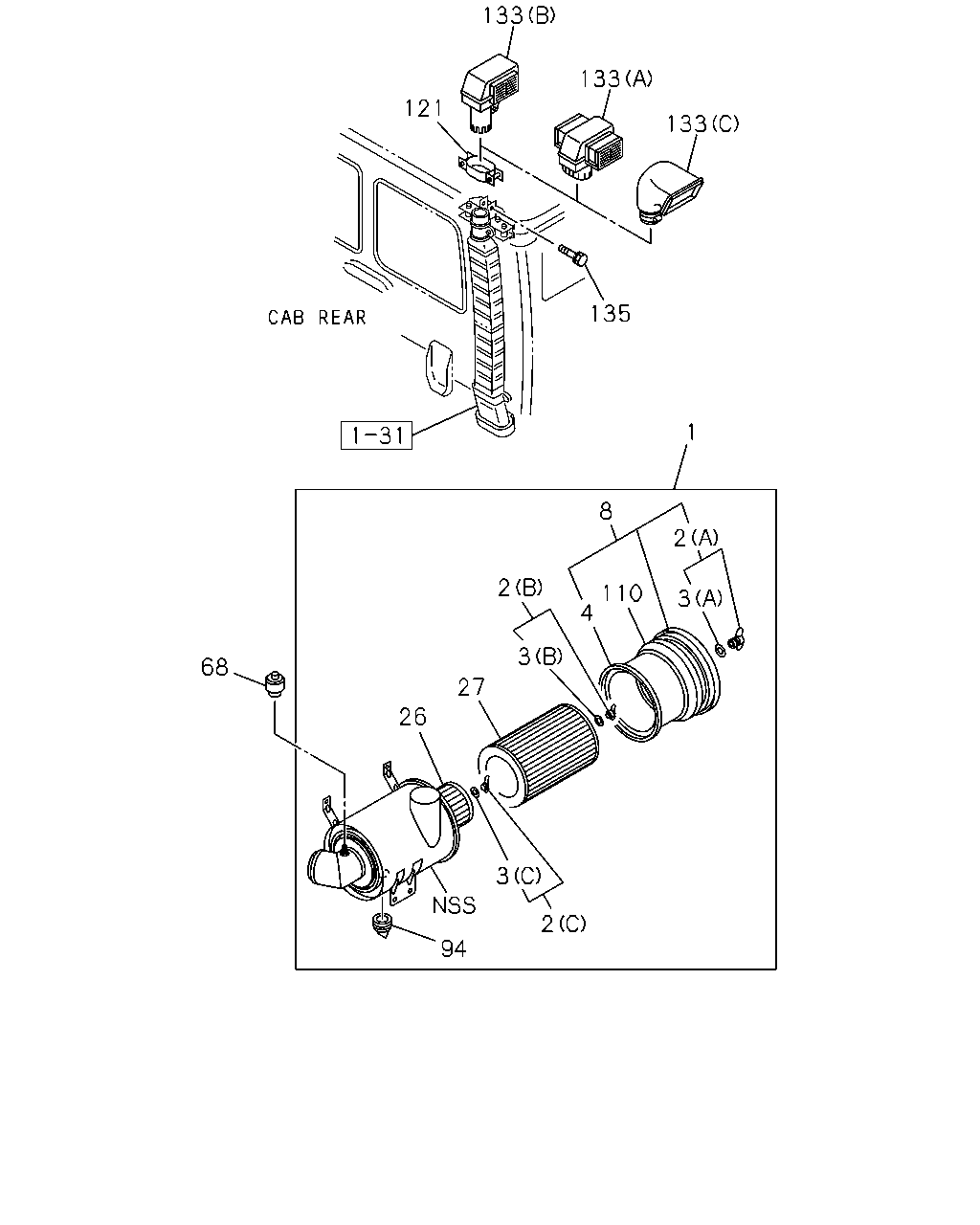

1-30 — AIR CLEANER (#1878) — 19 parça
çizim 96483
133 133 121 133 135 8 2 2 110 4 3 3 68 27 26 3 2 94 1
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 1-14210-559-4 01 1 9207-
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 9207-
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 9207-
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 9207-
3 WASHER; SEAL,WING NUT
(B) 		1-14219-118-0 01 1 9207-
3 WASHER; SEAL,WING NUT
(A) 		1-14219-156-0 01 1 9207-
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 9207-
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 9207-
8 COVER ASM; ACL 1-14212-086-0 01 1 9207-
26 FILTER; ACL,INNER 1-14215-145-0 01 1 9207-
27 FILTER; ACL,OUTER 1-14215-171-0 01 1 9207-
68 INDICATOR; SERVICE 1-14219-212-0 01 1 9207-
94 VALVE; VACUATOR 1-14219-192-0 01 1 9207-
110 ADAPTER; ACL 1-14219-184-0 01 1 9207-
121 CLAMP; INL HOOD,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> 		1-09707-160-0 01 1 9207-
133 HOOD ASM; INL,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> PRE CLEANER<W17> (A) 		1-14210-660-0 01 1 9207-
133 HOOD ASM; INL,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> EXC. PRE CLEANER<W17> (B) 		1-14210-661-0 01 1 9207-
133 HOOD ASM; INL,ACL
VERTICAL AIR CLEANER SNORKEL<PP3> SHIPPING EQUIPMENT(VK5) (C) 		1-14219-166-0 01 1 9207-
135 BOLT; AIR INL HOOD
VERTICAL AIR CLEANER SNORKEL<PP3> M8X25 		1-09980-511-0 01 1 9207-
