Isuzu WW
▶
TRUCKS
▶
NPR
▶
50949 - NPR/NQR(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶
0-28 — VENTILATION SYSTEM
(#18779) — 53 parça
Tümü
A - 4JH1 ENG
B - 4JH1-TC ENG
C - 4HK1-TCC ENG
D - 4HE1 ENG
E - 4HK1-TCN ENG
F - 4HK1-TCS ENG
G - 4JJ1 ENG
◀
[028A] '06/7- 4HK1 (14 parça)
[028A] 4HE1,-'06/6 4HK1 (10 parça)
[028A] 4JH1 (18 parça)
[028A] 4JJ1 (11 parça)
▶

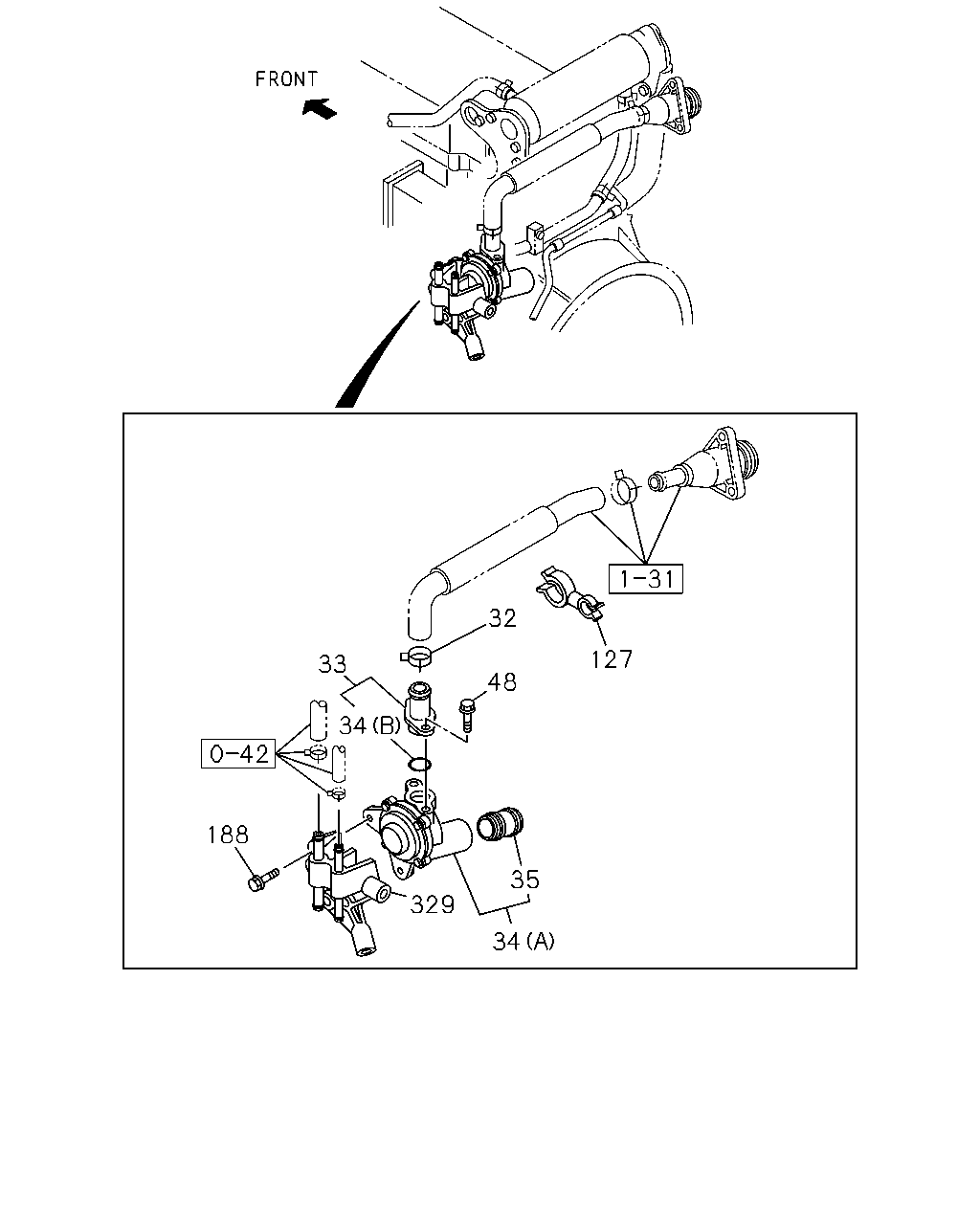

32
127
33
48
34
188
35
329
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
32
03.417 CLIP; VENT HOSE
01.097 ID=14.8
8-94448-727-0
02
1
0302-0506
●
32
03.417 CLIP; VENT HOSE
01.097 ID=14.8
8-94448-727-0
02
1
0507-0606
●
32
03.417 CLIP; VENT HOSE
08.846 ID=21.7
8-97203-074-0
01
1
0607-
●
33
03.278 PIPE; VENTILATOR
8-98037-732-2
01
1
0607-
●
34
03.415 VENTILATOR
8-98049-611-1
01
1
0607-0608
●
34
03.415 VENTILATOR
8-98036-808-1
01
1
0609-
●
35
03.415 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.550 (B)
1-09623-588-0
01
1
0710-
●
35
03.415 GASKET; VENTILATOR
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A)
8-98038-692-0
01
1
0607-
●
48
03.278 BOLT; PIPE
09.242 M6X16 FLANGE
0-28050-616-0
02
1
0607-
●
127
03.675 CLIP; RUBBER HOSE,PCV
HYDRO BRAKE BOOSTER<7QQ> 02.483 ID=25.5 & 13
8-97181-208-0
01
1
0607-
●
188
01.780 BOLT; BRKT
00.206 M8X30 FLANGE
0-28050-830-0
04
1
0607-
●
329
01.750 BRACKET; VENTILATOR
8-98049-974-0
01
1
0607-0608
●
329
01.750 BRACKET; VENTILATOR
8-98036-160-0
01
1
0609-1009
●
329
01.750 BRACKET; VENTILATOR
8-98171-059-0
01
1
1010-
●

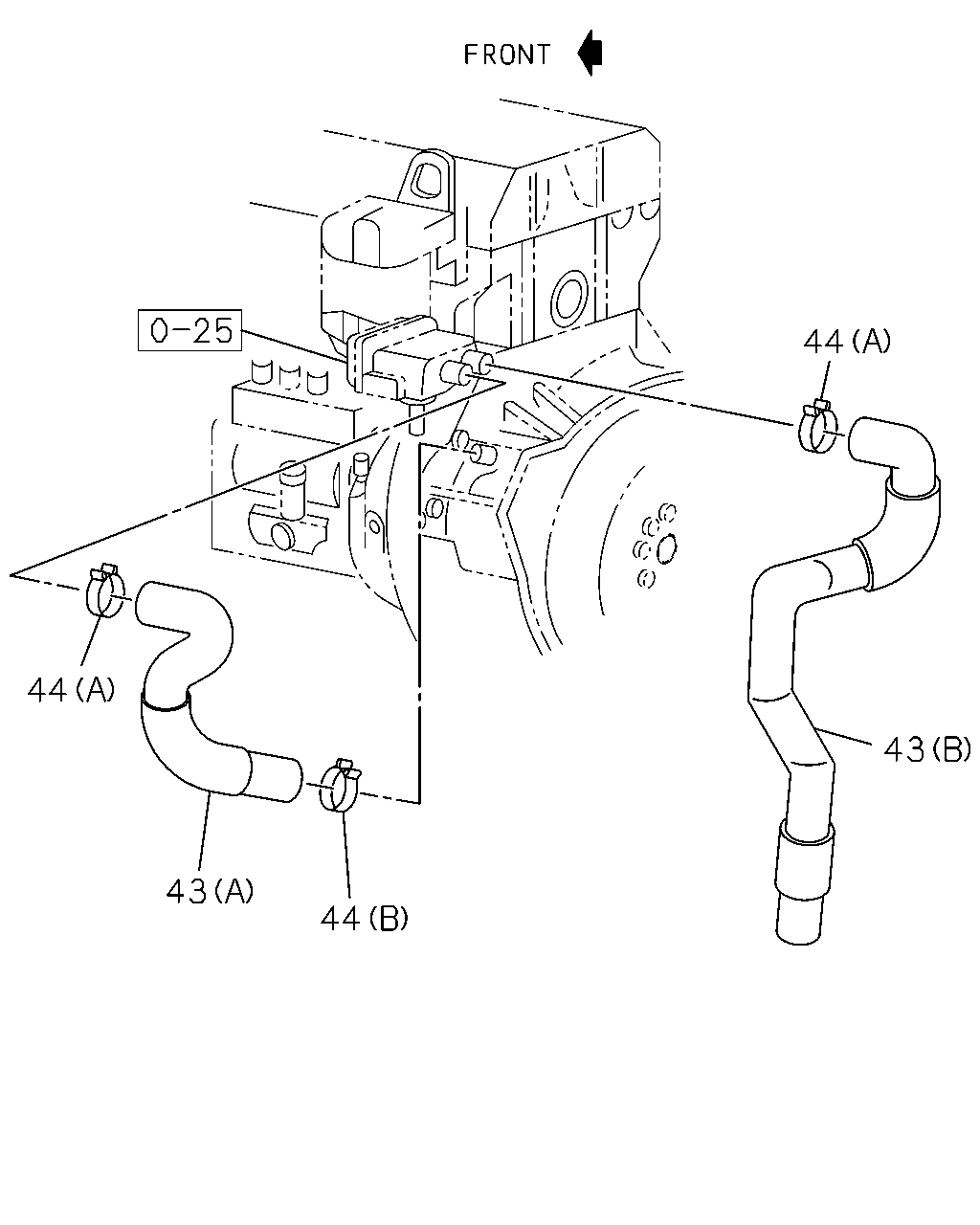

44
44
43
43
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
43
03.278 HOSE; PCV
(A)
8-97149-012-3
01
1
0302-0506
●
43
03.278 HOSE; PCV
(A)
8-97149-012-3
01
1
0507-0606
●
●
43
03.278 HOSE; PCV
(C)
8-98045-343-0
01
1
0607-
●
43
03.278 HOSE; PCV
(B)
8-97351-236-1
01
1
0302-0307
●
43
03.278 HOSE; PCV
(B)
8-97369-961-0
01
1
0308-0506
●
43
03.278 HOSE; PCV
(B)
8-98012-830-1
01
1
0507-0606
●
●
44
03.278 CLIP; HOSE,PCV
06.672 (B) ID=21
8-94242-034-0
01
1
0302-0506
●
44
03.278 CLIP; HOSE,PCV
06.672 (B) ID=21
8-94242-034-0
01
1
0507-0606
●
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
0302-0506
●
44
03.278 CLIP; HOSE,PCV
01.252 (A) ID=22.7
8-94466-382-0
02
1
0507-0606
●
●

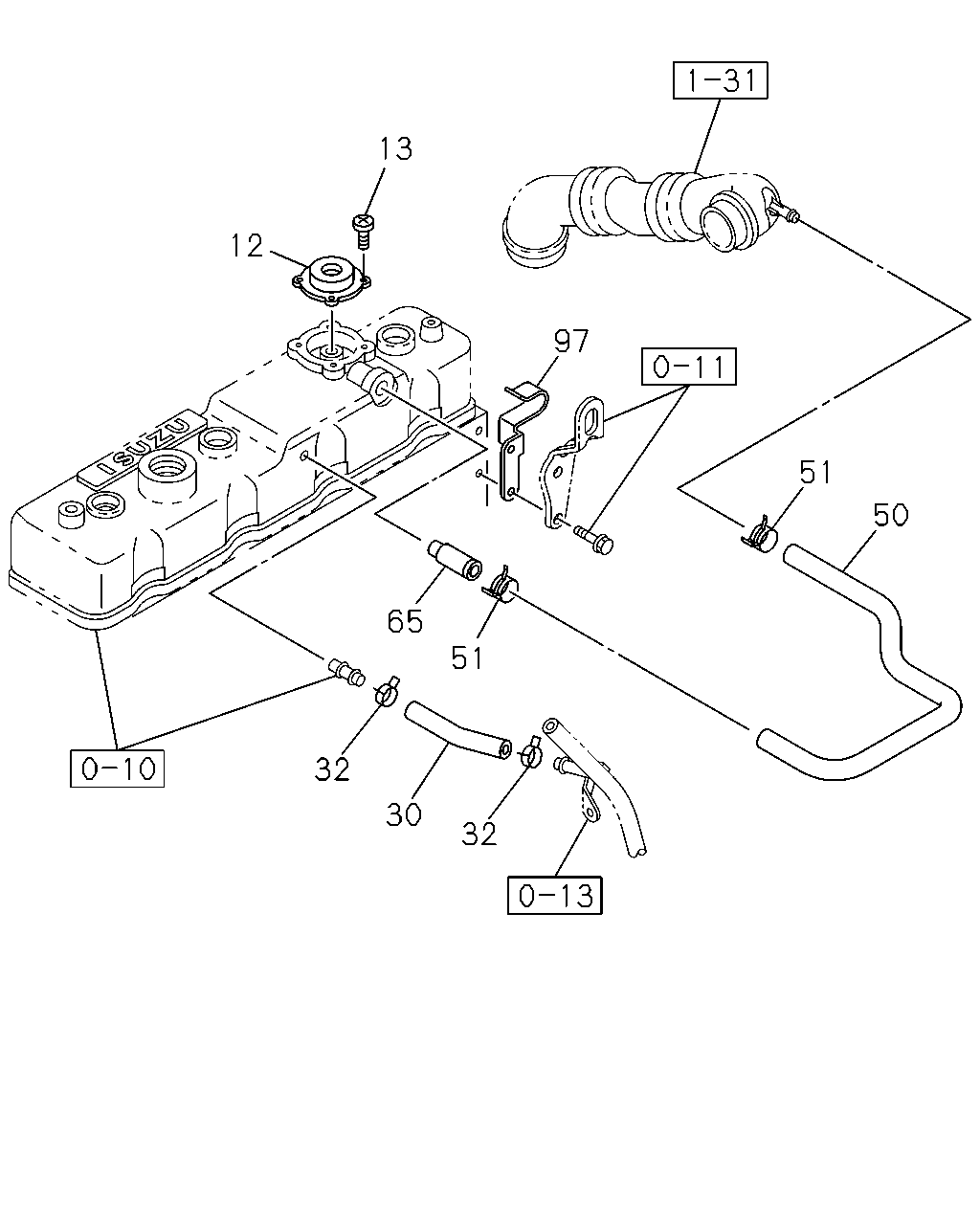

13
12
97
51
50
65
51
32
30
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0302-0506
●
12
01.745 VENTILATOR; AIR
03.415
8-97119-887-0
01
1
0507-0606
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0302-0506
●
13
00.386 SCREW; VENTILATOR TO HD COVER
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0507-0604
●
13
00.386 SCREW; VENTILATOR TO HD COVER
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0605-0606
●
30
03.417 HOSE; VENTILATOR,CYL HD COVER
8-97240-031-0
01
1
0302-0506
●
30
03.417 HOSE; VENTILATOR,CYL HD COVER
8-97240-031-0
01
1
0507-0606
●
32
03.417 CLIP; VENT HOSE
01.097 ID=14.8
8-94448-727-0
02
1
0302-0506
●
32
03.417 CLIP; VENT HOSE
01.097 ID=14.8
8-94448-727-0
02
1
0507-0606
●
32
03.417 CLIP; VENT HOSE
08.846 ID=21.7
8-97203-074-0
01
1
0607-
●
50
03.265 HOSE; PCV
8-97248-984-1
01
1
0302-0506
●
50
03.265 HOSE; PCV
8-97248-984-1
01
1
0507-0606
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0302-0506
●
51
03.265 CLIP; PCV HOSE
ID=20.4
8-94121-113-0
02
1
0507-0606
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0302-0506
●
65
01.762 PIPE; BREATHER
8-94250-615-1
01
1
0507-0606
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
0302-0506
●
97
01.750 BRACKET; HOSE
8-97212-350-0
01
1
0507-0606
●

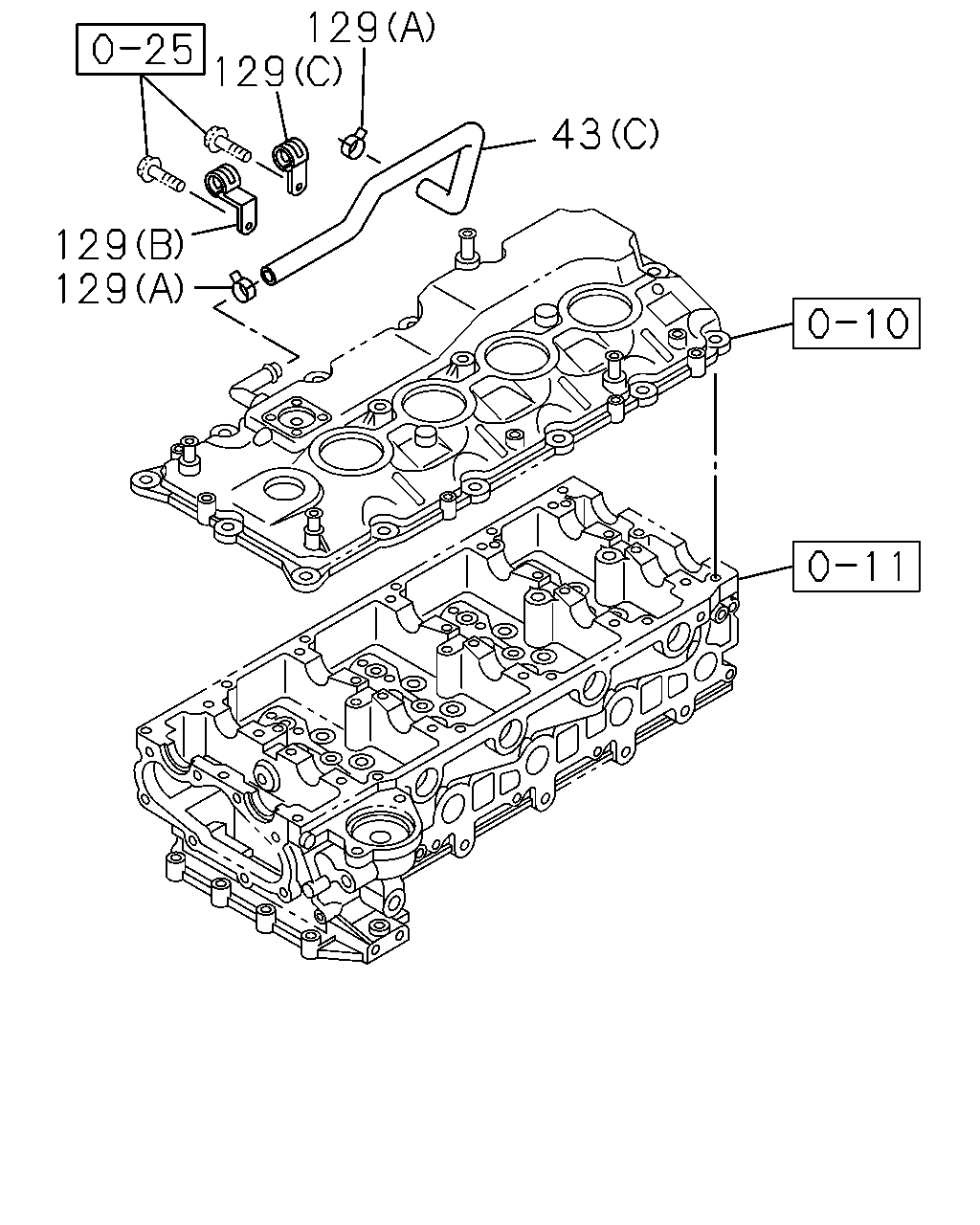

129
129
43
129
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
43
03.278 HOSE; PCV
(A)
8-97149-012-3
01
1
0302-0506
●
43
03.278 HOSE; PCV
(A)
8-97149-012-3
01
1
0507-0606
●
●
43
03.278 HOSE; PCV
(C)
8-98045-343-0
01
1
0607-
●
43
03.278 HOSE; PCV
(B)
8-97351-236-1
01
1
0302-0307
●
43
03.278 HOSE; PCV
(B)
8-97369-961-0
01
1
0308-0506
●
43
03.278 HOSE; PCV
(B)
8-98012-830-1
01
1
0507-0606
●
●
129
03.278 CLIP; PCV
04.866 (B) ID=24.5 H=23 L=25
1-09700-862-0
01
1
0607-1001
●
129
03.278 CLIP; PCV
(C) ID=22 L=22
8-98120-916-0
01
1
1002-
●
129
03.278 CLIP; PCV
09.242 (C) ID=22 L=22
5-83574-045-0
01
1
0607-1001
●
129
03.278 CLIP; PCV
(B) ID=24.5 H=23 L=25
8-98149-024-0
01
1
1002-
●
129
03.278 CLIP; PCV
08.846 (A) ID=21.7
8-97203-074-0
02
1
0607-
●
