0-27 — EXHAUST MANIFOLD (#18778) — 152 parça

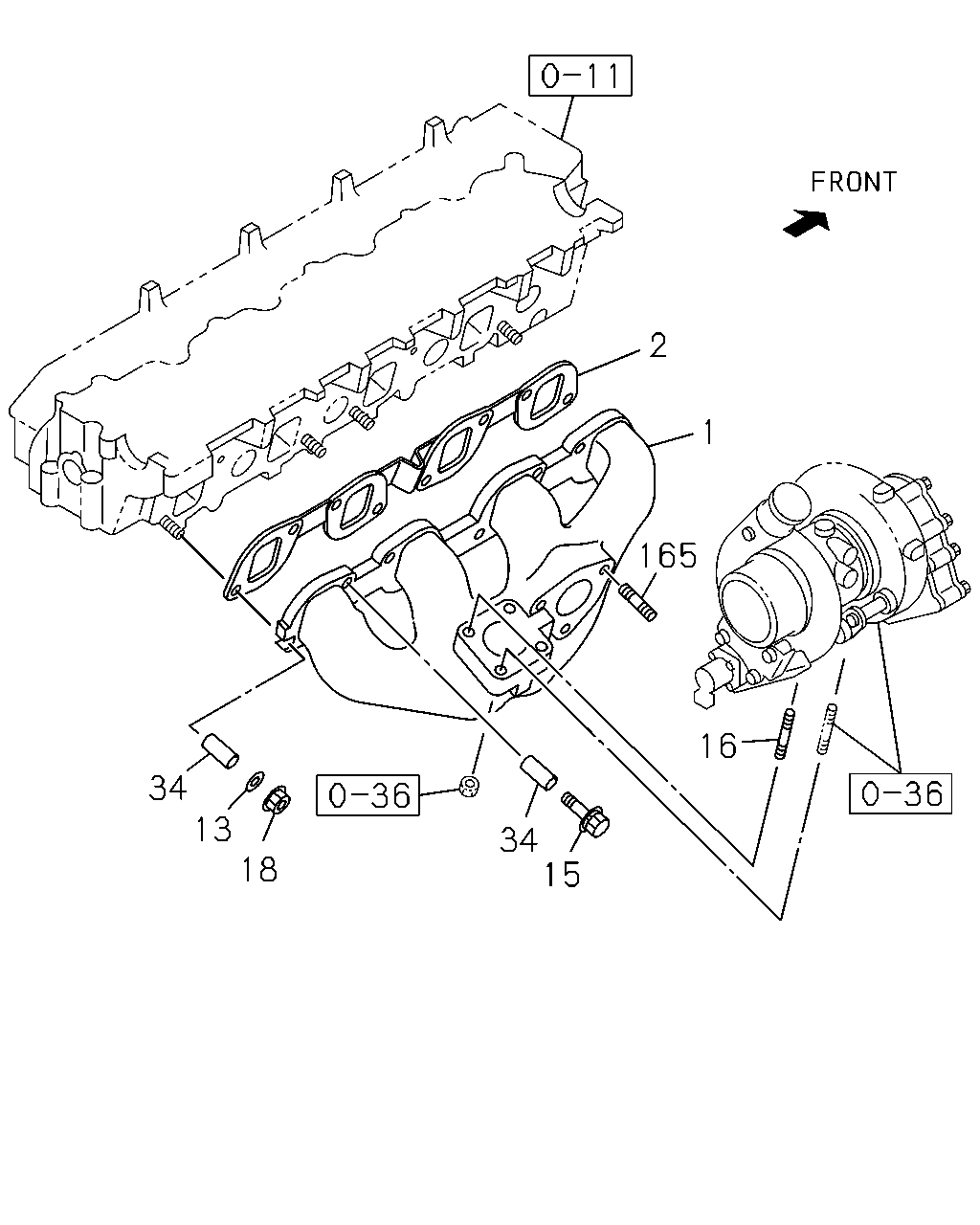

2 1 16 34 13 18 34 15 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0302-0506	●
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0507-0606		●	●
1	03.601 MANIFOLD; EXHAUST	8-97387-873-3	01	1	0607-				●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0302-0506					●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0507-0606						●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	0607-							●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0302-0506	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0507-0606		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-2	01	1	0607-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0302-0506					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0507-0606						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97356-028-2	01	1	0607-							●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0302-0506	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0507-0606		●	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0607-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0302-0506	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0507-0606		●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0607-				●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0302-0506					●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0507-0606						●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0302-0506	●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0507-0606		●	●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0607-0805				●
16	03.604 STUD; EXH PIPE TO MANIF 03.342 M10X30 L=45	1-09302-106-0	02	1	0806-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0302-0506	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0507-0512		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0606		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0607-				●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0607-							●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0302-0506	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0507-0606		●	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0607-				●
165	03.417 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	02	1	0302-0506	●
165	03.417 STUD; EGR PIPE 03.613 M8X45 L=57	8-94105-162-1	02	1	0507-0606		●	●
165	03.417 STUD; EGR PIPE 03.342 M8X25 L=36	8-94476-282-0	03	1	0607-				●

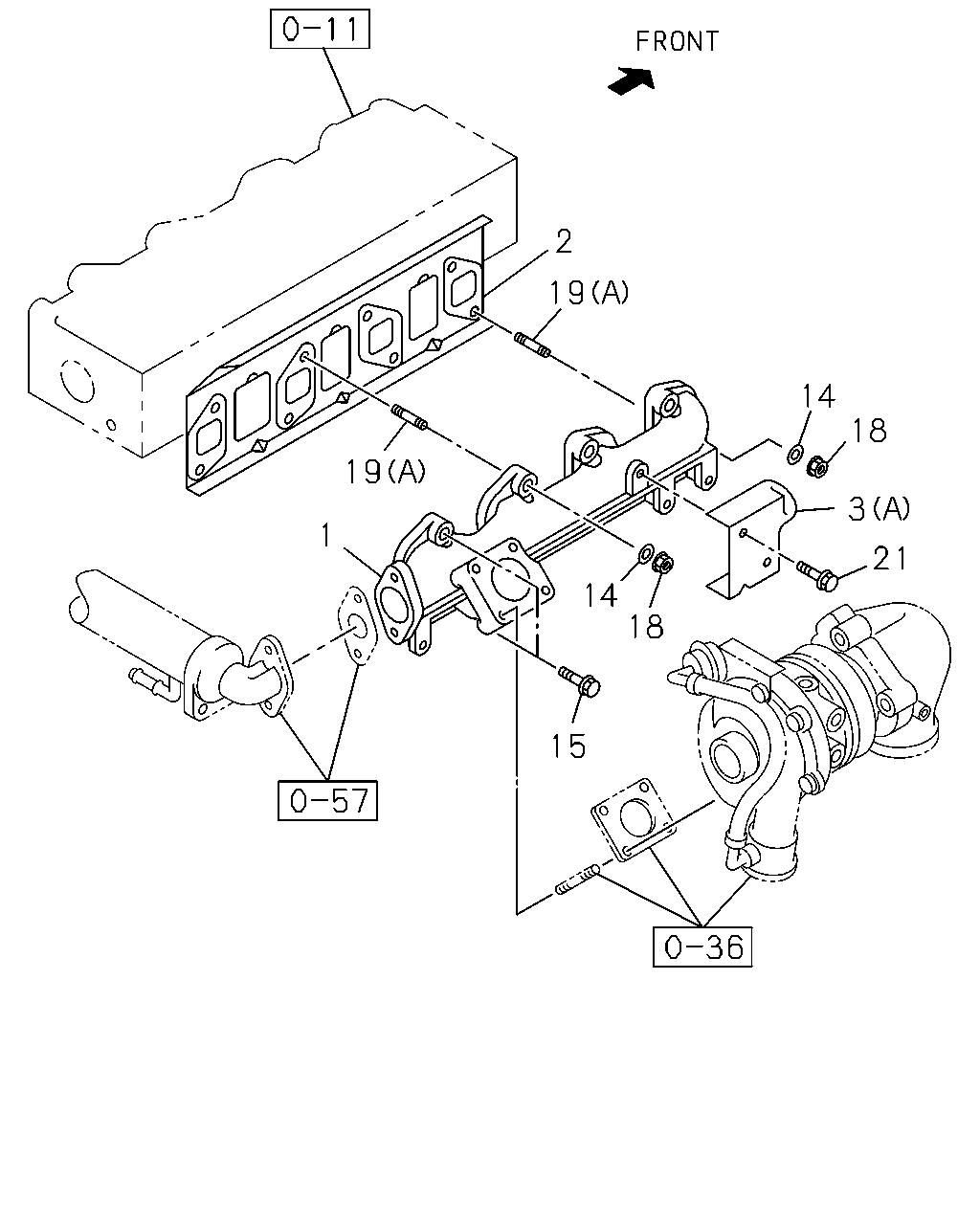

2 19 14 18 19 3 1 21 14 18 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0302-0506	●
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0507-0606		●	●
1	03.601 MANIFOLD; EXHAUST	8-97387-873-3	01	1	0607-				●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0302-0506					●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0507-0606						●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	0607-							●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0302-0506	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0507-0606		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-2	01	1	0607-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0302-0506					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0507-0606						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97356-028-2	01	1	0607-							●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97259-171-1	01	1	0302-0506					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97259-171-1	01	1	0507-0606						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97381-503-4	01	1	0607-							●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98011-523-0	01	1	0607-							●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0302-0506					●
14	03.604 WASHER; PL,EXH MANIF ID=8.5 OD=15 T=4	8-97257-914-0	02	1	0507-0606						●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0302-0506	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0507-0606		●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0607-				●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0302-0506					●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0507-0606						●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0302-0506	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0507-0512		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0606		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0607-				●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0607-							●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97048-055-1	02	1	0302-0408					●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0409-0506					●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0507-0606						●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-94391-665-0	04	1	0607-0610							●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	04	1	0611-							●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	0607-							●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0506					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0507-0512						●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0606						●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0607-							●

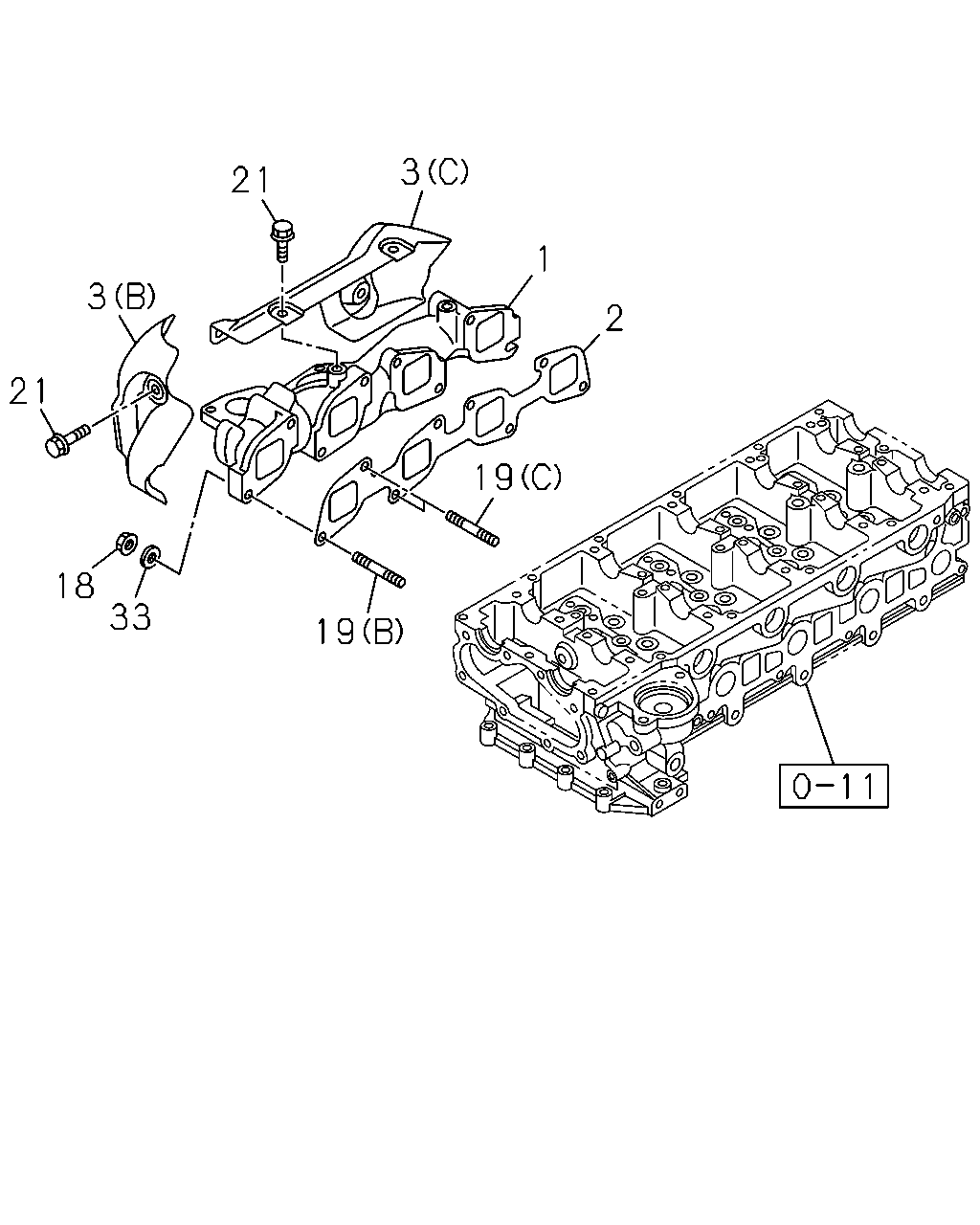

3 21 1 3 2 21 19 18 33 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0302-0506	●
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0507-0606		●	●
1	03.601 MANIFOLD; EXHAUST	8-97387-873-3	01	1	0607-				●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0302-0506					●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0507-0606						●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	0607-							●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0302-0506	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0507-0606		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-2	01	1	0607-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0302-0506					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0507-0606						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97356-028-2	01	1	0607-							●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97259-171-1	01	1	0302-0506					●
3	03.602 PROTECTOR; HEAT,EXH MANIF (A)	8-97259-171-1	01	1	0507-0606						●
3	03.602 PROTECTOR; HEAT,EXH MANIF (C)	8-97381-503-4	01	1	0607-							●
3	03.602 PROTECTOR; HEAT,EXH MANIF (B)	8-98011-523-0	01	1	0607-							●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0302-0506	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0507-0512		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0606		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0607-				●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0607-							●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97048-055-1	02	1	0302-0408					●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0409-0506					●
19	03.604 STUD; MANIF TO CYL HD (A) M8X35 L=46	8-97378-065-0	02	1	0507-0606						●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-94391-665-0	04	1	0607-0610							●
19	03.604 STUD; MANIF TO CYL HD (C) M10X70 L=83	8-98048-446-0	04	1	0611-							●
19	03.604 STUD; MANIF TO CYL HD 03.275 (B) M10X33 L=48	8-97307-075-2	04	1	0607-							●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0506					●
21	03.604 BOLT; HEAT PROTECTOR 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0507-0512						●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0606						●
21	03.604 BOLT; HEAT PROTECTOR 02.343 M8X12 FLANGE	0-28050-812-0	07	1	0607-							●
33	03.604 WASHER; EXH MANIF 03.613 ID=10.5	5-09500-013-0	08	1	0607-							●

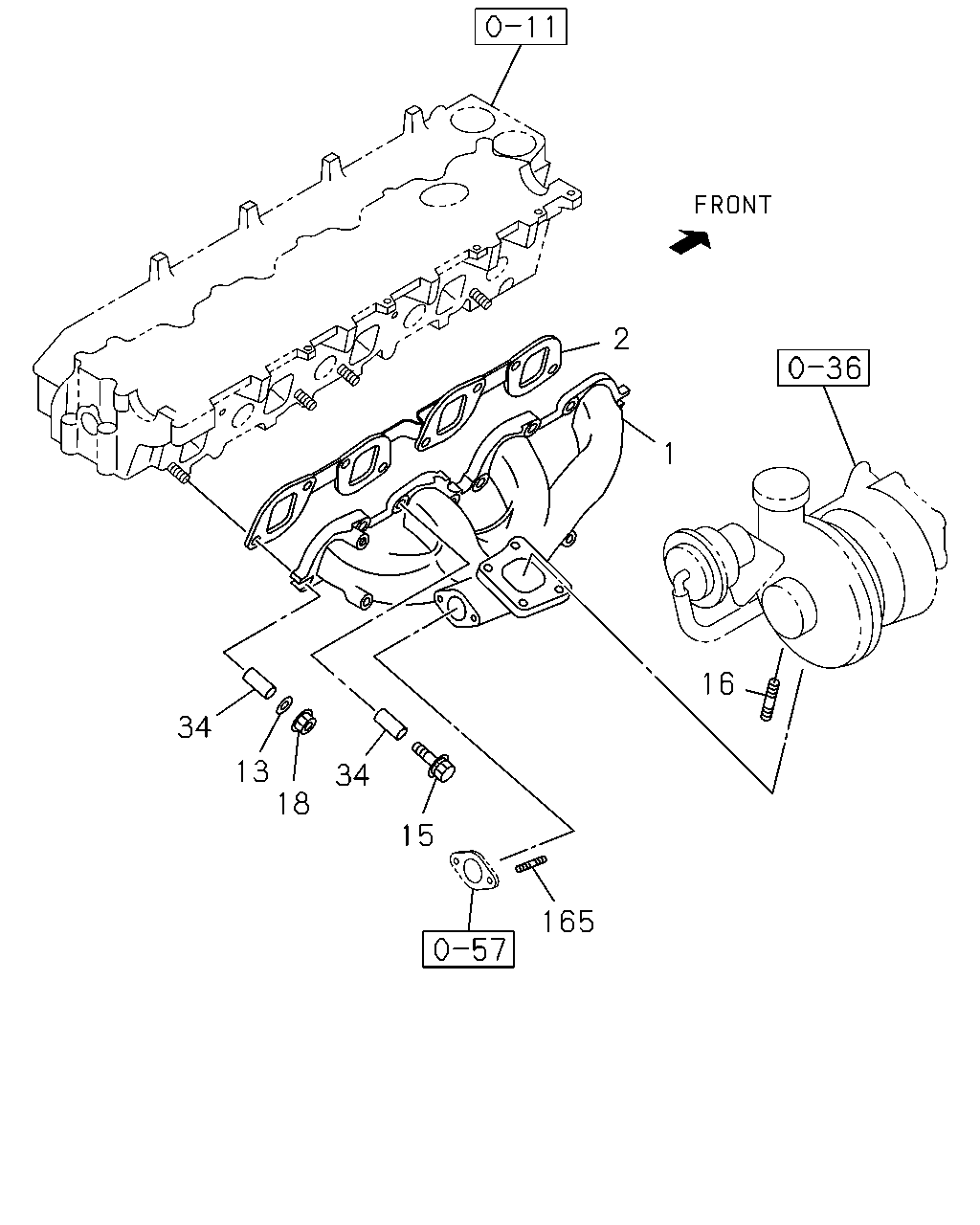

2 1 165 16 34 13 18 34 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0302-0506	●
1	03.601 MANIFOLD; EXHAUST	8-97148-949-2	01	1	0507-0606		●	●
1	03.601 MANIFOLD; EXHAUST	8-97387-873-3	01	1	0607-				●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0302-0506					●
1	03.601 MANIFOLD; EXHAUST	8-97288-575-3	01	1	0507-0606						●
1	03.601 MANIFOLD; EXHAUST	8-98033-941-1	01	1	0607-							●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0302-0506	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-0	01	1	0507-0606		●	●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97146-499-2	01	1	0607-				●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0302-0506					●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97350-317-0	01	1	0507-0606						●
2	03.270 GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & H EAD)	8-97356-028-2	01	1	0607-							●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0302-0506	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0507-0606		●	●
13	03.613 WASHER; LK,EXH MANIF 03.604 T=2.2	1-09556-015-0	02	1	0607-				●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0302-0506	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0507-0606		●	●
15	03.604 BOLT; EXH MANIF M10X60	8-97061-543-0	06	1	0607-				●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0302-0506					●
15	03.604 BOLT; EXH MANIF M8X35 W/PL WASHER & FLANGE	8-97131-597-1	06	1	0507-0606						●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0302-0506	●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0507-0606		●	●
16	03.604 STUD; EXH PIPE TO MANIF 08.981 M10X25 L=40	9-04731-025-0	02	1	0607-0805				●
16	03.604 STUD; EXH PIPE TO MANIF 03.342 M10X30 L=45	1-09302-106-0	02	1	0806-				●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0302-0506	●
18	03.604 NUT; EXH MANIF 00.002 M10	9-09110-510-0	02	1	0507-0512		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0601-0606		●	●
18	03.604 NUT; EXH MANIF 00.833 M10	0-91110-510-0	02	1	0607-				●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
18	03.604 NUT; EXH MANIF 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
18	03.604 NUT; EXH MANIF M10 FLANGE	8-97381-617-0	08	1	0607-							●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0302-0506	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0507-0606		●	●
34	03.603 COLLAR; DIST,EXH MANIF L=28	8-97250-073-1	08	1	0607-				●
165	03.417 STUD; EGR PIPE 03.342 M8X22 L=33	8-94257-319-0	02	1	0302-0506	●
165	03.417 STUD; EGR PIPE 03.613 M8X45 L=57	8-94105-162-1	02	1	0507-0606		●	●
165	03.417 STUD; EGR PIPE 03.342 M8X25 L=36	8-94476-282-0	03	1	0607-				●
