0-22 — ENGINE MOUNTING (#18776) — 207 parça

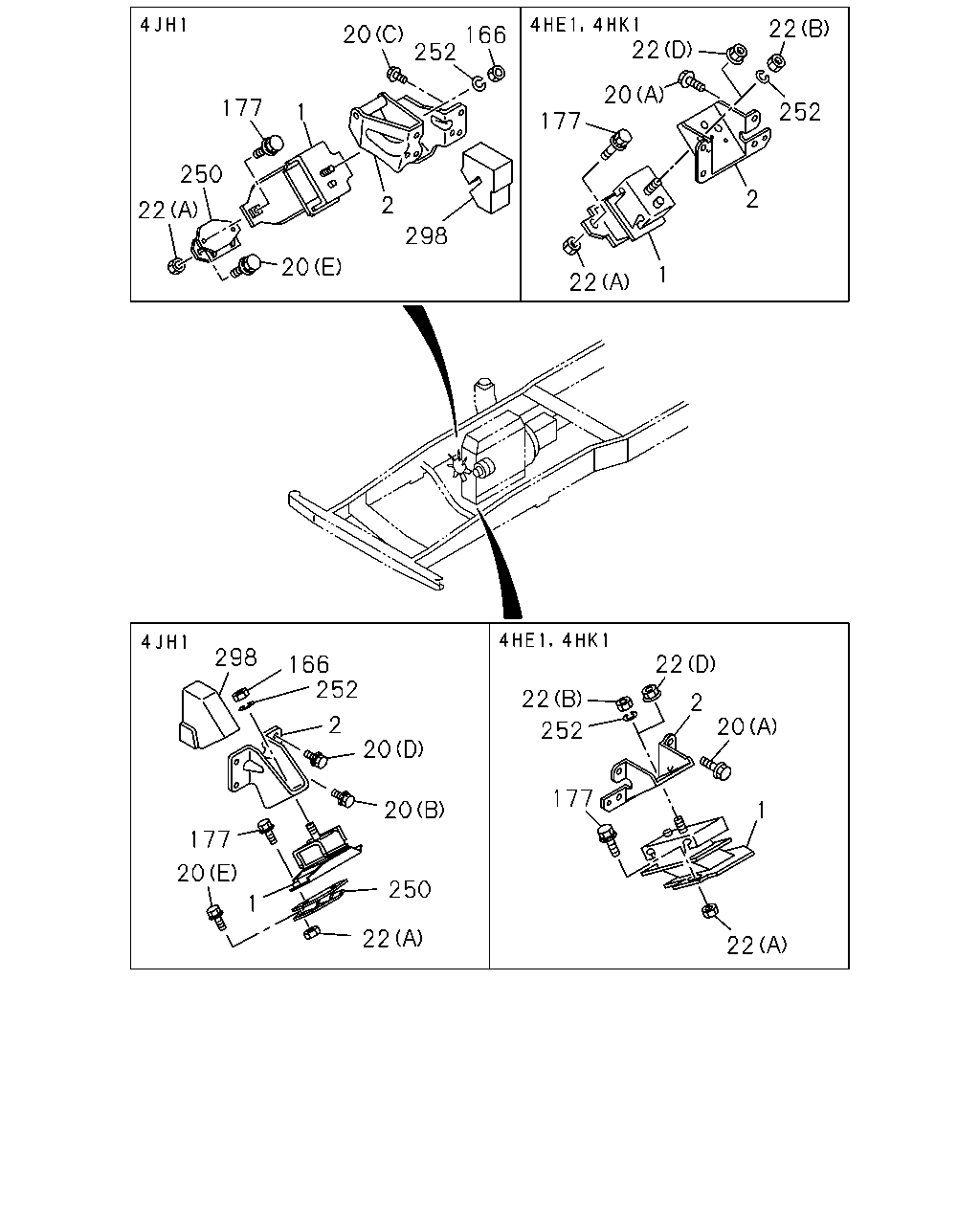

çizim 12953
22 22 20 166 252 20 177 252 1 177 250 2 2 22 298 20 1 22 298 22 166 252 22 2 2 20 252 20 177 20 1 177 20 250 1 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97187-417-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0507-0606 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0607- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97187-416-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0507-0606 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0607- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0507-0606 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 0607- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0507-0606 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 0607- ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0302-0506 ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0507-0606 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0607- ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0302-0506 ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0507-0606 ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 0607- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0302-0506 ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0507-0606 ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 0607- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0507-0512 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0601-0606 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0607- ●
20 00.029 BOLT; ENG FOOT
02.277 (D) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
02.277 (D) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0507-0606 ●
20 00.029 BOLT; ENG FOOT
03.706 (F) M10X70 FLANGE 		0-28051-070-0 01 1 0607- ●
20 00.029 BOLT; ENG FOOT
00.002 (E) M10X37.5 		8-94468-733-1 04 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
00.002 (E) M10X37.5 		8-94468-733-1 04 1 0507-0606 ●
20 00.029 BOLT; ENG FOOT
(G) M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0507-0512 ●
20 00.029 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0601-0606 ●
20 00.029 BOLT; ENG FOOT
02.343 (H) M10X20 FLANGE 		0-28651-020-0 01 1 0607- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0507-0606 ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
20 00.029 BOLT; ENG FOOT
02.277 (J) M10X35 FLANGE 		0-28651-035-0 01 1 0607- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0302-0506 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0507-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0606 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0607-0612 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (D) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0302-0506 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0507-0602 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0606 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0607- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0507-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603-0606 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98039-410-0 02 1 0607-0610 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0611- ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0302-0506 ●
166 00.002 NUT; SUPPORT RUBBER
04.634 M12 		9-99110-512-0 02 1 0507-0512 ●
166 00.002 NUT; SUPPORT RUBBER
05.002 M12 		0-91110-512-0 02 1 0601-0606 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0302-0506 ● ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
TRANSMISSION CONTROL-SMOOTHER(8GF) M10X37.5 		8-94468-733-1 04 1 0507-0606 ●
177 00.002 BOLT; BRKT TO CUSHION RUBBER
M10X37.5 		8-94468-733-1 04 1 0607- ●
250 00.002 SPACER; ENG FOOT 8-97300-021-1 01 1 0302-0506 ●
250 00.002 SPACER; ENG FOOT 8-97300-021-1 01 1 0507-0606 ●
250 00.002 SPACER; ENG FOOT 8-97300-023-1 01 1 0302-0506 ●
250 00.002 SPACER; ENG FOOT 8-97300-023-1 01 1 0507-0606 ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0302-0506 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0507-0603 ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0606 ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0607-0612 ● ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-926-0 01 1 0302-0506 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-926-0 01 1 0507-0606 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-925-0 01 1 0302-0506 ●
298 00.027 RUBBER; SPACE,ENG FOOT 8-97264-925-0 01 1 0507-0606 ●
çizim 52292
173 85 84 71 78 134 52 134 71 76 76 78 76 76 134 67 67 76 76 71 52 76 76 134 71 76 76 76 76
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM) 		8-94111-903-0 02 1 0302-0506 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-0 02 1 0302-0506 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-94111-903-1 02 1 0507-0606 ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-94111-903-1 02 1 0607- ● ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6F(RSR) 		8-97039-277-0 02 1 0302-0506 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR 8-97039-277-0 02 1 0507-0606 ●
52 00.027 RUBBER; CUSHION,ENG MTG,RR
M/T MZZ6F(RSR) 		8-97039-277-0 02 1 0607- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-566-0 01 1 0302-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97371-918-0 01 1 0307-0506 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97371-918-0 01 1 0507-0606 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97371-918-0 01 1 0607- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-567-0 01 1 0302-0506 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-567-0 01 1 0507-0606 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97325-567-0 01 1 0607- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6F(RSR) 		8-97039-282-2 02 1 0302-0506 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97039-282-2 02 1 0507-0606 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MZZ6F(RSR) 		8-97039-282-2 02 1 0607- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-568-0 01 1 0302-0306 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-919-0 01 1 0307-0506 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97371-919-0 01 1 0507-0606 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97371-919-0 01 1 0607- ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-569-0 01 1 0302-0506 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR 8-97325-569-0 01 1 0507-0606 ●
67 00.029 BRACKET; SUPPORT,ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97325-569-0 01 1 0607- ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0302-0506 ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
04.785 M10 FLANGE 		0-91150-110-0 04 1 0507-0602 ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0603-0606 ● ● ●
71 00.002 NUT; SUPPORT RUBBER TO BRKT
03.162 M10 FLANGE 		0-91180-110-0 04 1 0607- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM) 00.027 (C) 		8-94111-904-0 06 1 0302-0506 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (C) 		8-94111-904-0 06 1 0302-0506 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (C) 		8-94111-904-0 06 1 0507-0606 ● ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MYY5T(RSM),M/T MYY6S(RST) 00.027 (C) 		8-94111-904-0 06 1 0607- ● ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6F(RSR) 00.027 (B) 		8-94111-904-0 02 1 0302-0506 ●
76 00.002 STOPPER; ENG MTG RUBBER
00.027 (B) 		8-94111-904-0 02 1 0507-0606 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6F(RSR) 00.027 (B) 		8-94111-904-0 02 1 0607- ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6F(RSR) (A) 		8-97039-947-1 02 1 0302-0506 ●
76 00.002 STOPPER; ENG MTG RUBBER
(A) 		8-97039-947-1 02 1 0507-0606 ●
76 00.002 STOPPER; ENG MTG RUBBER
M/T MZZ6F(RSR) (A) 		8-97039-947-1 02 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-564-0 01 1 0302-0506 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-564-0 01 1 0507-0606 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97325-564-0 01 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-565-0 01 1 0302-0506 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM) 		8-97325-565-0 01 1 0507-0606 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97325-565-0 01 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) 		8-97307-777-0 01 1 0302-0506 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97307-777-0 01 1 0507-0606 ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97307-777-0 01 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) 		8-97172-399-1 01 1 0302-0506 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97172-399-1 01 1 0507-0606 ● ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97172-399-1 01 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-562-0 01 1 0302-0506 ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-562-0 01 1 0507-0606 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97325-562-0 01 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-563-0 01 1 0302-0506 ●
78 00.029 BRACKET; ENG MTG,RR 8-97325-563-0 01 1 0507-0606 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MYY5T(RSM),M/T MYY6S(RST) 		8-97325-563-0 01 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-619-0 01 1 0507-0606 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-619-0 01 1 0607- ●
78 00.029 BRACKET; ENG MTG,RR
TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-618-0 01 1 0507-0606 ●
78 00.029 BRACKET; ENG MTG,RR
M/T MZZ6F(RSR) TRANSMISSION CONTROL-SMOOTHER(8GF) 		8-97378-618-0 01 1 0607- ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0302-0506 ● ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.706 ID=10.5 OD=32 		9-09164-810-0 04 1 0507-0605 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.5 OD=32 		0-91614-810-0 04 1 0606-0606 ●
84 00.002 WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32 		0-91614-810-0 04 1 0607- ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		9-09150-610-0 04 1 0302-0506 ● ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 		9-09150-610-0 04 1 0507-0603 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) ID=10.2 		0-91510-610-0 04 1 0604-0606 ●
85 00.002 WASHER; LK,ENG MTG RR TO FRAME
ID=10.2 		0-91510-610-0 04 1 0607-0610 ● ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0302-0506 ● ●
134 00.029 BOLT; SUPPORT BRKT
03.890 M12X25 		0-28781-225-0 06 1 0507-0512 ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0601-0606 ● ● ●
134 00.029 BOLT; SUPPORT BRKT
09.181 M12X25 FLANGE 		0-28751-225-0 06 1 0607- ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
09.011 M10 		9-09110-410-0 04 1 0302-0506 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 09.011 M10 		9-09110-410-0 04 1 0507-0512 ●
173 00.002 NUT; ENG MTG RR TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 00.833 M10 		0-91110-510-0 04 1 0601-0606 ●
173 00.002 NUT; ENG MTG RR TO FRAME
00.833 M10 		0-91110-510-0 04 1 0607-0610 ● ●
173 00.002 NUT; ENG MTG RR TO FRAME
TRANSMISSION CONTROL-SMOOTHER(8GF) 03.162 M10 FLANGE 		0-91180-110-0 04 1 0611- ●

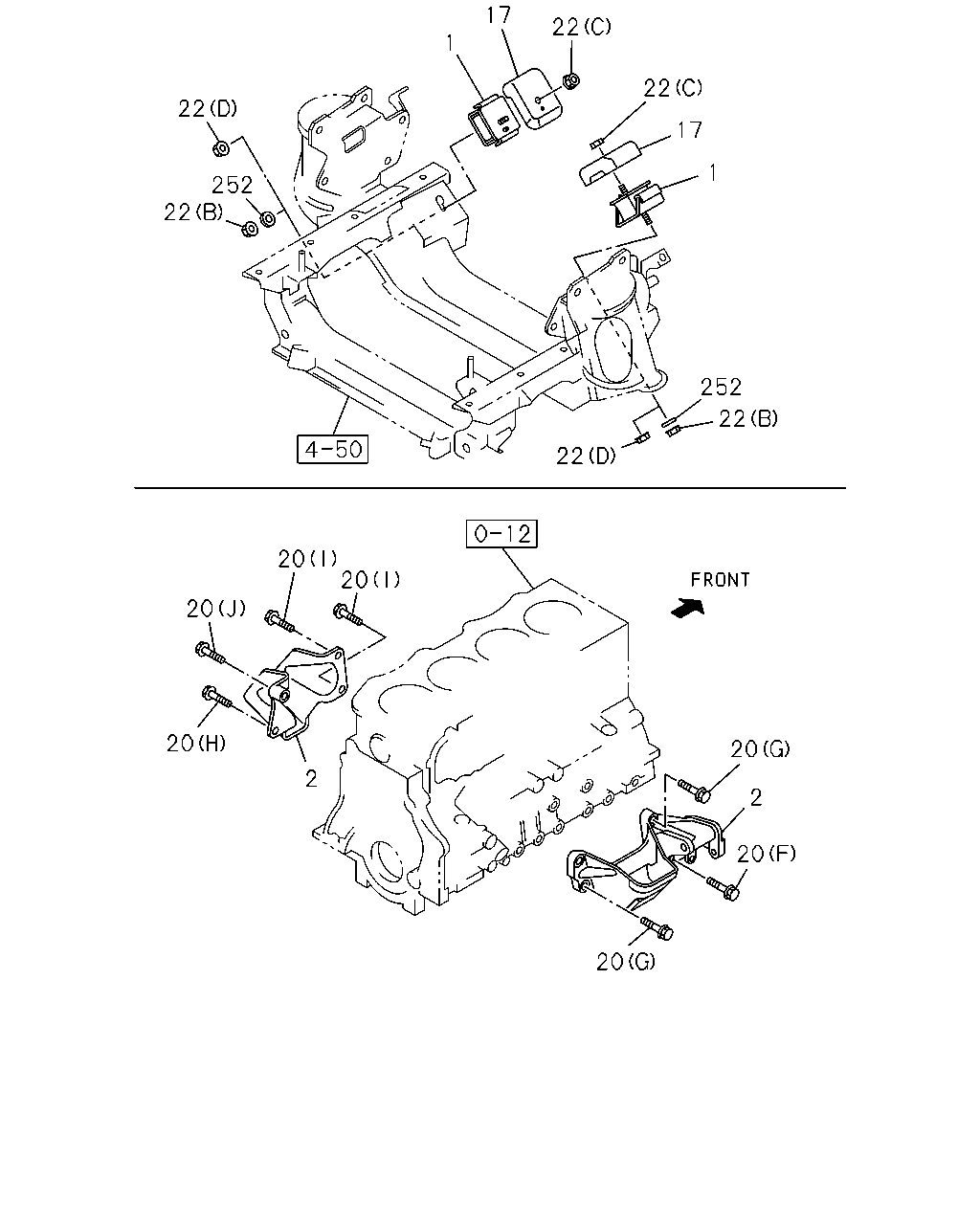

çizim 54438
17 22 1 22 22 17 1 252 22 252 22 22 20 20 20 20 20 2 2 20 20
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97187-417-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0507-0606 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-417-0 01 1 0607- ●
1 00.027 RUBBER; ENG FOOT,FRT
FRAME STRAIGHT TYPE<7KJ> 		8-97187-416-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0507-0606 ● ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97187-416-0 01 1 0607- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-895-1 01 1 0507-0606 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-001-0 01 1 0607- ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-0 01 1 0302-0506 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-97122-893-1 01 1 0507-0606 ●
1 00.027 RUBBER; ENG FOOT,FRT 8-98043-000-0 01 1 0607- ●
2 00.029 FOOT; ENG 8-97228-669-1 02 1 0302-0506 ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0507-0606 ● ●
2 00.029 FOOT; ENG 8-97228-669-2 02 1 0607- ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0302-0506 ●
2 00.029 FOOT; ENG 8-97300-156-0 01 1 0507-0606 ●
2 00.029 FOOT; ENG 8-97381-514-2 01 1 0607- ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0302-0506 ●
2 00.029 FOOT; ENG 8-97287-639-2 01 1 0507-0606 ●
2 00.029 FOOT; ENG 8-97381-513-1 01 1 0607- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97229-825-0 01 1 0607- ●
17 00.027 COVER; CUSHION RUBBER,FRT 8-97383-796-0 01 1 0607- ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28191-020-0 08 1 0507-0512 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0601-0606 ● ●
20 00.029 BOLT; ENG FOOT
(A) M10X20 FLANGE 		0-28161-020-0 08 1 0607- ●
20 00.029 BOLT; ENG FOOT
02.277 (D) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
02.277 (D) M10X22 W/LK WASHER 		0-50041-022-0 05 1 0507-0606 ●
20 00.029 BOLT; ENG FOOT
03.706 (F) M10X70 FLANGE 		0-28051-070-0 01 1 0607- ●
20 00.029 BOLT; ENG FOOT
00.002 (E) M10X37.5 		8-94468-733-1 04 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
00.002 (E) M10X37.5 		8-94468-733-1 04 1 0507-0606 ●
20 00.029 BOLT; ENG FOOT
(G) M10X30 FLANGE 		0-28651-030-0 03 1 0607- ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
00.002 (B) M14X25 W/LK WASHER 		0-50041-425-0 01 1 0507-0512 ●
20 00.029 BOLT; ENG FOOT
(B) M14X25 W/LK WASHER 		0-50541-425-0 01 1 0601-0606 ●
20 00.029 BOLT; ENG FOOT
02.343 (H) M10X20 FLANGE 		0-28651-020-0 01 1 0607- ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0302-0506 ●
20 00.029 BOLT; ENG FOOT
00.034 (C) M10X28 		8-94329-952-1 02 1 0507-0606 ●
20 00.029 BOLT; ENG FOOT
(I) M10X25 FLANGE 		0-28651-025-0 02 1 0607- ●
20 00.029 BOLT; ENG FOOT
02.277 (J) M10X35 FLANGE 		0-28651-035-0 01 1 0607- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0302-0506 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.816 (B) M12 		9-99110-412-0 02 1 0507-0512 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0601-0606 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
05.002 (B) M12 		0-91110-512-0 02 1 0607-0612 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
02.042 (D) M12 FLANGE 		0-91180-112-0 02 1 0701- ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0302-0506 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 02 1 0507-0602 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 02 1 0603-0606 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0607- ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0302-0506 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
08.917 (A) M10 FLANGE 		0-91150-210-0 04 1 0507-0602 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
04.085 (A) M10 FLANGE 		0-91180-210-0 04 1 0603-0606 ● ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98039-410-0 02 1 0607-0610 ●
22 00.002 NUT; CUSHION RUBBER TO BRKT
(C) M12 FLANGE 		8-98046-987-0 02 1 0611- ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0302-0506 ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
06.515 ID=12.2 		9-09150-612-0 02 1 0507-0603 ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0604-0606 ● ● ●
252 00.002 WASHER; LK,SUPPORT RUBBER
ID=12.2 		0-91510-612-0 02 1 0607-0612 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
