Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#18775) — 440 parça

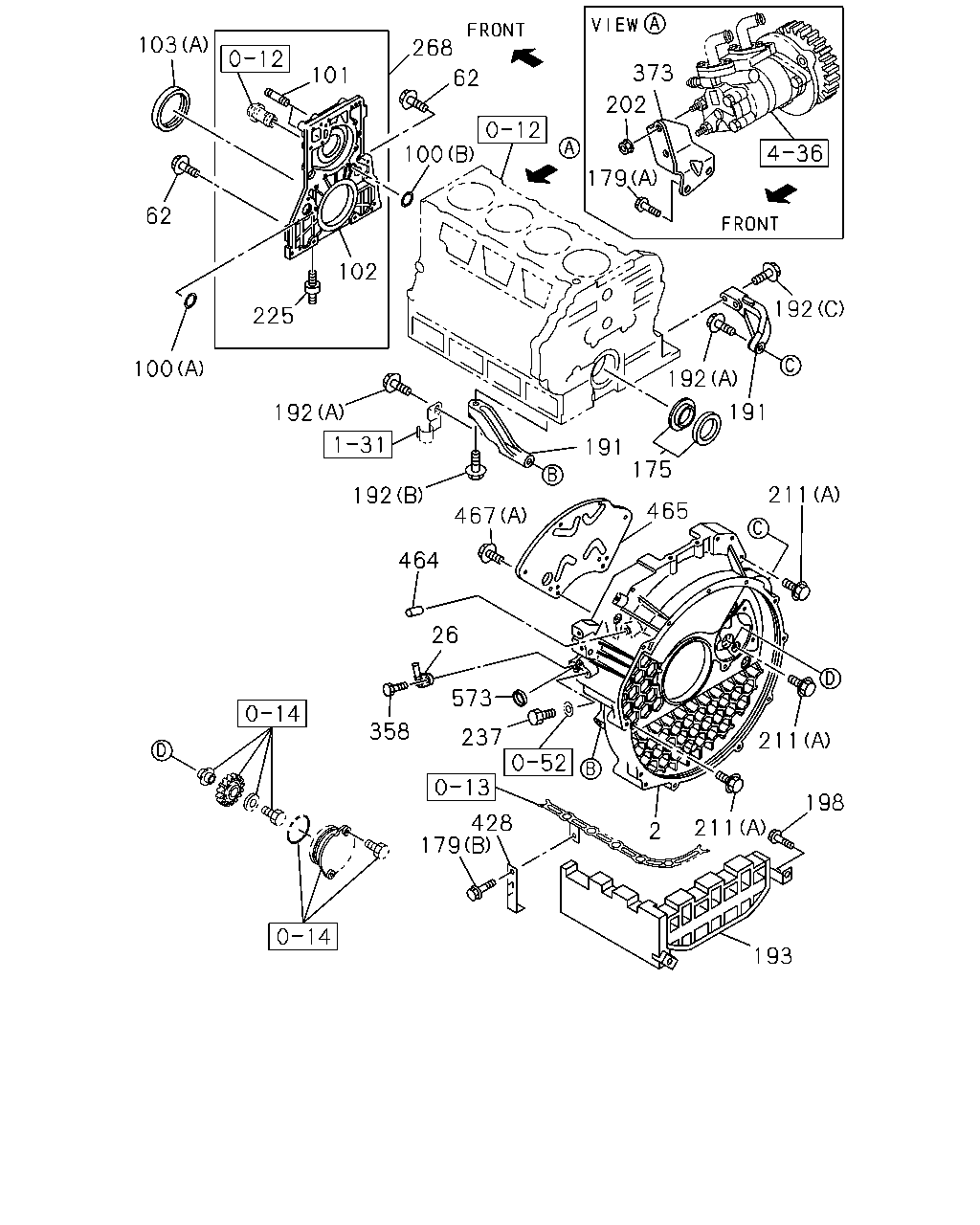

103 268 373 101 62 202 100 179 62 102 192 225 100 192 191 192 191 175 211 192 465 467 464 26 573 358 237 211 198 428 179 211 2 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	0302-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-0506	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-1	01	1	0507-0606		●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-3	01	1	0607-				●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0302-0506					●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0507-0606						●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0607-							●
26	03.306 ADAPTER	8-97354-819-0	01	1	0507-0606		●	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0302-0506	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0507-0512		●	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-0606		●	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0607-				●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0302-0506	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0507-0512		●	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0601-0606		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0607-0705				●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0706-				●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0302-0506	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0507-0606		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0607-0705				●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0706-				●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0306-0506	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0507-0512		●	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0601-0606		●	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0607-				●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0607-							●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0607-0705				●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0607-0705				●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0302-0506	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0507-0606		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A) ID=35.1	8-97028-748-1	01	1	0607-				●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0302-0506	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0507-0606		●	●
100	00.207 GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). 04.439 (B) ID=17.8	9-09561-318-0	01	1	0607-				●
101	01.073 STUD; WATER PUMP GENERATOR 24V80A(7YN) 01.428 M8X18 L=30	9-04110-818-0	01	1	0607-0608				●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0302-0506	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0507-0606		●	●
101	01.073 STUD; WATER PUMP 00.206 M8X18 L=29	8-97028-541-0	01	1	0607-				●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0302-0506	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	9-04110-818-0	01	1	0507-0604		●	●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0605-0606		●	●
101	01.073 STUD; WATER PUMP GENERATOR 24V50A(6QN) 01.428 M8X18 L=30	0-41010-818-0	01	1	0607-0608				●
101	01.073 STUD; WATER PUMP 01.428 M8X18 L=30	0-41010-818-0	01	1	0609-				●
102	00.137 RETAINER; FRT GENERATOR 24V80A(7YN)	8-98054-993-0	01	1	0607-0608				●
102	00.137 RETAINER; FRT GENERATOR 24V80A(7YN)	8-98057-152-0	01	1	0609-0705				●
102	00.137 RETAINER; FRT	8-98039-932-2	01	1	0706-				●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0302-0506	●
102	00.137 RETAINER; FRT	8-97148-938-1	01	1	0507-0606		●	●
102	00.137 RETAINER; FRT GENERATOR 24V50A(6QN)	8-97148-938-1	01	1	0607-0705				●
102	00.137 RETAINER; FRT GENERATOR 24V80A(7YN)	8-98039-932-0	01	1	0607-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0302-0506	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0507-0606		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0607-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0302-0506					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0507-0606						●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0607-1007							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98158-110-0	01	1	1008-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0607-1007							●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0302-0506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0507-0606		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0607-				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0302-0506					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0507-0606						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0607-							●
179	00.206 BOLT; BRKT 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0302-0506	●
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 00.004 (A) M10X18 FLANGE	0-28181-018-0	02	1	0507-0606		●	●
179	00.206 BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> 03.417 (A) M10X20 FLANGE	0-28151-020-0	02	1	0607-				●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0302-0506	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0507-0606		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0607-				●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0302-0506	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0507-0606		●	●
191	00.669 STAY; FLYWHEEL HSG	8-97167-291-0	01	1	0607-				●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0302-0506	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28181-250-0	02	1	0507-0512		●	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0601-0606		●	●
192	00.206 BOLT; STAY TO HSG 00.685 (A) M12X50 FLANGE	0-28151-250-0	02	1	0607-				●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0302-0506	●
192	00.206 BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0507-0512		●	●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0601-0606		●	●
192	00.206 BOLT; STAY TO HSG 02.510 (B) M12X100 FLANGE	0-28151-200-0	01	1	0607-				●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	0302-0506	●
192	00.206 BOLT; STAY TO HSG 04.510 (C) M10X40 FLANGE	0-28181-040-0	02	1	0507-0512		●	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	0601-0606		●	●
192	00.206 BOLT; STAY TO HSG 09.171 (C) M10X40 FLANGE	0-28151-040-0	02	1	0607-				●
193	01.428 SPACER; STAY TO OIL,PAN	8-97224-867-2	01	1	0302-0506	●
193	01.428 SPACER; STAY TO OIL,PAN	8-97259-536-0	01	1	0507-0606		●	●
193	01.428 SPACER; STAY TO OIL,PAN	8-97259-536-0	01	1	0607-				●
198	01.428 BOLT; STAY TO OIL PAN 02.483 M12X20 FLANGE	0-28181-220-0	02	1	0302-0506	●
198	01.428 BOLT; STAY TO OIL PAN 03.162 M12X20 FLANGE	0-28151-220-0	02	1	0607-				●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0311	●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0312-0506	●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
202	00.206 NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-				●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0302-0506	●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0507-0512		●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0601-0606		●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0607-				●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0302-0506	●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0507-0606		●	●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0607-1102				●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-				●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0302-0506	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0507-0606		●	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	02	1	0607-				●
211	00.669 BOLT; HSG 00.685 (C) M10X30 FLANGE	0-28081-030-0	03	1	0302-0506					●
211	00.669 BOLT; HSG 00.685 (C) M10X30 FLANGE	0-28081-030-0	03	1	0507-0512						●
211	00.669 BOLT; HSG 03.890 (C) M10X30 FLANGE	0-28051-030-0	03	1	0601-0606						●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	06	1	0607-							●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0302-0506					●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0507-0606						●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0607-							●
211	00.669 BOLT; HSG 00.862 (E) M10X43	9-09606-535-0	01	1	0607-							●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0302-0506	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0507-0606		●	●
225	01.428 STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0607-				●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0607-				●
237	00.686 PLUG; FLYWHEEL HSG 04.640 M10X12 FLANGE	0-28081-012-0	01	1	0507-0512		●	●
237	00.686 PLUG; FLYWHEEL HSG 06.225 M10X12 FLANGE	0-28051-012-0	01	1	0601-0606		●	●
268	00.206 COVER; FRT GENERATOR 24V80A(7YN)	8-98054-991-0	01	1	0607-0608				●
268	00.206 COVER; FRT GENERATOR 24V80A(7YN)	8-98057-151-0	01	1	0609-0705				●
268	00.206 COVER; FRT	8-97258-865-0	01	1	0302-0506	●
268	00.206 COVER; FRT	8-97258-865-0	01	1	0507-0606		●	●
268	00.206 COVER; FRT GENERATOR 24V50A(6QN)	8-97258-865-0	01	1	0607-0705				●
268	00.206 COVER; FRT	8-98039-931-2	01	1	0706-				●
358	00.206 BOLT; ADAPTER 00.738 M6X16 FLANGE	0-28080-616-0	01	1	0507-0512		●	●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0601-0606		●	●
358	00.206 BOLT; ADAPTER 09.242 M6X16 FLANGE	0-28050-616-0	01	1	0607-				●
373	00.206 BRACKET; PUMP HYDRO BRAKE BOOSTER<7QQ>	8-97149-333-0	01	1	0302-0506	●
373	00.206 BRACKET; PUMP HYDRO BRAKE BOOSTER<7QQ>	8-97149-333-0	01	1	0507-0606		●	●
373	00.206 BRACKET; PUMP HYDRO BRAKE BOOSTER<7QQ>	8-97149-333-0	01	1	0607-				●
428	00.206 BRACKET; SPACER	8-97215-647-0	01	1	0302-0506	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0302-0506	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0507-0606		●	●
464	00.686 PIPE; PCV,FLYWHEEL HSG 00.669	8-94373-246-3	01	1	0607-				●
465	00.686 PLATE; FLYWHEEL HSG	8-97212-490-0	01	1	0302-0308	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0309-0506	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0507-0606		●	●
465	00.686 PLATE; FLYWHEEL HSG	8-97363-823-0	01	1	0607-				●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0607-				●
467	00.686 BOLT; PLATE 02.500 (A) M6X10 FLANGE	0-28080-610-0	06	1	0302-0506	●
467	00.686 BOLT; PLATE 02.500 (A) M6X10 FLANGE	0-28080-610-0	06	1	0507-0507		●	●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0508-0606		●	●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0607-0805				●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-				●
573	00.206 CUP; SEALING 00.034 OD=19	8-94150-231-0	01	1	0302-0506	●

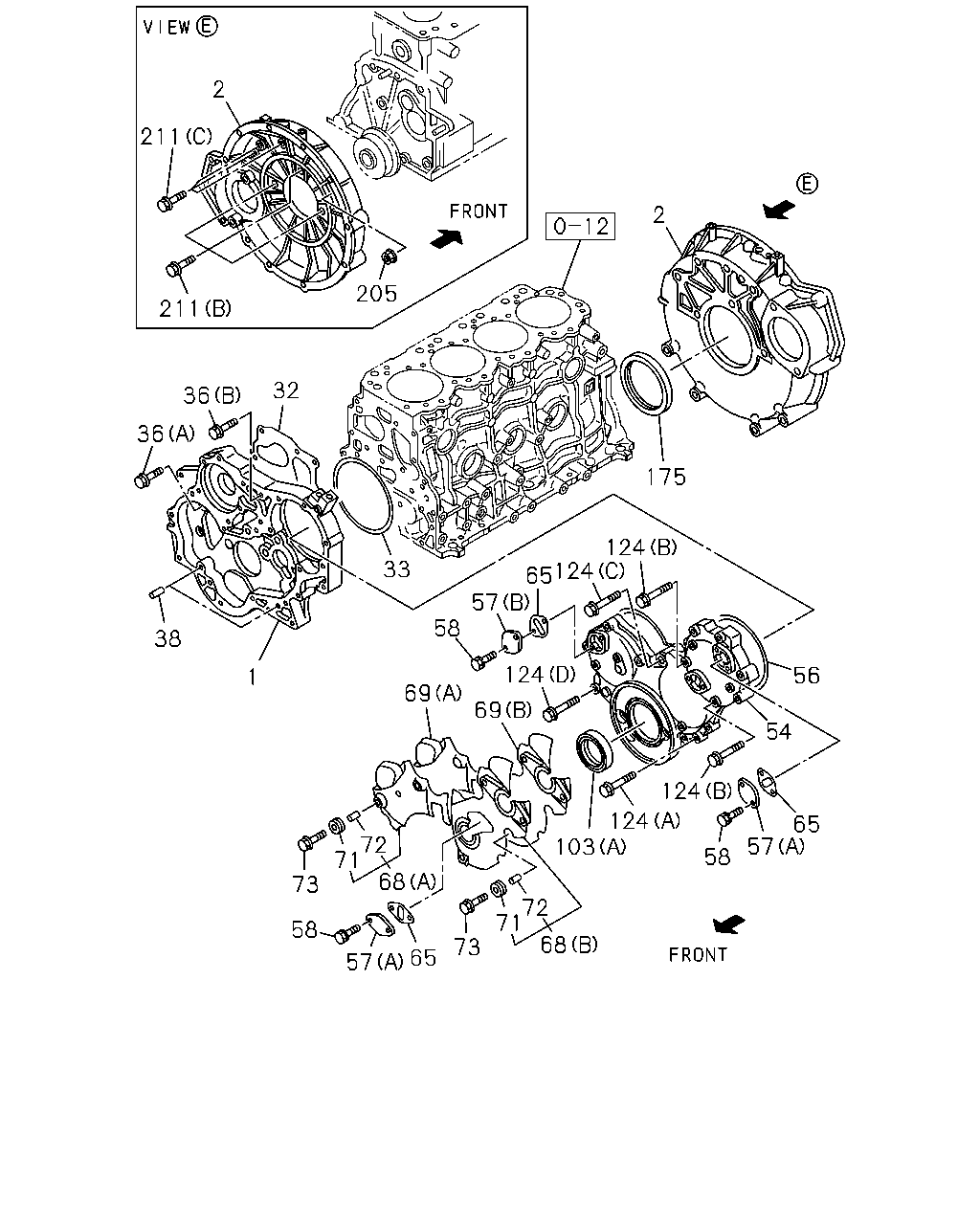

2 211 2 205 211 32 36 36 175 124 124 65 57 33 58 38 124 56 1 69 69 54 124 124 103 65 57 72 71 58 68 73 72 71 58 68 73 65 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0302-0506					●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0507-0606						●
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0607-							●
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	0302-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-0506	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-1	01	1	0507-0606		●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-3	01	1	0607-				●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0302-0506					●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0507-0606						●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0607-							●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0302-0506					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0507-0606						●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0607-							●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0302-0506					●
33	00.207 GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-672-0	01	1	0507-0606						●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0302-0506					●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0507-0606						●
36	00.206 BOLT; GEAR CASE 04.338 (H) M8X20 FLANGE	0-28050-820-0	12	1	0607-							●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0503					●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0506					●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0507-0606						●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 02.343 (H) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0607-							●
36	00.206 BOLT; GEAR CASE 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0607-							●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0506					●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0606						●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0607-							●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0302-0506					●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0507-0606						●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0607-1007							●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-							●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0302-0506					●
56	00.207 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0507-0606						●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0302-0506					●
57	00.206 COVER; TIMING CHECK HOLE (A)	5-11321-009-0	02	1	0507-0606						●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0302-0506					●
57	00.206 COVER; TIMING CHECK HOLE (B)	8-97304-608-1	01	1	0507-0606						●
58	00.206 BOLT; CHECK HOLE COVER M6X14 W/LK WASHER	0-50040-614-0	06	1	0302-0403					●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0404-0506					●
58	00.206 BOLT; CHECK HOLE COVER 01.428 M6X12 FLANGE	0-28080-612-0	06	1	0507-0512						●
58	00.206 BOLT; CHECK HOLE COVER 03.162 M6X12 FLANGE	0-28050-612-0	06	1	0601-0606						●
65	00.207 GASKET; COVER,TIMING CHECK HOLE	8-97027-601-1	03	1	0302-0311					●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0312-0506					●
65	00.207 GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	03	1	0507-0606						●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0302-0506					●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0507-0606						●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-98009-466-3	01	1	0607-							●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0302-0506					●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0507-0606						●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97255-035-1	01	1	0302-0302					●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0303-0506					●
69	00.206 SEAL; RUBBER,COVER TO COVER (B)	8-97329-009-0	01	1	0507-0606						●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97358-025-0	01	1	0302-0302					●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-011-0	01	1	0303-0506					●
69	00.206 SEAL; RUBBER,COVER TO COVER (A)	8-97329-011-0	01	1	0507-0606						●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0302-0506					●
71	00.206 RUBBER; MTG,COVER	5-19389-002-0	05	1	0507-0606						●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0302-0506					●
72	00.206 BUSHING; SPACER,COVER TO COVER	5-19389-009-0	05	1	0507-0606						●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0302-0403					●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0506					●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0507-0512						●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0606						●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-1006							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0302-0506	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0507-0606		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0607-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0302-0506					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0507-0606						●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0607-1007							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98158-110-0	01	1	1008-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0607-1007							●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0302-0506					●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0507-0512						●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0606						●
124	00.206 BOLT; TIMING COVER 09.242 (E) M6X16 FLANGE	0-28050-616-0	03	1	0607-							●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0302-0506					●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0507-0512						●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0606						●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0302-0506					●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0507-0512						●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0606						●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0302-0506					●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0507-0606						●

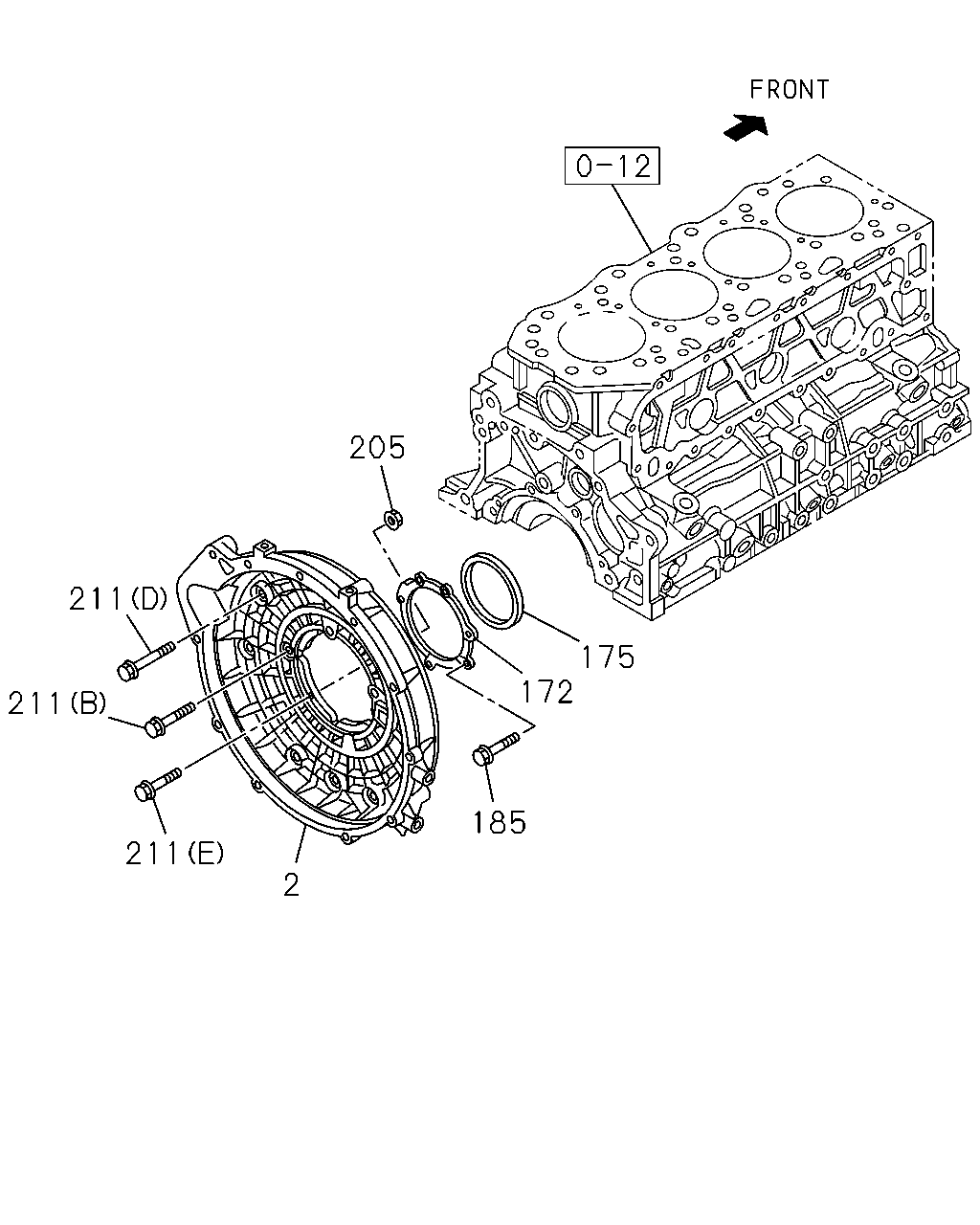

175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0302-0506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0507-0606		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0607-				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0302-0506					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0507-0606						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0607-							●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0302-0506					●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0507-0602						●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0606						●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0607-							●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0302-0506	●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0507-0512		●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0601-0606		●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0607-				●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0302-0506	●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0507-0606		●	●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0607-1102				●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-				●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0302-0506	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0507-0606		●	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	02	1	0607-				●
211	00.669 BOLT; HSG 00.685 (C) M10X30 FLANGE	0-28081-030-0	03	1	0302-0506					●
211	00.669 BOLT; HSG 00.685 (C) M10X30 FLANGE	0-28081-030-0	03	1	0507-0512						●
211	00.669 BOLT; HSG 03.890 (C) M10X30 FLANGE	0-28051-030-0	03	1	0601-0606						●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	06	1	0607-							●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0302-0506					●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0507-0606						●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0607-							●
211	00.669 BOLT; HSG 00.862 (E) M10X43	9-09606-535-0	01	1	0607-							●

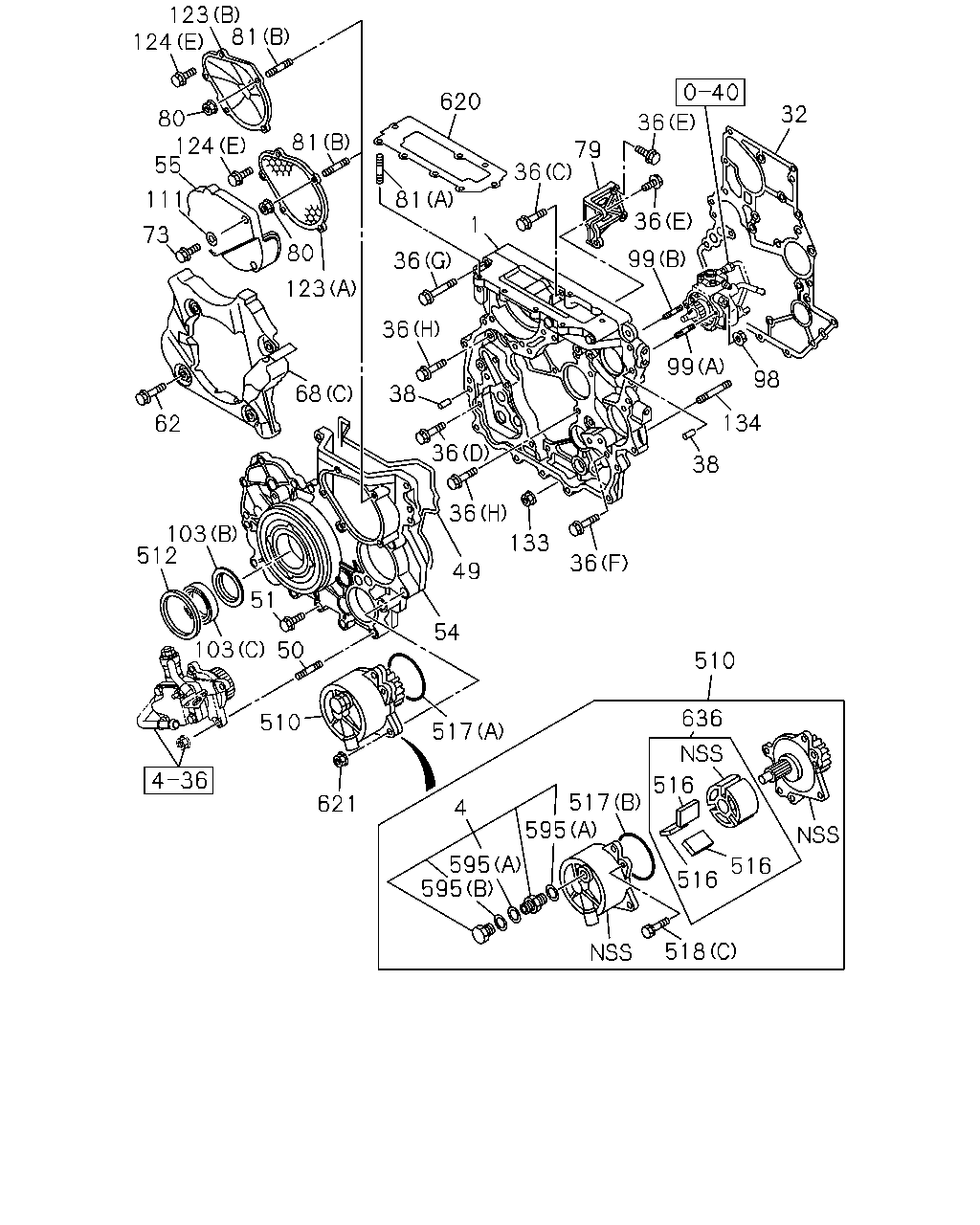

123 81 124 620 32 80 124 55 36 81 79 36 81 111 36 1 73 80 99 36 123 36 99 98 68 38 134 62 36 38 36 103 512 133 36 49 51 54 103 50 510 636 510 517 516 517 595 621 4 595 595 516 516 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0302-0506					●
1	00.206 CASE; TIMING GEAR	8-97239-983-2	01	1	0507-0606						●
1	00.206 CASE; TIMING GEAR	8-97945-261-2	01	1	0607-							●
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0607-				●			●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0302-0506					●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0507-0606						●
32	00.207 GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97312-221-2	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0302-0506					●
36	00.206 BOLT; GEAR CASE 08.900 (A) M8X20 W/LK WASHER	0-50040-820-0	06	1	0507-0606						●
36	00.206 BOLT; GEAR CASE 04.338 (H) M8X20 FLANGE	0-28050-820-0	12	1	0607-							●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	01	1	0302-0503					●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0504-0506					●
36	00.206 BOLT; GEAR CASE 01.252 (B) M8X45 W/LK WASHER	0-50040-845-0	02	1	0507-0606						●
36	00.206 BOLT; GEAR CASE 03.162 (C) M8X35 FLANGE	0-28050-835-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 02.343 (H) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 09.173 (F) M8X45 FLANGE	0-28050-845-0	02	1	0607-							●
36	00.206 BOLT; GEAR CASE 04.686 (G) M8X60 FLANGE	0-28050-860-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-							●
36	00.206 BOLT; GEAR CASE 03.403 (E) M8X30 FLANGE	0-28650-830-0	03	1	0607-							●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0302-0506					●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0507-0606						●
38	00.685 PIN; GEAR CASE COVER 04.510 OD=10 L=20	8-97135-423-0	02	1	0607-							●
49	00.206 GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97945-298-0	01	1	0607-							●
50	00.206 STUD M8X27,M8X14 L=64.5	8-97354-808-2	06	1	0607-							●
51	00.206 BOLT; GEAR CASE COVER	8-97354-697-1	14	1	0607-							●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0302-0506					●
54	00.206 COVER; GEAR CASE	8-97239-984-4	01	1	0507-0606						●
54	00.206 COVER; GEAR CASE	8-98012-960-2	01	1	0607-1007							●
54	00.206 COVER; GEAR CASE	8-98165-119-1	01	1	1008-							●
55	00.206 COVER; NOISE SHIELD	8-97375-190-1	01	1	0607-1006							●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0302-0506	●
62	00.206 BOLT; COVER 02.559 M8X25 FLANGE	0-28680-825-0	06	1	0507-0512		●	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0601-0606		●	●
62	00.206 BOLT; COVER 06.216 M8X25 FLANGE	0-28650-825-0	06	1	0607-				●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0302-0506	●
62	00.206 BOLT; COVER 02.183 M8X35 FLANGE	0-28680-835-0	05	1	0507-0512		●	●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0601-0606		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.060 M8X35 FLANGE	0-28650-835-0	05	1	0607-0705				●
62	00.206 BOLT; COVER 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0706-				●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0302-0506	●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0507-0606		●	●
62	00.206 BOLT; COVER GENERATOR 24V50A(6QN) 01.097 M8X65 FLANGE	1-09044-072-1	03	1	0607-0705				●
62	00.206 BOLT; COVER 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0706-				●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0306-0506	●
62	00.206 BOLT; COVER 04.686 M8X30 FLANGE	0-28680-830-0	01	1	0507-0512		●	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0601-0606		●	●
62	00.206 BOLT; COVER 03.403 M8X30 FLANGE	0-28650-830-0	01	1	0607-				●
62	00.206 BOLT; COVER 03.162 M6X20 FLANGE	0-28650-620-0	04	1	0607-							●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.060 M8X35 FLANGE	0-28650-835-0	06	1	0607-0705				●
62	00.206 BOLT; COVER GENERATOR 24V80A(7YN) 01.097 M8X65 FLANGE	1-09044-072-1	02	1	0607-0705				●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0302-0506					●
68	00.206 COVER ASM; GEAR CASE COVER (B)	8-97255-034-1	01	1	0507-0606						●
68	00.206 COVER ASM; GEAR CASE COVER (C)	8-98009-466-3	01	1	0607-							●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0302-0506					●
68	00.206 COVER ASM; GEAR CASE COVER (A)	8-97358-022-0	01	1	0507-0606						●
73	00.206 BOLT; COVER FIX 08.900 M6X18 W/LK&PL WASHER	0-50140-618-0	05	1	0302-0403					●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0404-0506					●
73	00.206 BOLT; COVER FIX 00.738 M6X16 FLANGE	0-28080-616-0	05	1	0507-0512						●
73	00.206 BOLT; COVER FIX 09.242 M6X16 FLANGE	0-28050-616-0	05	1	0601-0606						●
73	00.206 BOLT; COVER FIX 03.162 M6X12 FLANGE	0-28050-612-0	02	1	0607-1006							●
79	00.219 BRACKET; GEAR CASE COVER	8-97370-390-2	01	1	0607-							●
80	00.206 NUT; COVER 01.540 M6 FLANGE	0-91180-206-0	02	1	0607-							●
81	00.206 STUD; GEAR CASE COVER FIX (B) M6X16 L=25	0-41010-616-0	02	1	0607-							●
81	00.206 STUD; GEAR CASE COVER FIX 00.413 (A) M8X30 L=48	0-49140-830-0	02	1	0607-							●
98	00.206 NUT; STUD,INJ PUMP 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
99	00.206 STUD; INJ PUMP (A) M8X30 L=41	8-97369-449-0	01	1	0607-							●
99	00.206 STUD; INJ PUMP (B) M8X45 L=56	8-97369-450-0	01	1	0607-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0302-0506	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0507-0606		●	●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97329-780-0	01	1	0607-				●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0302-0506					●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97351-704-0	01	1	0507-0606						●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97382-606-0	01	1	0607-1007							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98158-110-0	01	1	1008-							●
103	00.213 SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97386-601-0	01	1	0607-1007							●
111	00.206 WASHER; PL 02.334 ID=6.4 OD=22	9-09164-806-0	02	1	0607-1006							●
123	00.206 COVER; TIMING,LWR (A)	8-97371-720-1	01	1	0607-1006							●
123	00.206 COVER; TIMING,LWR (B)	8-98158-145-0	01	1	1007-							●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0302-0506					●
124	00.206 BOLT; TIMING COVER 03.275 (A) M8X30 FLANGE	0-28080-830-0	08	1	0507-0512						●
124	00.206 BOLT; TIMING COVER (A) M8X30 FLANGE	0-28050-830-0	08	1	0601-0606						●
124	00.206 BOLT; TIMING COVER 09.242 (E) M6X16 FLANGE	0-28050-616-0	03	1	0607-							●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0302-0506					●
124	00.206 BOLT; TIMING COVER 01.840 (B) M8X70 W/LK WASHER	0-50040-870-0	06	1	0507-0512						●
124	00.206 BOLT; TIMING COVER (B) M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-0606						●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0302-0506					●
124	00.206 BOLT; TIMING COVER (C) M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0507-0512						●
124	00.206 BOLT; TIMING COVER (C) M12X55 HEX SOCKET	0-58331-255-0	01	1	0601-0606						●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0302-0506					●
124	00.206 BOLT; TIMING COVER 01.252 (D) M8X58 FLANGE	8-94130-055-1	01	1	0507-0606						●
133	00.206 NUT; TIMING GEAR CASE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
134	00.669 STUD; TIMING GEAR CASE 02.510 M8X20 L=32	0-41010-820-0	02	1	0607-							●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0607-1005							●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-							●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	0607-				●
512	04.895 RUBBER; SPACE	8-97322-675-0	01	1	0607-1007							●
512	04.895 RUBBER; SPACE	8-98165-120-0	01	1	1008-1011							●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0607-							●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	0607-				●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0607-							●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0607-							●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98051-280-0	01	1	0607-				●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	0607-							●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	0607-				●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	0607-				●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12	8-98018-518-0	01	1	0607-				●			●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18	8-98018-519-0	02	1	0607-				●			●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 1-NOTCH	8-97328-828-2	01	1	0607-							●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.45 2-NOTCH	8-97331-631-2	01	1	0607-							●
620	00.207 GASKET; GEAR CASE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.50 3-NOTCH	8-97331-632-2	01	1	0607-							●
621	00.207 NUT; VAC PUMP 01.540 M8 FLANGE	0-91180-208-0	03	1	0607-							●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0607-							●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	0607-				●

205 211 175 172 211 185 211 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	00.683 HOUSING; FLYWHEEL	8-97209-886-3	01	1	0302-0308	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-0	01	1	0309-0506	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-1	01	1	0507-0606		●	●
2	00.683 HOUSING; FLYWHEEL	8-97364-901-3	01	1	0607-				●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0302-0506					●
2	00.683 HOUSING; FLYWHEEL	8-97240-094-1	01	1	0507-0606						●
2	00.683 HOUSING; FLYWHEEL	8-97381-492-3	01	1	0607-							●
172	00.137 RETAINER; CR/SHF	8-97175-986-3	01	1	0607-1012							●
172	00.137 RETAINER; CR/SHF	8-97379-826-0	01	1	1101-							●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0302-0506	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0507-0606		●	●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0607-				●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0302-0506					●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0507-0606						●
175	00.137 SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0607-							●
185	00.727 BOLT; RET TO C/BL 06.216 M8X25 FLANGE	0-28650-825-0	05	1	0607-							●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0302-0506					●
205	00.669 NUT; HSG 08.917 M10 FLANGE	0-91150-210-0	01	1	0507-0602						●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0603-0606						●
205	00.669 NUT; HSG 04.085 M10 FLANGE	0-91180-210-0	01	1	0607-							●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0302-0506	●
211	00.669 BOLT; HSG (A) M10X40 FLANGE	0-28781-040-0	01	1	0507-0512		●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0601-0606		●	●
211	00.669 BOLT; HSG 00.029 (A) M10X40 FLANGE	0-28751-040-0	01	1	0607-				●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0302-0506	●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0507-0606		●	●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-97114-779-0	11	1	0607-1102				●
211	00.669 BOLT; HSG (A) M12X70 FLANGE, W/PL WASHER	8-98179-087-1	11	1	1103-				●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0302-0506	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	01	1	0507-0606		●	●
211	00.669 BOLT; HSG (A) M12X30 FLANGE	8-97135-419-0	02	1	0607-				●
211	00.669 BOLT; HSG 00.685 (C) M10X30 FLANGE	0-28081-030-0	03	1	0302-0506					●
211	00.669 BOLT; HSG 00.685 (C) M10X30 FLANGE	0-28081-030-0	03	1	0507-0512						●
211	00.669 BOLT; HSG 03.890 (C) M10X30 FLANGE	0-28051-030-0	03	1	0601-0606						●
211	00.669 BOLT; HSG 09.003 (D) M12X35 FLANGE	0-28651-235-0	06	1	0607-							●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0302-0506					●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0507-0606						●
211	00.669 BOLT; HSG 00.683 (B) M12X25	5-09000-227-0	03	1	0607-							●
211	00.669 BOLT; HSG 00.862 (E) M10X43	9-09606-535-0	01	1	0607-							●

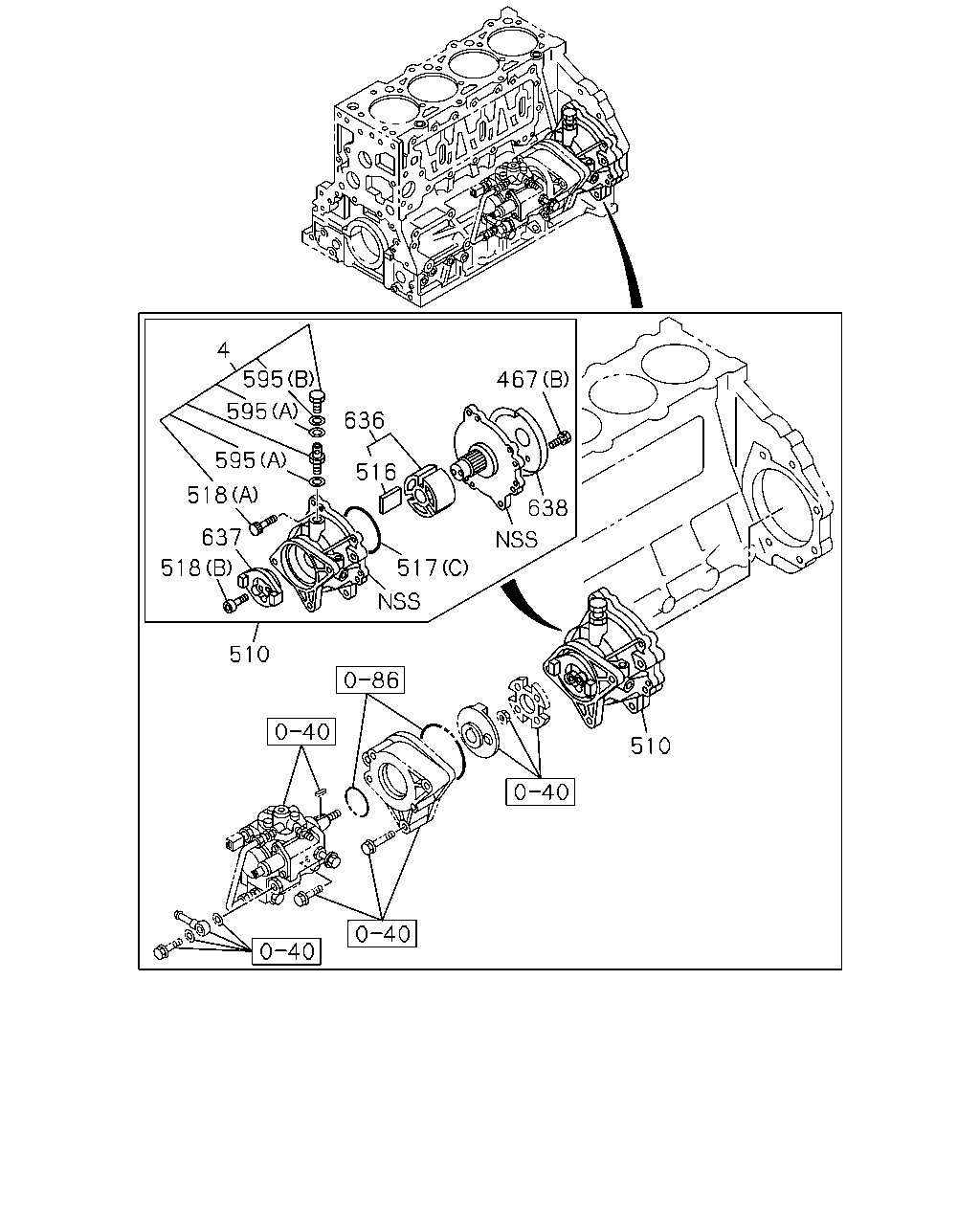

4 595 467 595 636 595 516 518 638 637 518 517 510 510

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	G
4	00.213 VALVE ASM; CHECK	8-98049-521-0	01	1	0607-				●	●
467	00.686 BOLT; PLATE 04.895 (B)	8-98049-523-0	02	1	0607-				●
467	00.686 BOLT; PLATE 02.500 (A) M6X10 FLANGE	0-28080-610-0	06	1	0302-0506	●
467	00.686 BOLT; PLATE 02.500 (A) M6X10 FLANGE	0-28080-610-0	06	1	0507-0507		●	●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0508-0606		●	●
467	00.686 BOLT; PLATE 05.815 (A) M6X10	0-20800-610-0	06	1	0607-0805				●
467	00.686 BOLT; PLATE 06.321 (A) M6X10	8-98030-649-0	06	1	0806-				●
510	04.895 PUMP ASM; VACUUM	8-98005-250-0	01	1	0607-1005					●
510	04.895 PUMP ASM; VACUUM	8-98162-748-0	01	1	1006-					●
510	04.895 PUMP ASM; VACUUM 03.306	8-97388-589-6	01	1	0607-				●
516	04.895 VANE; VAC PUMP	8-98051-275-0	03	1	0607-					●
516	04.895 VANE; VAC PUMP	8-98051-279-0	03	1	0607-				●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-98049-522-0	01	1	0607-					●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 00.206 (A)	9-09566-271-0	01	1	0607-					●
517	04.895 GASKET; VAC PUMP ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-98051-280-0	01	1	0607-				●
518	04.895 BOLT; VAC PUMP (C)	8-98049-523-0	03	1	0607-					●
518	04.895 BOLT; VAC PUMP 01.531 (A) M6X25 W/LK&PL WASHER	0-50640-625-0	03	1	0607-				●
518	04.895 BOLT; VAC PUMP (B) M8X20	8-98051-277-0	02	1	0607-				●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12	8-98018-518-0	01	1	0607-				●	●
595	00.213 GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=18	8-98018-519-0	02	1	0607-				●	●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98049-520-0	01	1	0607-					●
636	00.206 ROTOR & VANE ASM; VAC PUMP	8-98051-281-0	01	1	0607-				●
637	00.206 COUPLING; VAC PUMP	8-98051-278-0	01	1	0607-				●
638	00.206 PLATE KIT; VAC PUMP	8-98051-276-0	01	1	0607-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
