0-11 — CYLINDER HEAD (#18770) — 573 parça

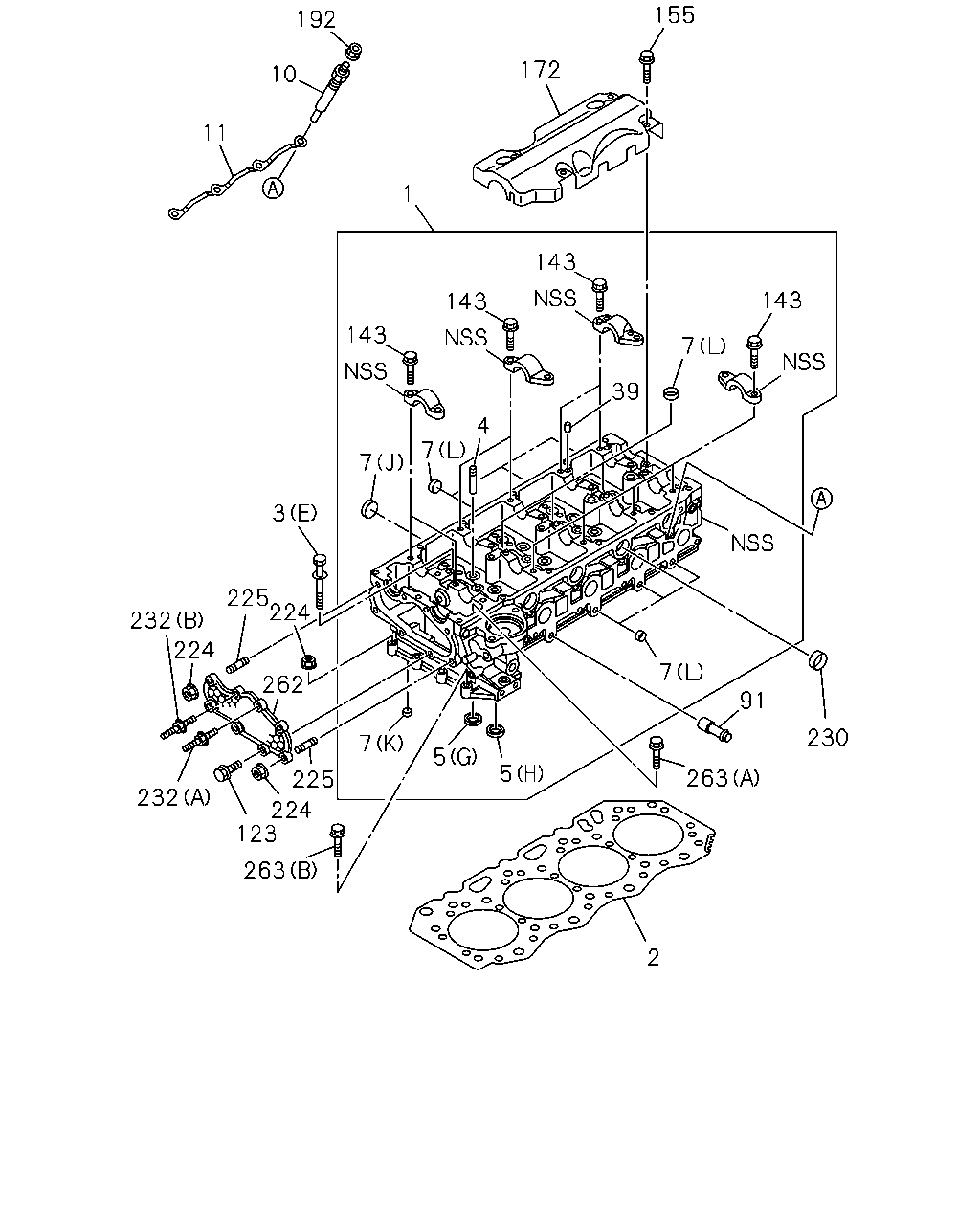

çizim 11630
155 192 172 10 11 1 143 143 143 143 7 39 4 7 7 3 225 224 232 224 7 262 91 7 230 225 5 5 263 232 224 123 263 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.269 HEAD ASM; CYL 8-97358-366-2 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ● ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ● ●
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0607-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-536-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-537-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-538-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-98135-954-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-98135-955-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M8X25 M14X115 L=155 		8-97087-660-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) M11X114 		8-97144-583-2 18 1 0607- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0507-0606 ● ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0607-0707 ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0507-0606 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0607- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(E) INLET OD=38 		8-94395-888-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-97606-247-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-98028-874-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(G) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0607- ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97254-813-0 04 1 0302-0404 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0405-0506 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(H) INLET ID=29 OD=35 		8-97311-378-0 08 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=16 		5-11129-006-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (K) OD=14 		5-11219-011-0 07 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=32 		1-09600-012-2 02 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0302-0503 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(L) OD=18 		5-11219-008-0 13 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0607- ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-5 04 1 0507-0606 ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0607- ● ●
10 02.270 PLUG; GLOW 8-94133-759-8 04 1 0302-0506 ●
10 02.270 PLUG; GLOW 8-94133-759-9 04 1 0507-0606 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0507-0606 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0607- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0607- ●
39 00.413 DOWEL; CAP,CM/SHF 8-97329-129-1 20 1 0607- ●
91 08.846 PIPE; HTR
01.251 		8-94343-211-1 01 1 0607- ●
123 00.206 BOLT; COVER
M8X20 FLANGE 		8-97366-632-0 04 1 0607- ●
143 02.251 BOLT; FIX
00.685 M8X40 FLANGE 		0-28650-840-0 20 1 0607- ●
155 00.349 BOLT; BAFFLE PLATE
M6X10 HEX SOCKET 		0-58330-610-0 04 1 0607- ●
172 00.207 PLATE; BAFFLE,CYL HD 8-98016-865-0 01 1 0607- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0507-0606 ● ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0607- ● ●
224 00.349 NUT; COVER
01.540 M8 FLANGE 		0-91180-208-0 04 1 0607- ●
225 00.349 STUD; COVER
M8X15.5 L=33.5 		8-98017-062-0 02 1 0607- ●
230 03.300 GASKET; SLEEVE,INJECTOR
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.306 		1-09639-034-0 04 1 0607- ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-97366-633-0 01 1 0607-1006 ●
232 00.413 STUD; CAM,CARRIER
(A) M8X15 M8X17 L=40 		8-98166-373-0 01 1 1007- ●
232 00.413 STUD; CAM,CARRIER
(B) M6X12 M8X17 L=37 		8-97375-460-0 01 1 0607- ●
262 00.206 COVER; CYL HEAD 8-97355-516-4 01 1 0607- ●
263 00.293 BOLT; CYL HD
04.686 (A) M8X60 FLANGE 		0-28050-860-0 01 1 0607- ●
263 00.293 BOLT; CYL HD
01.060 (B) M8X35 FLANGE 		0-28650-835-0 03 1 0607- ●

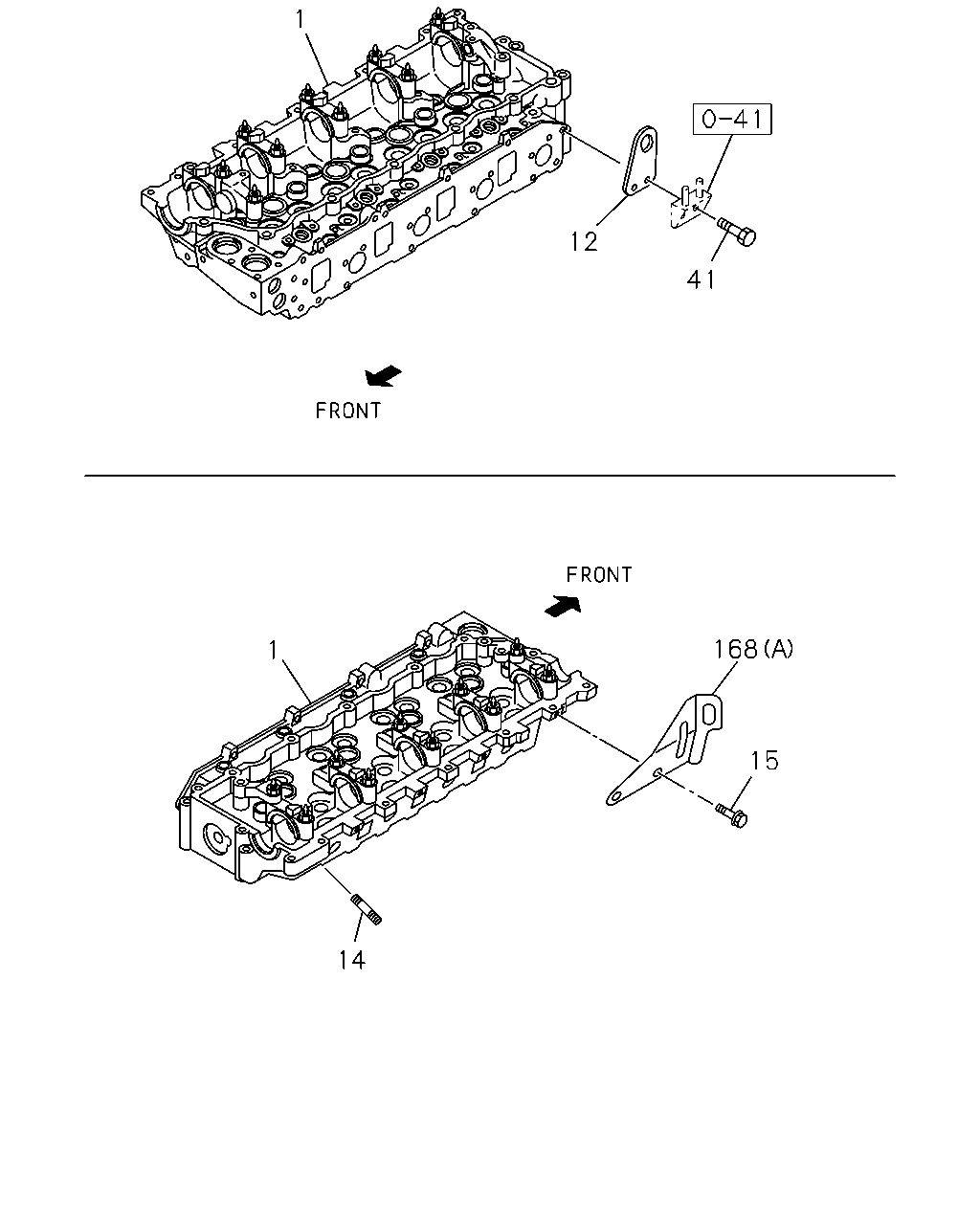

çizim 12625
1 12 41 168 1 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.269 HEAD ASM; CYL 8-97358-366-2 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ● ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ● ●
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0607-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 0302-0506 ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0302-0506 ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0507-0606 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0302-0506 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0507-0606 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0607- ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0302-0506 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0507-0512 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601-0606 ● ●
41 09.181 BOLT; ENG HANGER
02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0302-0506 ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0302-0410 ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0506 ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97127-373-0 01 1 0302-0506 ●

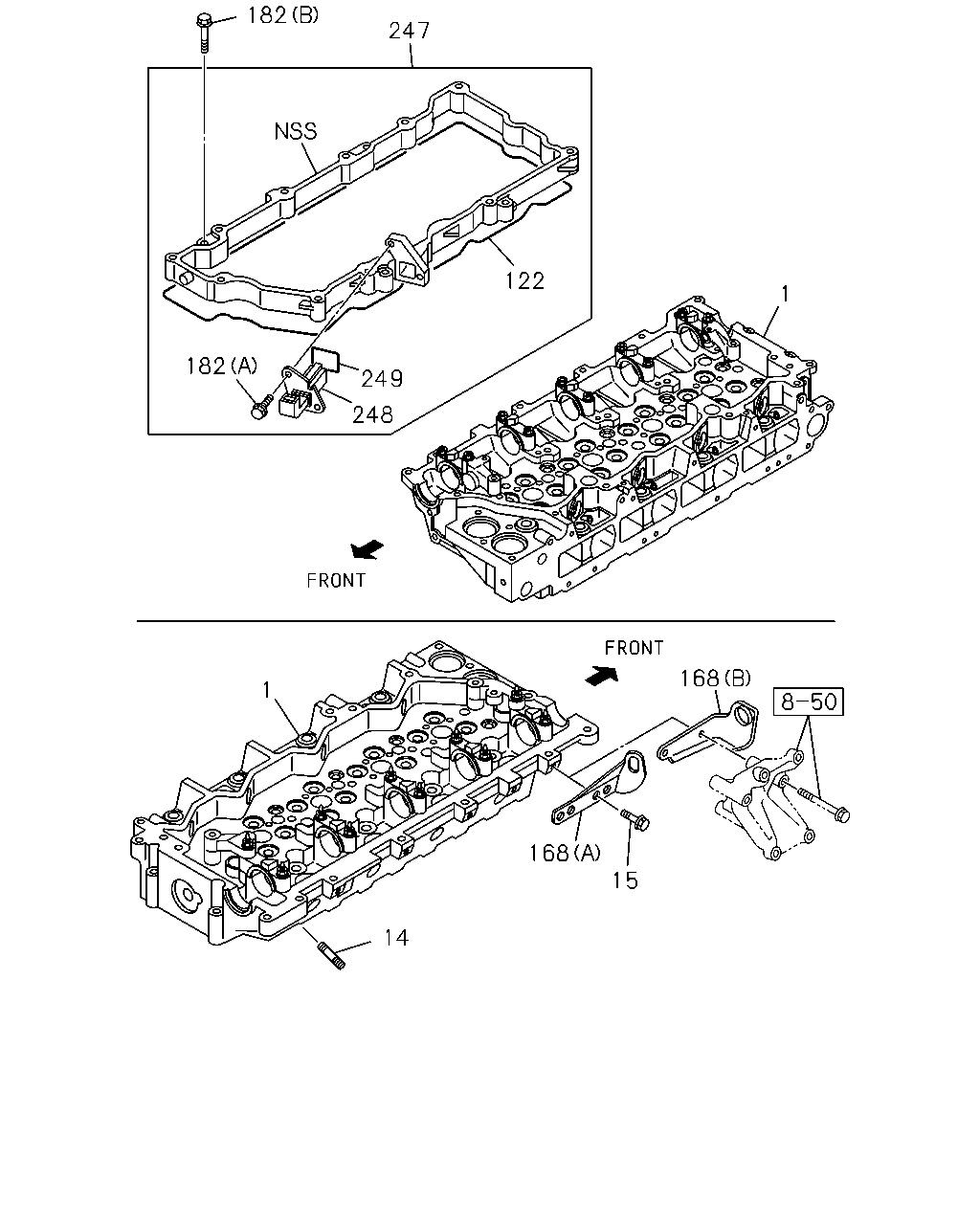

168 00.004 HANGER; ENG,FRT
(A) 		8-97310-254-2 01 1 0507-0606 ● ●
168 00.004 HANGER; ENG,FRT
(B) 		8-98032-250-1 01 1 0607- ●
168 00.004 HANGER; ENG,FRT
(C) 		8-94379-714-1 01 1 0302-0506 ●
168 00.004 HANGER; ENG,FRT
(C) 		8-94379-714-1 01 1 0507-0606 ●

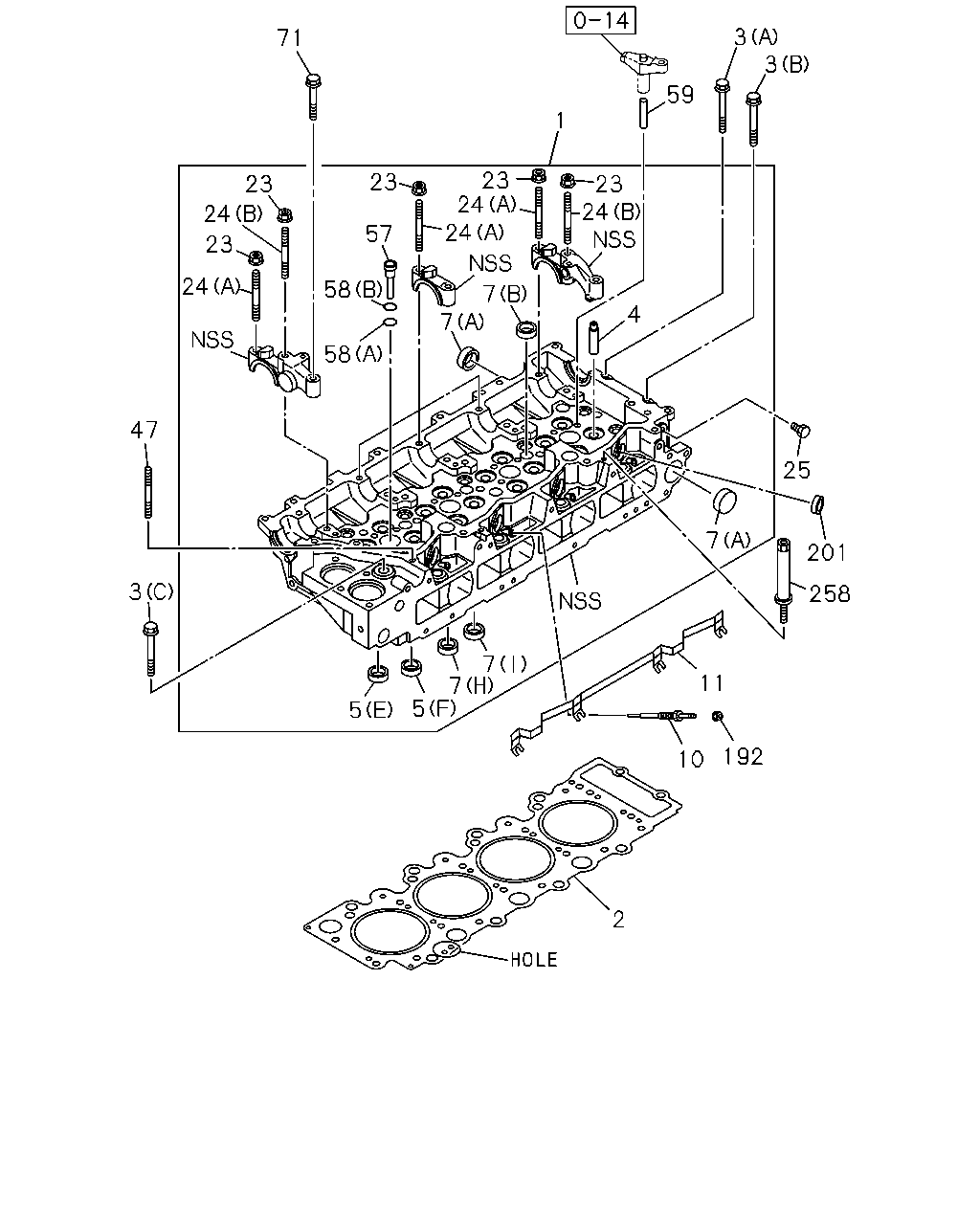

çizim 12722
3 3 71 59 1 23 24 24 23 23 23 24 24 57 23 24 58 7 4 7 58 47 25 7 201 3 258 7 7 5 11 5 192 10 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.269 HEAD ASM; CYL 8-97358-366-2 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ● ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ● ●
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0607-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-536-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-537-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-538-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-98135-954-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-98135-955-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M8X25 M14X115 L=155 		8-97087-660-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) M11X114 		8-97144-583-2 18 1 0607- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0507-0606 ● ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0607-0707 ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0507-0606 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0607- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(E) INLET OD=38 		8-94395-888-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-97606-247-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-98028-874-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(G) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0607- ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97254-813-0 04 1 0302-0404 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0405-0506 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(H) INLET ID=29 OD=35 		8-97311-378-0 08 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=16 		5-11129-006-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (K) OD=14 		5-11219-011-0 07 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=32 		1-09600-012-2 02 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0302-0503 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(L) OD=18 		5-11219-008-0 13 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0607- ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-5 04 1 0507-0606 ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0607- ● ●
10 02.270 PLUG; GLOW 8-94133-759-8 04 1 0302-0506 ●
10 02.270 PLUG; GLOW 8-94133-759-9 04 1 0507-0606 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0507-0606 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0607- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0607- ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0302-0506 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0507-0602 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0603-0606 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0607- ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0302-0506 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0507-0606 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0607- ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0302-0506 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0507-0606 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0607- ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 0507-0606 ● ●
25 00.293 PLUG; CYL HD
00.309 M8X10 		8-98003-416-0 01 1 0607- ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0302-0506 ●
47 00.413 STUD; CYL HD
03.278 M8X60 L=72 		0-49740-860-0 02 1 0507-0512 ● ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0601-0606 ● ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0607- ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97602-301-1 04 1 0507-0510 ● ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97606-661-0 04 1 0511-0606 ● ●
57 00.293 SLEEVE; NOZZLE HOLDER 8-97606-661-0 04 1 0607- ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=26.4 		8-97604-916-0 04 1 0507-0606 ● ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (A) ID=26.4 		8-97604-916-0 04 1 0607- ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) ID=26.2 		8-98004-187-0 04 1 0511-0606 ● ●
58 00.289 GASKET; SLEEVE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) ID=26.2 		8-98004-187-0 04 1 0607- ●
59 00.283 GUIDE; BRIDGE 8-97381-603-0 08 1 0507-0606 ● ●
59 00.283 GUIDE; BRIDGE 8-97381-603-1 08 1 0607- ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0302-0506 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0507-0512 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0601-0606 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0607- ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0507-0606 ● ●
192 00.349 NUT; GLOW PLUG
02.559 M4 FLANGE 		8-97368-853-0 04 1 0607- ● ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		1-09639-034-0 04 1 0507-0606 ● ●
201 03.306 GASKET; SLEEVE,INJ PUMP
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		1-09639-034-0 04 1 0607- ●
258 00.269 ADAPTER; CLIP 8-97377-804-0 01 1 0607-0904 ●

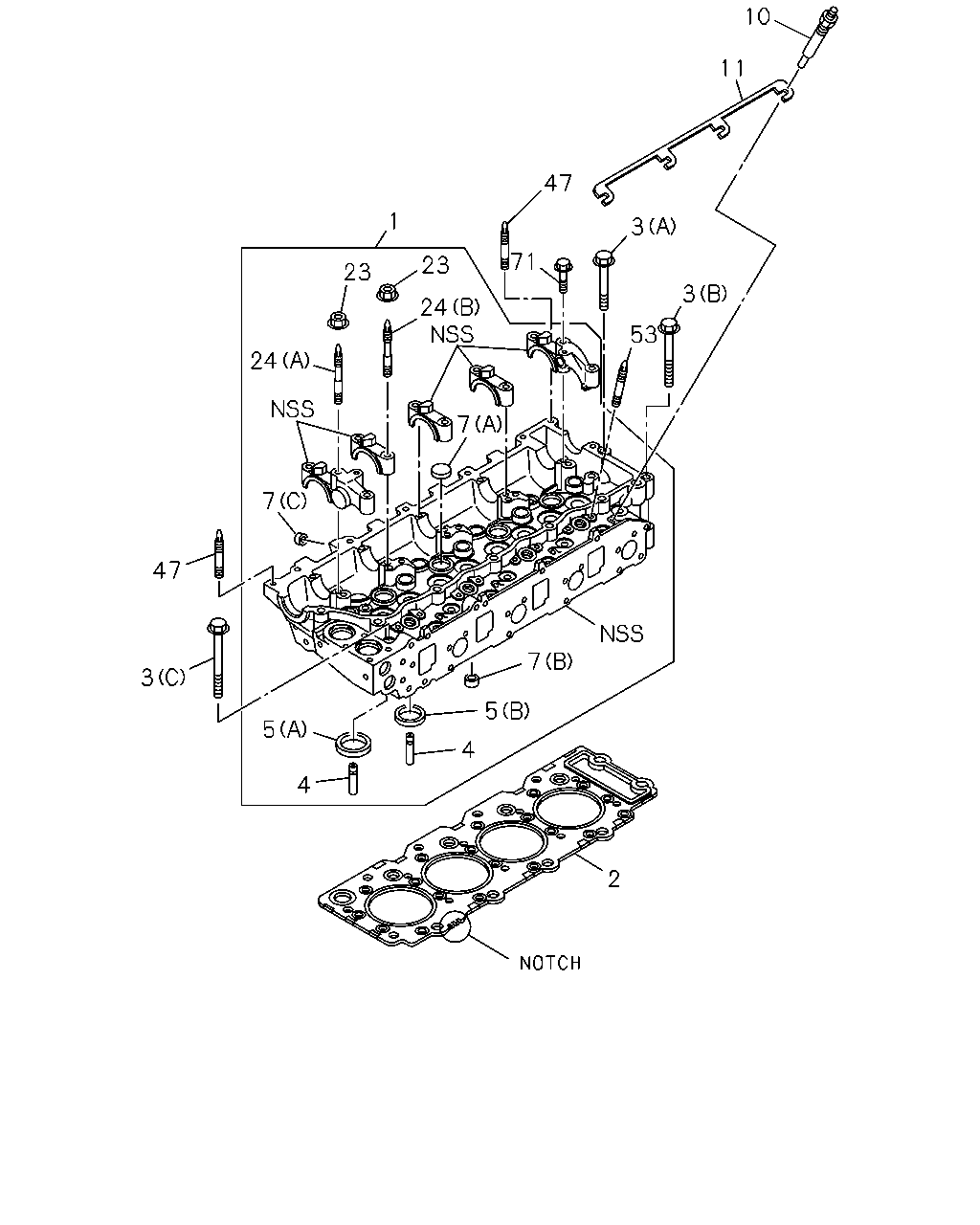

çizim 53063
10 11 47 1 3 71 23 23 3 24 53 24 7 7 47 7 3 5 5 4 4 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.269 HEAD ASM; CYL 8-97358-366-2 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ● ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ● ●
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0607-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-536-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-537-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-538-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-98135-954-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-98135-955-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M8X25 M14X115 L=155 		8-97087-660-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) M11X114 		8-97144-583-2 18 1 0607- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0507-0606 ● ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0607-0707 ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0507-0606 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0607- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(E) INLET OD=38 		8-94395-888-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-97606-247-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-98028-874-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(G) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0607- ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97254-813-0 04 1 0302-0404 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0405-0506 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(H) INLET ID=29 OD=35 		8-97311-378-0 08 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=16 		5-11129-006-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (K) OD=14 		5-11219-011-0 07 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=32 		1-09600-012-2 02 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0302-0503 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(L) OD=18 		5-11219-008-0 13 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0607- ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-5 04 1 0507-0606 ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0607- ● ●
10 02.270 PLUG; GLOW 8-94133-759-8 04 1 0302-0506 ●
10 02.270 PLUG; GLOW 8-94133-759-9 04 1 0507-0606 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0507-0606 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0607- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0607- ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0302-0506 ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91150-208-0 10 1 0507-0602 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0603-0606 ● ●
23 00.349 NUT; CAM BRKT
01.540 M8 FLANGE 		0-91180-208-0 10 1 0607- ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0302-0506 ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0507-0606 ● ●
24 00.413 STUD; CM/SHF BRKT
(B) M8X54 L=79 		8-94322-512-2 02 1 0607- ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0302-0506 ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0507-0606 ● ●
24 00.413 STUD; CM/SHF BRKT
(A) M8X41 L=66 		8-94322-513-2 08 1 0607- ●
47 00.413 STUD; CYL HD
M8X30 L=41 		8-97016-313-0 02 1 0302-0506 ●
47 00.413 STUD; CYL HD
03.278 M8X60 L=72 		0-49740-860-0 02 1 0507-0512 ● ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0601-0606 ● ●
47 00.413 STUD; CYL HD
01.073 M8X60 L=72 		0-49140-860-0 02 1 0607- ●
53 03.332 STUD; INJ NOZZLE
M8X64 L=85 		8-97178-608-0 08 1 0302-0506 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0302-0506 ●
71 00.413 BOLT; CAM BRKT
03.415 M8X35 FLANGE 		0-28080-835-0 02 1 0507-0512 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0601-0606 ● ●
71 00.413 BOLT; CAM BRKT
03.162 M8X35 FLANGE 		0-28050-835-0 02 1 0607- ●

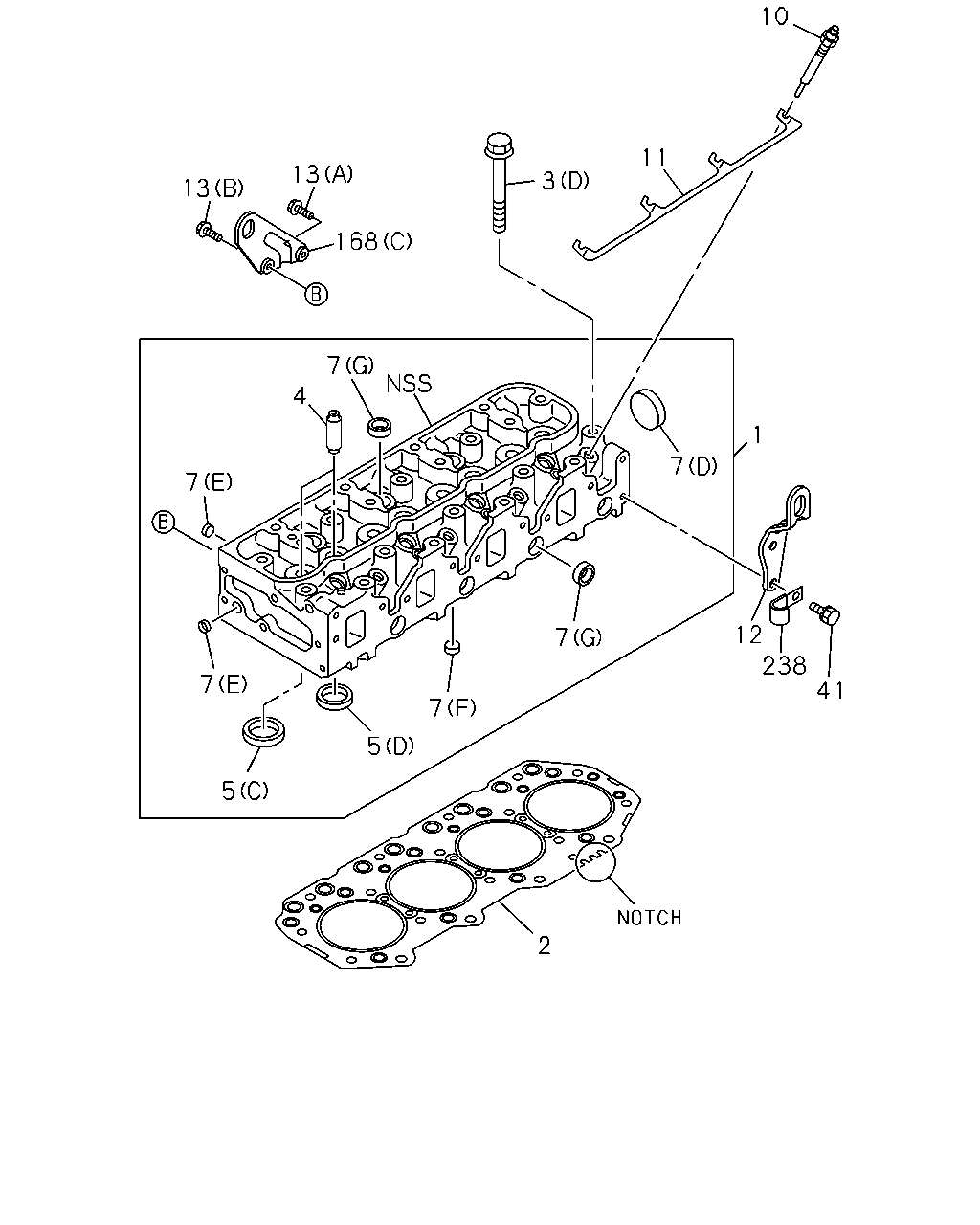

çizim 53189
10 11 13 3 13 168 7 4 1 7 7 12 7 238 41 7 7 5 5 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.269 HEAD ASM; CYL 8-97358-366-2 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ● ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ● ●
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0607-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-536-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-98055-540-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-537-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-98055-541-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-538-0 01 1 0607-0607 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-98055-542-0 01 1 0608- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.70 WO/NOTCH 		8-97354-196-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.75 1-NOTCH 		8-97354-197-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.80 2-NOTCH 		8-97354-198-1 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.30 1-NOTCH 		8-97259-601-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-97328-866-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.05 1-NOTCH 		8-98135-953-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.35 2-NOTCH 		8-97259-602-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-97328-867-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.10 2-NOTCH 		8-98135-954-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0302-0506 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.40 3-NOTCH 		8-97259-603-0 01 1 0507-0606 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-97328-868-2 01 1 0607-0901 ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.15 3-NOTCH 		8-98135-955-0 01 1 0902- ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.475 NON-HOLE 		8-97375-433-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.525 1-HOLE 		8-97375-434-0 01 1 0507-0606 ● ●
2 00.289 GASKET; CYL HD
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) T=1.575 2-HOLE 		8-97375-435-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(A) M10X73 		8-94399-554-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(B) M10X43 		8-94399-555-0 01 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 17 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0507-0606 ● ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M14X115 W/FLANGE 		8-97077-638-0 18 1 0607- ●
3 00.293 BOLT; CYL HD TO BLOCK
(C) M8X25 M14X115 L=155 		8-97087-660-0 01 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0302-0506 ●
3 00.293 BOLT; CYL HD TO BLOCK
(D) M11X122 		8-97133-416-1 18 1 0507-0606 ●
3 00.293 BOLT; CYL HD TO BLOCK
(E) M11X114 		8-97144-583-2 18 1 0607- ●
4 00.283 GUIDE; VLV 8-94396-598-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0507-0606 ● ●
4 00.283 GUIDE; VLV
L=57 		8-94390-780-0 16 1 0607-0707 ●
4 00.283 GUIDE; VLV
L=57 		8-97376-719-2 16 1 0708- ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0302-0506 ●
4 00.283 GUIDE; VLV
L=50 		5-11721-016-0 08 1 0507-0606 ●
4 00.283 GUIDE; VLV
L=42 		8-94239-423-0 16 1 0607- ●
5 00.253 SEAT; VLV INSERT
(B) EXHAUST OD=43 		8-94396-172-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(E) INLET OD=38 		8-94395-888-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-97606-247-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST ID=31 OD=38 		8-98028-875-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(A) INLET OD=51 		8-97088-460-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0507-0606 ● ●
5 00.253 SEAT; VLV INSERT
(F) EXHAUST OD=38 		8-97216-511-0 08 1 0607-0703 ●
5 00.253 SEAT; VLV INSERT
(E) INLET ID=32 OD=38 		8-98028-874-0 08 1 0704- ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0302-0506 ●
5 00.253 SEAT; VLV INSERT
(D) EXHAUST OD=36.7 		8-97231-229-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(G) EXHAUST ID=26 OD=32 		8-97311-379-0 08 1 0607- ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97254-813-0 04 1 0302-0404 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0405-0506 ●
5 00.253 SEAT; VLV INSERT
(C) INLET OD=42.7 		8-97378-030-0 04 1 0507-0606 ●
5 00.253 SEAT; VLV INSERT
(H) INLET ID=29 OD=35 		8-97311-378-0 08 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 02 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.293 (B) OD=25 		1-09600-016-0 04 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(C) OD=12 		8-97036-335-1 04 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(H) OD=16 		5-11129-006-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (K) OD=14 		5-11219-011-0 07 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 12 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(A) OD=32 		8-97096-821-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(E) OD=12.3 		5-09600-013-0 05 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
00.034 (J) OD=32 		1-09600-012-2 02 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 03 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(F) OD=16 		5-11129-006-0 05 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0302-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(G) OD=22 		8-97209-609-0 06 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		8-97351-451-0 01 1 0302-0503 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0504-0506 ●
7 00.253 CUP; SEALING,CYL HEAD
(D) OD=45 		1-09600-005-2 01 1 0507-0606 ●
7 00.253 CUP; SEALING,CYL HEAD
(L) OD=18 		5-11219-008-0 13 1 0607- ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0507-0606 ● ●
7 00.253 CUP; SEALING,CYL HEAD
(I) OD=20 		9-11129-128-0 07 1 0607- ●
10 02.270 PLUG; GLOW
BOSCH 		1-82513-044-2 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-97033-761-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-5 04 1 0507-0606 ● ●
10 02.270 PLUG; GLOW
NGK 		8-94390-777-6 04 1 0607- ● ●
10 02.270 PLUG; GLOW 8-94133-759-8 04 1 0302-0506 ●
10 02.270 PLUG; GLOW 8-94133-759-9 04 1 0507-0606 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0302-0506 ●
10 02.270 PLUG; GLOW
NGK 		8-94175-158-1 04 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97136-565-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0507-0606 ● ●
11 02.251 CONNECTOR; GLOW PLUG 8-97332-358-2 01 1 0607- ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0302-0506 ●
11 02.251 CONNECTOR; GLOW PLUG 8-97146-517-0 01 1 0507-0606 ●
11 02.251 CONNECTOR; GLOW PLUG 8-98014-335-0 01 1 0607- ●
12 00.004 HANGER; ENG,RR 8-97071-960-0 01 1 0302-0506 ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0302-0506 ●
12 00.004 HANGER; ENG,RR 8-97107-739-0 01 1 0507-0606 ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0302-0506 ●
13 00.004 BOLT; HANGER
03.417 (B) M10X25 FLANGE 		0-28081-025-0 01 1 0507-0512 ●
13 00.004 BOLT; HANGER
09.171 (B) M10X25 FLANGE 		0-28051-025-0 01 1 0601-0606 ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0302-0506 ●
13 00.004 BOLT; HANGER
01.073 (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 0507-0512 ●
13 00.004 BOLT; HANGER
09.008 (A) M8X25 W/LK WASHER 		0-50540-825-0 01 1 0601-0606 ●
41 09.181 BOLT; ENG HANGER
02.483 M12X20 FLANGE 		0-28181-220-0 02 1 0302-0506 ●
41 09.181 BOLT; ENG HANGER
04.785 M8X18 W/LK WASHER 		0-50040-818-0 02 1 0302-0410 ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0411-0506 ●
41 09.181 BOLT; ENG HANGER
01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0507-0512 ●
41 09.181 BOLT; ENG HANGER
02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97127-373-0 01 1 0302-0506 ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97310-254-2 01 1 0507-0606 ● ●
168 00.004 HANGER; ENG,FRT
(B) 		8-98032-250-1 01 1 0607- ●
168 00.004 HANGER; ENG,FRT
(C) 		8-94379-714-1 01 1 0302-0506 ●
168 00.004 HANGER; ENG,FRT
(C) 		8-94379-714-1 01 1 0507-0606 ●
238 02.559 CLIP; GLOW HARNESS
04.205 L=60 		1-09700-304-0 01 1 0302-0506 ●
238 02.559 CLIP; GLOW HARNESS
04.205 L=60 		1-09700-304-0 01 1 0507-0606 ●
çizim 54491
182 247 122 1 182 249 248 168 1 168 15 14
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.269 HEAD ASM; CYL 8-97358-366-2 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97383-041-1 01 1 0507-0510 ● ●
1 00.269 HEAD ASM; CYL 8-98008-363-2 01 1 0511-0606 ● ●
1 00.269 HEAD ASM; CYL 8-98018-454-6 01 1 0607-1005 ●
1 00.269 HEAD ASM; CYL 8-98170-619-0 01 1 1006- ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0302-0506 ●
1 00.269 HEAD ASM; CYL 8-97239-922-3 01 1 0507-0606 ●
1 00.269 HEAD ASM; CYL 8-97355-970-9 01 1 0607-1012 ●
1 00.269 HEAD ASM; CYL 8-98175-606-1 01 1 1101- ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0302-0506 ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0507-0606 ● ●
14 03.275 STUD; EXH MANIF
M10X60 L=75 		8-94397-286-0 02 1 0607- ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0302-0506 ●
15 00.004 BOLT; HANGER,FRT
04.785 M10X20 FLANGE 		0-28781-020-0 02 1 0507-0512 ● ●
15 00.004 BOLT; HANGER,FRT
02.343 M10X20 FLANGE 		0-28751-020-0 02 1 0601-0606 ● ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97331-360-1 01 1 0507-0606 ● ●
122 00.206 GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 		8-97331-360-1 01 1 0607- ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97127-373-0 01 1 0302-0506 ●
168 00.004 HANGER; ENG,FRT
(A) 		8-97310-254-2 01 1 0507-0606 ● ●
168 00.004 HANGER; ENG,FRT
(B) 		8-98032-250-1 01 1 0607- ●
168 00.004 HANGER; ENG,FRT
(C) 		8-94379-714-1 01 1 0302-0506 ●
168 00.004 HANGER; ENG,FRT
(C) 		8-94379-714-1 01 1 0507-0606 ●
182 00.206 BOLT; CASE
08.900 (A) M8X12 FLANGE 		0-28080-812-0 02 1 0507-0512 ● ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0601-0606 ● ●
182 00.206 BOLT; CASE
02.343 (A) M8X12 FLANGE 		0-28050-812-0 02 1 0607- ●
182 00.206 BOLT; CASE
01.540 (B) M8X45 FLANGE 		0-28080-845-0 04 1 0507-0512 ● ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 0601-0606 ● ●
182 00.206 BOLT; CASE
09.173 (B) M8X45 FLANGE 		0-28050-845-0 04 1 0607- ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0507-0606 ● ●
247 00.269 CASE; CYL HEAD,C/H COVER 8-97331-362-1 01 1 0607- ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 0507-0606 ● ●
248 02.251 CONNECTOR
01.150 		8-94390-858-1 01 1 0607- ●
249 03.300 GASKET; CONNECTOR
01.152 		8-94391-310-0 01 1 0507-0606 ● ●
249 03.300 GASKET; CONNECTOR
01.152 		8-94391-310-0 01 1 0607- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
