◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50949 - NPR/NQR(EUROPE)-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-05 - ENGINE GASKET KIT ▶
0-05 — ENGINE GASKET KIT (#18768) — 360 parça

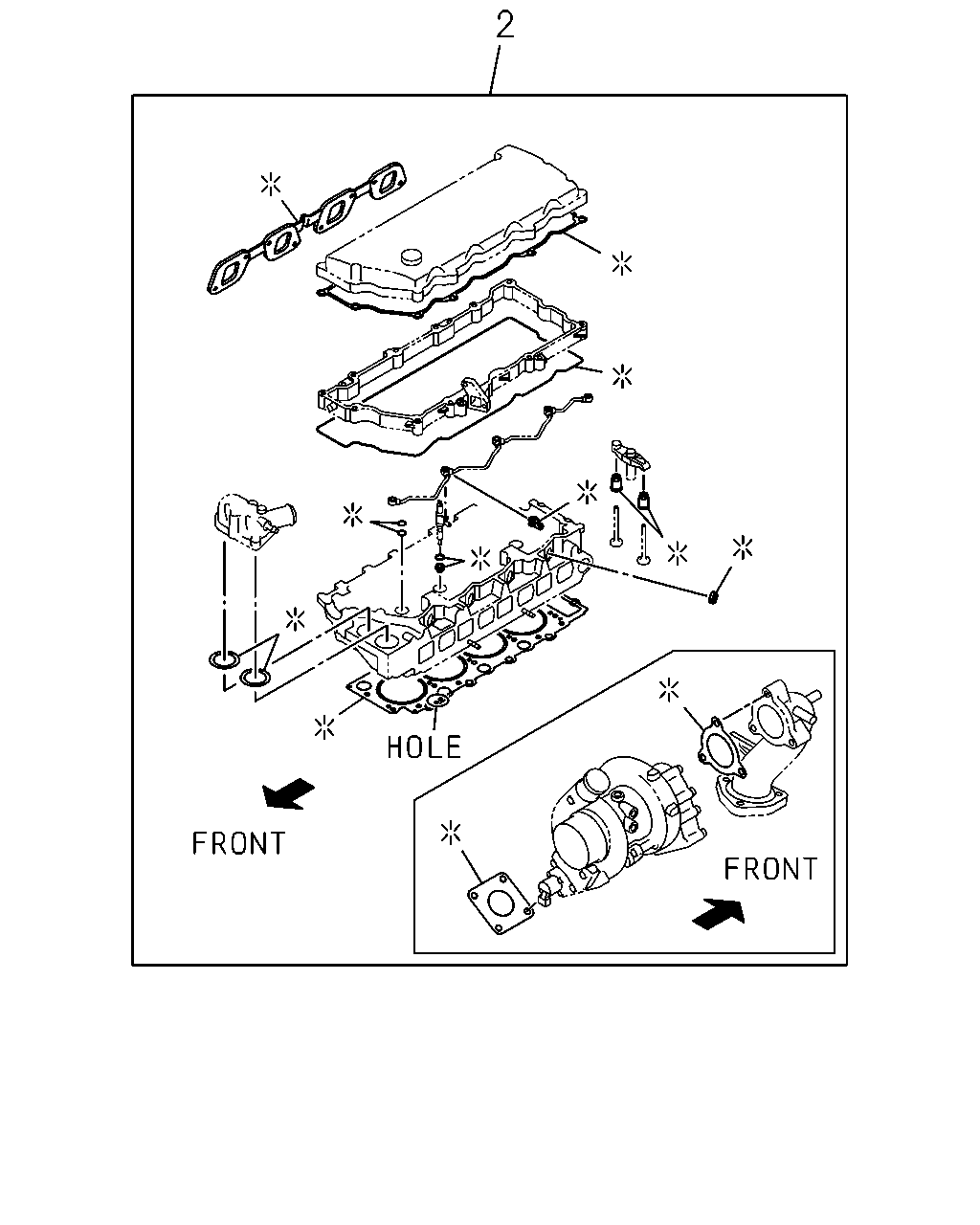

çizim 11917
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-987-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-142-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-526-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-988-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-143-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-527-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-989-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-144-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-528-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-691-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-884-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-938-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-692-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-885-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-939-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-693-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-886-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-940-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101- ●

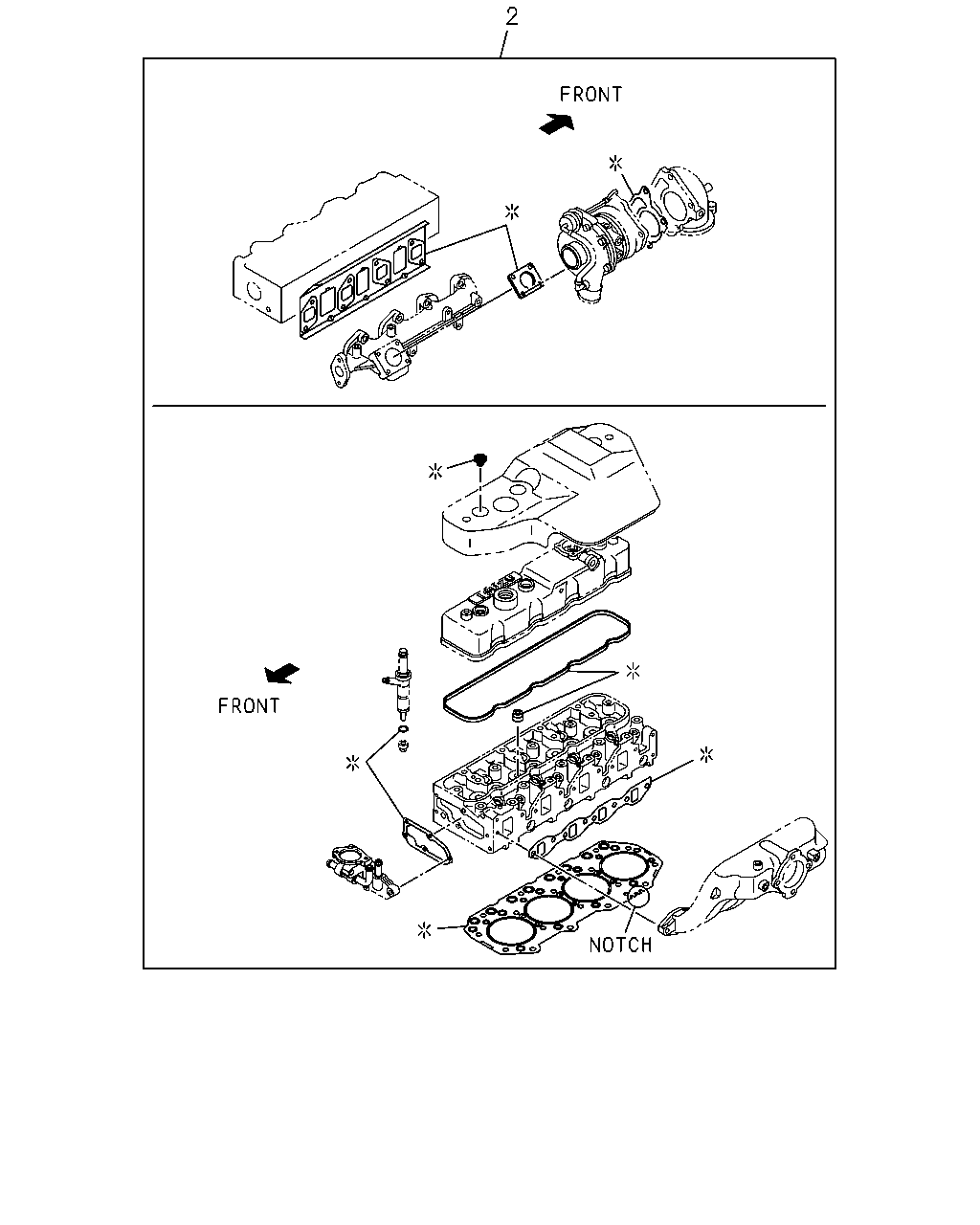

çizim 12489
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-987-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-142-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-526-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-988-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-143-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-527-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-989-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-144-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-528-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-691-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-884-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-938-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-692-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-885-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-939-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-693-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-886-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-940-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101- ●

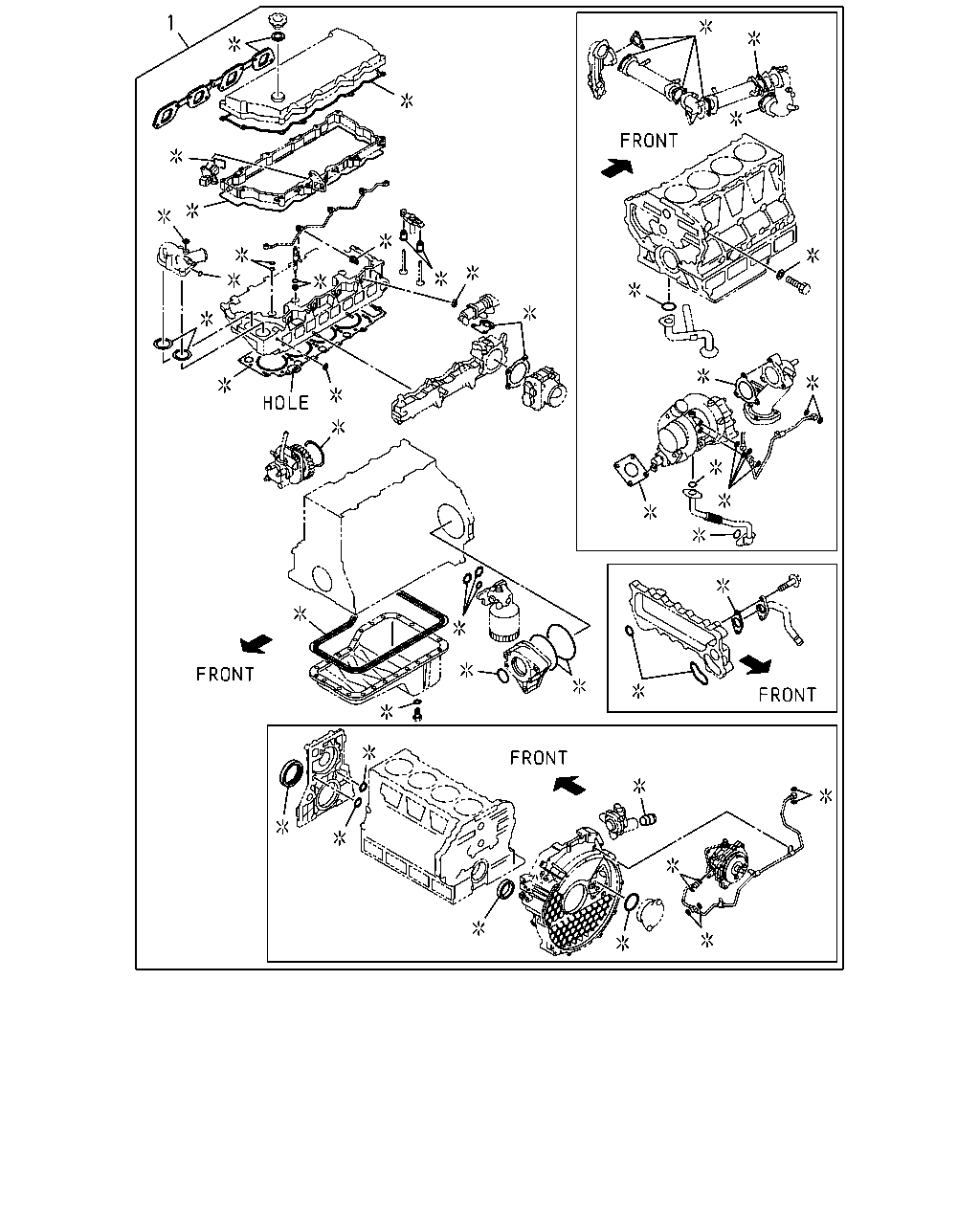

çizim 12585
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-358-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-755-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-903-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-359-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-756-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-904-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-360-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-757-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-905-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-984-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-390-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-550-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-804-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-985-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-391-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-551-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-805-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-986-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-392-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-552-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-806-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-436-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-688-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-878-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-336-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-437-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-689-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-879-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-337-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-438-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-690-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-880-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0507-0606 ●

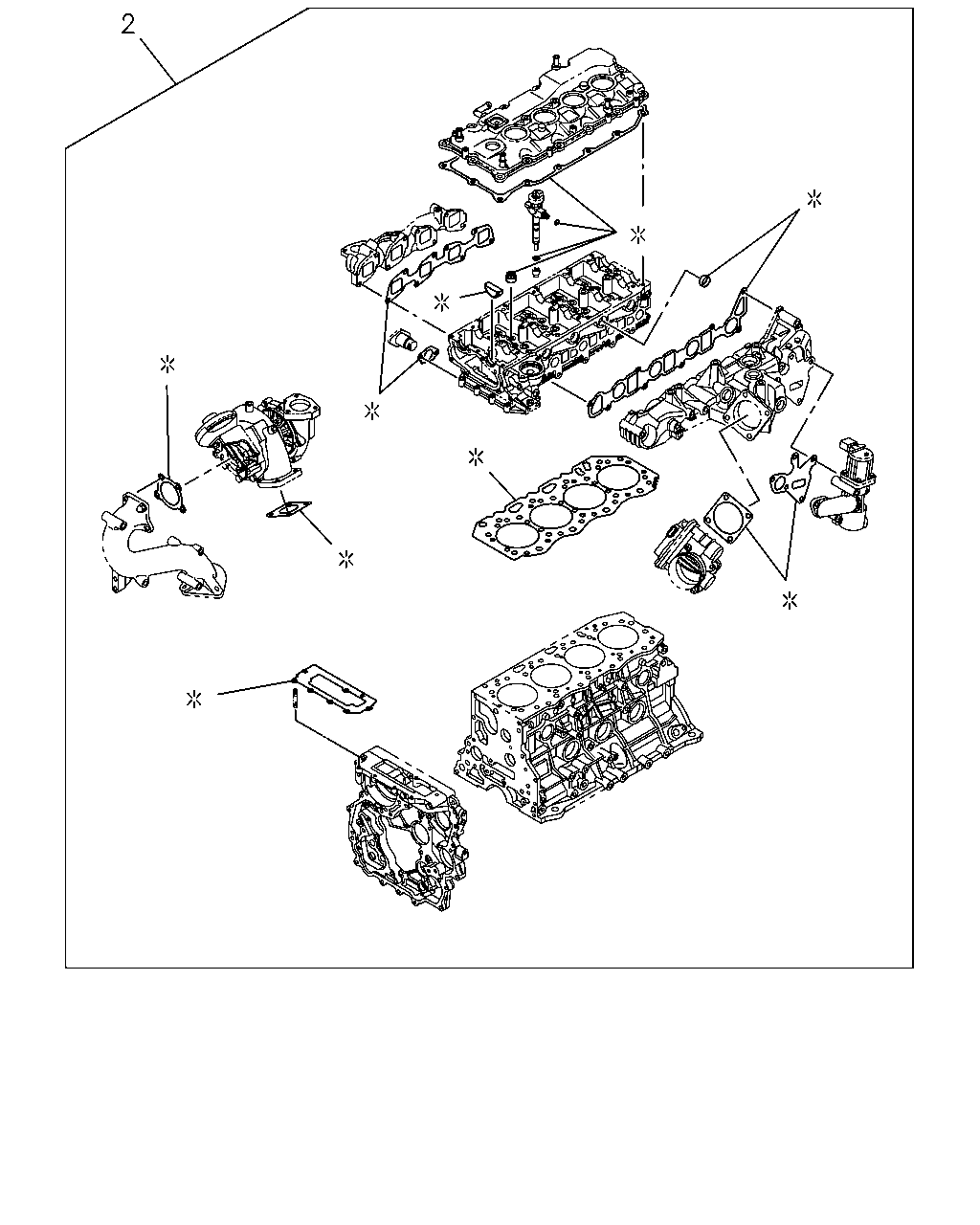

çizim 12685
2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-987-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-142-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-526-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-988-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-143-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-527-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-989-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-144-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-528-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-691-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-884-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-938-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-692-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-885-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-939-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-693-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-886-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-940-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101- ●

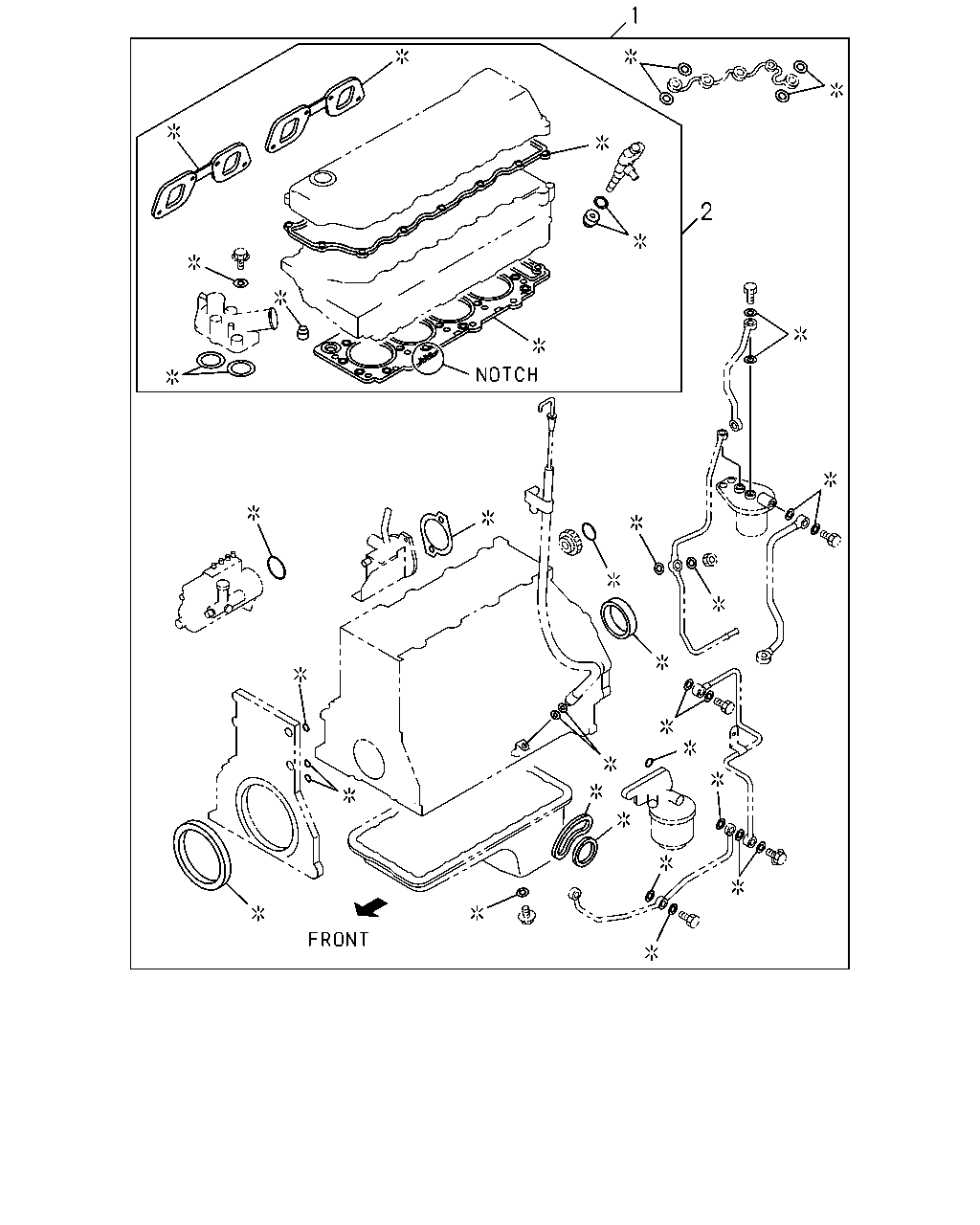

çizim 51190
1 2
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-358-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-755-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-903-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-359-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-756-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-904-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-360-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-757-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-905-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-984-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-390-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-550-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-804-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-985-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-391-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-551-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-805-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-986-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-392-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-552-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-806-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-436-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-688-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-878-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-336-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-437-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-689-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-879-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-337-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-438-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-690-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-880-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-987-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-142-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87815-526-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-988-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-143-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87815-527-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-989-1 01 1 0607-0707 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-144-1 01 1 0708-0908 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87815-528-2 01 1 0909- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.70 WO/NOTCH 		5-87814-338-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-691-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-884-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.475 NON-HOLE 		5-87814-938-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.75 1-NOTCH 		5-87814-339-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-692-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-885-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.525 1-HOLE 		5-87814-939-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.80 2-NOTCH 		5-87814-340-2 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-693-0 01 1 0507-0507 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-886-0 01 1 0508-0512 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.575 2-HOLE 		5-87814-940-0 01 1 0601-0606 ● ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.30 1-NOTCH 		5-87814-087-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.35 2-NOTCH 		5-87814-088-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0302-0506 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.40 3-NOTCH 		5-87814-089-3 01 1 0507-0606 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87814-972-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-057-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-370-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-888-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87814-973-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-058-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-371-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-889-0 01 1 1101- ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87814-974-1 01 1 0607-0702 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-059-0 01 1 0703-0805 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-372-1 01 1 0806-1012 ●
2 00.010 GASKET SET; ENG HD OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-890-0 01 1 1101- ●

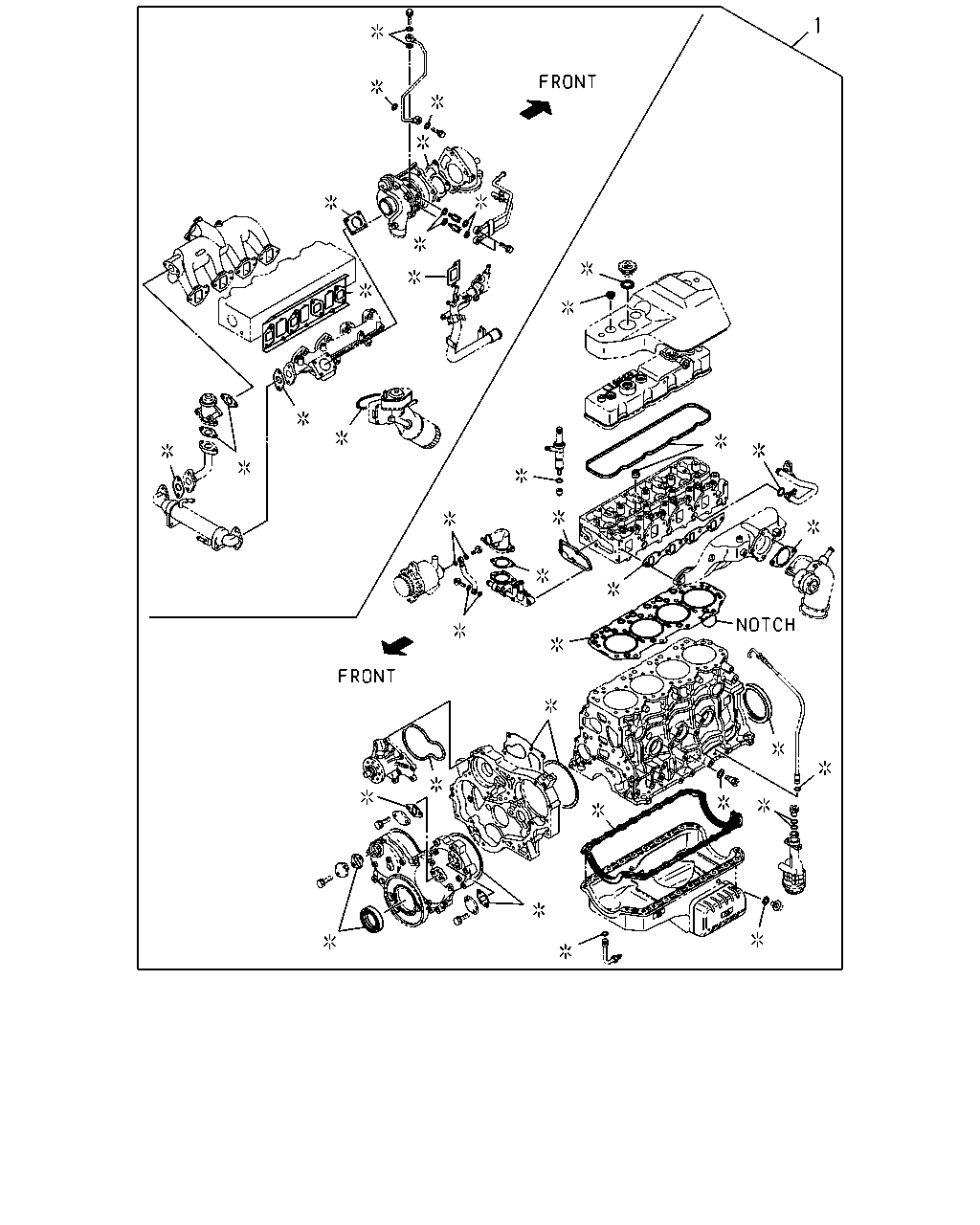

çizim 53102
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-358-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-755-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-903-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-359-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-756-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-904-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-360-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-757-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-905-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-984-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-390-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-550-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-804-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-985-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-391-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-551-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-805-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-986-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-392-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-552-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-806-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-436-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-688-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-878-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-336-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-437-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-689-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-879-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-337-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-438-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-690-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-880-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0507-0606 ●

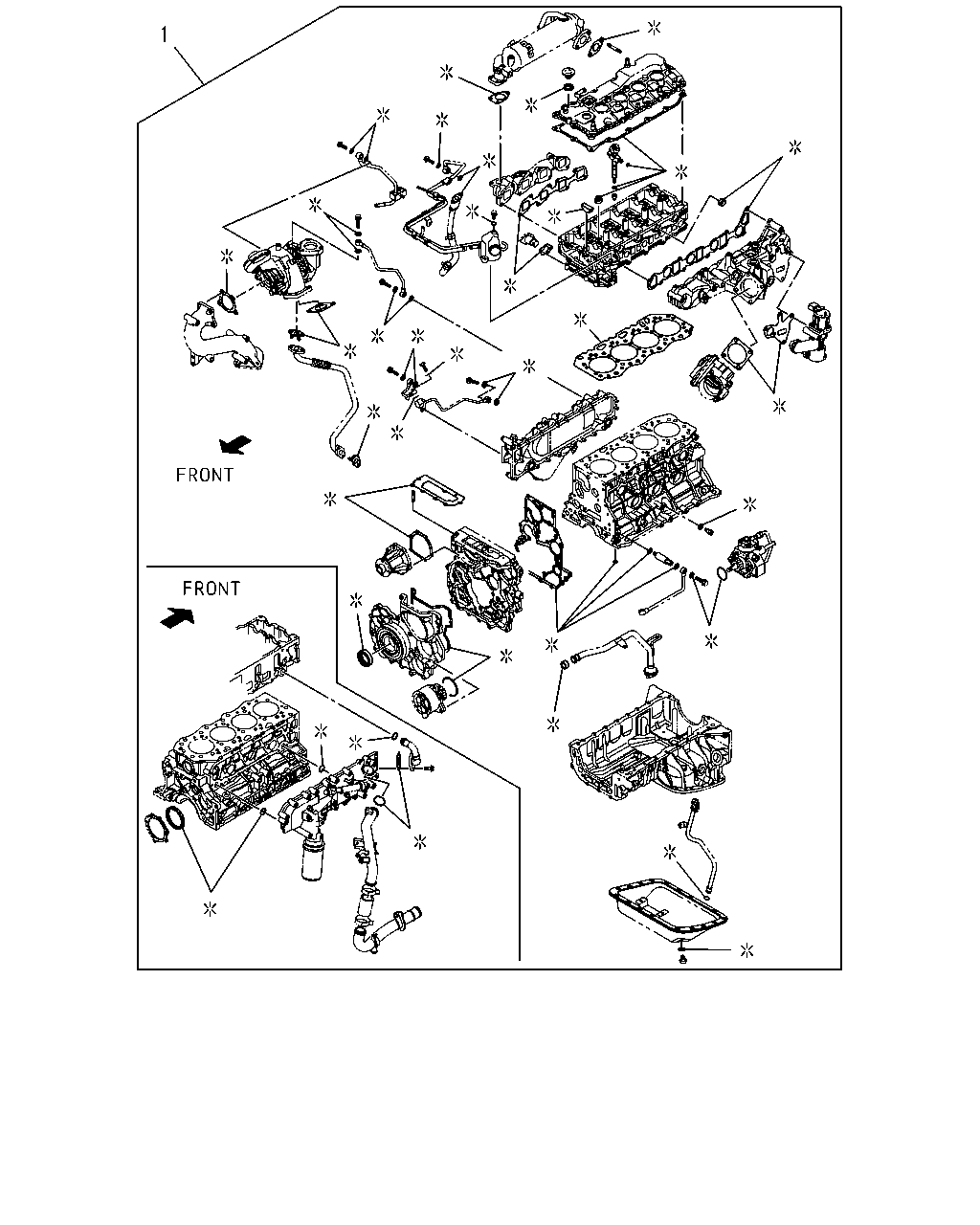

çizim 54487
1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-038-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-048-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-242-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-358-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-755-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.05 1-NOTCH GRADE A 		5-87815-903-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-039-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-049-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-243-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-359-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-756-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.10 2-NOTCH GRADE B 		5-87815-904-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-040-0 01 1 0608-0702 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-050-0 01 1 0703-0708 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-244-1 01 1 0709-0805 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-360-2 01 1 0806-1007 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-757-0 01 1 1008-1012 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.15 3-NOTCH GRADE C 		5-87815-905-0 01 1 1101- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-984-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-390-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-550-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87815-804-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-985-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-391-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-551-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87815-805-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-986-2 01 1 0607-0707 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-392-2 01 1 0708-0908 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-552-1 01 1 0909-1006 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87815-806-1 01 1 1007- ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-335-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.70 WO/NOTCH 		5-87814-436-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-688-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.475 NON-HOLE 		5-87814-878-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-336-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.75 1-NOTCH 		5-87814-437-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-689-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.525 1-HOLE 		5-87814-879-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-337-1 01 1 0302-0307 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.80 2-NOTCH 		5-87814-438-2 01 1 0308-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-690-1 01 1 0507-0507 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.575 2-HOLE 		5-87814-880-2 01 1 0508-0606 ● ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-314-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.30 1-NOTCH 		5-87814-721-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-315-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.35 2-NOTCH 		5-87814-722-0 01 1 0507-0606 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-316-4 01 1 0302-0402 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0403-0506 ●
1 00.010 GASKET SET; ENG OVERHAUL
T=1.40 3-NOTCH 		5-87814-723-0 01 1 0507-0606 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
