Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#18766) — 201 parça

40 70 37 40 40 70 37 70 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
37	17.202 SCREW RR BODY FLAT BED(RS6) TAKADA	8-94194-119-0	06	1	0211-0501	●	●
37	17.202 SCREW RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	0502-	●
37	17.202 SCREW RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-119-1	06	1	0502-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0501	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0502-0602	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0502-0602		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	0211-0501	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	0502-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 (B) M12	9-09130-412-0	02	1	0502-		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	0211-0501	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	0502-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.202 (C) OD=45 H=28	8-94192-532-0	02	1	0502-		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	0211-0501	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	0502-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.507 (A) OD=60 H=22	8-94193-455-0	02	1	0502-		●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) (B) OD=60 H=28	8-94194-895-0	02	1	0211-0501	●	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) (B) OD=60 H=28	8-94194-895-0	02	1	0502-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) OD=60 H=28	8-94194-895-0	02	1	0502-		●

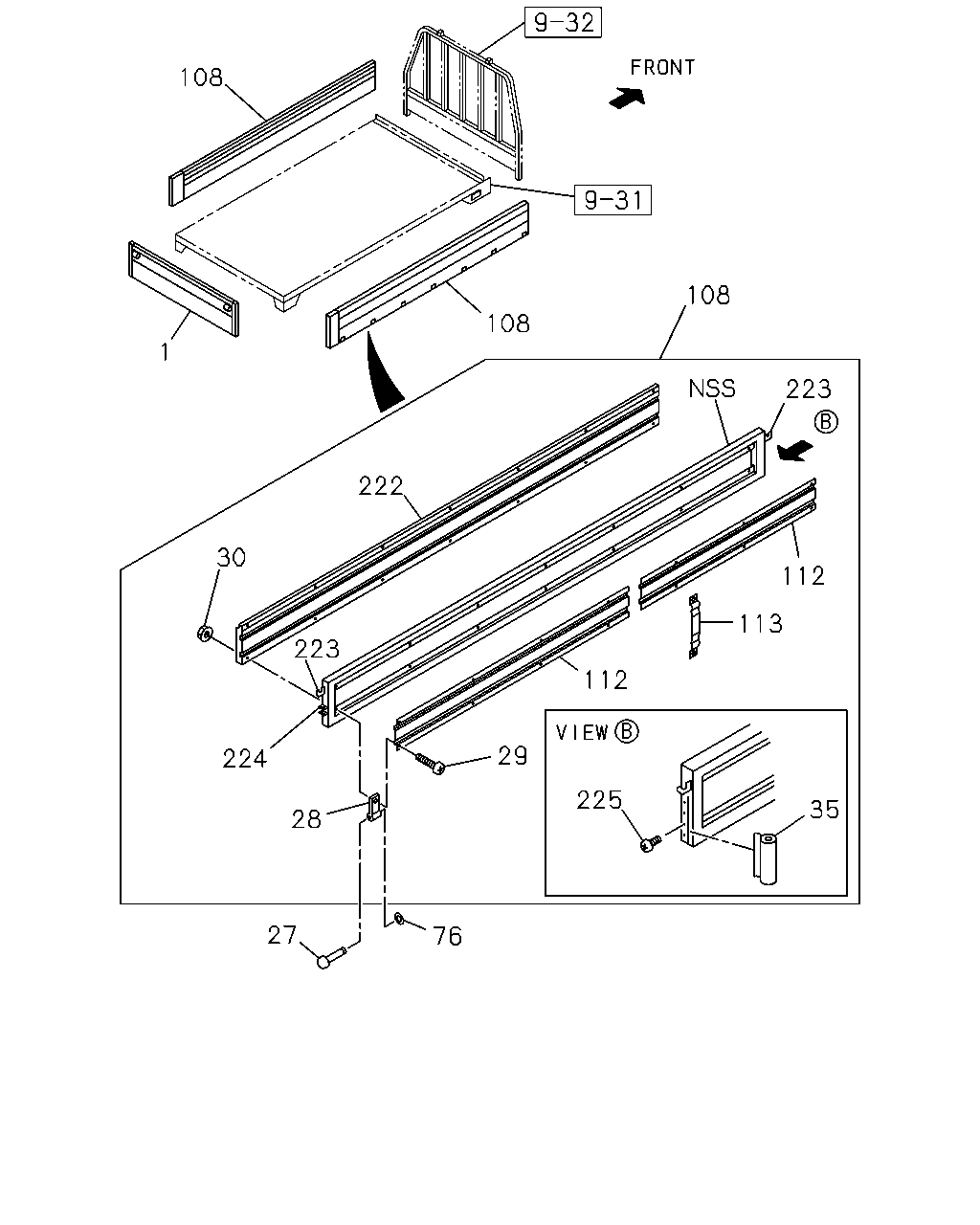

108 108 108 1 223 222 30 112 113 223 112 29 224 225 35 28 27 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6)	8-97594-489-0	01	1	0802-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-489-0	01	1	0802-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	0211-0501		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	0211-	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> OD=12 L=88.5	8-94193-932-0	18	1	0211-0501		●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=89.5	8-94195-763-2	16	1	0211-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	14	1	0211-	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94194-271-0	18	1	0211-0501		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-027-0	16	1	0211-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 UPPER M8X16	8-94193-952-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 LOWER M8X21	8-94193-953-3	14	1	0211-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-0	18	1	0211-0501		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-3	16	1	0502-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-0	18	1	0211-0501		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-3	16	1	0502-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 UPPER M8X16	8-94193-952-1	16	1	0211-0501		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 LOWER M8X21	8-94193-953-1	16	1	0211-0501		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-0	28	1	0211-0501	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-0	28	1	0211-0501		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	28	1	0502-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8	8-94193-954-1	32	1	0211-		●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6)	8-94194-277-0	02	1	0211-0501	●	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6)	8-94194-277-0	02	1	0502-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-277-0	02	1	0502-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	0211-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	18	1	0211-0501		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-0	04	1	0211-0501		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-1	20	1	0211-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-97591-774-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6)	8-97594-481-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-97591-773-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-480-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-559-0	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-780-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-485-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-558-0	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-779-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-484-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0211-0501		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-037-0	02	1	0211-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT TAKADA	8-97590-046-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-97590-048-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT TAKADA	8-97590-045-0	01	1	0211-		●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-97590-047-0	01	1	0211-		●
113	17.505 BAR; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97592-160-0	02	1	0211-0801		●
113	17.505 BAR; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97592-794-0	02	1	0802-		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6)	8-97590-063-0	02	1	0211-0501	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97591-982-0	02	1	0502-0801	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-228-0	02	1	0802-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-071-0	02	1	0211-0501		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97591-991-0	02	1	0502-0801		●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-240-0	02	1	0802-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) FRONT	8-94194-292-0	01	1	0211-0501	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-94194-292-0	01	1	0211-0501		●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) FRONT	8-97591-978-0	01	1	0502-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97591-978-0	01	1	0502-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) REAR TAKADA	8-94194-397-0	01	1	0211-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-94194-397-0	01	1	0211-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) FRONT	8-94194-291-0	01	1	0211-0501	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-94194-291-0	01	1	0211-0501		●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) FRONT	8-97591-977-0	01	1	0502-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> FRONT	8-97591-977-0	01	1	0502-		●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) REAR TAKADA	8-94194-396-0	01	1	0211-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> REAR TAKADA	8-94194-396-0	01	1	0211-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6)	8-94194-374-0	01	1	0211-0501	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-374-0	01	1	0211-0501		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	0502-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-276-0	01	1	0502-		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6)	8-94194-373-0	01	1	0211-0501	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-94194-373-0	01	1	0211-0501		●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	0502-	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-275-0	01	1	0502-		●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	0211-0501	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	0502-	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-351-0	08	1	0502-		●

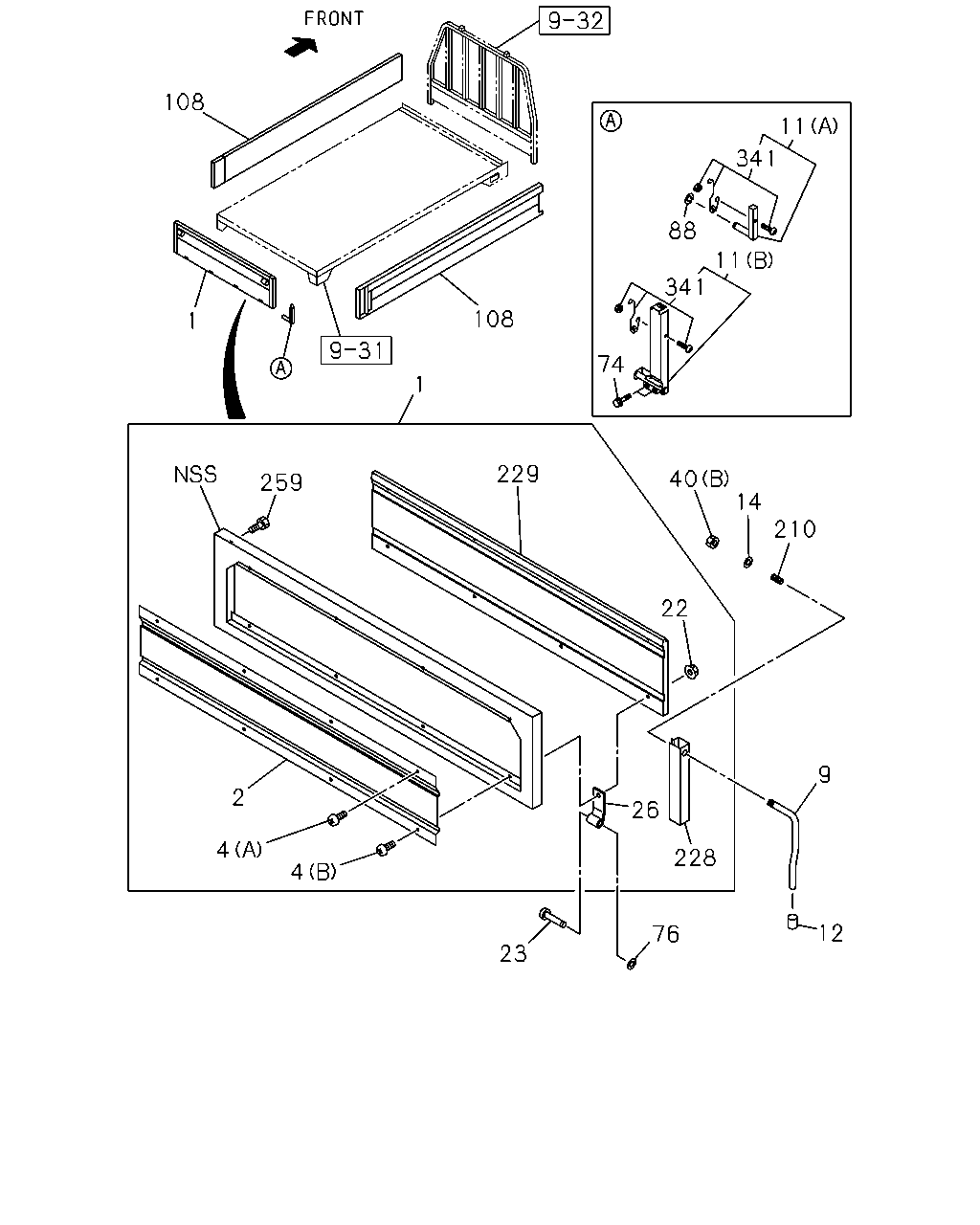

108 11 341 88 11 341 108 1 74 1 229 40 14 259 210 22 9 2 26 4 228 4 12 76 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-94195-515-4	01	1	0211-0501		●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=2067 H=398 B=50 PLYWOOD	8-97591-791-0	01	1	0502-0801		●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6)	8-97594-489-0	01	1	0802-	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-489-0	01	1	0802-		●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> L=2057 H=398 B=55 PLYWOOD	8-94193-819-1	01	1	0211-0501		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-084-0	01	1	0211-	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-084-0	01	1	0211-		●
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94194-027-0	01	1	0211-0501		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (A) M8X16	8-94193-952-0	04	1	0211-0501	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (A) M8X16	8-94193-952-3	04	1	0502-	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X16	8-94193-952-3	04	1	0502-		●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (B) M8X21	8-94193-953-0	04	1	0211-0501	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (B) M8X21	8-94193-953-3	04	1	0502-	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8X21	8-94193-953-3	04	1	0502-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	0211-	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-401-2	01	1	0211-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	0211-	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94196-400-2	01	1	0211-		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94193-795-0	01	1	0211-0501		●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94193-794-0	01	1	0211-0501		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) (A) TAKADA	8-94196-399-0	01	1	0211-0501	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) TAKADA	8-94196-399-0	01	1	0211-0501		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) (B) TAKADA	8-97591-899-0	01	1	0502-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) TAKADA	8-97591-899-0	01	1	0502-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) (A) TAKADA	8-94196-398-0	01	1	0211-0501	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (A) TAKADA	8-94196-398-0	01	1	0211-0501		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) (B) TAKADA	8-97591-898-0	01	1	0502-	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> (B) TAKADA	8-97591-898-0	01	1	0502-		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> (A)	8-94193-347-0	01	1	0211-0501		●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> (A)	8-94193-346-0	01	1	0211-0501		●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	0211-	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94193-344-0	02	1	0211-		●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) 06.172 ID=12.5	9-09164-512-0	02	1	0211-0501	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) 06.172 ID=12.5	9-09164-512-0	02	1	0502-	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 06.172 ID=12.5	9-09164-512-0	02	1	0502-		●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) M8	8-94193-954-0	08	1	0211-0501	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) M8	8-94193-954-1	08	1	0502-	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8	8-94193-954-1	08	1	0502-		●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-0	04	1	0211-0501	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	0502-	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=58.5	8-94193-933-2	04	1	0502-		●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-079-0	04	1	0211-	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97590-079-0	04	1	0211-		●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94194-377-0	04	1	0211-0501		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0211-0501	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0502-0602	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 04.594 (A) M6 FLANGE	0-91150-106-0	06	1	0502-0602		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	0603-		●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	0211-0501	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	0502-	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.447 (B) M12	9-09130-412-0	02	1	0502-		●
74	17.490 SCREW; LOCK RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	04	1	0502-	●
74	17.490 SCREW; LOCK RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> 17.185 M8X25	8-94194-111-2	04	1	0502-		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	0211-	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> ID=9	8-94194-116-0	18	1	0211-0501		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-0	04	1	0211-0501		●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> ID=8	8-94194-117-1	20	1	0211-		●
88	17.505 RING; SNAP,VERTICAL LOCK RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94194-123-0	02	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-94195-527-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-97591-774-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6)	8-97594-481-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-94195-526-3	01	1	0211-0501	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=4366 H=398 B=50 PLYWOOD	8-97591-773-0	01	1	0502-0801	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-480-0	01	1	0802-	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-559-0	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-780-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-485-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=55 PLYWOOD	8-94195-558-0	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-97591-779-0	01	1	0502-0801		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97594-484-0	01	1	0802-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-545-3	01	1	0211-0501		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> L=5016 H=398 B=50 PLYWOOD	8-94195-544-3	01	1	0211-0501		●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	0211-0501	●	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	0502-	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-94194-192-1	02	1	0502-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6)	8-97590-095-0	01	1	0211-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-095-0	01	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6)	8-97590-094-0	01	1	0211-	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-094-0	01	1	0211-		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94194-399-0	01	1	0211-0501		●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94194-398-0	01	1	0211-0501		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6)	8-97590-089-0	01	1	0211-0501	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ>	8-97590-089-0	01	1	0211-0501		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97591-999-0	01	1	0502-0801	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97591-999-0	01	1	0502-0801		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-245-0	01	1	0802-	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-245-0	01	1	0802-		●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ>	8-94194-416-0	01	1	0211-0501		●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) M8X40 TAKADA	8-97590-325-0	04	1	0211-	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> M8X40 TAKADA	8-97590-325-0	04	1	0211-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	0211-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-448-0	01	1	0211-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	0211-	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) EXC. FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-449-0	01	1	0211-		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-466-0	01	1	0211-0501		●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) FRAME STRAIGHT TYPE<7KJ> TAKADA	8-97594-465-0	01	1	0211-0501		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
