9-01 — TOOLS (#18762) — 204 parça

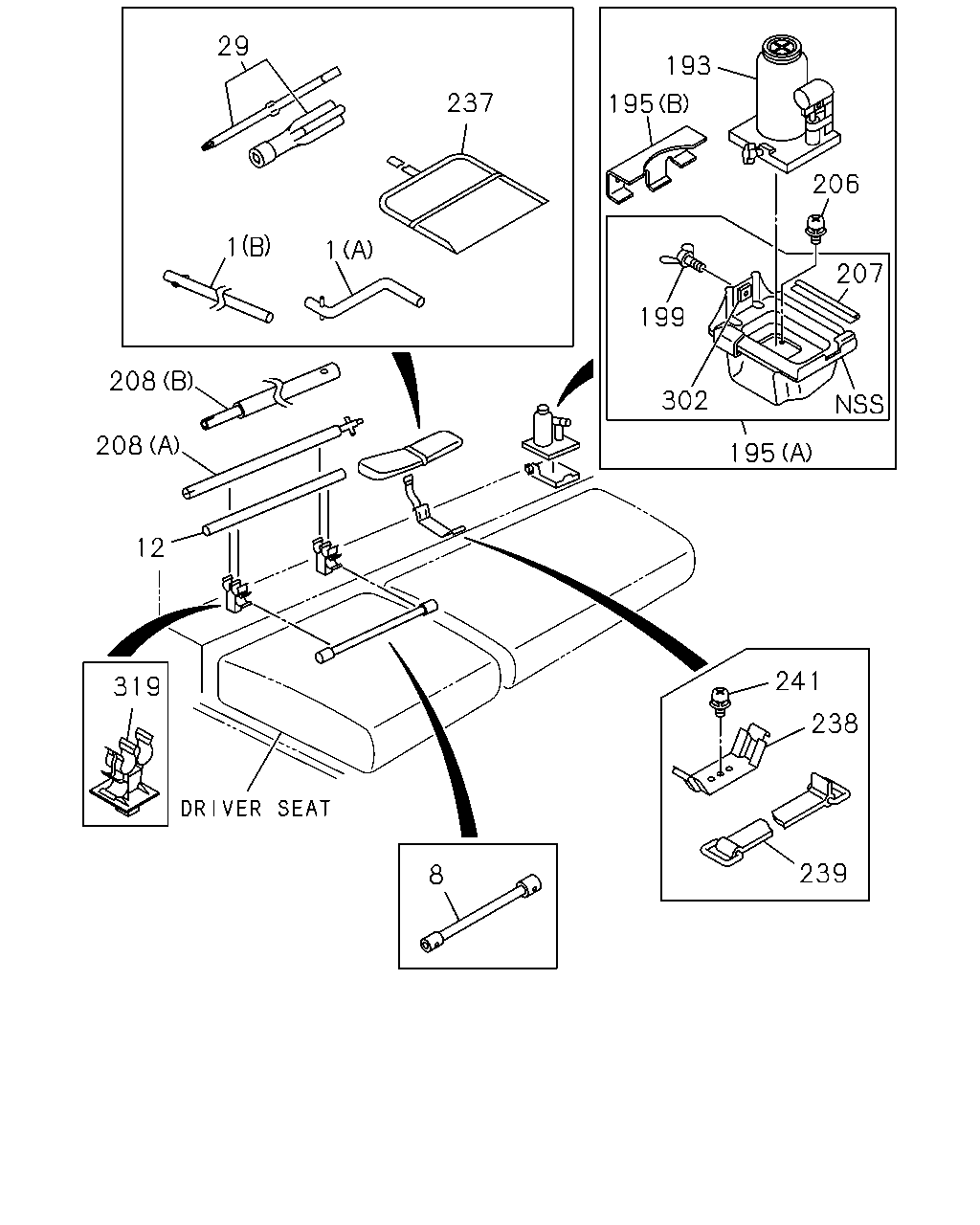

29 193 237 195 206 1 1 207 199 208 302 208 195 12 241 319 238 239 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0211-0501	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0502-0506		●	●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> 08.821 (B) L=280	1-85515-007-0	01	1	0507-1108	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER 08.821 (B) L=280	1-85515-007-0	01	1	0507-1108				●
1	07.629 HANDLE; SPARE TIRE CARRIER FRAME STRAIGHT TYPE<7KJ> (B) L=280	8-98181-251-0	01	1	1109-	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (B) L=280	8-98181-251-0	01	1	1109-				●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0211-0501	●	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0211-0501					●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0502-0506	●				●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0502-0506		●	●
1	07.629 HANDLE; SPARE TIRE CARRIER EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97218-985-0	01	1	0507-	●	●	●
1	07.629 HANDLE; SPARE TIRE CARRIER (A)	8-97218-985-0	01	1	0507-					●	●
8	08.821 WRENCH; WHEEL G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV) 41X19 L=330	8-94386-490-1	01	1	0211-0501	●	●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) 41X19 L=330	8-94386-490-1	01	1	0211-0501			●	●
8	08.821 WRENCH; WHEEL FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) 41X19 L=330	8-94386-490-1	01	1	0211-0501						●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) 41X19 L=330	8-94386-490-1	01	1	0502-0506	●	●	●
8	08.821 WRENCH; WHEEL 41X19 L=330	8-94386-490-1	01	1	0502-0506						●
8	08.821 WRENCH; WHEEL G.V.W. 6.0-6.5TON(RPV) EXC. AUSTRALIA EQUIPMENT(RR3) 41X19 L=330 B=41X19 L=330	8-94386-490-1	01	1	0507-	●	●	●
8	08.821 WRENCH; WHEEL G.V.W. 4.0-4.5TON(RPR) 41X19 L=330 B=41X19 L=330	8-94386-490-1	01	1	0507-	●	●
8	08.821 WRENCH; WHEEL 41X19 L=330 B=41X19 L=330	8-94386-490-1	01	1	0507-						●
8	08.821 WRENCH; WHEEL G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) 41X19 L=440	1-85113-015-1	01	1	0211-0501	●	●	●	●	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX) 41X19 L=440	1-85113-015-1	01	1	0502-0506	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) 41X19 L=440	1-85113-015-1	01	1	0502-0506		●	●
8	08.821 WRENCH; WHEEL 41X19 L=440	1-85113-015-1	01	1	0502-0506					●
8	08.821 WRENCH; WHEEL AUSTRALIA EQUIPMENT(RR3) G.V.W. 6.0-6.5TON(RPV) 41X19 L=440 B=41X21 L=440	1-85113-015-1	01	1	0507-	●	●	●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX) 41X19 L=440 B=41X21 L=440	1-85113-015-1	01	1	0507-	●
8	08.821 WRENCH; WHEEL G.V.W. 6.5-7.0TON(RPW),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) 41X19 L=440 B=41X21 L=440	1-85113-015-1	01	1	0507-		●
8	08.821 WRENCH; WHEEL G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 41X19 L=440 B=41X21 L=440	1-85113-015-1	01	1	0507-			●
8	08.821 WRENCH; WHEEL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) 41X19 L=440 B=41X21 L=440	1-85113-015-1	01	1	0507-					●
8	08.821 WRENCH; WHEEL 41X19 L=440 B=41X21 L=440	1-85113-015-1	01	1	0507-				●
8	08.821 WRENCH; WHEEL FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) 35X17 L=300	8-94341-283-1	01	1	0211-0501						●
8	08.821 WRENCH; WHEEL 35X17 L=300	8-94341-283-1	01	1	0502-						●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0211-0501	●	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0211-0501					●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0502-0506	●				●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0502-0506		●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=590	8-97332-988-0	01	1	0507-1001	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=590	8-97332-988-0	01	1	0507-1001					●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1407	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN 08.820 OD=25 L=480	1-85116-011-0	01	1	1002-1407					●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN EXC. FRAME STRAIGHT TYPE<7KJ> OD=25 L=480	8-98257-407-0	01	1	1408-	●	●	●
12	08.821 HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1408-					●	●
29	08.821 DRIVER; SCREW G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0211-0501	●	●	●	●	●
29	08.821 DRIVER; SCREW FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) <+>,<-> L=160	8-94242-798-1	01	1	0211-0501						●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160	8-94242-798-1	01	1	0502-0506	●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0502-0506		●	●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0502-0506					●	●
29	08.821 DRIVER; SCREW G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX) <+>,<-> L=160	8-94242-798-1	01	1	0507-	●
29	08.821 DRIVER; SCREW G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0507-		●
29	08.821 DRIVER; SCREW G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0507-			●
29	08.821 DRIVER; SCREW G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ) <+>,<-> L=160	8-94242-798-1	01	1	0507-					●
29	08.821 DRIVER; SCREW <+>,<-> L=160	8-94242-798-1	01	1	0507-				●		●
193	08.820 JACK ASM FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH),FRT&RR 215/75R17. 5 17.5X6.00-127 SILVER(CQU),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-1 0 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-2	01	1	0507-0508	●	●	●	●	●
193	08.820 JACK ASM FRT&RR 215/75R17.5 17.5X6.00-127 SILV ER(CQU),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),F&R TIRE 205/75 R17.5(MICHELIN)17.5X6.00-127(CSM), FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H) ,FRT&RR 7-16-12 16X5.5F-115(96H), FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-2	01	1	0509-0604	●	●	●	●	●
193	08.820 JACK ASM F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),F&R TIRE205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7R-16-10 16X5.5F-115(07H),F RT&RR 7-16-10 16X5.5F-115 T/VLV TR177 A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-2	01	1	0605-0701	●	●	●	●	●
193	08.820 JACK ASM F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),FRT&RR TIRE 195/85R16 16X5.5J-116.5 5-WHL/NUT(CSK),F&R TIRE205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),FRT&RR 7R-16-10 16X5 .5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-2	01	1	0702-0910	●	●	●	●	●
193	08.820 JACK ASM F&R 215/75R17.5(MICHELIN)17.5X6.00-12 7 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE215-75R17.5 DISC 17.5-6-127SILVER(CTV), F&R195/85R16(MICHELIN)16X5.5J-116.5 5-WHL/NUT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-1 15 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX 16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-2	01	1	0911-	●	●	●	●	●
193	08.820 JACK ASM FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6 -WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-1 27(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) ,FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6 -WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-1 6-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DY NAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-2	01	1	0507-0811	●	●	●		●
193	08.820 JACK ASM FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-12 6GSX16-12 7 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5-16-8 6GSX16-127(10H),FRT&RR 7.5- 16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G SX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-1 6-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NU T(9ZP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-2	01	1	0812-	●	●	●		●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00-127(CPH),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F -115 T/VLV TR177A(95H),FRT&RR 7-16-1216X5.5F-115(96H),FRT&RR 7-16-10L 5.5 FX16-115 T/VLV TR177A(98H) AUSTRALIA EQUIPMENT(RR3) 4TON	8-94438-019-2	01	1	0211-0501	●	●	●	●	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX1 6-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.0 0GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP),FRT& RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYN AMIC(95V),FRT&RR 7.5-16-10 6GSX16-1276-WHL/NUT DYNAMIC(97V) AUSTRALIA EQUIPMENT(RR3) 5TON	8-94438-021-2	01	1	0211-0501	●	●	●	●	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX1 6-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16 -127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-076-2	01	1	0211-0305	●	●	●	●	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX1 6-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16 -127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97371-124-0	01	1	0306-0501	●	●	●	●	●
193	08.820 JACK ASM FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX1 6-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16 -127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) 5TON	8-97371-124-0	01	1	0502-0506	●	●	●
193	08.820 JACK ASM FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) 5TON	8-97371-124-0	01	1	0502-0506					●
193	08.820 JACK ASM FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX1 6-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16 -127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97371-124-0	01	1	0507-0609	●	●	●
193	08.820 JACK ASM FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT (9BP) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97371-124-0	01	1	0507-0609					●
193	08.820 JACK ASM FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT (03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16 -127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX1 6-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H), FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NU T(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16 -127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97371-124-0	01	1	0610-0805	●	●
193	08.820 JACK ASM FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6 -WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-1 27(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) ,FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6 -WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97371-124-0	01	1	0610-0805			●
193	08.820 JACK ASM FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97371-124-0	01	1	0610-0805					●
193	08.820 JACK ASM FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6 -WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-1 27(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H) ,FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6 -WHL/NUT(9BP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7. 5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-98114-047-0	01	1	0806-0811	●	●	●		●
193	08.820 JACK ASM FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-12 6GSX16-12 7 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5-16-8 6GSX16-127(10H),FRT&RR 7.5- 16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G SX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 7.5-16 -10L 6GSX16-127 6WHL/NUT DYNAMIC(95V) ,FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-98114-047-0	01	1	0812-	●	●	●		●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00-127(CPH),FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J -112(CPU),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F- 115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-97131-075-2	01	1	0211-0305	●	●	●	●	●	●
193	08.820 JACK ASM FRT&RR TIRE 215-75R17.5 DISC 17.5-6J- 127WHITE(AUJ),FRT&RR TIRE 215-75R17.5DISC 17.5-6J-127(AUS),FRT&RR TIRE 215-75R17.5 DISC 17.5-6J-127WHITE(AVK), FRT&RR 205/85R16 16X5.5J-116.5(AXZ), FRT&RR TIRE 195-85R16 DISC 16-5.5J-116 .5(CPG),FRT&RR TIRE 205-75R17.5 DISC 17.5X6.00-127(CPH),FRT 7-16-12 16X5.5F-115 RR 185R14-8 14X5J-112(CPT),FRT 7-16-12 16X5.5F-115 RR 175R14-8 14X5J -112(CPU),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F- 115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-97371-123-0	01	1	0306-0501	●	●	●	●	●	●
193	08.820 JACK ASM FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) 4TON	8-97371-123-0	01	1	0502-0504	●	●	●
193	08.820 JACK ASM FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) 4TON	8-97371-123-0	01	1	0502-0504						●
193	08.820 JACK ASM FRT&RR 7R-16-10 16X5.5F-115(07H), FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),F RT&RR 7-16-10L 5.5FX16-115 T/VLV TR17 7A(98H) 4TON	8-98012-285-0	01	1	0505-0506	●	●	●
193	08.820 JACK ASM FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) 4TON	8-98012-285-0	01	1	0505-0506						●
193	08.820 JACK ASM FRT&RR TIRE 195-85R16 DISC 16-5.5J-11 6.5(CPG),FRT&RR TIRE 205-75R17.5 DISC17.5X6.00-127(CPH),FRT&RR 215/75R17. 5 17.5X6.00-127 SILVER(CQU),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-1 0 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-1 6-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-98012-285-0	01	1	0507-0508	●	●	●		●
193	08.820 JACK ASM FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU) 4TON	8-98012-285-0	01	1	0507-0508						●
193	08.820 JACK ASM FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU),F RT&RR TIRE 195/85R16 16X5.5J-116.5 5- WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 1 6X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-1 0L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-98012-285-0	01	1	0509-0604	●	●	●		●	●
193	08.820 JACK ASM FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 16X5.5J-11 6.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM), FRT&RR7R-16-10 16X5.5F-115(07H),FRT&RR 7-1 6-10 16X5.5F-115 T/VLV TR177A(95H), FRT&RR 7-16-12 16X5.5F-115(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-98012-285-0	01	1	0605-0701	●	●	●		●	●
193	08.820 JACK ASM FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 16X5.5J-11 6.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM), FRT&RRTIRE 215-75R17.5 DISC 17.5-6-127SILV ER(CTV),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-98012-285-0	01	1	0702-0910	●	●	●		●	●
193	08.820 JACK ASM FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F&R195 /85R16(MICHELIN)16X5.5J-116.5 5-WHL/N UT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) 4TON	8-98012-285-0	01	1	0911-	●	●	●		●	●
193	08.820 JACK ASM FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-077-2	01	1	0211-0501		●	●		●
193	08.820 JACK ASM FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) 5TON	8-97131-077-2	01	1	0502-0506		●	●		●
193	08.820 JACK ASM FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-97131-077-2	01	1	0507-0805		●	●		●
193	08.820 JACK ASM FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL /NUT(9ZM),FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT(9ZP) EXC. AUSTRALIA EQUIPMENT(RR3) 5TON	8-98114-045-0	01	1	0806-		●	●		●
195	08.820 BRACKET; JACK FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GS X16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25- 16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT D YNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94273-287-7	01	1	0806-0811	●	●	●		●
195	08.820 BRACKET; JACK FRT&RR 225/80R17.5 17.5X6.00-127(BXP) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-12 6GSX16-12 7 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5-16-8 6GSX16-127(10H),FRT&RR 7.5- 16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G SX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-1 6-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NU T(9ZP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) AUSTRALIA EQUIPMENT(RR3) (A)	8-94273-287-7	01	1	0812-	●	●	●		●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(RR3) (B)	8-97866-907-1	01	1	0507-	●	●	●		●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(RR3) (A)	8-97867-267-3	01	1	0507-	●	●	●		●
195	08.820 BRACKET; JACK (A)	8-94273-769-5	01	1	0507-				●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(RR3) (B)	8-97866-907-1	01	1	0211-0501	●	●	●		●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(RR3) (A)	8-97867-267-3	01	1	0211-0501	●	●	●		●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-3	01	1	0211-0501	●	●	●	●	●
195	08.820 BRACKET; JACK (A)	8-94262-068-3	01	1	0211-0501						●
195	08.820 BRACKET; JACK (A)	8-94262-068-3	01	1	0502-0506	●	●	●		●	●
195	08.820 BRACKET; JACK EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-3	01	1	0507-0805	●	●	●		●
195	08.820 BRACKET; JACK (A)	8-94262-068-3	01	1	0507-0805						●
195	08.820 BRACKET; JACK FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 16X5.5J-11 6.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM), FRT&RRTIRE 215-75R17.5 DISC 17.5-6-127SILV ER(CTV),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-3	01	1	0806-0910	●	●	●		●	●
195	08.820 BRACKET; JACK FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F&R195 /85R16(MICHELIN)16X5.5J-116.5 5-WHL/N UT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94262-068-3	01	1	0911-	●	●	●		●	●
195	08.820 BRACKET; JACK AUSTRALIA EQUIPMENT(RR3) (A)	8-94273-769-5	01	1	0211-0501				●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	0507-0805	●	●	●		●
199	08.820 BOLT; JACK M8X30 WING	8-94279-018-1	01	1	0507-0805				●
199	08.820 BOLT; JACK FRT&RR 225/80R17.5 17.5X6.00-127(BXP) ,FRT&RR 225/70R19.5 19.5X6.00-127(CRR),FRT&RR 7.5-16-12 6GSX16-127 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-16-12 6GSX16-127 6-WHL/NUT(05C),FRT&RR 7.5-16-8 6GSX16-127(10H),FRT&RR 7.5-16-10 6GS X16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6GSX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-127 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-16-12 16X6.00GS-135 6-WHL/NUT(9ZM),FRT&RR 8.25- 16-14 16X6.00GS-135 6-WHL/NUT(9ZP), FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT D YNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	0806-0811	●	●	●	●	●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	0806-0811	●	●	●		●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	0812-	●	●	●	●	●
199	08.820 BOLT; JACK FRT&RR 225/80R17.5 17.5X6.00-127(BXP) FRT&RR 225/70R19.5 19.5X6.00-127(CRR) ,FRT&RR 7.5R-16-14 DISC 6.00GSX16-127(CTF),FRT&RR 7.5R-16-10 DISC 6.00GSX16-127(CUV),FRT&RR 7.5-16-12 6GSX16-12 7 6-WHL/NUT(03C),FRT&RR 7.5-16-12L 6GSX16-127 6-WHL/NUT(04C),FRT&RR 7.5R-1 6-12 6GSX16-127 6-WHL/NUT(05C), FRT&RR7.5-16-8 6GSX16-127(10H),FRT&RR 7.5- 16-10 6GSX16-127(11H),FRT&RR 7.5-16-12 6GSX16-127(12H),FRT&RR 7.5-16-8L 6G SX16-127(14H),FRT&RR 7.5R-16-12 6GSX16-127(19H),FRT&RR 7.5R-16-10 6GSX16-1 27 6-WHL/NUT(83V),FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT(9BP),FRT&RR 8.25-1 6-12 16X6.00GS-135 6-WHL/NUT(9ZM), FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NU T(9ZP),FRT&RR 7.5-16-10L 6GSX16-127 6WHL/NUT DYNAMIC(95V),FRT&RR 7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC(97V) EXC. AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	0812-	●	●	●		●
199	08.820 BOLT; JACK AUSTRALIA EQUIPMENT(RR3) M8X30 WING	8-94279-018-1	01	1	0211-0501	●	●	●	●	●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	0211-0501	●	●	●	●	●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0211-0501						●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0502-0506	●	●	●		●	●
199	08.820 BOLT; JACK EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	0507-0805	●	●	●		●
199	08.820 BOLT; JACK M8X50 WING	8-94279-136-0	01	1	0507-0805						●
199	08.820 BOLT; JACK FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),FRT&RR TIRE 195/85R16 16X5.5J-11 6.5 5-WHL/NUT(CSK),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM), FRT&RRTIRE 215-75R17.5 DISC 17.5-6-127SILV ER(CTV),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	0806-0910	●	●	●		●	●
199	08.820 BOLT; JACK FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU),F&R 215/75R17.5(MICHELIN)17.5X6.00-127 SILVER(CRV),F&R TIRE 205/75R17.5(MICHELIN)17.5X6.00-127(CSM),FRT&RR TIRE 215-75R17.5 DISC 17.5-6-127SILVER(CTV),F&R195 /85R16(MICHELIN)16X5.5J-116.5 5-WHL/N UT(CVS),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7-16-10 16X5.5F-115 T/VLVTR177A(95H),FRT&RR 7-16-12 16X5.5F-11 5(96H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) EXC. AUSTRALIA EQUIPMENT(RR3) M8X50 WING	8-94279-136-0	01	1	0911-	●	●	●		●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0211-0501	●	●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0502-0506	●	●	●		●	●
206	08.820 SCREW; OIL JACK BRKT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0507-0612	●	●	●	●	●	●
206	08.820 SCREW; OIL JACK BRKT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●	●	●	●
207	08.820 PROTECTOR; JACK AUSTRALIA EQUIPMENT(RR3)	8-97866-908-2	01	1	0211-0501	●	●	●		●
207	08.820 PROTECTOR; JACK AUSTRALIA EQUIPMENT(RR3)	8-97866-908-2	01	1	0502-	●	●	●		●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0211-0501	●	●	●	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0502-0506		●	●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	1-85515-005-1	01	1	0507-1108	●	●	●
208	08.820 HANDLE; JACK (B) L=580	1-85515-005-1	01	1	0507-1108				●
208	08.820 HANDLE; JACK FRAME STRAIGHT TYPE<7KJ> (B) L=580	8-98181-249-0	01	1	1109-	●	●	●
208	08.820 HANDLE; JACK (B) L=580	8-98181-249-0	01	1	1109-				●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0211-0501	●	●	●	●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0211-0501					●	●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0502-0506	●				●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0502-0506		●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-97217-800-0	01	1	0507-1108	●	●	●
208	08.820 HANDLE; JACK (A) L=642	8-97217-800-0	01	1	0507-1108					●	●
208	08.820 HANDLE; JACK EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=642	8-98181-477-0	01	1	1109-	●	●	●
208	08.820 HANDLE; JACK (A) L=642	8-98181-477-0	01	1	1109-					●	●
237	08.821 BAG; TOOL G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0211-0501	●	●	●	●	●
237	08.821 BAG; TOOL FRT 7-16-12 16X5.5F-115 RR 185R14-8 1 4X5J-112(CPT),FRT 7-16-12 16X5.5F-115RR 175R14-8 14X5J-112(CPU)	8-97130-903-0	01	1	0211-0501						●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97130-903-0	01	1	0502-0506	●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-0	01	1	0502-0506		●	●
237	08.821 BAG; TOOL	8-97130-903-0	01	1	0502-0506					●	●
237	08.821 BAG; TOOL G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX)	8-97130-903-1	01	1	0507-	●
237	08.821 BAG; TOOL G.V.W. 4.0-4.5TON(RPR),G.V.W. 6.0-6.5TON(RPV),G.V.W. 6.5-7.0TON(RPW), G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-1	01	1	0507-		●
237	08.821 BAG; TOOL G.V.W. 6.0-6.5TON(RPV),G.V.W. 7.0-7.5TON(RPX),G.V.W. 7.5-8.0TON(RPY), G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-1	01	1	0507-			●
237	08.821 BAG; TOOL G.V.W. 7.5-8.0TON(RPY),G.V.W. 8.0-8.5TON(RPZ)	8-97130-903-1	01	1	0507-					●
237	08.821 BAG; TOOL	8-97130-903-1	01	1	0507-				●		●
238	08.820 SUPPORT; TOOL BAG	8-97994-977-0	01	1	0211-	●	●	●		●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0211-0501	●	●	●	●	●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0502-0506	●	●	●		●	●
239	08.820 BAND; TOOL BAG L=100	5-73997-026-1	01	1	0507-	●	●	●	●	●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.320 M6X20 W/LK&PL WASHER	8-94279-403-0	01	1	0211-0612	●	●	●		●	●
241	08.820 SCREW; TOOL BAG SUPPORT 16.570 M6X16	0-38050-616-0	01	1	0701-	●	●	●		●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0211-0501	●	●	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0502-0506	●	●	●		●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0507-0805	●	●	●	●	●	●
302	08.820 NUT; JACK BRKT	8-94279-522-0	01	1	0806-	●	●	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0211-0501	●	●	●	●	●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0502-0506	●	●	●		●	●
319	08.821 CLIP; TOOL BAR	8-97853-077-2	02	1	0507-	●	●	●	●	●	●

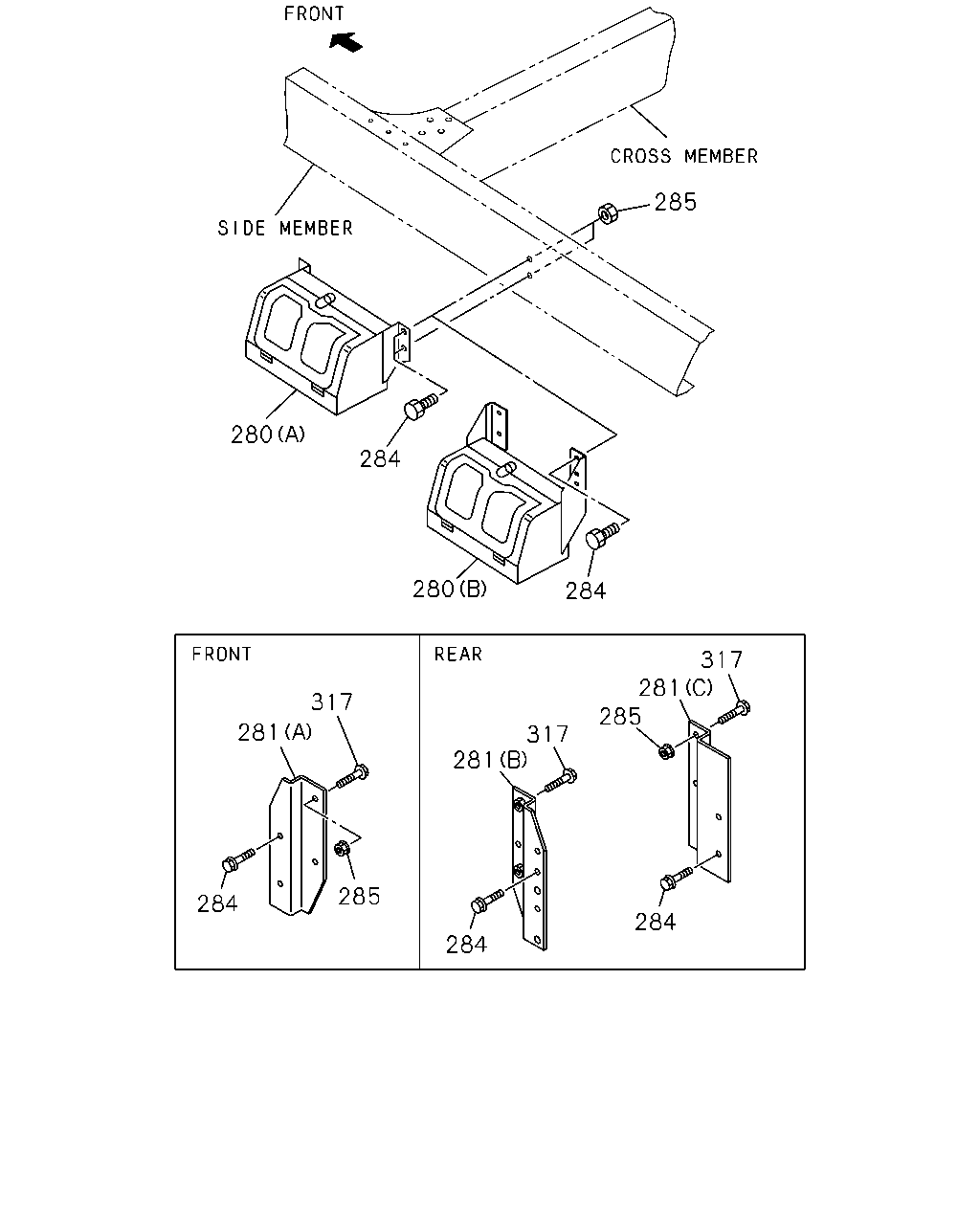

285 280 284 280 284 317 281 285 317 281 317 281 285 284 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> (B)	8-94123-034-1	01	1	0211-0501	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D) (B)	8-94123-034-1	01	1	0502-0506	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> EXC. DUMP CHASSIS(V4D),FRAME STRAIGHTTYPE<7KJ> (B)	8-94123-034-1	01	1	0507-	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-97222-496-0	01	1	0211-0501	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0211-0501		●	●	●	●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0502-0506		●	●		●	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-97222-496-0	01	1	0507-	●
280	08.821 BOX; TOOL TOOL & STORAGE BOX<VK2> (A)	8-97222-496-0	01	1	0507-		●	●		●	●
281	08.821 BRACKET; TOOL BOX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97254-546-0	01	1	0507-			●		●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (C)	8-97254-546-0	01	1	0211-0308			●		●
281	08.821 BRACKET; TOOL BOX 4HE1 ENG(RLY) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97254-546-0	01	1	0309-0501			●		●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (B)	8-97095-539-0	01	1	0211-0501				●
281	08.821 BRACKET; TOOL BOX TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> (A)	8-97209-719-0	01	1	0211-0501				●
284	08.821 BOLT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	03	1	0507-0512	●
284	08.821 BOLT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	03	1	0601-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501	●	●	●	●	●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0502-0506	●	●	●		●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0507-0512		●	●		●	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
284	08.821 BOLT; TOOL BOX TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	0601-		●	●		●	●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602	●
285	08.821 NUT; TOOL BOX 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-	●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501	●	●	●		●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501		●	●		●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501				●
285	08.821 NUT; TOOL BOX TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0211-0501						●
285	08.821 NUT; TOOL BOX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602	●	●	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602		●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602			●		●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602					●
285	08.821 NUT; TOOL BOX 07.633 M8 FLANGE	0-91150-108-0	04	1	0502-0602						●
285	08.821 NUT; TOOL BOX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0801	●	●	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0801		●
285	08.821 NUT; TOOL BOX 4HG1 ENG(RJH) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0801			●		●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0801					●
285	08.821 NUT; TOOL BOX 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-0801						●
285	08.821 NUT; TOOL BOX 4HF1-N ENG(RJZ),4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-	●	●	●
285	08.821 NUT; TOOL BOX 4HK1-TCN ENG(RDQ) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-	●
285	08.821 NUT; TOOL BOX 4HG1-T ENG(RDP),4HK1-TCN ENG(RDQ), 4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-		●
285	08.821 NUT; TOOL BOX 4HK1-TCN ENG(RDQ),4HG1 ENG(RJH), 4HK1-TCS ENG(RJS) TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-			●		●
285	08.821 NUT; TOOL BOX 4HF1-S ENG(RLS) TOOL & STORAGE BOX<VK2> 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-					●
285	08.821 NUT; TOOL BOX 01.062 M8 FLANGE	0-91180-108-0	04	1	0802-						●
317	08.821 BOLT; BRKT TO FRAME TOOL & STORAGE BOX<VK2> FRAME STRAIGHT TYPE<7KJ> 02.559 M8X25 FLANGE	0-28680-825-0	04	1	0211-0501				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
