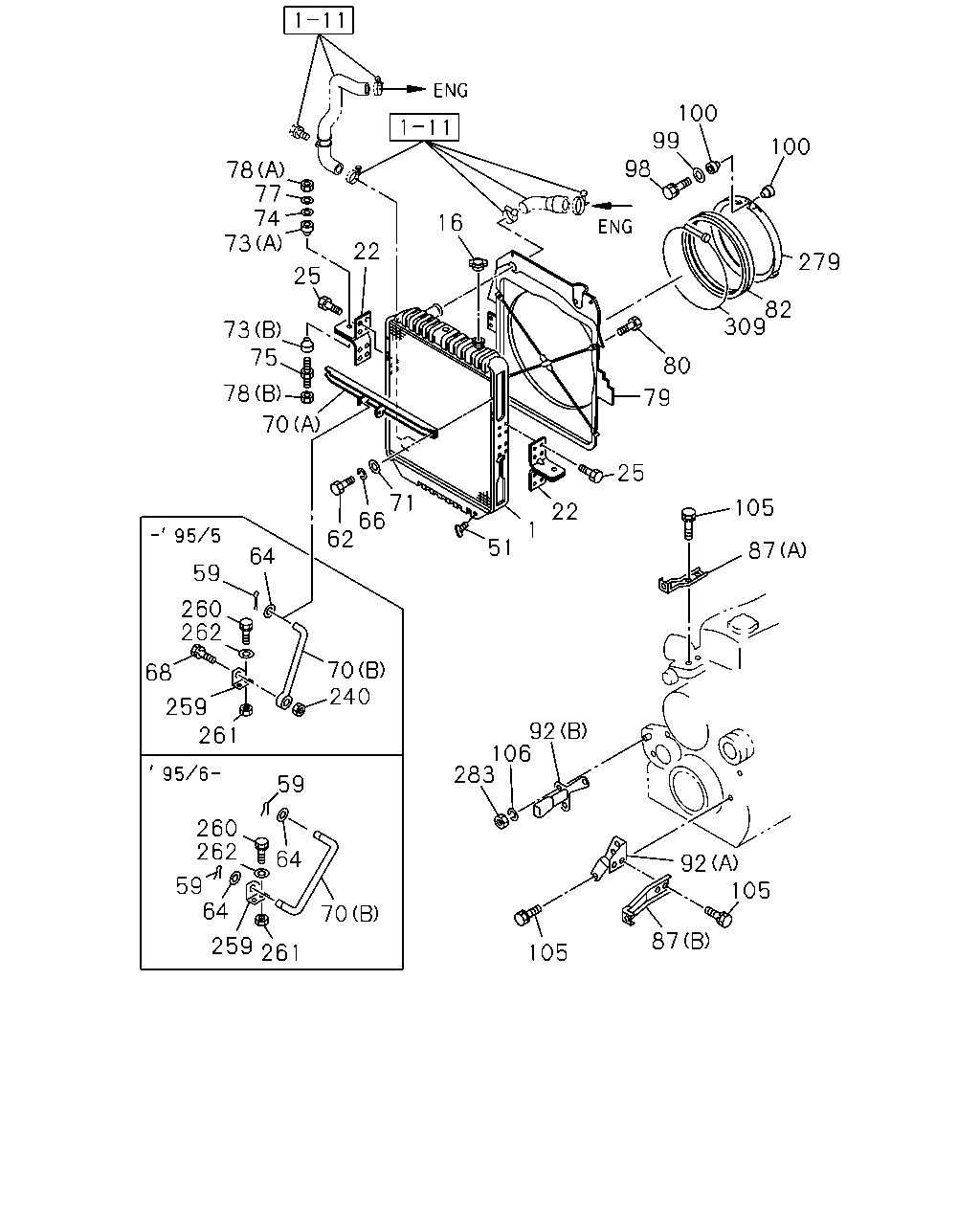

1-10 — RADIATOR (#1876) — 98 parça

100 99 98 100 78 77 74 73 16 25 22 279 82 309 73 75 80 78 79 70 25 71 66 62 105 22 1 51 87 64 59 260 262 70 240 68 259 261 92 106 283 59 260 262 64 92 105 59 64 70 87 259 261 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	RADIATOR ASM FTS ALL(FTS***) FIRE TRUCK(RA9)	1-21410-470-4	01	1	9207-
1	RADIATOR ASM FSS ALL(FSS***) RADIATOR HEAVY DUTY(V05)	1-21410-478-4	01	1	9207-
1	RADIATOR ASM FSS ALL(FSS***) EXC. RADIATOR HEAVY DUTY(V05)	1-21410-477-4	01	1	9207-
1	RADIATOR ASM FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05)	1-21410-558-3	01	1	9207-
1	RADIATOR ASM FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) EXC. FIRE TRUCK(RA9)	1-21410-592-3	01	1	9207-
16	CAP; RAD	1-21450-053-1	01	1	9207-
22	BRACKET; RAD MTG FIRE TRUCK(RA9)	1-21464-228-0	01	1	9207-
22	BRACKET; RAD MTG FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) EXC. FIRE TRUCK(RA9)	1-21464-228-0	01	1	9207-
22	BRACKET; RAD MTG FTS ALL(FTS***) FIRE TRUCK(RA9)	1-21464-229-0	01	1	9207-
22	BRACKET; RAD MTG FSS ALL(FSS***) RADIATOR HEAVY DUTY(V05)	1-21464-139-1	01	1	9207-
22	BRACKET; RAD MTG FSS ALL(FSS***) RADIATOR HEAVY DUTY(V05)	1-21464-138-1	01	1	9207-
22	BRACKET; RAD MTG FSS ALL(FSS***) EXC. RADIATOR HEAVY DUTY(V05)	1-21464-131-1	01	1	9207-
22	BRACKET; RAD MTG FSS ALL(FSS***) EXC. RADIATOR HEAVY DUTY(V05)	1-21464-130-1	01	1	9207-
22	BRACKET; RAD MTG FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05)	1-21464-205-0	01	1	9207-
22	BRACKET; RAD MTG FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05)	1-21464-206-0	01	1	9207-
22	BRACKET; RAD MTG FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) EXC. FIRE TRUCK(RA9)	1-21464-230-0	01	1	9207-
25	BOLT; BRKT FSS ALL(FSS***) M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9207-
25	BOLT; BRKT FIRE TRUCK(RA9) M8X16 W/LK&PL WASHER	9-01960-816-0	16	1	9207-
25	BOLT; BRKT FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) M8X16 W/LK&PL WASHER	9-01960-816-0	14	1	9207-
25	BOLT; BRKT FTS ALL(FTS***) EXC. FIRE TRUCK(RA9),RADIATOR HEAVY DUTY(V05) M8X20 W/LK&PL WASHER	9-01960-820-0	02	1	9207-
25	BOLT; BRKT FTS ALL(FTS***) RADIATOR HEAVY DUTY(V05) EXC. FIRE TRUCK(RA9) M8X20	9-09160-820-0	02	1	9207-
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	9207-
59	PIN; SNAP,STAY	1-09987-158-1	01	1	9207-9505
59	PIN; SNAP,STAY	1-09987-158-1	02	1	9506-
62	BOLT; STAY M10X16	9-02041-016-0	02	1	9207-
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	01	1	9207-9505
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	9506-
66	WASHER; LK,STAY ID=10.2	9-09150-510-0	02	1	9207-
68	BOLT; STAY TO BRKT M8X45 FLANGE	0-28080-845-0	01	1	9207-9506
70	STAY; RAD (B)	1-21522-053-0	01	1	9207-9505
70	STAY; RAD (B)	1-21522-069-0	01	1	9506-
70	STAY; RAD FTS ALL(FTS***) FIRE TRUCK(RA9) (A)	1-21522-044-0	01	1	9207-
70	STAY; RAD FSS ALL(FSS***) (A)	1-21522-040-1	01	1	9207-
70	STAY; RAD FTS ALL(FTS***) EXC. FIRE TRUCK(RA9) (A)	1-21522-040-1	01	1	9207-
71	WASHER; PL,STAY ID=10.5 OD=22	9-09160-610-0	02	1	9207-
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	9207-
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	9207-
74	WASHER; PL,CUSHION RUBBER ID=8.4 OD=22	1-09503-154-1	02	1	9207-
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-2	02	1	9207-
77	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	02	1	9207-
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	9207-
78	NUT; CUSHION RUBBER (B) M12	9-99110-512-0	02	1	9207-
79	GUIDE; FAN,RAD	1-21551-269-3	01	1	9207-
80	BOLT; FAN GUIDE M6X14	8-94114-024-0	04	1	9207-
82	COVER; FAN,RAD	1-21559-157-0	01	1	9207-
87	STAY; FAN GUIDE (A)	1-21559-173-1	01	1	9207-
87	STAY; FAN GUIDE (B)	1-21559-175-1	01	1	9207-
92	BRACKET; FAN GUIDE (A)	1-21559-162-3	01	1	9207-
92	BRACKET; FAN GUIDE (B)	1-21559-176-1	01	1	9207-
98	BOLT; RAD FAN GUIDE M8X35 FLANGE	0-28080-835-0	03	1	9207-
99	WASHER; PL ID=8.4 OD=18	9-09164-608-0	03	1	9207-
100	RUBBER; MTG	1-09337-006-0	06	1	9207-9307
100	RUBBER; MTG	1-09337-027-0	06	1	9308-
105	BOLT; BRKT M10X20 W/LK WASHER	0-50041-020-0	04	1	9207-
106	WASHER; LK,BRKT ID=8.2	9-09150-508-0	01	1	9207-
240	NUT; STAY M8	9-09110-408-0	01	1	9207-9506
259	BRACKET; RAD STAY FSS ALL(FSS***)	1-21523-019-0	01	1	9207-9505
259	BRACKET; RAD STAY FSS ALL(FSS***)	1-21523-024-0	01	1	9506-
259	BRACKET; RAD STAY FTS ALL(FTS***)	1-21523-007-0	01	1	9207-9505
259	BRACKET; RAD STAY FTS ALL(FTS***)	1-21523-025-0	01	1	9506-
260	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9207-
261	NUT; BRKT M8	9-09110-408-0	02	1	9207-
262	WASHER; PL,BRKT,STAY FSS ALL(FSS***) ID=8.4 OD=18	9-09160-608-0	01	1	9207-
279	BELL MOUTH	1-21551-333-0	01	1	9207-
283	NUT; BRKT M8	9-09110-408-0	01	1	9207-
309	WIRE; FAN COVER	1-09704-088-0	01	1	9207-

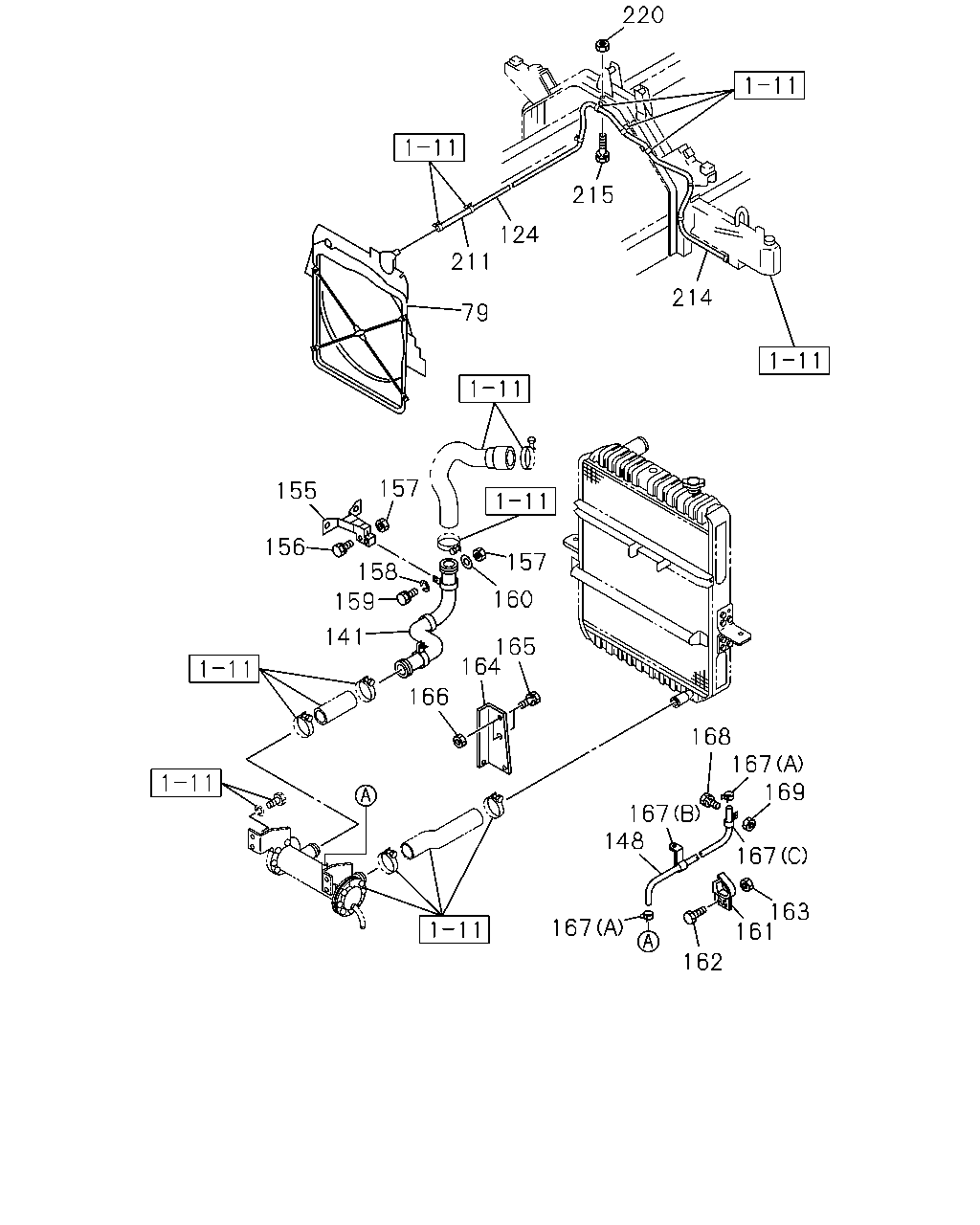

220 215 124 211 214 79 157 155 156 157 158 160 159 141 165 164 166 168 167 169 167 148 167 163 161 167 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
79	GUIDE; FAN,RAD	1-21551-269-3	01	1	9207-
124	PIPE; WATER,TANK TO RAD	1-13721-310-2	01	1	9207-
141	PIPE; RAD,INL FTS ALL(FTS***) FIRE TRUCK(RA9)	1-21431-418-1	01	1	9207-
148	HOSE; WATER,BYPASS,SUB RAD FTS ALL(FTS***) FIRE TRUCK(RA9) L=1050 SERVICED BY L=3000	0-03257-300-0	01	1	9207-
155	BRACKET; RAD PIPE FTS ALL(FTS***) FIRE TRUCK(RA9)	1-21439-066-0	01	1	9207-
156	BOLT; BRKT TO RAD PIPE FTS ALL(FTS***) FIRE TRUCK(RA9) M14X30	0-20801-430-0	01	1	9207-
156	BOLT; BRKT TO RAD PIPE FTS ALL(FTS***) FIRE TRUCK(RA9) M10X25 W/LK WASHER	0-50041-025-0	02	1	9207-
157	NUT; BRKT TO PIPE FTS ALL(FTS***) FIRE TRUCK(RA9) M8	9-09110-408-0	04	1	9207-
157	NUT; BRKT TO PIPE FTS ALL(FTS***) FIRE TRUCK(RA9) M14	9-99110-414-0	01	1	9207-
157	NUT; BRKT TO PIPE FTS ALL(FTS***) FIRE TRUCK(RA9) M10	9-09110-510-0	02	1	9207-
158	WASHER; LK,CLIP BRKT FTS ALL(FTS***) FIRE TRUCK(RA9) ID=14.2	9-09150-514-0	01	1	9207-
159	BOLT; BRKT TO PIPE FTS ALL(FTS***) FIRE TRUCK(RA9) M8X45 FLANGE	0-28080-845-0	04	1	9207-
160	WASHER; PL,BRKT TO PIPE FTS ALL(FTS***) FIRE TRUCK(RA9) ID=8.4 OD=18	9-09160-608-0	02	1	9207-
161	CLIP; CABLE FTS ALL(FTS***) FIRE TRUCK(RA9)	1-09700-780-1	01	1	9207-
162	BOLT; CABLE CLIP FTS ALL(FTS***) FIRE TRUCK(RA9) M8X25 FLANGE	0-28080-825-0	02	1	9207-
163	NUT; CABLE CLIP FTS ALL(FTS***) FIRE TRUCK(RA9) M8	9-09110-408-0	02	1	9207-
164	BRACKET; RAD PIPE TO C/MBR FTS ALL(FTS***) FIRE TRUCK(RA9)	1-21439-068-0	01	1	9207-
165	BOLT; BRKT TO C/MBR FTS ALL(FTS***) FIRE TRUCK(RA9) M8X20 FLANGE	0-28080-820-0	02	1	9207-
166	NUT; BRKT TO C/MBR FTS ALL(FTS***) FIRE TRUCK(RA9) M8	9-09110-408-0	02	1	9207-
167	CLIP; BYPASS HOSE FTS ALL(FTS***) FIRE TRUCK(RA9) (B) L=240	1-09707-117-0	01	1	9207-
167	CLIP; BYPASS HOSE FTS ALL(FTS***) FIRE TRUCK(RA9) (A) ID=12	8-94238-610-0	02	1	9207-
167	CLIP; BYPASS HOSE FTS ALL(FTS***) FIRE TRUCK(RA9) HEATER & DEFROSTER<C41> (C) ID=13 L=20	9-09525-235-0	02	1	9207-
167	CLIP; BYPASS HOSE FTS ALL(FTS***) FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41> (B) ID=13 H=75 L=25	1-09700-601-0	01	1	9207-
167	CLIP; BYPASS HOSE FTS ALL(FTS***) FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41> (C) ID=13 L=20	9-09525-235-0	01	1	9207-
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK(RA9) M8X20 FLANGE	0-28080-820-0	01	1	9207-
168	BOLT; CLIP,BYPASS HOSE FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41> M8X20 FLANGE	0-28080-820-0	01	1	9207-
169	NUT; CLIP,BYPASS HOSE FIRE TRUCK(RA9) M8	9-09110-408-0	01	1	9207-
169	NUT; CLIP,BYPASS HOSE FIRE TRUCK(RA9) EXC. HEATER & DEFROSTER<C41> M8	9-09110-408-0	01	1	9207-
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03257-300-0	01	1	9207-
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	9207-
215	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9207-
220	NUT; CLIP M8	9-09110-408-0	03	1	9207-
