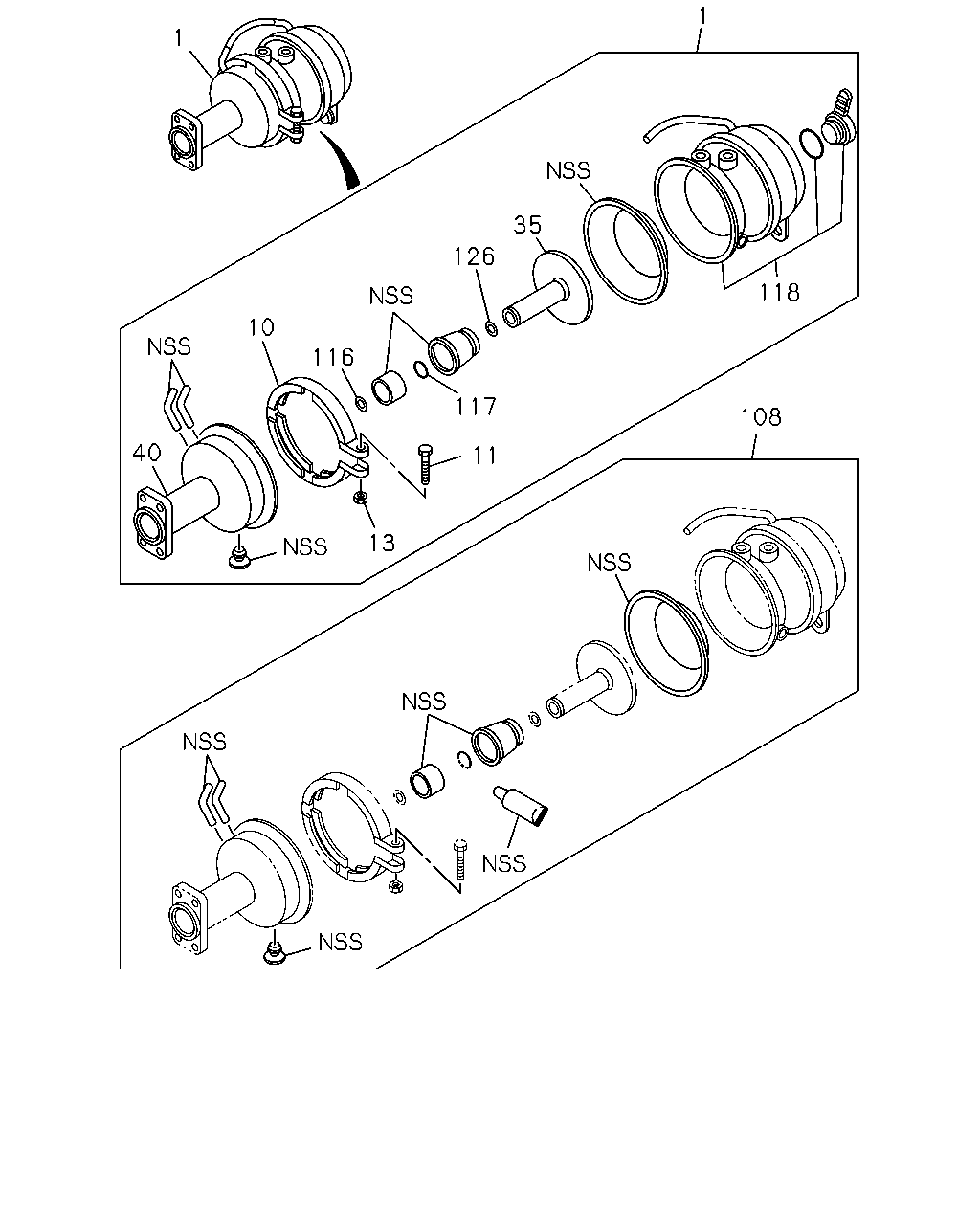

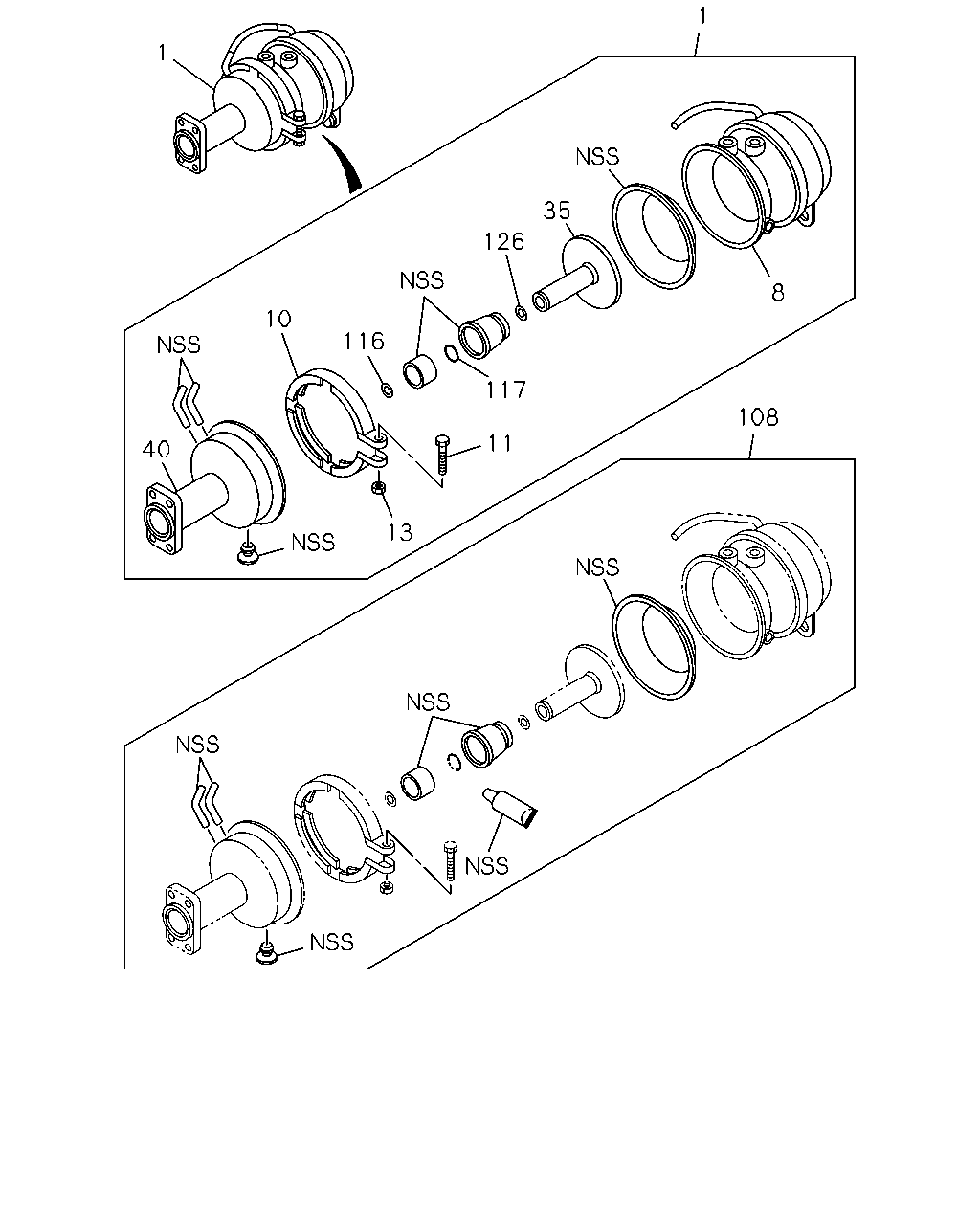

3-41 — REAR BRAKE POWER CHAMBER (#18751) — 138 parça

1 1 35 126 8 10 116 117 108 11 40 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-698-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-698-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-699-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-699-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1109-	●	●
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-2	01	1	1004-1005	●
8	SHELL; CYL,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-095-2	01	1	1004-1005	●
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-2	01	1	1004-1005	●
8	SHELL; CYL,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-097-2	01	1	1004-1005	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1004-1108	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1004-1108	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1109-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1109-	●	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1004-1108	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1004-1108	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1109-	●	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1109-	●	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1004-1108	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1004-1108	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1109-	●	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1109-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1004-1108	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1004-1108	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1109-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1109-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1004-1108	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1004-1108	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1109-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1109-	●	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1004-1108	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1004-1108	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1109-	●	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1109-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1004-1108	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1004-1108	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1109-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1109-	●	●
126	SHIM	8-98146-965-0	AR	1	1004-1108	●
126	SHIM	8-98146-965-0	AR	1	1004-1108	●
126	SHIM	8-98146-965-0	AR	1	1109-	●	●
126	SHIM	8-98146-965-0	AR	1	1109-	●	●

1 1 35 126 118 10 116 117 108 40 11 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-698-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-698-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-699-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-699-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1109-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1004-1108	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1004-1108	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1109-	●	●
10	RING; CLAMP,SPR CHAMBER	1-48269-256-0	02	1	1109-	●	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1004-1108	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1004-1108	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1109-	●	●
11	BOLT; CLAMP RING	1-48269-257-0	02	1	1109-	●	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1004-1108	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1004-1108	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1109-	●	●
13	NUT; CLAMP RING	1-48269-147-0	02	1	1109-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1004-1108	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1004-1108	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1109-	●	●
35	PLATE; ROD END,SPR CHAMBER	8-98146-974-0	02	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD RH,REARWARD LH	1-48251-140-1	01	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1004-1108	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1109-	●	●
40	COVER ASM; LWR,SPR CHAMBER FORWARD LH,REARWARD RH	1-48251-141-1	01	1	1109-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1004-1108	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1004-1108	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1109-	●	●
108	REPAIR KIT; SPR CHAMBER	8-98146-982-0	02	1	1109-	●	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1004-1108	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1004-1108	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1109-	●	●
116	GUIDE; SPR CHAMBER	8-98146-963-0	02	1	1109-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1004-1108	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1004-1108	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1109-	●	●
117	RING; SPR CHAMBER	8-98146-966-0	02	1	1109-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1006-1108	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1006-1108	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1109-	●	●
118	CHAMBER; PIGGY BACK FORWARD RH,REARWARD LH	1-87412-113-0	01	1	1109-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1006-1108	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1006-1108	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1109-	●	●
118	CHAMBER; PIGGY BACK FORWARD LH,REARWARD RH	1-87412-114-0	01	1	1109-	●	●
126	SHIM	8-98146-965-0	AR	1	1004-1108	●
126	SHIM	8-98146-965-0	AR	1	1004-1108	●
126	SHIM	8-98146-965-0	AR	1	1109-	●	●
126	SHIM	8-98146-965-0	AR	1	1109-	●	●

1 32 32 1 1 32 32 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-698-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	8-98145-698-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD RH,REARWARD LH	1-87412-097-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-699-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	8-98145-699-0	01	1	1004-1005	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1006-1108	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1109-	●	●
1	CHAMBER ASM; SPRING FORWARD LH,REARWARD RH	1-87412-098-0	01	1	1109-	●	●

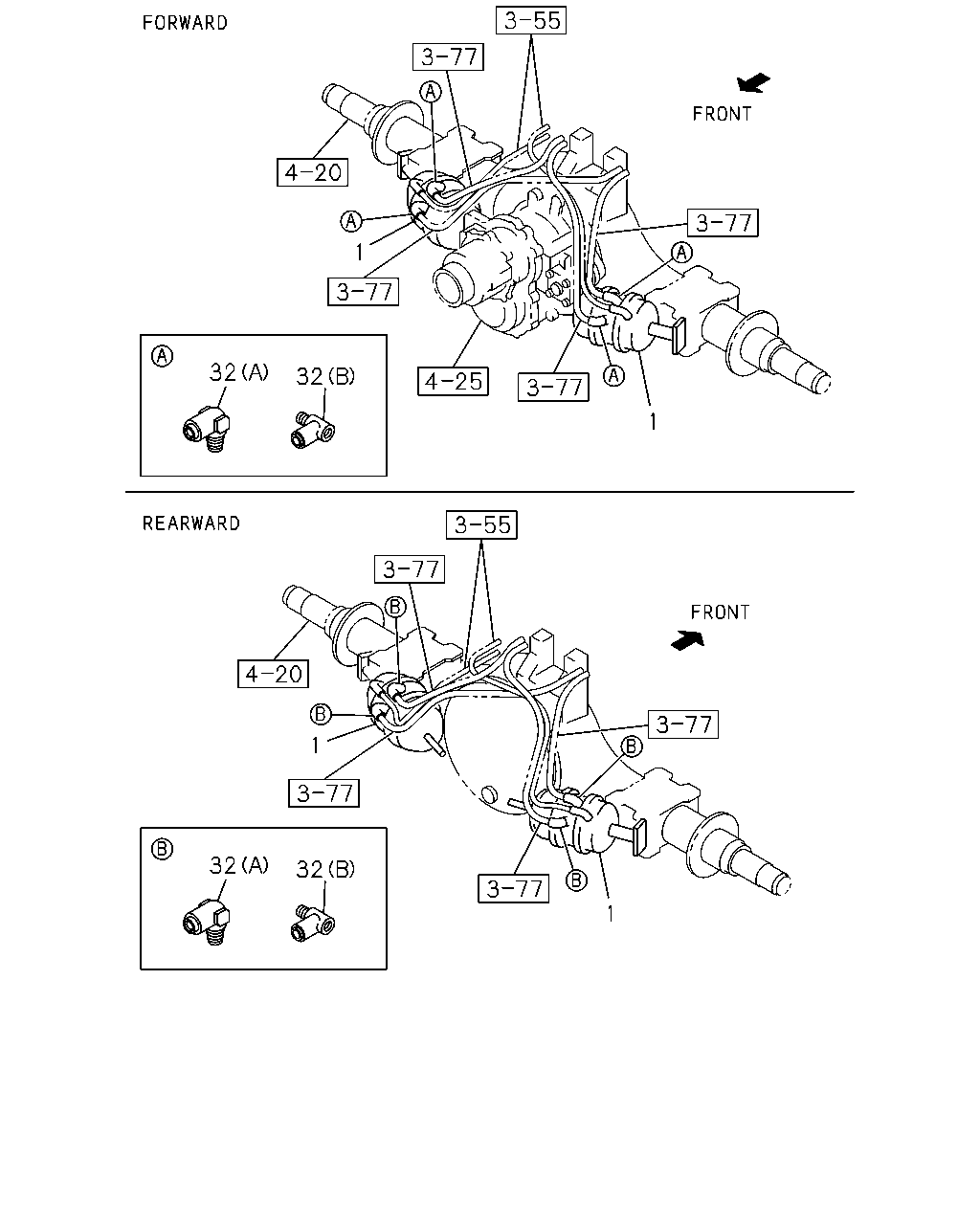

32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1109-		●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	02	1	1109-		●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1004-1108	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1004-1108	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1109-	●	●
32	CONNECTOR; SPR CHAMBER (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1109-	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1004-1108	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1004-1108	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1109-	●	●
32	CONNECTOR; SPR CHAMBER (B) DIN12 & RC1/4 & R3/8 3WAY	1-09661-132-0	01	1	1109-	●
