◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-40 - FRONT BRAKE POWER CHAMBER ▶
3-40 — FRONT BRAKE POWER CHAMBER (#18750) — 23 parça

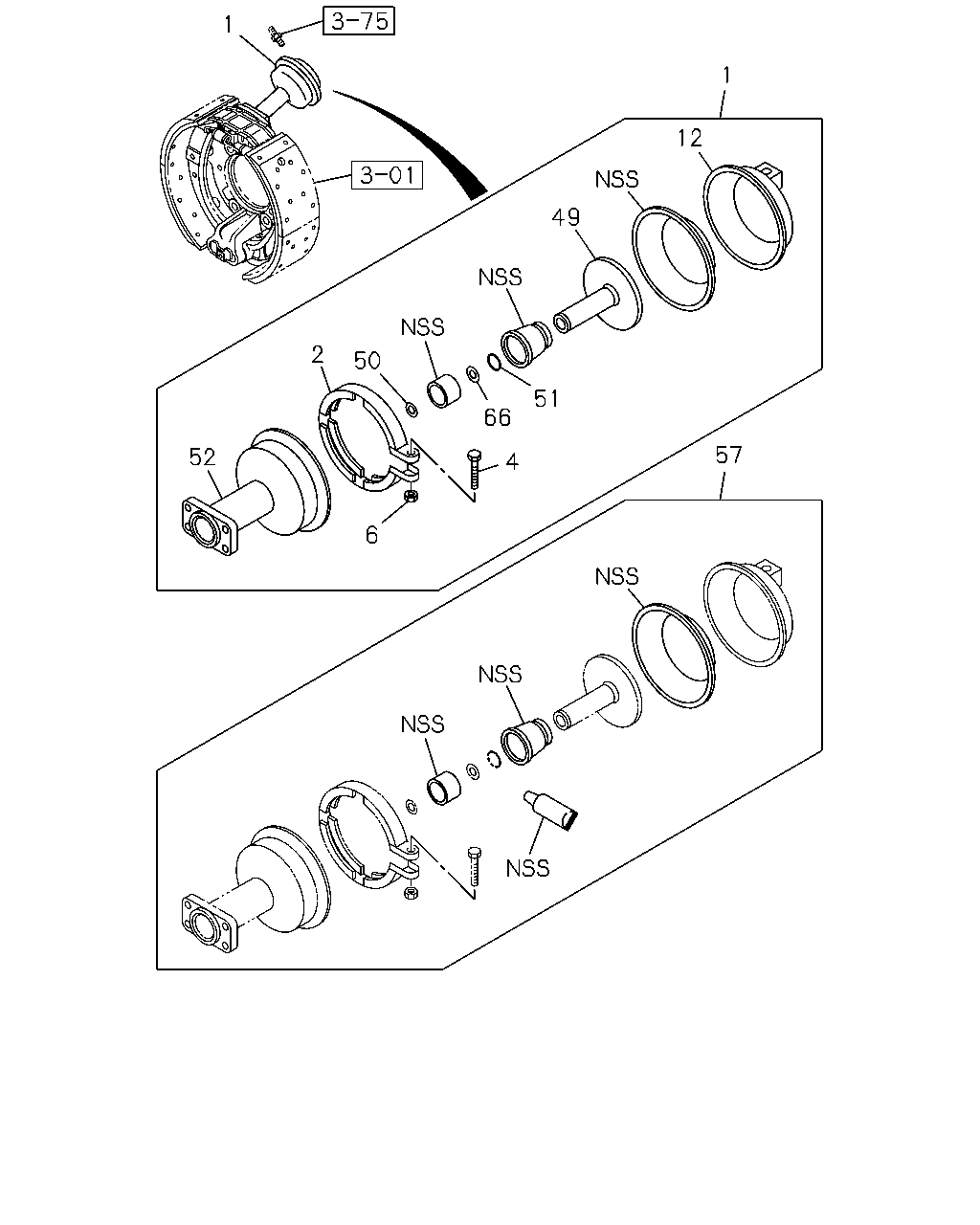

çizim 129290
1 1 12 49 2 50 51 66 57 52 4 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; POWER,FRT BRK 8-98145-680-0 02 1 1004-1108 ●
1 CHAMBER ASM; POWER,FRT BRK 8-98145-680-1 02 1 1109- ● ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1004-1108 ●
2 RING; CLAMP,SPR CHAMBER 1-48269-256-0 02 1 1109- ● ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1004-1108 ●
4 BOLT; CLAMP RING 1-48269-257-0 02 1 1109- ● ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 1004-1108 ●
6 NUT; CLAMP RING 1-48269-147-0 02 1 1109- ● ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 1004-1108 ●
12 COVER ASM; LWR,SPR CHAMBER 1-48251-103-0 02 1 1109- ● ●
49 ROD; PUSH,SPR CHAMBER 8-98146-969-0 02 1 1004-1108 ●
49 ROD; PUSH,SPR CHAMBER 8-98146-969-1 02 1 1109- ● ●
50 GUIDE; SPR CHAMBER 8-98146-963-0 02 1 1004-1108 ●
50 GUIDE; SPR CHAMBER 8-98146-963-1 02 1 1109- ● ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1004-1108 ●
51 RING; SPR CHAMBER 8-98146-966-0 02 1 1109- ● ●
52 HOUSING; SPR CHAMBER 1-48251-195-1 02 1 1004-1108 ●
52 HOUSING; SPR CHAMBER 1-48251-195-1 02 1 1109-1403 ● ●
52 HOUSING; SPR CHAMBER 8-98248-793-0 02 1 1404- ● ●
57 REPAIR KIT; SPR CHAMBER 8-98146-978-0 02 1 1004-1108 ●
57 REPAIR KIT; SPR CHAMBER 8-98146-978-0 02 1 1109- ● ●
66 SHIM 8-98146-965-0 AR 1 1004-1108 ●
66 SHIM 8-98146-965-0 AR 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
