Isuzu WW
▶
TRUCKS
▶
FSS
▶
10635 - FSS/FTS-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#1875) — 57 parça
◀

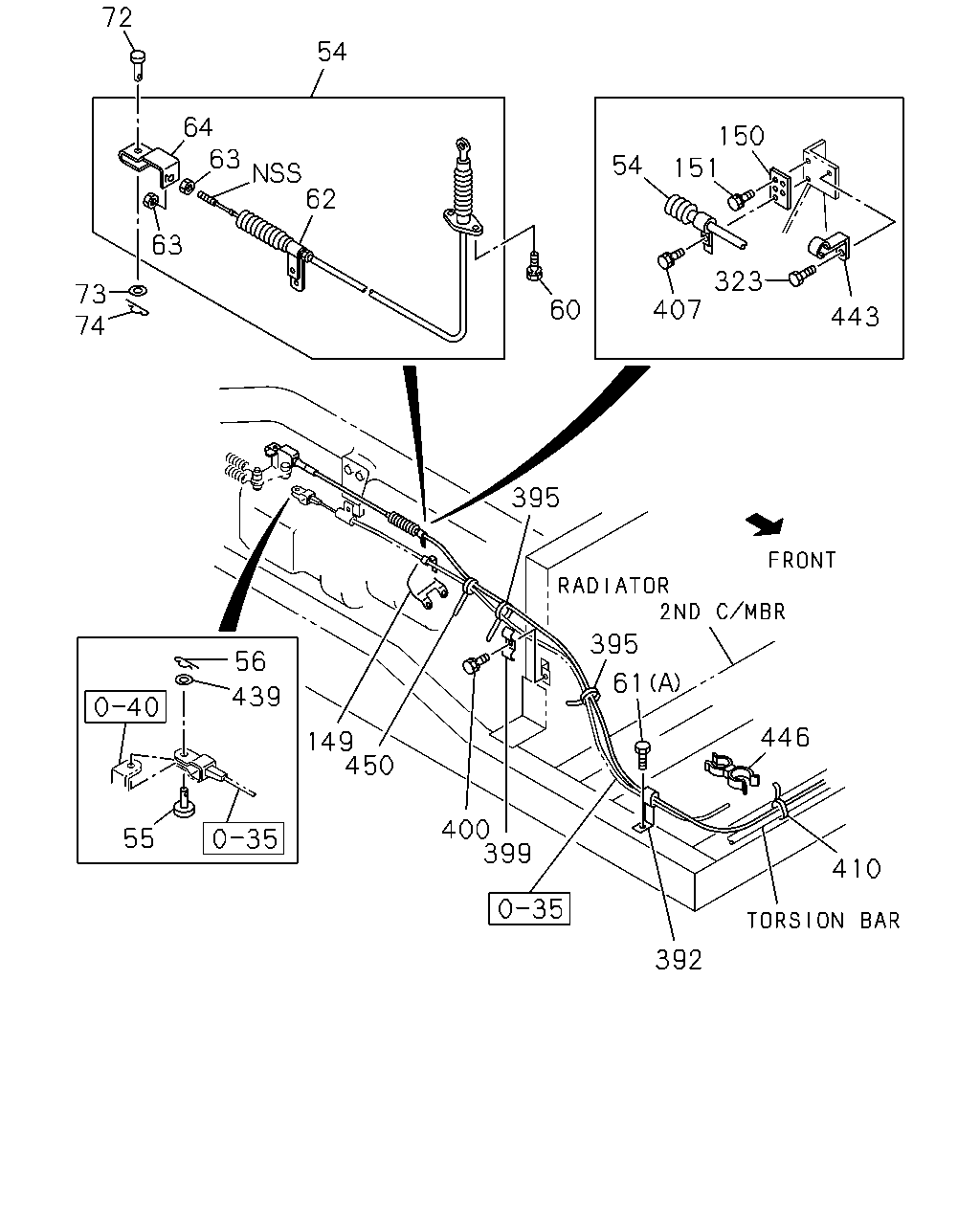

[101A] CABLE;ENG CONT AND BRACKET (28 parça)
[101A] LINK ASM;AND CABLE IDLE CONT (29 parça)
▶
72
54
64
63
150
151
54
62
63
323
73
74
60
407
443
395
395
56
61
439
446
149
450
400
399
55
410
392
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
54
CABLE; ENG CONT
L=2433
1-23210-783-5
01
1
9207-
55
PIN; JAW JOINT
1-09744-096-1
01
1
9207-
56
PIN; SNAP,JAW JOINT
L=17.9
1-09747-015-0
01
1
9207-
60
BOLT; CABLE
M6X16 W/LK&PL WASHER
1-09980-586-0
02
1
9207-
61
BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X16 FLANGE
0-28080-816-0
01
1
9207-
61
BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M5X14 W/LK WASHER
1-09980-023-0
01
1
9207-
62
CLIP; ENG CONT CABLE
1-23219-097-0
01
1
9207-
63
NUT; LOCK,BRKT
M8
9-09111-408-0
02
1
9207-
64
BRACKET; ENG CONT CABLE
1-09768-018-1
01
1
9207-
72
PIN; JAW JOINT,CABLE END
1-09744-083-0
01
1
9207-
73
WASHER; PL,ACCEL CONT CABLE
ID=8.4
9-09160-508-0
01
1
9207-
74
PIN; SNAP,CABLE END
L=27.7
1-09747-005-0
01
1
9207-
149
BRACKET; ENG CONT
AIR COMPRESSOR HEAVYDUTY(E1Q)
1-23335-370-0
01
1
9207-
149
BRACKET; ENG CONT
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)
1-23335-273-1
01
1
9207-
150
ADAPTER; ENG CONT WIRE
AIR COMPRESSOR HEAVYDUTY(E1Q)
1-23335-439-0
01
1
9207-
151
BOLT; ADAPTER
AIR COMPRESSOR HEAVYDUTY(E1Q) M6X30 W/LK WASHER
0-50040-630-0
02
1
9207-
323
BOLT; CLIP
M6X14 W/LK WASHER
0-50040-614-0
01
1
9207-
392
CLIP; ACCEL CONT CABLE
L=85
1-09701-093-0
01
1
9207-
395
CLIP; BAND,ACCEL CONT CABLE
L=140
5-09707-031-1
02
1
9207-
399
CLIP; CABLE,RAD SIDE
ID=9 & 7 L=15 & 15
1-09700-060-0
01
1
9207-
400
BOLT; CLIP,RAD SIDE
M6X12 FLANGE
0-28080-612-0
01
1
9207-
407
BOLT; CLIP TO ENG
M6X16 W/LK WASHER
0-50040-616-0
02
1
9207-
410
CLIP; BAND
L=250
5-09707-030-1
01
1
9207-
439
WASHER; PL,PIN,JAW JOINT
ID=5.3
9-09160-505-0
01
1
9207-
443
CLIP; CABLE
AIR COMPRESSOR HEAVYDUTY(E1Q) ID=9 T=1
1-09700-758-0
01
1
9207-
443
CLIP; CABLE
EXC. AIR COMPRESSOR HEAVYDUTY(E1Q) ID=9 H=20 L=20
9-09527-008-0
01
1
9207-
446
CLIP; ENG CONT
ID=6.8X11.8
1-09709-127-0
01
1
9207-
450
CLIP; BAND
L=140
5-09707-031-1
01
1
9207-
71
70
114
69
68
61
67
534
59
541
542
535
57
8
82
58
82
9
271
2
88
403
608
627
21
154
657
444
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LEVER; ENG CONT
1-73998-716-1
01
1
9207-
8
LINK ASM; ENG CONT
1-23240-075-1
01
1
9207-
9
WASHER; PL,CONT LINK
ID=10.5 OD=16
9-09855-178-0
01
1
9207-
21
BRACKET ASM; ENG CONT CABLE
1-79738-102-1
01
1
9207-
57
WASHER; ENG CONT CABLE
ID=8.4
9-09160-508-0
01
1
9207-
58
LEVER; IDLING CONT
1-73997-781-2
01
1
9207-
59
PIN; SNAP,ENG CONT CABLE
L=27.7
1-09747-005-0
01
1
9207-
61
BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M8X16 FLANGE
0-28080-816-0
01
1
9207-
61
BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M5X14 W/LK WASHER
1-09980-023-0
01
1
9207-
67
CABLE ASM; IDLE CONT
L=252
1-73998-543-1
01
1
9207-
68
KNOB; IDLE CONT
W/SCREW
8-94134-716-0
01
1
9207-
69
SCREW; KNOB,IDLE CONT
5-09120-004-0
01
1
9207-
70
NUT; CONT CABLE
M18 RING NUT
5-09409-004-1
01
1
9207-
71
WASHER; WAVE,CONT CABLE
ID=18.5
5-09550-005-0
01
1
9207-
82
BUSHING; ENG CONT LVR
8-94206-569-0
02
1
9207-
88
PIN; SNAP,ENG CONT LEVER
L=27.7
8-94202-777-0
01
1
9207-
114
CLIP; HARNESS CONNECTOR
L=100
5-09707-036-1
01
1
9207-
154
BOLT; CABLE BRKT
M6X20 W/LK&PL WASHER
1-09980-493-0
01
1
9207-
271
SHAFT; ENG CONT
1-09987-081-0
01
1
9207-
403
BOLT; BRKT,ACCEL PEDAL
M6X16 W/LK&PL WASHER
1-09980-586-0
03
1
9207-
444
BOLT; CABLE CLIP
M6X20 W/LK&PL WASHER
1-09980-493-0
01
1
9207-
534
PIN; JAW JOINT,IDLING CONT CABLE
1-09987-034-1
01
1
9207-
535
PIN; SNAP,IDLING CONT CABLE
L=17.9
1-09747-002-0
01
1
9207-
541
BRACKET; IDLING CONT CABLE
1-73998-527-1
01
1
9207-
542
BOLT; BRKT,IDLING CONT CABLE
M6X16 W/LK&PL WASHER
0-50140-616-0
01
1
9207-
608
BOLT; LEVER TO SHAFT
M6X25
0-20800-625-0
01
1
9207-
627
NUT; ACCEL SHAFT
M6
9-09111-406-0
01
1
9207-
657
CLIP; ENG CONT CABLE
AUTO ENG SHUTOFF(KB6)
9-09524-622-0
01
1
9207-
657
CLIP; ENG CONT CABLE
EXC. AUTO ENG SHUTOFF(KB6) ID=7X2 L=16
9-09534-622-0
01
1
9207-
