3-26 — TRAILER CONTROL (#18748) — 163 parça

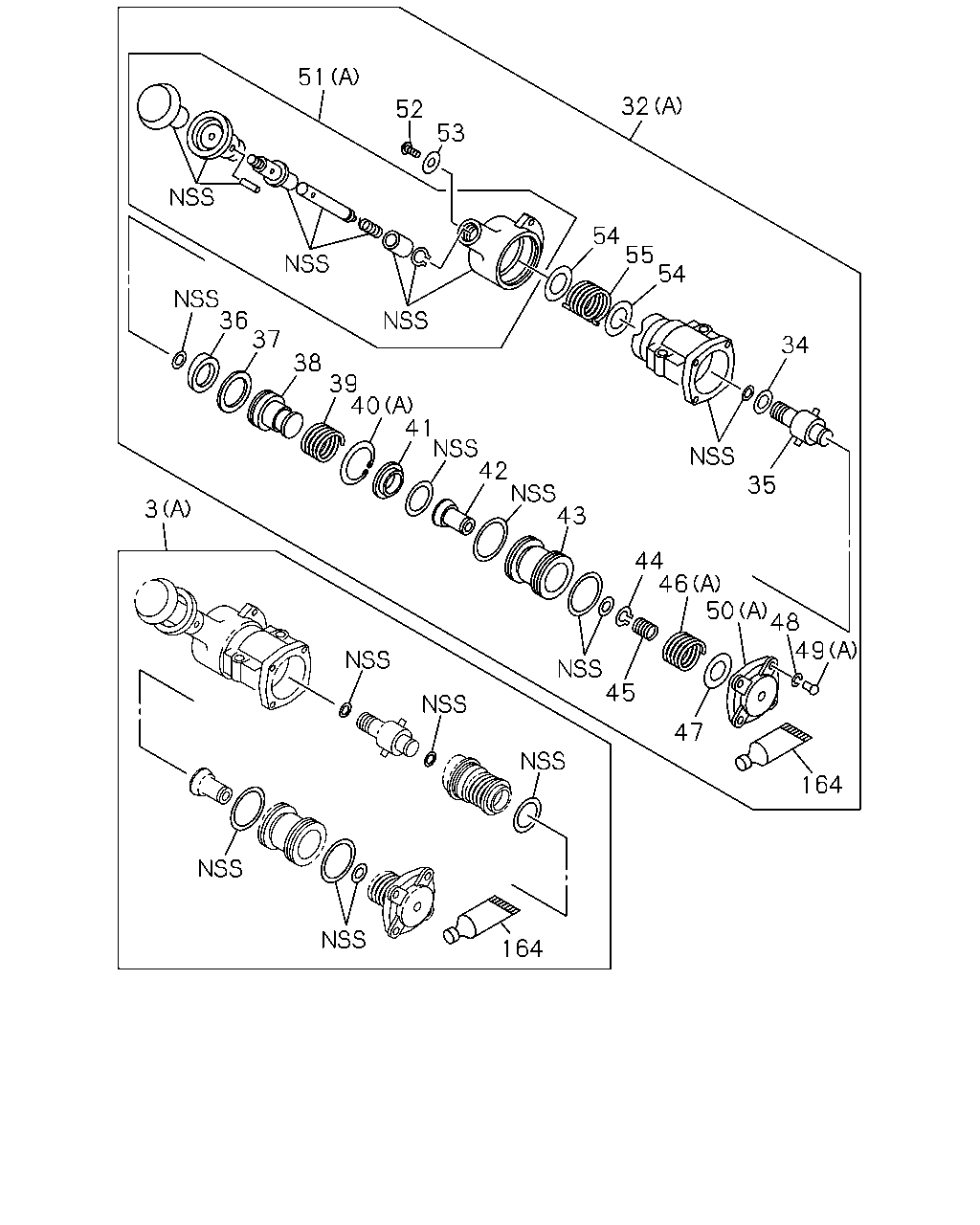

51 32 52 53 54 55 54 36 37 34 38 39 40 41 42 43 35 3 44 46 50 48 49 45 47 164 164

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	REPAIR KIT; HAND BRK VLV (B) W/GREASE SOU	1-48469-083-0	01	1	1109-	●
3	REPAIR KIT; HAND BRK VLV (A) W/GREASE SOU	1-48469-096-0	01	1	1004-		●
32	VALVE; BRK,HAND CONT (B) SOU	1-48460-316-0	01	1	1109-	●
32	VALVE; BRK,HAND CONT (A) SOU	1-48460-306-0	01	1	1004-		●
34	SHIM; CAM HOLDER SOU	1-48469-055-0	AR	1	1004-1108		●
34	SHIM; CAM HOLDER SOU	1-48469-055-0	AR	1	1109-	●	●
35	HOLDER; CAM SOU	1-48469-054-0	01	1	1004-1108		●
35	HOLDER; CAM SOU	1-48469-054-0	01	1	1109-	●	●
36	RING; CAM SOU	1-48469-056-0	01	1	1004-1108		●
36	RING; CAM SOU	1-48469-056-0	01	1	1109-	●	●
37	GUIDE; CAM RING SOU	1-48469-058-0	01	1	1004-1108		●
37	GUIDE; CAM RING SOU	1-48469-058-0	01	1	1109-	●	●
38	SEAT; EXH VLV SOU	1-48469-057-0	01	1	1004-1108		●
38	SEAT; EXH VLV SOU	1-48469-057-0	01	1	1109-	●	●
39	SPRING; RETURN,CAM RING SOU	1-48469-063-0	01	1	1004-1108		●
39	SPRING; RETURN,CAM RING SOU	1-48469-063-0	01	1	1109-	●	●
40	RING; SNAP (B) SOU	1-48469-079-0	01	1	1109-	●
40	RING; SNAP (A) SOU	1-48469-067-0	01	1	1004-1108		●
40	RING; SNAP (A) SOU	1-48469-067-0	01	1	1109-	●	●
41	SEAT; FEED VLV SOU	1-48469-066-0	01	1	1004-1108		●
41	SEAT; FEED VLV SOU	1-48469-066-0	01	1	1109-	●	●
42	VALVE; FEED SOU	1-48469-065-0	02	1	1109-	●
42	VALVE; FEED SOU	1-48469-065-0	01	1	1004-		●
43	PISTON; HAND BRK VLV SOU	1-48469-064-0	01	1	1004-1108		●
43	PISTON; HAND BRK VLV SOU	1-48469-064-0	01	1	1109-	●	●
44	RING; SNAP,FEED VLV SOU	1-48469-068-0	02	1	1004-1108		●
44	RING; SNAP,FEED VLV SOU	1-48469-068-0	02	1	1109-	●	●
45	SPRING; FEED VLV SOU	1-48469-070-0	02	1	1109-	●
45	SPRING; FEED VLV SOU	1-48469-070-0	01	1	1004-		●
46	SPRING; MAIN,PISTON (B) SOU	1-48469-119-0	01	1	1109-	●
46	SPRING; MAIN,PISTON (A) SOU	1-48469-089-0	01	1	1004-		●
47	SHIM; MAIN SPRING SOU	1-48469-072-0	AR	1	1004-1108		●
47	SHIM; MAIN SPRING SOU	1-48469-072-0	AR	1	1109-	●	●
48	WASHER; COVER SOU	1-48469-091-0	04	1	1004-		●
49	SCREW; COVER (B) SOU	1-48469-120-0	04	1	1109-	●
49	SCREW; COVER (A) SOU	1-48469-092-0	04	1	1004-		●
50	COVER; HAND BRK VLV (B) SOU	1-48469-073-0	01	1	1109-	●
50	COVER; HAND BRK VLV (A) SOU	1-48469-090-0	01	1	1004-		●
51	HANDLE ASM; HAND BRK VLV (B) SOU	1-48469-060-0	01	1	1109-	●
51	HANDLE ASM; HAND BRK VLV (A) SOU	1-48469-122-0	01	1	1004-		●
52	SCREW; HANDLE SOU	1-48469-062-0	01	1	1004-1108		●
52	SCREW; HANDLE SOU	1-48469-062-0	01	1	1109-	●	●
53	WASHER; HANDLE SOU	1-48469-061-0	01	1	1004-1108		●
53	WASHER; HANDLE SOU	1-48469-061-0	01	1	1109-	●	●
54	SEAT; SPRING SOU	1-48469-082-0	02	1	1004-1108		●
54	SEAT; SPRING SOU	1-48469-082-0	02	1	1109-	●	●
55	SPRING; RETURN,HANDLE SOU	1-48469-059-0	01	1	1004-1108		●
55	SPRING; RETURN,HANDLE SOU	1-48469-059-0	01	1	1109-	●	●
164	GREASE; HAND BRK VLV SOU	1-48469-084-0	01	1	1004-1108		●
164	GREASE; HAND BRK VLV SOU	1-48469-084-0	01	1	1109-	●	●

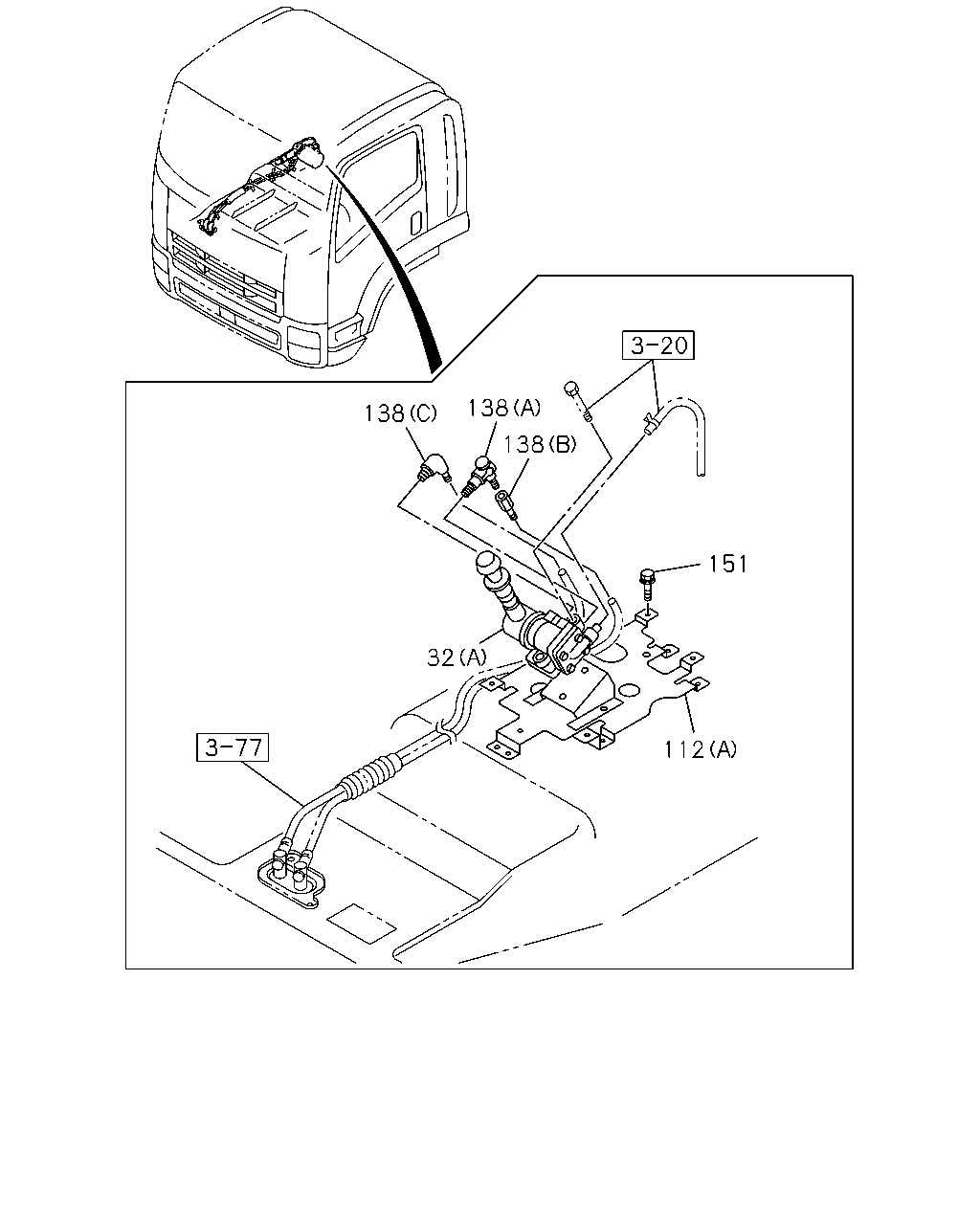

138 138 138 151 32 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (B) SOU	1-48460-316-0	01	1	1109-	●
32	VALVE; BRK,HAND CONT (A) SOU	1-48460-306-0	01	1	1004-		●
112	BRACKET; CONT VLV (B) SOU	1-73908-294-2	01	1	1109-	●
112	BRACKET; CONT VLV (C) SOU	1-73908-295-0	01	1	1109-	●
112	BRACKET; CONT VLV (A) SOU	1-73908-054-7	01	1	1004-		●
138	CONNECTOR; DELIVERY (D) PT1/4 & M16 STRAIGHT SOU	1-09650-352-1	01	1	1109-	●
138	CONNECTOR; DELIVERY (E) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	02	1	1109-	●
138	CONNECTOR; DELIVERY (F) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	1109-	●
138	CONNECTOR; DELIVERY (G) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	01	1	1109-	●
138	CONNECTOR; DELIVERY (H) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1109-	●
138	CONNECTOR; DELIVERY (A) DIN6 & PT1/4 ELBOW SOU	1-09650-240-1	01	1	1004-		●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT SOU	1-09660-874-0	01	1	1004-		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1004-1108		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-	●	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-	●
151	BOLT; VLV BRKT M6X16 SOU	0-52000-616-0	04	1	1004-1108		●
151	BOLT; VLV BRKT M6X16 SOU	0-52000-616-0	04	1	1109-	●	●

180

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	180	REPAIR KIT; RELAY VLV	1-85576-449-0	01	1	1109-	●

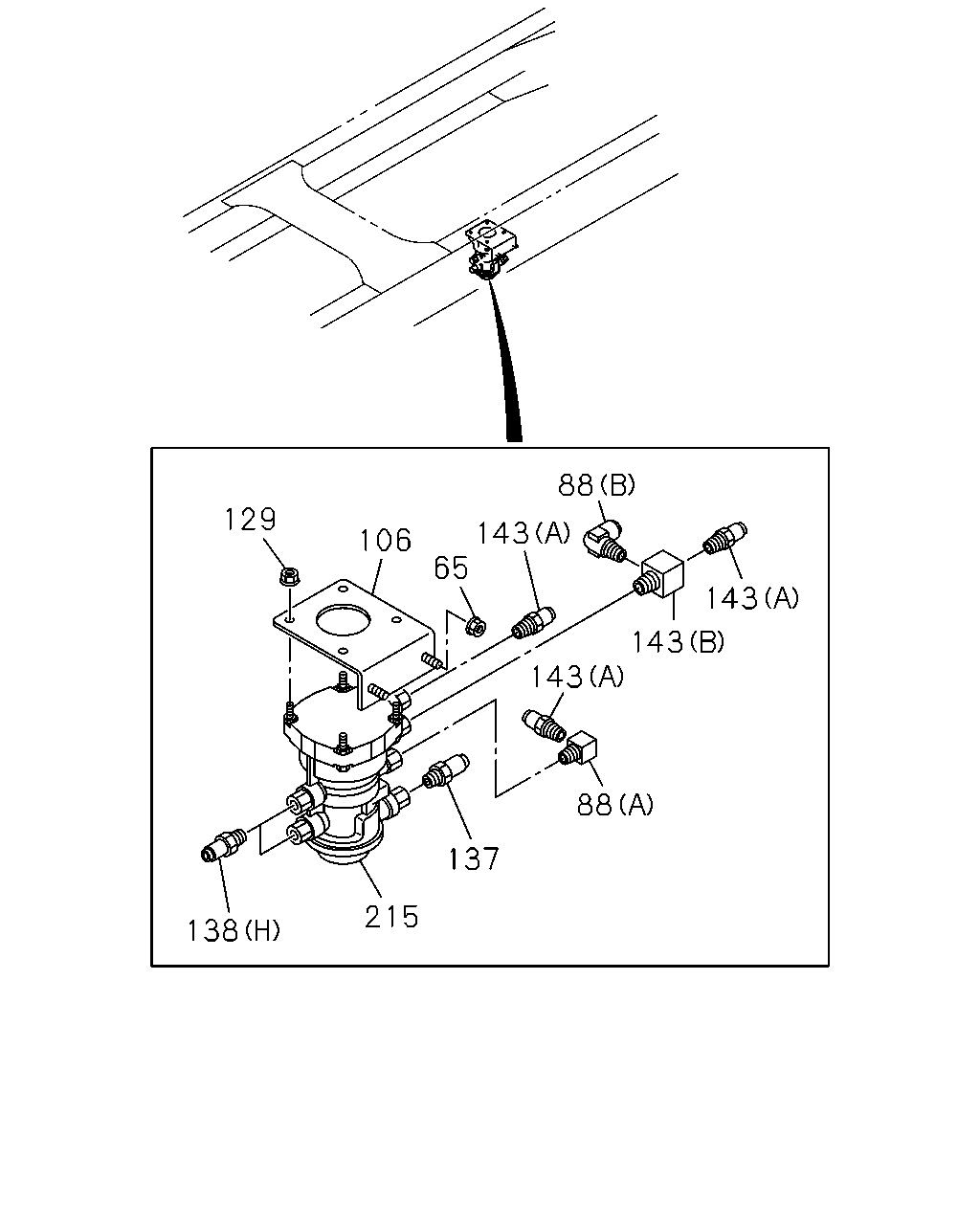

88 129 143 65 106 143 143 143 88 137 215 138

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	NUT; RELAY VLV M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●
88	CONNECTOR; ELBOW (A) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1109-	●
88	CONNECTOR; ELBOW (B) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1109-	●
106	BRACKET; VLV	8-97618-638-0	01	1	1109-	●
129	NUT; VLV M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●
129	NUT; VLV M8 FLANGE SOU	0-91180-108-0	04	1	1109-	●
137	CONNECTOR; SUPPLY DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1109-	●
138	CONNECTOR; DELIVERY (D) PT1/4 & M16 STRAIGHT SOU	1-09650-352-1	01	1	1109-	●
138	CONNECTOR; DELIVERY (E) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	02	1	1109-	●
138	CONNECTOR; DELIVERY (F) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	1109-	●
138	CONNECTOR; DELIVERY (G) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	01	1	1109-	●
138	CONNECTOR; DELIVERY (H) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1109-	●
138	CONNECTOR; DELIVERY (A) DIN6 & PT1/4 ELBOW SOU	1-09650-240-1	01	1	1004-		●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT SOU	1-09660-874-0	01	1	1004-		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1004-1108		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-	●	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-	●
143	CONNECTOR; CONT (A) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	03	1	1109-	●
143	CONNECTOR; CONT (B) PT3/8 3WAY SOU	1-09661-300-0	01	1	1109-	●
215	VALVE; TRAILER CONT	8-98091-694-0	01	1	1109-	●

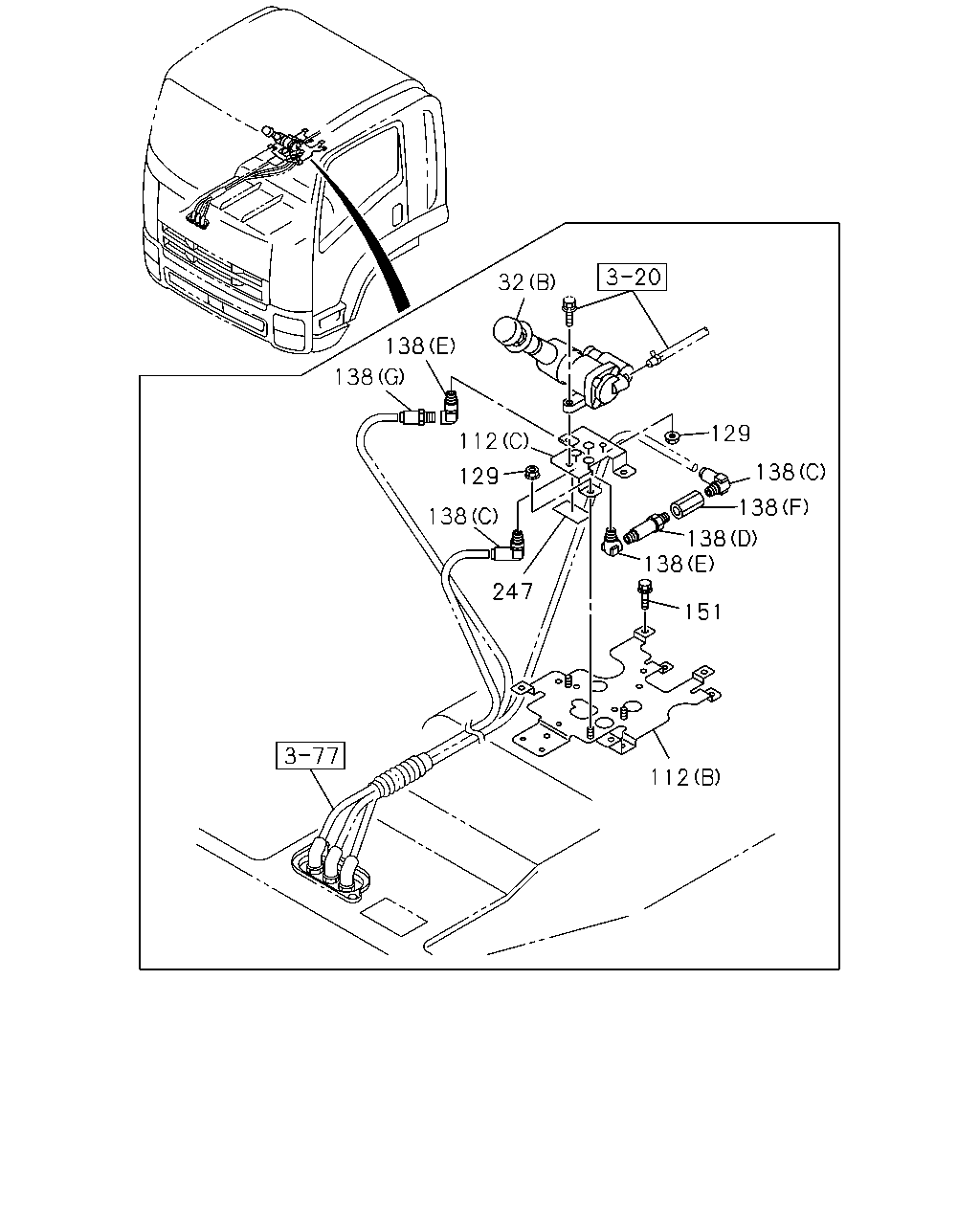

32 138 138 129 112 138 129 138 138 138 138 247 151 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (B) SOU	1-48460-316-0	01	1	1109-	●
32	VALVE; BRK,HAND CONT (A) SOU	1-48460-306-0	01	1	1004-		●
112	BRACKET; CONT VLV (B) SOU	1-73908-294-2	01	1	1109-	●
112	BRACKET; CONT VLV (C) SOU	1-73908-295-0	01	1	1109-	●
112	BRACKET; CONT VLV (A) SOU	1-73908-054-7	01	1	1004-		●
129	NUT; VLV M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●
129	NUT; VLV M8 FLANGE SOU	0-91180-108-0	04	1	1109-	●
138	CONNECTOR; DELIVERY (D) PT1/4 & M16 STRAIGHT SOU	1-09650-352-1	01	1	1109-	●
138	CONNECTOR; DELIVERY (E) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	02	1	1109-	●
138	CONNECTOR; DELIVERY (F) M16 & RC1/4 STRAIGHT	1-09660-886-0	01	1	1109-	●
138	CONNECTOR; DELIVERY (G) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	01	1	1109-	●
138	CONNECTOR; DELIVERY (H) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1109-	●
138	CONNECTOR; DELIVERY (A) DIN6 & PT1/4 ELBOW SOU	1-09650-240-1	01	1	1004-		●
138	CONNECTOR; DELIVERY (B) DIN8 & M14 STRAIGHT SOU	1-09660-874-0	01	1	1004-		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1004-1108		●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-	●	●
138	CONNECTOR; DELIVERY (C) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-	●
151	BOLT; VLV BRKT M6X16 SOU	0-52000-616-0	04	1	1004-1108		●
151	BOLT; VLV BRKT M6X16 SOU	0-52000-616-0	04	1	1109-	●	●
247	SEAL; HOSE 100X40 SOU	1-72498-022-1	01	1	1109-	●

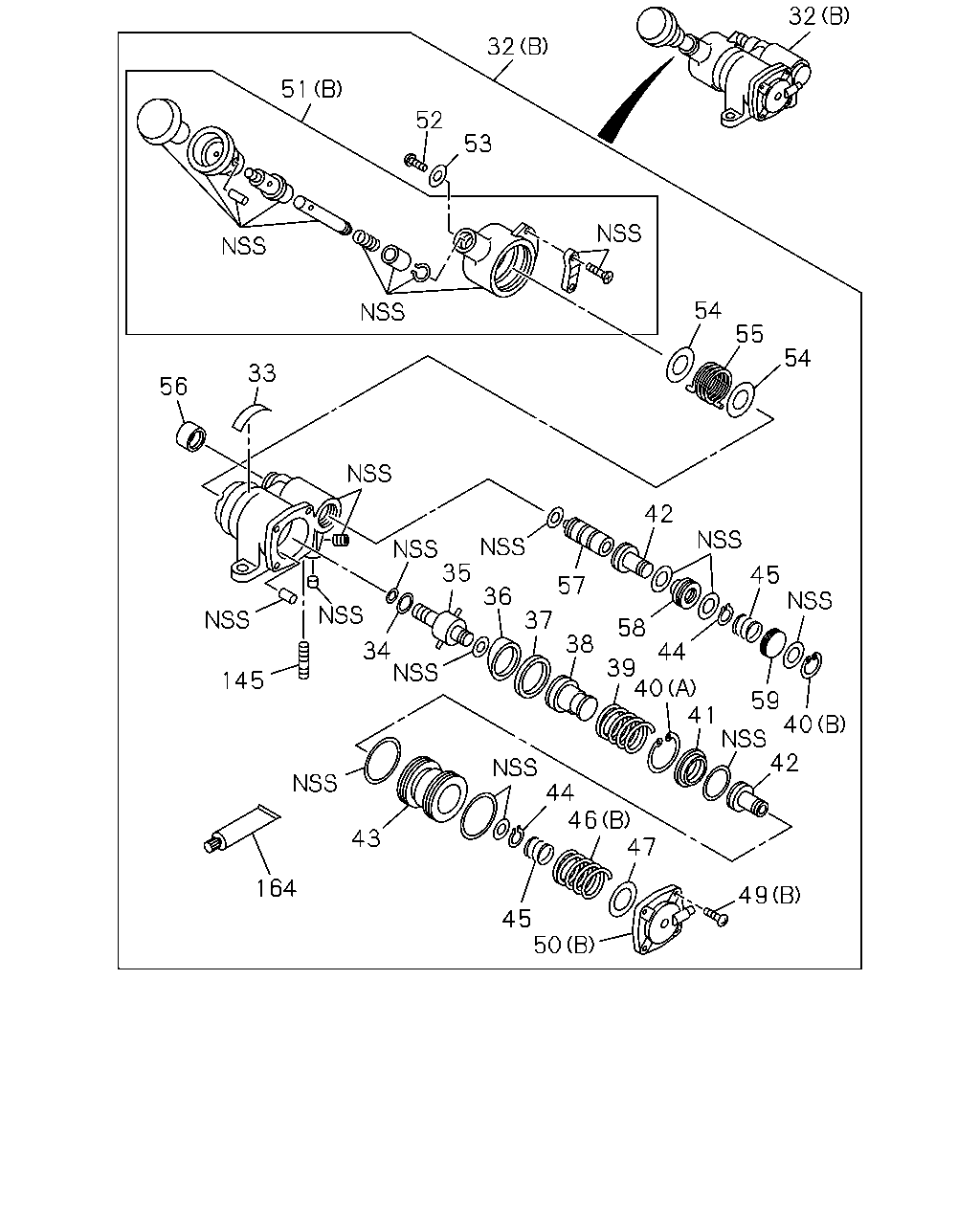

32 32 51 52 53 54 55 54 33 56 42 35 45 57 36 37 58 38 34 44 39 40 145 41 42 59 40 44 46 47 43 164 49 45 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
32	VALVE; BRK,HAND CONT (B) SOU	1-48460-316-0	01	1	1109-	●
32	VALVE; BRK,HAND CONT (A) SOU	1-48460-306-0	01	1	1004-		●
33	PLATE; CAUTION SOU	1-48469-121-0	01	1	1109-	●
34	SHIM; CAM HOLDER SOU	1-48469-055-0	AR	1	1004-1108		●
34	SHIM; CAM HOLDER SOU	1-48469-055-0	AR	1	1109-	●	●
35	HOLDER; CAM SOU	1-48469-054-0	01	1	1004-1108		●
35	HOLDER; CAM SOU	1-48469-054-0	01	1	1109-	●	●
36	RING; CAM SOU	1-48469-056-0	01	1	1004-1108		●
36	RING; CAM SOU	1-48469-056-0	01	1	1109-	●	●
37	GUIDE; CAM RING SOU	1-48469-058-0	01	1	1004-1108		●
37	GUIDE; CAM RING SOU	1-48469-058-0	01	1	1109-	●	●
38	SEAT; EXH VLV SOU	1-48469-057-0	01	1	1004-1108		●
38	SEAT; EXH VLV SOU	1-48469-057-0	01	1	1109-	●	●
39	SPRING; RETURN,CAM RING SOU	1-48469-063-0	01	1	1004-1108		●
39	SPRING; RETURN,CAM RING SOU	1-48469-063-0	01	1	1109-	●	●
40	RING; SNAP (B) SOU	1-48469-079-0	01	1	1109-	●
40	RING; SNAP (A) SOU	1-48469-067-0	01	1	1004-1108		●
40	RING; SNAP (A) SOU	1-48469-067-0	01	1	1109-	●	●
41	SEAT; FEED VLV SOU	1-48469-066-0	01	1	1004-1108		●
41	SEAT; FEED VLV SOU	1-48469-066-0	01	1	1109-	●	●
42	VALVE; FEED SOU	1-48469-065-0	02	1	1109-	●
42	VALVE; FEED SOU	1-48469-065-0	01	1	1004-		●
43	PISTON; HAND BRK VLV SOU	1-48469-064-0	01	1	1004-1108		●
43	PISTON; HAND BRK VLV SOU	1-48469-064-0	01	1	1109-	●	●
44	RING; SNAP,FEED VLV SOU	1-48469-068-0	02	1	1004-1108		●
44	RING; SNAP,FEED VLV SOU	1-48469-068-0	02	1	1109-	●	●
45	SPRING; FEED VLV SOU	1-48469-070-0	02	1	1109-	●
45	SPRING; FEED VLV SOU	1-48469-070-0	01	1	1004-		●
46	SPRING; MAIN,PISTON (B) SOU	1-48469-119-0	01	1	1109-	●
46	SPRING; MAIN,PISTON (A) SOU	1-48469-089-0	01	1	1004-		●
47	SHIM; MAIN SPRING SOU	1-48469-072-0	AR	1	1004-1108		●
47	SHIM; MAIN SPRING SOU	1-48469-072-0	AR	1	1109-	●	●
49	SCREW; COVER (B) SOU	1-48469-120-0	04	1	1109-	●
49	SCREW; COVER (A) SOU	1-48469-092-0	04	1	1004-		●
50	COVER; HAND BRK VLV (B) SOU	1-48469-073-0	01	1	1109-	●
50	COVER; HAND BRK VLV (A) SOU	1-48469-090-0	01	1	1004-		●
51	HANDLE ASM; HAND BRK VLV (B) SOU	1-48469-060-0	01	1	1109-	●
51	HANDLE ASM; HAND BRK VLV (A) SOU	1-48469-122-0	01	1	1004-		●
52	SCREW; HANDLE SOU	1-48469-062-0	01	1	1004-1108		●
52	SCREW; HANDLE SOU	1-48469-062-0	01	1	1109-	●	●
53	WASHER; HANDLE SOU	1-48469-061-0	01	1	1004-1108		●
53	WASHER; HANDLE SOU	1-48469-061-0	01	1	1109-	●	●
54	SEAT; SPRING SOU	1-48469-082-0	02	1	1004-1108		●
54	SEAT; SPRING SOU	1-48469-082-0	02	1	1109-	●	●
55	SPRING; RETURN,HANDLE SOU	1-48469-059-0	01	1	1004-1108		●
55	SPRING; RETURN,HANDLE SOU	1-48469-059-0	01	1	1109-	●	●
56	BOOT; PLUNGER SOU	1-48469-080-0	01	1	1109-	●
57	PLUNGER; HAND BRK VLV SOU	1-48469-076-0	01	1	1109-	●
58	HOLDER; FEED VLV SOU	1-48469-077-0	01	1	1109-	●
59	HOLDER; SPRING SOU	1-48469-078-0	01	1	1109-	●
145	STUD; HAND BRK VLV SOU	1-48469-069-0	01	1	1109-	●
164	GREASE; HAND BRK VLV SOU	1-48469-084-0	01	1	1004-1108		●
164	GREASE; HAND BRK VLV SOU	1-48469-084-0	01	1	1109-	●	●

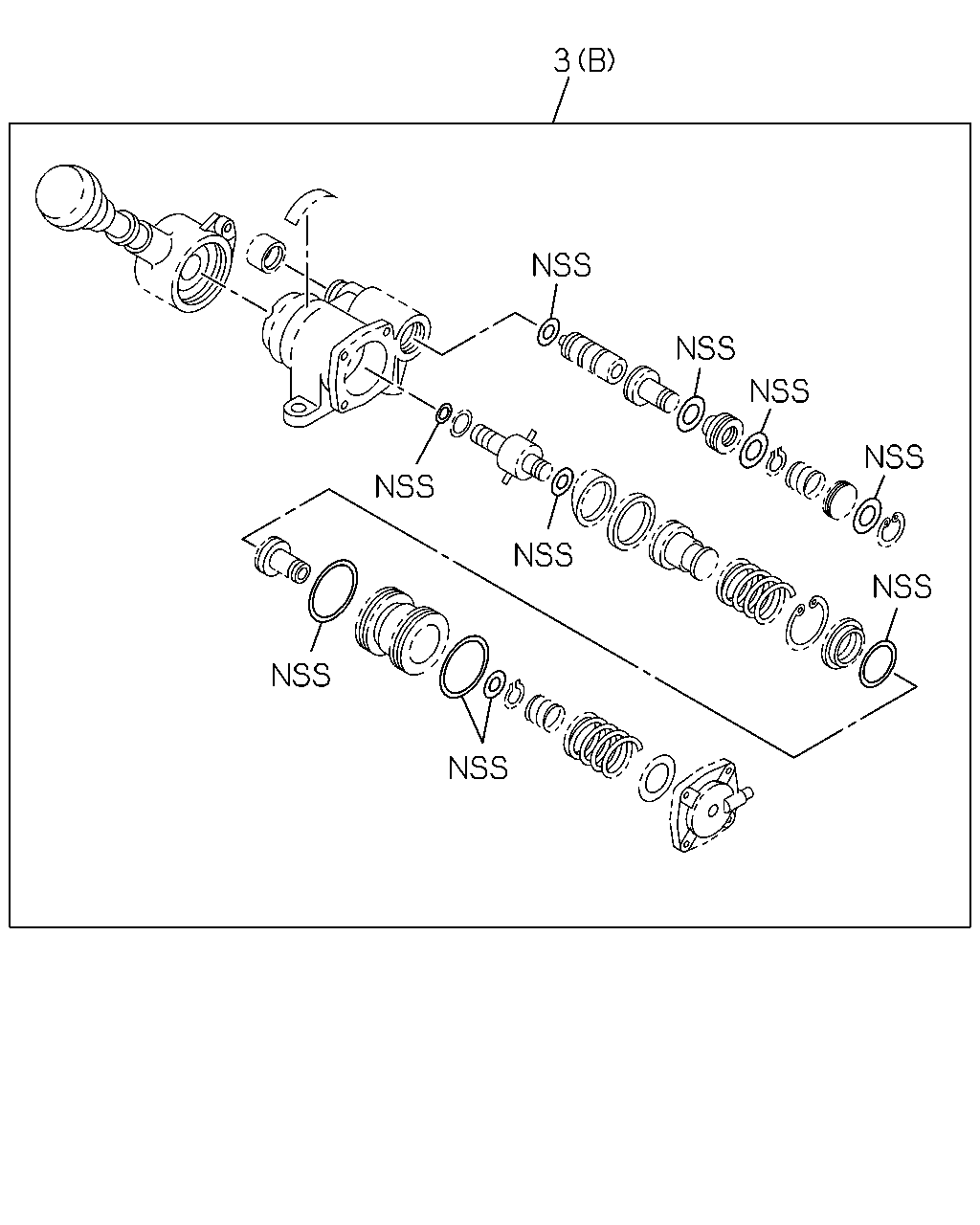

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	3	REPAIR KIT; HAND BRK VLV (B) W/GREASE SOU	1-48469-083-0	01	1	1109-	●
	3	REPAIR KIT; HAND BRK VLV (A) W/GREASE SOU	1-48469-096-0	01	1	1004-		●
