Sayfa 3-22 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-22 - AIR CONTROL PARTS ▶

3-22 — AIR CONTROL PARTS (#18747) — 188 parça

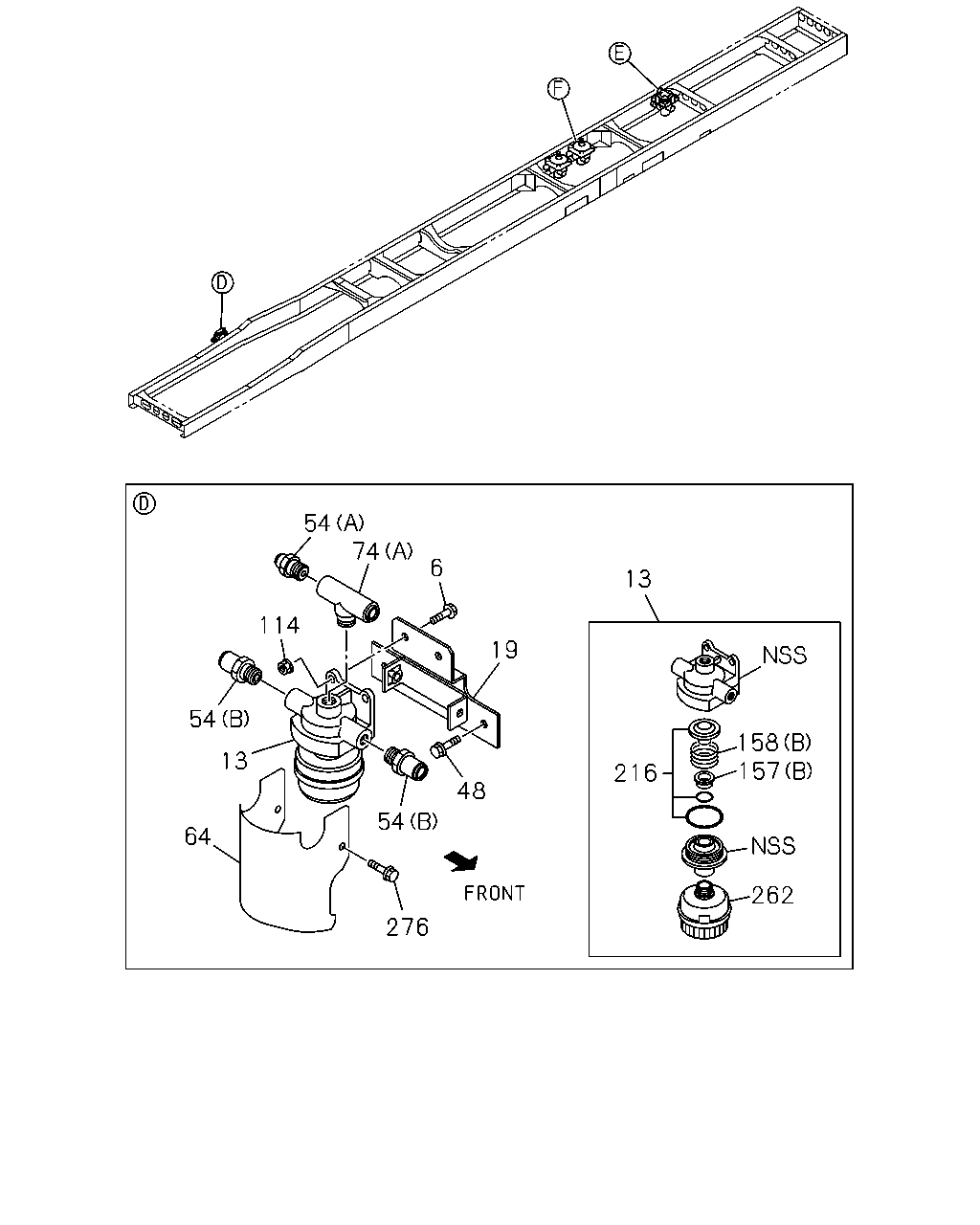

54 74 6 13 114 19 54 158 157 13 216 48 54 64 262 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	BOLT; VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108	●
6	BOLT; VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1004-1108	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1109-	●	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1004-1108	●
13	VALVE ASM; QUICK RELEASE	1-48410-726-1	01	1	1109-	●	●
19	BRACKET; QUICK RELEASE VLV	1-47471-014-0	01	1	1004-1108	●
19	BRACKET; QUICK RELEASE VLV	1-47471-014-0	01	1	1109-	●	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	1004-1108	●
48	BOLT; QUICK RELEASE VLV M8X30 FLANGE	0-28650-830-0	02	1	1109-	●	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	01	1	1004-1108	●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	01	1	1109-	●	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1004-1108	●
54	CONNECTOR; QUICK RELEASE VLV (B) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	02	1	1109-	●	●
64	PROTECTOR; QUICK RELEASE VALVE SOU	8-98043-421-0	01	1	1004-1108	●
64	PROTECTOR; QUICK RELEASE VALVE SOU	8-98043-421-0	01	1	1109-	●	●
74	CONNECTOR; 3WAY (D) DIN12X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-026-0	02	1	1109-		●
74	CONNECTOR; 3WAY (E) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	01	1	1109-		●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1004-1108	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1109-	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1109-		●
74	CONNECTOR; 3WAY (B) PT3/8 3WAY SOU	1-09661-300-0	01	1	1004-	●
74	CONNECTOR; 3WAY (C) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1004-	●
114	NUT; VLV M8 FLANGE SOU	0-91180-108-0	02	1	1004-1108	●
114	NUT; VLV M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1004-1108	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1109-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	02	1	1004-1108	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	02	1	1109-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1004-1108	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1109-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1004-1108	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1109-	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1004-1108	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	1109-1109	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-484-0	01	1	1110-	●	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1004-1108	●
262	SILENCER; RELAY VALVE	1-48219-149-0	01	1	1109-	●	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1004-1108	●
276	BOLT; PROTECTOR M8X20 FLANGE	0-28650-820-0	02	1	1109-	●	●

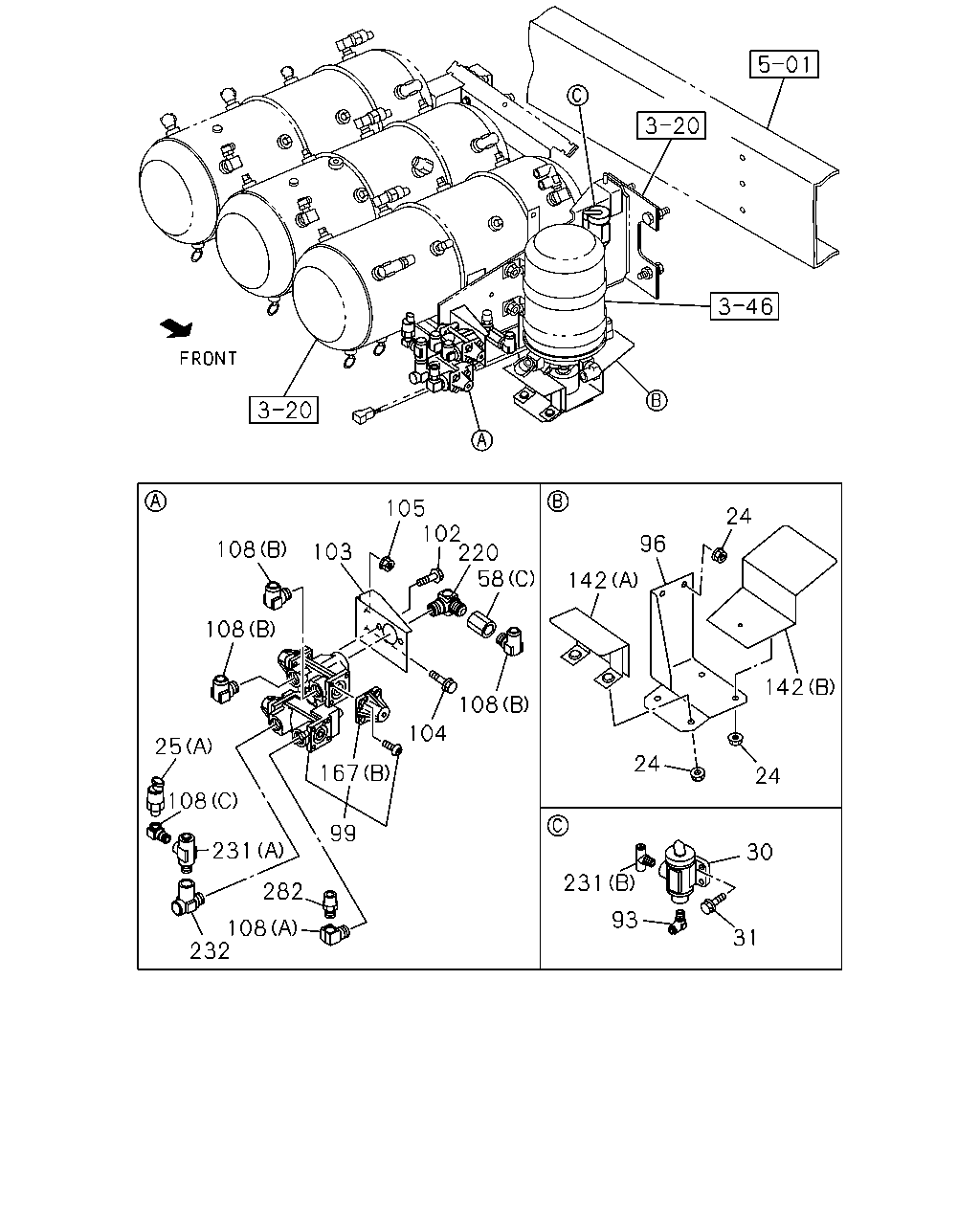

24 96 142 58 220 102 105 103 108 108 25 108 231 282 99 167 108 232 108 104 24 231 93 31 30 24 142

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT M8 FLANGE SOU	0-91180-108-0	06	1	1004-1108	●
24	NUT M8 FLANGE SOU	0-91180-108-0	06	1	1109-	●	●
25	SWITCH; PRESSURE (A) STAMP 5.5 SOU	8-97609-249-0	01	1	1004-1108	●
25	SWITCH; PRESSURE (A) STAMP 5.5 SOU	8-97609-249-0	01	1	1109-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	1004-1108	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1109-	●	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1004-1108	●
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	1109-	●	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1004-1108	●
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1109-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1004-	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1004-1108	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1109-	●	●
58	ADAPTER (A) PT3/8	1-48319-058-0	01	1	1004-	●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1004-1108	●
93	CONNECTOR; GOV DIN6 & R1/4 ELBOW SOU	1-09661-067-0	01	1	1109-	●	●
96	BRACKET	8-98093-436-0	01	1	1004-1108	●
96	BRACKET	8-98093-436-0	01	1	1109-	●	●
99	VALVE; PROTECTION SOU	1-48110-290-3	01	1	1004-1108	●
99	VALVE; PROTECTION SOU	1-48110-290-3	01	1	1109-	●	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-1108	●
102	BOLT; PROTECTION VALVE M8X16 FLANGE SOU	0-28050-816-0	02	1	1109-	●	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1004-1108	●
103	BRACKET; PROTECTION VALVE	8-98093-563-0	01	1	1109-	●	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1004-1108	●
104	BOLT; BRKT,VALVE M10X20 FLANGE	0-28651-020-0	01	1	1109-	●	●
105	NUT; BRKT,VALVE M10 FLANGE SOU	0-91180-210-0	01	1	1004-1108	●
105	NUT; BRKT,VALVE M10 FLANGE SOU	0-91180-210-0	01	1	1109-	●	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1004-1108	●
108	CONNECTOR; ELBOW (C) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1109-	●	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1004-1108	●
108	CONNECTOR; ELBOW (A) PT3/8 ELBOW SOU	1-09660-696-0	01	1	1109-	●	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1004-1108	●
108	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	03	1	1109-	●	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1004-1108	●
142	PROTECTOR; HEAT (A)	8-98093-437-1	01	1	1109-	●	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1004-1108	●
142	PROTECTOR; HEAT (B)	8-98093-438-1	01	1	1109-	●	●
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1004-1108	●
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1109-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1004-1108	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1109-	●	●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1004-1108	●
220	CONNECTOR; 3WAY DIN17 & RC3/8 & R1/2 3WAY SOU	8-98031-238-0	01	1	1109-	●	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1004-1108	●
231	CONNECTOR; NYLON TUBE (A) DIN12 & R3/8 & RC1/4 3WAY	1-09661-027-0	01	1	1109-	●	●
231	CONNECTOR; NYLON TUBE (B) SOU	1-09661-073-0	01	1	1004-1108	●
231	CONNECTOR; NYLON TUBE (B) SOU	1-09661-073-0	01	1	1109-	●	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1004-1108	●
232	VALVE; CHECK DIN18 & R3/8 & RC3/8 3WAY SOU	8-98032-527-0	01	1	1109-	●	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1004-1108	●
282	CONNECTOR; STRAIGHT DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1109-	●	●

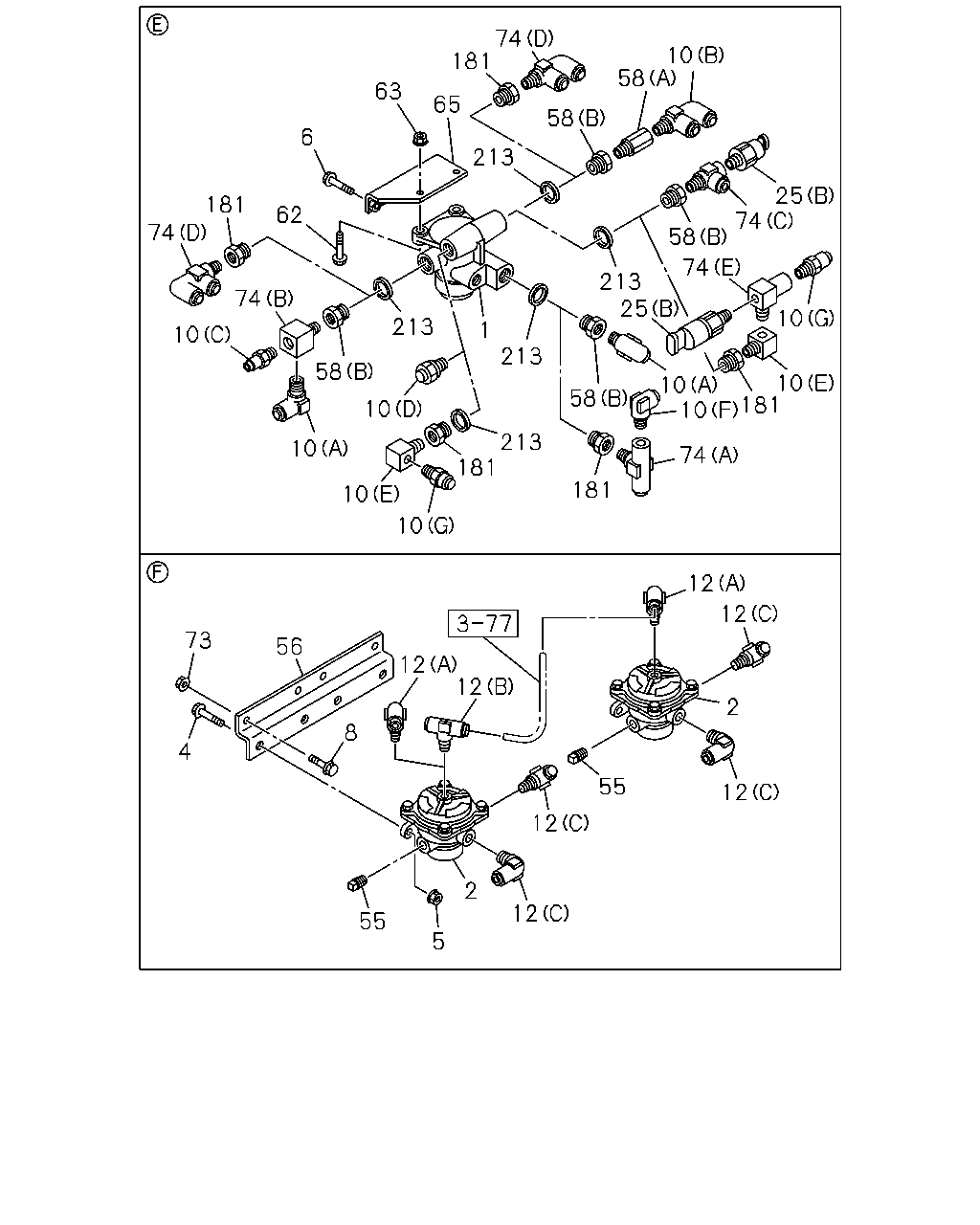

74 181 10 58 63 65 58 6 213 25 74 58 181 74 62 74 213 25 74 10 213 1 10 213 10 10 181 10 58 58 10 213 181 10 74 181 10 10 12 12 73 56 12 12 2 8 4 55 12 12 2 12 55 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1004-1108	●
1	VALVE; RELAY RWD RR	1-48240-354-1	01	1	1109-	●	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA)	1-48210-875-0	02	1	1004-1108	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA)	1-48210-875-0	02	1	1109-	●	●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X30 FLANGE SOU	0-28651-030-0	04	1	1109-		●
4	BOLT; RELAY VLV TO BRKT ANTILOCK BRAKE SYSTEM(BFA) M10X35 FLANGE SOU	0-28651-035-0	04	1	1004-	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE SOU	0-91180-210-0	04	1	1004-1108	●
5	NUT ANTILOCK BRAKE SYSTEM(BFA) M10 FLANGE SOU	0-91180-210-0	04	1	1109-	●	●
6	BOLT; VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108	●
6	BOLT; VLV M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-	●	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1004-1108	●
6	BOLT; VLV M8X30 FLANGE	0-28650-830-0	02	1	1109-	●	●
8	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE SOU	0-28650-825-0	04	1	1109-	●
8	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	04	1	1109-		●
8	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE SOU	0-28650-825-0	03	1	1004-1108	●
8	BOLT; BRKT WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●
10	CONNECTOR (E) PT3/8 ELBOW SOU	1-09660-696-0	02	1	1109-		●
10	CONNECTOR (F) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1109-		●
10	CONNECTOR (G) DIN8 & R3/8 STRAIGHT SOU	1-09660-964-0	02	1	1109-		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	02	1	1004-	●
10	CONNECTOR (C) DIN12 & R3/8 STRAIGHT SOU	1-09660-965-0	01	1	1004-	●
10	CONNECTOR (B) DIN12X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-026-0	01	1	1004-	●
10	CONNECTOR (D) DIN8 & M22 STRAIGHT SOU	1-09661-091-0	01	1	1004-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	02	1	1109-		●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (A) DIN8 & R3/8 ELBOW SOU	1-09660-957-0	01	1	1004-	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1004-1108	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & R3/8 ELBOW SOU	1-09660-959-0	04	1	1109-	●	●
12	CONNECTOR; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA) (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	1004-	●
25	SWITCH; PRESSURE (A) STAMP 5.5 SOU	8-97609-249-0	01	1	1004-1108	●
25	SWITCH; PRESSURE (A) STAMP 5.5 SOU	8-97609-249-0	01	1	1109-	●	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-1	01	1	1004-1108	●
25	SWITCH; PRESSURE (B) STAMP 2.0	8-98010-856-2	01	1	1109-	●	●
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	02	1	1004-1108	●
55	PLUG; SUPPLY ANTILOCK BRAKE SYSTEM(BFA) PT3/8	9-09204-517-0	02	1	1109-	●	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA)	1-47479-937-0	01	1	1004-1108	●
56	BRACKET; RELAY VLV ANTILOCK BRAKE SYSTEM(BFA)	1-47479-937-0	01	1	1109-	●	●
58	ADAPTER (B) INNER PT3/8,OUTER M22 SOU	1-09650-494-1	04	1	1004-	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1004-1108	●
58	ADAPTER (C) M20 & RC3/8 STRAIGHT SOU	1-09660-883-0	01	1	1109-	●	●
58	ADAPTER (A) PT3/8	1-48319-058-0	01	1	1004-	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1004-1108	●
62	BOLT; BRKT FIX M8X30 FLANGE	0-28650-830-0	02	1	1109-	●	●
63	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	02	1	1004-1108	●
63	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1004-1108	●
65	BRACKET; RELAY VLV RR	1-47471-032-0	01	1	1109-	●	●
73	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE SOU	0-91180-108-0	04	1	1109-	●
73	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	04	1	1109-		●
73	NUT; BRKT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU	0-91180-108-0	03	1	1004-1108	●
73	NUT; BRKT WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU	0-91180-108-0	03	1	1109-	●
74	CONNECTOR; 3WAY (D) DIN12X2 & PT3/8 DOUBLE ELBOW SOU	1-09661-026-0	02	1	1109-		●
74	CONNECTOR; 3WAY (E) R3/8 & RC3/8 & RC1/4 3WAY SOU	8-98166-127-0	01	1	1109-		●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1004-1108	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1109-	●	●
74	CONNECTOR; 3WAY (A) DIN12 & R3/8 & RC3/8 3WAY	1-09661-232-0	01	1	1109-		●
74	CONNECTOR; 3WAY (B) PT3/8 3WAY SOU	1-09661-300-0	01	1	1004-	●
74	CONNECTOR; 3WAY (C) DIN8 & R3/8 & RC1/4 3WAY	1-09661-536-0	01	1	1004-	●
181	ADAPTER; PRESSURE SW INNER PT3/8,OUTER M22 SOU	1-09650-494-1	05	1	1109-		●
213	GASKET ID=22.5 SOU	9-09571-422-0	05	1	1109-		●
213	GASKET ID=22.5 SOU	9-09571-422-0	04	1	1004-	●

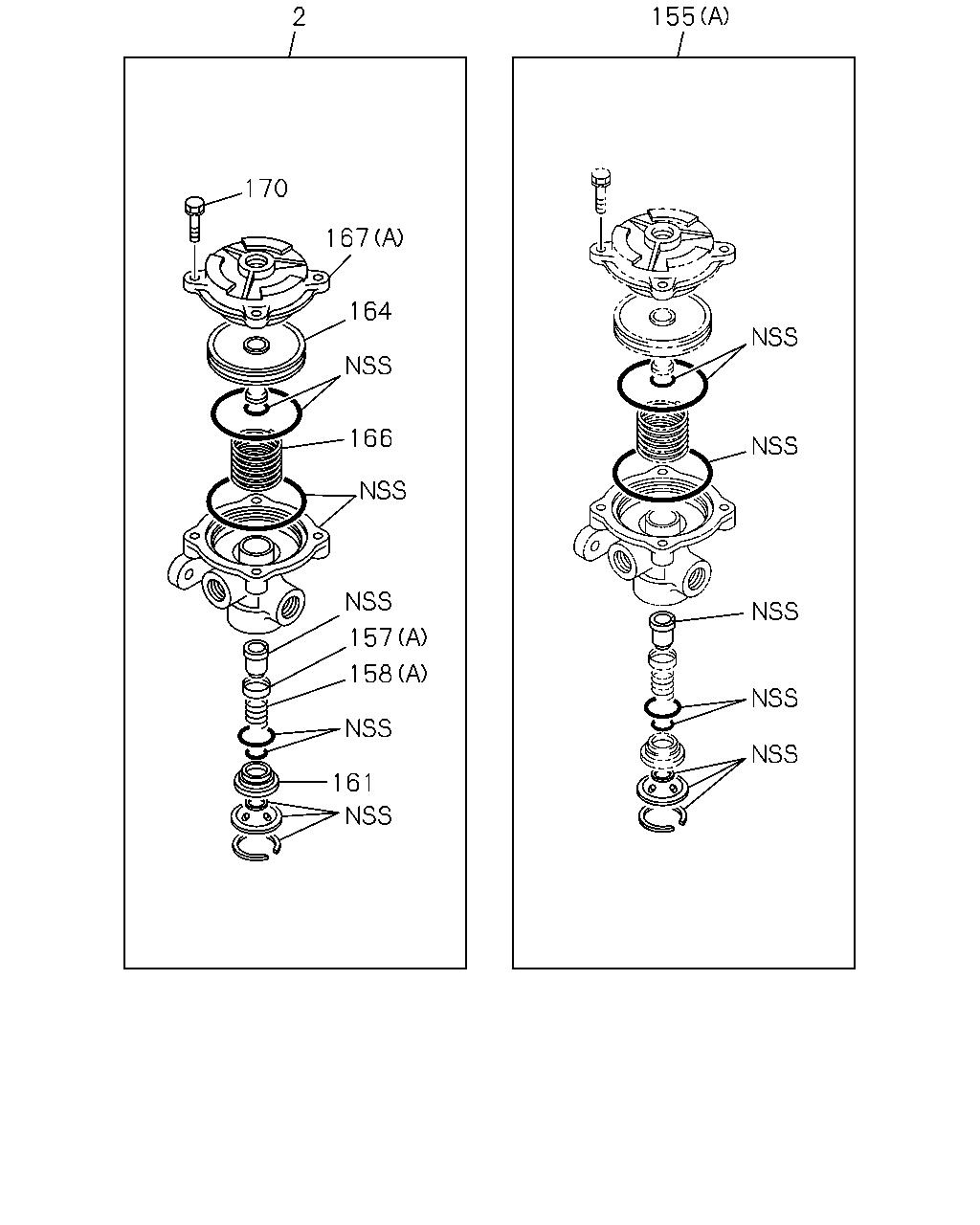

155 2 170 167 164 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA)	1-48210-875-0	02	1	1004-1108	●
2	VALVE; RELAY ANTILOCK BRAKE SYSTEM(BFA)	1-48210-875-0	02	1	1109-	●	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1004-1108	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1109-	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-033-0	02	1	1004-1108	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-033-0	02	1	1109-	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1004-1108	●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	1109-	●	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	02	1	1004-1108	●
157	RETAINER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48213-002-0	02	1	1109-	●	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1004-1108	●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	1109-	●	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1004-1108	●
158	SPRING; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-47819-089-0	02	1	1109-	●	●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	02	1	1004-1108	●
161	GUIDE; VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48129-014-0	02	1	1109-	●	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-071-0	02	1	1004-1108	●
164	PISTON; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA)	1-48219-071-0	02	1	1109-	●	●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	02	1	1004-1108	●
166	SPRING; PISTON ANTILOCK BRAKE SYSTEM(BFA)	1-47819-090-0	02	1	1109-	●	●
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1004-1108	●
167	COVER; VALVE (B) SOU	1-48119-625-0	04	1	1109-	●	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1004-1108	●
167	COVER; VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-48219-070-0	02	1	1109-	●	●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA) SOU	1-48219-039-0	08	1	1004-1108	●
170	SCREW; COVER TO BODY ANTILOCK BRAKE SYSTEM(BFA) SOU	1-48219-039-0	08	1	1109-	●	●

240

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1004-1108	●
	240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	1109-	●	●

155 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1004-1108	●
155	REPAIR KIT; RELAY VALVE (B)	1-85576-408-0	01	1	1109-	●	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-033-0	02	1	1004-1108	●
155	REPAIR KIT; RELAY VALVE ANTILOCK BRAKE SYSTEM(BFA) (A)	1-85576-033-0	02	1	1109-	●	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1004-1108	●
279	REPAIR KIT; SILENCER	1-85576-409-0	01	1	1109-	●	●

241

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	241	REPAIR KIT; PROTECTION VALVE SOU	1-85576-451-2	01	1	1004-1108	●
	241	REPAIR KIT; PROTECTION VALVE SOU	1-85576-451-2	01	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
