◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-20 - AIR TANK ▶
3-20 — AIR TANK (#18746) — 1101 parça

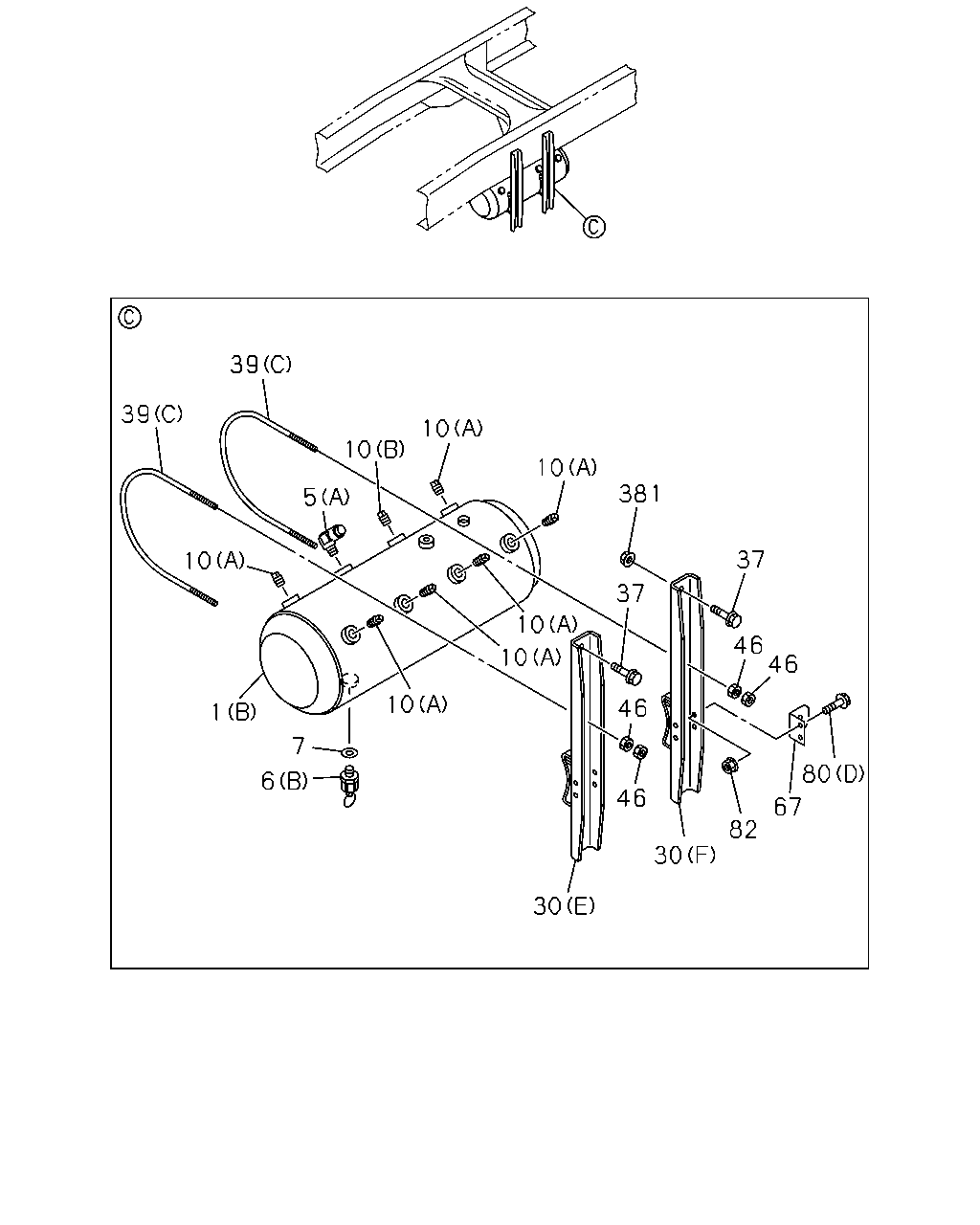

çizim 129247
39 39 10 10 10 381 5 37 10 37 10 46 46 10 10 46 1 7 80 6 46 67 82 30 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98187-713-0 02 1 1109- ●
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1004-1106 ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1109- ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1109- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1109- ●
1 TANK ASM; AIR
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (B) 		8-98187-713-0 01 1 1109- ●
1 TANK ASM; AIR
WHEEL BASE 6600MM(66W) (B) 		8-98187-713-0 01 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 05 1 1109- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1102-1108 ●
5 UNION; AIR TANK
ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1102-1108 ●
5 UNION; AIR TANK
WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1102-1108 ●
5 UNION; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1102-1108 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
5 UNION; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004-1108 ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 03 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1109- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1109- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1206- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 07 1 1109- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1109- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1004- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 06 1 1004-1108 ●
10 PLUG; AIR TANK
WHEEL BASE 6600MM(66W) (A) PT3/8 		9-09204-517-0 06 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8 		9-09204-517-0 06 1 1109- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004-1108 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004-1108 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1109- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4 		9-99204-513-0 01 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 6600MM(66W) (B) PT1/4 		9-99204-513-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(G) 		8-97619-246-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(H) 		8-97619-247-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(E) 		8-98099-710-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(F) 		8-98099-711-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (C) 		8-97618-393-0 01 1 1102- ●
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (D) 		8-97618-394-0 02 1 1102- ●
37 BOLT; AIR TANK
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1109- ●
37 BOLT; AIR TANK
WHEEL BASE 6600MM(66W) M10X25 FLANGE SOU 		0-28651-025-0 08 1 1004-1101 ●
37 BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) M10X25 FLANGE SOU 		0-28651-025-0 08 1 1102- ●
37 BOLT; AIR TANK
WHEEL BASE 6600MM(66W) M10X40 FLANGE SOU 		0-28651-040-0 04 1 1004-1101 ●
37 BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE SOU 		0-28651-040-0 04 1 1102- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1109- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1109- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1109- ● ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1109- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004-1108 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 16 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1206- ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ●
67 STAY; SUB TANK 8-98099-781-0 01 1 1109- ●
80 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ●
80 BOLT; BRKT
(D) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
80 BOLT; BRKT
(B) M12X35 FLANGE SOU 		0-28651-235-0 02 1 1004- ●
82 NUT; STAY,AIR MASTER BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ●
381 NUT; SUB TANK
M12 FLANGE SOU 		0-91180-212-0 02 1 1109- ●

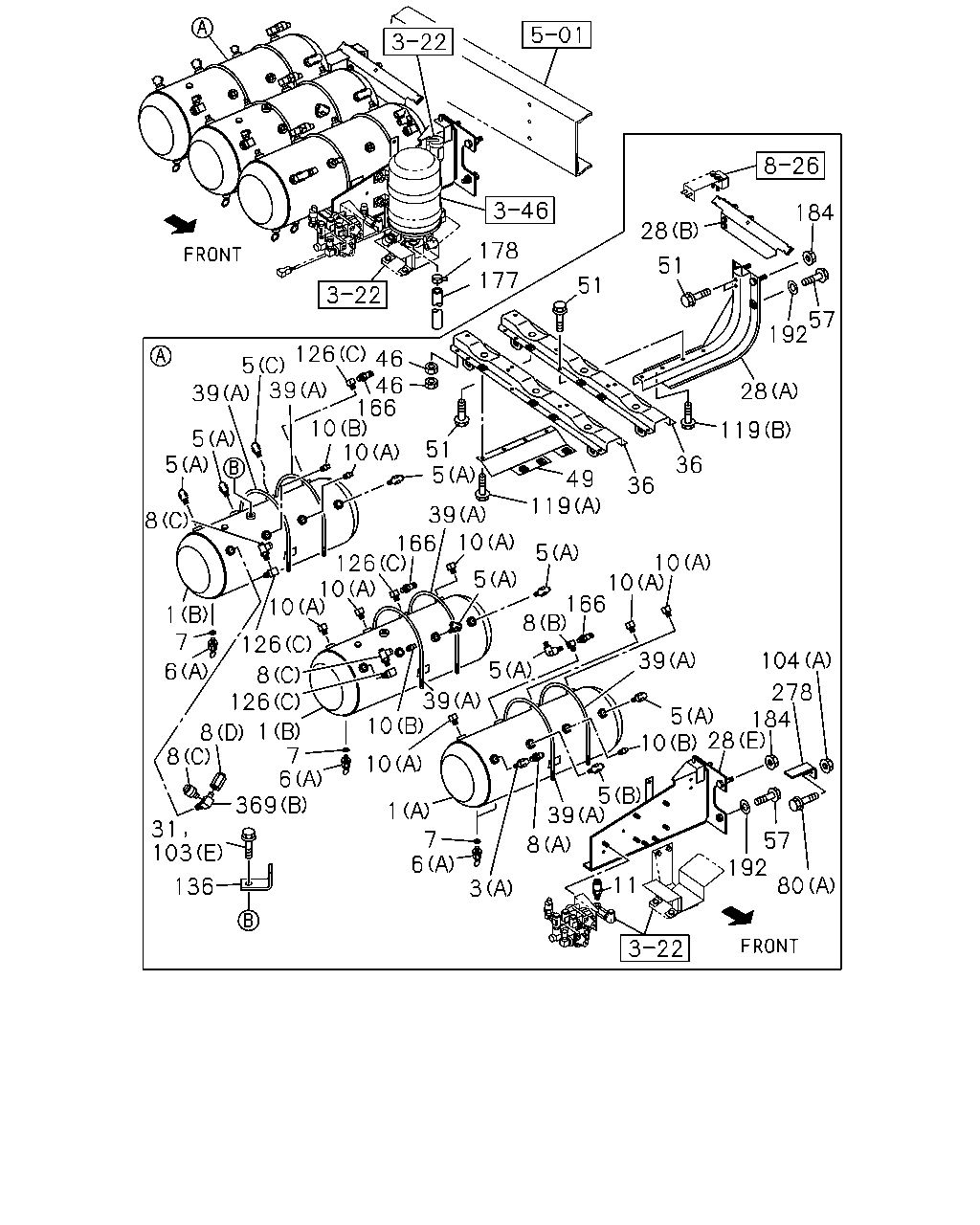

çizim 129249
184 28 178 51 177 51 57 192 126 46 46 166 10 10 5 39 28 39 119 5 5 51 5 36 49 11 36 8 39 10 166 126 10 5 10 5 10 166 8 10 1 7 126 39 104 5 6 39 10 8 126 278 184 28 5 10 1 7 6 369 8 8 10 5 1 39 31 103 7 6 57 192 8 11 80 136 3
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98187-713-0 02 1 1109- ●
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1004-1106 ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1109- ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1109- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1109- ●
1 TANK ASM; AIR
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (B) 		8-98187-713-0 01 1 1109- ●
1 TANK ASM; AIR
WHEEL BASE 6600MM(66W) (B) 		8-98187-713-0 01 1 1109- ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY SOU 		8-98032-527-0 01 1 1109- ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1004-1108 ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1109- ● ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 05 1 1109- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1102-1108 ●
5 UNION; AIR TANK
ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1102-1108 ●
5 UNION; AIR TANK
WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1102-1108 ●
5 UNION; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1102-1108 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
5 UNION; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004-1108 ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 03 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1109- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1109- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1206- ●
8 CONNECTOR; AIR TANK
(D) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1109- ●
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1004-1101 ●
8 CONNECTOR; AIR TANK
EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1102-1108 ●
8 CONNECTOR; AIR TANK
EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1109- ● ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ● ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 07 1 1109- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1109- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1004- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 06 1 1004-1108 ●
10 PLUG; AIR TANK
WHEEL BASE 6600MM(66W) (A) PT3/8 		9-09204-517-0 06 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8 		9-09204-517-0 06 1 1109- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004-1108 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004-1108 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1109- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4 		9-99204-513-0 01 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 6600MM(66W) (B) PT1/4 		9-99204-513-0 01 1 1109- ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1004-1108 ●
11 VALVE; SAFETY,AIR TANK 1-48320-012-2 01 1 1109- ● ●
28 BRACKET; AIR TANK
WHEEL BASE 5000MM(50W) (F) 		8-98100-984-0 01 1 1109- ●
28 BRACKET; AIR TANK
(G) 		8-98085-710-0 01 1 1109- ●
28 BRACKET; AIR TANK
(H) 		8-98100-973-1 02 1 1109- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-837-1 01 1 1004- ●
28 BRACKET; AIR TANK
(F) 		8-98100-985-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
WHEEL BASE 6600MM(66W) (F) 		8-98100-985-0 01 1 1109- ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1109- ● ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1004- ●
36 STAY; MAIN TANK 8-97618-091-1 02 1 1004-1108 ●
36 STAY; MAIN TANK 8-97618-091-1 02 1 1109- ● ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1109- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1109- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1109- ● ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1109- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004-1108 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 16 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1206- ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ●
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1004-1108 ●
49 BRACKET; AIR TANK 8-98110-683-0 01 1 1109- ● ●
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1004-1108 ●
51 BOLT; STAY TO BRKT
M8X20 FLANGE 		0-28650-820-0 10 1 1109- ● ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1004-1108 ●
57 BOLT; BRKT,AIR TANK TO FRAME
M14X45 		1-09000-764-0 04 1 1109- ● ●
80 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ●
80 BOLT; BRKT
(D) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
80 BOLT; BRKT
(B) M12X35 FLANGE SOU 		0-28651-235-0 02 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
103 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
103 BOLT; BRKT
(F) M12X35 FLANGE SOU 		0-28651-235-0 04 1 1109- ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1004-1108 ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1109- ● ●
103 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
104 NUT; BRKT
(D) M12 FLANGE SOU 		0-91180-212-0 04 1 1109- ●
104 NUT; BRKT
(B) M10 SOU 		0-91110-510-0 04 1 1004-1108 ●
104 NUT; BRKT
(B) M10 SOU 		0-91110-510-0 04 1 1109- ● ●
104 NUT; BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
104 NUT; BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
104 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ●
104 NUT; BRKT
(D) M12 FLANGE SOU 		0-91180-212-0 02 1 1004- ●
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1004-1108 ●
119 BOLT; STAY
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1109- ● ●
119 BOLT; STAY
(B) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1004-1108 ●
119 BOLT; STAY
(B) M8X25 FLANGE SOU 		0-28650-825-0 03 1 1109- ● ●
126 CONNECTOR; ELBOW
EXC. BRAKE SYSTEM RETARDER<RE2> (I) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(F) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1109-1206 ●
126 CONNECTOR; ELBOW
BRAKE SYSTEM RETARDER<RE2> (G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(H) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ●
126 CONNECTOR; ELBOW
ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1102- ●
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1004-1504 ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1004-1108 ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1109- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004-1108 ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004-1108 ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004-1108 ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1109- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1109- ● ●
166 SWITCH ASM; LOW PRESSURE,MAIN TANK
STAMP 5.5 SOU 		8-97609-249-0 01 1 1109- ● ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 SOU 		0-03566-300-0 01 1 1004-1108 ●
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 SOU 		0-03566-300-0 01 1 1109- ● ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1004-1108 ●
178 CLIP; HOSE
ID=21 		8-94242-034-0 01 1 1109- ● ●
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1004-1108 ●
184 NUT; BRKT
M14 		1-09440-072-0 04 1 1109- ● ●
192 WASHER; LK,BRKT
ID=14.2 SOU 		0-91510-514-0 08 1 1004-1108 ●
192 WASHER; LK,BRKT
ID=14.2 SOU 		0-91510-514-0 08 1 1109- ● ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1004-1108 ●
278 BRACKET; CONNECTOR
L=75 		1-47478-323-0 01 1 1109- ● ●
369 CONNECTOR; 3WAY
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1109- ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 3WAY SOU 		1-09661-300-0 02 1 1004-1108 ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 3WAY SOU 		1-09661-300-0 02 1 1109- ● ●

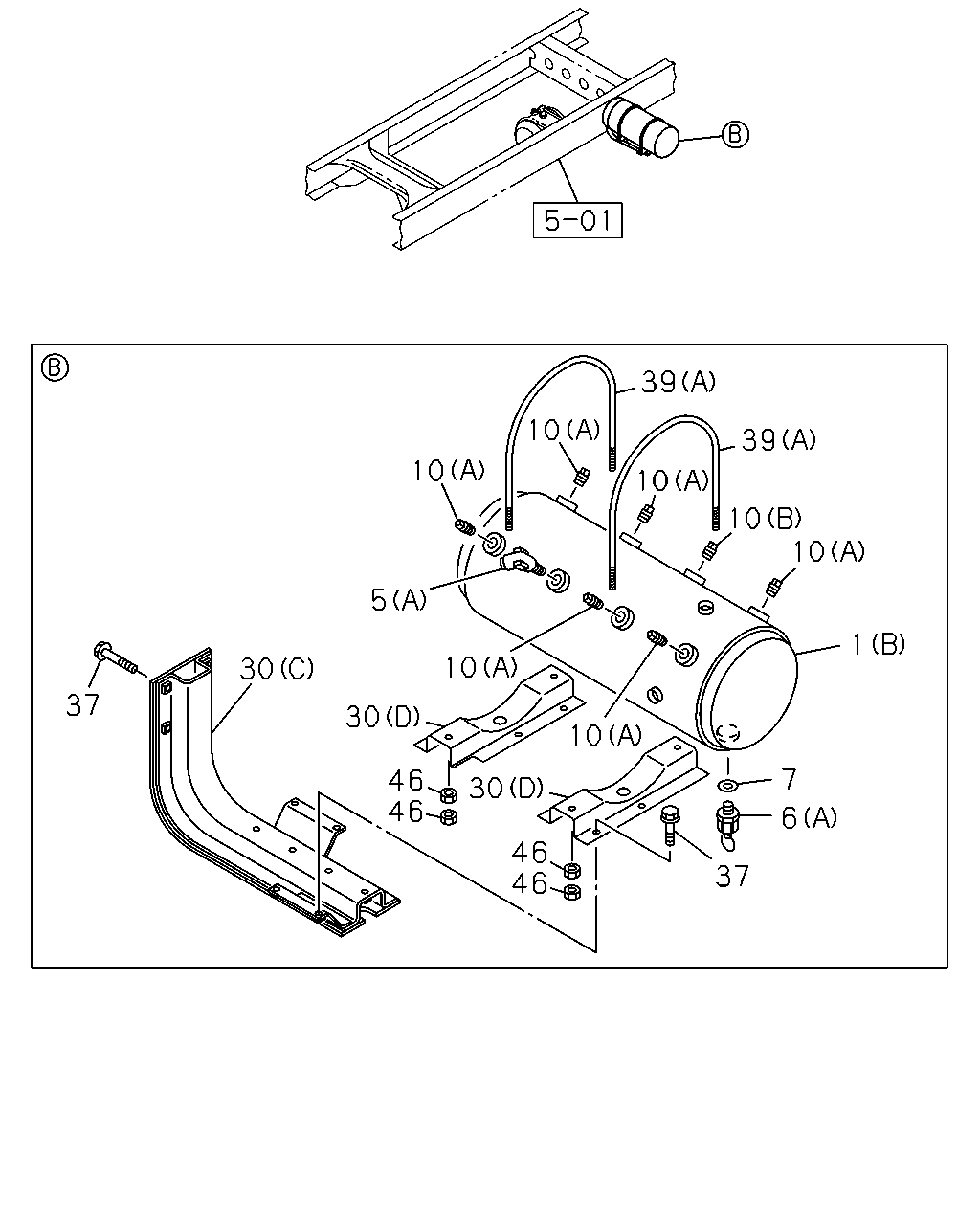

çizim 129267
39 10 39 10 10 10 10 5 1 10 30 37 30 10 7 46 46 30 6 46 46 37
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK ASM; AIR
(B) 		8-98187-713-0 02 1 1109- ●
1 TANK ASM; AIR
(A) 		8-97617-854-0 01 1 1004-1106 ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(A) 		8-98187-712-0 01 1 1109- ● ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-97617-855-1 01 1 1004-1106 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1107-1108 ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1109- ● ●
1 TANK ASM; AIR
(B) 		8-98187-713-0 01 1 1109- ●
1 TANK ASM; AIR
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (B) 		8-98187-713-0 01 1 1109- ●
1 TANK ASM; AIR
WHEEL BASE 6600MM(66W) (B) 		8-98187-713-0 01 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 05 1 1109- ●
5 UNION; AIR TANK
(C) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1102-1108 ●
5 UNION; AIR TANK
ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1102-1108 ●
5 UNION; AIR TANK
WHEEL BASE 6600MM(66W) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1004- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1101 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1102-1108 ●
5 UNION; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1102-1108 ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
5 UNION; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ●
5 UNION; AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1004-1108 ●
5 UNION; AIR TANK
(B) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 03 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1109- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1109- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1206- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 07 1 1109- ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 02 1 1109- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 01 1 1004- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 06 1 1004-1108 ●
10 PLUG; AIR TANK
WHEEL BASE 6600MM(66W) (A) PT3/8 		9-09204-517-0 06 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) PT3/8 		9-09204-517-0 06 1 1109- ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004-1108 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004-1108 ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1109- ● ●
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1004-1108 ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ● ●
10 PLUG; AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (B) PT1/4 		9-99204-513-0 01 1 1109- ●
10 PLUG; AIR TANK
WHEEL BASE 6600MM(66W) (B) PT1/4 		9-99204-513-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(G) 		8-97619-246-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(H) 		8-97619-247-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(E) 		8-98099-710-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(F) 		8-98099-711-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (C) 		8-97618-393-0 01 1 1102- ●
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (D) 		8-97618-394-0 02 1 1102- ●
37 BOLT; AIR TANK
M12X35 FLANGE SOU 		0-28651-235-0 04 1 1109- ●
37 BOLT; AIR TANK
WHEEL BASE 6600MM(66W) M10X25 FLANGE SOU 		0-28651-025-0 08 1 1004-1101 ●
37 BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) M10X25 FLANGE SOU 		0-28651-025-0 08 1 1102- ●
37 BOLT; AIR TANK
WHEEL BASE 6600MM(66W) M10X40 FLANGE SOU 		0-28651-040-0 04 1 1004-1101 ●
37 BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) M10X40 FLANGE SOU 		0-28651-040-0 04 1 1102- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1109- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1109- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1109- ● ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1109- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004-1108 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 16 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1206- ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ●

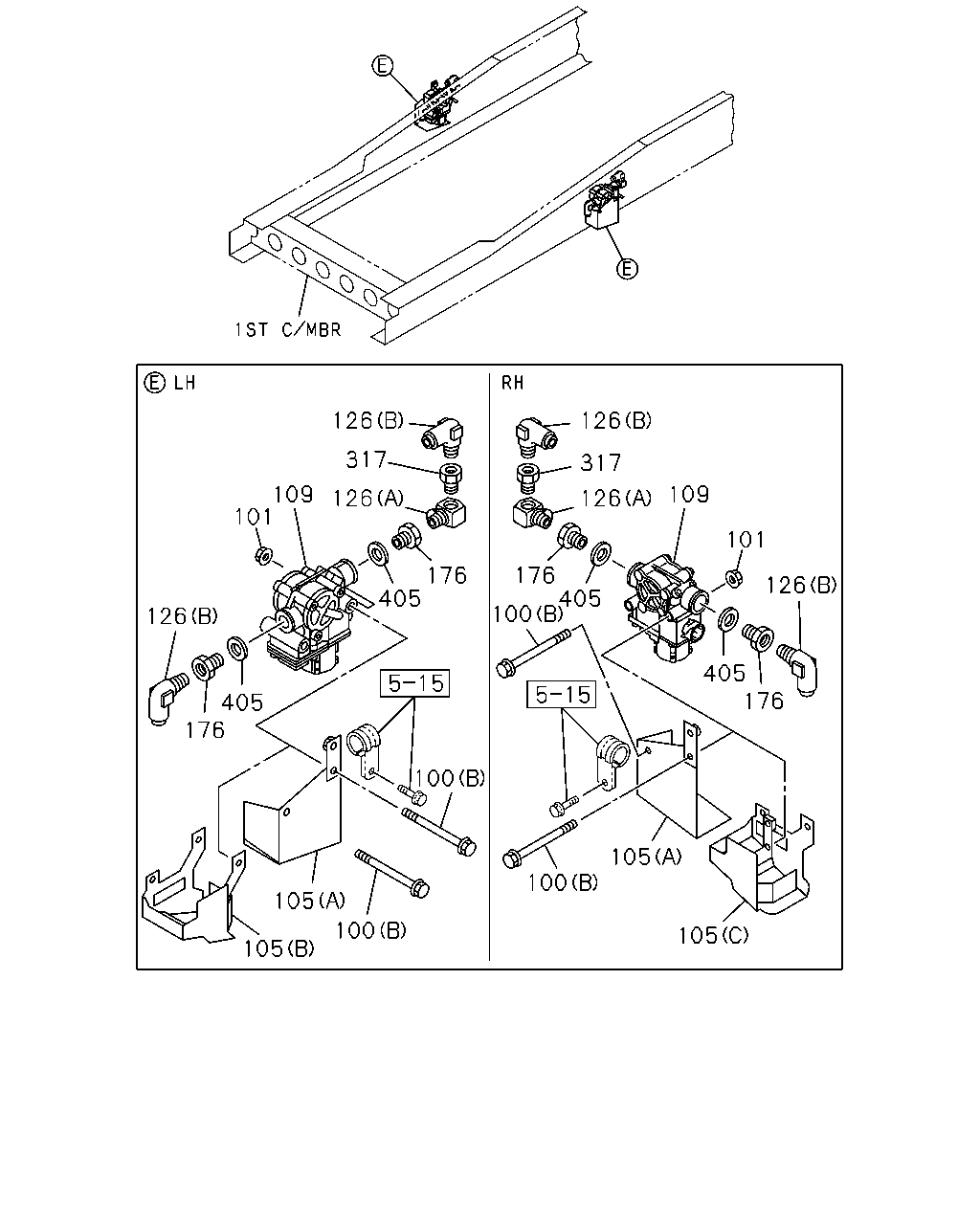

çizim 129272
126 126 317 109 101 126 405 176 105 100 105 100 176 405 126 317 176 100 126 405 105 100 105 176 405 126 101 109
BalonParca AdiParca NoAdetTipApplied Date A B
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1108 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1109- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X140 FLANGE 		0-28055-814-0 02 1 1004-1108 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X140 FLANGE 		0-28055-814-0 02 1 1109- ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 1004-1108 ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98061-815-0 01 1 1109-1504 ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) 		8-98300-152-0 01 1 1505- ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 1004-1108 ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) 		8-98081-578-0 01 1 1109-1504 ● ●
105 COVER; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (C) 		8-98300-153-0 01 1 1505- ● ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1004-1108 ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1109-1504 ● ●
109 MODULATOR; FRT
ANTILOCK BRAKE SYSTEM(BFA) SOU 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
EXC. BRAKE SYSTEM RETARDER<RE2> (I) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(F) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1109-1206 ●
126 CONNECTOR; ELBOW
BRAKE SYSTEM RETARDER<RE2> (G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(H) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ●
126 CONNECTOR; ELBOW
ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1102- ●
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1004-1504 ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 02 1 1004-1108 ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 02 1 1109- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004-1108 ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1109- ● ●
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 1004-1108 ●
317 CONNECTOR; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) PT3/8 		1-09664-210-0 01 1 1109- ● ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 04 1 1004-1108 ●
405 GASKET
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 04 1 1109- ● ●

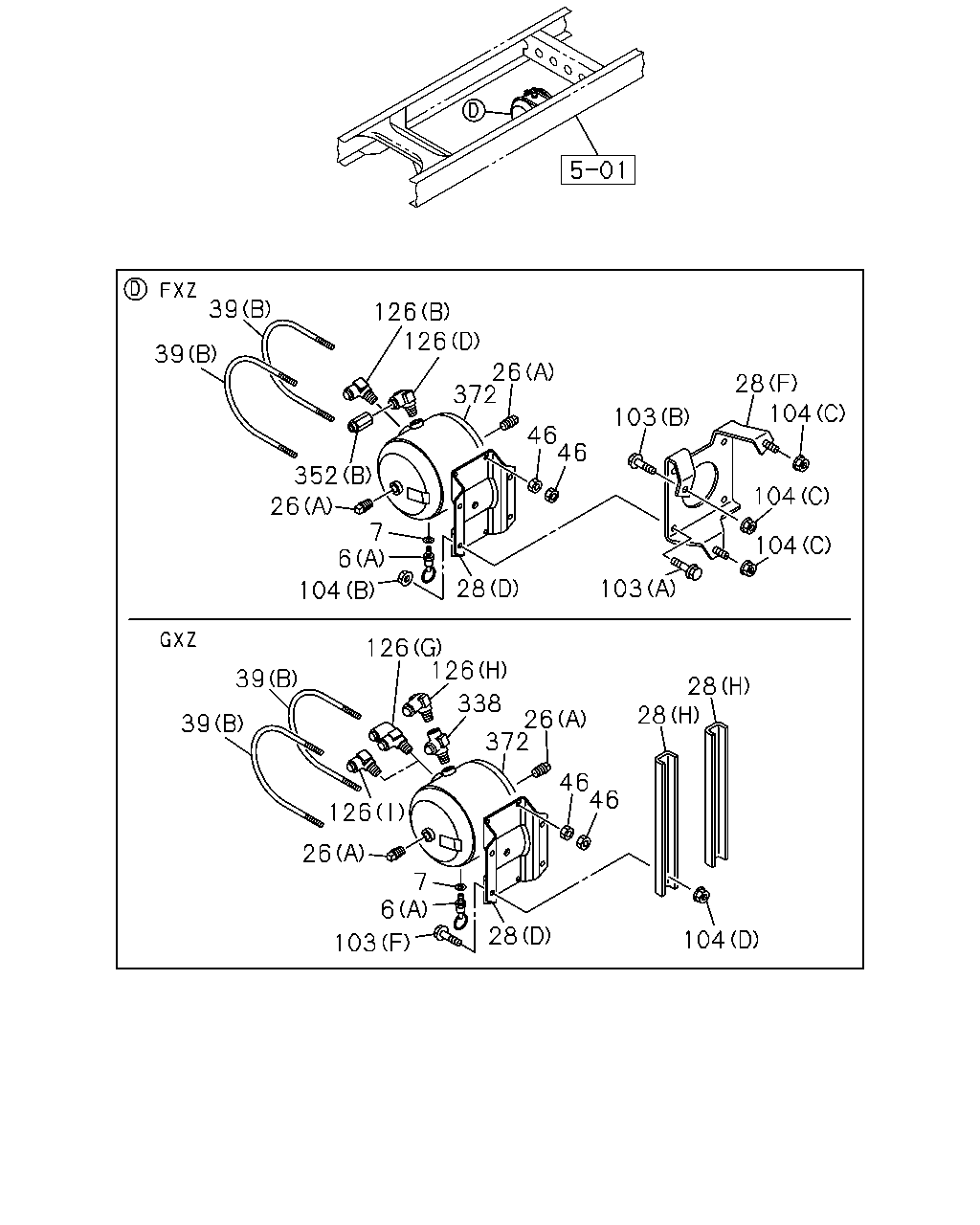

çizim 129304
28 104 104 103 46 46 26 372 126 126 39 39 352 26 6 104 28 7 103 28 28 46 46 26 372 338 126 126 39 39 126 26 6 103 7 28 104 104
BalonParca AdiParca NoAdetTipApplied Date A B
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 03 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1109- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1109- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1206- ●
26 PLUG; SUB AIR TANK
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		0-92004-817-0 02 1 1207-1404 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1109-1205 ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004-1205 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1206-1206 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1206-1206 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1207-1404 ● ●
26 PLUG; SUB AIR TANK
BRAKE SYSTEM RETARDER<RE2> (A) PT3/8 		9-09204-517-0 02 1 1207-1404 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1405- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1405- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ●
28 BRACKET; AIR TANK
WHEEL BASE 5000MM(50W) (F) 		8-98100-984-0 01 1 1109- ●
28 BRACKET; AIR TANK
(G) 		8-98085-710-0 01 1 1109- ●
28 BRACKET; AIR TANK
(H) 		8-98100-973-1 02 1 1109- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-837-1 01 1 1004- ●
28 BRACKET; AIR TANK
(F) 		8-98100-985-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
WHEEL BASE 6600MM(66W) (F) 		8-98100-985-0 01 1 1109- ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1109- ● ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1109- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1109- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1109- ● ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1109- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004-1108 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 16 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1206- ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
103 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
103 BOLT; BRKT
(F) M12X35 FLANGE SOU 		0-28651-235-0 04 1 1109- ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1004-1108 ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1109- ● ●
103 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
104 NUT; BRKT
(D) M12 FLANGE SOU 		0-91180-212-0 04 1 1109- ●
104 NUT; BRKT
(B) M10 SOU 		0-91110-510-0 04 1 1004-1108 ●
104 NUT; BRKT
(B) M10 SOU 		0-91110-510-0 04 1 1109- ● ●
104 NUT; BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
104 NUT; BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
104 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ●
104 NUT; BRKT
(D) M12 FLANGE SOU 		0-91180-212-0 02 1 1004- ●
126 CONNECTOR; ELBOW
EXC. BRAKE SYSTEM RETARDER<RE2> (I) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(F) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1109-1206 ●
126 CONNECTOR; ELBOW
BRAKE SYSTEM RETARDER<RE2> (G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(H) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ●
126 CONNECTOR; ELBOW
ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1102- ●
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1004-1504 ●
338 CONNECTOR; 3WAY VLV
DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 1109- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1109-1504 ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1505- ● ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 02 1 1004-1108 ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 02 1 1109- ● ●
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1004-1108 ●
372 TANK; AIR,ACCESORY 8-98090-803-1 01 1 1109- ● ●
çizim 129452
131 137 137 29 137 126 126 126 126 137 46 80 46 126 8 26 26 167 126 30 46 28 46 80 26 30 2 126 3 7 39 39 6 369 126 352 103 102 176 257 126 107 176 257 107 352 352 369 352 100
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR 8-97617-855-1 01 1 1004-1106 ●
2 TANK; AIR 8-98187-713-0 01 1 1107-1108 ●
2 TANK; AIR 8-98187-713-0 01 1 1109- ● ●
3 VALVE; CHECK,AIR TANK
(B) DIN18 & R3/8 & RC3/8 3WAY SOU 		8-98032-527-0 01 1 1109- ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1004-1108 ●
3 VALVE; CHECK,AIR TANK
(A) 		1-48320-031-1 01 1 1109- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 03 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1109- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1109- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1206- ●
8 CONNECTOR; AIR TANK
(D) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1109- ●
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1004-1101 ●
8 CONNECTOR; AIR TANK
EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1102-1108 ●
8 CONNECTOR; AIR TANK
EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1109- ● ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ● ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ●
26 PLUG; SUB AIR TANK
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		0-92004-817-0 02 1 1207-1404 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1109-1205 ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004-1205 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1206-1206 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1206-1206 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1207-1404 ● ●
26 PLUG; SUB AIR TANK
BRAKE SYSTEM RETARDER<RE2> (A) PT3/8 		9-09204-517-0 02 1 1207-1404 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1405- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1405- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ●
28 BRACKET; AIR TANK
WHEEL BASE 5000MM(50W) (F) 		8-98100-984-0 01 1 1109- ●
28 BRACKET; AIR TANK
(G) 		8-98085-710-0 01 1 1109- ●
28 BRACKET; AIR TANK
(H) 		8-98100-973-1 02 1 1109- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-837-1 01 1 1004- ●
28 BRACKET; AIR TANK
(F) 		8-98100-985-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
WHEEL BASE 6600MM(66W) (F) 		8-98100-985-0 01 1 1109- ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1109- ● ●
29 BRACKET; AIR TANK 8-97619-245-1 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(G) 		8-97619-246-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(H) 		8-97619-247-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(E) 		8-98099-710-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(F) 		8-98099-711-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (C) 		8-97618-393-0 01 1 1102- ●
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (D) 		8-97618-394-0 02 1 1102- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1109- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1109- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1109- ● ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1109- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004-1108 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 16 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1206- ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ●
80 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ●
80 BOLT; BRKT
(D) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
80 BOLT; BRKT
(B) M12X35 FLANGE SOU 		0-28651-235-0 02 1 1004- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1108 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1109- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X140 FLANGE 		0-28055-814-0 02 1 1004-1108 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X140 FLANGE 		0-28055-814-0 02 1 1109- ● ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47471-372-0 01 1 1109-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98300-012-0 01 1 1505- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98034-539-2 01 1 1004-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98272-821-0 01 1 1505- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
103 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
103 BOLT; BRKT
(F) M12X35 FLANGE SOU 		0-28651-235-0 04 1 1109- ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1004-1108 ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1109- ● ●
103 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1004-1108 ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1109-1504 ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
EXC. BRAKE SYSTEM RETARDER<RE2> (I) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(F) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1109-1206 ●
126 CONNECTOR; ELBOW
BRAKE SYSTEM RETARDER<RE2> (G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(H) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ●
126 CONNECTOR; ELBOW
ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1102- ●
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1004-1504 ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 01 1 1109- ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 04 1 1004- ●
137 BOLT; BRKT
M12X35 FLANGE SOU 		0-28651-235-0 06 1 1109- ●
137 BOLT; BRKT
M12X30 FLANGE SOU 		0-28651-230-0 02 1 1004-1108 ●
137 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 6600MM(66W) M12X30 FLANGE SOU 		0-28651-230-0 02 1 1109- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004-1108 ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 SOU 		8-97609-249-0 01 1 1109- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 02 1 1004-1108 ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 02 1 1109- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004-1108 ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1109- ● ●
257 GASKET; PLUG
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 02 1 1004-1108 ●
257 GASKET; PLUG
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 02 1 1109- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1109-1504 ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1505- ● ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 02 1 1004-1108 ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 02 1 1109- ● ●
369 CONNECTOR; 3WAY
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1109- ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 3WAY SOU 		1-09661-300-0 02 1 1004-1108 ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 3WAY SOU 		1-09661-300-0 02 1 1109- ● ●
çizim 129461
104 28 26 31 27 27 46 46 80 26 136 27 26 46 46 126 39 131 137 30 167 7 6 2 126 8 39 30 126 352 103 369 102 176 257 126 107 176 257 100 107 352 369 126 101 126 101
BalonParca AdiParca NoAdetTipApplied Date A B
2 TANK; AIR 8-97617-855-1 01 1 1004-1106 ●
2 TANK; AIR 8-98187-713-0 01 1 1107-1108 ●
2 TANK; AIR 8-98187-713-0 01 1 1109- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 03 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(B) 		1-48312-017-0 01 1 1109- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 02 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1004-1108 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1109-1205 ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ● ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
(A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) 		1-48312-015-0 01 1 1206- ●
6 COCK; DRAIN,AIR TANK
WHEEL BASE 6600MM(66W) (A) 		1-48312-015-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 03 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 1109- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1004-1108 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1109-1205 ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ● ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) ID=14 		1-09630-145-0 01 1 1206- ●
7 GASKET; DRAIN COCK
WHEEL BASE 6600MM(66W) ID=14 		1-09630-145-0 01 1 1206- ●
8 CONNECTOR; AIR TANK
(D) DIN12 & M16 STRAIGHT SOU 		1-09660-876-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 02 1 1109- ●
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1004-1101 ●
8 CONNECTOR; AIR TANK
EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1102-1108 ●
8 CONNECTOR; AIR TANK
EXC. ENGINE REAR PTO(SV1) (B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(B) PT3/8X2 & PT1/4 3WAY SOU 		1-09656-708-0 01 1 1109- ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 01 1 1109- ● ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1004-1108 ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ● ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ●
8 CONNECTOR; AIR TANK
(C) R1/4 & M16 TEST CONNECTOR 		1-47459-013-1 01 1 1109- ●
26 PLUG; SUB AIR TANK
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		0-92004-817-0 02 1 1207-1404 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 04 1 1109-1205 ●
26 PLUG; SUB AIR TANK
(B) PT1/4 		9-99204-513-0 01 1 1109- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1004-1205 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1206-1206 ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1206-1206 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1207-1404 ● ●
26 PLUG; SUB AIR TANK
BRAKE SYSTEM RETARDER<RE2> (A) PT3/8 		9-09204-517-0 02 1 1207-1404 ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1405- ● ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1405- ●
26 PLUG; SUB AIR TANK
(A) PT3/8 		9-09204-517-0 03 1 1004- ●
27 UNION; ELBOW,AIR TANK
(C) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1004- ●
27 UNION; ELBOW,AIR TANK
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 01 1 1004- ●
27 UNION; ELBOW,AIR TANK
(A) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
28 BRACKET; AIR TANK
WHEEL BASE 5000MM(50W) (F) 		8-98100-984-0 01 1 1109- ●
28 BRACKET; AIR TANK
(G) 		8-98085-710-0 01 1 1109- ●
28 BRACKET; AIR TANK
(H) 		8-98100-973-1 02 1 1109- ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(A) 		8-97618-088-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(D) SOU 		8-98092-756-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(E) 		8-98093-562-1 01 1 1109- ● ●
28 BRACKET; AIR TANK
(C) 		8-98100-837-1 01 1 1004- ●
28 BRACKET; AIR TANK
(F) 		8-98100-985-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
WHEEL BASE 6600MM(66W) (F) 		8-98100-985-0 01 1 1109- ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1004-1108 ●
28 BRACKET; AIR TANK
(B) 		8-98112-257-0 01 1 1109- ● ●
30 BRACKET; AIR TANK,SUB
(G) 		8-97619-246-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(H) 		8-97619-247-2 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(E) 		8-98099-710-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(F) 		8-98099-711-0 01 1 1109- ●
30 BRACKET; AIR TANK,SUB
(A) 		8-97618-390-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(B) 		8-97618-391-1 01 1 1004- ●
30 BRACKET; AIR TANK,SUB
(C) 		8-97618-393-0 01 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (C) 		8-97618-393-0 01 1 1102- ●
30 BRACKET; AIR TANK,SUB
(D) 		8-97618-394-0 02 1 1004-1101 ●
30 BRACKET; AIR TANK,SUB
EXC. ENGINE REAR PTO(SV1) (D) 		8-97618-394-0 02 1 1102- ●
31 BOLT; BRKT TO FRAME
M8X20 FLANGE 		0-28650-820-0 01 1 1004- ●
39 U-BOLT; AIR TANK
(C) 		1-48317-289-0 02 1 1109- ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1004-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 06 1 1109- ● ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1004-1101 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1102-1108 ●
39 U-BOLT; AIR TANK
(A) L=253 		1-48317-248-1 02 1 1109- ● ●
39 U-BOLT; AIR TANK
EXC. ENGINE REAR PTO(SV1) (A) L=253 		1-48317-248-1 02 1 1109- ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1004-1108 ●
39 U-BOLT; AIR TANK
(B) L=210 		1-48317-458-1 02 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 16 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1004-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 24 1 1109- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1004-1101 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1102-1108 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1109-1205 ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ● ●
46 NUT; U-BOLT
EXC. ENGINE REAR PTO(SV1) M8 SOU 		0-91110-508-0 08 1 1206- ●
46 NUT; U-BOLT
M8 SOU 		0-91110-508-0 08 1 1206- ●
80 BOLT; BRKT
(C) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ●
80 BOLT; BRKT
(D) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
80 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
80 BOLT; BRKT
(B) M12X35 FLANGE SOU 		0-28651-235-0 02 1 1004- ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1004-1108 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (B) M8X80 FLANGE SOU 		0-28050-880-0 04 1 1109- ● ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X140 FLANGE 		0-28055-814-0 02 1 1004-1108 ●
100 BOLT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) (A) M8X140 FLANGE 		0-28055-814-0 02 1 1109- ● ●
101 NUT; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU 		0-91180-108-0 02 1 1004- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		1-47471-372-0 01 1 1109-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98300-012-0 01 1 1505- ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98034-539-2 01 1 1004-1504 ●
102 BRACKET; MODULATOR
ANTILOCK BRAKE SYSTEM(BFA) 		8-98272-821-0 01 1 1505- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (D) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
103 BOLT; BRKT
(E) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
103 BOLT; BRKT
(F) M12X35 FLANGE SOU 		0-28651-235-0 04 1 1109- ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1004-1108 ●
103 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 04 1 1109- ● ●
103 BOLT; BRKT
(B) M10X30 FLANGE SOU 		0-28651-030-0 01 1 1004- ●
103 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (C) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004- ●
104 NUT; BRKT
(D) M12 FLANGE SOU 		0-91180-212-0 04 1 1109- ●
104 NUT; BRKT
(B) M10 SOU 		0-91110-510-0 04 1 1004-1108 ●
104 NUT; BRKT
(B) M10 SOU 		0-91110-510-0 04 1 1109- ● ●
104 NUT; BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
104 NUT; BRKT
(A) M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
104 NUT; BRKT
(C) M10 FLANGE SOU 		0-91180-210-0 03 1 1004- ●
104 NUT; BRKT
(D) M12 FLANGE SOU 		0-91180-212-0 02 1 1004- ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1004-1108 ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		1-48240-115-0 02 1 1109-1504 ● ●
107 MODULATOR; RR
ANTILOCK BRAKE SYSTEM(BFA) SOU 		8-98215-454-0 02 1 1505- ● ●
126 CONNECTOR; ELBOW
EXC. BRAKE SYSTEM RETARDER<RE2> (I) DIN8 & R3/8 ELBOW SOU 		1-09660-957-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(F) PT3/8 & PT3/8 ELBOW 		1-09660-778-1 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 03 1 1109- ●
126 CONNECTOR; ELBOW
(G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1109-1206 ●
126 CONNECTOR; ELBOW
BRAKE SYSTEM RETARDER<RE2> (G) DIN8X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-025-0 01 1 1207- ●
126 CONNECTOR; ELBOW
(H) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ●
126 CONNECTOR; ELBOW
ENGINE REAR PTO(SV1) (C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 01 1 1102- ●
126 CONNECTOR; ELBOW
(D) M12 & PT3/8 ELBOW SOU 		1-09650-436-0 01 1 1004- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(C) PT1/4 & PT3/8 2WAY SOU 		1-09660-809-0 02 1 1109- ●
126 CONNECTOR; ELBOW
(B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 01 1 1004- ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 ELBOW SOU 		1-09660-696-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 02 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1004-1108 ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (B) DIN12 & R3/8 ELBOW SOU 		1-09660-959-0 04 1 1109- ● ●
126 CONNECTOR; ELBOW
ANTILOCK BRAKE SYSTEM(BFA) (E) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1004-1504 ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 01 1 1109- ●
131 NUT; BRKT FIX
M12 FLANGE SOU 		0-91180-212-0 04 1 1004- ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1004-1108 ●
136 BRACKET; CLIP
L=55 B=25 		1-47478-439-0 01 1 1109- ● ●
137 BOLT; BRKT
M12X35 FLANGE SOU 		0-28651-235-0 06 1 1109- ●
137 BOLT; BRKT
M12X30 FLANGE SOU 		0-28651-230-0 02 1 1004-1108 ●
137 BOLT; BRKT
WHEEL BASE 5000MM(50W),WHEEL BASE 6600MM(66W) M12X30 FLANGE SOU 		0-28651-230-0 02 1 1109- ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 SOU 		8-97609-249-0 01 1 1004-1108 ●
167 SWITCH; LOW PRESS GAUGE,AIR TANK,SUB
STAMP 5.5 SOU 		8-97609-249-0 01 1 1109- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 02 1 1004-1108 ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 02 1 1109- ● ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1004-1108 ●
176 ADAPTER
ANTILOCK BRAKE SYSTEM(BFA) INNER PT3/8,OUTER M22 SOU 		1-09650-494-1 04 1 1109- ● ●
257 GASKET; PLUG
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 02 1 1004-1108 ●
257 GASKET; PLUG
ANTILOCK BRAKE SYSTEM(BFA) ID=22.5 SOU 		9-09571-422-0 02 1 1109- ● ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1109-1504 ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (C) DIN12 & M22 STRAIGHT SOU 		1-09661-050-0 02 1 1505- ● ●
352 CONNECTOR; STRAIGHT
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004- ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 02 1 1004-1108 ●
352 CONNECTOR; STRAIGHT
ANTILOCK BRAKE SYSTEM(BFA) (A) DIN12 & R3/8 STRAIGHT SOU 		1-09660-965-0 02 1 1109- ● ●
369 CONNECTOR; 3WAY
(B) M16 & PT1/4 & PT3/8 3WAY 		1-09656-677-0 01 1 1109- ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 3WAY SOU 		1-09661-300-0 02 1 1004-1108 ●
369 CONNECTOR; 3WAY
ANTILOCK BRAKE SYSTEM(BFA) (A) PT3/8 3WAY SOU 		1-09661-300-0 02 1 1109- ● ●
çizim 129496
241 158
BalonParca AdiParca NoAdetTipApplied Date A B
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1004-1108 ●
158 GROMMET; PIPE
OD=35 		8-94122-971-0 01 1 1109- ● ●
241 BOLT; SET,CONT VLV
M8X29.5 W/LK+PL WASHER 		8-94279-218-0 01 1 1109- ●
241 BOLT; SET,CONT VLV
M8X70 FLANGE SOU 		0-28050-870-0 02 1 1004- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
