◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#18744) — 106 parça

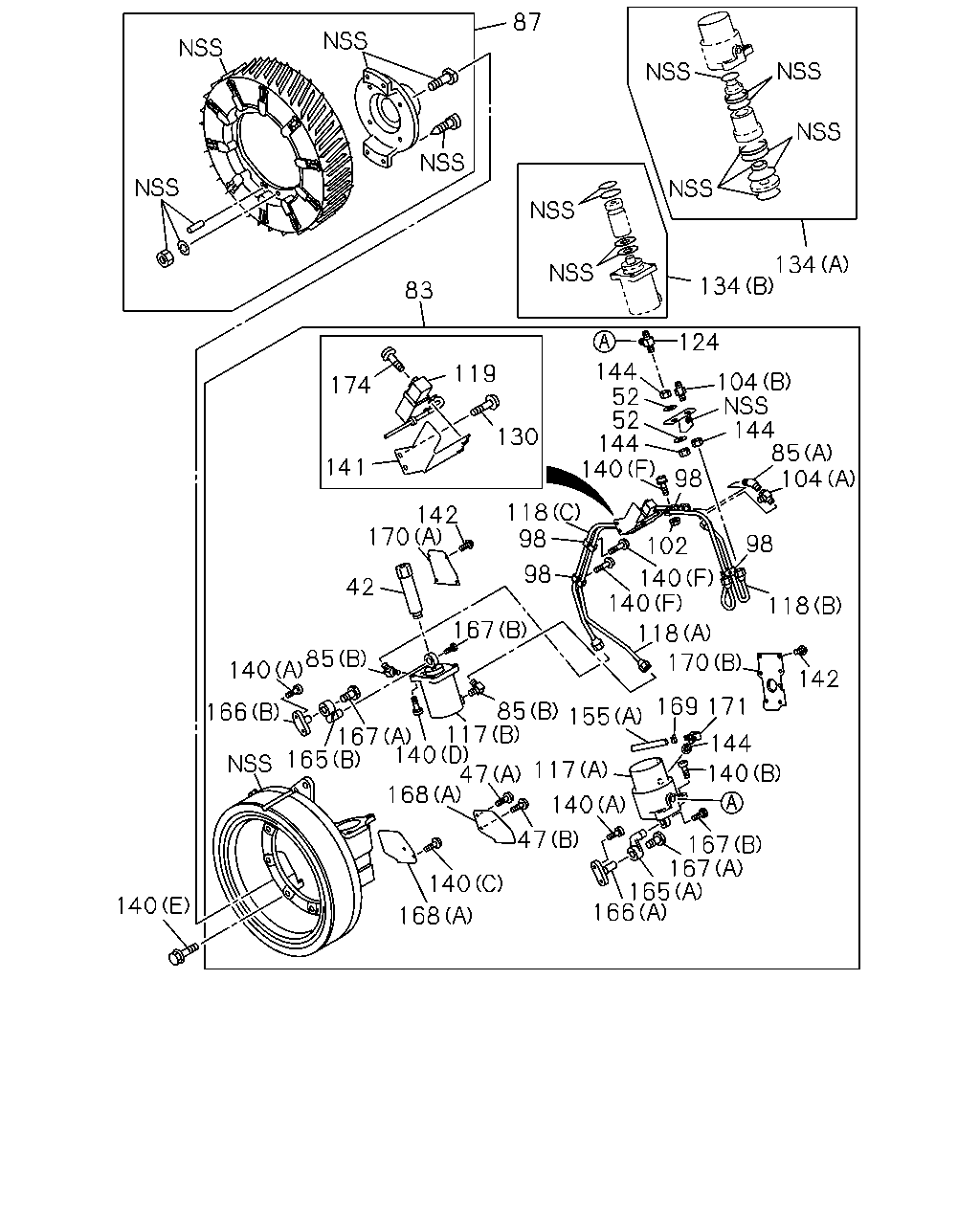

çizim 129467
140 168 166 165 167 167 140 144 171 142 170 118 118 140 140 98 102 104 85 144 104 124 144 52 52 144 140 98 118 98 98 169 155 140 117 47 140 168 140 117 85 167 42 170 142 130 119 83 174 141 85 140 166 165 167 134 134 87 47
BalonParca AdiParca NoAdetTipApplied Date
42 SPRING; RETURN,LEVER
GXZ(GG****) 		1-48629-071-1 01 1 1109-1206
42 SPRING; RETURN,LEVER
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-48629-071-1 01 1 1207-
47 BOLT; SUPPORT PLATE
GXZ(GG****) (B) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1109-1206
47 BOLT; SUPPORT PLATE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1207-
47 BOLT; SUPPORT PLATE
GXZ(GG****) (A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1109-1206
47 BOLT; SUPPORT PLATE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1207-
52 WASHER; PL
GXZ(GG****) ID=12.5 OD=26 		0-91610-612-0 02 1 1109-1206
52 WASHER; PL
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> ID=12.5 OD=26 		0-91610-612-0 02 1 1207-
83 RETARDER ASM; PARKING BRK
GXZ(GG****) 		1-46200-245-5 01 1 1109-1206
83 RETARDER ASM; PARKING BRK
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-46200-245-5 01 1 1207-
85 CONNECTOR; RETARDER
GXZ(GG****) (B) M12 & PT1/8 		0-92124-306-0 02 1 1109-1206
85 CONNECTOR; RETARDER
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) M12 & PT1/8 		0-92124-306-0 02 1 1207-
85 CONNECTOR; RETARDER
GXZ(GG****) (A) 		1-48629-150-0 01 1 1109-1206
85 CONNECTOR; RETARDER
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-150-0 01 1 1207-
87 DRUM; RETARDER,PARKING BRK
GXZ(GG****) 		1-48610-460-2 01 1 1109-1206
87 DRUM; RETARDER,PARKING BRK
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-48610-460-2 01 1 1207-
98 CLIP; AIR PIPE
GXZ(GG****) 		1-48629-131-0 06 1 1109-1206
98 CLIP; AIR PIPE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-48629-131-0 06 1 1207-
102 NUT; CLIP,AIR PIPE
GXZ(GG****) M6 FLANGE 		5-09440-004-0 01 1 1109-1206
102 NUT; CLIP,AIR PIPE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> M6 FLANGE 		5-09440-004-0 01 1 1207-
104 CONNECTOR
GXZ(GG****) (A) 		1-48629-149-0 01 1 1109-1206
104 CONNECTOR
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-149-0 01 1 1207-
104 CONNECTOR
GXZ(GG****) (B) 		1-48629-187-0 01 1 1109-1206
104 CONNECTOR
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-187-0 01 1 1207-
117 CYLINDER ASM; AIR
GXZ(GG****) (A) 		1-48629-142-0 01 1 1109-1206
117 CYLINDER ASM; AIR
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-142-0 01 1 1207-
117 CYLINDER ASM; AIR
GXZ(GG****) (B) 		1-48629-146-0 01 1 1109-1206
117 CYLINDER ASM; AIR
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-146-0 01 1 1207-
118 PIPE ASM; AIR CYL
GXZ(GG****) (A) 		1-49115-875-0 01 1 1109-1206
118 PIPE ASM; AIR CYL
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-49115-875-0 01 1 1207-
118 PIPE ASM; AIR CYL
GXZ(GG****) (C) 		1-49115-877-0 01 1 1109-1206
118 PIPE ASM; AIR CYL
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (C) 		1-49115-877-0 01 1 1207-
118 PIPE ASM; AIR CYL
GXZ(GG****) (B) 		1-49118-551-0 01 1 1109-1206
118 PIPE ASM; AIR CYL
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-49118-551-0 01 1 1207-
119 SWITCH; THERMO
GXZ(GG****) 		1-82450-054-0 01 1 1109-1206
119 SWITCH; THERMO
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-82450-054-0 01 1 1207-
124 CONNECTOR; FLEX HOSE
GXZ(GG****) 		1-48629-188-0 01 1 1109-1206
124 CONNECTOR; FLEX HOSE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-48629-188-0 01 1 1207-
130 BOLT; BRKT
GXZ(GG****) M6X14 HEX SOCKET 		1-48629-145-0 01 1 1109-1206
130 BOLT; BRKT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 01 1 1207-
134 REPAIR KIT; AIR CYL
GXZ(GG****) (A) 		1-48629-137-0 01 1 1109-1206
134 REPAIR KIT; AIR CYL
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-137-0 01 1 1207-
134 REPAIR KIT; AIR CYL
GXZ(GG****) (B) 		1-48629-138-0 01 1 1109-1206
134 REPAIR KIT; AIR CYL
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-138-0 01 1 1207-
140 BOLT
GXZ(GG****) (E) M12X35 FLANGE 		0-28761-235-0 08 1 1109-1206
140 BOLT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (E) M12X35 FLANGE 		0-28761-235-0 08 1 1207-
140 BOLT
GXZ(GG****) (A) M10X20 		1-48629-070-0 04 1 1109-1206
140 BOLT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) M10X20 		1-48629-070-0 04 1 1207-
140 BOLT
GXZ(GG****) (B) 		1-48629-104-0 03 1 1109-1206
140 BOLT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-104-0 03 1 1207-
140 BOLT
GXZ(GG****) (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1109-1206
140 BOLT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (C) M6X10 HEX SOCKET 		1-48629-133-0 01 1 1207-
140 BOLT
GXZ(GG****) (F) M6X18 		1-48629-134-0 03 1 1109-1206
140 BOLT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (F) M6X18 		1-48629-134-0 03 1 1207-
140 BOLT
GXZ(GG****) (D) 		1-48629-148-0 04 1 1109-1206
140 BOLT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (D) 		1-48629-148-0 04 1 1207-
141 BRACKET
GXZ(GG****) 		1-48629-111-2 01 1 1109-1206
141 BRACKET
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-48629-111-2 01 1 1207-
142 SCREW
GXZ(GG****) M5X10 PAN-HD 		9-93490-510-0 11 1 1109-1206
142 SCREW
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> M5X10 PAN-HD 		9-93490-510-0 11 1 1207-
144 NUT
GXZ(GG****) M12 		9-09840-280-0 04 1 1109-1206
144 NUT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> M12 		9-09840-280-0 04 1 1207-
155 TUBE
GXZ(GG****) (A) 		1-48629-092-0 01 1 1109-1206
155 TUBE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-092-0 01 1 1207-
155 TUBE
GXZ(GG****) (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1109-1206
155 TUBE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1207-
165 LINK; RETARDER
GXZ(GG****) (A) 		1-48629-140-0 01 1 1109-1206
165 LINK; RETARDER
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-140-0 01 1 1207-
165 LINK; RETARDER
GXZ(GG****) (B) 		1-48629-141-0 01 1 1109-1206
165 LINK; RETARDER
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-141-0 01 1 1207-
166 ATTACHMENT; YOKE
GXZ(GG****) (A) 		1-48629-066-0 01 1 1109-1206
166 ATTACHMENT; YOKE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-066-0 01 1 1207-
166 ATTACHMENT; YOKE
GXZ(GG****) (B) 		1-48629-067-0 01 1 1109-1206
166 ATTACHMENT; YOKE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-067-0 01 1 1207-
167 STOPPER; LINKAGE
GXZ(GG****) (A) 		1-48629-069-0 02 1 1109-1206
167 STOPPER; LINKAGE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-069-0 02 1 1207-
167 STOPPER; LINKAGE
GXZ(GG****) (B) 		1-48629-127-0 02 1 1109-1206
167 STOPPER; LINKAGE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-127-0 02 1 1207-
168 PROTECTOR; HEAT
GXZ(GG****) (A) 		1-48629-190-0 02 1 1109-1206
168 PROTECTOR; HEAT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-190-0 02 1 1207-
168 PROTECTOR; HEAT
GXZ(GG****) (B) 		1-22119-542-1 02 1 1109-1206
168 PROTECTOR; HEAT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-22119-542-1 02 1 1207-
169 CLAMP
GXZ(GG****) 		1-48629-126-0 01 1 1109-1206
169 CLAMP
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-48629-126-0 01 1 1207-
170 COVER; CASE
GXZ(GG****) (A) 		1-48629-063-0 01 1 1109-1206
170 COVER; CASE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-063-0 01 1 1207-
170 COVER; CASE
GXZ(GG****) (B) 		1-48629-240-0 01 1 1109-1206
170 COVER; CASE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-240-0 01 1 1207-
171 BREATHER
GXZ(GG****) 		1-48629-144-0 01 1 1109-1206
171 BREATHER
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> 		1-48629-144-0 01 1 1207-
174 BOLT; SWITCH
GXZ(GG****) M6X10 HEX SOCKET 		1-48629-133-0 02 1 1109-1206
174 BOLT; SWITCH
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> M6X10 HEX SOCKET 		1-48629-133-0 02 1 1207-

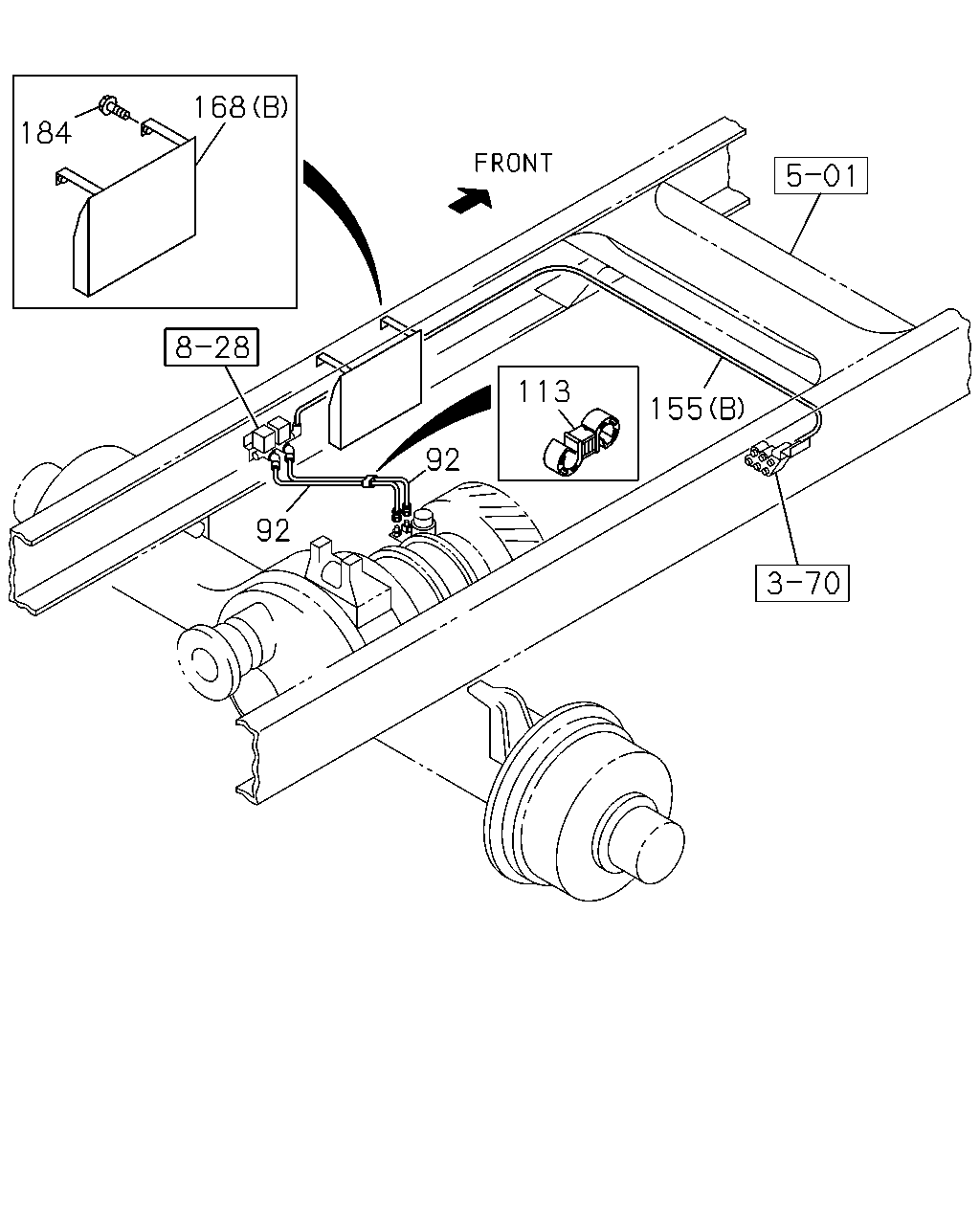

çizim 129470
168 184 113 155 92 92
BalonParca AdiParca NoAdetTipApplied Date
92 HOSE; FLEX,RETARDER
GXZ(GG****) L=390 		1-09363-616-0 02 1 1109-1206
92 HOSE; FLEX,RETARDER
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> L=390 		1-09363-616-0 02 1 1207-
113 CLIP; HOSE
GXZ(GG****) ID=10 & 10 		1-09709-277-1 01 1 1109-1206
113 CLIP; HOSE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 1207-
155 TUBE
GXZ(GG****) (A) 		1-48629-092-0 01 1 1109-1206
155 TUBE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-092-0 01 1 1207-
155 TUBE
GXZ(GG****) (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1109-1206
155 TUBE
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) SERVICED BY L=2000 OD=8 		1-87411-006-0 01 1 1207-
168 PROTECTOR; HEAT
GXZ(GG****) (A) 		1-48629-190-0 02 1 1109-1206
168 PROTECTOR; HEAT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-190-0 02 1 1207-
168 PROTECTOR; HEAT
GXZ(GG****) (B) 		1-22119-542-1 02 1 1109-1206
168 PROTECTOR; HEAT
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> (B) 		1-22119-542-1 02 1 1207-
184 BOLT; HEAT PROTECTOR
GXZ(GG****) M8X25 FLANGE SOU 		0-28650-825-0 08 1 1109-1206
184 BOLT; HEAT PROTECTOR
GXZ(GG****) BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE SOU 		0-28650-825-0 08 1 1207-
