2-85 — POWER TAKE OFF CONTROL (#18741) — 18 parça

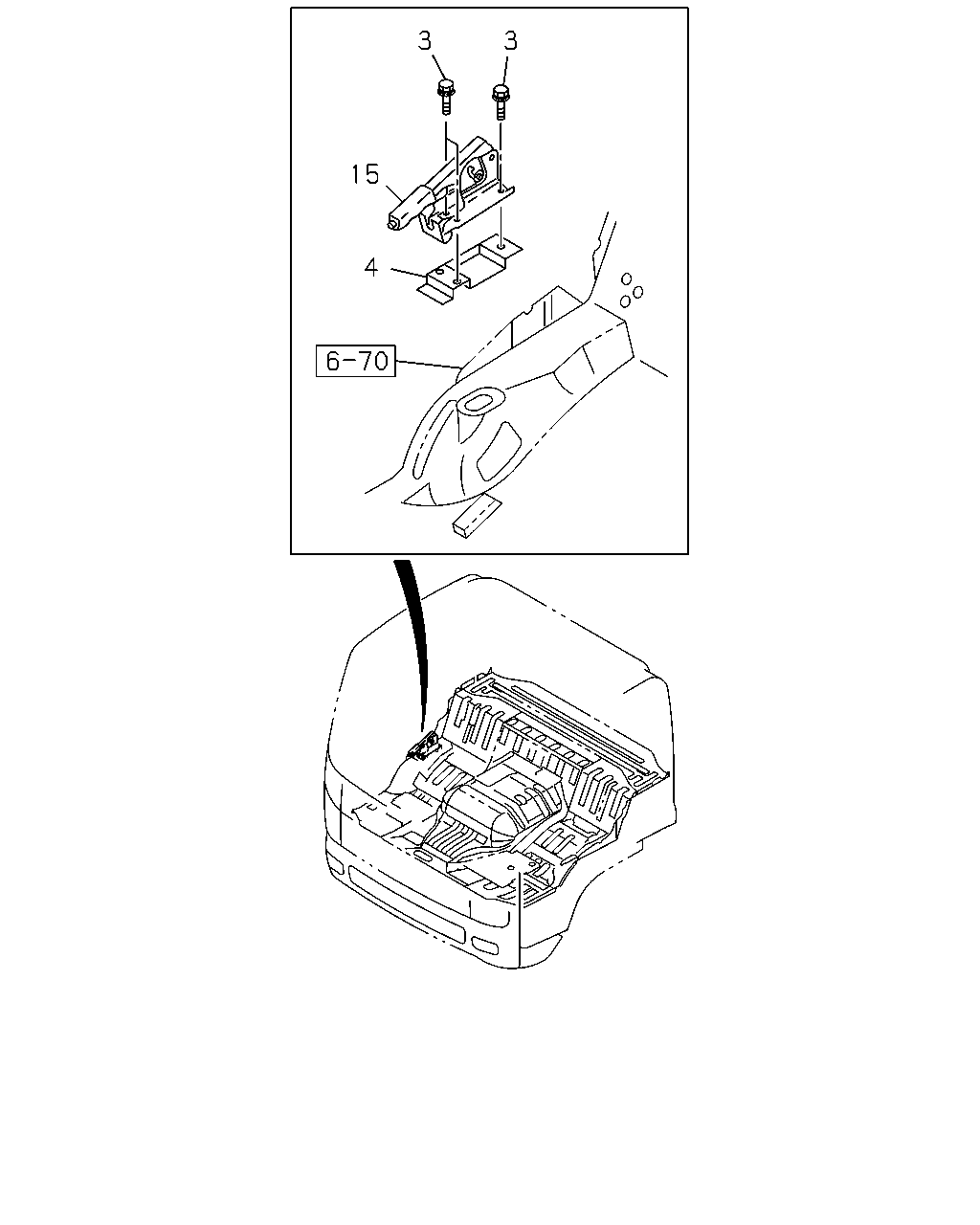

çizim 129447
3 3 15 4
BalonParca AdiParca NoAdetTipApplied Date
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER SOU 		8-94279-207-0 03 1 1109-
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER SOU 		8-94279-207-0 06 1 1102-
4 BRACKET; PTO CONT
PTO CONTROL(SV6) 		8-98060-621-0 01 1 1102-
15 LEVER ASM; PTO CONT
DUMP CONTROL LEVER<RC4> SOU 		1-79996-092-0 01 1 1109-
15 LEVER ASM; PTO CONT
PTO CONTROL(SV6) 		1-79907-048-1 01 1 1102-

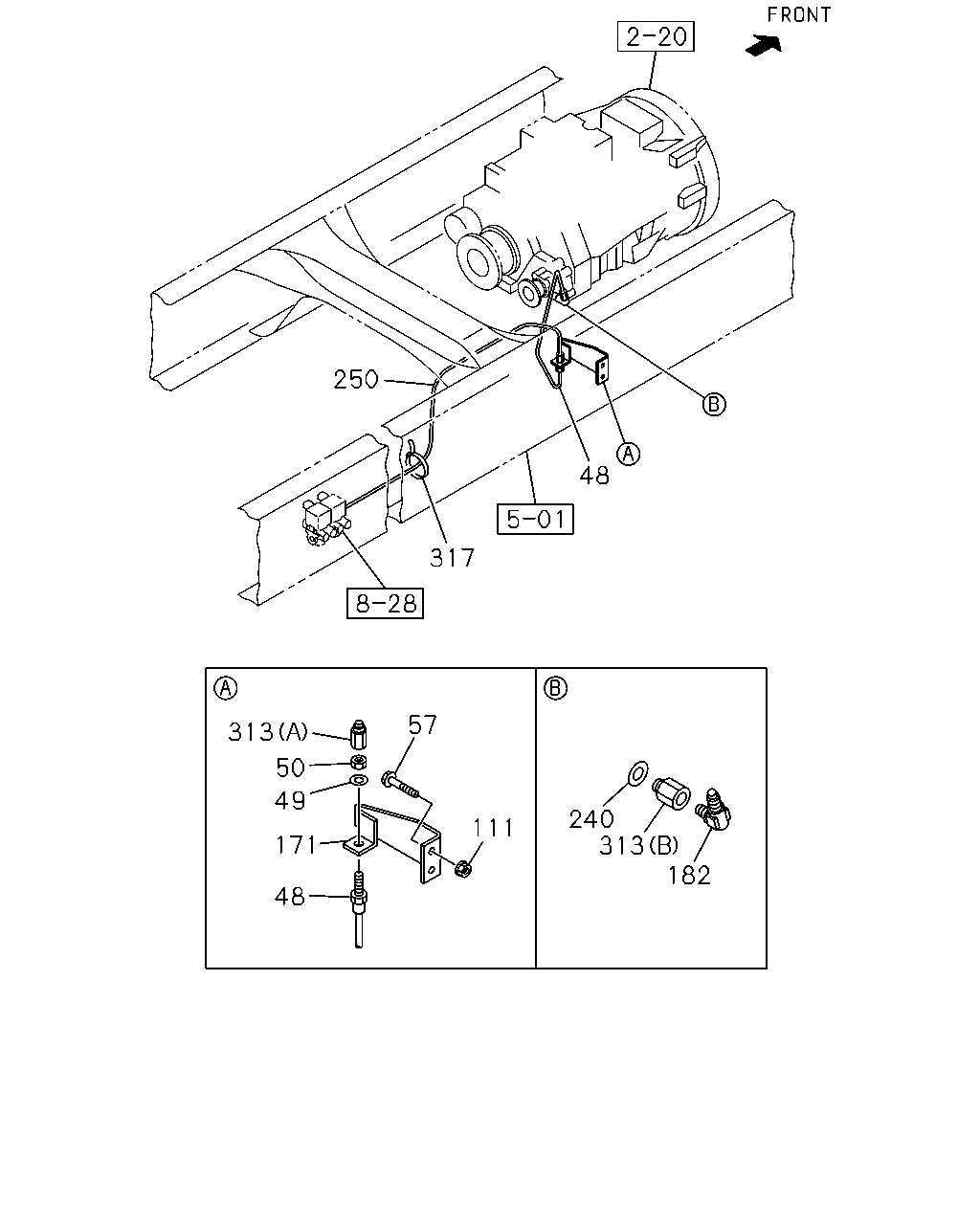

çizim 129462
250 48 317 57 313 50 49 240 313 182 111 171 48
BalonParca AdiParca NoAdetTipApplied Date
48 HOSE; FLEX,PTO
PTO ZF TRANS RR(BDM) L=400 		1-09363-606-0 01 1 1109-
49 WASHER; LK,FLEX HOSE
PTO ZF TRANS RR(BDM) ID=12.2 SOU 		0-91510-512-0 01 1 1109-
50 NUT; FLEX HOSE
PTO ZF TRANS RR(BDM) M12 		9-09840-280-0 01 1 1109-
57 BOLT; BRKT
PTO ZF TRANS RR(BDM) M8X35 FLANGE SOU 		0-28650-835-0 02 1 1109-
111 NUT; BRKT
PTO ZF TRANS RR(BDM) M8 FLANGE SOU 		0-91180-108-0 02 1 1109-
171 BRACKET; FLEX HOSE
PTO ZF TRANS RR(BDM) 		8-98086-261-0 01 1 1109-
182 CONNECTOR; FLARE
PTO ZF TRANS RR(BDM) SHIFT PATTERN DOUBLE-H<EDZ> M12 & PT1/4 ELBOW SOU 		1-09650-430-0 01 1 1109-
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) SHIFT PATTERN DOUBLE-H<EDZ> ID=12.2 		1-09630-084-0 01 1 1109-1312
240 GASKET; CONNECTOR,PTO
PTO ZF TRANS RR(BDM) SHIFT PATTERN DOUBLE-H<EDZ> ID=12.2 		8-98251-344-0 01 1 1401-
250 TUBE; NYLON
PTO ZF TRANS RR(BDM) SERVICED BY L=2000 OD=8 		1-87411-006-0 02 1 1109-
313 ADAPTER
PTO ZF TRANS RR(BDM) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109-
313 ADAPTER
PTO ZF TRANS RR(BDM) SHIFT PATTERN DOUBLE-H<EDZ> (B) PT1/4 		1-09654-396-0 01 1 1109-
317 CLIP; NYLON TUBE
PTO ZF TRANS RR(BDM) L=350 		1-09707-183-0 01 1 1109-
