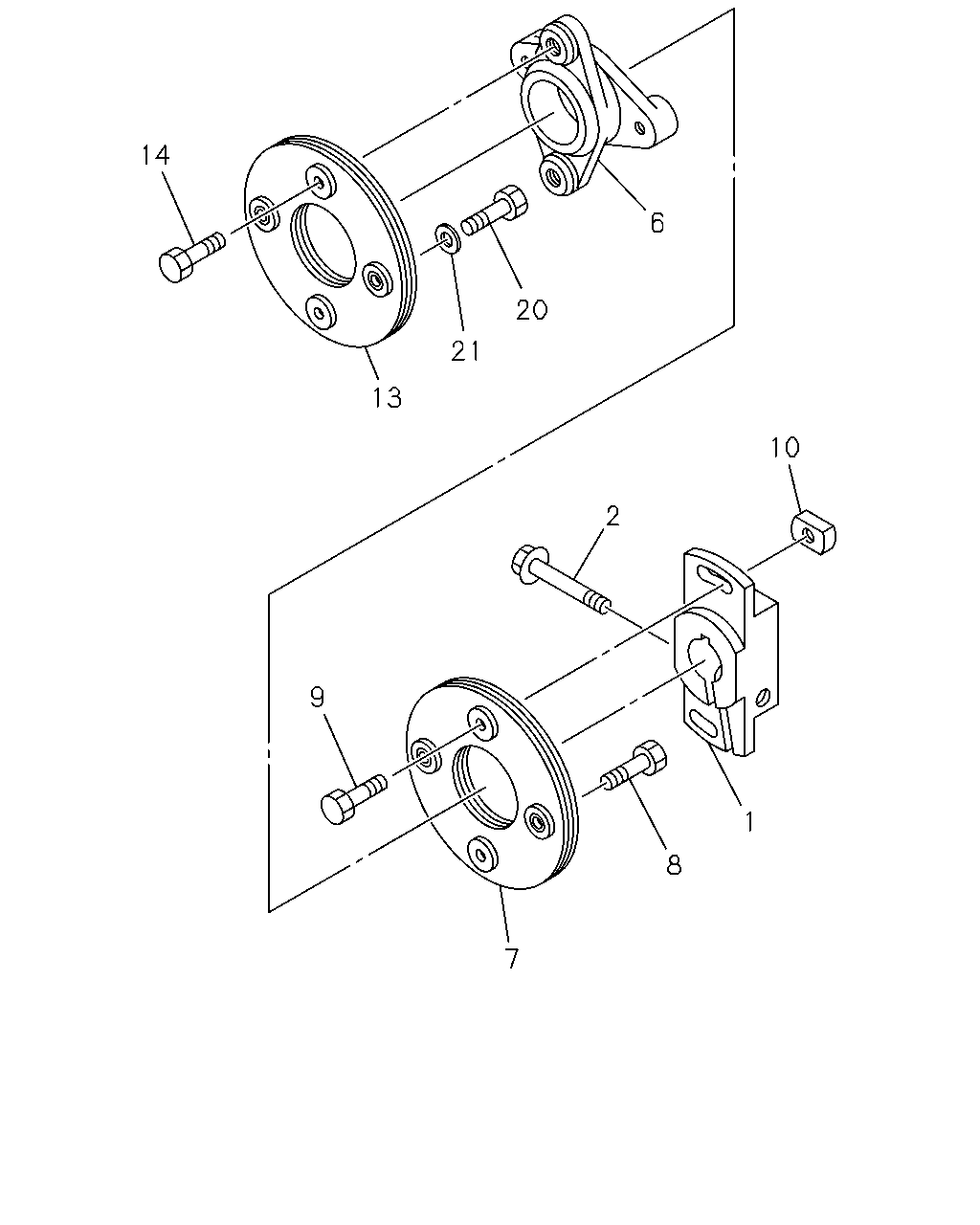

0-87 — COUPLING; INJECTION PUMP (#1874) — 18 parça

14 6 20 21 13 10 2 9 1 8 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COUPLING; INJ PUMP DRIVE	1-15781-010-0	01	1	9207-
2	BOLT; COUPLING FIX,INJ PUMP	1-15789-132-0	01	1	9207-
6	COUPLING; CROSS,INJ PUMP DRIVE AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-082-0	01	1	9207-
6	COUPLING; CROSS,INJ PUMP DRIVE EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-068-0	01	1	9207-
7	PLATE; COUPLING,COUPLING SIDE AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-080-0	01	1	9207-
7	PLATE; COUPLING,COUPLING SIDE EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-065-0	01	1	9207-
8	BOLT; PLATE TO CROSS COUPLING AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-117-0	02	1	9207-
8	BOLT; PLATE TO CROSS COUPLING EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-126-0	02	1	9207-
9	BOLT; PLATE TO COUPLING,INJ PUMP AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-116-0	02	1	9207-
9	BOLT; PLATE TO COUPLING,INJ PUMP EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-122-0	02	1	9207-
10	NUT; PLATE TO COUPLING,INJ PUMP	1-15789-066-0	02	1	9207-
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-093-0	01	1	9207-
13	PLATE; COUPLING,TIMER SIDE,INJ PUMP EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	9-81385-024-0	01	1	9207-
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-117-0	02	1	9207-
14	BOLT; PLATE TO CROSS COUPLING,TIMER SI EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-126-0	02	1	9207-
20	BOLT; COUPLING TO INJ PUMP AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-121-0	02	1	9207-
20	BOLT; COUPLING TO INJ PUMP EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-127-0	02	1	9207-
21	WASHER; LK,COUPLING TO INJ PUMP EXC. AIR COMPRESSOR HEAVYDUTY(E1Q)	1-15789-007-0	02	1	9207-
