◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#18738) — 11 parça

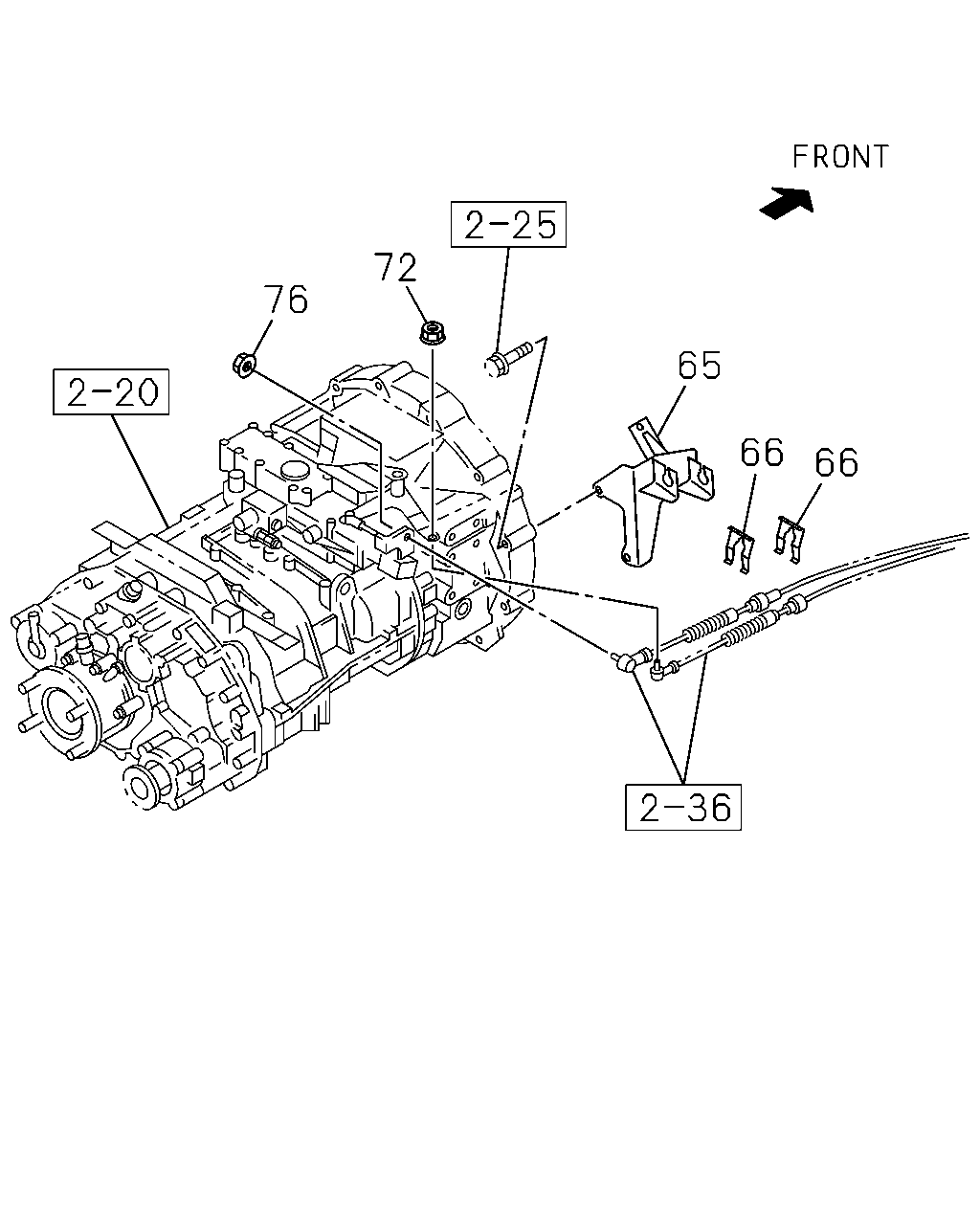

çizim 129251
72 76 65 66 66
BalonParca AdiParca NoAdetTipApplied Date A B
65 BRACKET; SHIFT TO SELECT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> ENGINE REAR PTO(SV1) 		8-98169-624-1 01 1 1102- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98055-454-1 01 1 1004-1101 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> EXC. ENGINE REAR PTO(SV1) 		8-98055-454-1 01 1 1102-1108 ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> EXC. ENGINE REAR PTO(SV1) 		8-98055-454-1 01 1 1109- ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> 		8-98055-454-1 01 1 1109- ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1004-1108 ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 1109- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE SOU 		1-09440-062-1 01 1 1004-1108 ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE SOU 		1-09440-062-1 01 1 1109- ● ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 1004-1108 ●
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
