2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#18737) — 69 parça
çizim 129237
296 3 316 3 474 1 221 225 199 1 296 296 474 3 49 474 474 1 6 316 300 493 6
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) L=2839 		8-98246-043-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> L=3205 		8-98054-888-2 01 1 1004-1101 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1102-1108 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1109-1311 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1109-1311 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
ENGINE REAR PTO(SV1) L=3320 		8-98079-364-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> L=3105 		8-98054-894-3 01 1 1004-1101 ●
3 CABLE; SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1102-1108 ●
3 CABLE; SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1109- ●
3 CABLE; SELECT,TRANS CONT
L=3105 		8-98054-894-3 01 1 1109- ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 SOU 		1-09700-739-0 01 1 1004-1108 ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 SOU 		1-09700-739-0 01 1 1109- ● ●
6 CLIP; CABLE
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 1004-1108 ●
6 CLIP; CABLE
(B) ID=10 & 10 M8 		1-09701-220-0 01 1 1109- ● ●
49 WASHER; LK
ID=14.2 SOU 		0-91510-614-0 01 1 1004-1108 ●
49 WASHER; LK
ID=14.2 SOU 		0-91510-614-0 01 1 1109- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 SOU 		0-91614-508-0 01 1 1004-1108 ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 SOU 		0-91614-508-0 01 1 1109- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE SOU 		1-09440-049-0 01 1 1004-1011 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE SOU 		1-09440-062-1 01 1 1012-1108 ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE SOU 		1-09440-062-1 01 1 1109- ● ●
225 PIN; SELECT CABLE
L=27.7 SOU 		8-94111-137-0 01 1 1004-1108 ●
225 PIN; SELECT CABLE
L=27.7 SOU 		8-94111-137-0 01 1 1109- ● ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 03 1 1004-1108 ●
296 BOLT; CLIP,SHIFT & SELECT
M8X20 FLANGE 		0-28050-820-0 03 1 1109- ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 1004-1108 ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28050-820-0 01 1 1109- ● ●
316 BRACKET; CLIP
(A) 		8-98055-446-1 01 1 1004-1108 ●
316 BRACKET; CLIP
(A) 		8-98055-446-1 01 1 1109- ● ●
316 BRACKET; CLIP
(B) 		8-98056-946-0 01 1 1004-1108 ●
316 BRACKET; CLIP
(B) 		8-98056-946-0 01 1 1109-1412 ● ●
316 BRACKET; CLIP
(B) 		8-98294-156-0 01 1 1501- ● ●
474 BOLT; BRKT
(A) M14X45 		0-20801-445-0 01 1 1004-1108 ●
474 BOLT; BRKT
(A) M14X45 		0-20801-445-0 01 1 1109- ● ●
474 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1004-1108 ●
474 BOLT; BRKT
(B) M8X20 FLANGE 		0-28050-820-0 02 1 1109- ● ●
474 BOLT; BRKT
(C) M8X30 FLANGE 		0-28050-830-0 01 1 1004-1108 ●
474 BOLT; BRKT
(C) M8X30 FLANGE 		0-28050-830-0 01 1 1109- ● ●
474 BOLT; BRKT
(D) M8X25 W/WASHER 		0-51640-825-0 01 1 1004-1108 ●
474 BOLT; BRKT
(D) M8X25 W/WASHER 		0-51640-825-0 01 1 1109- ● ●
493 SEAL; CABLE
SHIFT PATTERN DOUBLE-H<EDZ> OD=36 T=0.05 BLACK SOU 		5-76777-035-0 01 1 1004-1108 ●
493 SEAL; CABLE
SHIFT PATTERN DOUBLE-H<EDZ> OD=36 T=0.05 BLACK SOU 		5-76777-035-0 01 1 1109- ● ●

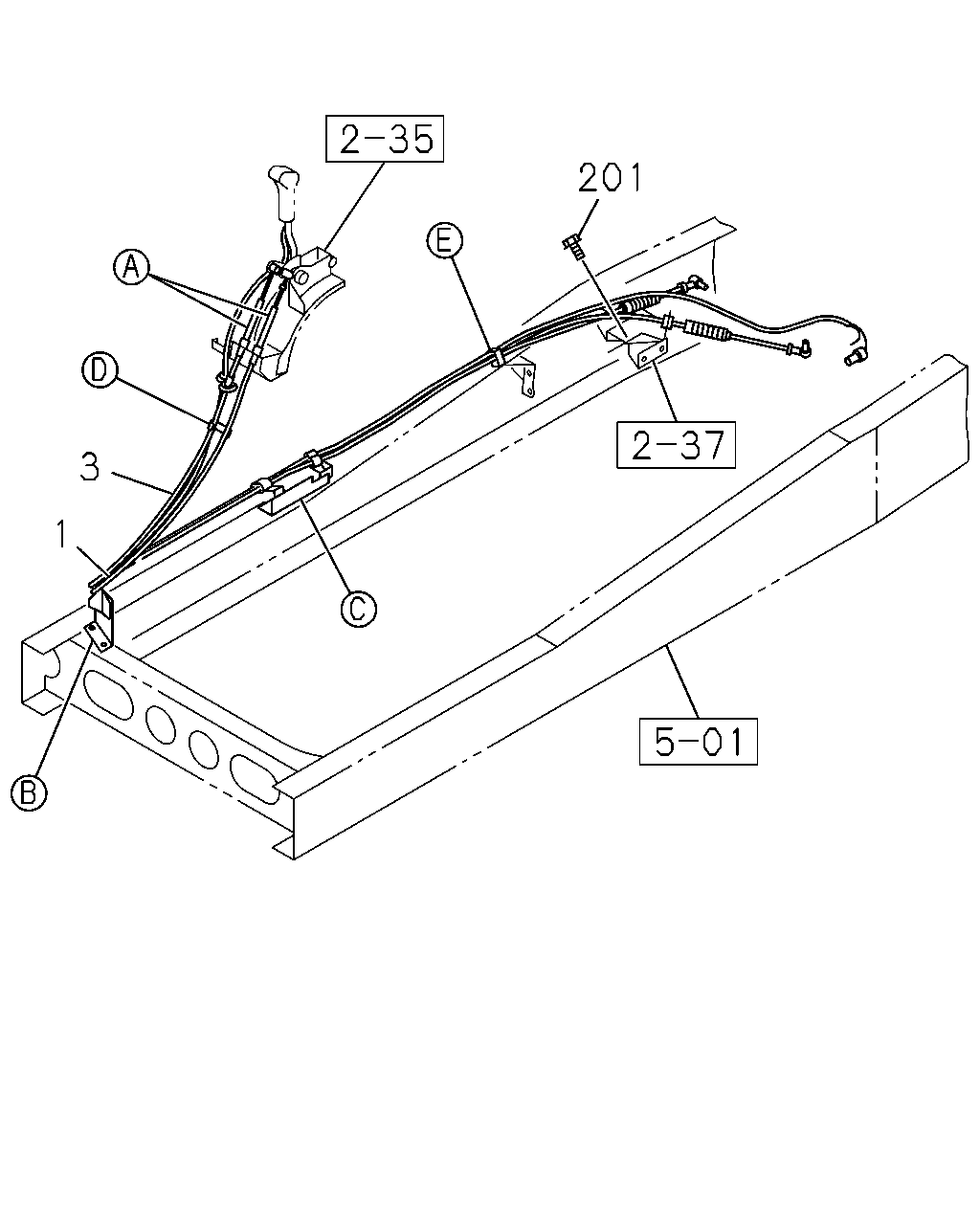

çizim 129238
1 3 201
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1102-1311 ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) L=2839 		8-98246-043-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
ENGINE REAR PTO(SV1) L=3320 		8-98079-363-3 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> L=3205 		8-98054-888-2 01 1 1004-1101 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1102-1108 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1109-1311 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1109-1311 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98246-040-0 01 1 1312-1505 ●
1 CABLE; SHIFT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3205 		8-98054-888-2 01 1 1506- ●
1 CABLE; SHIFT,TRANS CONT
L=3205 		8-98054-888-2 01 1 1506- ●
3 CABLE; SELECT,TRANS CONT
ENGINE REAR PTO(SV1) L=3320 		8-98079-364-3 01 1 1102- ●
3 CABLE; SELECT,TRANS CONT
SHIFT PATTERN DOUBLE-H<EDZ> L=3105 		8-98054-894-3 01 1 1004-1101 ●
3 CABLE; SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1102-1108 ●
3 CABLE; SELECT,TRANS CONT
EXC. ENGINE REAR PTO(SV1) L=3105 		8-98054-894-3 01 1 1109- ●
3 CABLE; SELECT,TRANS CONT
L=3105 		8-98054-894-3 01 1 1109- ●
201 BOLT; BRKT
EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1102-1108 ●
201 BOLT; BRKT
EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1109- ●
201 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 01 1 1109- ●
201 BOLT; BRKT
SHIFT PATTERN DOUBLE-H<EDZ> M8X16 FLANGE SOU 		0-28050-816-0 01 1 1004-1101 ●
201 BOLT; BRKT
ENGINE REAR PTO(SV1) M8X16 FLANGE SOU 		0-28050-816-0 02 1 1102- ●
