2-05 — CLUTCH PIPING (#18730) — 165 parça

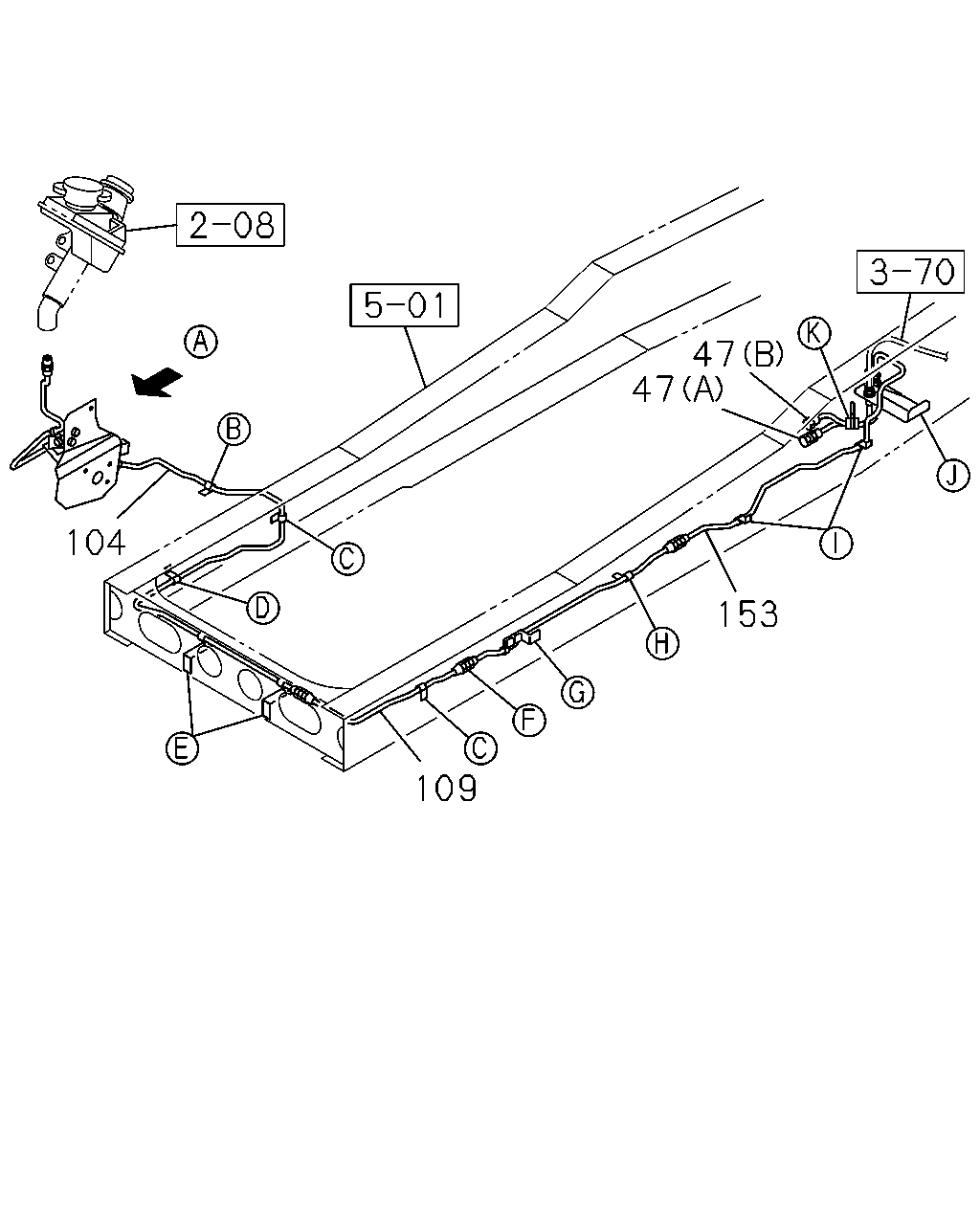

çizim 129242
47 47 104 153 109
BalonParca AdiParca NoAdetTipApplied Date A B
47 HOSE; FLEX,CLU CONT
ENGINE REAR PTO(SV1) (A) L=430 		1-09363-623-0 01 1 1102- ●
47 HOSE; FLEX,CLU CONT
ENGINE REAR PTO(SV1) (B) L=460 		8-98072-345-0 01 1 1102- ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1004-1101 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (A) L=350 		1-09363-624-0 01 1 1102-1108 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (A) L=350 		1-09363-624-0 01 1 1109- ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1109- ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1004-1101 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (B) L=370 		8-98072-331-0 01 1 1102-1108 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (B) L=370 		8-98072-331-0 01 1 1109- ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1109- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 1004-1108 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 1109- ● ●
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 1004-1108 ●
109 PIPE; AIR,UNION TO UNION
L=1680 SERVICED BY L=1700 		1-47428-767-0 01 1 1109- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
ENGINE REAR PTO(SV1) L=1514 		8-98183-263-0 01 1 1102- ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1004-1101 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. ENGINE REAR PTO(SV1) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1102-1108 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. ENGINE REAR PTO(SV1) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1109- ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1109- ●

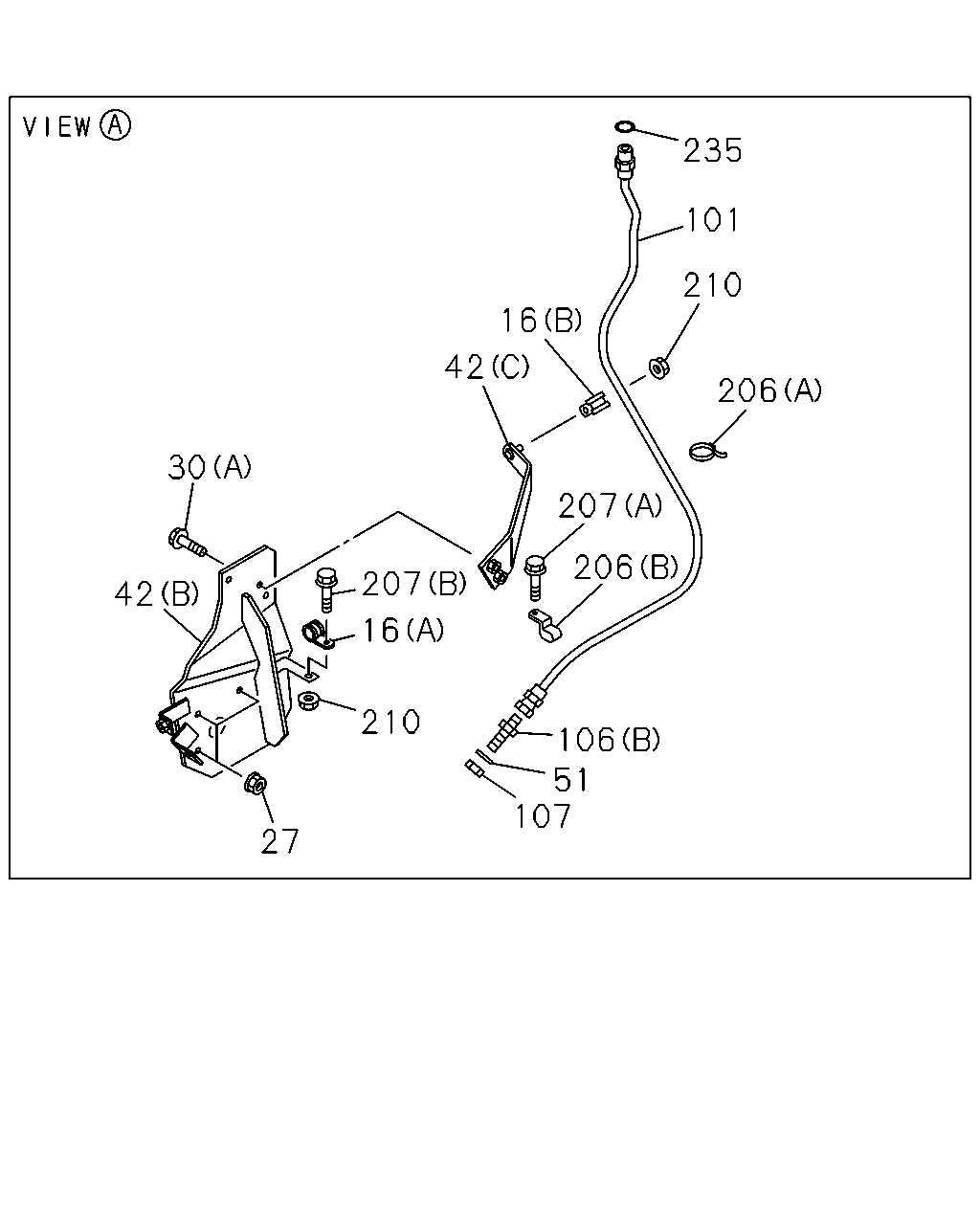

çizim 129248
235 101 210 16 42 206 30 207 206 207 42 16 210 106 51 107 27
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 01 1 1004-1108 ●
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 01 1 1109-1201 ● ●
16 CLIP; FLEX HOSE
(B) ID=16 L=28 		1-09700-872-0 03 1 1202- ● ●
16 CLIP; FLEX HOSE
(A) ID=18 L=28 H=30 		1-09701-110-0 01 1 1004-1108 ●
16 CLIP; FLEX HOSE
(A) ID=18 L=28 H=30 		1-09701-110-0 01 1 1109-1201 ● ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1004-1108 ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1109- ● ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1004-1108 ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1109- ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004-1108 ●
30 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
30 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 02 1 1004-1108 ●
30 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 02 1 1109- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1004-1108 ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1109- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1004-1108 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1109-1402 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1004-1108 ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1109-1201 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ●
51 WASHER; LK
ID=14.2 SOU 		0-91510-514-0 01 1 1004-1108 ●
51 WASHER; LK
ID=14.2 SOU 		0-91510-514-0 01 1 1109- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 1004-1108 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98103-346-1 01 1 1109-1201 ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98180-779-0 01 1 1202- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004-1108 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004-1108 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1109- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1109- ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1004-1108 ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1109- ● ●
107 NUT; UNION,OIL PIPE
M14 SOU 		0-91111-514-0 01 1 1004-1108 ●
107 NUT; UNION,OIL PIPE
M14 SOU 		0-91111-514-0 01 1 1109- ● ●
206 CLIP; TUBE
(B) ID=16 H=25 L=25 		1-09701-162-0 01 1 1004- ●
206 CLIP; TUBE
(A) L=350 		1-09707-183-0 01 1 1004-1108 ●
206 CLIP; TUBE
(A) L=350 		1-09707-183-0 01 1 1109- ● ●
207 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
207 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
207 BOLT; CLIP
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1004- ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004- ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1109-1201 ● ●
210 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1202- ● ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1004-1108 ●
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 		9-09571-410-0 01 1 1109- ● ●

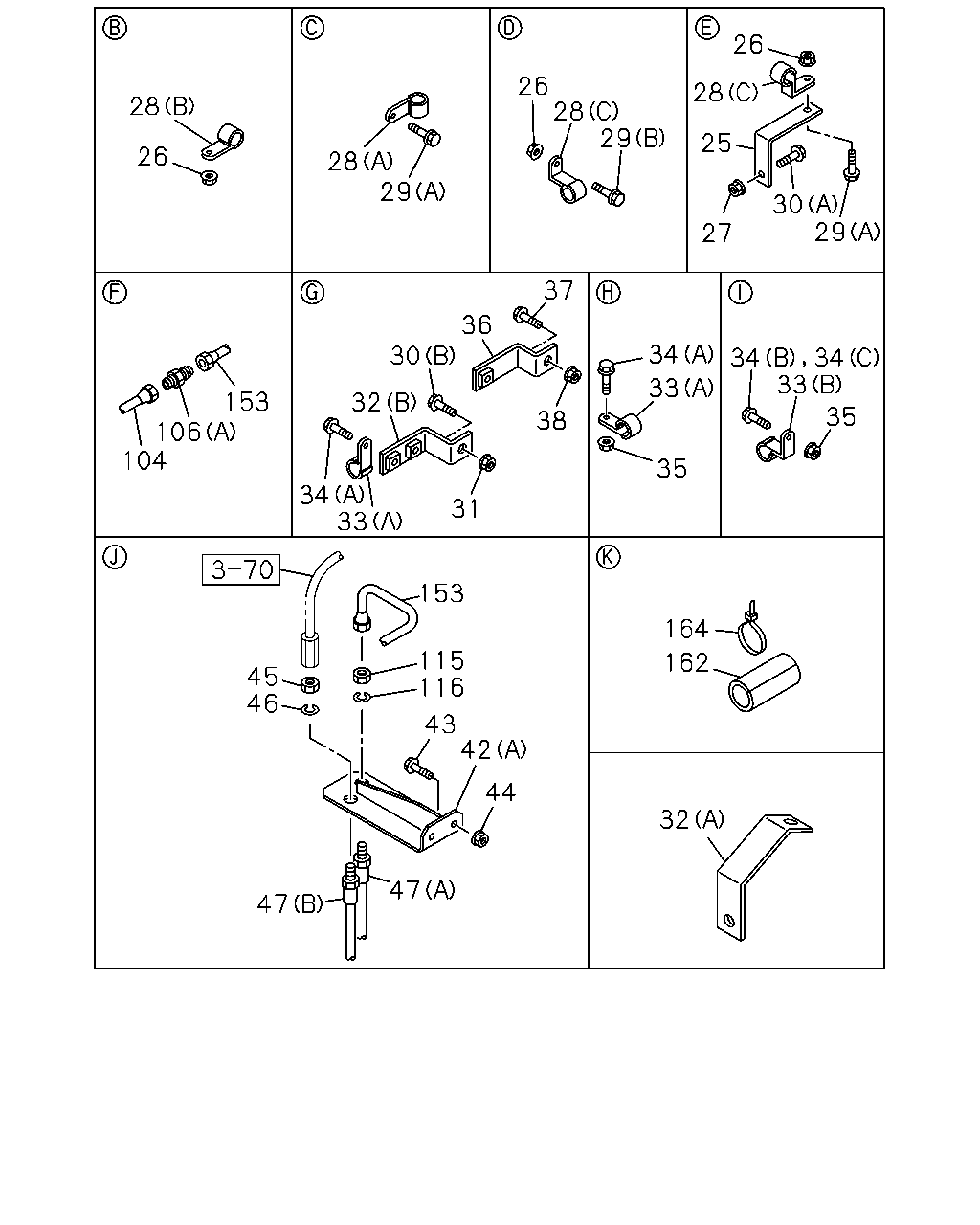

çizim 129255
26 26 28 29 28 28 25 26 28 29 30 29 27 37 36 30 34 33 33 153 32 35 38 106 104 35 34 33 31 153 164 115 116 162 45 46 43 42 44 32 47 47 34 34
BalonParca AdiParca NoAdetTipApplied Date A B
25 BRACKET; OIL PIPE 8-98123-059-0 01 1 1004-1108 ●
25 BRACKET; OIL PIPE 8-98123-059-0 01 1 1109- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ● ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1004-1108 ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1109- ● ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1004-1108 ●
27 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 03 1 1109- ● ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1004-1108 ●
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1109- ● ●
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 1004-1108 ●
28 CLIP; OIL PIPE
(B) ID=9 L=40 		0-95234-875-0 01 1 1109- ● ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1004-1108 ●
28 CLIP; OIL PIPE
(C) ID=8 H=20 L=20 		1-09700-604-0 01 1 1109- ● ●
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ●
29 BOLT; CLIP,OIL PIPE
(A) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
30 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004-1108 ●
30 BOLT; BRKT
(A) M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ● ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
30 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
30 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 02 1 1004-1108 ●
30 BOLT; BRKT
(A) M10X25 FLANGE SOU 		0-28651-025-0 02 1 1109- ● ●
31 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
31 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
31 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1004-1108 ●
31 NUT; BRKT
M10 FLANGE SOU 		0-91180-210-0 01 1 1109- ● ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1004-1108 ●
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1109- ● ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-059-0 01 1 1004-1108 ●
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-059-0 01 1 1109- ● ●
33 CLIP; OIL PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1102-1108 ●
33 CLIP; OIL PIPE
EXC. ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1109- ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1109- ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1004-1108 ●
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1109- ● ●
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1004-1101 ●
33 CLIP; OIL PIPE
ENGINE REAR PTO(SV1) (B) ID=8 H=20 L=20 		1-09700-604-0 03 1 1102- ●
34 BOLT; PIPE CLIP
ENGINE REAR PTO(SV1) (C) M8X16 FLANGE SOU 		0-28050-816-0 01 1 1102- ●
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1004-1108 ●
34 BOLT; PIPE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1109- ● ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1109- ● ●
35 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
35 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
35 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●
35 NUT; PIPE CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●
36 BRACKET; CLIP
ENGINE REAR PTO(SV1) L=80 H=20 		1-82699-304-0 01 1 1102- ●
37 BOLT; CLIP BRKT
ENGINE REAR PTO(SV1) M8X30 FLANGE 		0-28650-830-0 01 1 1102- ●
38 NUT; CLIP BRKT
ENGINE REAR PTO(SV1) M8 FLANGE SOU 		0-91180-108-0 01 1 1102- ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1004-1108 ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1109- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1004-1108 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1109-1402 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1004-1108 ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98091-280-1 01 1 1109-1201 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98179-878-0 01 1 1202- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 1109- ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1004-1108 ●
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1109- ● ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 SOU 		0-91510-512-0 01 1 1004-1108 ●
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 SOU 		0-91510-512-0 01 1 1109- ● ●
47 HOSE; FLEX,CLU CONT
ENGINE REAR PTO(SV1) (A) L=430 		1-09363-623-0 01 1 1102- ●
47 HOSE; FLEX,CLU CONT
ENGINE REAR PTO(SV1) (B) L=460 		8-98072-345-0 01 1 1102- ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1004-1101 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (A) L=350 		1-09363-624-0 01 1 1102-1108 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (A) L=350 		1-09363-624-0 01 1 1109- ●
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1109- ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1004-1101 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (B) L=370 		8-98072-331-0 01 1 1102-1108 ●
47 HOSE; FLEX,CLU CONT
EXC. ENGINE REAR PTO(SV1) (B) L=370 		8-98072-331-0 01 1 1109- ●
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1109- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 1004-1108 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1747 SERVICED BY L=1800 		1-47428-768-0 01 1 1109- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004-1108 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1004-1108 ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1109- ● ●
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1109- ● ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1004-1108 ●
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1109- ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 SOU 		0-91111-514-0 01 1 1004-1108 ●
115 NUT; FLEX HOSE,CLU CONT
M14 SOU 		0-91111-514-0 01 1 1109- ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 SOU 		0-91510-514-0 01 1 1004-1108 ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 SOU 		0-91510-514-0 01 1 1109- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
ENGINE REAR PTO(SV1) L=1514 		8-98183-263-0 01 1 1102- ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1004-1101 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. ENGINE REAR PTO(SV1) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1102-1108 ●
153 PIPE ASM; CLU,UNION TO FLEX
EXC. ENGINE REAR PTO(SV1) L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1109- ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1155 SERVICED BY L=1250 		1-47428-764-0 01 1 1109- ●
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1004-1108 ●
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1109- ● ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1004-1108 ●
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
