0-85 — AUTO TIMER; INJECTION PUMP (#1873) — 21 parça

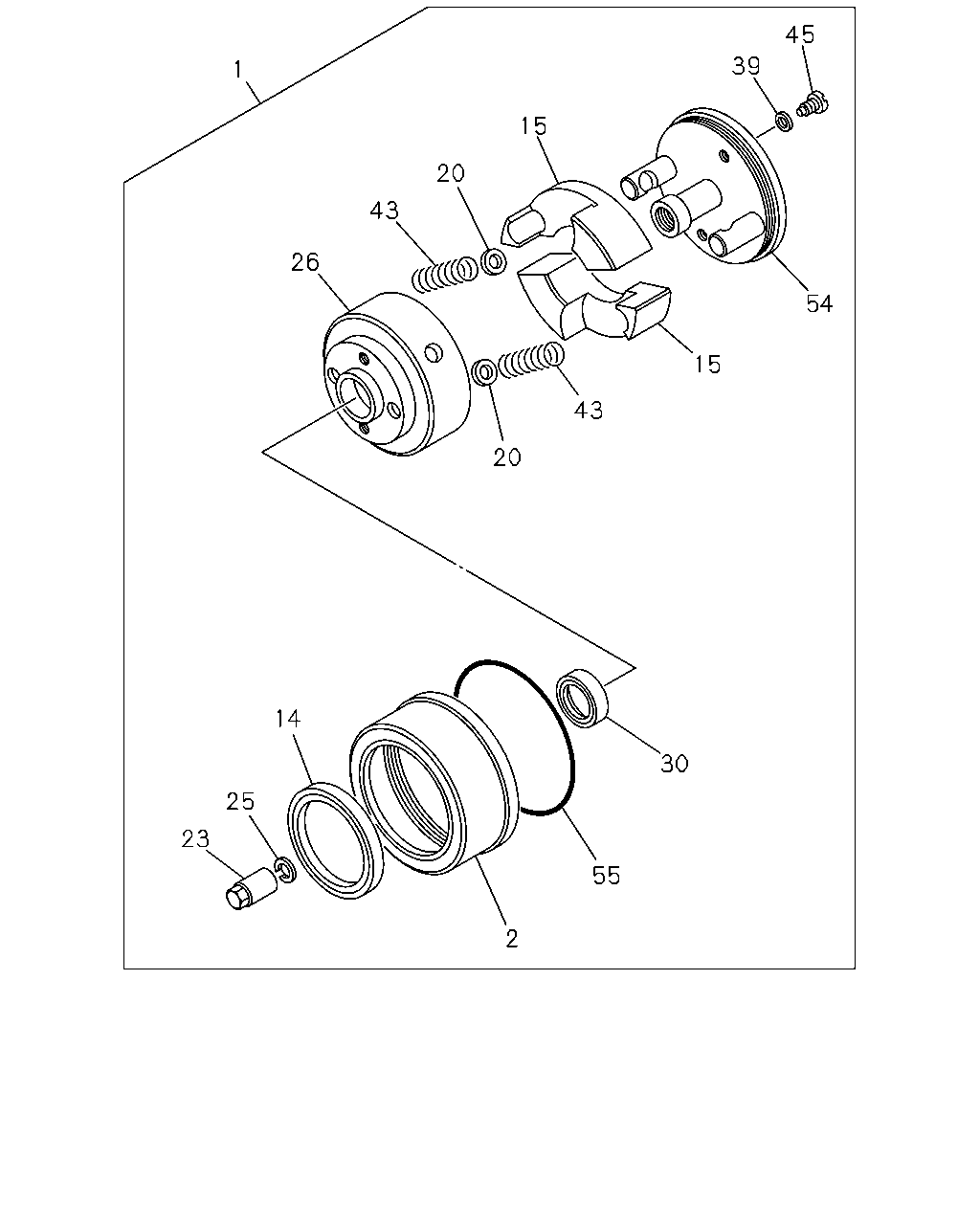

çizim 95165
45 39 1 15 20 43 26 54 15 43 20 14 30 25 23 55 2
BalonParca AdiParca NoAdetTipApplied Date
1 TIMER ASM; INJ PUMP
ASM PART: D = 1-15601-910-4, E = 1-15601-912-4 		1-15740-222-0 01 1 -
1 TIMER ASM; INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4 		1-15740-246-0 01 1 -
2 HOUSING; TIMER,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		5-15741-022-0 01 1 -
14 SEAL; OIL,AUTO TIMER
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		1-15749-002-0 01 1 -
15 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4 		9-81341-515-0 02 1 -
15 FLYWEIGHT; TIMER,INJ PUMP
ASM PART: D = 1-15601-910-4, E = 1-15601-912-4 		9-81341-515-0 04 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.15 ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		1-15749-061-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.50 ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-81345-033-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-81345-034-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.10 ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-81345-035-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.20 ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-81345-036-0 AR 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=1.50 ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-81345-037-0 AR 1 -
23 NUT; TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-88410-470-0 01 1 -
25 WASHER; LK,TIMER FLANGE,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-88410-264-0 01 1 -
26 FLANGE; TIMER,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		1-15742-062-0 01 1 -
30 SEAL; OIL,TIMER COVER,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		1-15749-003-0 01 1 -
39 GASKET; TIMER COVER BOLT,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		8-97084-347-0 02 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		1-15749-008-0 02 1 -
45 BOLT; TIMER COVER,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-81345-067-0 02 1 -
54 HOLDER; FLYWEIGHT,TIMER,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		1-15741-022-0 01 1 -
55 GASKET; TIMER HSG,INJ PUMP
ASM PART: A = 1-15601-904-4, B = 1-15601-906-4, C = 1-15601-907-4, D = 1-15601-910-4, E = 1-15601-912-4 		9-81345-138-0 01 1 -
