◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-03 - CLUTCH PEDAL AND CONTROL ▶
2-03 — CLUTCH PEDAL AND CONTROL (#18729) — 31 parça

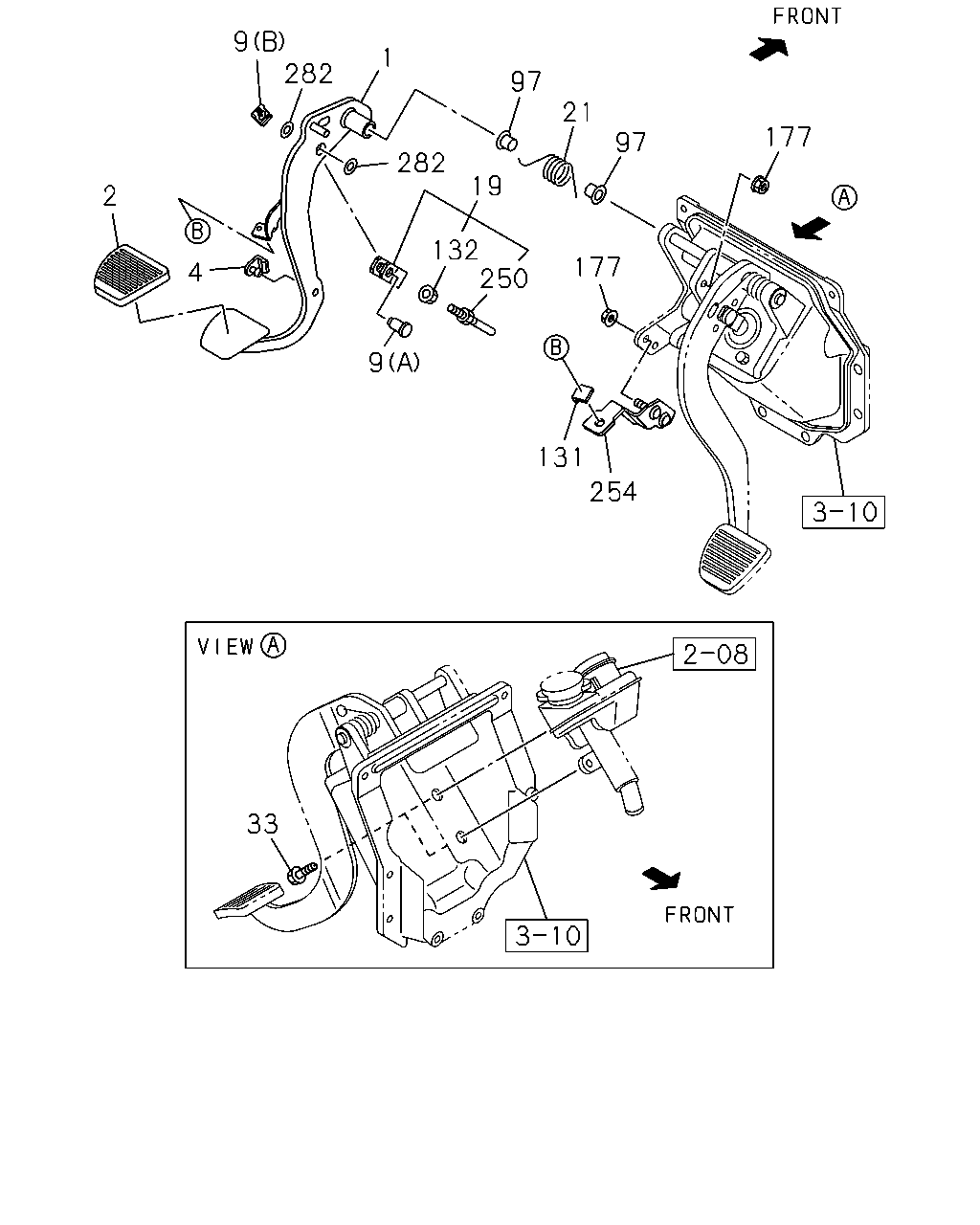

çizim 129616
9 282 1 97 21 177 97 282 19 2 132 250 177 4 9 131 254 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-98099-809-0 01 1 1004-1108 ●
1 PEDAL; CLU 8-98099-809-0 01 1 1109- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1004-1108 ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1109- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1004-1108 ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1109- ● ●
9 PIN; CLU PEDAL
(A) 		8-97387-230-0 01 1 1004-1007 ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1008-1108 ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1109- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1004-1108 ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1109- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1004-1108 ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1109- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1004-1108 ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1109- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1004-1108 ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1109- ● ●
97 BUSHING; CLU PEDAL SHAFT
SOU 		8-94238-596-0 02 1 1004-1108 ●
97 BUSHING; CLU PEDAL SHAFT
SOU 		8-94238-596-0 02 1 1109- ● ●
131 STOPPER; CLU SW
SOU 		8-97302-305-0 01 1 1004-1108 ●
131 STOPPER; CLU SW
SOU 		8-97302-305-0 01 1 1109- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
132 NUT; LK,PUSH ROD
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
177 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
177 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1004-1108 ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1109- ● ●
254 BRACKET; CLU SENSOR 8-98021-377-1 01 1 1004-1108 ●
254 BRACKET; CLU SENSOR 8-98021-377-1 01 1 1109- ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1004-1108 ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1109- ● ●
