1-41 — FUEL PIPING; CHASSIS (#18723) — 64 parça

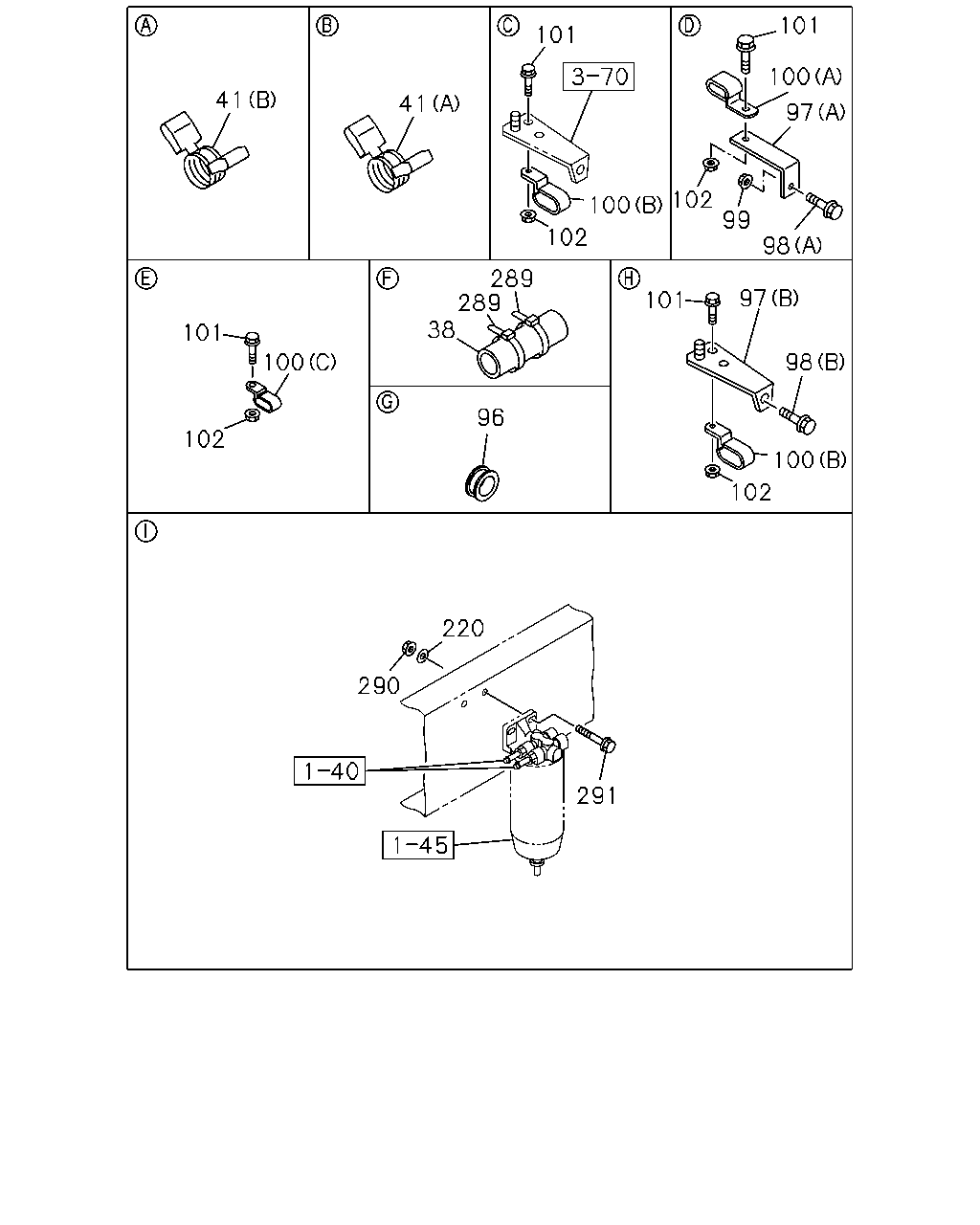

çizim 129241
101 101 100 41 41 97 102 100 99 102 98 289 289 38 97 101 101 98 100 96 102 100 102 220 290 291
BalonParca AdiParca NoAdetTipApplied Date A B
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1004-1108 ●
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 1109- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1004-1108 ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 1109- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 SOU 		8-94238-569-0 02 1 1004-1108 ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 SOU 		8-94238-569-0 02 1 1109- ● ●
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1004-1108 ●
96 GROMMET; PIPE,FUEL TANK
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1109- ● ●
97 BRACKET; CLIP
(A) 		1-47475-927-0 01 1 1004-1010 ●
97 BRACKET; CLIP
(A) L=68 		1-47475-525-0 01 1 1011-1108 ●
97 BRACKET; CLIP
FUEL TANK 400L<SDH> (A) L=68 		1-47475-525-0 01 1 1109- ●
97 BRACKET; CLIP
(A) L=68 		1-47475-525-0 01 1 1109- ●
97 BRACKET; CLIP
(B) 		8-97609-096-0 01 1 1004-1108 ●
97 BRACKET; CLIP
FUEL TANK 400L<SDH> (B) 		8-97609-096-0 01 1 1109- ●
97 BRACKET; CLIP
(B) 		8-97609-096-0 01 1 1109- ●
98 BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1108 ●
98 BOLT; BRKT,FUEL PIPE
FUEL TANK 400L<SDH> (A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1109- ●
98 BOLT; BRKT,FUEL PIPE
(A) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1109- ●
98 BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
98 BOLT; BRKT,FUEL PIPE
FUEL TANK 400L<SDH> (B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ●
98 BOLT; BRKT,FUEL PIPE
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1109- ●
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
99 NUT; BRKT,CLIP,FUEL TANK
FUEL TANK 400L<SDH> M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ●
99 NUT; BRKT,CLIP,FUEL TANK
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ●
100 CLIP; FUEL PIPE
FUEL TANK 200L AL<THF> VIN MODEL YEAR 2011<VZB> (C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 02 1 1109- ●
100 CLIP; FUEL PIPE
(C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 02 1 1109- ●
100 CLIP; FUEL PIPE
FUEL TANK 200L AL<THF> EXC. VIN MODEL YEAR 2011<VZB> (B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 01 1 1109- ●
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 03 1 1109- ●
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1004-1108 ●
100 CLIP; FUEL PIPE
FUEL TANK 400L<SDH> (A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1109- ●
100 CLIP; FUEL PIPE
(A) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1109- ●
100 CLIP; FUEL PIPE
(C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1004-1108 ●
100 CLIP; FUEL PIPE
FUEL TANK 400L<SDH> (C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1109- ●
100 CLIP; FUEL PIPE
FUEL TANK 200L AL<THF> EXC. VIN MODEL YEAR 2011<VZB> (C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 1109- ●
100 CLIP; FUEL PIPE
(B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 04 1 1004-1108 ●
100 CLIP; FUEL PIPE
FUEL TANK 400L<SDH> (B) ID=19X32 H=17.5 L=50.5 		1-09701-320-0 04 1 1109- ●
101 BOLT; CLIP,FUEL PIPE
FUEL TANK 200L AL<THF> M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1004-1108 ●
101 BOLT; CLIP,FUEL PIPE
FUEL TANK 400L<SDH> M8X20 FLANGE 		0-28650-820-0 05 1 1109- ●
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 05 1 1109- ●
102 NUT; CLIP,FUEL PIPE
FUEL TANK 200L AL<THF> M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE SOU 		0-91180-108-0 06 1 1004-1108 ●
102 NUT; CLIP,FUEL PIPE
FUEL TANK 400L<SDH> M8 FLANGE SOU 		0-91180-108-0 06 1 1109- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE SOU 		0-91180-108-0 06 1 1109- ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1004-1108 ●
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 1109- ● ●
289 CLIP; BAND,HOSE
L=250 SOU 		5-09707-030-1 04 1 1004-1108 ●
289 CLIP; BAND,HOSE
L=250 SOU 		5-09707-030-1 04 1 1109-1302 ● ●
290 NUT; FILTER TO BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1004-1108 ●
290 NUT; FILTER TO BRKT
M10 FLANGE SOU 		0-91180-210-0 02 1 1109- ● ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE SOU 		0-28051-060-0 02 1 1004-1108 ●
291 BOLT; FILER TO BRKT
M10X60 FLANGE SOU 		0-28051-060-0 02 1 1109- ● ●

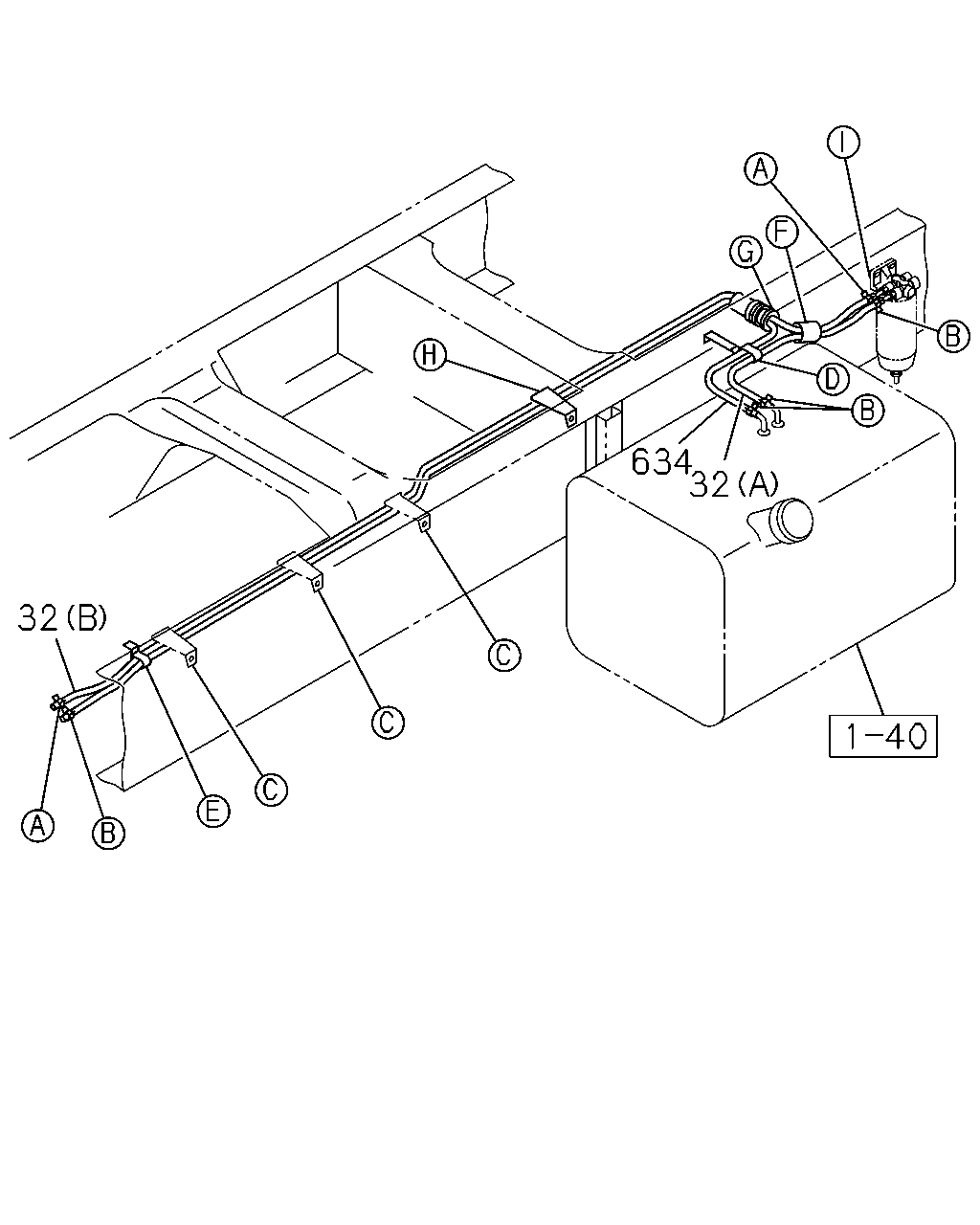

çizim 129314
634 32 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L AL<THF> (A) L=500 SERVICED BY L=3000 		0-01260-300-0 01 1 1109- ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 200L AL<THF> (B) L=1300 SERVICED BY L=3000 		0-01262-300-0 01 1 1109- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=860 SERVICED BY L=3000 		0-01260-300-0 01 1 1109- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2100 SERVICED BY L=3000 		0-01262-300-0 01 1 1109- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1004-1108 ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 400L<SDH> (A) L=900 SERVICED BY L=3000 		0-01260-300-0 01 1 1109- ●
32 PIPE; DELIVERY,FUEL TANK
(B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 1004-1108 ●
32 PIPE; DELIVERY,FUEL TANK
FUEL TANK 400L<SDH> (B) L=2400 SERVICED BY L=3000 		0-01262-300-0 01 1 1109- ●
634 HOSE; RUBBER RETURN
FUEL TANK 200L AL<THF> L=1050 SERVICED BY L=3000 		0-01260-300-0 01 1 1109- ●
634 HOSE; RUBBER RETURN
L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 1004-1108 ●
634 HOSE; RUBBER RETURN
FUEL TANK 400L<SDH> L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 1109- ●
634 HOSE; RUBBER RETURN
L=1800 SERVICED BY L=3000 		0-01260-300-0 01 1 1109- ●
