1-40 — FUEL TANK (#18722) — 70 parça
çizim 129253
467 329 329
BalonParca AdiParca NoAdetTipApplied Date A B
329 JOINT ASM; EYE,FUEL PIPE
(A) NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1004-1108 ●
329 JOINT ASM; EYE,FUEL PIPE
(A) NPTF3/8-18 OD=12 		8-98122-952-0 01 1 1109- ● ●
329 JOINT ASM; EYE,FUEL PIPE
(B) NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1004-1108 ●
329 JOINT ASM; EYE,FUEL PIPE
(B) NPTF3/8-18 OD=10 		8-98122-953-0 01 1 1109- ● ●
467 BOLT
NPTF3/8-18 		8-97329-623-0 02 1 1004-1108 ●
467 BOLT
NPTF3/8-18 		8-97329-623-0 02 1 1109- ● ●

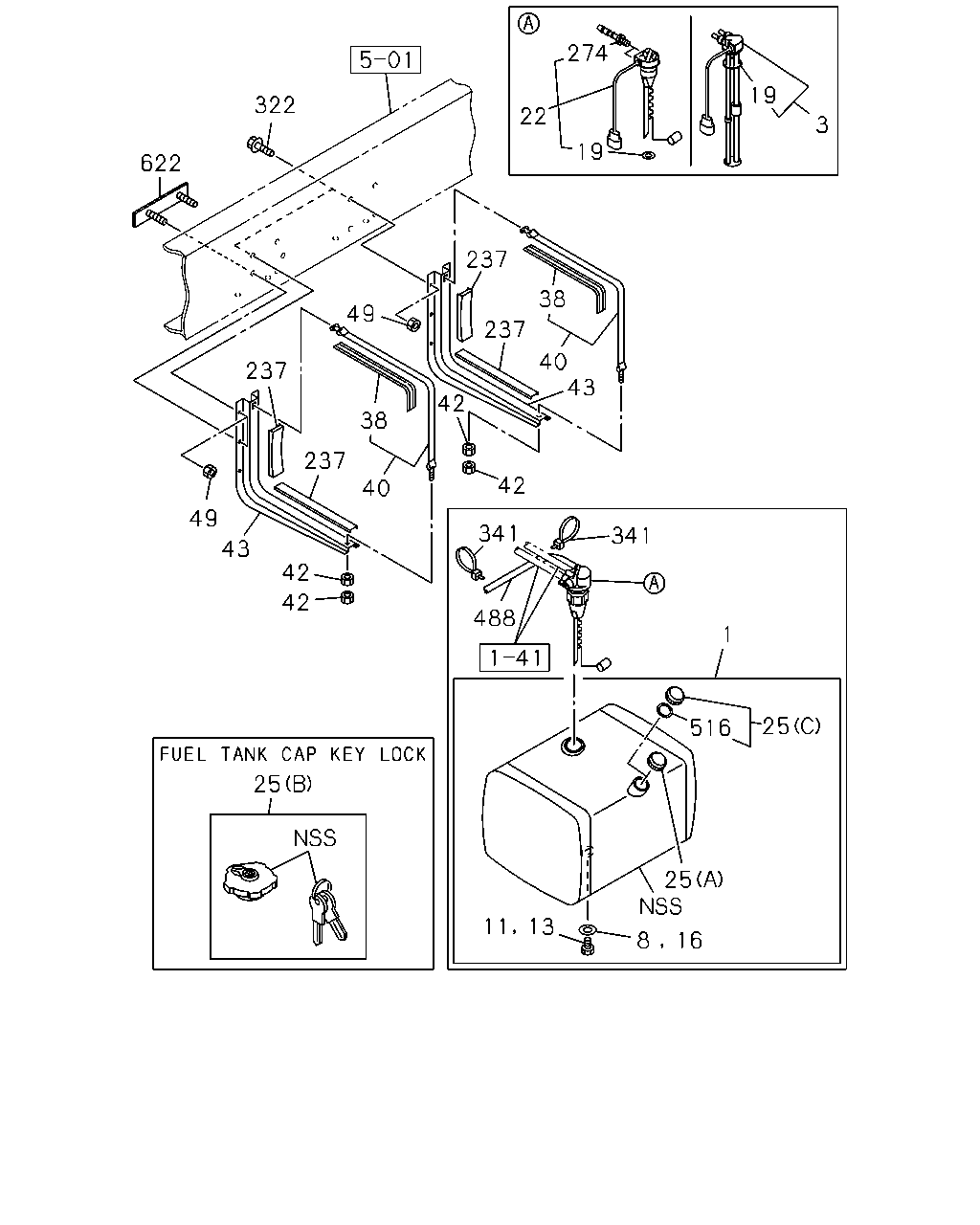

çizim 129303
19 19 3 274 22 322 622 49 237 237 43 38 40 42 42 341 488 1 516 25 25 16 8 13 11 25 42 43 49 237 38 237 40 341 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 TANK; FUEL
FUEL TANK 200L AL<THF> 514X685X625 200L 		1-87412-051-0 01 1 1109- ●
1 TANK; FUEL
1050X680X625 400L 		1-87411-699-1 01 1 1004-1108 ●
1 TANK; FUEL
FUEL TANK 400L<SDH> 1050X680X625 400L 		1-87411-699-1 01 1 1109-1109 ●
1 TANK; FUEL
1050X680X625 400L 		1-87411-699-1 01 1 1109-1109 ●
1 TANK; FUEL
FUEL TANK 400L<SDH> 1050X680X625 400L 		1-87411-788-3 01 1 1110- ●
1 TANK; FUEL
1050X680X625 400L 		1-87411-788-3 01 1 1110- ●
3 UNIT; FUEL TANK,SUB 8-98217-749-0 01 1 1211- ● ●
8 GASKET; DRAIN PLUG,FUEL TANK
ID=18.2 T=1.6 		8-98030-453-0 01 1 1211- ● ●
11 PLUG; DRAIN,FUEL TANK
M18X12 		0-92002-418-0 01 1 1211- ● ●
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 1004-1108 ●
13 PLUG; SCREW,SUB TANK JOINT
M18X12 		0-92002-418-0 01 1 1109-1210 ● ●
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 1004-1108 ●
16 GASKET; PLUG
ID=18.2 T=1.6 		8-98030-453-0 01 1 1109-1210 ● ●
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 1004-1108 ●
19 GASKET; FUEL TANK UNIT
ID=58 		1-83149-005-0 01 1 1109-1210 ● ●
19 GASKET; FUEL TANK UNIT
ID=54.5 		8-98299-580-0 01 1 1211- ● ●
22 UNIT; FUEL TANK 1-83141-132-0 01 1 1004-1108 ●
22 UNIT; FUEL TANK 1-83141-132-0 01 1 1109-1210 ● ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 200L AL<THF> (B) 		1-22440-057-2 01 1 1109-1211 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF> FUEL TANK CAP KEY LOCK<N05> (B) 		1-22440-057-2 01 1 1212- ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 200L AL<THF> (C) SOU 		1-22440-056-0 01 1 1109- ●
25 CAP; FILLER,FUEL TANK
(A) 		8-98115-780-0 01 1 1004-1108 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (A) 		8-98115-780-0 01 1 1109-1109 ●
25 CAP; FILLER,FUEL TANK
(A) 		8-98115-780-0 01 1 1109-1109 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK 400L<SDH> (A) 		8-98182-306-0 01 1 1110- ●
25 CAP; FILLER,FUEL TANK
(A) 		8-98182-306-0 01 1 1110- ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (B) 		8-98108-595-0 01 1 1004-1108 ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> FUEL TANK 400L<SDH> (B) 		8-98108-595-0 01 1 1109- ●
25 CAP; FILLER,FUEL TANK
FUEL TANK CAP KEY LOCK<N05> (B) 		8-98108-595-0 01 1 1109- ●
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 1004-1108 ●
38 INSULATION; SUPPORT BELT
L=1156 		1-22553-039-1 02 1 1109- ● ●
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 1004-1108 ●
40 BELT; SUPPORT,FUEL TANK
L=1210 		1-22550-261-0 02 1 1109-1110 ● ●
40 BELT; SUPPORT,FUEL TANK
L=1210 		8-98202-448-0 02 1 1111- ● ●
42 NUT; SUPPORT BELT
M10 SOU 		0-91110-510-0 04 1 1004-1108 ●
42 NUT; SUPPORT BELT
M10 SOU 		0-91110-510-0 04 1 1109- ● ●
43 BRACKET; FUEL TANK
FUEL TANK 200L AL<THF> 		1-53461-529-1 02 1 1109- ●
43 BRACKET; FUEL TANK 8-97621-247-0 02 1 1109- ●
43 BRACKET; FUEL TANK 1-53461-525-1 02 1 1004-1108 ●
43 BRACKET; FUEL TANK
FUEL TANK 400L<SDH> 		1-53461-525-1 02 1 1109- ●
49 NUT; BRKT
M12 SOU 		0-91110-512-0 10 1 1004-1004 ●
49 NUT; BRKT
M12 SOU 		0-91110-512-0 08 1 1005-1108 ●
49 NUT; BRKT
M12 SOU 		0-91110-512-0 08 1 1109- ● ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> L=450 		1-22553-042-1 02 1 1109- ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 200L AL<THF> L=540 		1-22553-064-1 02 1 1109- ●
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 1004-1108 ●
237 GASKET; BRKT TO FUEL TANK
FUEL TANK 400L<SDH> 		1-22553-037-1 04 1 1109- ●
237 GASKET; BRKT TO FUEL TANK 1-22553-037-1 04 1 1109- ●
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 1004-1108 ●
274 CONNECTOR; ELBOW,FUEL TANK PIPE 1-83149-006-0 02 1 1109-1210 ● ●
322 BOLT; BRKT FIX
FUEL TANK 200L AL<THF> M12X40 FLANGE 		0-28051-240-0 08 1 1109- ●
322 BOLT; BRKT FIX
M12X50 FLANGE 		0-28051-250-0 10 1 1109- ●
322 BOLT; BRKT FIX
M12X40 FLANGE 		0-28051-240-0 10 1 1004-1108 ●
322 BOLT; BRKT FIX
FUEL TANK 400L<SDH> M12X40 FLANGE 		0-28051-240-0 10 1 1109- ●
341 CLIP; BAND,RUBBER HOSE
L=350 		1-09707-183-0 02 1 1004-1108 ●
341 CLIP; BAND,RUBBER HOSE
FUEL TANK 400L<SDH> L=350 		1-09707-183-0 02 1 1109- ●
341 CLIP; BAND,RUBBER HOSE
L=350 		1-09707-183-0 02 1 1109- ●
488 HOSE; RUBBER 8-98134-936-0 01 1 1004-1108 ●
488 HOSE; RUBBER
FUEL TANK 400L<SDH> 		8-98134-936-0 01 1 1109- ●
488 HOSE; RUBBER 8-98134-936-0 01 1 1109- ●
516 GASKET; CAP
FUEL TANK 200L AL<THF> ID=78 		8-98259-383-0 01 1 1109- ●
622 STUD; BRACKET 1-53461-534-0 01 1 1004-1108 ●
622 STUD; BRACKET
FUEL TANK 400L<SDH> 		1-53461-534-0 01 1 1109- ●
622 STUD; BRACKET 1-53461-534-0 01 1 1109- ●
