◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-61 - BATTERY AND ENGINE ELECTRICAL PARTS ▶
0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#18711) — 106 parça

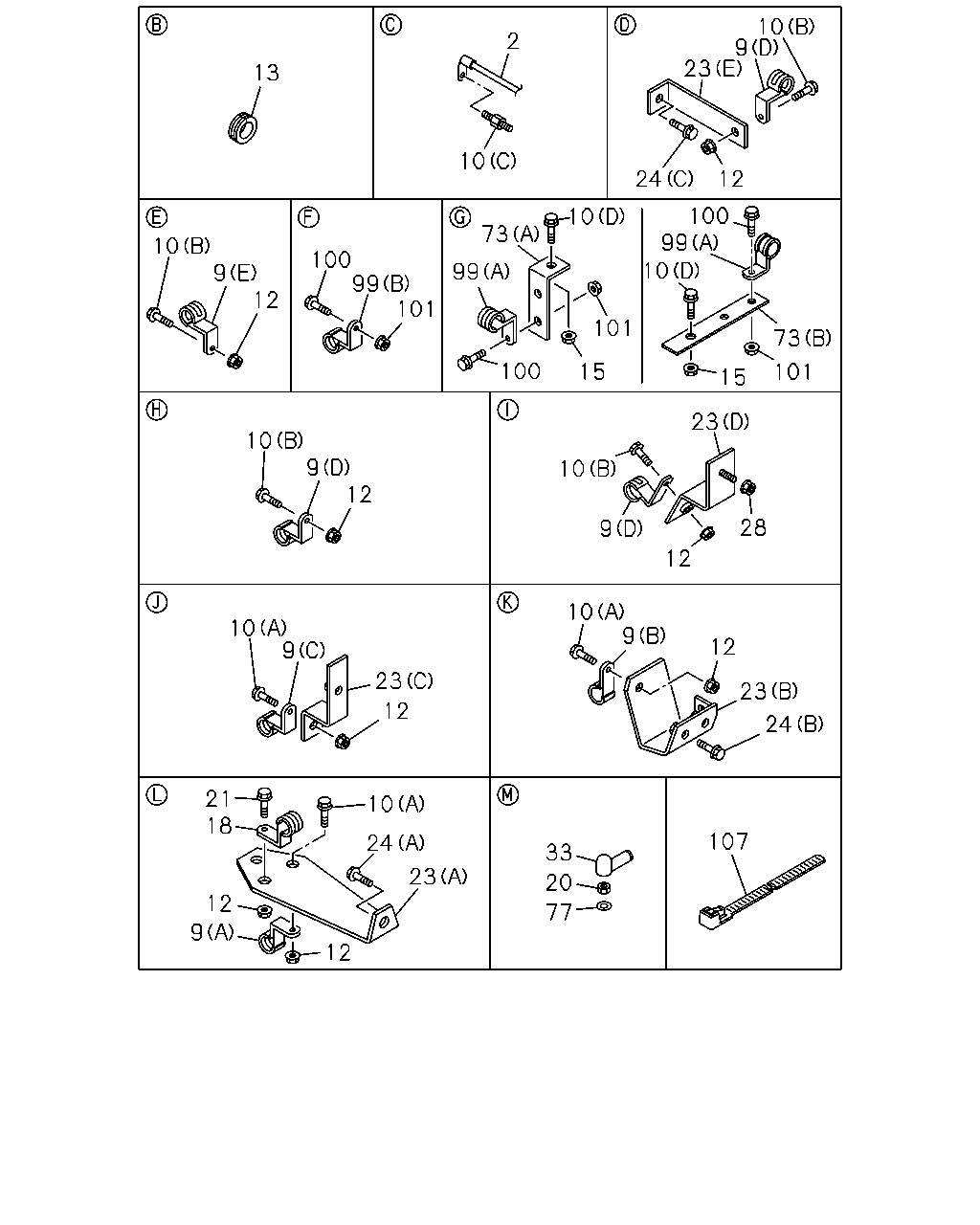

çizim 129587
10 9 23 2 13 10 24 12 100 99 10 10 73 10 9 12 100 99 101 99 101 73 100 15 101 15 23 10 9 12 10 28 9 12 10 9 10 9 12 23 23 12 24 21 18 10 107 24 33 23 20 12 77 9 12
BalonParca AdiParca NoAdetTipApplied Date A B
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=250 		8-98105-795-0 01 1 1004-1108 ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=250 		8-98105-795-0 01 1 1109- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=420 		8-98059-866-0 01 1 1004-1108 ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=420 		8-98059-866-0 01 1 1109-1201 ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=420 		8-98059-866-0 01 1 1202- ● ●
9 CLIP; BATTERY CABLE
(C) ID=18 H=23 L=28 		1-09701-070-0 01 1 1109- ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 04 1 1109- ●
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1004-1108 ●
9 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1109- ● ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 01 1 1004-1108 ●
9 CLIP; BATTERY CABLE
(B) ID=18 L=28 		1-09701-067-0 01 1 1109- ● ●
9 CLIP; BATTERY CABLE
(E) ID=18 L=25 H=50 		1-09701-096-0 03 1 1004-1101 ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 02 1 1004-1101 ●
9 CLIP; BATTERY CABLE
(E) ID=18 L=25 H=50 		1-09701-096-0 02 1 1004-1108 ●
9 CLIP; BATTERY CABLE
(E) ID=18 L=25 H=50 		1-09701-096-0 02 1 1109- ● ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1004-1108 ●
9 CLIP; BATTERY CABLE
(D) ID=18 L=28 H=30 		1-09701-110-0 01 1 1109- ● ●
10 BOLT; BATTERY CABLE CLIP
(D) M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1101 ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1004-1108 ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 1109-1201 ● ●
10 BOLT; BATTERY CABLE CLIP
(C) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1004-1108 ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1109- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1004-1108 ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1109-1201 ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1202- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1202- ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
10 BOLT; BATTERY CABLE CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1109-1201 ● ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 02 1 1109-1201 ●
10 BOLT; BATTERY CABLE CLIP
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1202- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 04 1 1004-1108 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 04 1 1109- ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1108 ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1109- ● ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1004-1108 ●
13 GROMMET; BATTERY CABLE
ID=32 OD=40 T=23 		1-09332-112-0 01 1 1109- ● ●
15 NUT; BRKT CLIP
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ●
15 NUT; BRKT CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1101 ●
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 1004-1108 ●
18 CLIP; BATTERY CABLE
ID=20 H=23 L=27 		1-09700-861-0 01 1 1109- ● ●
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1004-1108 ●
20 NUT; STARTER CABLE
M10 		8-98011-328-0 01 1 1109- ● ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
21 BOLT; CLIP CABLE
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47471-215-1 01 1 1004-1108 ●
23 BRACKET; CABLE CLIP TO FRAME
(B) 		1-47471-215-1 01 1 1109- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=85 H=40 		1-47476-676-0 01 1 1004-1108 ●
23 BRACKET; CABLE CLIP TO FRAME
(C) L=85 H=40 		1-47476-676-0 01 1 1109- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		1-47479-779-0 01 1 1004-1108 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		1-47479-779-0 01 1 1109- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-614-0 01 1 1004-1108 ●
23 BRACKET; CABLE CLIP TO FRAME
(D) 		1-82698-614-0 01 1 1109- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1004-1108 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 1109- ● ●
24 BOLT; BRKT TO FRAME
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ●
24 BOLT; BRKT TO FRAME
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1109- ● ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1109-1201 ● ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 1202- ● ●
24 BOLT; BRKT TO FRAME
(C) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1004-1108 ●
24 BOLT; BRKT TO FRAME
(C) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1109-1201 ● ●
24 BOLT; BRKT TO FRAME
(C) M8X35 FLANGE SOU 		0-28650-835-0 01 1 1202- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
28 NUT; BRKT TO FRAME
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1004-1108 ●
33 CAP; INSULATOR 1-82699-431-0 01 1 1109- ● ●
73 BRACKET; BATTERY CABLE
(B) L=150 		1-47471-217-0 02 1 1109- ●
73 BRACKET; BATTERY CABLE
(A) 		1-47478-901-0 01 1 1004-1404 ●
73 BRACKET; BATTERY CABLE
(A) 		8-98259-391-0 01 1 1405- ●
77 WASHER; LK,STARTER CABLE
ID=10.2 SOU 		0-91510-810-0 01 1 1004-1108 ●
77 WASHER; LK,STARTER CABLE
ID=10.2 SOU 		0-91510-810-0 01 1 1109- ● ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 02 1 1109- ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 03 1 1109- ●
99 CLIP; BATTERY CABLE
(A) ID=20 H=23 L=27 		1-09700-861-0 01 1 1004-1101 ●
99 CLIP; BATTERY CABLE
(B) ID=18 L=25 H=50 		1-09701-096-0 02 1 1004-1101 ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 05 1 1109- ●
100 BOLT; BATTERY CABLE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 03 1 1004-1101 ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 05 1 1109- ●
101 NUT; BATTERY CABLE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004-1101 ●
107 CLIP; BAND
L=350 		1-09707-183-0 01 1 1004-1108 ●
107 CLIP; BAND
L=350 		1-09707-183-0 01 1 1109- ● ●

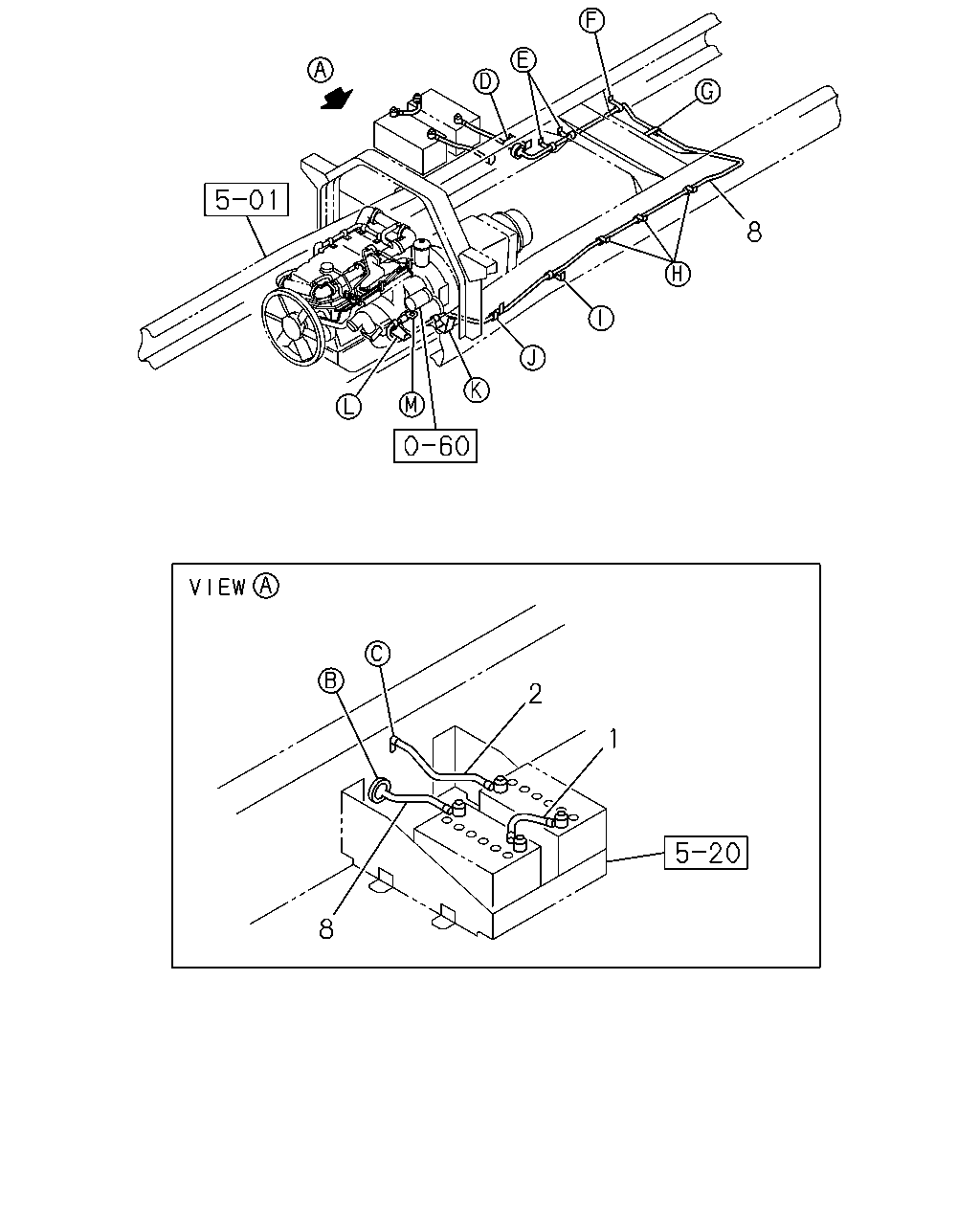

çizim 129602
2 1 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
BATTERY 115E41L<8MA> L=265 		1-82650-388-1 01 1 1004-1108 ●
1 CABLE; BATTERY
BATTERY 115E41L<8MA> L=265 		1-82650-388-1 01 1 1109- ● ●
1 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=265 		1-82650-390-1 01 1 1004-1108 ●
1 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=265 		1-82650-390-1 01 1 1109-1201 ● ●
1 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=265 		1-82650-390-1 01 1 1202- ● ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=250 		8-98105-795-0 01 1 1004-1108 ●
2 CABLE; BATTERY
BATTERY 115E41L<8MA> L=250 		8-98105-795-0 01 1 1109- ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=420 		8-98059-866-0 01 1 1004-1108 ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=420 		8-98059-866-0 01 1 1109-1201 ● ●
2 CABLE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=420 		8-98059-866-0 01 1 1202- ● ●
8 CABLE; BATTERY,STARTER
ENGINE REAR PTO(SV1) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=4850 		8-98105-930-2 01 1 1102- ●
8 CABLE; BATTERY,STARTER
ENGINE REAR PTO(SV1) BATTERY 115E41L<8MA> L=4680 		8-98105-931-3 01 1 1102- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=4630 		8-98075-618-3 01 1 1004-1101 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ENGINE REAR PTO(SV1) L=4630 		8-98075-618-3 01 1 1102-1108 ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> EXC. ENGINE REAR PTO(SV1) L=4630 		8-98075-618-3 01 1 1109- ●
8 CABLE; BATTERY,STARTER
BATTERY 115E41L<8MA> L=4630 		8-98075-618-3 01 1 1109- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=4740 		8-98075-617-3 01 1 1004-1101 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ENGINE REAR PTO(SV1) L=4740 		8-98075-617-3 01 1 1102-1108 ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> EXC. ENGINE REAR PTO(SV1) L=4740 		8-98075-617-3 01 1 1109- ●
8 CABLE; BATTERY,STARTER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=4740 		8-98075-617-3 01 1 1109- ●
