0-42 — FUEL PUMP AND PIPE (#18705) — 47 parça

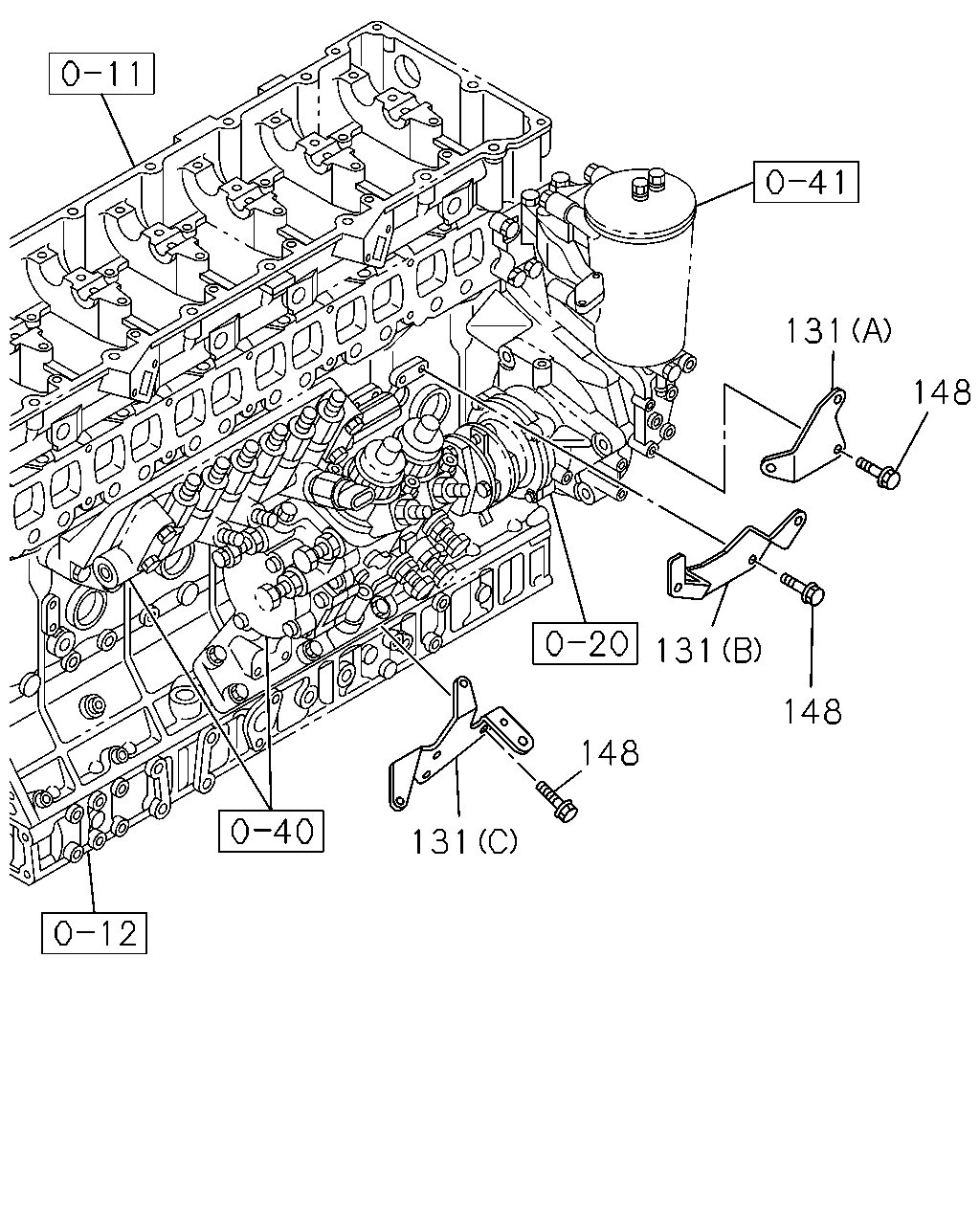

148 131 148 131 148 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
131	BRACKET; FUEL PIPE CLIP (A)	8-97603-874-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (B)	8-97605-982-1	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (D)	8-97606-625-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (C)	8-97610-280-0	01	1	1004-
148	BOLT; BRKT M8X16 FLANGE SOU	0-28050-816-0	11	1	1004-

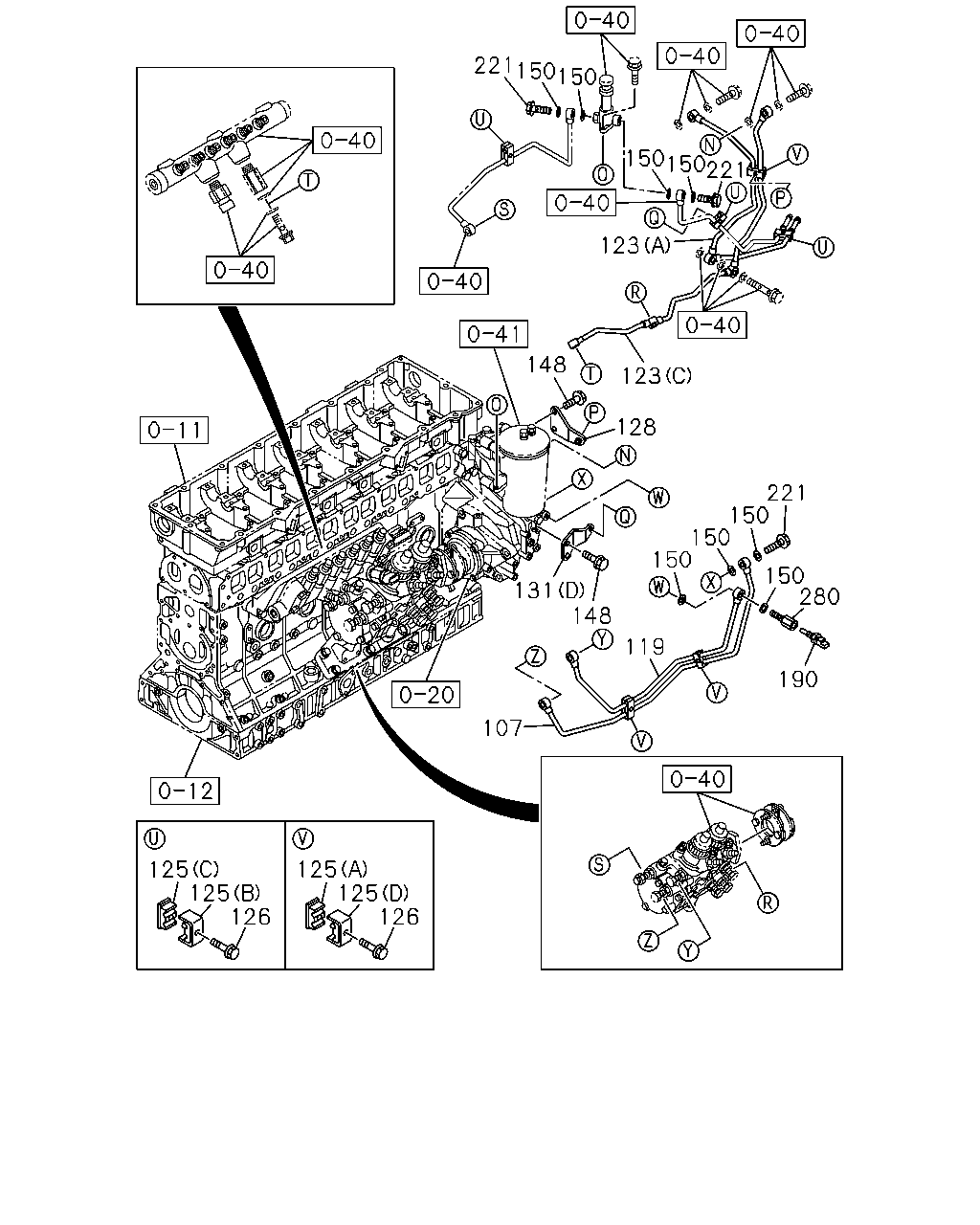

221 150 150 221 150 150 123 148 128 123 221 150 150 150 131 150 280 190 125 125 126 125 125 126 148 119 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97606-621-1	01	1	1004-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97603-752-0	01	1	1004-
123	PIPE; FUEL,FUEL FILTER LEAK OFF VIN MODEL YEAR 2011<VZB> (C)	8-98170-939-0	01	1	1109-
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97606-623-0	01	1	1004-
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	1004-1108
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97606-624-0	01	1	1109-
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	1004-
125	CLIP; FUEL PIPE (B) ID=9 & 11 L=28	1-09701-193-1	03	1	1004-
125	CLIP; FUEL PIPE (C) ID=9 & 11 L=28	1-09701-194-1	03	1	1004-
125	CLIP; FUEL PIPE (D) ID=9 & 9 L=25	8-94393-280-3	03	1	1004-
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	06	1	1004-
128	BRACKET; FUEL RETURN CLIP	8-97606-626-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (A)	8-97603-874-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (B)	8-97605-982-1	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (D)	8-97606-625-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (C)	8-97610-280-0	01	1	1004-
148	BOLT; BRKT M8X16 FLANGE SOU	0-28050-816-0	11	1	1004-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	1004-
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	1004-
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	03	1	1004-
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	1004-

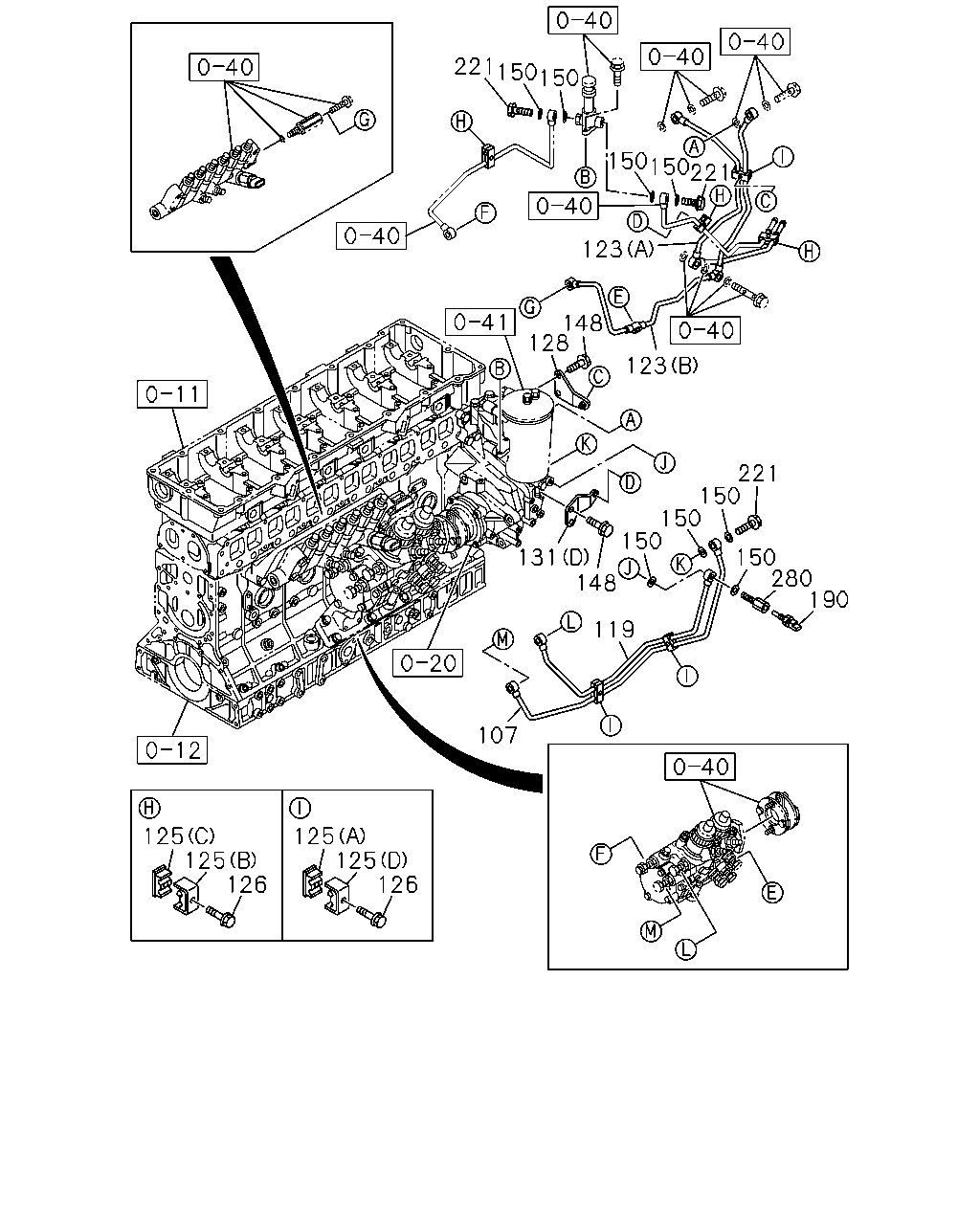

221 150 150 150 123 150 221 123 148 128 221 150 150 150 150 280 119 148 131 190 107 125 125 126 125 125 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	8-97606-621-1	01	1	1004-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	8-97603-752-0	01	1	1004-
123	PIPE; FUEL,FUEL FILTER LEAK OFF VIN MODEL YEAR 2011<VZB> (C)	8-98170-939-0	01	1	1109-
123	PIPE; FUEL,FUEL FILTER LEAK OFF (A)	8-97606-623-0	01	1	1004-
123	PIPE; FUEL,FUEL FILTER LEAK OFF (B)	8-97606-624-0	01	1	1004-1108
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97606-624-0	01	1	1109-
125	CLIP; FUEL PIPE (A) ID=9 & 9 L=25	1-09701-180-0	03	1	1004-
125	CLIP; FUEL PIPE (B) ID=9 & 11 L=28	1-09701-193-1	03	1	1004-
125	CLIP; FUEL PIPE (C) ID=9 & 11 L=28	1-09701-194-1	03	1	1004-
125	CLIP; FUEL PIPE (D) ID=9 & 9 L=25	8-94393-280-3	03	1	1004-
126	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28650-635-0	06	1	1004-
128	BRACKET; FUEL RETURN CLIP	8-97606-626-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (A)	8-97603-874-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (B)	8-97605-982-1	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (D)	8-97606-625-0	01	1	1004-
131	BRACKET; FUEL PIPE CLIP (C)	8-97610-280-0	01	1	1004-
148	BOLT; BRKT M8X16 FLANGE SOU	0-28050-816-0	11	1	1004-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=25	1-09630-141-0	08	1	1004-
190	SENSOR; FUEL TEMP	8-97224-993-0	01	1	1004-
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	03	1	1004-
280	ADAPTER; FUEL TEMP SEN M12 & M14 STRAIGHT	1-15419-716-1	01	1	1004-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
