Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#18703) — 231 parça

171 172 173 180 181 179 182 179 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
171	PUMP ASM; FUEL FEED	1-15761-012-0	01	1	1004-1403
171	PUMP ASM; FUEL FEED	8-98257-686-0	01	1	1404-
172	PUMP; PRIMING,FUEL FEED PUMP	1-15761-013-0	01	1	1004-1403
173	GASKET; PRIMING PUMP,FUEL FEED PUMP	1-15769-030-0	01	1	1004-1403
178	CYLINDER; FUEL FEED PUMP	1-15769-024-0	01	1	1004-1403
179	VALVE; CHECK,FEED PUMP	1-15769-027-0	02	1	1004-1403
180	ADAPTER; EYE BOLT,FUEL FEED PUMP	1-15769-031-0	01	1	1004-1403
181	GASKET; ADAPTER	1-15769-029-0	01	1	1004-1403
182	BUSHING; VLV	1-15769-028-0	01	1	1004-1403

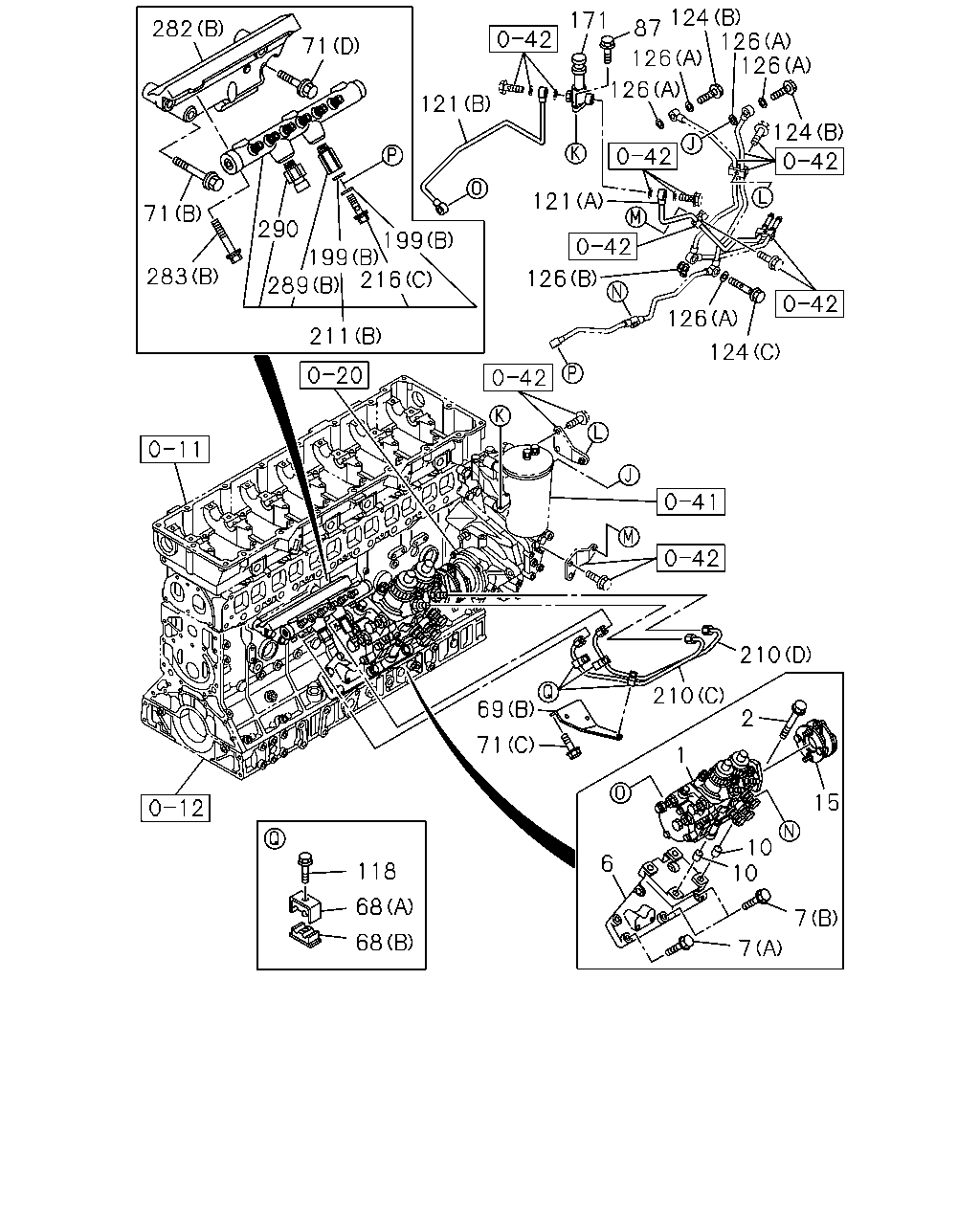

118 68 68 6 1 2 15 10 10 7 7 71 210 210 69 124 126 126 121 121 171 87 124 126 126 126 126 124 216 211 199 199 289 283 71 282 71 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ VIN MODEL YEAR 2011<VZB>	8-98176-117-2	01	1	1401-
1	PUMP ASM; INJ	8-98013-910-4	01	1	1004-1312
1	PUMP ASM; INJ EXC. VIN MODEL YEAR 2011<VZB>	8-98013-910-4	01	1	1401-
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	1004-
6	BRACKET; INJ PUMP TO C/BL	8-97603-738-1	01	1	1004-
7	BOLT; INJ PUMP BRKT (A) M12X40 FLANGE	0-28151-240-0	04	1	1004-
7	BOLT; INJ PUMP BRKT (B) M12X70 FLANGE	0-28151-270-0	02	1	1004-
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	1004-
15	COUPLING ASM; INJ PUMP VIN MODEL YEAR 2011<VZB>	8-97610-800-0	01	1	1401-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-202-1	01	1	1004-1312
15	COUPLING ASM; INJ PUMP EXC. VIN MODEL YEAR 2011<VZB> SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-202-1	01	1	1401-
68	CLIP; INJ PIPE VIN MODEL YEAR 2011<VZB> (A) ID=7 & 7 L=22	8-97330-118-3	02	1	1109-
68	CLIP; INJ PIPE VIN MODEL YEAR 2011<VZB> (B) ID=7 & 7 L=22	8-97330-119-3	02	1	1109-
68	CLIP; INJ PIPE (C)	1-09701-269-0	02	1	1004-1108
68	CLIP; INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> (C)	1-09701-269-0	02	1	1109-
68	CLIP; INJ PIPE (D)	8-94396-371-0	02	1	1004-1108
68	CLIP; INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> (D)	8-94396-371-0	02	1	1109-
68	CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	08	1	1004-
68	CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	08	1	1004-
69	BRACKET; INJ PIPE CLIP VIN MODEL YEAR 2011<VZB> (B)	8-98175-342-0	01	1	1109-
69	BRACKET; INJ PIPE CLIP (A)	8-97603-113-0	01	1	1004-1108
69	BRACKET; INJ PIPE CLIP EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-113-0	01	1	1109-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	03	1	1109-
71	BOLT; BRKT VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28050-820-0	02	1	1109-
71	BOLT; BRKT VIN MODEL YEAR 2011<VZB> (D) M10X40 FLANGE	0-28151-040-0	01	1	1109-
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-1108
71	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1109-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1004-1108
71	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (B) M10X60 FLANGE	0-28151-060-0	01	1	1109-
87	BOLT; PUMP M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28650-630-0	07	1	1109-
118	BOLT; CLIP,INJ PIPE VIN MODEL YEAR 2011<VZB> M6X35 FLANGE	0-28650-635-0	03	1	1109-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28650-630-0	10	1	1004-1108
118	BOLT; CLIP,INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> M6X30 FLANGE	0-28650-630-0	03	1	1109-
121	PIPE; FUEL,FEED PUMP,SUCTION (A)	8-97606-231-0	01	1	1004-1403
121	PIPE; FUEL,FEED PUMP,SUCTION (A)	8-98257-406-0	01	1	1404-
121	PIPE; FUEL,FEED PUMP,SUCTION (B)	8-97606-232-0	01	1	1004-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1004-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1004-1405
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1406-
124	BOLT; EYE LEAK OFF PIPE (C) M14X43 EYE-BOLT	8-98037-829-0	01	1	1004-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25	1-09630-141-0	05	1	1004-1405
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25	1-09630-141-0	03	1	1406-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21	8-97251-047-0	01	1	1004-
171	PUMP ASM; FUEL FEED	1-15761-012-0	01	1	1004-1403
171	PUMP ASM; FUEL FEED	8-98257-686-0	01	1	1404-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1004-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	1004-
210	PIPE; INJ,C/R VIN MODEL YEAR 2011<VZB> (C)	8-98170-937-1	01	1	1109-
210	PIPE; INJ,C/R VIN MODEL YEAR 2011<VZB> (D)	8-98170-938-1	01	1	1109-
210	PIPE; INJ,C/R (A)	8-97603-101-0	01	1	1004-1108
210	PIPE; INJ,C/R EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-101-0	01	1	1109-
210	PIPE; INJ,C/R (B)	8-97603-102-0	01	1	1004-1108
210	PIPE; INJ,C/R EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97603-102-0	01	1	1109-
211	RAIL ASM; COMMON VIN MODEL YEAR 2011<VZB> (B)	8-97622-718-1	01	1	1109-1501
211	RAIL ASM; COMMON VIN MODEL YEAR 2011<VZB> (B)	8-98299-773-0	01	1	1502-
211	RAIL ASM; COMMON (A)	8-97603-121-2	01	1	1004-1108
211	RAIL ASM; COMMON EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-121-2	01	1	1109-
216	BOLT; EYE VIN MODEL YEAR 2011<VZB> (C)	8-98043-033-0	01	1	1109-
216	BOLT; EYE (A)	5-15759-003-0	01	1	1004-
216	BOLT; EYE (B)	8-97602-173-0	01	1	1004-1108
216	BOLT; EYE EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97602-173-0	01	1	1109-
282	BRACKET; COMMON RAIL VIN MODEL YEAR 2011<VZB> (B)	8-98098-851-1	01	1	1109-
282	BRACKET; COMMON RAIL (A)	8-97603-838-0	01	1	1004-1108
282	BRACKET; COMMON RAIL EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-838-0	01	1	1109-
283	BOLT; COMMON RAIL VIN MODEL YEAR 2011<VZB> (B) M10X50 FLANGE	0-28151-050-0	02	1	1109-
283	BOLT; COMMON RAIL (A) M10X40 FLANGE	0-28151-040-0	04	1	1004-1108
283	BOLT; COMMON RAIL EXC. VIN MODEL YEAR 2011<VZB> (A) M10X40 FLANGE	0-28151-040-0	04	1	1109-
289	LIMITER; FUEL PRESS VIN MODEL YEAR 2011<VZB> (B)	8-98097-606-0	01	1	1109-
289	LIMITER; FUEL PRESS (A)	8-98032-283-0	01	1	1004-1108
289	LIMITER; FUEL PRESS EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98032-283-0	01	1	1109-
290	SENSOR; PRESS VIN MODEL YEAR 2011<VZB>	8-97318-684-0	01	1	1109-
290	SENSOR; PRESS	8-97318-684-0	01	1	1004-1102
290	SENSOR; PRESS	8-98119-790-0	01	1	1103-1108
290	SENSOR; PRESS EXC. VIN MODEL YEAR 2011<VZB>	8-98119-790-0	01	1	1109-

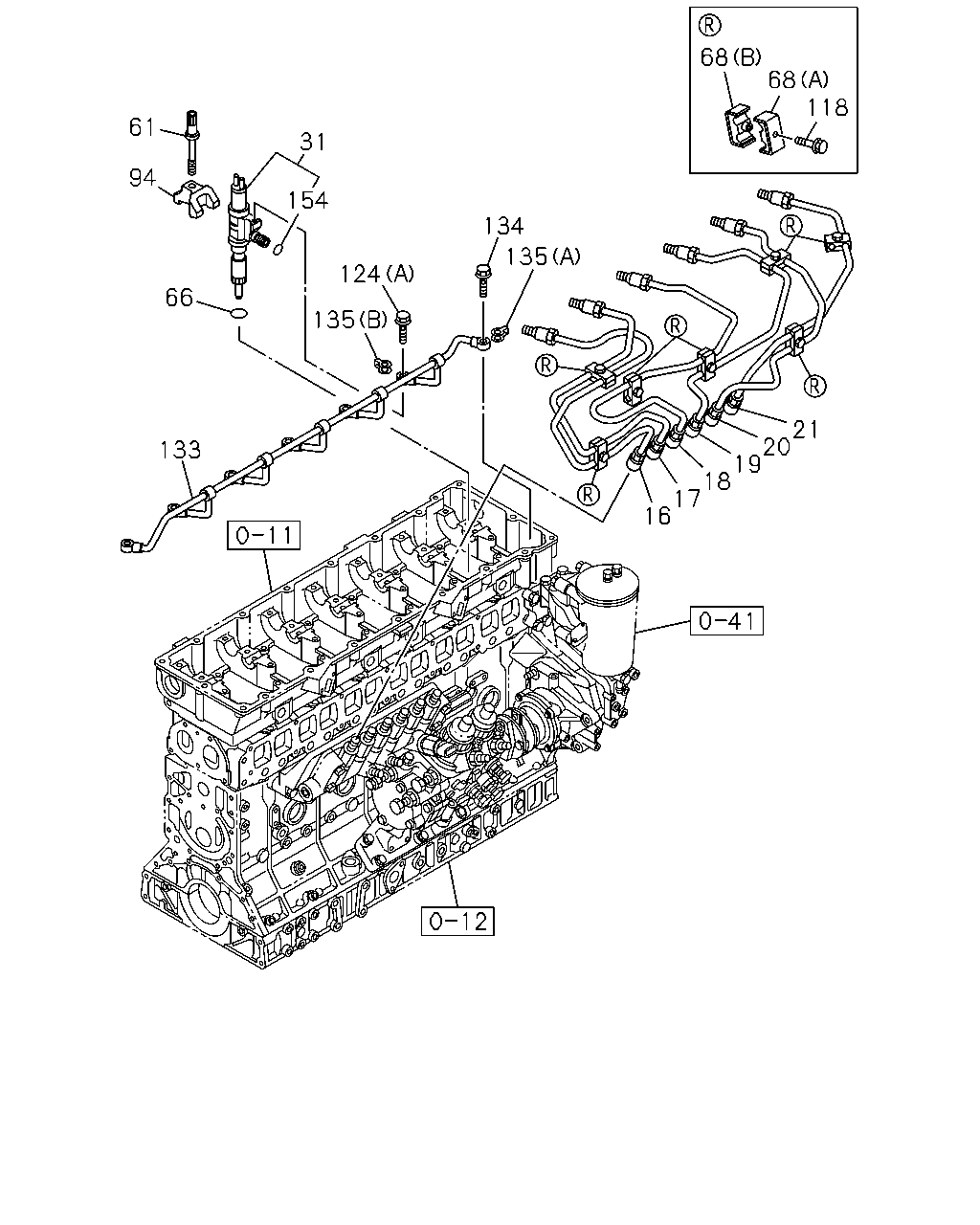

118 68 68 21 20 19 18 17 16 135 134 124 135 66 154 31 61 94 133

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PIPE; INJ NO.1 VIN MODEL YEAR 2011<VZB>	8-98170-931-0	01	1	1109-
16	PIPE; INJ NO.1	8-97605-246-1	01	1	1004-1108
16	PIPE; INJ NO.1 EXC. VIN MODEL YEAR 2011<VZB>	8-97605-246-1	01	1	1109-
17	PIPE; INJ NO.2 VIN MODEL YEAR 2011<VZB>	8-98170-932-0	01	1	1109-
17	PIPE; INJ NO.2	8-97605-247-1	01	1	1004-1108
17	PIPE; INJ NO.2 EXC. VIN MODEL YEAR 2011<VZB>	8-97605-247-1	01	1	1109-
18	PIPE; INJ NO.3 VIN MODEL YEAR 2011<VZB>	8-98170-933-0	01	1	1109-
18	PIPE; INJ NO.3	8-97605-248-1	01	1	1004-1108
18	PIPE; INJ NO.3 EXC. VIN MODEL YEAR 2011<VZB>	8-97605-248-1	01	1	1109-
19	PIPE; INJ NO.4 VIN MODEL YEAR 2011<VZB>	8-98170-934-0	01	1	1109-
19	PIPE; INJ NO.4	8-97603-742-1	01	1	1004-1108
19	PIPE; INJ NO.4 EXC. VIN MODEL YEAR 2011<VZB>	8-97603-742-1	01	1	1109-
20	PIPE; INJ NO.5 VIN MODEL YEAR 2011<VZB>	8-98170-935-0	01	1	1109-
20	PIPE; INJ NO.5	8-97605-945-1	01	1	1004-1108
20	PIPE; INJ NO.5 EXC. VIN MODEL YEAR 2011<VZB>	8-97605-945-1	01	1	1109-
21	PIPE; INJ NO.6 VIN MODEL YEAR 2011<VZB>	8-98170-936-0	01	1	1109-
21	PIPE; INJ NO.6	8-97603-744-1	01	1	1004-1108
21	PIPE; INJ NO.6 EXC. VIN MODEL YEAR 2011<VZB>	8-97603-744-1	01	1	1109-
31	NOZZLE ASM; INJ	8-97603-099-5	06	1	1004-
61	BOLT; CLAMP NOZZLE HOLDER M8X60	8-97603-301-0	06	1	1004-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97608-858-0	06	1	1004-
68	CLIP; INJ PIPE VIN MODEL YEAR 2011<VZB> (A) ID=7 & 7 L=22	8-97330-118-3	02	1	1109-
68	CLIP; INJ PIPE VIN MODEL YEAR 2011<VZB> (B) ID=7 & 7 L=22	8-97330-119-3	02	1	1109-
68	CLIP; INJ PIPE (C)	1-09701-269-0	02	1	1004-1108
68	CLIP; INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> (C)	1-09701-269-0	02	1	1109-
68	CLIP; INJ PIPE (D)	8-94396-371-0	02	1	1004-1108
68	CLIP; INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> (D)	8-94396-371-0	02	1	1109-
68	CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	08	1	1004-
68	CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	08	1	1004-
94	BRACKET; INJ NOZZLE	1-15337-028-0	06	1	1004-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28650-630-0	07	1	1109-
118	BOLT; CLIP,INJ PIPE VIN MODEL YEAR 2011<VZB> M6X35 FLANGE	0-28650-635-0	03	1	1109-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28650-630-0	10	1	1004-1108
118	BOLT; CLIP,INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> M6X30 FLANGE	0-28650-630-0	03	1	1109-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1004-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1004-1405
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1406-
124	BOLT; EYE LEAK OFF PIPE (C) M14X43 EYE-BOLT	8-98037-829-0	01	1	1004-
133	PIPE; INJ NOZZLE LEAK OFF	8-97603-112-0	01	1	1004-
134	BOLT; JOINT,LEAK OFF PIPE M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	1004-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=8.3 OD=15.0	8-98065-992-0	06	1	1004-
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=12.6	8-98065-993-0	01	1	1004-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	06	1	1004-1106
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	06	1	1107-

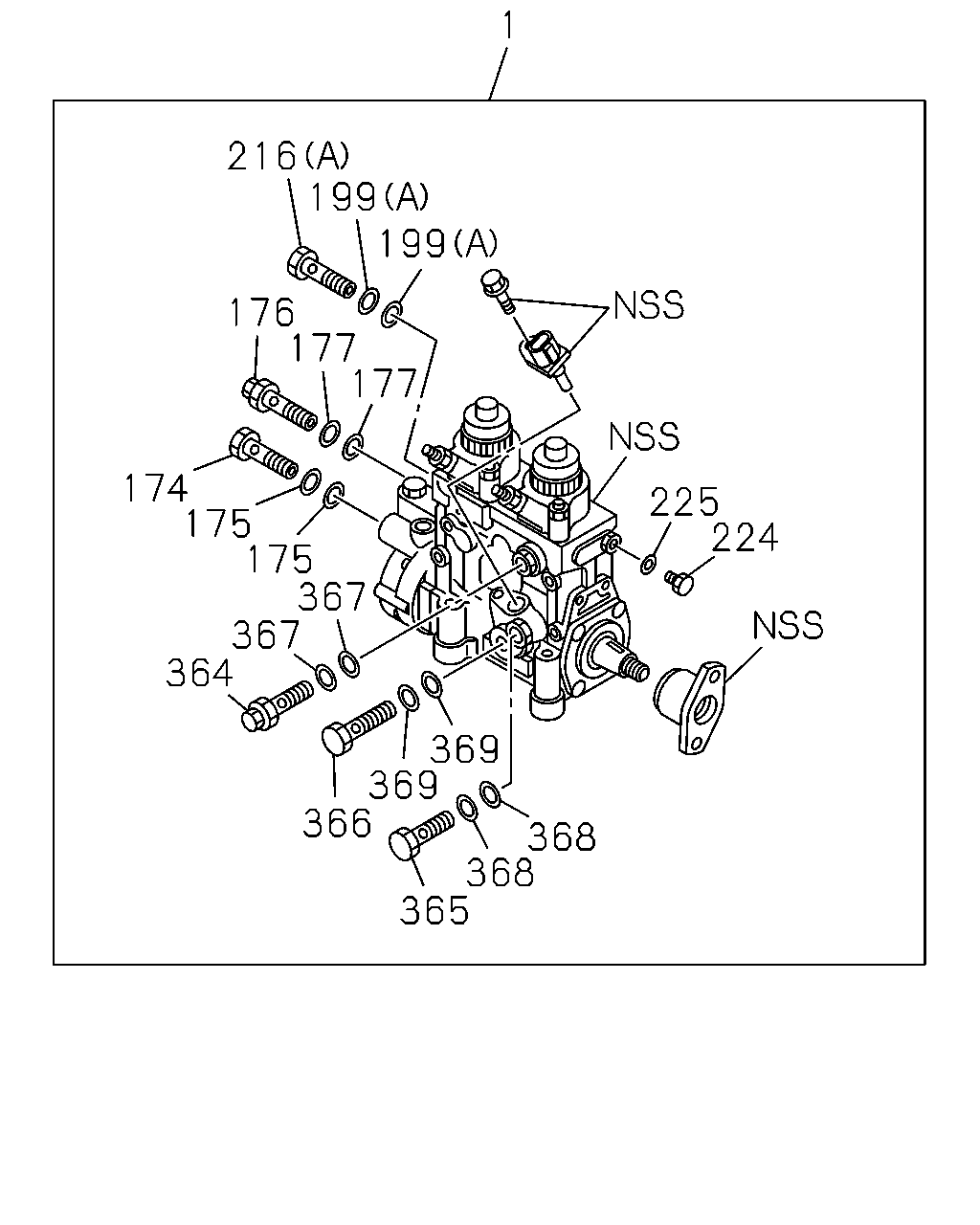

1 216 199 199 176 177 177 174 175 175 367 367 364 225 224 369 369 366 368 368 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ VIN MODEL YEAR 2011<VZB>	8-98176-117-2	01	1	1401-
1	PUMP ASM; INJ	8-98013-910-4	01	1	1004-1312
1	PUMP ASM; INJ EXC. VIN MODEL YEAR 2011<VZB>	8-98013-910-4	01	1	1401-
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	5-15759-003-0	01	1	1004-
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP	1-15619-507-0	02	1	1004-
176	BOLT; EYE,FEED PUMP VIN MODEL YEAR 2011<VZB>	5-15759-002-0	01	1	1406-
176	BOLT; EYE,FEED PUMP	1-15619-509-0	01	1	1004-1405
176	BOLT; EYE,FEED PUMP EXC. VIN MODEL YEAR 2011<VZB>	1-15619-509-0	01	1	1406-
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP	1-15619-507-0	02	1	1004-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1004-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	1004-
216	BOLT; EYE VIN MODEL YEAR 2011<VZB> (C)	8-98043-033-0	01	1	1109-
216	BOLT; EYE (A)	5-15759-003-0	01	1	1004-
216	BOLT; EYE (B)	8-97602-173-0	01	1	1004-1108
216	BOLT; EYE EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97602-173-0	01	1	1109-
224	PLUG; INJ PUMP	1-15619-500-0	01	1	1004-
225	GASKET; PLUG	1-15619-502-0	01	1	1004-
364	VALVE; OVER FLOW,INJ PUMP	1-15619-496-0	01	1	1004-
365	BOLT; EYE,OIL INLET SOU	9-88130-088-0	01	1	1004-
366	BOLT; EYE,OIL OUTLET VIN MODEL YEAR 2011<VZB>	5-15759-003-0	01	1	1401-1405
366	BOLT; EYE,OIL OUTLET	1-15619-513-0	01	1	1004-1312
366	BOLT; EYE,OIL OUTLET EXC. VIN MODEL YEAR 2011<VZB>	1-15619-513-0	01	1	1401-1405
366	BOLT; EYE,OIL OUTLET	1-15619-513-0	01	1	1406-
367	GASKET; VALVE,OVER FLOW	1-15619-501-0	02	1	1004-
368	GASKET; EYE BOLT,OIL INLET	1-15619-508-0	02	1	1004-
369	GASKET; EYE BOLT,OIL OUTLET	1-15619-507-0	02	1	1004-

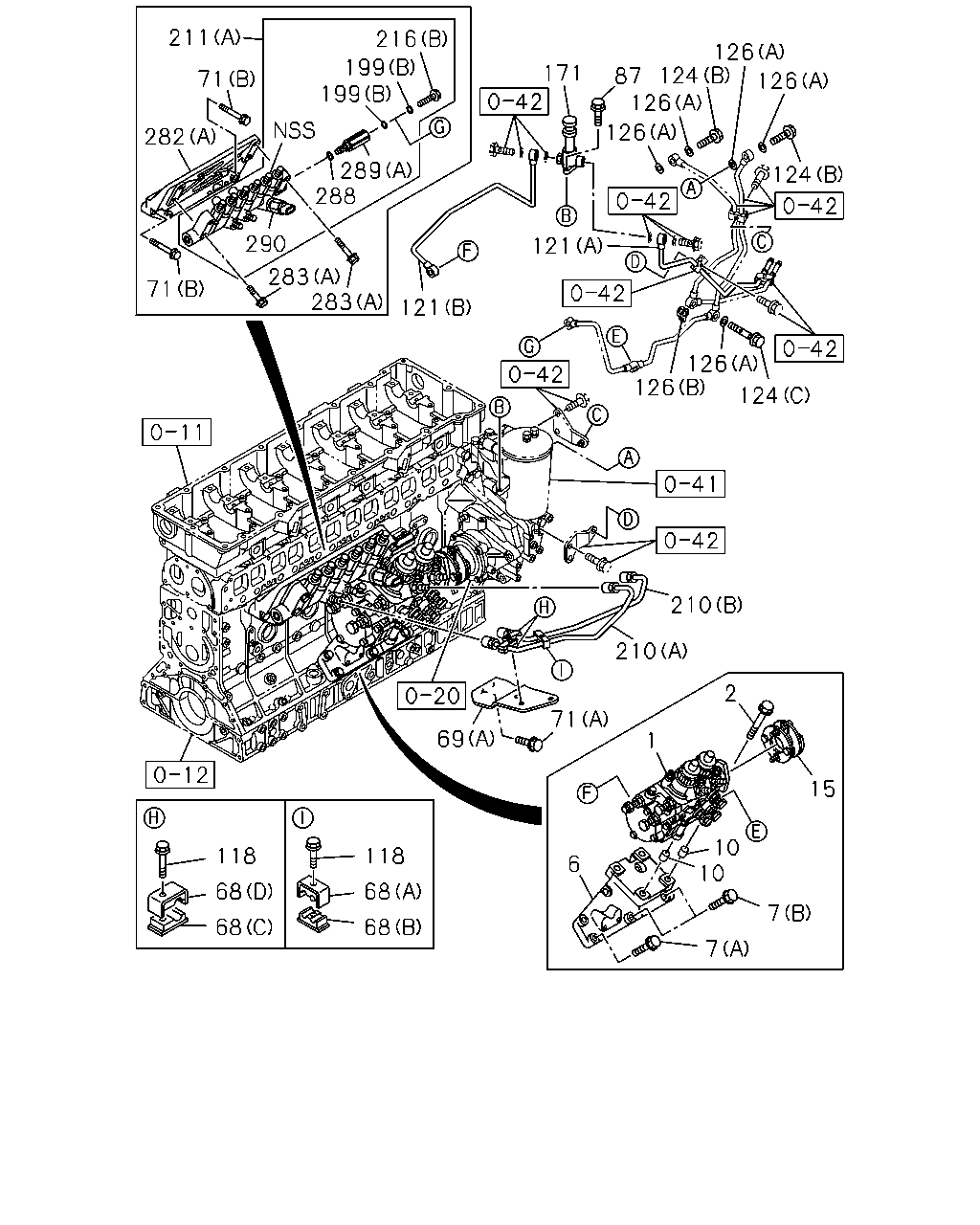

211 71 282 216 199 199 289 288 290 71 283 283 121 121 126 171 87 126 124 126 126 124 126 124 126 210 210 2 15 1 71 69 10 10 7 7 68 68 118 6 68 68 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ VIN MODEL YEAR 2011<VZB>	8-98176-117-2	01	1	1401-
1	PUMP ASM; INJ	8-98013-910-4	01	1	1004-1312
1	PUMP ASM; INJ EXC. VIN MODEL YEAR 2011<VZB>	8-98013-910-4	01	1	1401-
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	1004-
6	BRACKET; INJ PUMP TO C/BL	8-97603-738-1	01	1	1004-
7	BOLT; INJ PUMP BRKT (A) M12X40 FLANGE	0-28151-240-0	04	1	1004-
7	BOLT; INJ PUMP BRKT (B) M12X70 FLANGE	0-28151-270-0	02	1	1004-
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	1004-
15	COUPLING ASM; INJ PUMP VIN MODEL YEAR 2011<VZB>	8-97610-800-0	01	1	1401-
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-202-1	01	1	1004-1312
15	COUPLING ASM; INJ PUMP EXC. VIN MODEL YEAR 2011<VZB> SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-202-1	01	1	1401-
68	CLIP; INJ PIPE VIN MODEL YEAR 2011<VZB> (A) ID=7 & 7 L=22	8-97330-118-3	02	1	1109-
68	CLIP; INJ PIPE VIN MODEL YEAR 2011<VZB> (B) ID=7 & 7 L=22	8-97330-119-3	02	1	1109-
68	CLIP; INJ PIPE (C)	1-09701-269-0	02	1	1004-1108
68	CLIP; INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> (C)	1-09701-269-0	02	1	1109-
68	CLIP; INJ PIPE (D)	8-94396-371-0	02	1	1004-1108
68	CLIP; INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> (D)	8-94396-371-0	02	1	1109-
68	CLIP; INJ PIPE (A) ID=7 & 7 L=22	8-97330-118-3	08	1	1004-
68	CLIP; INJ PIPE (B) ID=7 & 7 L=22	8-97330-119-3	08	1	1004-
69	BRACKET; INJ PIPE CLIP VIN MODEL YEAR 2011<VZB> (B)	8-98175-342-0	01	1	1109-
69	BRACKET; INJ PIPE CLIP (A)	8-97603-113-0	01	1	1004-1108
69	BRACKET; INJ PIPE CLIP EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-113-0	01	1	1109-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	03	1	1109-
71	BOLT; BRKT VIN MODEL YEAR 2011<VZB> (C) M8X20 FLANGE	0-28050-820-0	02	1	1109-
71	BOLT; BRKT VIN MODEL YEAR 2011<VZB> (D) M10X40 FLANGE	0-28151-040-0	01	1	1109-
71	BOLT; BRKT (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-1108
71	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (A) M8X16 FLANGE SOU	0-28050-816-0	02	1	1109-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28151-060-0	04	1	1004-1108
71	BOLT; BRKT EXC. VIN MODEL YEAR 2011<VZB> (B) M10X60 FLANGE	0-28151-060-0	01	1	1109-
87	BOLT; PUMP M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28650-630-0	07	1	1109-
118	BOLT; CLIP,INJ PIPE VIN MODEL YEAR 2011<VZB> M6X35 FLANGE	0-28650-635-0	03	1	1109-
118	BOLT; CLIP,INJ PIPE M6X30 FLANGE	0-28650-630-0	10	1	1004-1108
118	BOLT; CLIP,INJ PIPE EXC. VIN MODEL YEAR 2011<VZB> M6X30 FLANGE	0-28650-630-0	03	1	1109-
121	PIPE; FUEL,FEED PUMP,SUCTION (A)	8-97606-231-0	01	1	1004-1403
121	PIPE; FUEL,FEED PUMP,SUCTION (A)	8-98257-406-0	01	1	1404-
121	PIPE; FUEL,FEED PUMP,SUCTION (B)	8-97606-232-0	01	1	1004-
124	BOLT; EYE LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	06	1	1004-
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	1004-1405
124	BOLT; EYE LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	1406-
124	BOLT; EYE LEAK OFF PIPE (C) M14X43 EYE-BOLT	8-98037-829-0	01	1	1004-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25	1-09630-141-0	05	1	1004-1405
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=25	1-09630-141-0	03	1	1406-
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=21	8-97251-047-0	01	1	1004-
171	PUMP ASM; FUEL FEED	1-15761-012-0	01	1	1004-1403
171	PUMP ASM; FUEL FEED	8-98257-686-0	01	1	1404-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	1004-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	1004-
210	PIPE; INJ,C/R VIN MODEL YEAR 2011<VZB> (C)	8-98170-937-1	01	1	1109-
210	PIPE; INJ,C/R VIN MODEL YEAR 2011<VZB> (D)	8-98170-938-1	01	1	1109-
210	PIPE; INJ,C/R (A)	8-97603-101-0	01	1	1004-1108
210	PIPE; INJ,C/R EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-101-0	01	1	1109-
210	PIPE; INJ,C/R (B)	8-97603-102-0	01	1	1004-1108
210	PIPE; INJ,C/R EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97603-102-0	01	1	1109-
211	RAIL ASM; COMMON VIN MODEL YEAR 2011<VZB> (B)	8-97622-718-1	01	1	1109-1501
211	RAIL ASM; COMMON VIN MODEL YEAR 2011<VZB> (B)	8-98299-773-0	01	1	1502-
211	RAIL ASM; COMMON (A)	8-97603-121-2	01	1	1004-1108
211	RAIL ASM; COMMON EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-121-2	01	1	1109-
216	BOLT; EYE VIN MODEL YEAR 2011<VZB> (C)	8-98043-033-0	01	1	1109-
216	BOLT; EYE (A)	5-15759-003-0	01	1	1004-
216	BOLT; EYE (B)	8-97602-173-0	01	1	1004-1108
216	BOLT; EYE EXC. VIN MODEL YEAR 2011<VZB> (B)	8-97602-173-0	01	1	1109-
282	BRACKET; COMMON RAIL VIN MODEL YEAR 2011<VZB> (B)	8-98098-851-1	01	1	1109-
282	BRACKET; COMMON RAIL (A)	8-97603-838-0	01	1	1004-1108
282	BRACKET; COMMON RAIL EXC. VIN MODEL YEAR 2011<VZB> (A)	8-97603-838-0	01	1	1109-
283	BOLT; COMMON RAIL VIN MODEL YEAR 2011<VZB> (B) M10X50 FLANGE	0-28151-050-0	02	1	1109-
283	BOLT; COMMON RAIL (A) M10X40 FLANGE	0-28151-040-0	04	1	1004-1108
283	BOLT; COMMON RAIL EXC. VIN MODEL YEAR 2011<VZB> (A) M10X40 FLANGE	0-28151-040-0	04	1	1109-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	1004-1108
288	GASKET EXC. VIN MODEL YEAR 2011<VZB> ID=11 OD=16.3	1-15641-046-0	01	1	1109-
289	LIMITER; FUEL PRESS VIN MODEL YEAR 2011<VZB> (B)	8-98097-606-0	01	1	1109-
289	LIMITER; FUEL PRESS (A)	8-98032-283-0	01	1	1004-1108
289	LIMITER; FUEL PRESS EXC. VIN MODEL YEAR 2011<VZB> (A)	8-98032-283-0	01	1	1109-
290	SENSOR; PRESS VIN MODEL YEAR 2011<VZB>	8-97318-684-0	01	1	1109-
290	SENSOR; PRESS	8-97318-684-0	01	1	1004-1102
290	SENSOR; PRESS	8-98119-790-0	01	1	1103-1108
290	SENSOR; PRESS EXC. VIN MODEL YEAR 2011<VZB>	8-98119-790-0	01	1	1109-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
