0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#18690) — 118 parça

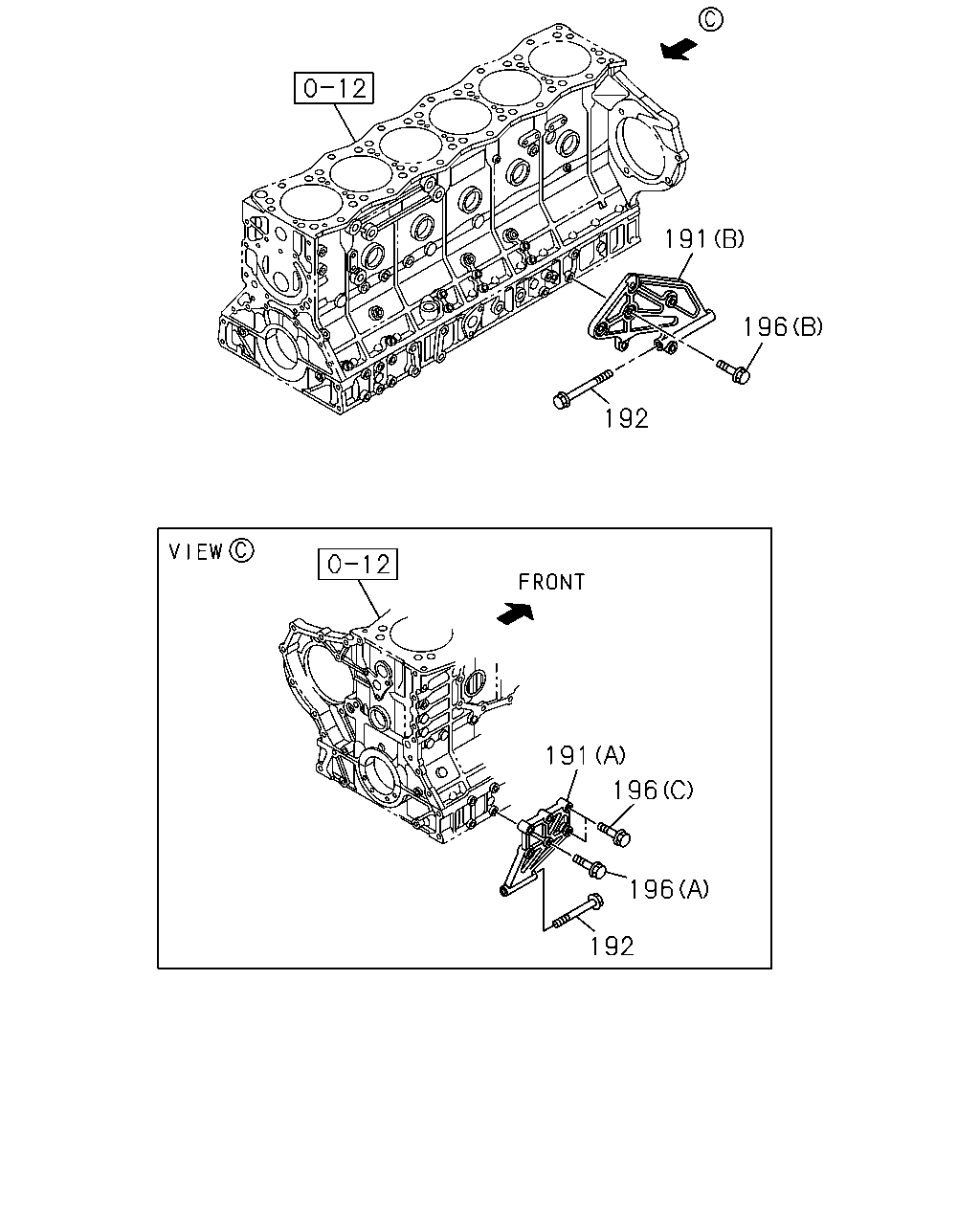

191 196 192 191 196 196 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
191	STAY; FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) (A)	8-97606-941-1	01	1	1202-1305
191	STAY; FLYWHEEL HSG EXC. ENGINE REAR PTO(SV1) (B)	8-97606-942-2	01	1	1202-1305
192	BOLT; STAY TO HSG EXC. ENGINE REAR PTO(SV1) M14X150 FLANGE	0-28956-415-0	02	1	1202-1305
196	BOLT; STAY TO C/BL EXC. ENGINE REAR PTO(SV1) (A) M10X70 FLANGE	0-28151-070-0	04	1	1202-1305
196	BOLT; STAY TO C/BL EXC. ENGINE REAR PTO(SV1) (B) M10X30 FLANGE	0-28751-030-0	03	1	1202-1305
196	BOLT; STAY TO C/BL EXC. ENGINE REAR PTO(SV1) (C) M10X40 FLANGE	0-28751-040-0	02	1	1202-1305

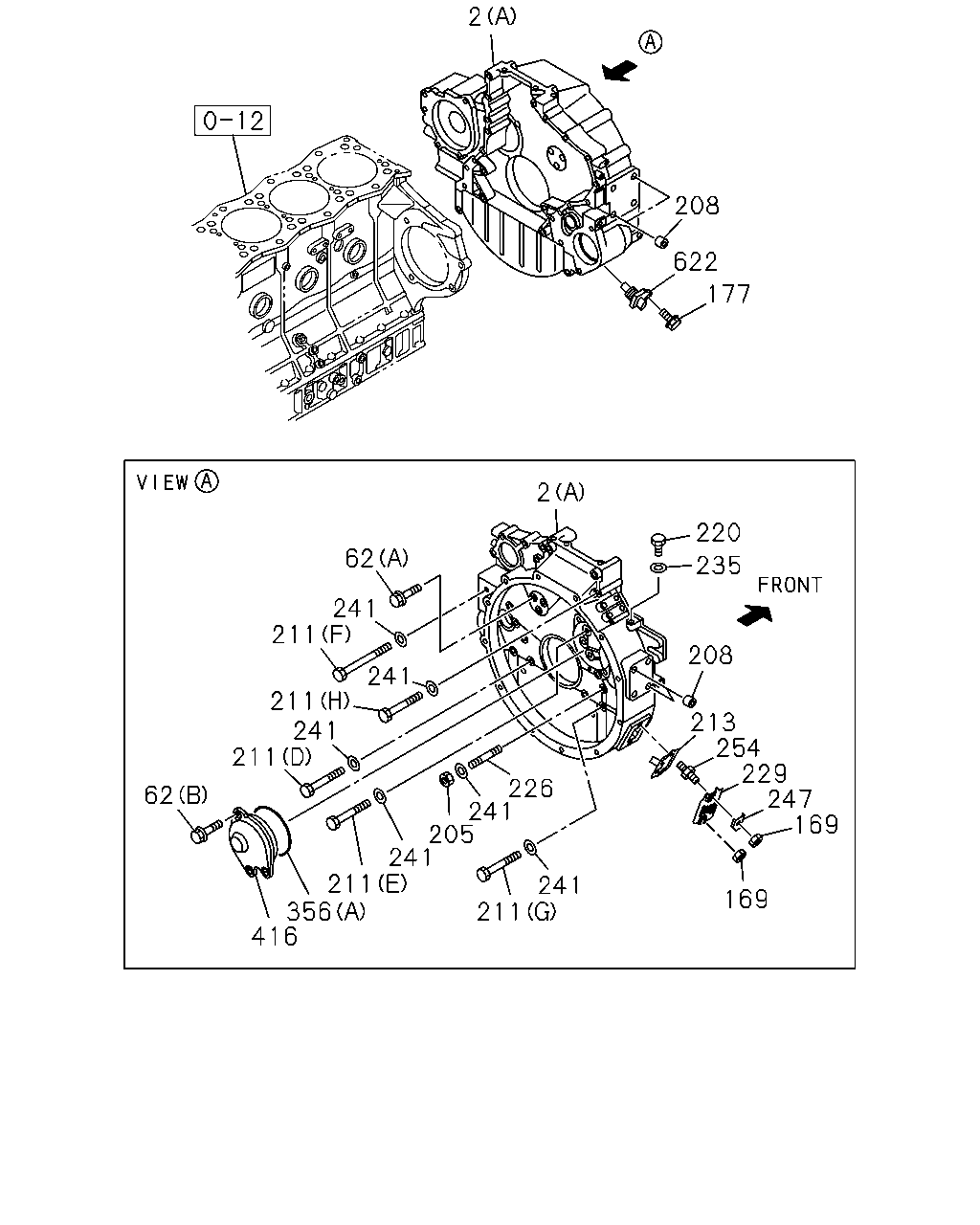

177 622 208 2 2 220 235 208 213 169 247 229 254 169 241 226 241 205 211 241 211 356 416 62 241 62 241 211 211 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1) (B)	8-97604-057-5	01	1	1109-1112
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1) (B)	8-98204-964-0	01	1	1201-1206
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1) (B)	8-98204-965-1	01	1	1207-
2	HOUSING; FLYWHEEL (A)	8-97605-202-6	01	1	1004-1108
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1) (A)	8-97605-202-6	01	1	1109-1206
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1) (A)	8-98079-891-1	01	1	1207-1305
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1) (A)	8-98221-370-0	01	1	1306-
62	BOLT; COVER ENGINE REAR PTO(SV1) (C) M10X20 FLANGE	0-28761-020-0	07	1	1109-
62	BOLT; COVER (B) M8X16 FLANGE SOU	0-28050-816-0	03	1	1004-1108
62	BOLT; COVER EXC. ENGINE REAR PTO(SV1) (B) M8X16 FLANGE SOU	0-28050-816-0	03	1	1109-
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	1004-
169	NUT; COVER M8 FLANGE SOU	0-91180-108-0	02	1	1004-
177	BOLT; SENSOR M6X16 FLANGE SOU	0-28650-616-0	01	1	1004-
205	NUT; HSG M12 SOU	0-91110-512-0	01	1	1004-1108
205	NUT; HSG EXC. ENGINE REAR PTO(SV1) M12 SOU	0-91110-512-0	01	1	1109-
208	DOWEL; ENG FOOT OD=26 L=12	1-11229-016-0	04	1	1004-
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M12X60	0-16856-260-0	02	1	1109-
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M12X130	1-09020-040-0	09	1	1109-
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	1109-
211	BOLT; HSG ENGINE REAR PTO(SV1) (D) M12X75	9-01666-275-0	03	1	1109-
211	BOLT; HSG (G) M12X60	0-16856-260-0	09	1	1004-1108
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M12X60	0-16856-260-0	09	1	1109-
211	BOLT; HSG (H) M12X90	0-16856-290-0	01	1	1004-1108
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (H) M12X90	0-16856-290-0	01	1	1109-
211	BOLT; HSG (E) M12X25	0-23801-225-0	02	1	1004-
211	BOLT; HSG (F) M12X160	8-97388-159-0	01	1	1004-
211	BOLT; HSG (D) M12X75	9-01666-275-0	05	1	1004-1108
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X75	9-01666-275-0	05	1	1109-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	1004-
220	PLUG; GEAR CHECK HOLE M16X12	0-92002-416-0	01	1	1004-
226	STUD; HSG M12X60 L=78	0-44011-260-0	01	1	1004-1108
226	STUD; HSG EXC. ENGINE REAR PTO(SV1) M12X60 L=78	0-44011-260-0	01	1	1109-
229	COVER; TIMING CHECK HOLE	1-11349-131-0	01	1	1004-
235	GASKET; PLUG GEAR CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	1004-
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	1004-
247	WASHER; LK,POINTER,FLYWHEEL HSG	1-11349-127-0	01	1	1004-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	1004-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=95.6	1-09623-422-0	01	1	1110-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=139.6	1-09623-464-0	01	1	1004-1108
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (A) ID=139.6	1-09623-464-0	01	1	1109-1408
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (A) ID=137	8-98280-698-0	01	1	1409-
416	COVER; IDLE GEAR	8-97603-341-0	01	1	1004-1108
416	COVER; IDLE GEAR EXC. ENGINE REAR PTO(SV1)	8-97603-341-0	01	1	1109-
622	SENSOR; ENG SPD & TDC	8-94390-279-0	01	1	1004-

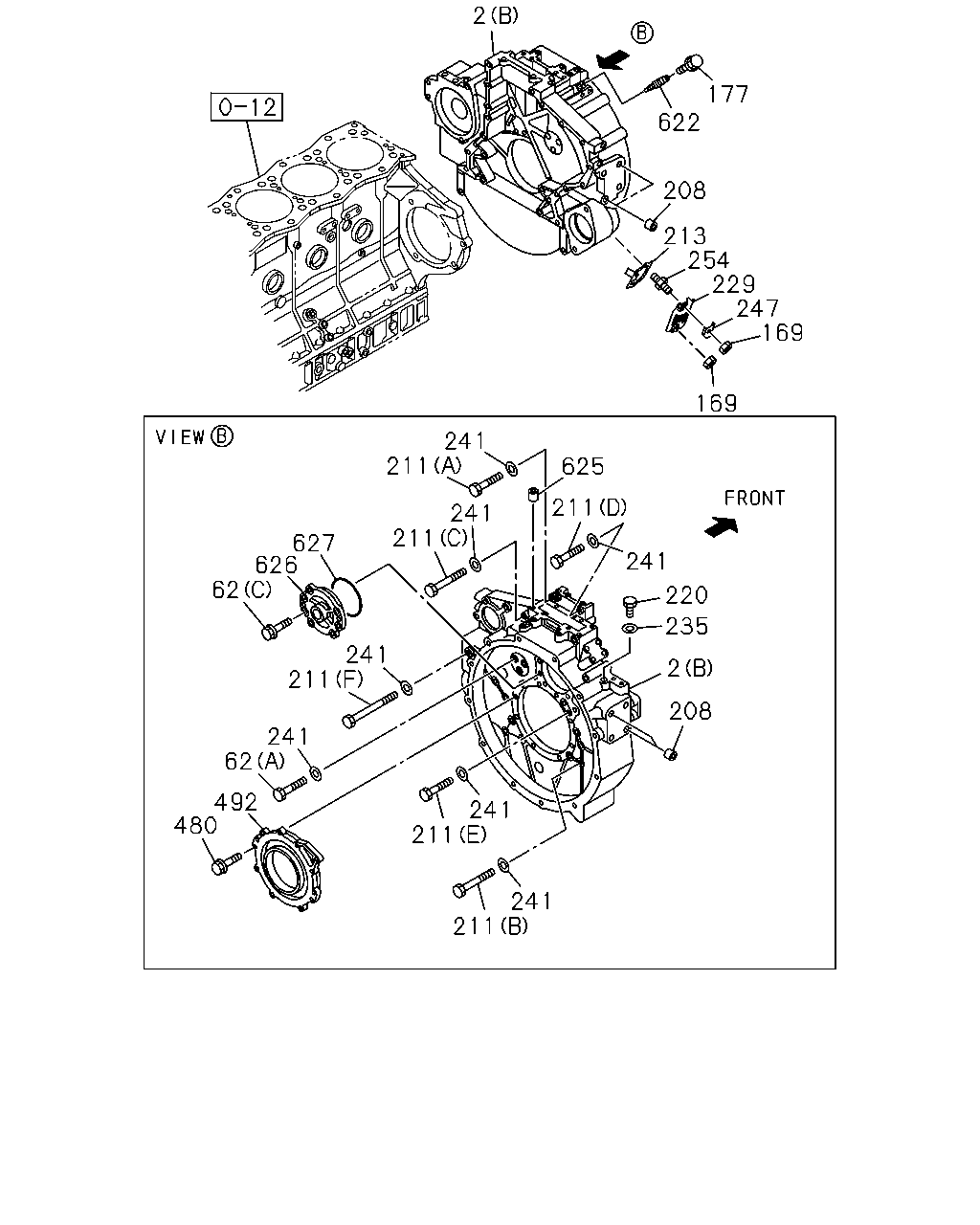

2 177 622 208 213 254 229 247 169 169 241 211 625 211 241 211 627 626 62 241 220 241 211 235 2 208 241 62 492 480 241 211 241 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1) (B)	8-97604-057-5	01	1	1109-1112
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1) (B)	8-98204-964-0	01	1	1201-1206
2	HOUSING; FLYWHEEL ENGINE REAR PTO(SV1) (B)	8-98204-965-1	01	1	1207-
2	HOUSING; FLYWHEEL (A)	8-97605-202-6	01	1	1004-1108
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1) (A)	8-97605-202-6	01	1	1109-1206
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1) (A)	8-98079-891-1	01	1	1207-1305
2	HOUSING; FLYWHEEL EXC. ENGINE REAR PTO(SV1) (A)	8-98221-370-0	01	1	1306-
62	BOLT; COVER ENGINE REAR PTO(SV1) (C) M10X20 FLANGE	0-28761-020-0	07	1	1109-
62	BOLT; COVER (B) M8X16 FLANGE SOU	0-28050-816-0	03	1	1004-1108
62	BOLT; COVER EXC. ENGINE REAR PTO(SV1) (B) M8X16 FLANGE SOU	0-28050-816-0	03	1	1109-
62	BOLT; COVER (A) M8X14 FLANGE	0-28080-814-0	03	1	1004-
169	NUT; COVER M8 FLANGE SOU	0-91180-108-0	02	1	1004-
177	BOLT; SENSOR M6X16 FLANGE SOU	0-28650-616-0	01	1	1004-
208	DOWEL; ENG FOOT OD=26 L=12	1-11229-016-0	04	1	1004-
211	BOLT; HSG ENGINE REAR PTO(SV1) (A) M12X60	0-16856-260-0	02	1	1109-
211	BOLT; HSG ENGINE REAR PTO(SV1) (B) M12X130	1-09020-040-0	09	1	1109-
211	BOLT; HSG ENGINE REAR PTO(SV1) (C) M12X185	8-94393-483-0	02	1	1109-
211	BOLT; HSG ENGINE REAR PTO(SV1) (D) M12X75	9-01666-275-0	03	1	1109-
211	BOLT; HSG (G) M12X60	0-16856-260-0	09	1	1004-1108
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (G) M12X60	0-16856-260-0	09	1	1109-
211	BOLT; HSG (H) M12X90	0-16856-290-0	01	1	1004-1108
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (H) M12X90	0-16856-290-0	01	1	1109-
211	BOLT; HSG (E) M12X25	0-23801-225-0	02	1	1004-
211	BOLT; HSG (F) M12X160	8-97388-159-0	01	1	1004-
211	BOLT; HSG (D) M12X75	9-01666-275-0	05	1	1004-1108
211	BOLT; HSG EXC. ENGINE REAR PTO(SV1) (D) M12X75	9-01666-275-0	05	1	1109-
213	POINTER; FLYWHEEL HSG	1-11327-045-1	01	1	1004-
220	PLUG; GEAR CHECK HOLE M16X12	0-92002-416-0	01	1	1004-
229	COVER; TIMING CHECK HOLE	1-11349-131-0	01	1	1004-
235	GASKET; PLUG GEAR CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24	9-09571-416-0	01	1	1004-
241	WASHER; PL,HSG ID=12.2	9-09851-933-0	19	1	1004-
247	WASHER; LK,POINTER,FLYWHEEL HSG	1-11349-127-0	01	1	1004-
254	STUD; POINTER & COVER M8X14,M8X14 L=33	1-09300-058-1	02	1	1004-
480	BOLT; COVER ENGINE REAR PTO(SV1) M8X20 FLANGE	0-28650-820-0	10	1	1109-
492	COVER; OIL SEAL ENGINE REAR PTO(SV1)	8-97604-876-0	01	1	1109-
622	SENSOR; ENG SPD & TDC	8-94390-279-0	01	1	1004-
625	DOWEL; PTO ENGINE REAR PTO(SV1) OD=14 L=10	9-11319-065-3	02	1	1109-
626	COVER; PTO ENGINE REAR PTO(SV1)	8-97604-875-2	01	1	1109-
627	GASKET; COVER,PTO ENGINE REAR PTO(SV1) ID=104	8-94149-322-0	01	1	1109-

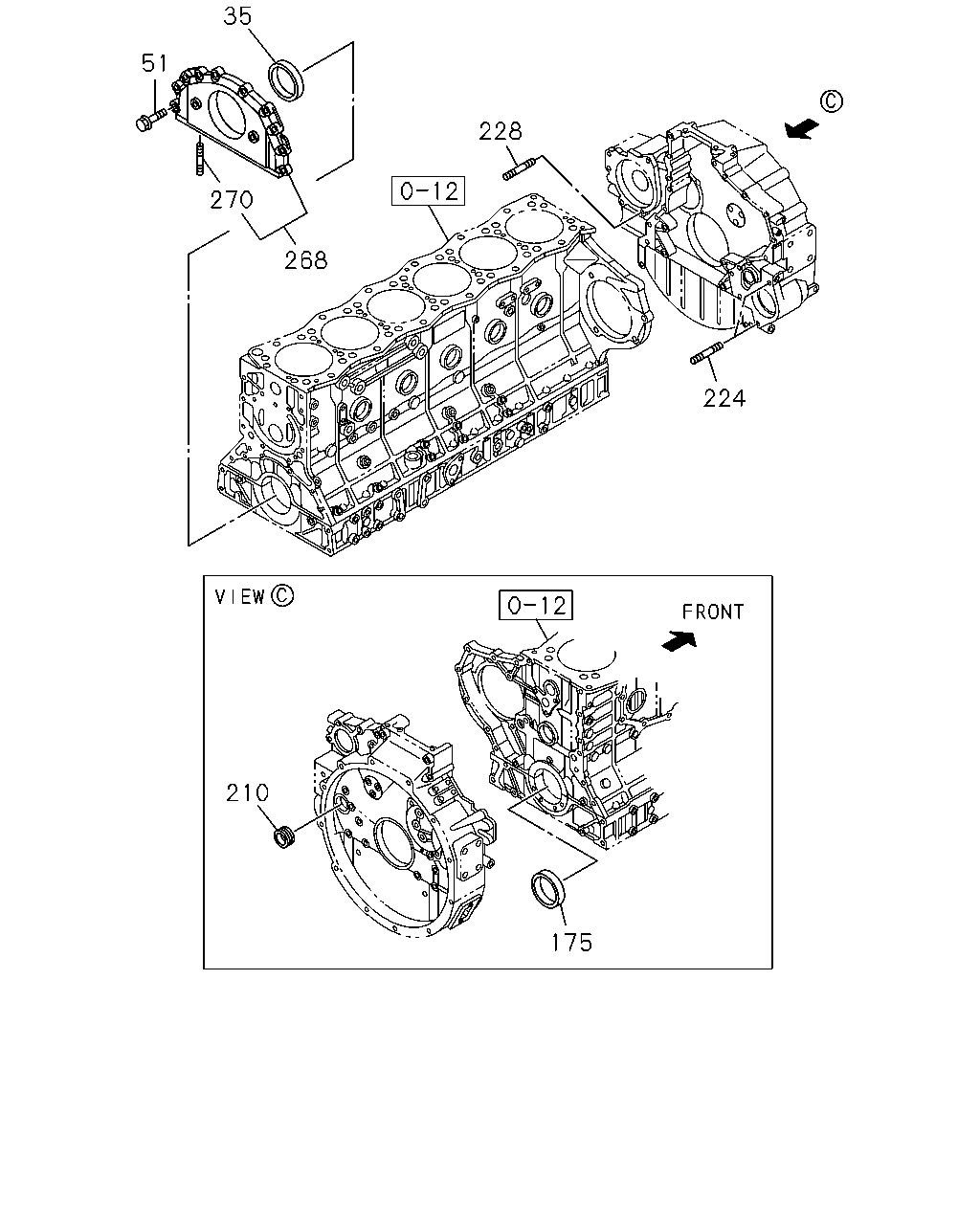

35 51 228 270 268 224 210 175

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=153	1-09625-540-3	01	1	1004-
51	BOLT; GEAR CASE COVER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X60 FLANGE	0-28151-060-0	11	1	1004-
51	BOLT; GEAR CASE COVER HEATER & DEFROSTER(C41) M10X60 FLANGE	0-28151-060-0	12	1	1004-1302
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE). ID=114 OD=150	1-09625-541-2	01	1	1004-
210	GROMMET; HSG	9-09575-799-0	01	1	1004-1108
210	GROMMET; HSG EXC. ENGINE REAR PTO(SV1)	9-09575-799-0	01	1	1109-
224	STUD; STARTER M14X40 L=61	0-44011-440-0	02	1	1004-
228	STUD; AIR CMPR M12X40 L=58	9-94411-240-0	01	1	1004-
268	COVER; FRT	8-98141-609-0	01	1	1004-1211
268	COVER; FRT	8-98224-092-0	01	1	1212-
270	STUD; FRT COVER M8X35 L=46	9-09630-034-1	06	1	1004-1211
270	STUD; FRT COVER M8X35 L=49	8-98225-099-0	06	1	1212-

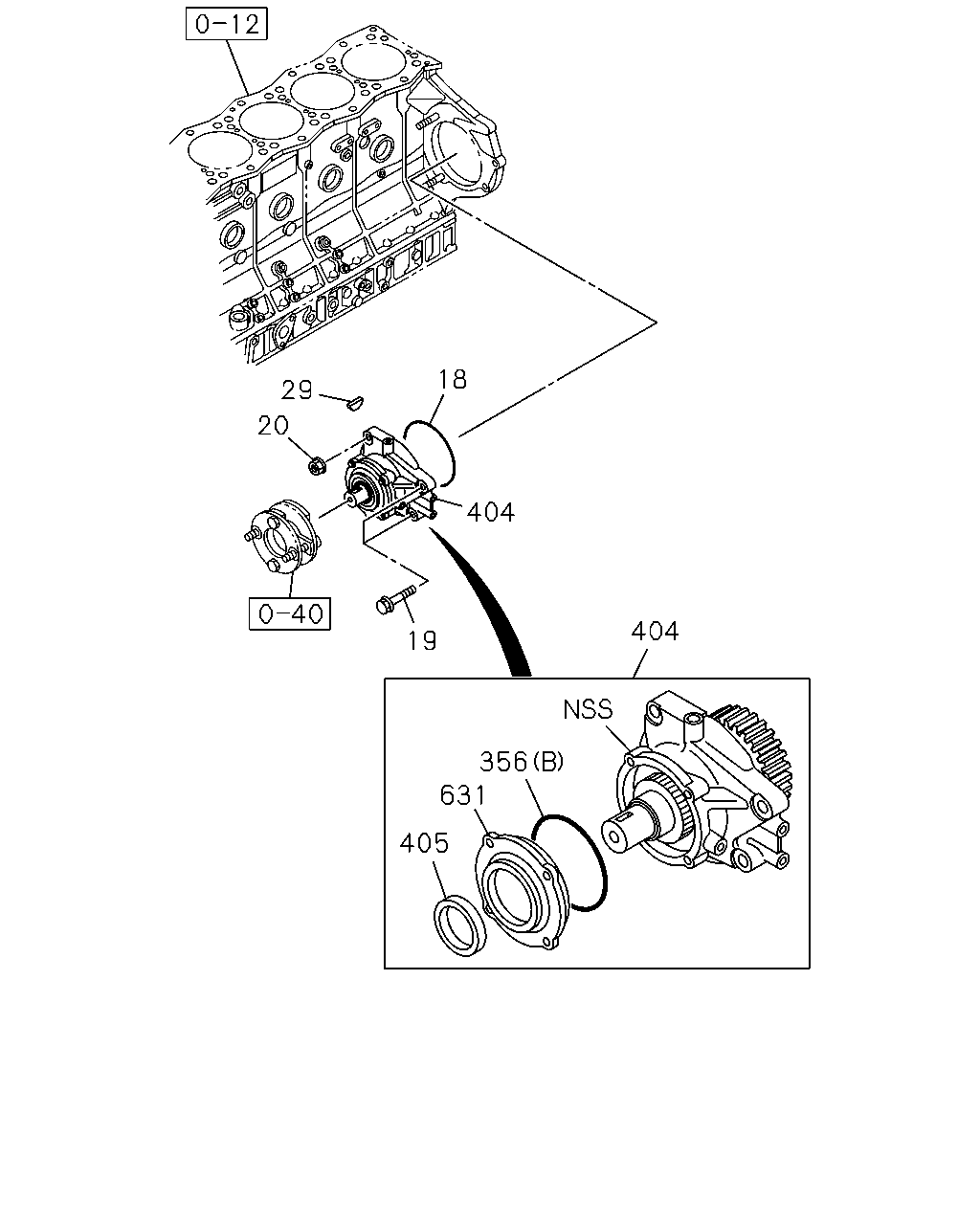

29 20 18 404 19 404 405 631 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	GASKET; BRG CASE,DRIVE SHAFT ALSO INCLUDED IN GASKET SET(ENGINE). ID=159.6	1-09623-449-0	01	1	1004-
19	BOLT; BRG CASE M12X40 FLANGE	0-28151-240-0	02	1	1004-
20	NUT; BRG CASE M12 FLANGE	0-91180-112-0	02	1	1004-
29	KEY; COUPLING	9-08055-622-0	01	1	1004-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=95.6	1-09623-422-0	01	1	1110-
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=139.6	1-09623-464-0	01	1	1004-1108
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (A) ID=139.6	1-09623-464-0	01	1	1109-1408
356	GASKET; COVER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE REAR PTO(SV1) (A) ID=137	8-98280-698-0	01	1	1409-
404	CASE ASM; BRG,INJ PUMP VIN MODEL YEAR 2011<VZB>	8-98239-287-0	01	1	1401-
404	CASE ASM; BRG,INJ PUMP	8-98184-327-3	01	1	1004-1302
404	CASE ASM; BRG,INJ PUMP AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98184-327-3	01	1	1303-1305
404	CASE ASM; BRG,INJ PUMP	8-98239-289-0	01	1	1306-1312
404	CASE ASM; BRG,INJ PUMP EXC. VIN MODEL YEAR 2011<VZB>	8-98239-289-0	01	1	1401-
405	SEAL; OIL,BRG CASE	8-98156-970-0	01	1	1110-1302
405	SEAL; OIL,BRG CASE AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98156-970-0	01	1	1303-1305
405	SEAL; OIL,BRG CASE	8-98238-366-0	01	1	1306-
631	COVER; BEARING	8-98127-511-2	01	1	1110-
