0-66 — GENERATOR (#1868) — 94 parça

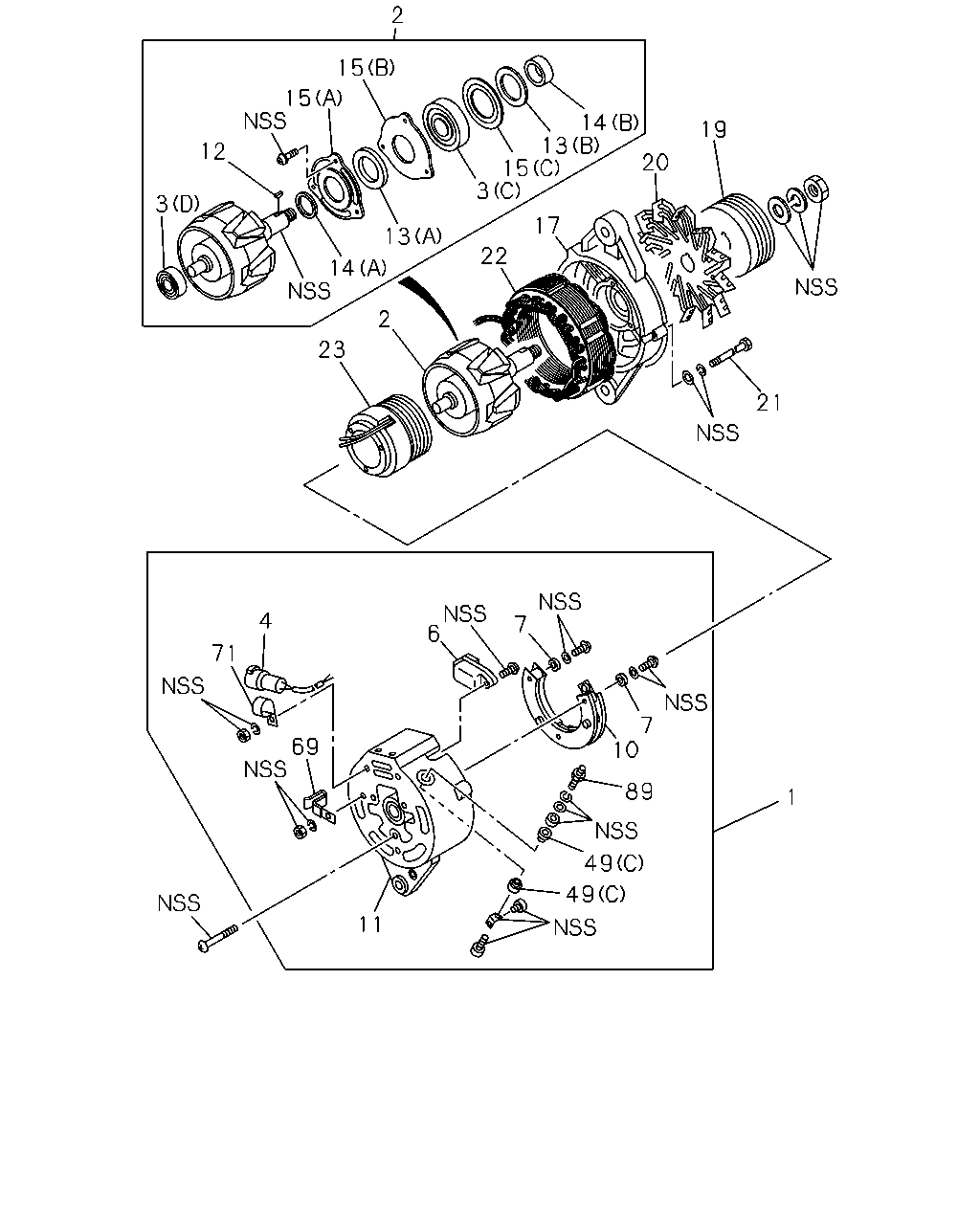

2 15 15 14 13 15 3 19 12 20 3 17 13 22 14 2 23 21 6 4 7 71 7 10 69 89 1 49 49 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-325-0	1-81214-213-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-352-0	1-81214-223-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-325-0	1-81221-056-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-352-0	1-81221-072-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-352-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 1-81200-325-0	1-81229-380-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: A = 1-81200-325-0	1-81229-381-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-352-0	8-94173-054-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: A = 1-81200-325-0	1-81229-540-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: B = 1-81200-352-0	1-81229-542-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-325-0	1-81270-001-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-352-0	1-81270-005-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: A = 1-81200-325-0	9-82115-344-0	03	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: B = 1-81200-352-0	9-82115-413-0	03	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-352-0	1-81217-069-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-325-0	1-81219-056-0	01	1	-
11	COVER; RR,GEN ASM PART: A = 1-81200-325-0	1-81214-214-0	01	1	-
11	COVER; RR,GEN ASM PART: B = 1-81200-352-0	1-81214-224-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: B = 1-81200-352-0	1-81229-383-0	02	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-325-0	1-81229-383-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-325-0	1-81229-384-0	01	1	-
14	COLLAR; STEEL (A) ASM PART: A = 1-81200-325-0	1-81229-373-0	01	1	-
14	COLLAR; STEEL (B) ASM PART: A = 1-81200-325-0	1-81229-374-0	01	1	-
14	COLLAR; STEEL (B) ASM PART: B = 1-81200-352-0	1-81229-527-0	01	1	-
14	COLLAR; STEEL (A) ASM PART: B = 1-81200-352-0	1-81229-543-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-325-0	1-81229-377-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81229-513-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 1-81200-352-0	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 1-81200-352-0	8-94173-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-325-0	1-81213-052-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-352-0	1-81213-067-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81222-055-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-325-0	1-81223-005-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-352-0	1-81223-009-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 1-81200-325-0	1-81229-382-0	03	1	-
22	STATOR; GEN ASM PART: A = 1-81200-325-0	1-81211-062-0	01	1	-
22	STATOR; GEN ASM PART: B = 1-81200-352-0	1-81211-088-0	01	1	-
23	COIL; ROTOR GEN 40A ASM PART: A = 1-81200-325-0	1-81212-003-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: A = 1-81200-325-0	1-81229-042-0	02	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: B = 1-81200-352-0	1-81229-248-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: B = 1-81200-352-0	1-81229-570-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81229-516-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81217-053-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: B = 1-81200-352-0	1-81229-547-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-325-0	5-81229-192-0	01	1	-

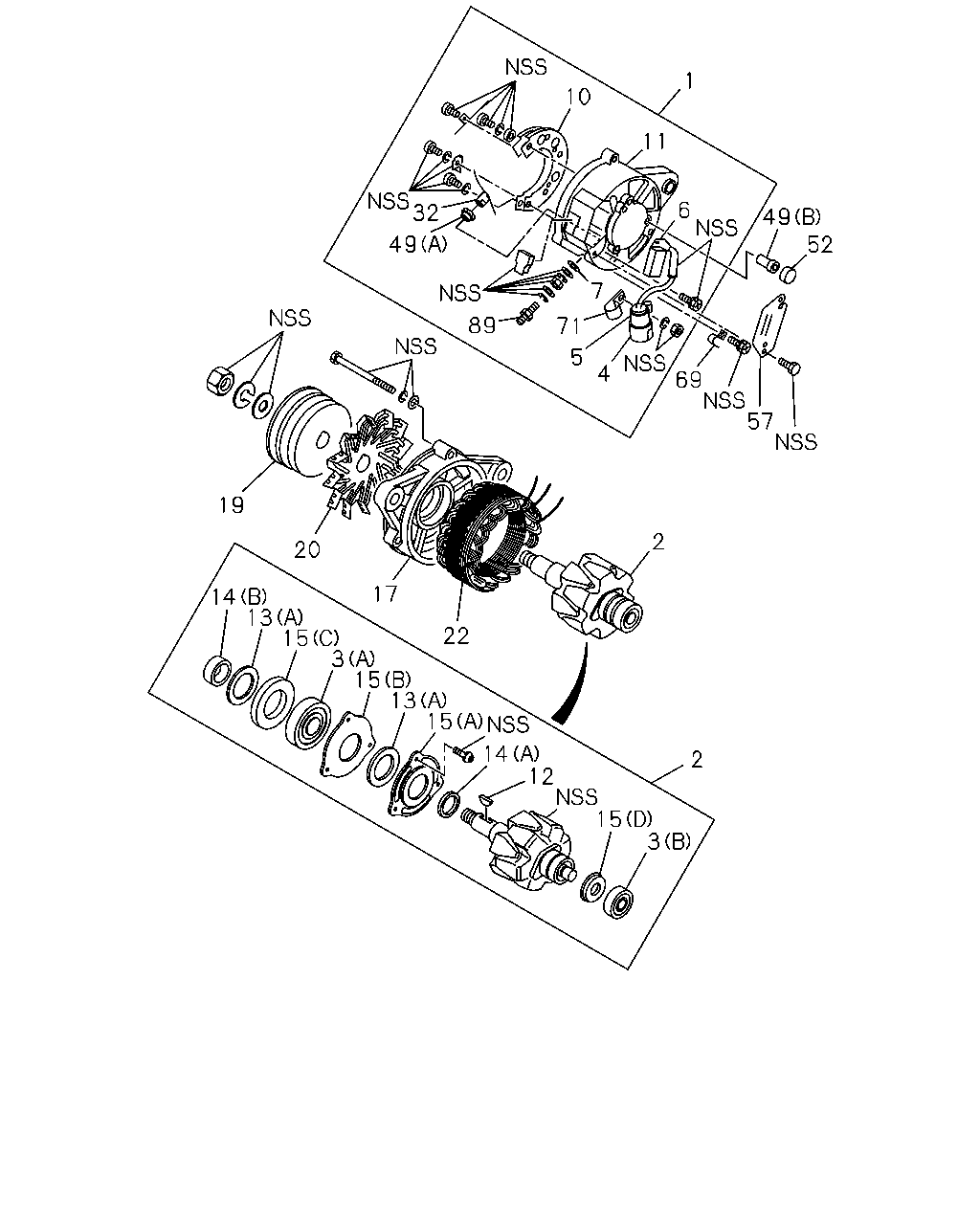

1 10 11 6 32 49 52 49 7 89 71 5 69 57 4 19 2 20 17 14 13 15 3 15 13 15 2 14 12 15 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 1-81200-325-0	1-81214-213-0	01	1	-
1	COVER ASM; RR,GEN ASM PART: B = 1-81200-352-0	1-81214-223-0	01	1	-
2	ROTOR; GEN ASM PART: A = 1-81200-325-0	1-81221-056-0	01	1	-
2	ROTOR; GEN ASM PART: B = 1-81200-352-0	1-81221-072-0	01	1	-
3	BEARING; ROTOR,GEN (A) ASM PART: B = 1-81200-352-0	1-81229-225-0	01	1	-
3	BEARING; ROTOR,GEN (C) ASM PART: A = 1-81200-325-0	1-81229-380-0	01	1	-
3	BEARING; ROTOR,GEN (D) ASM PART: A = 1-81200-325-0	1-81229-381-0	01	1	-
3	BEARING; ROTOR,GEN (B) ASM PART: B = 1-81200-352-0	8-94173-054-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: A = 1-81200-325-0	1-81229-540-0	01	1	-
4	TERMINAL; BRUSH,GEN ASM PART: B = 1-81200-352-0	1-81229-542-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 1-81200-352-0	1-81217-062-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 1-81200-325-0	1-81270-001-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 1-81200-352-0	1-81270-005-0	01	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: A = 1-81200-325-0	9-82115-344-0	03	1	-
7	WASHER; INSULATE,RECTIFIER,GEN ASM PART: B = 1-81200-352-0	9-82115-413-0	03	1	-
10	RECTIFIER; GEN ASM PART: B = 1-81200-352-0	1-81217-069-0	01	1	-
10	RECTIFIER; GEN ASM PART: A = 1-81200-325-0	1-81219-056-0	01	1	-
11	COVER; RR,GEN ASM PART: A = 1-81200-325-0	1-81214-214-0	01	1	-
11	COVER; RR,GEN ASM PART: B = 1-81200-352-0	1-81214-224-0	01	1	-
12	KEY; ROTOR,GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	9-82215-867-0	01	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: B = 1-81200-352-0	1-81229-383-0	02	1	-
13	GASKET; ROTOR,GEN (A) ASM PART: A = 1-81200-325-0	1-81229-383-0	01	1	-
13	GASKET; ROTOR,GEN (B) ASM PART: A = 1-81200-325-0	1-81229-384-0	01	1	-
14	COLLAR; STEEL (A) ASM PART: A = 1-81200-325-0	1-81229-373-0	01	1	-
14	COLLAR; STEEL (B) ASM PART: A = 1-81200-325-0	1-81229-374-0	01	1	-
14	COLLAR; STEEL (B) ASM PART: B = 1-81200-352-0	1-81229-527-0	01	1	-
14	COLLAR; STEEL (A) ASM PART: B = 1-81200-352-0	1-81229-543-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81229-376-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: A = 1-81200-325-0	1-81229-377-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81229-513-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 1-81200-352-0	1-81229-526-0	01	1	-
15	RETAINER; ROTOR,GEN (D) ASM PART: B = 1-81200-352-0	8-94173-060-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 1-81200-325-0	1-81213-052-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: B = 1-81200-352-0	1-81213-067-0	01	1	-
19	PULLEY; GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81222-055-0	01	1	-
20	FAN; GEN ASM PART: A = 1-81200-325-0	1-81223-005-0	01	1	-
20	FAN; GEN ASM PART: B = 1-81200-352-0	1-81223-009-0	01	1	-
32	TERMINAL; RECTIFIER,GEN ASM PART: B = 1-81200-352-0	1-81229-545-0	01	1	-
49	BUSHING; RECTIFIER,GEN (C) ASM PART: A = 1-81200-325-0	1-81229-042-0	02	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: B = 1-81200-352-0	1-81229-248-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: B = 1-81200-352-0	1-81229-570-0	01	1	-
52	CAP; RUBBER,TERMINAL ASM PART: B = 1-81200-352-0	1-81229-569-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: B = 1-81200-352-0	1-81229-544-0	01	1	-
69	CLIP; WIRE,GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81229-516-0	01	1	-
71	HOLDER; TERMINAL,GEN ASM PART: A = 1-81200-325-0, B = 1-81200-352-0	1-81217-053-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: B = 1-81200-352-0	1-81229-547-0	01	1	-
89	BOLT; RECTIFIER,GEN ASM PART: A = 1-81200-325-0	5-81229-192-0	01	1	-
