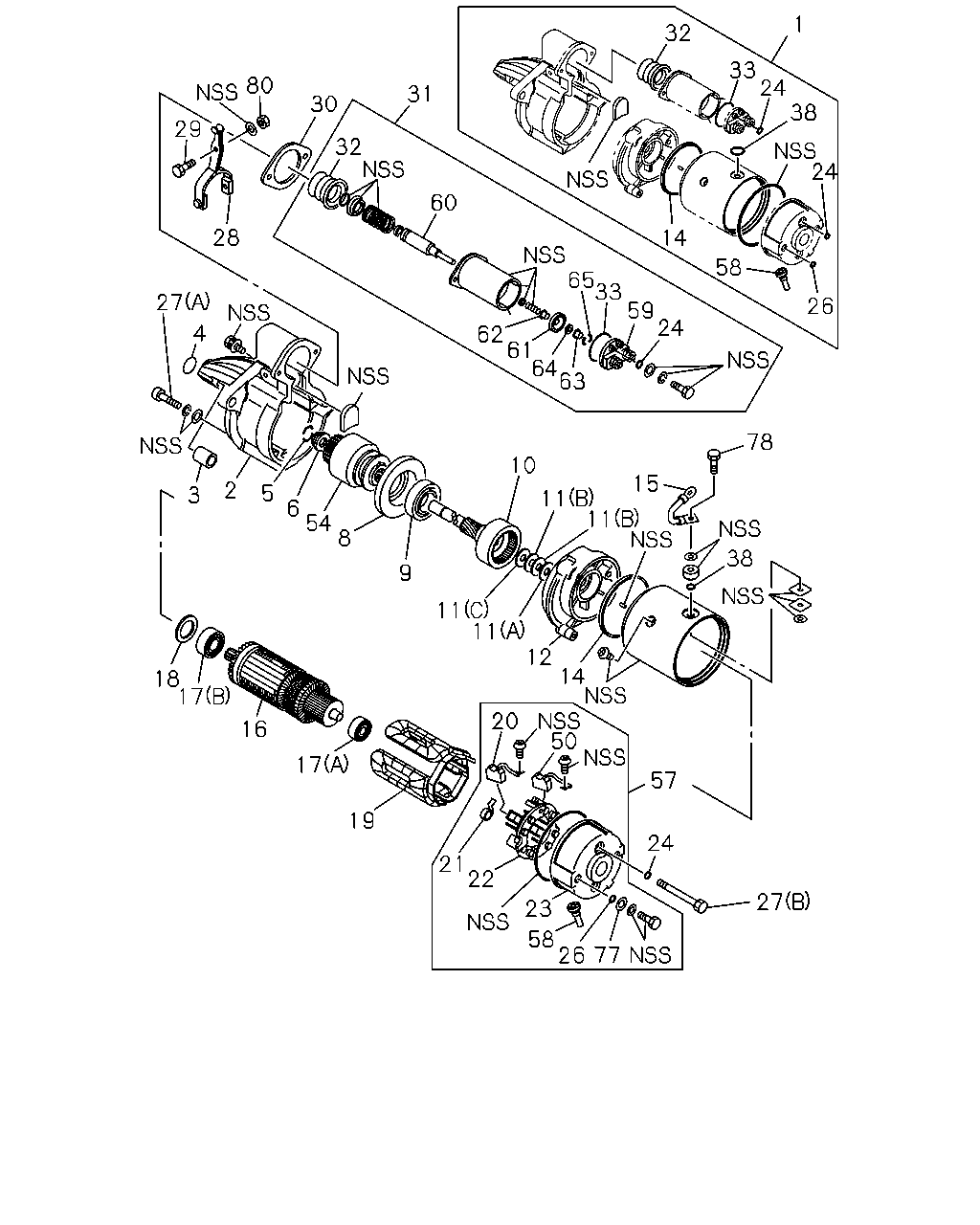

0-65 — STARTER (#1867) — 64 parça

1 32 33 24 38 80 31 30 29 32 24 60 28 14 65 33 59 24 58 27 26 4 62 61 64 63 78 10 15 2 5 3 11 11 6 54 8 38 9 11 11 12 14 50 18 17 20 16 17 57 19 24 21 22 27 23 58 26 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEAL KIT; STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-438-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 1-81100-259-0	1-81113-105-0	01	1	-
2	CASE; PINION,STARTER ASM PART: A = 1-81100-189-2	1-81123-025-0	01	1	-0909
3	METAL; PINION CASE STARTER ASM PART: A = 1-81100-189-2	1-81129-397-0	01	1	-0909
3	METAL; PINION CASE STARTER ASM PART: B = 1-81100-259-0	1-81129-397-0	01	1	-
4	COVER; PINION CASE STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-142-0	01	1	-
5	CLIP; PINION STOPPER STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-144-0	02	1	-
6	STOPPER; PINION STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-145-0	01	1	-
8	BRACKET; CENTER STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81113-081-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: A = 1-81100-189-2	1-81129-386-0	01	1	-
9	BEARING; GEAR SHAFT STARTER ASM PART: B = 1-81100-259-0	8-94418-849-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81123-024-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (A) ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-158-0	01	1	-
11	WASHER; GEAR SHAFT STARTER (B) ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-159-0	02	1	-
11	WASHER; GEAR SHAFT STARTER (C) ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-160-0	01	1	-
12	BRACKET; CENTER RR STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81113-082-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-389-0	01	1	-
15	WIRE; LEAD STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81116-044-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81121-037-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 1-81100-189-2	1-81129-196-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: A = 1-81100-189-2	5-81129-155-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 1-81100-259-0	8-94418-847-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 1-81100-259-0	8-94418-848-0	01	1	-
18	WASHER; THRUST,ARMATURE,STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-156-0	02	1	-
19	COIL; FIELD,STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-396-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-189-2	1-81116-042-0	02	1	-0909
20	BRUSH; (+),STARTER ASM PART: B = 1-81100-259-0	1-81116-042-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: A = 1-81100-189-2	8-98197-175-0	02	1	1106-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 1-81100-189-2	1-81117-014-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 1-81100-259-0	5-81117-019-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 1-81100-259-0	1-81118-036-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 1-81100-189-2	1-81118-036-0	01	1	-0909
23	COVER; RR COVER STARTER ASM PART: A = 1-81100-189-2	1-81115-070-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 1-81100-259-0	1-81115-209-0	01	1	-
24	SEAL; HOLDER STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-391-0	04	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-393-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-387-0	03	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 1-81100-189-2	5-81129-214-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 1-81100-259-0	5-81129-237-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81127-031-0	01	1	-
29	PIN; SHIFT LEVER STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-185-0	01	1	-
30	PLATE; ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-147-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81151-036-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-388-0	01	1	-
33	GASKET; ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-390-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-392-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: B = 1-81100-259-0	1-81116-043-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: A = 1-81100-189-2	1-81116-043-0	02	1	-0909
50	BRUSH; (-),STARTER ASM PART: A = 1-81100-189-2	8-98197-176-0	02	1	1106-
54	CLUTCH; PINION,STARTER ASM PART: B = 1-81100-259-0	5-81122-016-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 1-81100-189-2	5-81122-016-0	01	1	-0909
57	COVER ASM; RR,STARTER ASM PART: A = 1-81100-189-2	1-81115-069-0	01	1	-
57	COVER ASM; RR,STARTER ASM PART: B = 1-81100-259-0	1-81115-208-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-439-0	01	1	-
59	TERMINAL; ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-150-0	01	1	-
60	PLUNGER; ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-146-0	01	1	-
61	CONTACT; ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-148-0	01	1	-
62	BUSHING; ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	9-82116-140-0	01	1	-
63	HOLDER; ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81118-019-0	01	1	-
64	WASHER; INSULATION ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	9-82116-142-0	01	1	-
65	RING; CLIP ENGAGE SW STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	5-81129-149-0	02	1	-
77	WASHER; THROUGH BOLT,STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81229-114-0	02	1	-
78	TERMINAL; LEAD WIRE STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-384-0	01	1	-
80	NUT; SHIFT LEVER PIN STARTER ASM PART: A = 1-81100-189-2, B = 1-81100-259-0	1-81129-184-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
