Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#18669) — 71 parça
Tümü
A - FGR5MX
B - GGR5MX
◀
[828A] RELAY;FRAME HARNESS (5 parça)
[828A] FRONT SIDE NO.1 (9 parça)
[828A] MAGNETIC VALVE;VGS (12 parça)
[828A] RELAY;CAB HARNESS (7 parça)
[828A] FRONT SIDE NO.2 (19 parça)
[828A] FRAME SIDE (15 parça)
[828A] FRONT SIDE NO.3 (4 parça)
▶
531
115
769
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1004-
●
●
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO
8-98005-631-1
01
1
1004-
●
●
531
RELAY; MAIN
24V 30A MITSUBA
8-97238-540-0
01
1
1004-1402
●
●
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-
●
●
769
RELAY; TURBO CONT
24V 10A PANASONIC
8-97173-035-1
01
1
1004-
●
●

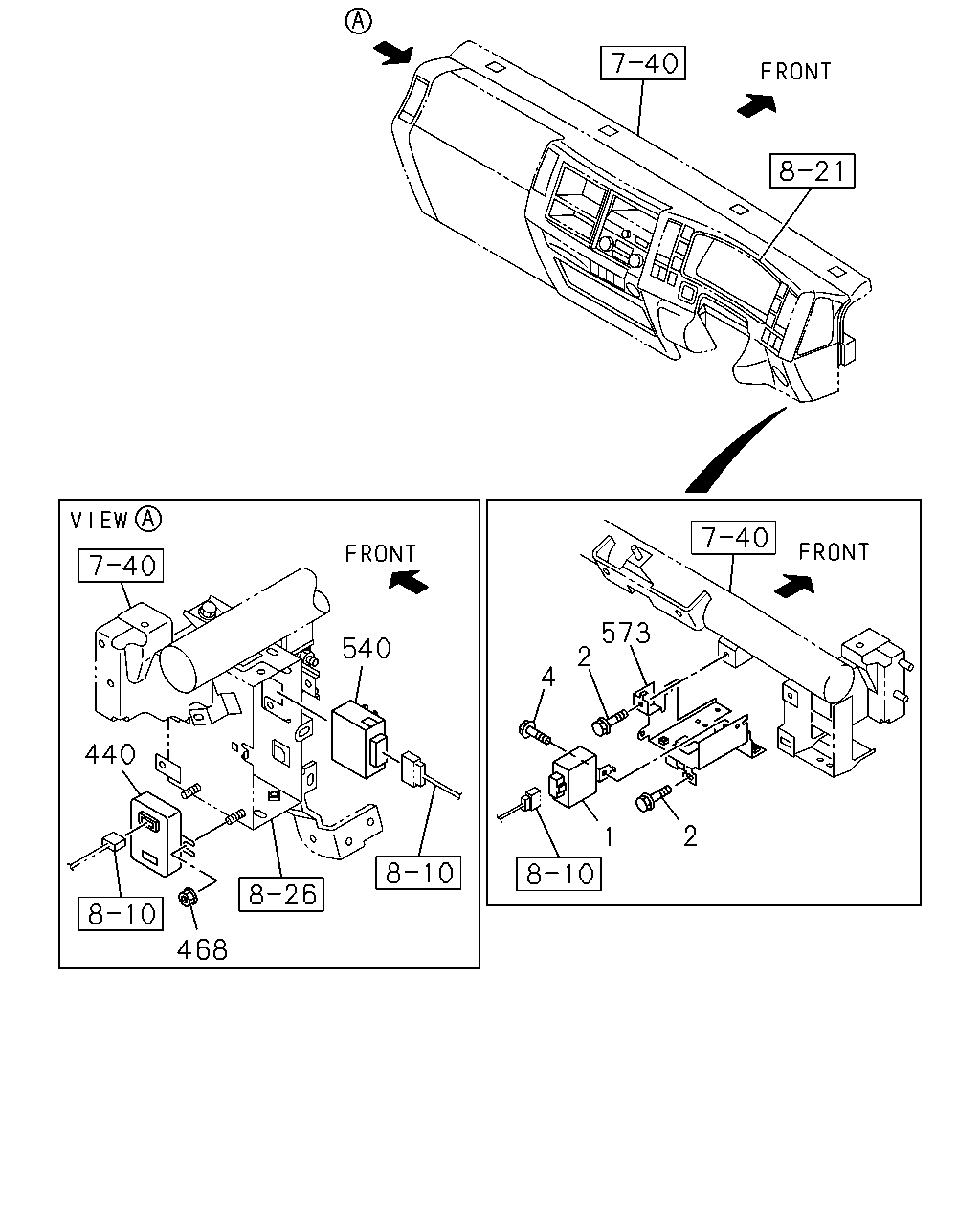

573
2
540
4
440
2
1
468
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
UNIT; FLASHER
8-98025-533-1
01
1
1004-
●
1
UNIT; FLASHER
8-97613-970-1
01
1
1004-
●
2
BOLT; FLASHER UNIT
M6X16 FLANGE SOU
0-28650-616-0
02
1
1004-
●
●
4
SCREW; FLASHER UNIT
BOLT M6X16 FLANGE SOU
0-28650-616-0
01
1
1004-
●
●
440
MODULE; INFORMATION,ABS
ANTILOCK BRAKE SYSTEM(BFA)
1-81510-701-0
01
1
1004-
●
468
NUT; MODULE
ANTILOCK BRAKE SYSTEM(BFA) M6 FLANGE SOU
0-91180-106-0
02
1
1004-
●
540
RELAY; WIPER INTERVAL
8-98060-388-0
01
1
1004-1308
●
●
540
RELAY; WIPER INTERVAL
8-98233-976-0
01
1
1309-
●
●
573
BRACKET; FLASHER UNIT
8-97609-984-5
01
1
1004-
●
●

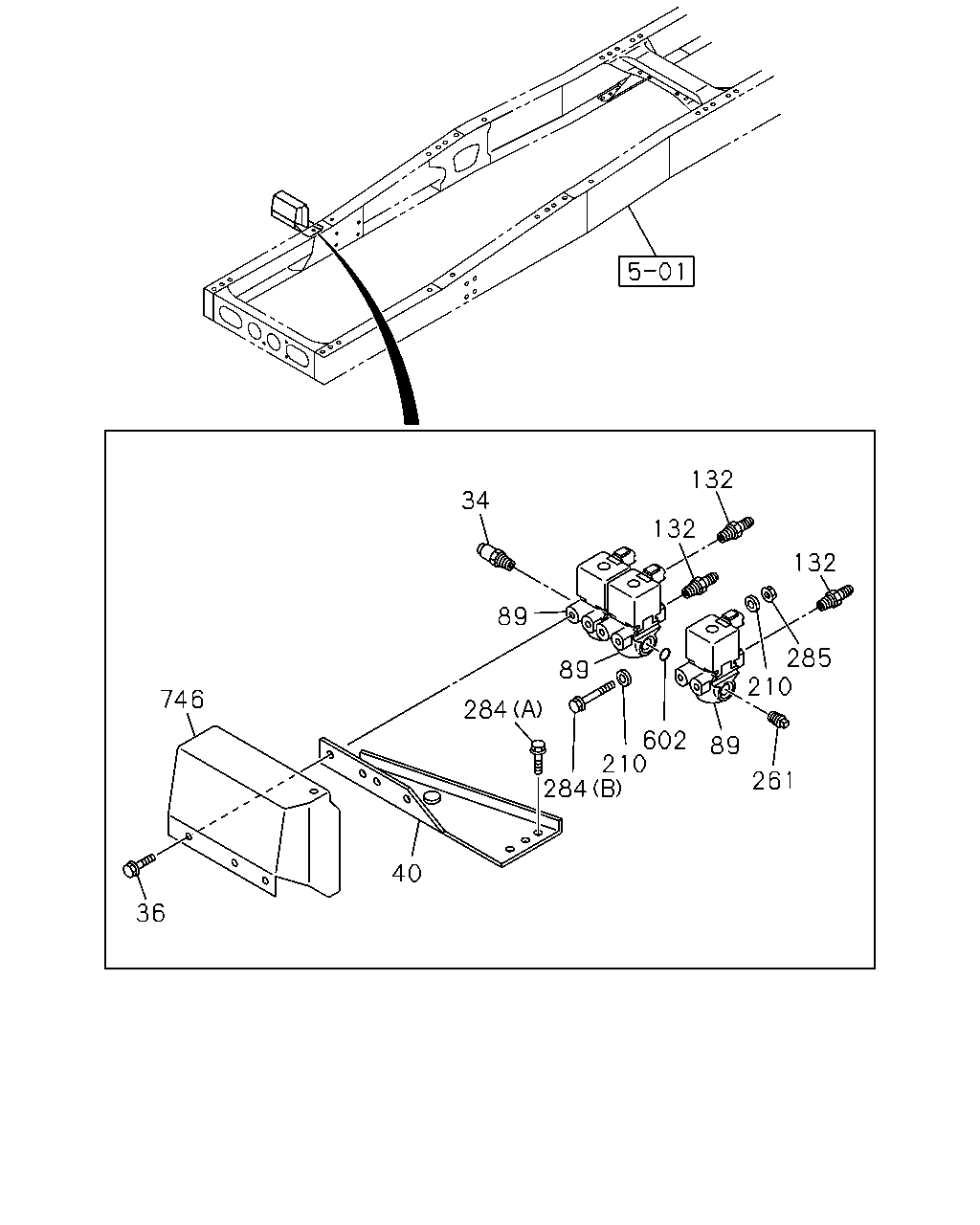

132
34
132
132
89
285
210
89
746
284
602
210
284
89
261
40
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
34
CONNECTOR; MAG VLV,INL PORT
DIN6 & R1/4 STRAIGHT
1-09661-069-0
01
1
1004-
●
●
36
BOLT; MAG VLV,PTO CONT
M8X20 FLANGE
0-28650-820-0
04
1
1004-
●
●
40
BRACKET; MAG VLV
8-98100-335-0
01
1
1004-
●
●
89
VALVE; MAG,DIFF LOCK
SOU
1-82563-871-2
03
1
1004-
●
●
132
CONNECTOR; OUTLET,MAG VLV
M12 & PT1/4 STRAIGHT SOU
1-09650-074-1
03
1
1004-
●
●
210
WASHER; PL,BRKT
SOU
1-82569-266-0
04
1
1004-
●
●
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
1004-
●
●
284
BOLT; MAG VLV
(B) M6X50 FLANGE SOU
0-28050-650-0
02
1
1004-
●
●
284
BOLT; MAG VLV
(A) M8X30 FLANGE
0-28650-830-0
02
1
1004-
●
●
285
NUT; MAG VLV
M6 FLANGE SOU
0-91180-106-0
02
1
1004-
●
●
602
GASKET; MAG VLV
ID=16.8 SOU
9-09565-117-0
02
1
1004-
●
●
746
COVER; NOISE,MAG VLV
8-98096-340-0
01
1
1004-
●
●

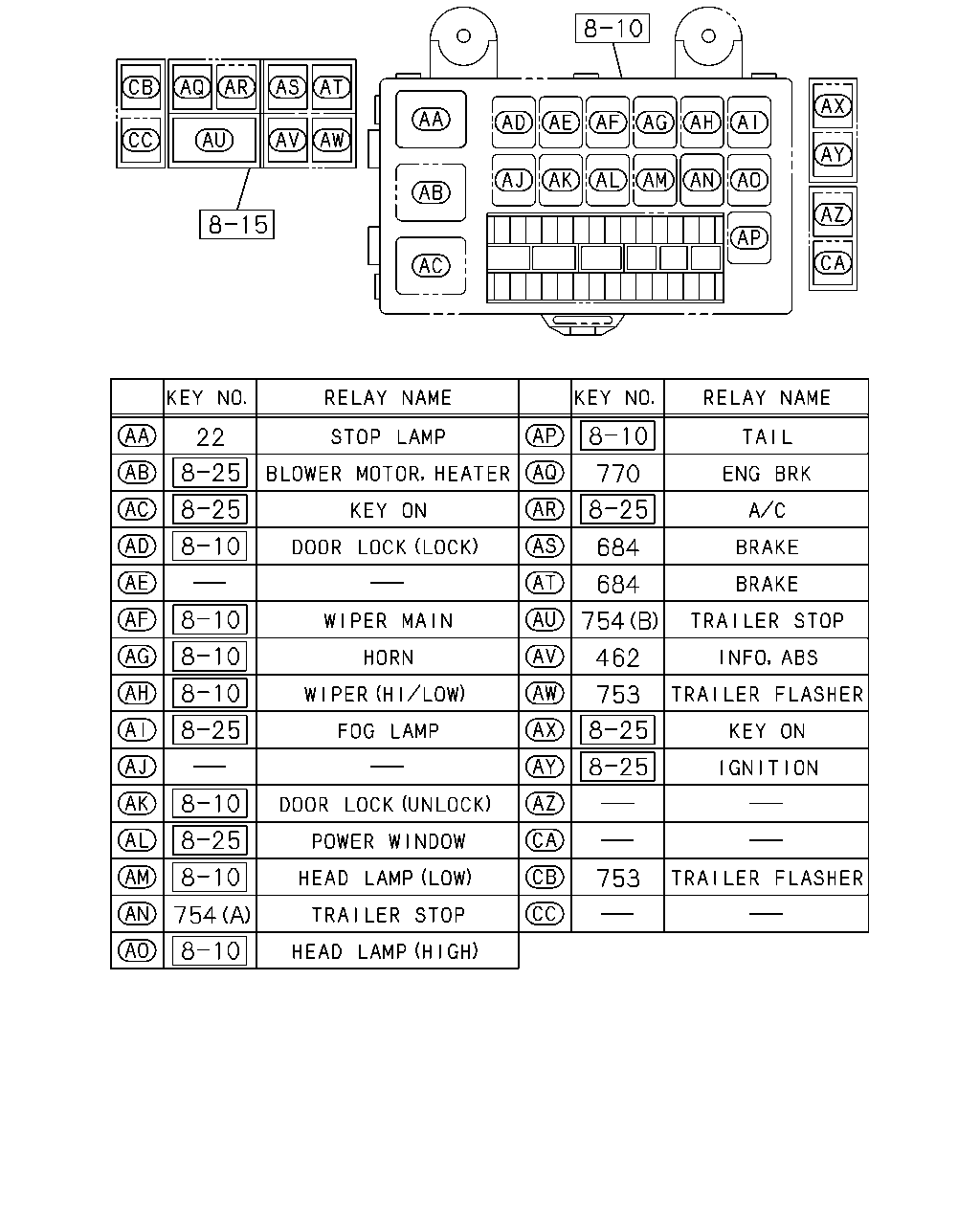

22
754
770
684
684
754
462
753
753
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
22
RELAY; STOP LAMP
24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1004-
●
●
462
RELAY; INFORMATION,ABS
ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC
8-97173-035-1
01
1
1004-
●
684
RELAY; BRAKE
ANTILOCK BRAKE SYSTEM(BFA) 24V 10A PANASONIC
8-97173-035-1
02
1
1004-
●
●
753
RELAY; TRAILER FLASHER
24V 10A PANASONIC
8-97173-035-1
02
1
1004-
●
754
RELAY; TRAILER STOP
(B) 24V 12.5A PANASONIC SOU
8-97262-933-0
01
1
1004-
●
754
RELAY; TRAILER STOP
EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) 24V 10A PANASONIC
8-97173-035-1
01
1
1004-
●
770
RELAY; ENG BRK
24V 10A PANASONIC
8-97173-035-1
01
1
1004-
●
●

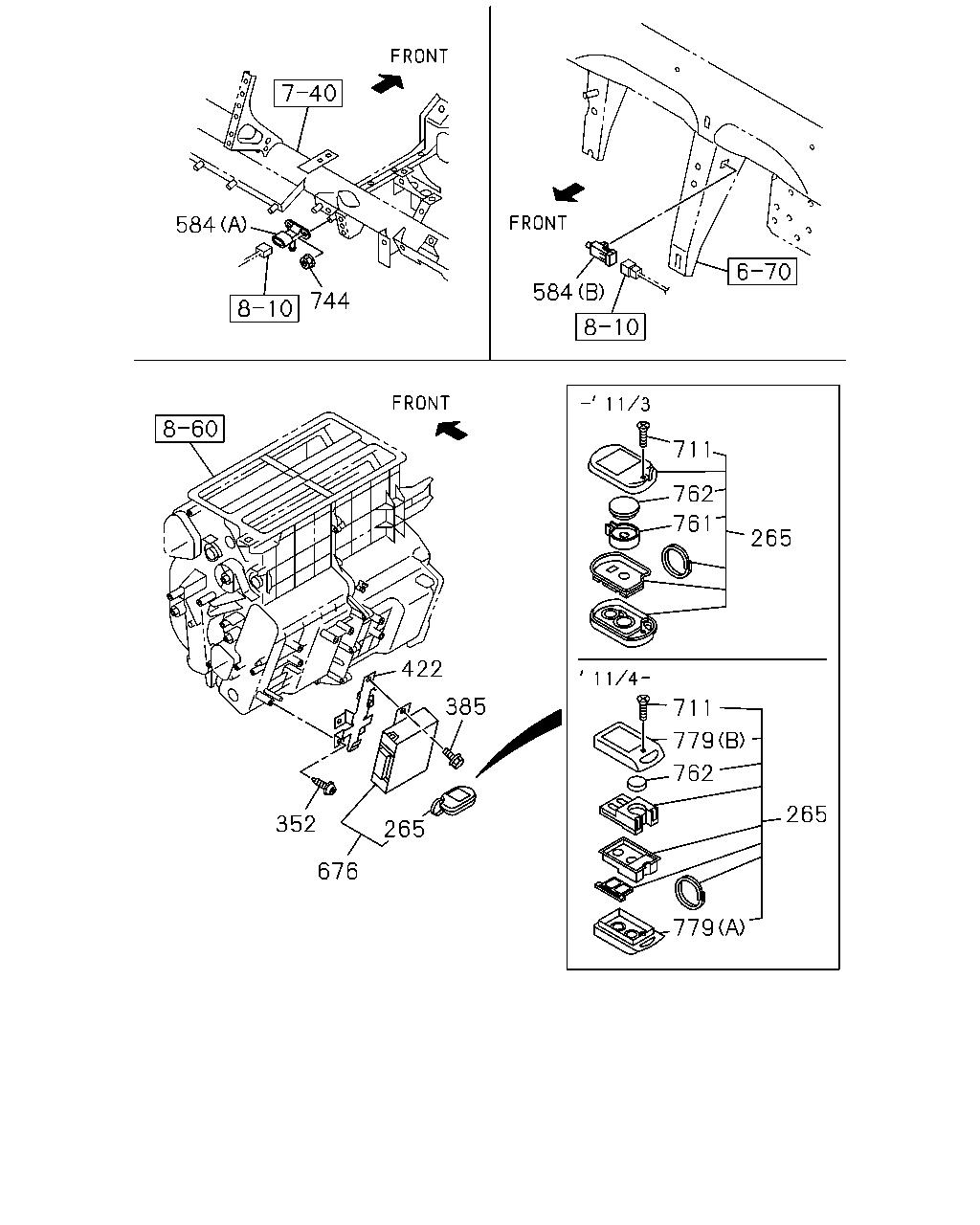

584
744
584
711
762
761
265
711
779
762
265
779
676
352
265
385
422
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
265
TRANSMITTER ASM; AUTO DOOR LOCK
8-98048-459-1
02
1
1004-1103
●
●
265
TRANSMITTER ASM; AUTO DOOR LOCK
8-98180-751-0
02
1
1104-1205
●
●
265
TRANSMITTER ASM; AUTO DOOR LOCK
8-98218-236-0
02
1
1206-
●
●
352
SCREW; BRKT
M5X16 TAPPING HEXALOBULAR
0-72180-516-0
02
1
1004-
●
●
385
BOLT; CONT UNIT
M6X12 W/LK&PL WASHER
0-52000-612-0
01
1
1004-
●
●
422
BRACKET; CONT UNIT
8-98055-281-1
01
1
1004-
●
●
584
SENSOR; PRESSURE
(B)
8-97177-549-0
01
1
1004-1204
●
●
584
SENSOR; PRESSURE
(B)
8-98214-375-0
01
1
1205-
●
●
584
SENSOR; PRESSURE
(A)
8-98020-514-0
01
1
1004-
●
●
676
CONTROL UNIT; KEYLESS ENTRY
8-98017-258-1
01
1
1004-1103
●
●
676
CONTROL UNIT; KEYLESS ENTRY
8-98181-809-0
01
1
1104-1205
●
●
676
CONTROL UNIT; KEYLESS ENTRY
8-98218-231-0
01
1
1206-
●
●
711
SCREW; TRANSMITTER
M2X5
8-98078-067-0
02
1
1004-1205
●
●
711
SCREW; TRANSMITTER
M2X5
8-98218-239-0
02
1
1206-
●
●
744
NUT; SENSOR
M6 FLANGE SOU
0-91180-106-0
02
1
1004-
●
●
761
HOLDER; BATTERY
8-98078-063-0
02
1
1004-1103
●
●
762
BATTERY
8-98078-061-0
02
1
1004-
●
●
779
COVER; TRANSMITTER
(A)
8-98218-240-0
02
1
1206-
●
●
779
COVER; TRANSMITTER
(B)
8-98218-243-0
02
1
1206-
●
●

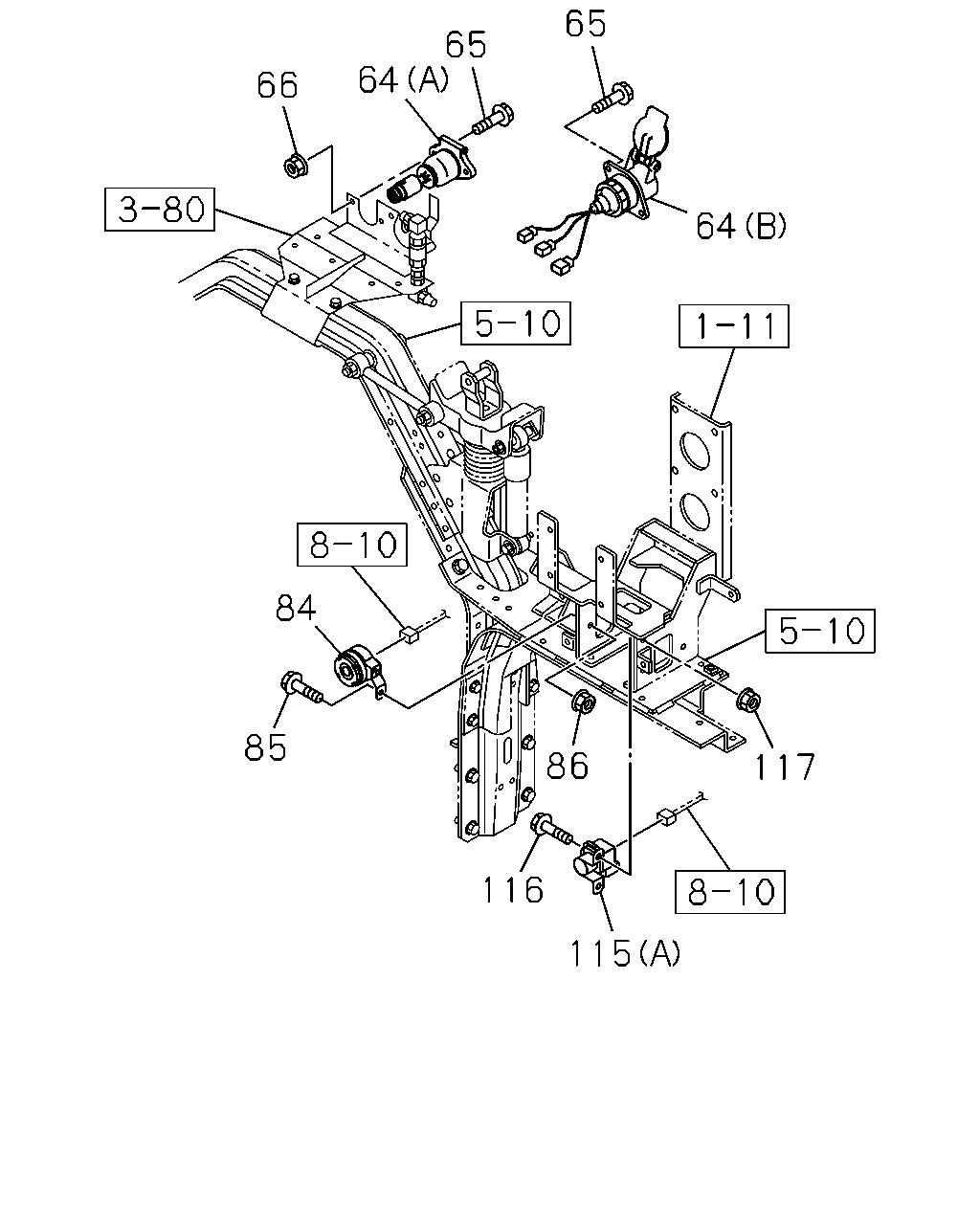

65
65
64
66
64
84
85
86
117
116
115
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
64
SOCKET; TRAILER
(A) 7P
1-82523-014-0
01
1
1004-
●
64
SOCKET; TRAILER
ANTILOCK BRAKE SYSTEM(BFA) (B) L=860
1-82699-449-2
01
1
1004-1008
●
64
SOCKET; TRAILER
ANTILOCK BRAKE SYSTEM(BFA) (B) L=860
8-98172-008-0
01
1
1009-
●
65
BOLT; SOCKET FIX
M8X25 FLANGE SOU
0-28650-825-0
02
1
1004-
●
65
BOLT; SOCKET FIX
M8X25 FLANGE SOU
0-28650-825-0
02
1
1004-
●
66
NUT; SOCKET FIX
M8 FLANGE SOU
0-91180-108-0
02
1
1004-
●
66
NUT; SOCKET FIX
M8 FLANGE SOU
0-91180-108-0
02
1
1004-
●
84
BUZZER; POWER CAB TILT
METRO DENSO
8-98069-860-0
01
1
1004-
●
●
85
BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE
0-28650-820-0
01
1
1004-
●
●
86
NUT; BUZZER
M8 FLANGE SOU
0-91180-108-0
01
1
1004-
●
●
115
RELAY; POWER CAB TILT UNIT
(B) 24V 10A PANASONIC
8-97173-035-1
01
1
1004-
●
●
115
RELAY; POWER CAB TILT UNIT
(A) 24V NIKKO
8-98005-631-1
01
1
1004-
●
●
116
BOLT; RELAY FIX
M8X20 FLANGE
0-28650-820-0
02
1
1004-1308
●
●
116
BOLT; RELAY FIX
M8X25 FLANGE SOU
0-28650-825-0
02
1
1309-
●
●
117
NUT; RELAY FIX
M8 FLANGE SOU
0-91180-108-0
02
1
1004-
●
●

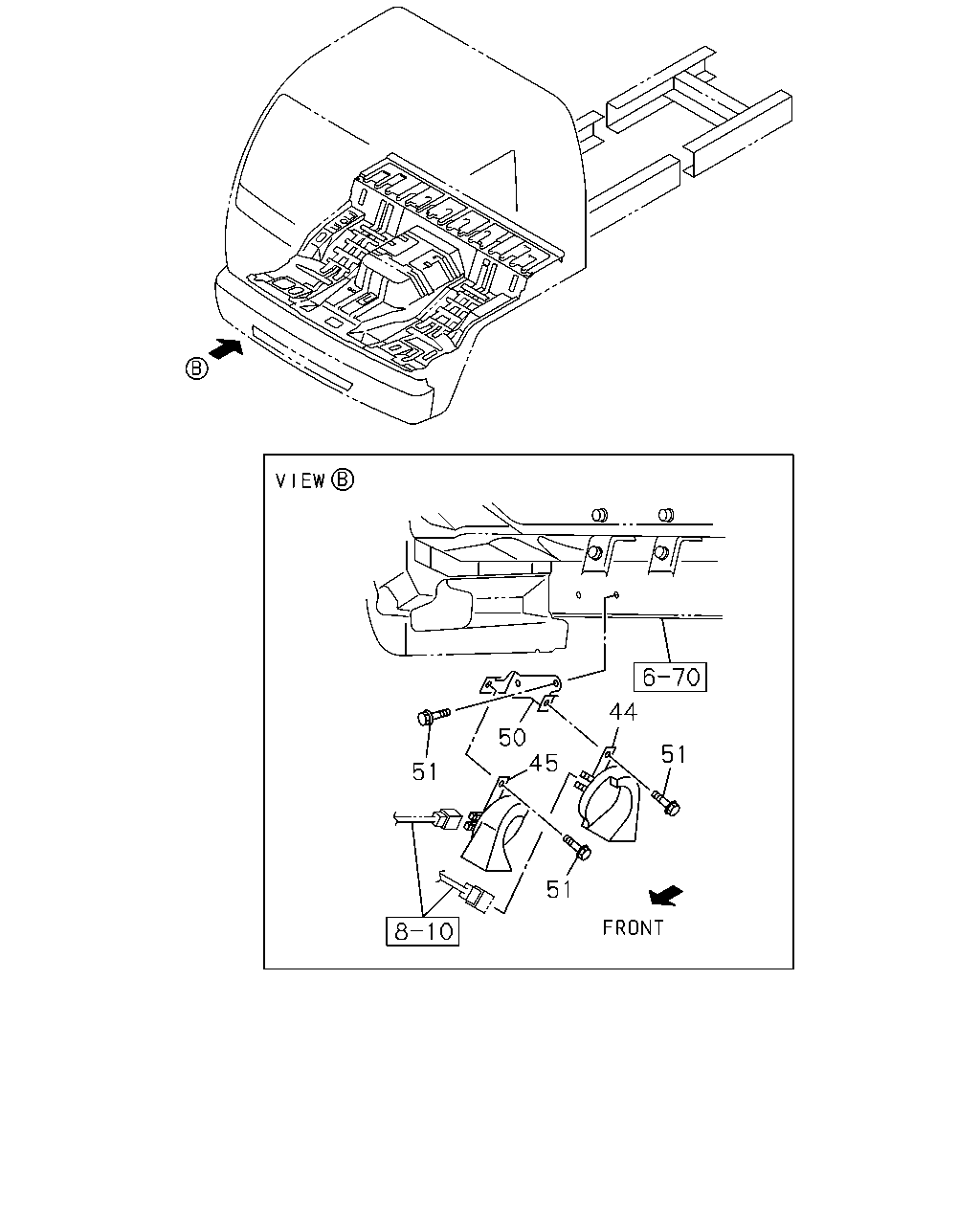

44
50
45
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
44
HORN; HIGH NOTE
8-97611-677-2
01
1
1004-
●
●
45
HORN; LOW NOTE
8-97611-676-2
01
1
1004-
●
●
50
BRACKET; HORN
8-97613-300-2
01
1
1004-
●
●
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER SOU
8-97086-825-0
04
1
1004-
●
●
