◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#18667) — 33 parça

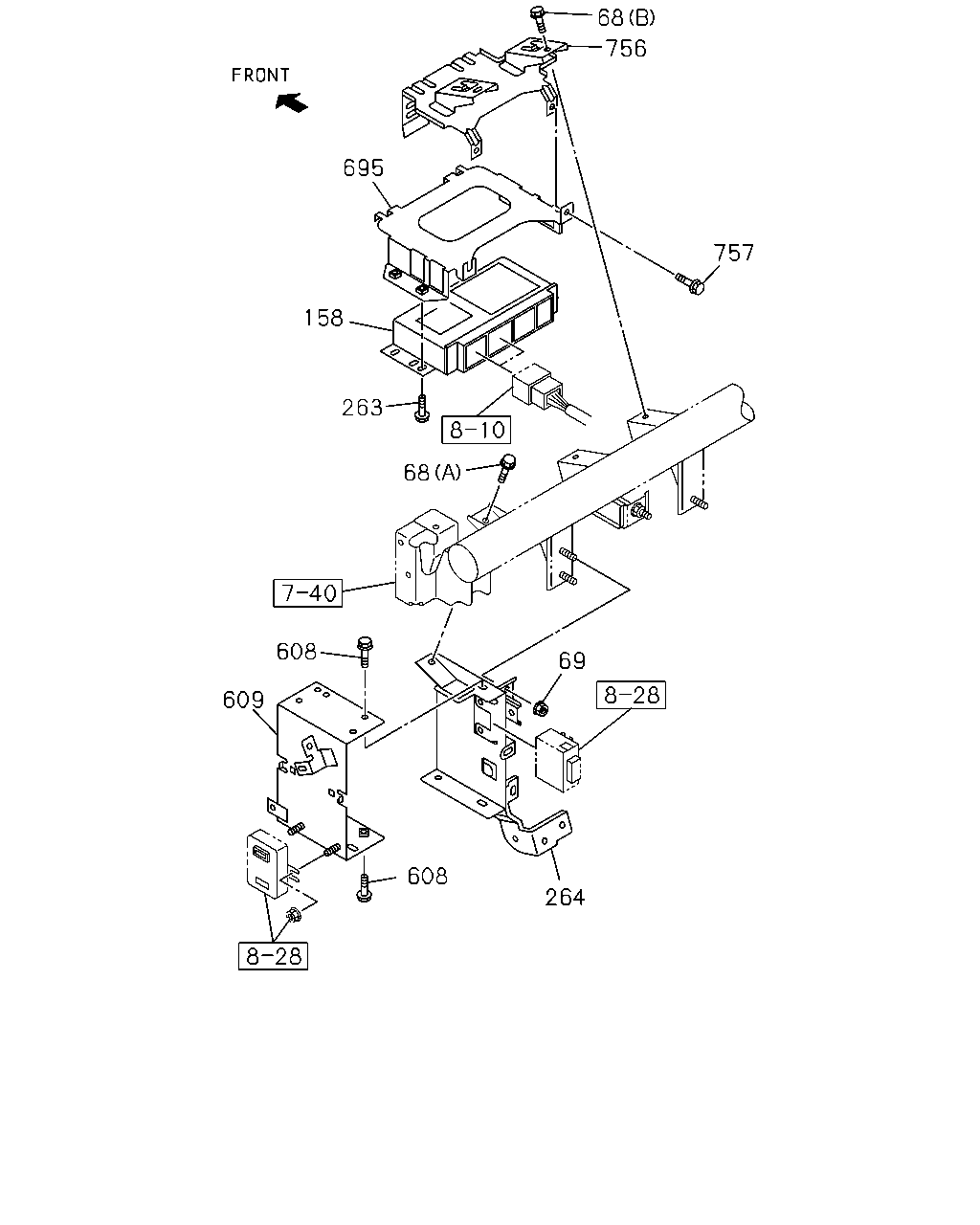

çizim 128932
68 756 695 757 158 263 68 608 69 609 608 264
BalonParca AdiParca NoAdetTipApplied Date A B
68 BOLT; BRKT
(A) M6X16 FLANGE SOU 		0-28650-616-0 01 1 1004- ● ●
68 BOLT; BRKT
ANTILOCK BRAKE SYSTEM(BFA) (B) M6X16 W/LK&PL WASHER SOU 		1-09980-492-0 02 1 1004- ● ●
69 NUT; BRKT
M6 FLANGE SOU 		0-91180-106-0 01 1 1004- ● ●
158 CONTROLLER; ABS 1-80119-261-0 01 1 1004-1201 ● ●
158 CONTROLLER; ABS 8-98170-648-0 01 1 1202- ● ●
263 BOLT; CONT UNIT
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE SOU 		0-28650-616-0 04 1 1004- ● ●
264 BRACKET; CONT UNIT 8-97609-985-9 01 1 1004- ● ●
608 BOLT; CONT UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE SOU 		0-28650-616-0 05 1 1004- ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98095-337-0 01 1 1004-1305 ●
609 BRACKET ASM; ELEC UNIT,AIR SUS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98169-737-1 01 1 1306- ●
695 BRACKET; CONT UNIT,ABS
ANTILOCK BRAKE SYSTEM(BFA) 		8-98045-016-1 01 1 1004- ● ●
756 BRACKET; ECU,BCM
ANTILOCK BRAKE SYSTEM(BFA) 		8-98056-411-3 01 1 1004- ● ●
757 BOLT; BRKT,BCM
ANTILOCK BRAKE SYSTEM(BFA) M6X16 FLANGE SOU 		0-28650-616-0 02 1 1004- ● ●

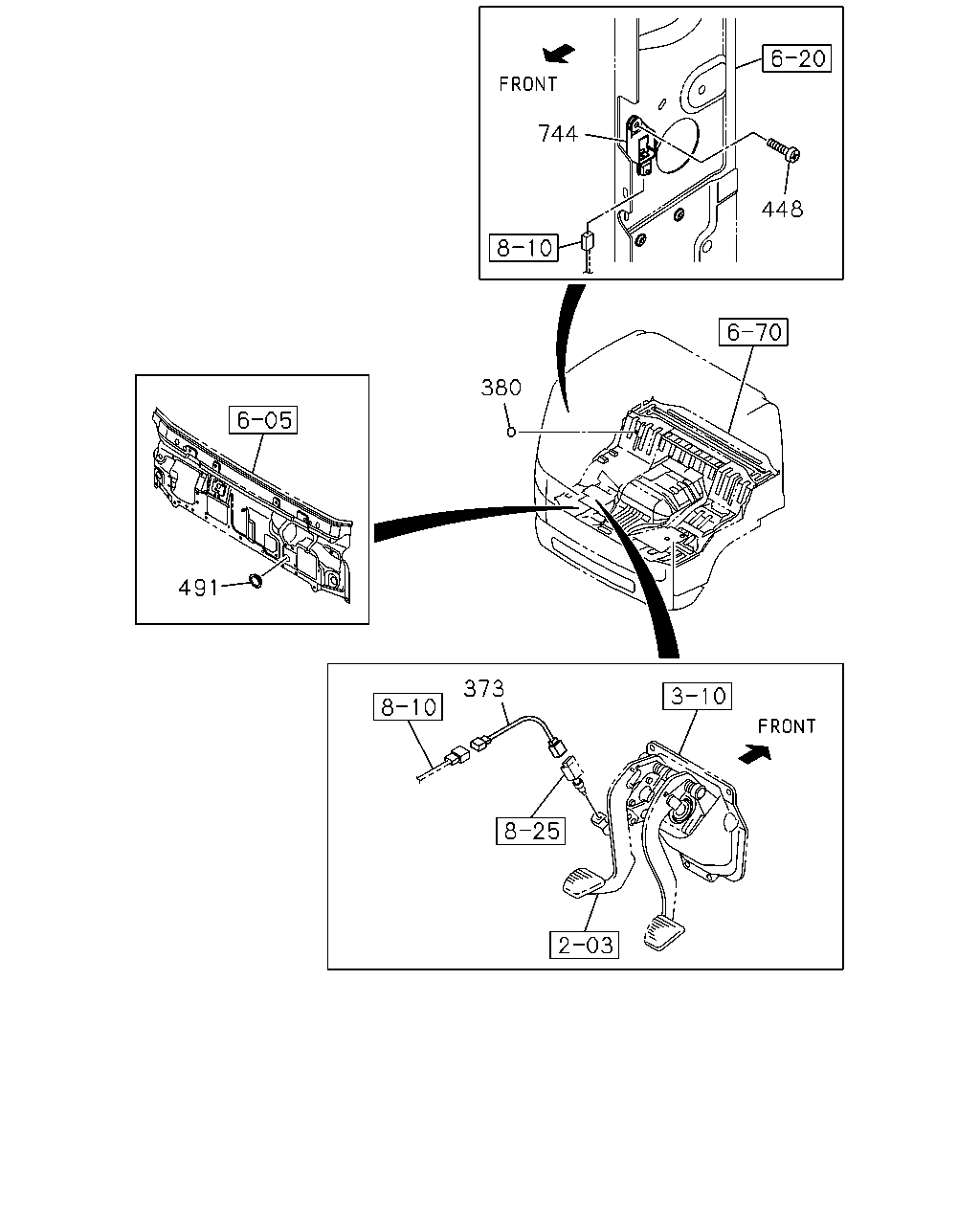

çizim 128933
744 448 380 491 373
BalonParca AdiParca NoAdetTipApplied Date A B
373 HARNESS; CLU SWITCH 8-98059-419-2 01 1 1004- ● ●
380 SEAL
OD=25 BLACK SOU 		1-76798-019-0 01 1 1004- ● ●
448 BOLT; SENSOR
M6X18 W/PL WASHER 		8-97105-796-1 02 1 1004- ● ●
491 PLUG; HOLE,CONT UNIT
OD=60 		8-98054-651-0 01 1 1004- ● ●
744 SENSOR; AIR BAG 8-97386-841-2 01 1 1004- ● ●

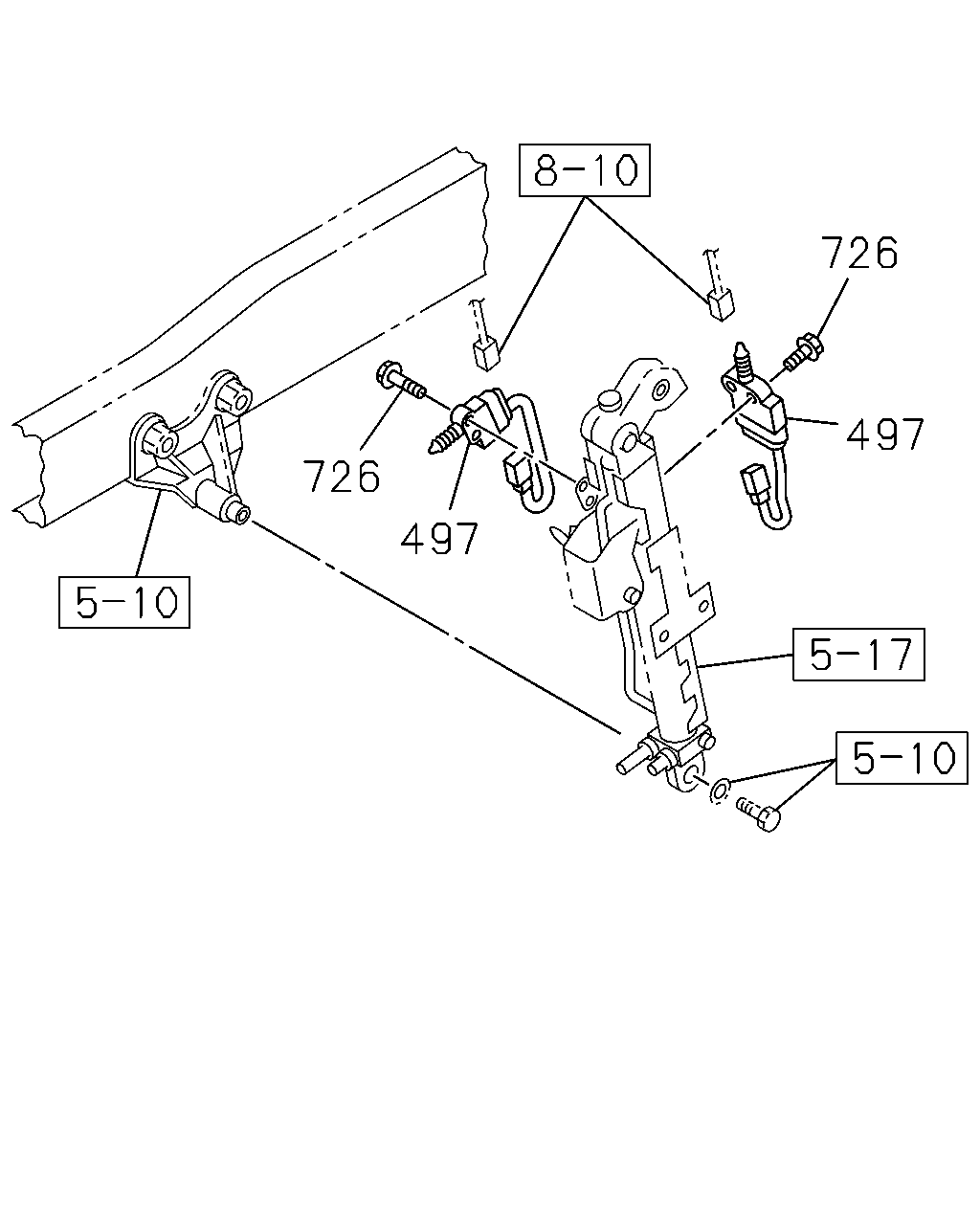

çizim 128942
726 497 726 497
BalonParca AdiParca NoAdetTipApplied Date A B
497 SWITCH; CAB TILT
STAMP NO 		1-82380-172-1 02 1 1004- ● ●
726 BOLT; SW,CAB TILT
M6X25 FLANGE 		0-28050-625-0 04 1 1004- ● ●

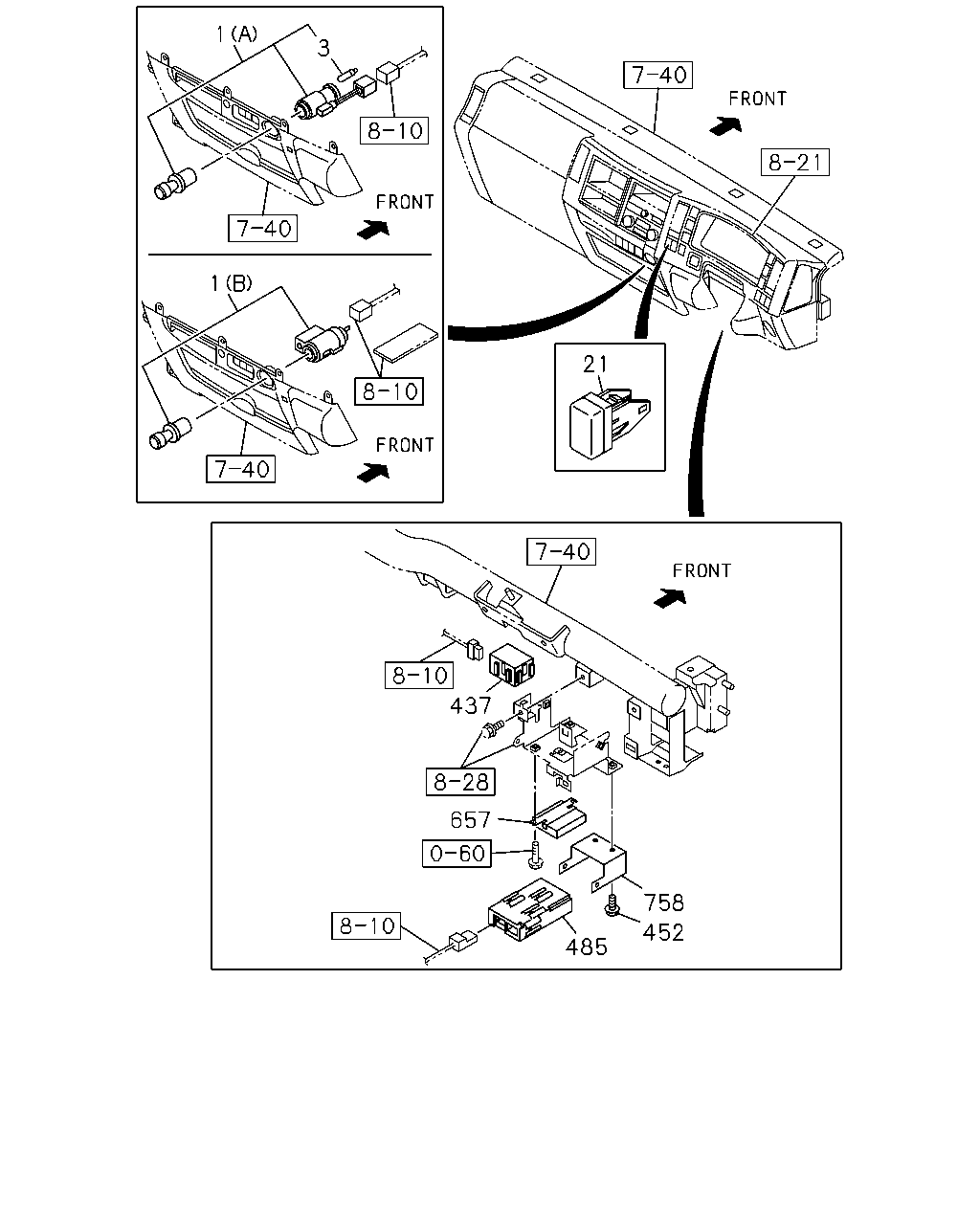

çizim 128944
1 3 1 21 437 657 758 452 485
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
VIN MODEL YEAR 2011<VZB> (B) 		8-98142-962-0 01 1 1109- ● ●
1 LIGHTER; CIGAR
(A) 		8-98076-255-0 01 1 1004-1108 ● ●
1 LIGHTER; CIGAR
EXC. VIN MODEL YEAR 2011<VZB> (A) 		8-98076-255-0 01 1 1109- ● ●
3 BULB; CIGAR LIGHTER
28V 1.8W SOU 		8-97173-159-0 01 1 1004-1108 ● ●
3 BULB; CIGAR LIGHTER
EXC. VIN MODEL YEAR 2011<VZB> 28V 1.8W SOU 		8-97173-159-0 01 1 1109- ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1004-1108 ● ●
21 COVER; HOLE 8-98025-954-1 01 1 1109- ● ●
437 CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO 		8-97359-129-0 01 1 1004- ● ●
452 BOLT; BRKT
M6X16 FLANGE SOU 		0-28650-616-0 02 1 1004- ● ●
485 CONTROL UNIT; SPEED SENSOR 1-80190-063-0 01 1 1004- ● ●
657 CONTROL UNIT; MIMAMORI 8-98013-144-8 01 1 1004-1401 ● ●
657 CONTROL UNIT; MIMAMORI 8-98260-912-1 01 1 1402- ● ●
758 BRACKET; ELEC CONT UNIT,SPEED SENSOR 8-98048-743-1 01 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
