Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-20 - METER CABLE
▶

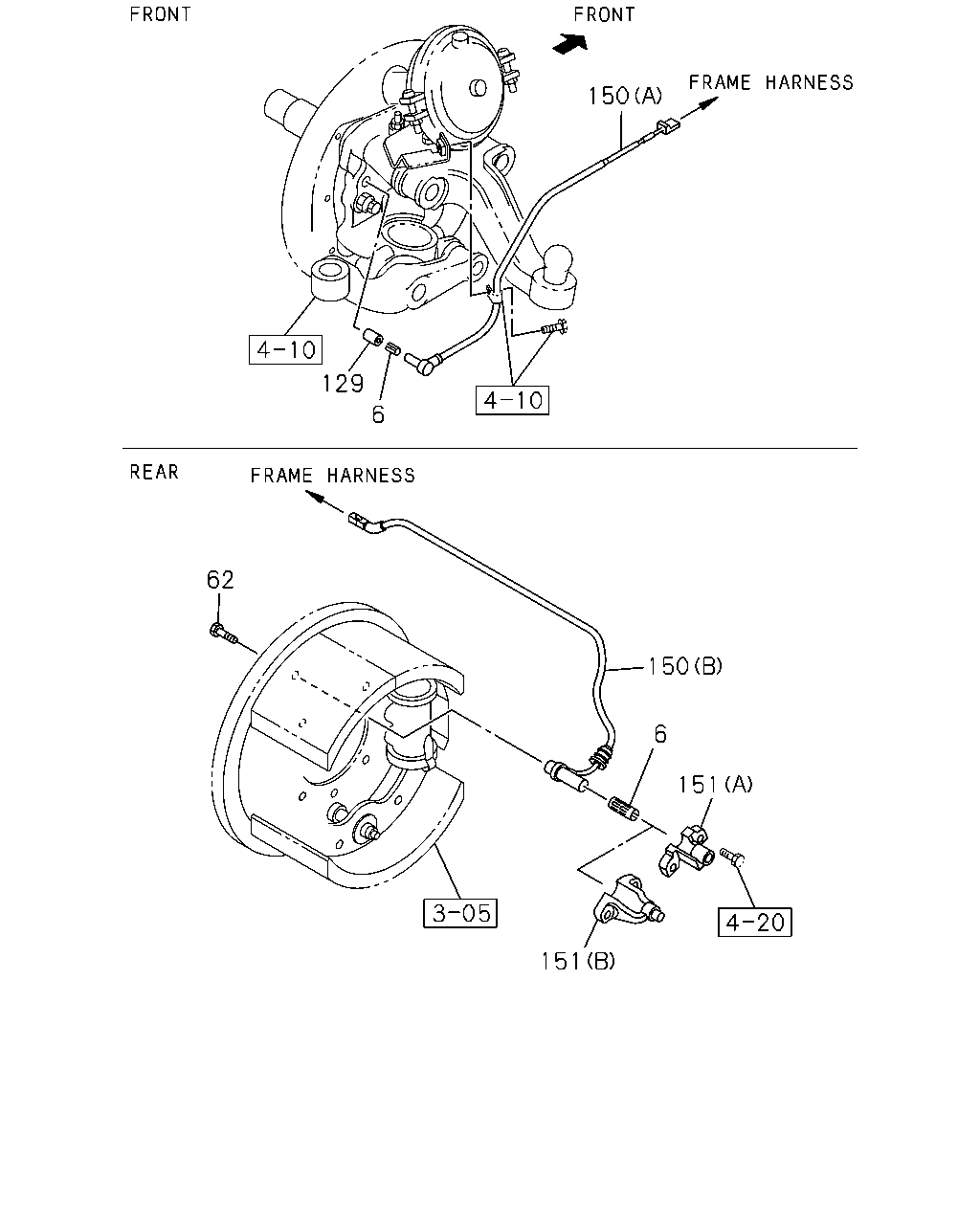

8-20 — METER CABLE
(#18664) — 19 parça
Tümü
A - FGR5MX
B - GGR5MX
150
129
6
62
150
6
151
151
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
1004-
●
●
6
HOLDER; SPD SENSOR
1-83129-260-1
02
1
1004-
●
●
62
BOLT; SENSOR
M8X16
9-05820-816-0
02
1
1004-1506
●
●
62
BOLT; SENSOR
M8X16 HEX SOCKET
0-58330-816-0
02
1
1507-
●
●
129
COLLAR
1-83129-471-0
02
1
1004-
●
●
150
SENSOR; SPEED,ABS
(A)
1-83127-853-3
02
1
1004-
●
150
SENSOR; SPEED,ABS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)
8-98089-384-0
01
1
1004-
●
150
SENSOR; SPEED,ABS
FINAL GEAR 39/7 17.5"(W3Z),FINAL GEAR 41/8 17.5"(W4A),FINAL GEAR 39/8 17.5"(W4B),FINAL GEAR 41/9 17.5"(W4C) (B)
8-98089-383-0
01
1
1004-
●
150
SENSOR; SPEED,ABS
(A)
1-83127-961-1
02
1
1004-
●
150
SENSOR; SPEED,ABS
(B)
8-98107-827-0
01
1
1004-1104
●
150
SENSOR; SPEED,ABS
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N) (B)
8-98107-827-0
01
1
1105-
●
150
SENSOR; SPEED,ABS
(B)
8-98107-827-0
01
1
1105-
●
150
SENSOR; SPEED,ABS
(B)
8-98107-826-0
01
1
1004-1104
●
150
SENSOR; SPEED,ABS
FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N) (B)
8-98107-826-0
01
1
1105-
●
150
SENSOR; SPEED,ABS
(B)
8-98107-826-0
01
1
1105-
●
151
BRACKET; SPD SENSOR
(A)
1-83129-405-0
01
1
1004-1504
●
●
151
BRACKET; SPD SENSOR
(B)
8-98299-398-0
01
1
1505-
●
●
151
BRACKET; SPD SENSOR
(A)
1-83129-406-0
01
1
1004-1504
●
●
151
BRACKET; SPD SENSOR
(B)
8-98299-399-0
01
1
1505-
●
●
