Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#18663) — 602 parça

16 16 16 16 373 16 16 16 306 16 223 470 16 213 581 16 213 581 16 16 16 16 16 16 16 380 223 581 104 16 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AO) ID=18 L=40	1-09701-111-0	01	1	1109-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AP) ID=15 L=22 H=30	1-09701-215-1	01	1	1109-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (A) ID=11 L=20	0-95235-035-0	01	1	1109-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1004-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1004-	●
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1004-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1004-	●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11X2 L=16	0-95325-025-0	01	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (O) L=250	1-09707-126-0	01	1	1004-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1109-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	04	1	1004-1108	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1109-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (G) ID=19 L=20	0-95235-836-0	01	1	1109-	●	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1004-	●	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1004-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1109-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1004-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1109-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1109-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1004-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	1004-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1004-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1109-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1004-1108	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1109-	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1004-1108	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1109-1201	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1202-	●	●
16	CLIP; HARNESS (AE) L=140 SOU	5-09707-031-1	04	1	1004-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1004-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16 SOU	8-94413-325-0	01	1	1004-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1109-	●	●
16	CLIP; HARNESS (AM) L=155 SOU	8-97173-307-0	18	1	1004-	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	1004-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1004-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1004-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1109-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1004-1108	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1109-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1109-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1004-	●	●
16	CLIP; HARNESS (AK) W/SPONGE RUBBER	1-09709-150-0	01	1	1004-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1004-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1004-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1004-		●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	01	1	1004-		●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	01	1	1004-		●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) L=175	1-09707-176-1	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 SOU	5-09707-030-1	05	1	1004-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1109-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	1109-	●	●
48	CLIP; FRAME HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1109-	●	●
48	CLIP; FRAME HARNESS (E) ID=18-24 L=18	1-09709-294-0	01	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (E) ID=18-24 L=18	1-09709-294-0	01	1	1109-	●	●
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	1004-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	01	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1004-1201	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1109-	●	●
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1004-1201	●
213	CLIP; END CROSS HARNESS (B) ID=14 L=44	9-09917-427-0	03	1	1202-	●
213	CLIP; END CROSS HARNESS (A) ID=20 L=50 SOU	9-09917-430-0	03	1	1004-		●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1004-	●
223	CLIP; AIR TANK HARNESS (A) L=180 SOU	1-09707-162-1	01	1	1004-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=58	9-09917-135-2	01	1	1004-		●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1004-1108	●	●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	1109-	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1004-1108	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	1109-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1004-1108	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1109-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1004-1108	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1109-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1004-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1004-1108	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1109-	●	●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1004-		●
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=58	9-09917-135-2	01	1	1004-	●
581	CLIP; HARNESS,REAR SUSP (C) ID=14 L=44	9-09917-427-0	01	1	1004-	●
581	CLIP; HARNESS,REAR SUSP (A) ID=20 L=50 SOU	9-09917-430-0	03	1	1004-	●

16 16 48 51 16 16 104 16 16 16 48 16 48 16 16 104 162 470 104 16 16 16 421 116 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AO) ID=18 L=40	1-09701-111-0	01	1	1109-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AP) ID=15 L=22 H=30	1-09701-215-1	01	1	1109-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (A) ID=11 L=20	0-95235-035-0	01	1	1109-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1004-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1004-	●
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1004-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1004-	●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11X2 L=16	0-95325-025-0	01	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (O) L=250	1-09707-126-0	01	1	1004-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1109-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	04	1	1004-1108	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1109-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (G) ID=19 L=20	0-95235-836-0	01	1	1109-	●	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1004-	●	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1004-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1109-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1004-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1109-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1109-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1004-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●

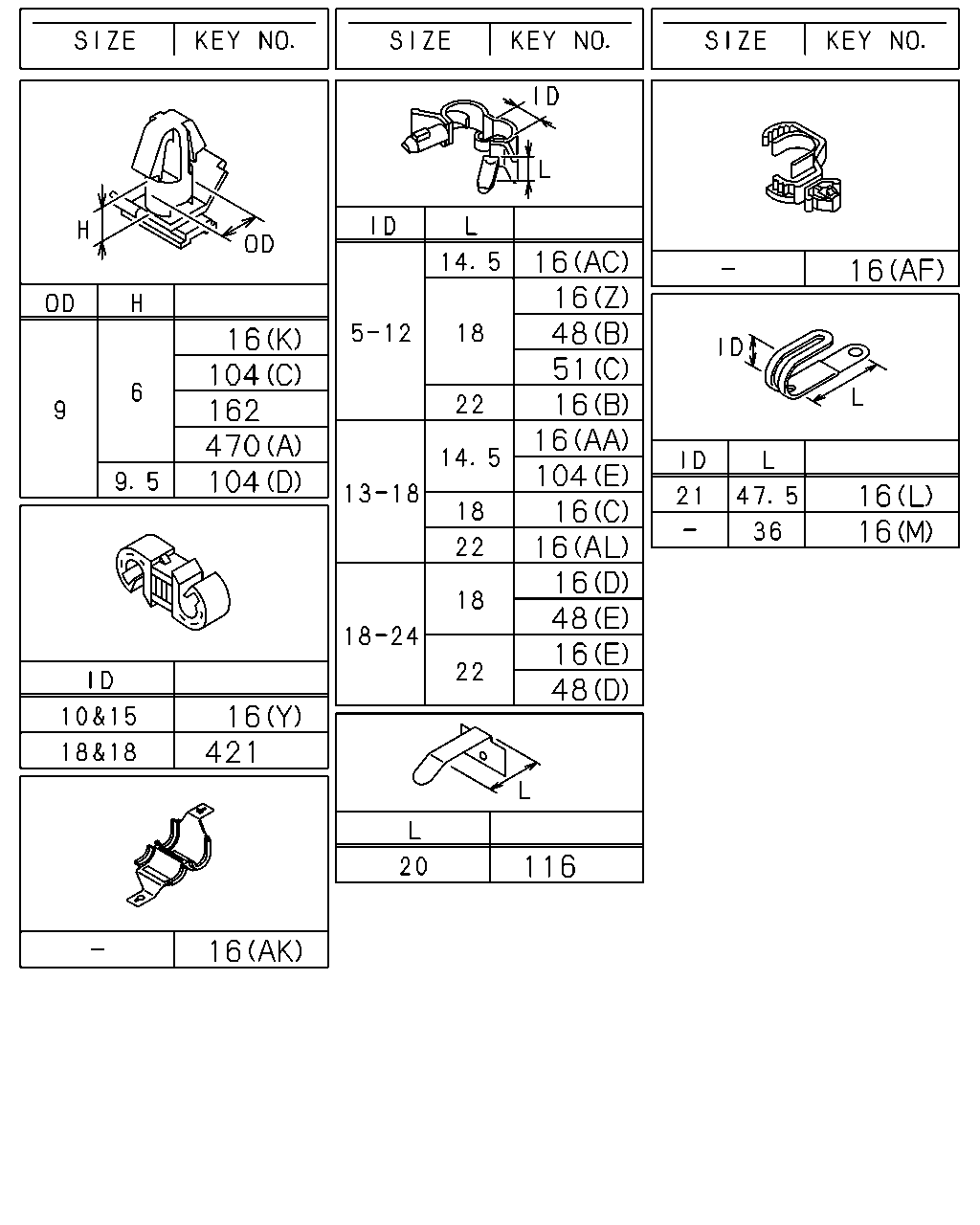

16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	1004-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1004-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1109-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1004-1108	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1109-	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1004-1108	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1109-1201	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1202-	●	●
16	CLIP; HARNESS (AE) L=140 SOU	5-09707-031-1	04	1	1004-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1004-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16 SOU	8-94413-325-0	01	1	1004-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1109-	●	●
16	CLIP; HARNESS (AM) L=155 SOU	8-97173-307-0	18	1	1004-	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	1004-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1004-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1004-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1109-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1004-1108	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1109-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1109-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1004-	●	●
16	CLIP; HARNESS (AK) W/SPONGE RUBBER	1-09709-150-0	01	1	1004-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1004-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1004-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1004-		●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	01	1	1004-		●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	01	1	1004-		●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) L=175	1-09707-176-1	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 SOU	5-09707-030-1	05	1	1004-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1109-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	1109-	●	●
48	CLIP; FRAME HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1109-	●	●
48	CLIP; FRAME HARNESS (E) ID=18-24 L=18	1-09709-294-0	01	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (E) ID=18-24 L=18	1-09709-294-0	01	1	1109-	●	●
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	1004-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180 SOU	1-09707-162-1	01	1	1004-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	1004-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1004-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	01	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1004-1201	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1109-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE SOU	1-09987-246-2	01	1	1004-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE SOU	1-09987-246-2	03	1	1004-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1004-1108	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	1109-	●	●
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	1004-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1004-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1004-1108	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1109-	●	●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1004-		●

16 16 142 16 16 206 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

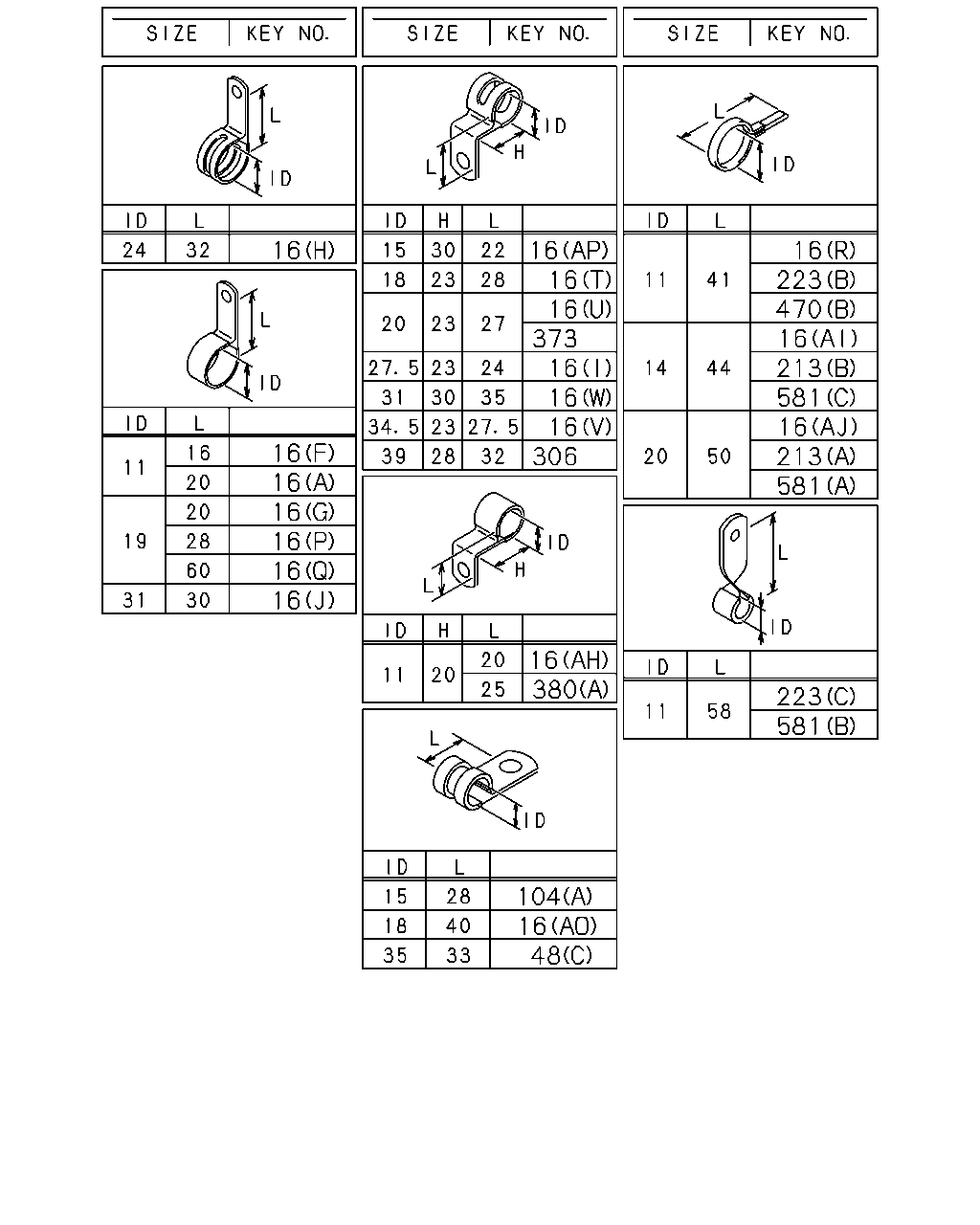

16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AO) ID=18 L=40	1-09701-111-0	01	1	1109-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AP) ID=15 L=22 H=30	1-09701-215-1	01	1	1109-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (A) ID=11 L=20	0-95235-035-0	01	1	1109-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1004-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1004-	●
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1004-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1004-	●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11X2 L=16	0-95325-025-0	01	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (O) L=250	1-09707-126-0	01	1	1004-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1109-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	04	1	1004-1108	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1109-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (G) ID=19 L=20	0-95235-836-0	01	1	1109-	●	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1004-	●	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1004-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1109-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1004-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1109-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1109-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1004-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	1004-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1004-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1109-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1004-1108	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1109-	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1004-1108	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1109-1201	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1202-	●	●
16	CLIP; HARNESS (AE) L=140 SOU	5-09707-031-1	04	1	1004-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1004-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16 SOU	8-94413-325-0	01	1	1004-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1109-	●	●
16	CLIP; HARNESS (AM) L=155 SOU	8-97173-307-0	18	1	1004-	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	1004-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1004-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1004-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1109-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1004-1108	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1109-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1109-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1004-	●	●
16	CLIP; HARNESS (AK) W/SPONGE RUBBER	1-09709-150-0	01	1	1004-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1004-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1004-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1004-		●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	01	1	1004-		●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	01	1	1004-		●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) L=175	1-09707-176-1	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 SOU	5-09707-030-1	05	1	1004-		●
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	1004-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140 SOU	5-09707-031-1	02	1	1004-1108	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140 SOU	5-09707-031-1	02	1	1109-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1004-1108	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1109-	●	●

7 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1004-	●	●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1004-1108	●	●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	1109-1404	●	●
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1004-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	14	1	1004-1108	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	14	1	1109-	●	●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1004-1108	●	●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	1109-	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1004-1108	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	1109-	●	●
53	BRACKET; HARNESS (I)	1-82698-382-0	01	1	1004-1108	●	●
53	BRACKET; HARNESS (I)	1-82698-382-0	01	1	1109-	●	●
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1004-1108	●	●
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	1109-	●	●
53	BRACKET; HARNESS (B)	8-97611-413-0	01	1	1004-	●	●
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	1004-	●	●
53	BRACKET; HARNESS (L)	8-98078-801-0	01	1	1004-1108	●	●
53	BRACKET; HARNESS (L)	8-98078-801-0	01	1	1109-	●	●
53	BRACKET; HARNESS (C)	8-98102-490-0	01	1	1004-1108	●	●
53	BRACKET; HARNESS (C)	8-98102-490-0	01	1	1109-	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D)	8-98084-590-0	01	1	1004-1301	●	●

16 194 14 16 48 51 104 171 194 380 425 470 369 1 178 178 178 178 178 51 223 14 16 194 206 14 16 538 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	1004-	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	02	1	1004-	●
14	CLIP; BAND,HARNESS (B) L=250	1-09707-126-0	02	1	1004-	●	●
14	CLIP; BAND,HARNESS (A) L=350	1-09707-183-0	01	1	1004-	●	●
14	CLIP; BAND,HARNESS (C) L=140 SOU	5-09707-031-1	01	1	1004-1104		●
14	CLIP; BAND,HARNESS FINAL GEAR 39/8 18.5"(W3D),FINAL GEAR 41/8 18.5"(W3M),FINAL GEAR 41/9 18.5"(W3N) (C) L=140 SOU	5-09707-031-1	01	1	1105-	●
14	CLIP; BAND,HARNESS (C) L=140 SOU	5-09707-031-1	01	1	1105-		●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	04	1	1004-1101		●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AO) ID=18 L=40	1-09701-111-0	01	1	1109-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (AP) ID=15 L=22 H=30	1-09701-215-1	01	1	1109-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (A) ID=11 L=20	0-95235-035-0	01	1	1109-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	01	1	1004-	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	1004-	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	02	1	1004-	●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	05	1	1004-	●
16	CLIP; HARNESS (AL) ID=13-18 L=22	1-09709-292-0	01	1	1004-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	1004-	●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	02	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (N) ID=11X2 L=16	0-95325-025-0	01	1	1004-	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (O) L=250	1-09707-126-0	01	1	1004-	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	1109-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	04	1	1004-1108	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	03	1	1109-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (G) ID=19 L=20	0-95235-836-0	01	1	1109-	●	●
16	CLIP; HARNESS (P) ID=19 L=28	0-95235-856-0	01	1	1004-	●	●
16	CLIP; HARNESS (Q) ID=19 L=60	0-95235-896-0	02	1	1004-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	1109-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	1004-	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	1109-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (U) ID=20 H=23 L=27	1-09700-861-0	01	1	1303-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	1109-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1109-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	1004-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1004-1108	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1109-1302	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS VIN MODEL YEAR 2011<VZB> (W) ID=31 H=30 L=35	1-09700-994-0	01	1	1303-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	1004-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	1004-	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	1109-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1004-1108	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	1109-	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1004-1108	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1109-1201	●	●
16	CLIP; HARNESS (AD) L=250 SOU	5-09707-030-1	02	1	1202-	●	●
16	CLIP; HARNESS (AE) L=140 SOU	5-09707-031-1	04	1	1004-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	1004-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	1004-1108	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1109-1302	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS EXC. VIN MODEL YEAR 2011<VZB> (M) L=36	8-94224-891-1	01	1	1303-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16 SOU	8-94413-325-0	01	1	1004-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	1109-	●	●
16	CLIP; HARNESS (AM) L=155 SOU	8-97173-307-0	18	1	1004-	●	●
16	CLIP; HARNESS (S) L=40.6	8-97229-357-0	02	1	1004-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	1004-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	1004-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1004-1108	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	1109-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1004-1108	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	02	1	1109-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1004-1108	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	1109-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	1004-	●	●
16	CLIP; HARNESS (AK) W/SPONGE RUBBER	1-09709-150-0	01	1	1004-		●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	1004-		●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	01	1	1004-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	03	1	1004-		●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	01	1	1004-		●
16	CLIP; HARNESS (E) ID=18-24 L=22	1-09709-295-0	01	1	1004-		●
16	CLIP; HARNESS (AJ) ID=20 L=50 SOU	9-09917-430-0	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AN) L=175	1-09707-176-1	01	1	1004-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (AD) L=250 SOU	5-09707-030-1	05	1	1004-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	1109-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	1109-	●	●
48	CLIP; FRAME HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (B) ID=5-12 L=18	1-09709-287-0	01	1	1109-	●	●
48	CLIP; FRAME HARNESS (E) ID=18-24 L=18	1-09709-294-0	01	1	1004-1108	●	●
48	CLIP; FRAME HARNESS (E) ID=18-24 L=18	1-09709-294-0	01	1	1109-	●	●
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	1004-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180 SOU	1-09707-162-1	01	1	1004-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	1004-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	1004-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	01	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	1004-1201	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	1109-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1004-1108	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	1109-	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1004-1108	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	1109-	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	1004-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1004-1108	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	1109-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1004-1108	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	1109-	●	●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (E) ID=28 OD=35 T=25	1-09332-011-1	03	1	1004-	●	●
178	GROMMET; HARNESS (D) ID=32 OD=40 T=18	1-09891-003-0	02	1	1004-		●
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1004-1108	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	1109-	●	●
194	CLIP; BAND (C) L=140 SOU	5-09707-031-1	02	1	1004-	●	●
194	CLIP; BAND AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=300	1-09707-001-1	02	1	1004-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140 SOU	5-09707-031-1	02	1	1004-1108	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140 SOU	5-09707-031-1	02	1	1109-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1004-1108	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	1109-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1004-	●
223	CLIP; AIR TANK HARNESS (A) L=180 SOU	1-09707-162-1	01	1	1004-	●	●
223	CLIP; AIR TANK HARNESS (C) ID=11 L=58	9-09917-135-2	01	1	1004-		●
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1004-1108	●	●
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	1109-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1004-1108	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	1109-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1004-1108	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	1109-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	03	1	1004-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	1004-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1004-1108	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	1109-	●	●
470	CLIP; HARNESS,LICENSE LAMP (C) L=350	1-09707-183-0	01	1	1004-		●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	1004-	●	●
538	SEAL; HOLE OD=25 BLACK SOU	1-76798-019-0	01	1	1004-	●	●

38 38 38 139 150 139 150 466 242 38 38 358 377 38 38 242 377 386 38 524 219 294 340 515 525 127 38 386 38 38 86 139 242 313 38 423 139 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

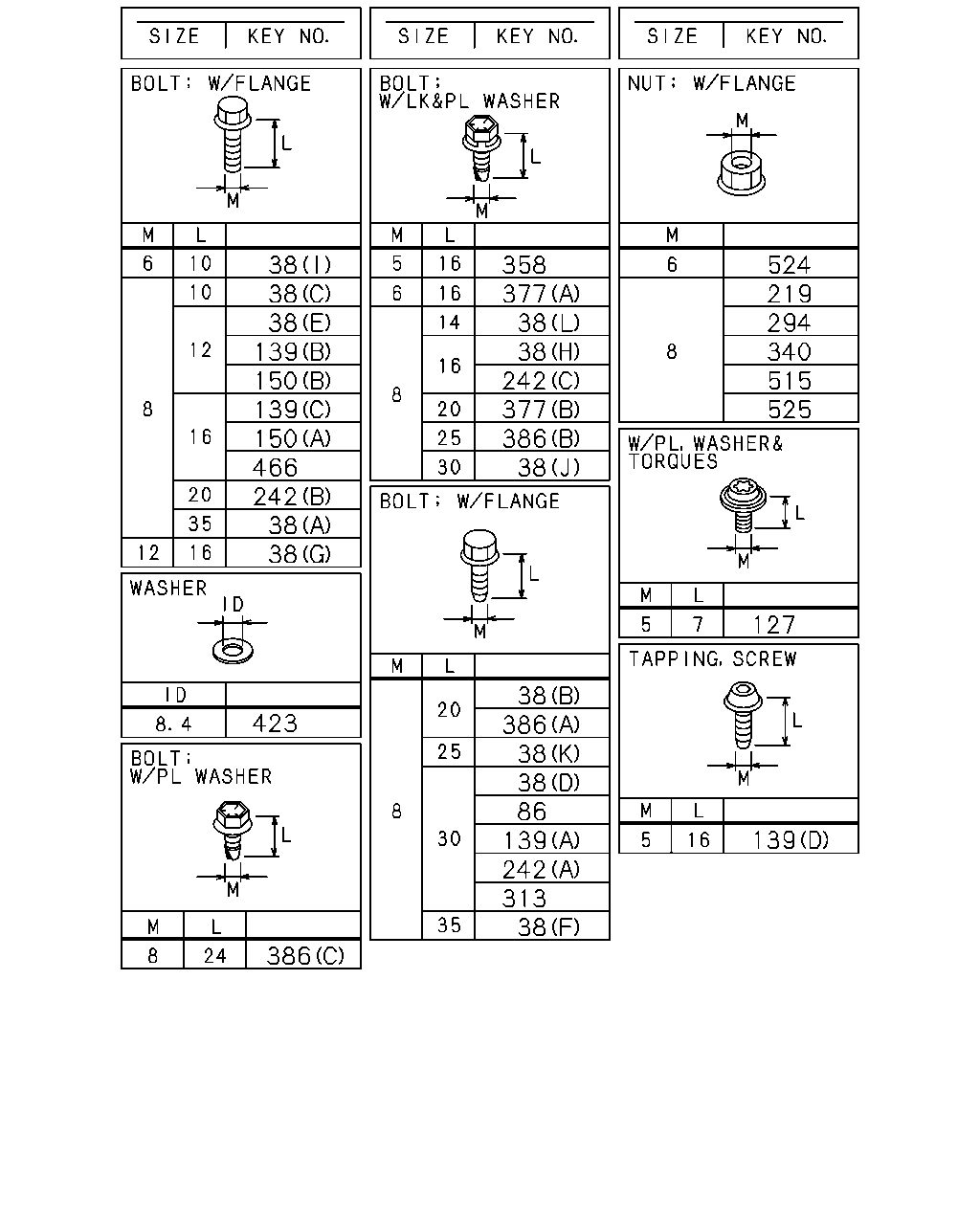

38	BOLT; CLIP,HARNESS (A) M8X35 FLANGE	0-28050-835-0	03	1	1212-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	04	1	1212-	●	●
38	BOLT; CLIP,HARNESS (E) M8X12 FLANGE	0-28050-812-0	02	1	1004-	●	●
38	BOLT; CLIP,HARNESS (A) M8X35 FLANGE	0-28050-835-0	04	1	1004-1211	●	●
38	BOLT; CLIP,HARNESS (A) M8X35 FLANGE	0-28050-835-0	01	1	1212-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	07	1	1004-1201	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	05	1	1202-	●	●
38	BOLT; CLIP,HARNESS (K) M8X25 FLANGE SOU	0-28650-825-0	03	1	1004-1108	●	●
38	BOLT; CLIP,HARNESS (K) M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	07	1	1004-1201	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	06	1	1202-1211	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
38	BOLT; CLIP,HARNESS (F) M8X35 FLANGE SOU	0-28650-835-0	02	1	1004-	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	1-09044-079-0	01	1	1004-1105	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1106-	●	●
38	BOLT; CLIP,HARNESS (H) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1004-1108	●	●
38	BOLT; CLIP,HARNESS (H) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	1109-1201	●	●
38	BOLT; CLIP,HARNESS (L) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1004-1201	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1202-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	1202-	●	●
38	BOLT; CLIP,HARNESS GENERATOR 24V90A(K44) (C) M8X10 FLANGE	0-28050-810-0	01	1	1004-	●	●
38	BOLT; CLIP,HARNESS EXC. GENERATOR 24V90A(K44) (I) M6X10 FLANGE SOU	0-28050-610-0	01	1	1004-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1004-1201		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1202-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1202-		●
38	BOLT; CLIP,HARNESS (J) M8X30 W/LK&PL WASHER	0-50640-830-0	01	1	1004-		●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1004-1108	●	●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	1109-	●	●
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	1004-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	08	1	1202-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-	●
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	1004-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	09	1	1004-1201	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1202-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	03	1	1004-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1004-1301	●	●
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	1004-	●	●
150	BOLT; CLIP (A) M8X16 FLANGE SOU	0-28050-816-0	07	1	1004-1005	●	●
150	BOLT; CLIP VIN MODEL YEAR 2011<VZB> (A) M8X16 FLANGE SOU	0-28050-816-0	01	1	1109-	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	10	1	1004-1201	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	05	1	1202-	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	05	1	1202-	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1004-	●	●
219	NUT M8 FLANGE SOU	0-91180-108-0	01	1	1004-		●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU	0-91180-108-0	02	1	1004-	●	●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1004-1108	●	●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	1109-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1004-1108	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	1109-	●	●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	02	1	1004-1108	●	●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER SOU	1-09980-498-0	02	1	1109-	●	●
294	NUT M8 FLANGE SOU	0-91180-108-0	06	1	1202-	●	●
294	NUT M8 FLANGE SOU	0-91180-108-0	08	1	1004-1201	●	●
294	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1202-	●	●
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE SOU	0-91180-108-0	03	1	1004-	●	●
313	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1004-1108	●	●
313	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	1109-	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE SOU	0-91180-108-0	03	1	1004-1108	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE SOU	0-91180-108-0	03	1	1109-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1004-1108	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	1109-	●	●
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1004-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	01	1	1004-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1004-1108	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1109-	●	●
386	BOLT; GRAND HARNESS (B) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	1004-1202	●	●
386	BOLT; GRAND HARNESS (C) M8X24 W/PL WASHER	8-98141-256-1	02	1	1203-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1004-1108	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	1109-	●	●
466	BOLT; HEAT PROTECTOR M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-	●	●
515	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	07	1	1202-	●	●
515	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	08	1	1004-1201	●	●
515	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1202-	●	●
524	NUT; HARNESS M6 FLANGE SOU	0-91180-106-0	04	1	1004-	●	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1004-1108	●	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1109-1211	●	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1212-	●	●
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1212-	●	●

137 211 211 335 312 375 335 375 600 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
137	BRACKET; HARNESS CLAMP ANTILOCK BRAKE SYSTEM(BFA)	1-82698-140-0	01	1	1004-	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B)	8-97621-353-1	01	1	1004-	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B)	8-97621-352-1	01	1	1004-	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) L=95	1-82699-085-0	02	1	1004-		●
312	BRACKET; CLIP HARNESS L=120	8-97619-440-0	01	1	1004-1108	●	●
312	BRACKET; CLIP HARNESS L=120	8-97619-440-0	01	1	1109-	●	●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1004-1108	●	●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	1109-	●	●
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-167-0	01	1	1004-	●	●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1004-1108	●	●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	1109-	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1004-1108	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	1109-	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1004-1108	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	1109-	●	●
600	PROTECTOR; HEAT	8-97608-456-0	01	1	1004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
