Isuzu WW
▶
TRUCKS
▶
FXR
▶
11196 - FXR/GXR SOUTH AFRICA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-70 - SEPARATER AND BED
▶

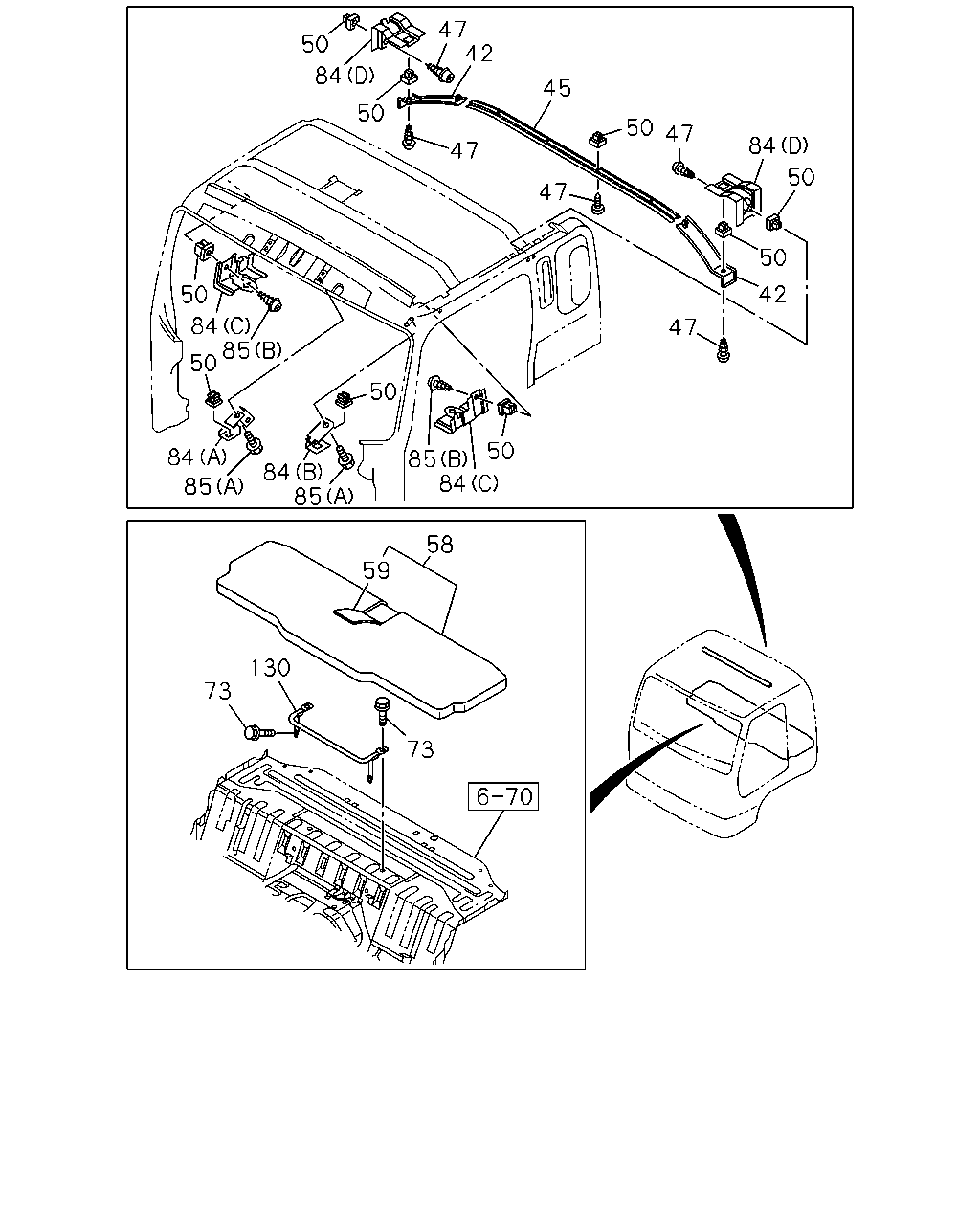

7-70 — SEPARATER AND BED
(#18658) — 17 parça
Tümü
A - FGR5MX
B - GGR5MX
47
42
50
84
45
50
50
47
84
47
50
47
50
42
50
84
85
50
47
50
50
84
85
84
84
85
85
58
59
130
73
73
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-972-2
01
1
1004-
●
●
42
STOPPER; CURTAIN RAIL
DARK GRAY
8-97407-499-2
01
1
1004-
●
●
45
RAIL; CURTAIN,FRT
DARK GRAY
8-97407-486-0
01
1
1004-
●
●
47
SCREW; CURTAIN RAIL
M5X20 SOU
5-09981-059-0
06
1
1004-
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 SOU
8-94279-078-0
10
1
1004-1405
●
●
50
GROMMET; SCREW,CURTAIN RAIL
D=8.6X7.7 L=7.5 SOU
8-94279-078-0
08
1
1406-
●
●
58
BED; MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97409-894-1
01
1
1004-
●
●
59
COVER ASM; TRIM,BED MAT
MATTRESS SLEEPER CAB<E40> DARK GRAY
8-97414-135-0
01
1
1004-
●
●
73
BOLT; GUARD PIPE
MATTRESS SLEEPER CAB<E40> M8X20 FLANGE
0-28450-820-0
04
1
1004-
●
●
84
BRACKET; CURTAIN RAIL
(C)
8-98028-326-1
02
1
1004-1405
●
●
84
BRACKET; CURTAIN RAIL
(D)
8-98042-152-0
02
1
1004-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)
8-98049-290-1
01
1
1004-
●
●
84
BRACKET; CURTAIN RAIL
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (B)
8-98074-740-0
01
1
1004-
●
●
85
SCREW; BRKT
(B) M5X20 SOU
5-09981-059-0
04
1
1004-1405
●
●
85
SCREW; BRKT
(B) M5X20 SOU
5-09981-059-0
02
1
1406-
●
●
85
SCREW; BRKT
EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) BOLT M6X12 FLANGE
8-97108-669-0
02
1
1004-
●
●
130
PIPE; GUARD,BED
MATTRESS SLEEPER CAB<E40>
8-98014-968-0
01
1
1004-
●
●
