◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#18657) — 11 parça

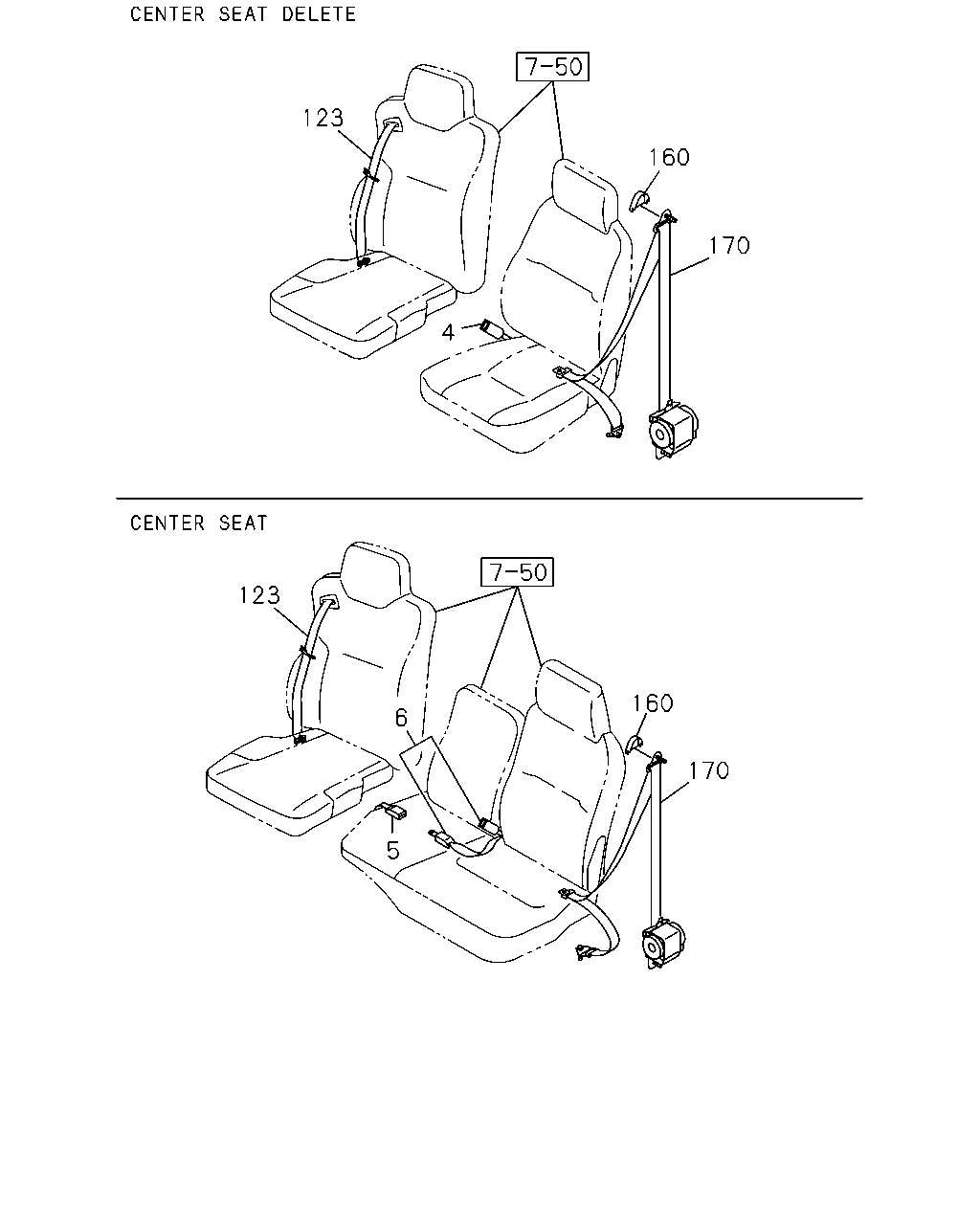

çizim 128888
123 160 170 4 123 160 6 170 5
BalonParca AdiParca NoAdetTipApplied Date A B
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) GRAY 		8-97407-376-1 01 1 1004- ● ●
5 BELT; CENTER SEAT,BUCKLE SIDE
CENTER SEAT(SA1) GRAY 		8-97407-377-1 01 1 1004- ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) GRAY 		8-97409-768-3 01 1 1004-1208 ● ●
6 BELT; CENTER SEAT,TONGUE SIDE
CENTER SEAT(SA1) GRAY 		8-97423-515-1 01 1 1209- ● ●
123 BELT ASM; SEAT 8-98097-971-0 01 1 1004- ● ●
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1004- ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97407-770-4 01 1 1004-1208 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97423-516-1 01 1 1209-1407 ● ●
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1408- ● ●
çizim 128899
169 88
BalonParca AdiParca NoAdetTipApplied Date A B
88 PLUG; HOLE
DARK GRAY 		8-97411-466-0 01 1 1004- ● ●
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK SOU 		1-76798-019-0 01 1 1004- ● ●
