7-30 — LOCK CYLINDER SET (#18651) — 12 parça

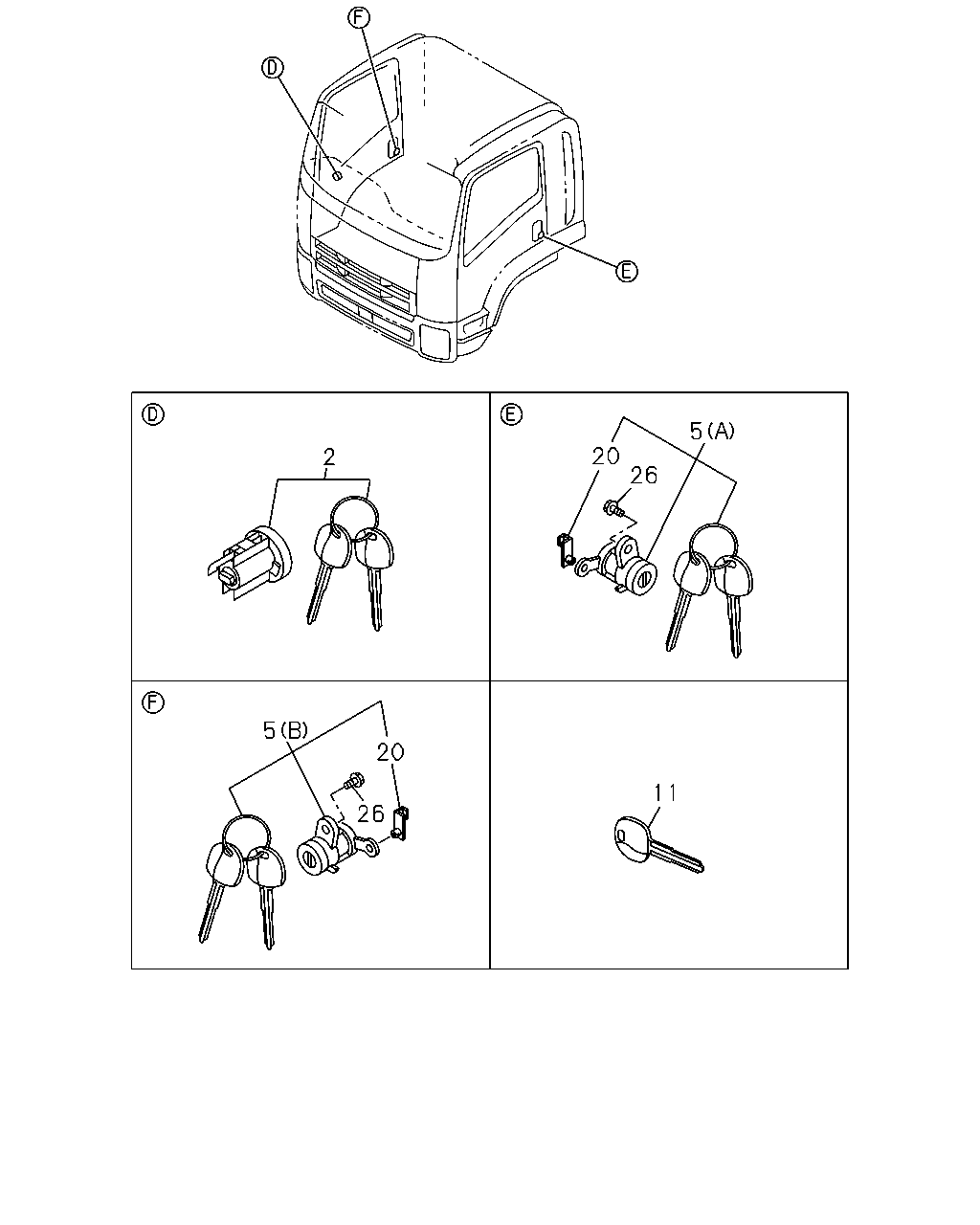

çizim 128891

5 20 2 2 5 20 11 26

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	2	BARREL ASM; W/KEY,STRG LOCK	8-98055-148-0	01	1	1004-1203	●	●
	2	BARREL ASM; W/KEY,STRG LOCK	8-98201-342-0	01	1	1204-	●	●
	5	CYLINDER ASM; DOOR LOCK (B)	8-98055-149-0	01	1	1004-	●	●
	5	CYLINDER ASM; DOOR LOCK (A)	8-98055-150-0	01	1	1004-	●	●
	11	KEY; BLANK	8-98055-170-0	AR	1	1004-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1004-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1004-	●	●
	26	BOLT; KEY CYL,DOOR M6X8 FLANGE	8-98031-839-0	02	1	1004-	●	●

çizim 128897

1 20 20

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	1	CYLINDER SET; CAR LOCK	8-98056-003-0	01	1	1004-1203	●	●
	1	CYLINDER SET; CAR LOCK	8-98201-161-0	01	1	1204-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-181-0	01	1	1004-	●	●
	20	SNAP; DOOR LOCK CYL	8-98055-182-0	01	1	1004-	●	●
