7-20 — MIRROR AND MIRROR STAY (#18650) — 157 parça

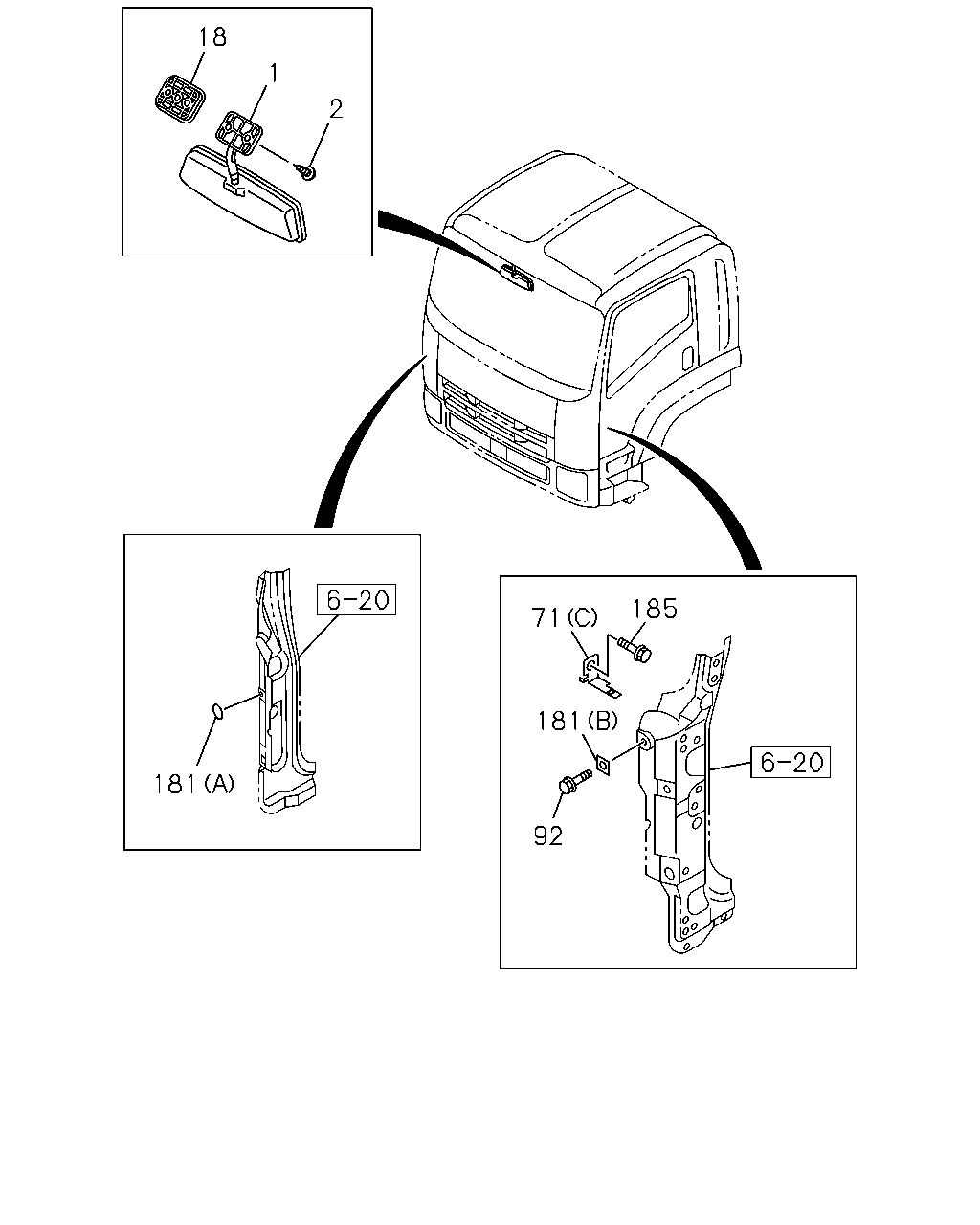

çizim 128880
18 1 2 185 71 181 181 92
BalonParca AdiParca NoAdetTipApplied Date A B
1 MIRROR; ROOM
DARK GRAY 		8-98097-534-1 01 1 1004- ● ●
2 SCREW; MIRROR TO BODY
M6X26 		8-98033-674-0 02 1 1004- ● ●
18 CLIP; MIRROR
DARK GRAY 		8-97408-241-0 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) SOU 		1-71798-484-1 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-794-2 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-793-2 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1004- ● ●
92 BOLT; STAY BRKT,MIRROR
M8X16 FLANGE 		8-98076-109-0 01 1 1004- ● ●
181 SEAL; BRKT
(B) 25X25 SOU 		8-94272-533-0 01 1 1004- ● ●
181 SEAL; BRKT
(A) OD=25 BLACK SOU 		1-76798-019-0 01 1 1004- ● ●
185 BOLT; BRKT
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> M8X16 FLANGE SOU 		0-28050-816-0 02 1 1004- ● ●

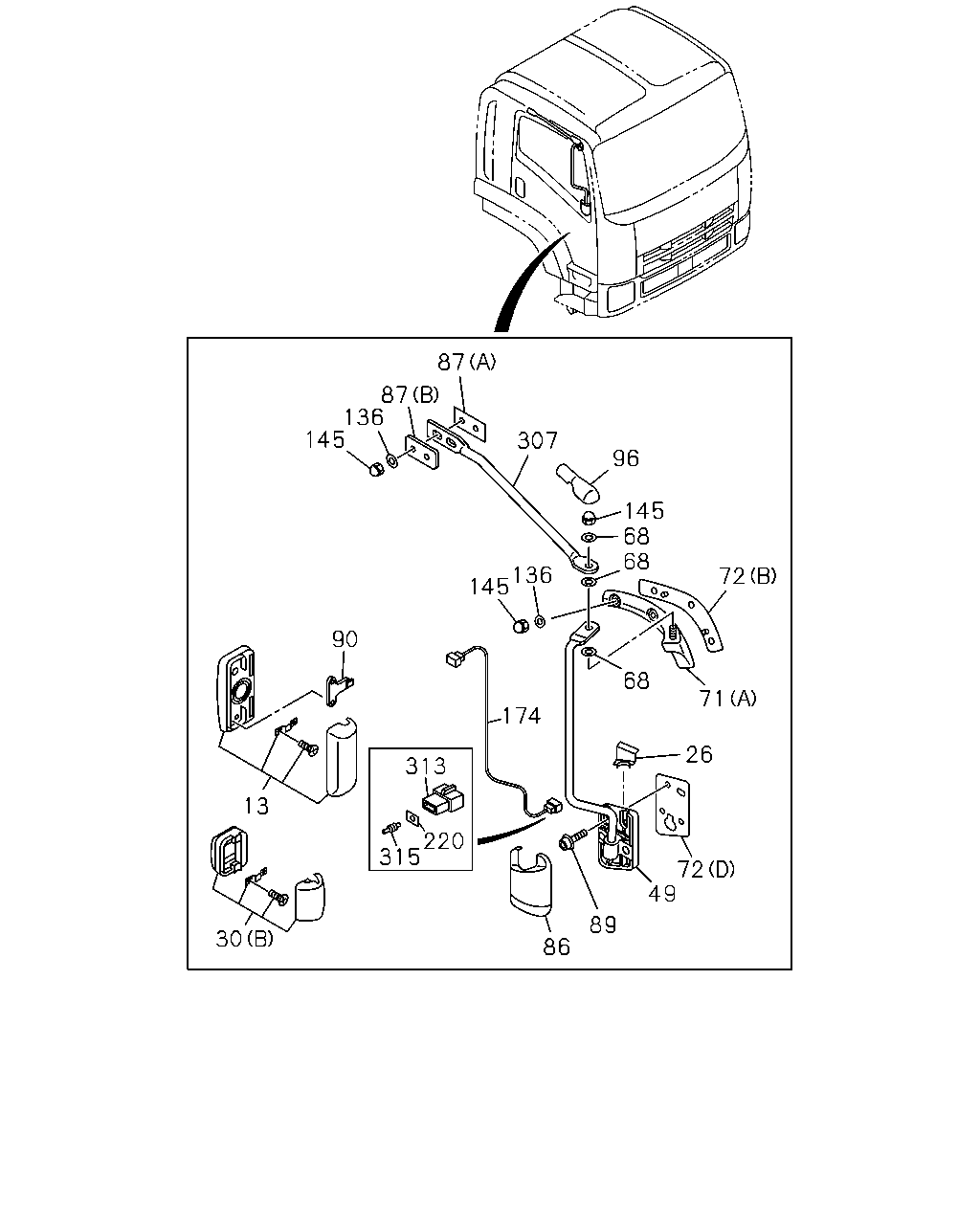

çizim 128882
87 87 136 145 307 96 145 68 68 136 145 72 90 68 71 174 26 313 13 220 315 72 49 89 30 86
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1004- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1004- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1004- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1004- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-806-0 01 1 1004- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-805-0 01 1 1004- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1004- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1004- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1004-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-781-1 01 1 1004-1101 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-067-1 01 1 1102-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-780-1 01 1 1004-1101 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-066-1 01 1 1102-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 1004-1008 ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-065-1 01 1 1009-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-065-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 1004-1008 ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-064-1 01 1 1009-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-064-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1203- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 10 1 1004-1101 ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 04 1 1102- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) SOU 		1-71798-484-1 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-794-2 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-793-2 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1004- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1203- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1203- ● ●
72 SHEET
(C) SOU 		8-98031-797-0 01 1 1004- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 1004- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 1004- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1004-1202 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1203- ● ●
72 SHEET
(B) SOU 		8-98031-796-0 01 1 1004- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1004-1202 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1203- ● ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-803-2 01 1 1004- ● ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-802-2 01 1 1004- ● ●
87 SPACER
(A) SOU 		8-98063-786-0 02 1 1004- ● ●
87 SPACER
(B) SOU 		8-98063-789-0 01 1 1004- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 SOU 		8-97310-216-1 08 1 1004- ● ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1004- ● ●
96 CAP; MIRROR STAY
SOU 		8-98080-173-0 02 1 1004- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 1004- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 10 1 1004- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-653-0 02 1 1004- ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-536-0 02 1 1004- ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-785-2 01 1 1004- ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-784-2 01 1 1004- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-532-0 02 1 1004- ● ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82691-026-0 02 1 1004- ● ●

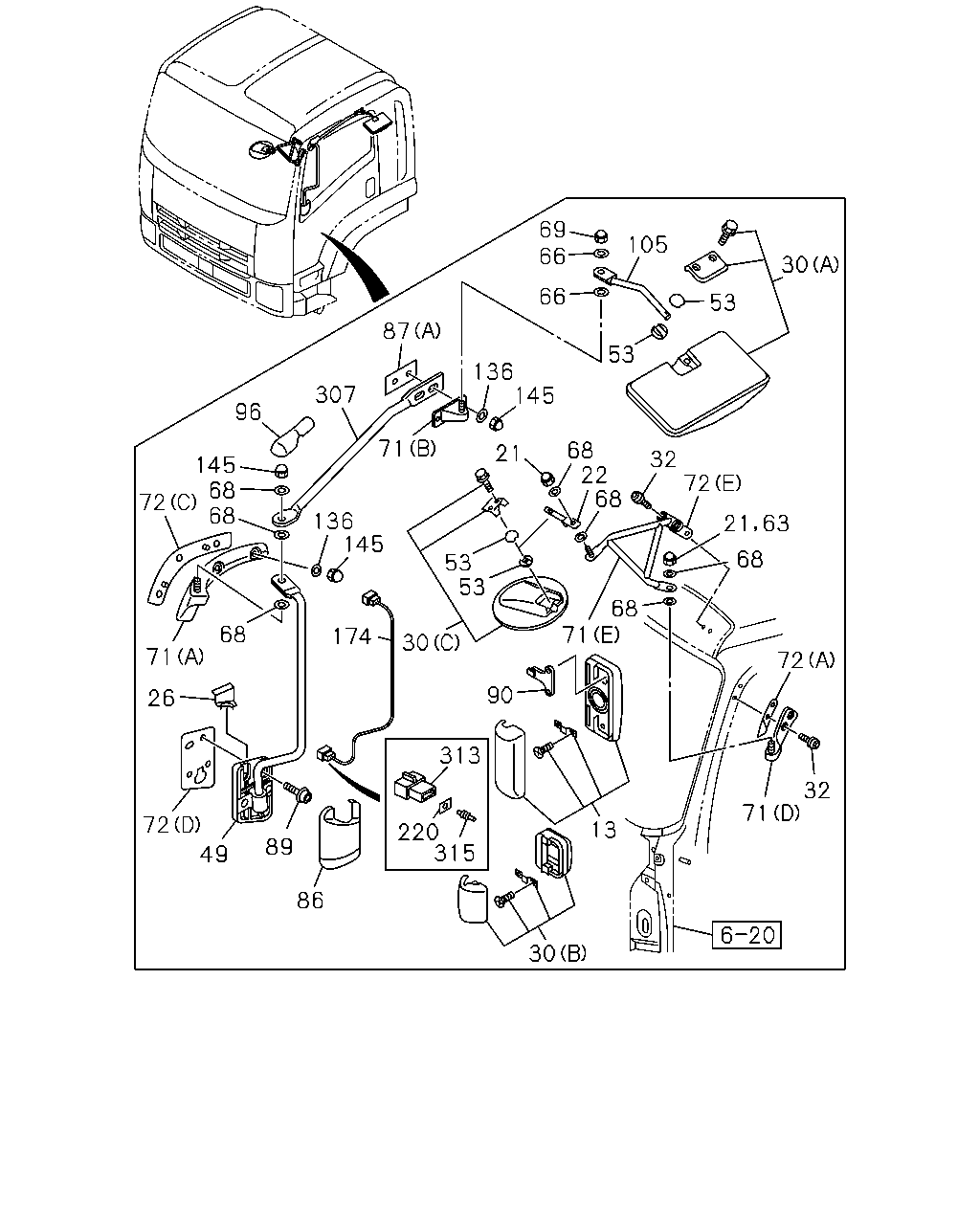

çizim 128889
69 66 105 30 66 53 87 53 136 145 307 96 71 68 22 68 21 32 72 145 68 68 72 136 145 68 53 53 68 71 68 174 30 71 72 90 26 313 32 71 72 13 220 315 89 49 86 30 21 63
BalonParca AdiParca NoAdetTipApplied Date A B
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-176-1 01 1 1004- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98043-060-1 01 1 1004- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-992-1 01 1 1004- ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98055-991-1 01 1 1004- ● ●
21 NUT; MIRROR
M10 CAP NUT SOU 		1-09984-134-0 04 1 1004-1101 ● ●
21 NUT; MIRROR
M10 CAP NUT SOU 		1-09984-134-0 02 1 1102- ● ●
22 STAY; OUTSIDE MIRROR 8-98092-493-0 01 1 1004- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-806-0 01 1 1004- ● ●
26 COVER; OUTSIDE MIRROR
SOU 		8-98031-805-0 01 1 1004- ● ●
30 MIRROR; UNDER
(B) 		8-98043-061-0 02 1 1004- ● ●
30 MIRROR; UNDER
(A) 		8-98043-065-0 01 1 1004- ● ●
30 MIRROR; UNDER
(C) 		8-98055-994-0 01 1 1004-1504 ● ●
30 MIRROR; UNDER
(C) 		8-98309-725-0 01 1 1505- ● ●
32 SCREW; UNDER MIRROR
M8X26 W/PL WASHER 		8-98067-249-2 04 1 1004- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-781-1 01 1 1004-1101 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-067-1 01 1 1102-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-067-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-211-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-781-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-199-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-780-1 01 1 1004-1101 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-066-1 01 1 1102-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98075-066-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> 		8-98166-210-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98064-780-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> 		8-98166-198-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 1004-1008 ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-065-1 01 1 1009-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-065-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-207-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98060-218-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-195-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 1004-1008 ● ●
49 STAY; MIRROR SIDE
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-064-1 01 1 1009-1108 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98075-064-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-206-0 01 1 1203- ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98064-777-1 01 1 1109-1202 ● ●
49 STAY; MIRROR SIDE
O/SIDE MIRROR DOOR MTG SHORT STAY<6VE> EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98166-194-0 01 1 1203- ● ●
53 PIVOT; SIDE MIRROR
ID=19.1 		1-71737-633-2 04 1 1004- ● ●
63 NUT; STAY
M10 CAP NUT SOU 		1-09984-134-0 02 1 1102- ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 02 1 1004-1101 ● ●
66 WASHER; PL
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 08 1 1102- ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 10 1 1004-1101 ● ●
68 WASHER; STAY
ID=10.5 OD=26 T=2.6 SOU 		1-09985-204-0 04 1 1102- ● ●
69 NUT; CAP
M10 CAP NUT SOU 		1-09984-134-0 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(B) SOU 		1-71798-484-1 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-794-2 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(D) 		8-98060-240-0 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(E) 		8-98092-492-3 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
(A) SOU 		8-98031-793-2 01 1 1004- ● ●
71 BRACKET; OUTSIDE MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (C) 		8-98039-277-2 02 1 1004- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-604-0 01 1 1203- ● ●
72 SHEET
EXC. O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98116-605-0 01 1 1203- ● ●
72 SHEET
(C) SOU 		8-98031-797-0 01 1 1004- ● ●
72 SHEET
(E) 		8-98060-245-1 01 1 1004- ● ●
72 SHEET
(A) 		8-98064-776-0 01 1 1004- ● ●
72 SHEET
(D) 		8-98101-865-0 01 1 1004-1202 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-865-0 01 1 1203- ● ●
72 SHEET
(B) SOU 		8-98031-796-0 01 1 1004- ● ●
72 SHEET
(D) 		8-98101-864-0 01 1 1004-1202 ● ●
72 SHEET
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> (D) 		8-98101-864-0 01 1 1203- ● ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-803-2 01 1 1004- ● ●
86 COVER; STAY,OUTSIDE MIRROR
SOU 		8-98031-802-2 01 1 1004- ● ●
87 SPACER
(A) SOU 		8-98063-786-0 02 1 1004- ● ●
87 SPACER
(B) SOU 		8-98063-789-0 01 1 1004- ● ●
89 SCREW; BRKT,OUTSIDE MIRROR
M8X23 SOU 		8-97310-216-1 08 1 1004- ● ●
90 BRACKET; MIRROR STAY
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98129-822-0 02 1 1004- ● ●
96 CAP; MIRROR STAY
SOU 		8-98080-173-0 02 1 1004- ● ●
105 STAY; SUB UNDER MIRROR 8-98080-109-2 01 1 1004- ● ●
136 WASHER; LK,BRKT,MIRROR STAY
ID=8.4 OD=16.0 T=1.6 SOU 		1-09985-191-0 10 1 1004- ● ●
145 NUT; CAP,SUB STAY
M8 CAP NUT SOU 		8-98059-914-0 10 1 1004- ● ●
174 HARNESS; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-98125-653-0 02 1 1004- ● ●
220 HOLDER; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-536-0 02 1 1004- ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-785-2 01 1 1004- ● ●
307 STAY; MIRROR SUPPORT
SOU 		8-98063-784-2 01 1 1004- ● ●
313 CONNECTOR; MIRROR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		8-94447-532-0 02 1 1004- ● ●
315 RUBBER ASM; CONNECTOR
O/SIDE MIRROR ELEC REM CONT,HEATED<DL8> 		1-82691-026-0 02 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
