◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-76 - FLOOR EQUIPMENT AND SEALING ▶
6-76 — FLOOR EQUIPMENT AND SEALING (#18642) — 17 parça
çizim 128858
370 370 370
BalonParca AdiParca NoAdetTipApplied Date A B
370 SEAL; LOCATION HOLE
OD=30 T=1.0 		8-98051-161-0 08 1 1004-1211 ● ●
370 SEAL; LOCATION HOLE
OD=30 T=0.8 		8-98230-420-0 08 1 1212- ● ●

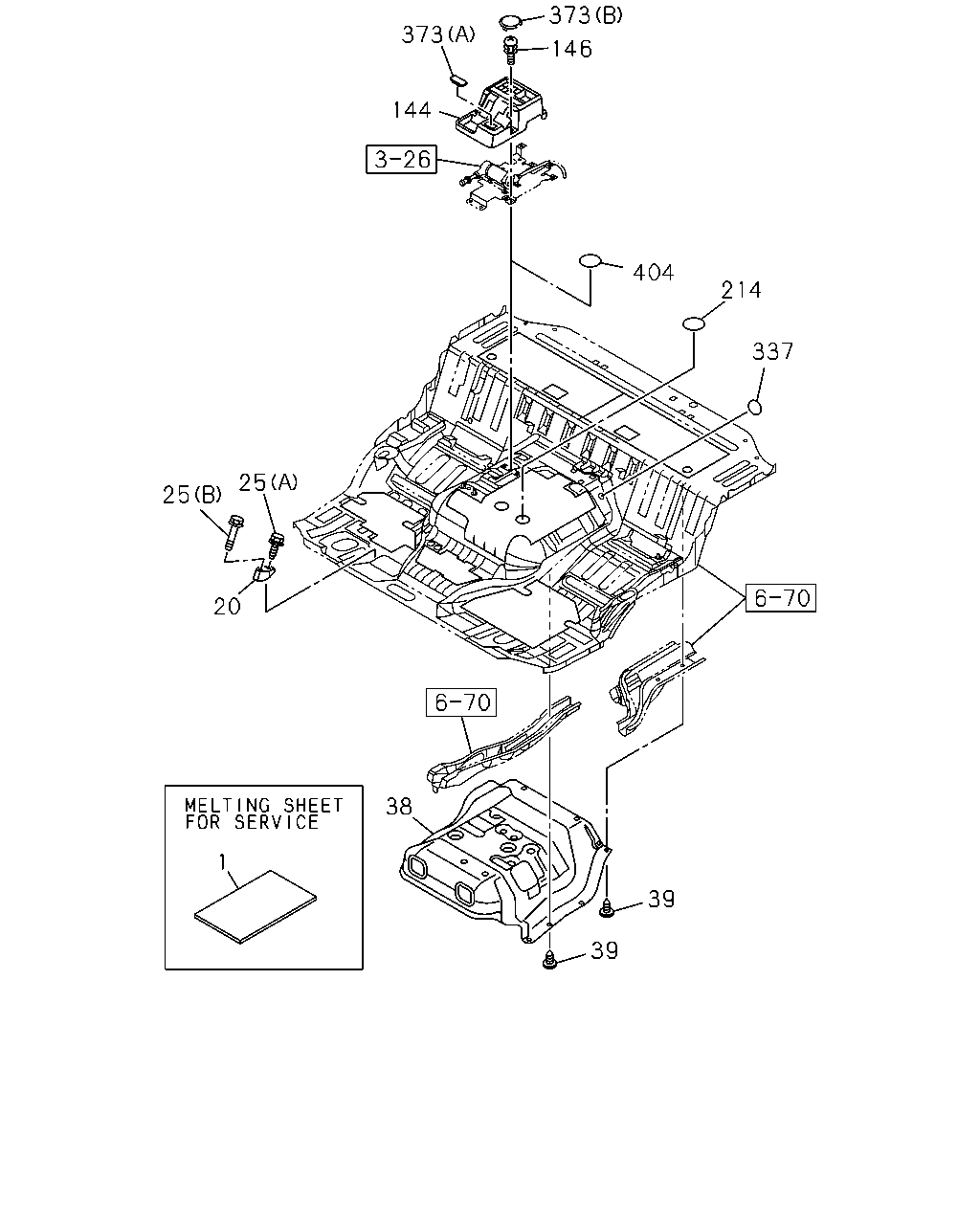

çizim 128873
373 373 146 144 404 214 337 25 25 20 38 1 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY SOU 		8-94262-093-0 AR 1 1004- ● ●
20 REST; FOOT 8-98058-150-0 01 1 1004- ● ●
25 SCREW; FOOT REST
(A) BOLT M6X19.5 W/LK&PL WASHER SOU 		8-94279-201-0 01 1 1004- ● ●
25 SCREW; FOOT REST
(B) BOLT M6X47 SOU 		8-94407-876-1 01 1 1004- ● ●
38 INSULATOR; ENG COVER 8-98052-607-1 01 1 1004-1401 ● ●
38 INSULATOR; ENG COVER 8-98251-886-0 01 1 1402- ● ●
39 CLIP; INSULATOR,COVER
ID=6.2 L=11.4 		8-97808-623-0 26 1 1004- ● ●
144 COVER; HAND BRK VLV
GRAY 		8-97407-974-0 01 1 1004- ● ●
146 BOLT; COVER BRKT
SCREW M6X16 		0-38050-616-0 04 1 1004- ● ●
214 SEAL; HOLE COVER
OD=25 BLACK SOU 		1-76798-019-0 02 1 1004- ● ●
337 SEAL; CLIP HOLE
OD=25 BLACK SOU 		1-76798-019-0 06 1 1004-1509 ● ●
337 SEAL; CLIP HOLE
OD=25 BLACK SOU 		1-76798-019-0 08 1 1510- ● ●
373 COVER; HOLE
(B) GRAY 		8-97407-951-0 04 1 1004- ● ●
373 COVER; HOLE
(A) GRAY 		8-97409-339-0 01 1 1004- ● ●
404 SEAL; FLOOR,HOLE
EXC. CENTER SEAT DELETE(SP9) OD=25 BLACK SOU 		1-76798-019-0 02 1 1004- ● ●
