◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXR ▶ 11196 - FXR/GXR SOUTH AFRICA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#18636) — 15 parça

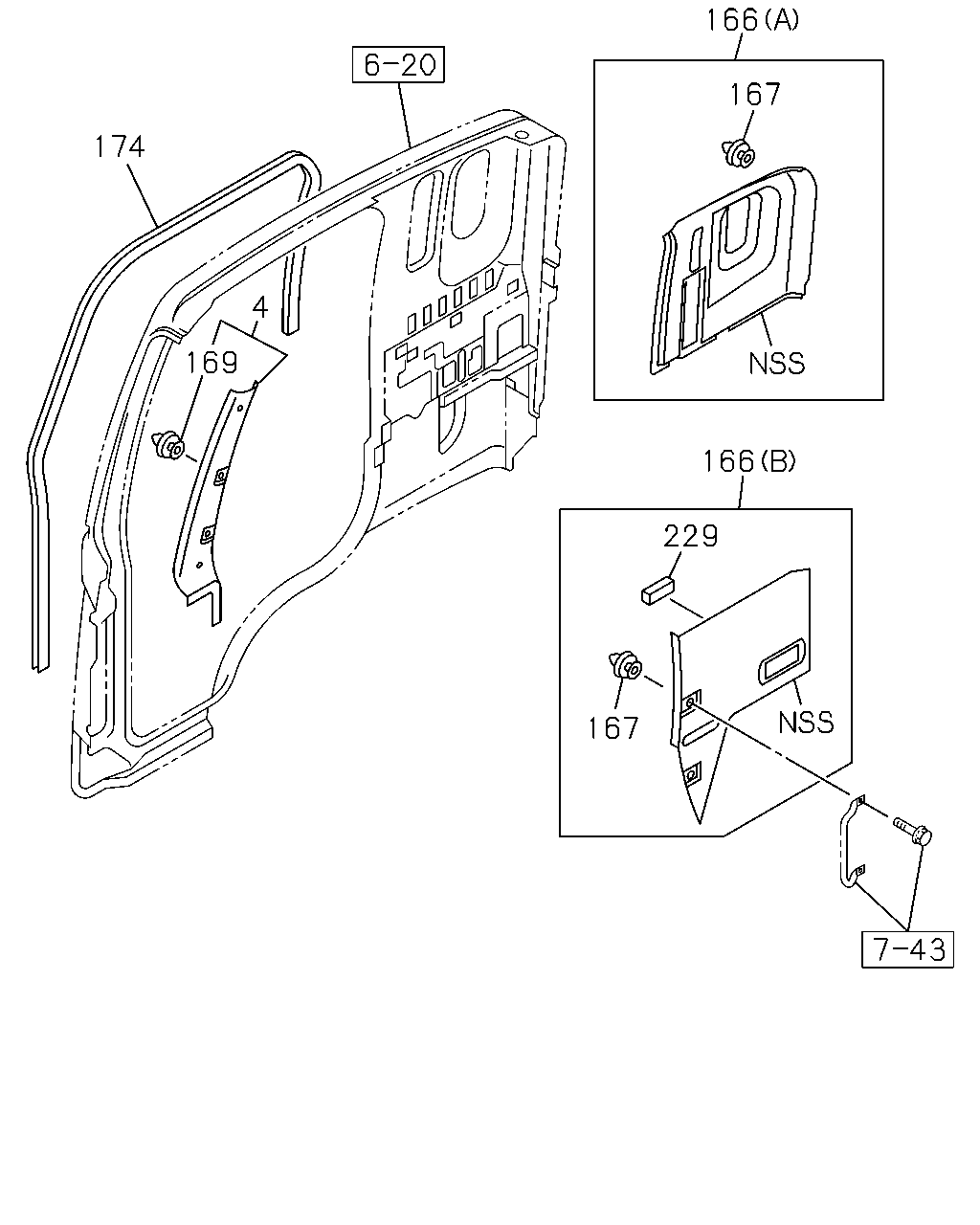

çizim 128872
166 167 174 4 169 166 229 167
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-416-1 01 1 1004- ● ●
4 COVER; TRIM,FRT SIDE
DARK GRAY 		8-97407-415-1 01 1 1004- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97407-460-1 01 1 1004- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-651-0 01 1 1004- ● ●
166 TRIM; RR PILLAR
(B) GRAY 		8-97414-300-0 01 1 1004- ● ●
166 TRIM; RR PILLAR
(A) DARK GRAY 		8-97415-652-0 01 1 1004- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 12 1 1004- ● ●
167 CLIP; TRIM,RR PILLAR 8-98059-610-0 04 1 1004- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
OD=7.9 BLACK SOU 		8-94279-974-1 04 1 1004- ● ●
174 FINISHER; BODY SIDE 8-98155-183-0 01 1 1004-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-513-0 01 1 1510- ● ●
174 FINISHER; BODY SIDE 8-98155-184-0 01 1 1004-1509 ● ●
174 FINISHER; BODY SIDE 8-98249-514-0 01 1 1510- ● ●
229 SEAL 8-98080-972-0 02 1 1004- ● ●
229 SEAL 8-98092-662-0 01 1 1004- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
