Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#18627) — 54 parça
◀

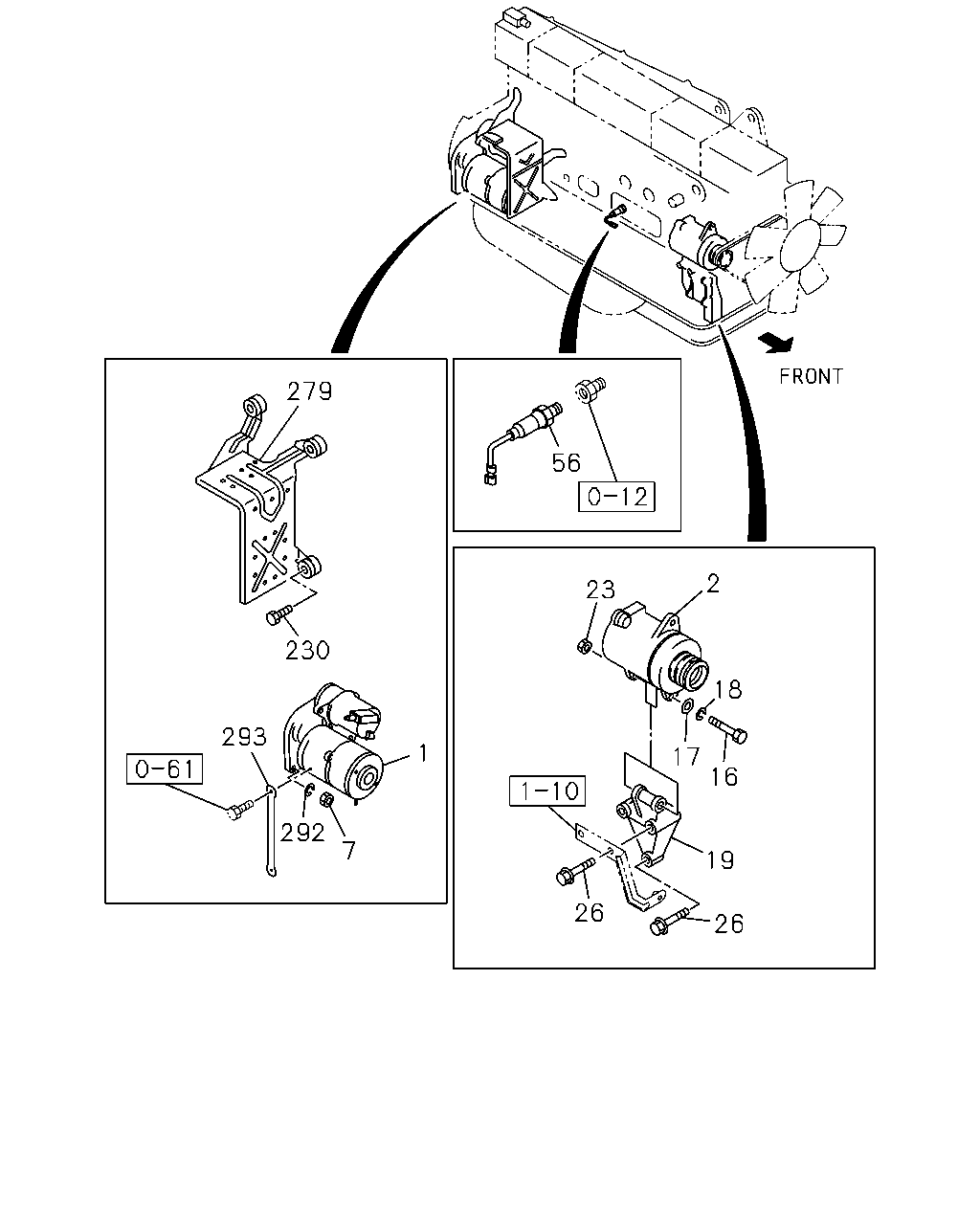

[060A] STARTER AND GENERATOR FIXING (24 parça)

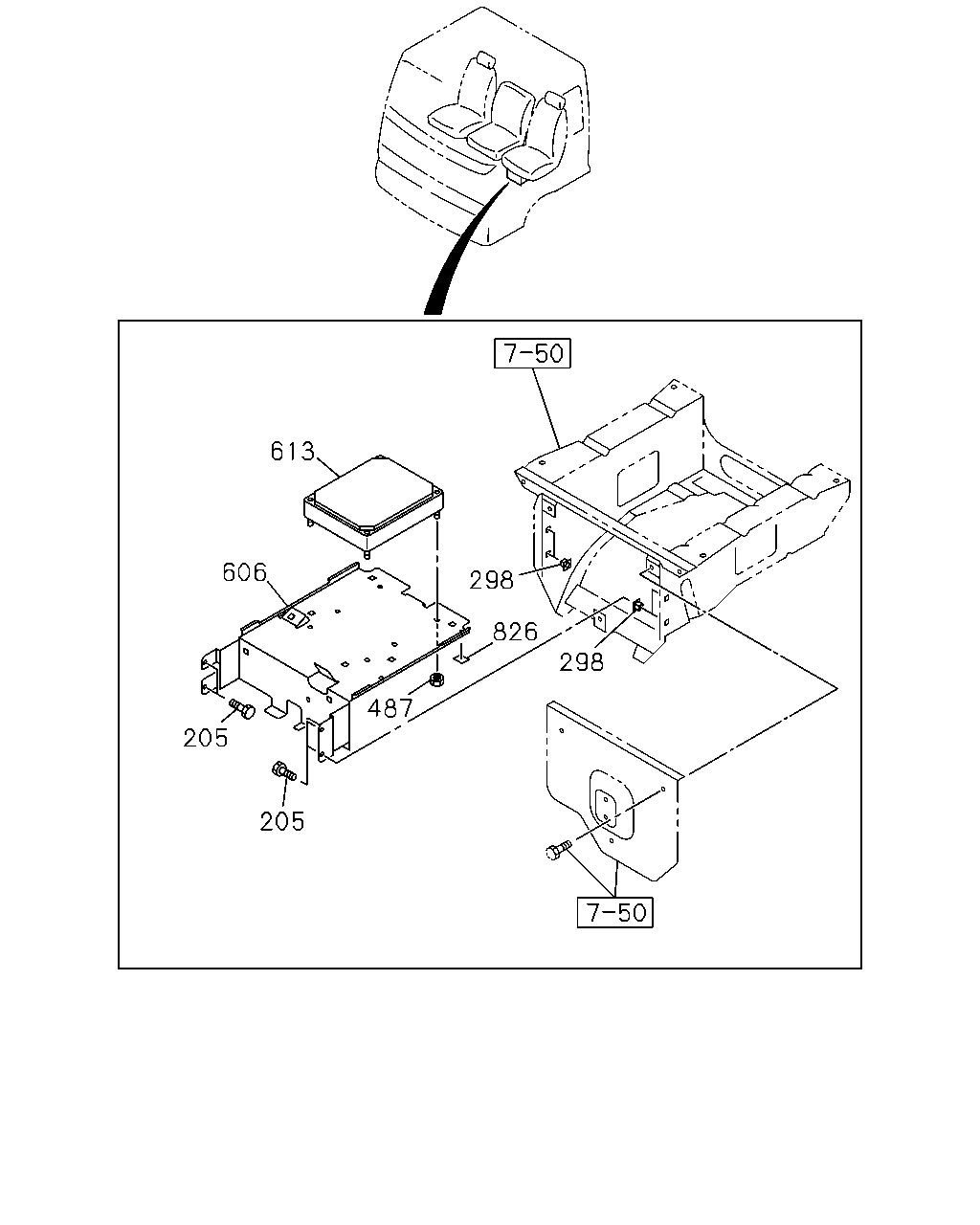

[060A] ENG CONTROL UNIT AND OTHER PARTS (8 parça)

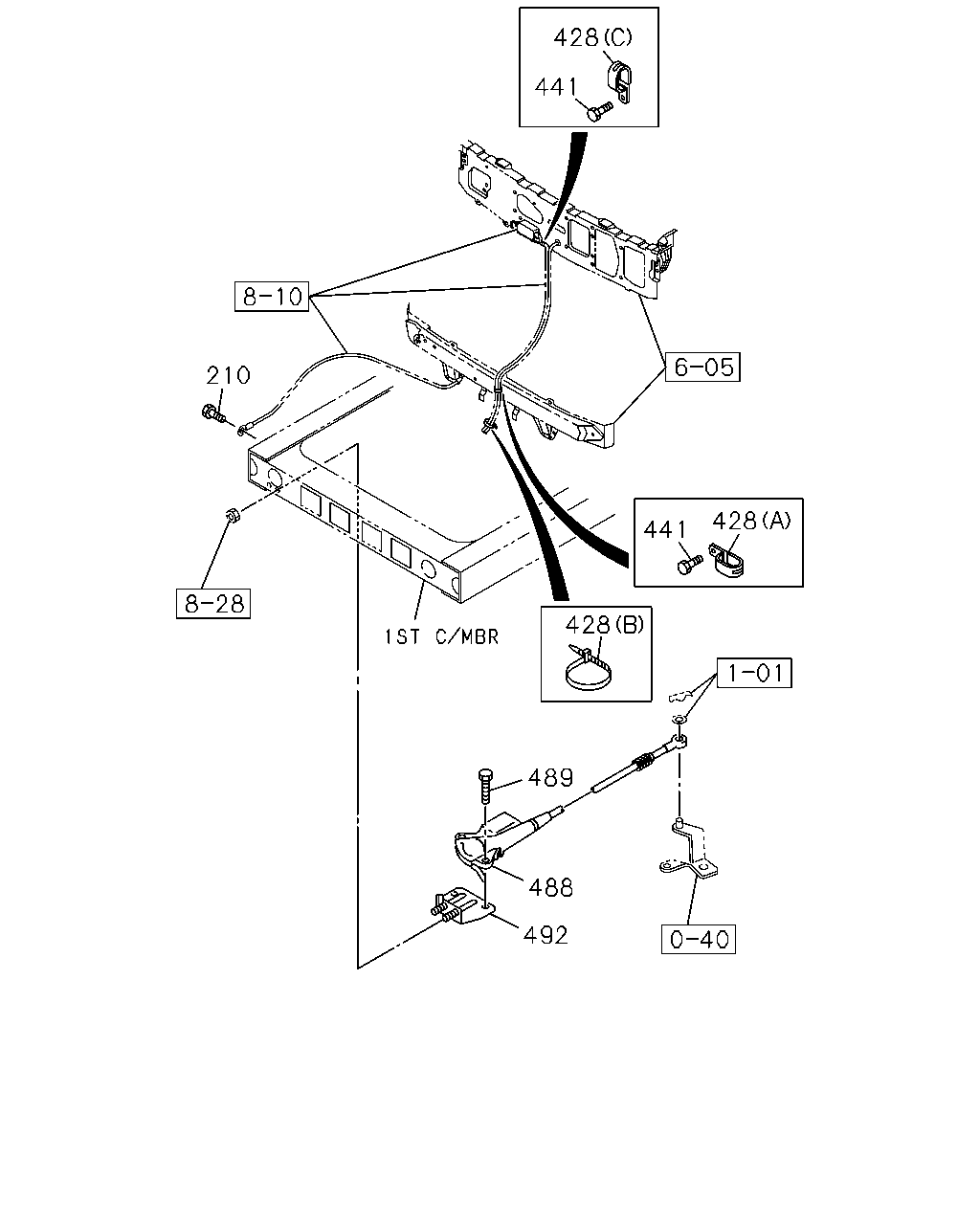

[060A] FRONT SIDE (13 parça)

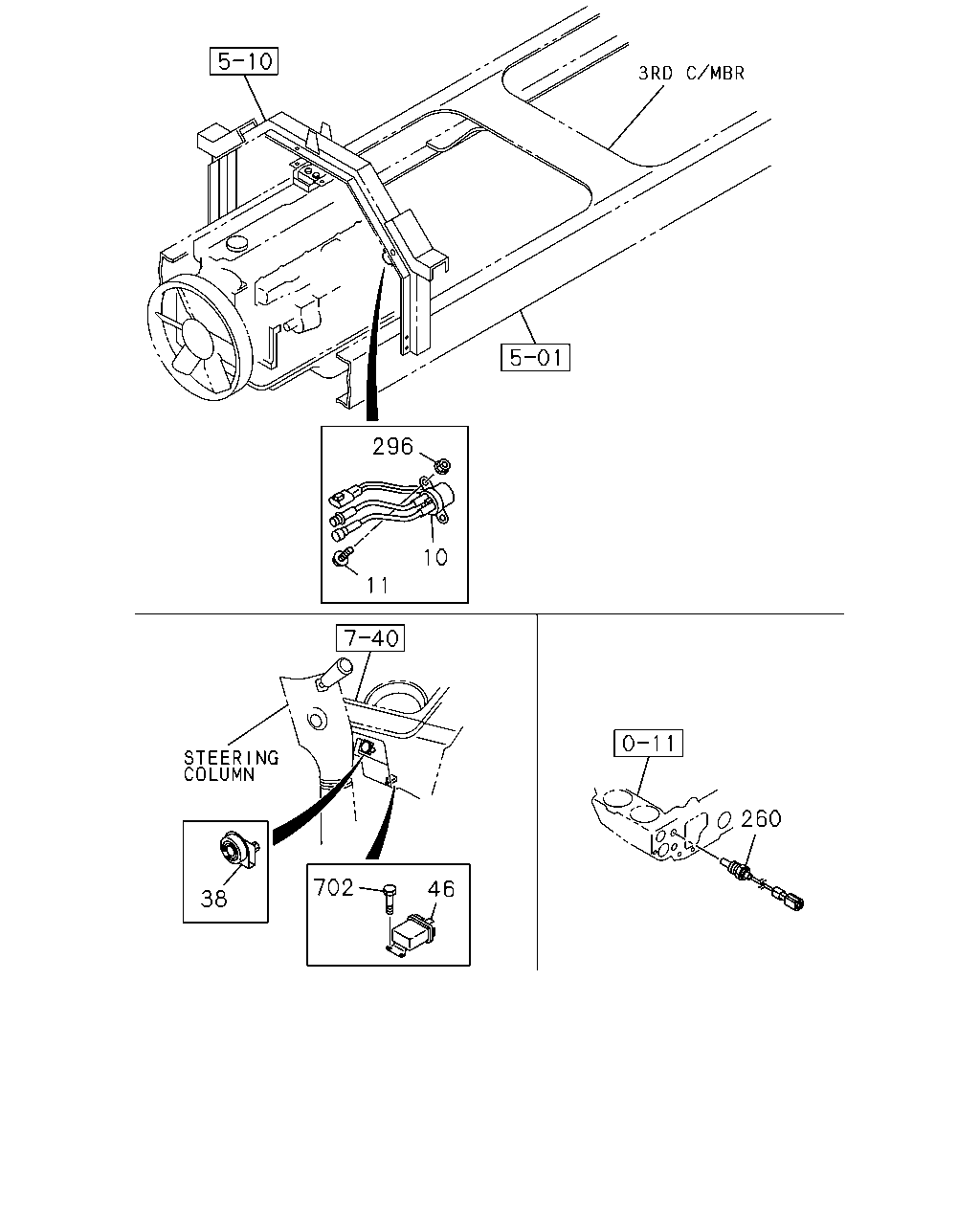

[060A] RELAY AND RESISTOR (9 parça)
▶
279
56
2
23
230
18
293
1
17
16
292
7
19
26
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-323-1
01
1
0403-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 40A NIKKO
1-81200-416-5
01
1
0403-
7
NUT; STARTER
M14
9-99110-414-0
02
1
0403-0512
7
NUT; STARTER
M14 MAL
0-91110-514-0
02
1
0601-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
0403-
17
WASHER; PL,GEN
ID=15
9-09160-514-0
01
1
0403-0605
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
0606-
18
WASHER; LK,GEN
ID=14.2
9-09150-514-0
01
1
0403-0603
18
WASHER; LK,GEN
ID=14.2
0-91510-514-0
01
1
0604-
19
BRACKET; GEN
8-97602-318-0
01
1
0403-
23
NUT; GEN
M14
9-99110-414-0
01
1
0403-0512
23
NUT; GEN
M14 MAL
0-91110-514-0
01
1
0601-
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28181-040-0
01
1
0403-0512
26
BOLT; GEN BRKT
M10X40 FLANGE
0-28151-040-0
01
1
0601-
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28181-080-0
02
1
0403-0512
26
BOLT; GEN BRKT
M10X80 FLANGE
0-28151-080-0
02
1
0601-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
0403-
230
BOLT; HEAT PROTECTOR
M8X28 FLANGE
0-28080-828-0
01
1
0403-
230
BOLT; HEAT PROTECTOR
M10X30 FLANGE
0-28181-030-0
01
1
0403-0512
230
BOLT; HEAT PROTECTOR
M10X30 FLANGE
0-28151-030-0
01
1
0601-
279
PROTECTOR; STARTER
8-94394-952-1
01
1
0403-
292
WASHER; LK,STARTER
ID=14.2
9-09150-514-0
02
1
0403-0603
292
WASHER; LK,STARTER
ID=14.2
0-91510-514-0
02
1
0604-
293
CABLE; STARTER EARTH
L=360
1-82650-230-1
01
1
0403-
613
606
298
826
298
487
205
205
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
205
SCREW; BRKT
M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0403-
298
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0403-
487
NUT
M6 FLANGE
0-91150-106-0
04
1
0403-0602
487
NUT
M6 FLANGE MAL
0-91180-106-0
04
1
0603-
606
BRACKET; CONT UNIT
1-75558-534-9
01
1
0403-
613
CONTROL UNIT; ENG
8-94392-232-2
01
1
0403-
826
SEAL; NOISE INSULATION
30X30
1-74998-128-1
03
1
0403-0908
826
SEAL; NOISE INSULATION
30X30
8-98142-344-0
03
1
0909-
428
441
210
428
441
428
489
488
492
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
210
BOLT; CABLE FIX
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0403-1201
210
BOLT; CABLE FIX
M8X14 W/PL WASHER
8-98164-837-0
01
1
1202-
428
CLIP; HARNESS
(A) ID=35 L=50
1-09701-214-0
01
1
0403-
428
CLIP; HARNESS
(A) ID=35 L=50
1-09701-214-0
01
1
0403-
428
CLIP; HARNESS
(C) ID=30X2 L=28
1-09701-266-0
01
1
0403-
428
CLIP; HARNESS
(C) ID=30X2 L=28
1-09701-266-0
01
1
0403-
428
CLIP; HARNESS
(B) L=300
1-09707-001-1
03
1
0403-
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE MAL
0-28680-825-0
02
1
0403-0512
441
BOLT; HARNESS TO FRAME
M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
488
STOPPER; ENG
1-82840-128-3
01
1
0403-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50140-825-0
02
1
0403-0512
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50640-825-0
02
1
0601-
492
BRACKET; ENG STOPPER
1-82849-067-0
01
1
0403-
296
10
11
260
702
46
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
NIKKO
1-81171-075-1
01
1
0403-
11
BOLT; RELAY STARTER
M8X20 FLANGE MAL
0-28680-820-0
02
1
0403-0512
11
BOLT; RELAY STARTER
M8X20 FLANGE MAL
0-28650-820-0
02
1
0601-
38
RESISTOR; CONT,GLOW PLUG
1-81402-008-0
01
1
0403-
46
RELAY; GLOW PLUG
8-94258-014-0
01
1
0403-
260
SENSOR; WATER TEMP
1-80210-005-1
01
1
0403-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91150-108-0
02
1
0403-0602
296
NUT; RELAY,STARTER
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
702
BOLT; RELAY
M6X19.5 W/LK&PL WASHER MAL
8-94279-201-0
01
1
0403-
