Isuzu WW
▶
TRUCKS
▶
FSR
▶
11357 - FSR(MALAYSIA)W/B5500
▶
0 - Engine, Emission, Engine Electrical
▶
0-39 - AIR COMPRESSOR; BRAKE
▶

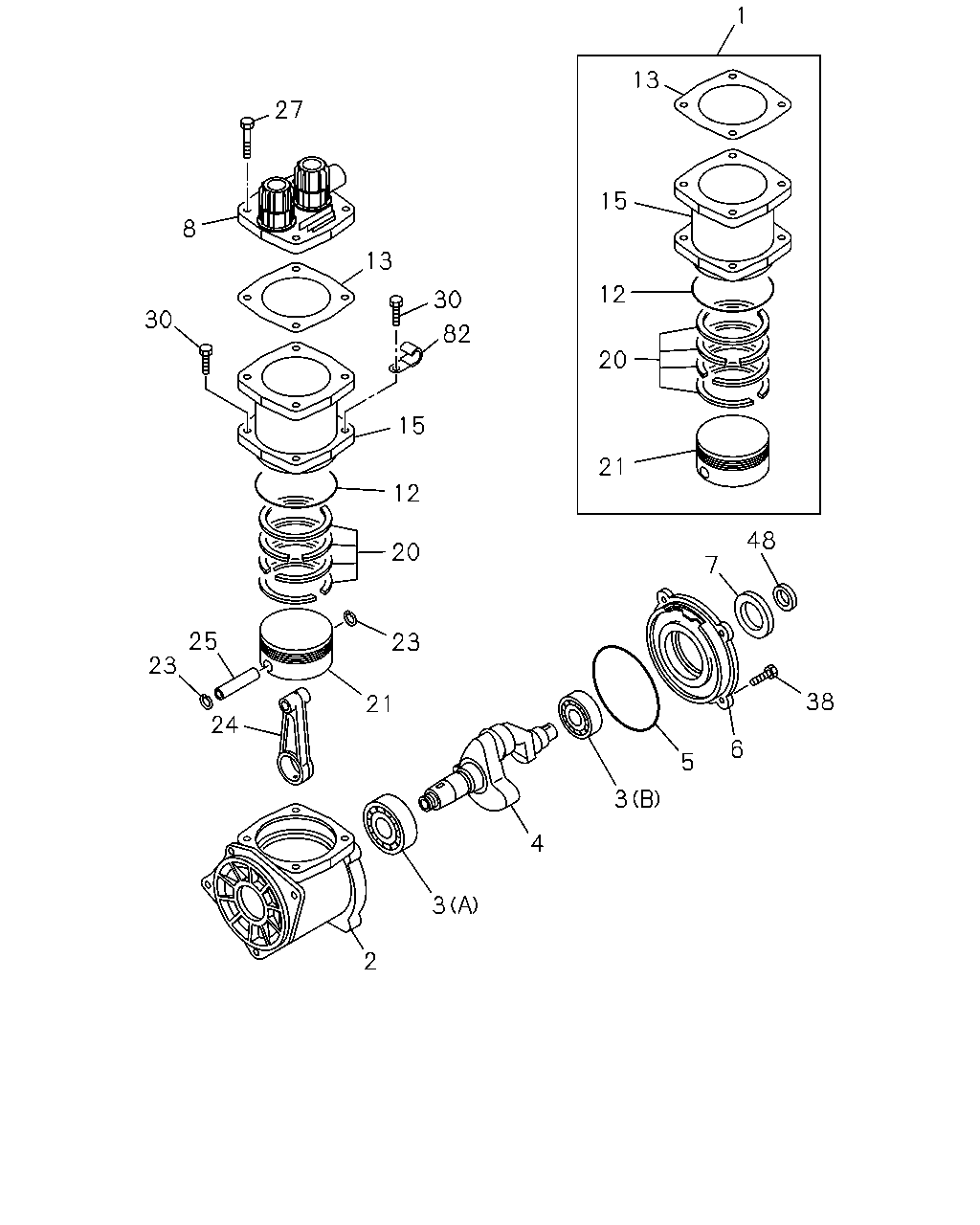

0-39 — AIR COMPRESSOR; BRAKE
(#18620) — 25 parça
1
13
27
15
8
13
12
30
30
82
20
15
21
12
48
20
7
25
23
23
38
21
24
6
5
3
4
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINER KIT; CYL,AIR CMPR
1-19163-063-0
01
1
0403-
2
CRANKCASE; AIR CMPR
1-19151-282-2
01
1
0403-
3
BEARING; AIR CMPR
(A)
1-19177-009-0
01
1
0403-
3
BEARING; AIR CMPR
(B)
1-19177-010-0
01
1
0403-
4
CRANKSHAFT; AIR CMPR
1-19171-077-0
01
1
0403-
5
GASKET; AIR CMPR
1-09623-627-0
01
1
0403-1107
5
GASKET; AIR CMPR
8-98192-464-0
01
1
1108-
6
COVER ASM; BRG,AIR CMPR
1-19156-075-1
01
1
0403-
7
SEAL; OIL,BRG COVER,AIR CMPR
1-09625-534-0
01
1
0403-
8
HEAD ASM; CYL,AIR CMPR
1-19110-019-0
01
1
0403-
12
GASKET; AIR CMPR
1-09623-539-0
01
1
0403-1107
12
GASKET; AIR CMPR
8-98185-684-0
01
1
1108-
13
GASKET; AIR CMPR
8-98113-036-0
01
1
0403-
15
CYLINDER; AIR CMPR
1-19151-285-0
01
1
0403-
20
RING KIT; PISTON,AIR CMPR
1-19163-043-0
01
1
0403-
21
PISTON; AIR CMPR
1-19161-021-0
01
1
0403-
23
RING; SNAP,PISTON,AIR CMPR
9-19168-003-0
02
1
0403-1107
23
RING; SNAP,PISTON,AIR CMPR
1-19169-004-0
02
1
1108-
24
ROD ASM; CONN,AIR CMPR
1-19173-020-0
01
1
0403-
25
PIN; PISTON,AIR CMPR
9-19167-006-0
01
1
0403-
27
BOLT; HD
1-19119-031-0
04
1
0403-
30
BOLT; CYL TO CRANKCASE
M10X25
9-01911-025-0
04
1
0403-
38
BOLT; COVER FIX
1-09100-018-0
02
1
0403-
48
SLEEVE; CR/SHF
1-19179-024-0
01
1
0403-
82
CLIP; AIR COMPRESSOR
1-19159-017-0
01
1
0403-
